Vestel Evc04-ac7 User manual

ELECTRIC VEHICLE CHARGER

Installation Guideline

Telepítési útmutató

Contents

SAFETY INFORMATION......................................................................................................................2

SAFETY WARNINGS...........................................................................................................................2

GROUND CONNECTION WARNINGS...................................................................................................3

POWER CABLES, PLUGS and CHARGING CABLE WARNINGS...........................................................3

WALL MOUNTING WARNINGS...........................................................................................................3

DESCRIPTION........................................................................................................................................4

1 - MODEL DESCRIPTION...................................................................................................4

2 - MODEL REFERENCES..................................................................................................4

GENERAL INFORMATION....................................................................................................................5

1 - INTRODUCTION OF THE PRODUCT COMPONENTS....................................................5

2 - DIMENSIONAL DRAWINGS............................................................................................6

3 - ELECTRIC VEHICLE CHARGING STATION EXPLODED PICTURE...................................7

3.1 - CABLE MODELS.........................................................................................7

3.2 - SOCKET MODELS.......................................................................................8

REQUIRED EQUIPMENT, TOOLS and ACCESSORIES..........................................................................9

1 - SUPPLIED INSTALLATION EQUIPMENT and ACCESSORIES........................................9

2 - RECOMMENDED TOOLS..................................................................................................9

TECHNICAL SPECIFICATIONS............................................................................................................10

AUTHORIZATION................................................................................................................................10

MECHANIC SPECIFICATIONS..............................................................................................................11

ENVIRONMENTAL TECHNICAL SPECIFICATIONS...............................................................................11

INSTALLING CHARGE STATION..........................................................................................................12

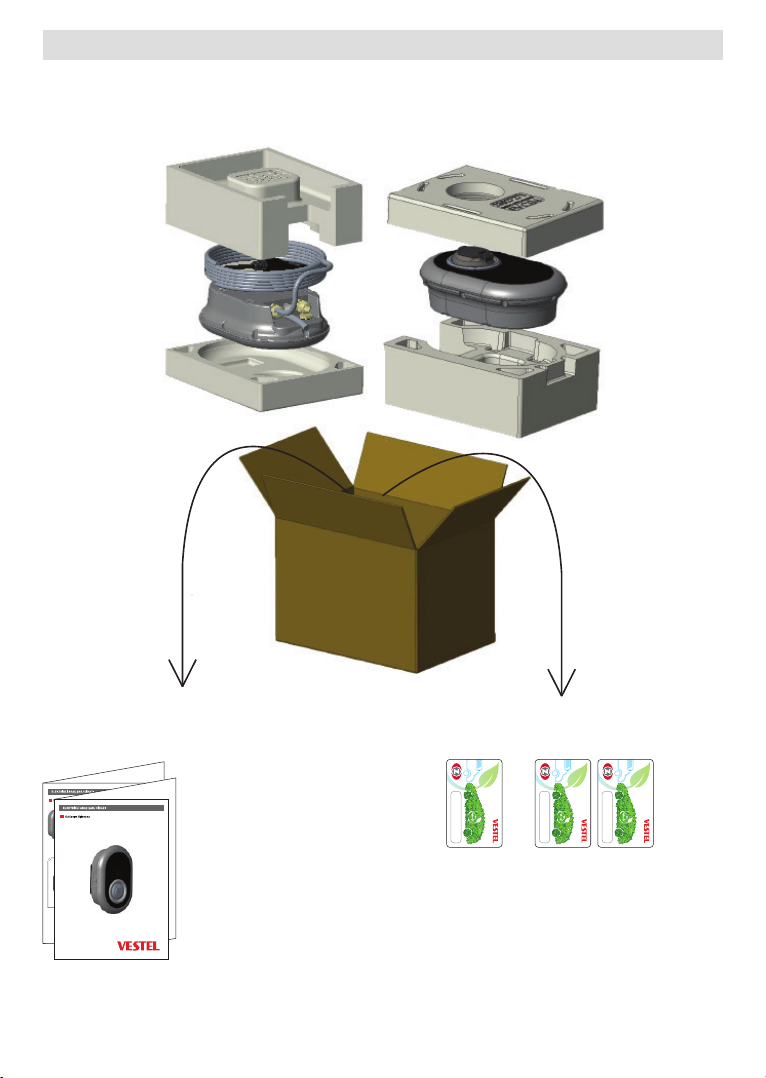

1 - BOX CONTENTS FOR CHARGING STATION WITH SOCKET AND CABLE.......................12

2 - PRODUCT INSTALLATION STEPS..............................................................................13

2.1 OPENING THE COVER OF THE CHARGING STATION.................................13

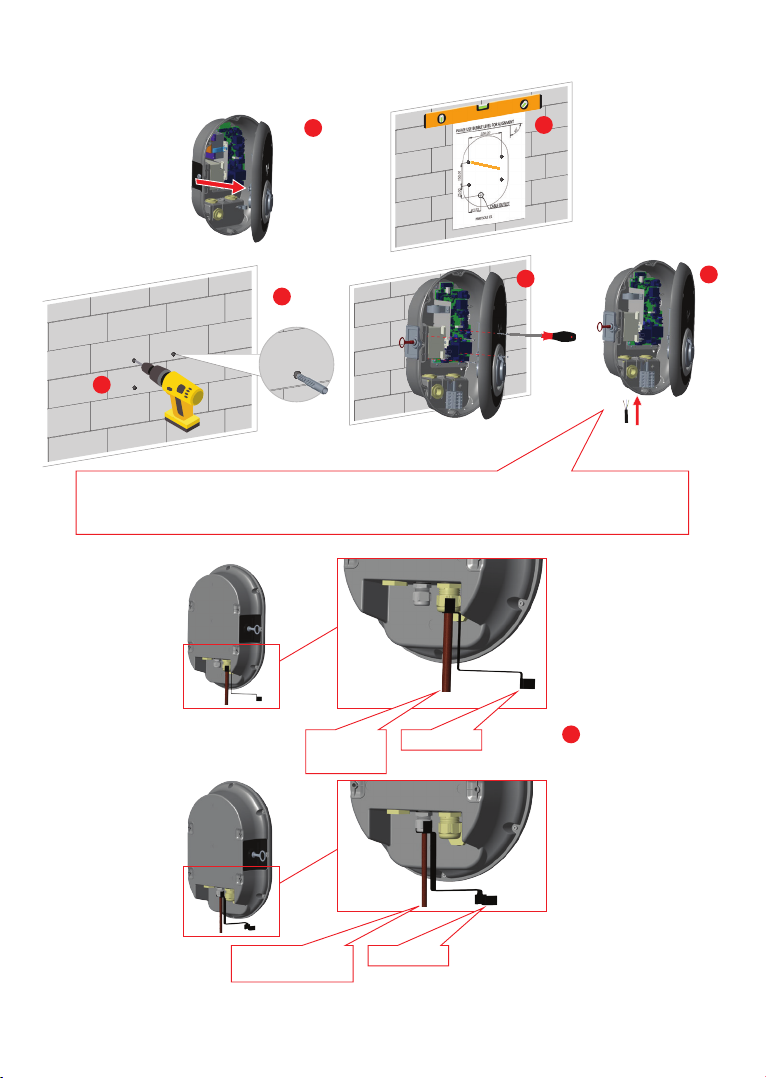

2.2 - WALL MOUNT INSTALLATION...................................................................14

2.3- SINGLE PHASE CHARGING STATION AC MAINS CONNECTION.............16

2.4- THREE PHASE CHARGING STATION AC MAINS CONNECTION.................17

2.5 - ADJUSTING CURRENT LIMITER..............................................................18

2.6 - DIP SWITCH SETTINGS...........................................................................18

2.6.1 - DATA CABLE CONNECTION....................................................20

2.6.2 - EXTERNAL ENABLE INPUT FUNCTIONALITY.......................21

2.6.3 - LOCKED CABLE FUNCTION (Model with Socket).................23

2.6.4 - POWER OPTIMIZER (REQUIRES OPTIONAL

ACCESSORIES)...................................................................24

2.7 - MONITORING OF WELDED RELAY CONTACTS FAILURE...........................27

3 - OPEN RCD COVER.......................................................................................................29

SAFETY INFORMATION

CAUTION

RISK OF ELECTRIC SHOCK:

CAUTION: VESTEL ELECTRIC VEHICLE CHARGER DEVICE SHALL BE MOUNTED BY A LICENSED OR

AN EXPERIENCED ELECTRICIAN AS PER ANY REGIONAL OR NATIONAL ELECTRIC REGULATIONS AND

STANDARDS IN EFFECT.

CAUTION

AC mains connection and load planning of the electric vehicle charging device

shall be reviewed and approved by authorities as speciﬁed by the regional

or national electric regulations and standards in effect. For multiple electric

vehicle charger installations the load plan shall be established accordingly. The manufacturer shall

not be held liable directly or indirectly for any reason whatsoever in the event of damages and risks

that are borne of errors due to AC mains supply connection or load planning.

IMPORTANT - Please read these instructions fully before installing or operating

SAFETY WARNINGS

• Keep this manual in a safe place. These safety and operating instructions must be kept in a

safe place for future reference.

• Check that the voltage marked on the rating label and do not use charging station without

appropriate mains voltage.

• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is

damaged in any way - switch off the mains supply circuit breakers (MCB and RCCB). Consult

your local dealer.

• The ambient temperature range should be between –35 °C and +55 °C (–25°C and +50 °C for

RCCB equipped models: EVC04-AC***A-*) without direct sunlight and at a relative humidity

of between 5 % and 95 %. Use the charging station only within these speciﬁed operating

conditions.

• The device location should be selected to avoid excessive heating of the charging station. High

operating temperature caused by direct sunlight or heating sources, may cause reduction of

charging current or temporary interruption of charging process.

• The charging station is intended for outdoor and indoor use. It can also be used in public places.

• To reduce the risk of ﬁre, electric shock or product damage, do not expose this unit to severe

rain, snow, electrical storm or other severe weathers. Moreover, the charging station shall

not be exposed to spilled or splashed liquids.

• Do not touch end terminals, electric vehicle connector and other hazardous live parts of the

charging station with sharp metallic objects.

• Avoid exposure to heat sources and place the unit away from ﬂammable, explosive, harsh, or

combustible materials, chemicals, or vapors.

• Risk of Explosion. This equipment has internal arcing or sparking parts which should not be

exposed to ﬂammable vapors. It should not be located in a recessed area or below ﬂoor level.

• This device is intended only for charging vehicles not requiring ventilation during charging.

• To prevent risk of explosion and electric shock, ensure that the speciﬁed Circuit Breaker and

RCD are connected to building grid.

• The lowest part of the socket-outlet shall be located at a height between 0,5 m and 1,5 m

above ground level.

• Adaptors or conversion adapters are not allowed to be used. Cable extension sets are not

allowed to be used.

WARNING: Never let people (including children) with reduced physical, sensory or men-

tal capabilities or lack of experience and or knowledge use electrical devices unsupervised.

CAUTION: This vehicle charger unit is intended only for charging electric vehicles not

requiring ventilation during charging.

GROUND CONNECTION WARNINGS

• Charging station must be connected to a centrally grounded system. The ground conductor

entering the charging station must be connected to the equipment grounding lug inside the

charger. This should be run with circuit conductors and connected to the equipment grounding

bar or lead on the charging station. Connections to the charging station are the responsibility

of the installer and purchaser.

• To reduce the risk of electrical shock, connect only to properly grounded outlets.

• WARNING : Make sure that during installing and using, the charging station is constantly

and properly grounded.

POWER CABLES, PLUGS and CHARGING CABLE WARNINGS

• Be sure that charging cable is Type 2 socket compatible on charging station side.

• A damaged charging cable can cause ﬁre or give you an electric shock. Do not use this product

if the ﬂexible Charging cable or vehicle cable is frayed, has broken insulation, or shows any

other signs of damage.

• Ensure that the charge cable is well positioned thus; it will not be stepped on, tripped over,

or subjected to damage or stress.

• Do not forcefully pull the charge cable or damage it with sharp objects.

• Never touch the power cable/plug or vehicle cable with wet hands as this could cause a short

circuit or electric shock.

• To avoid a risk of ﬁre or electric shock, do not use this device with an extension cable. If the

mains cable or vehicle cable is damaged it must be replaced by the manufacturer, its service

agent, or similarly qualiﬁed persons in order to avoid a hazard.

WALL MOUNTING WARNINGS

• Read the instructions before mounting your charging station on the wall.

• Do not install the charging station on a ceiling or inclined wall.

• Use the speciﬁed wall mounting screws and other accessories.

• This unit is rated for indoor or outdoor installation. If this unit is mounted outdoors, the

hardware for connecting the conduits to the unit must be rated for outdoor installation and

be installed properly to maintain the proper IP rating on the unit.

DESCRIPTION

1 - MODEL DESCRIPTION

Model Name

MODEL DESCRIPTION: EVC04-AC**-*

EVC04 : Electric Vehicle AC Charger (Mechanical Cabinet04)

1st Asterisk (*) : Rated Power

7 : 7.4kW (1Phase Supply Equipment)

11 : 11kW (3Phase Supply Equipment)

22 : 22kW (3Phase Supply Equipment)

2nd Asterisk (*): 2nd asterisk can include combinations of the following

Blank : No RCCB

A : Charging unit with TypeA RCCB

E : Charging unit with EV / ZE Ready

Compliance

3rd Asterisk (*) : 3rd asterisk can be one the following

Blank : Case-B Connection with normal socket

T2S : Case-B Connection with shuttered socket

T2P : Case C Connection with Type-2 plug

T1P : Case-C Connection with Type-1 plug

T1PUL : Case-C Connection with Type-1 plug (UL Approved)

Cabinet EVC04

Table-1

2 - MODEL REFERENCES

Single

phase

Three

phase

Type 2

socket

output

Shut-

tered

type 2

socket

output

RCCB

Type-A

6mA

RCD

Type-2

Attached

Cable

Type-1

Attached

Cable

EVC04-AC7 x x x

EVC04-AC7A x x x x

EVC04-AC7A-T2P x x x x

EVC04-AC7A-T2S x x x x

EVC04-AC7A-T1P x x x x

EVC04-AC22 x x x

EVC04-AC22A x x x x

EVC04-AC22A-T2P x x x x

EVC04-AC22A-T2S x x x x

Table-2

GENERAL INFORMATION

1 - INTRODUCTION OF THE PRODUCT COMPONENTS

Socket Models Cable Models

7 8

Figure-1

en Socket Models

1- Status indicator LED

2- RFID Card Reader

3- Socket Outlet

4- Access cover for residual

current device

5- Product Label

6- Charging station supply inlet

gland nut

7- Charging station

communication cable gland nut

en Cable Models

1- Status indicator LED

2- Dummy Socket

3- Charging Plug

4- RFID Card Reader

5- Product Label

6- Charging station supply inlet

gland nut

7- Charging station

communication cable gland nut

8- Charging cable

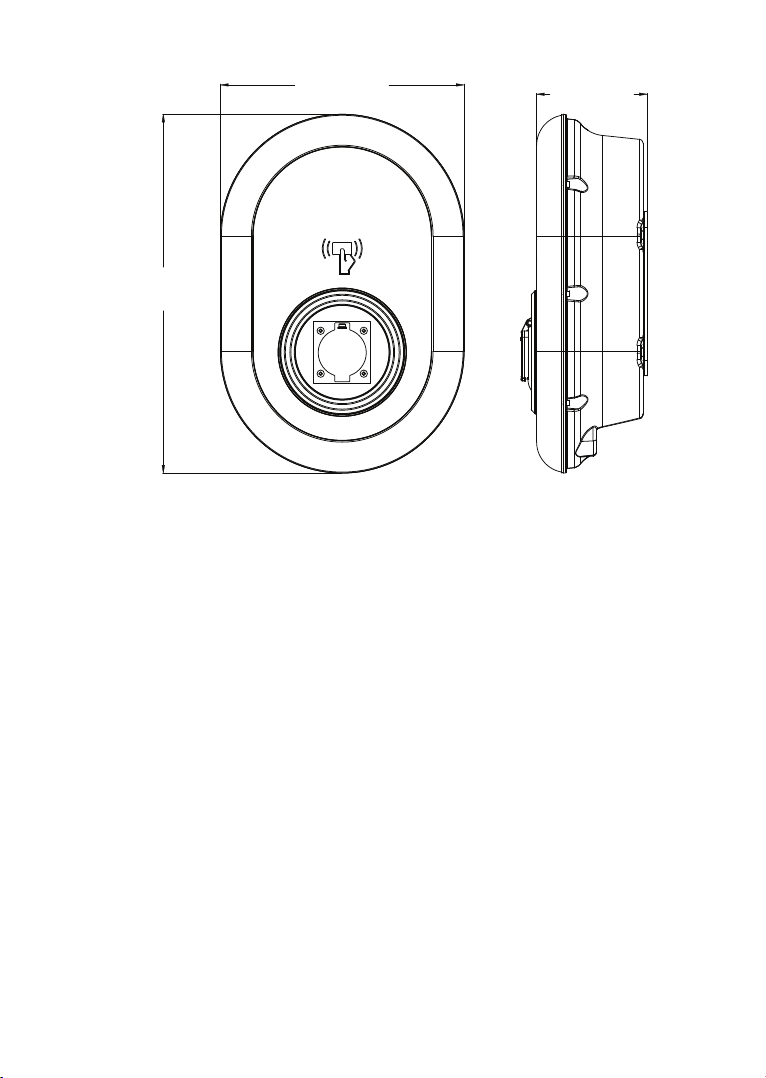

2 - DIMENSIONAL DRAWINGS

315.0mm 135.0mm

460.0mm

Figure-2

3 - ELECTRIC VEHICLE CHARGING STATION EXPLODED PICTURE

3.1 - Cable Models

24568311121410

20 13

22 15

17 18

Figure-3

NO PART DESCRIPTION NUMBER NO PART DESCRIPTION NUMBER

1 Socket 1 14 RCCB Side Cover 1

2Status Information LED

Frame 1 15 RCCB Lock Bolt 1

3 Card Insulation Plate 1 16 Rear Cover 1

4 Cosmetic Label 1 17 Card Mount Metal Plate 1

5 Front Cover 1 18 Card Insulation Plate 1

6 Hinge 1 19 Cable Bush M32x1.5 2

7 Sealing Ring 1 20 Cable Bush M20x1.5 1

8 DC Sensor 1 21 Plastic Blind Flange 1

9 Rail Connection 2 22 Sealing Ring 1

10 Sealing Ring 1

11 RCCB Component 1

12 RCCB Lock Bolt 1

13 Sealing Ring 1

3.2 - Socket Models

Figure-4

NO PART DESCRIPTION NUMBER NO PART DESCRIPTION NUMBER

1 Socket 1 14 Brass Insert 8

2 Sealing Ring 1 15 Plastic Blind Flange 1

3 Cosmetic Label 1 16 Cable Bush M20x1.5 1

4Status Information LED

Frame 1 17 Plastic Blind M32X1.5 1

5 Cosmetic Label 1 18 Plastic Blind Flange 1

6 Front Cover 1 19 RCCB Lock Cylinder 1

7 Hinge 1 20 RCCB Lock Bolt 1

8 Card Mount Metal Plate 1 21 RCCB Side Cover 1

9 Card Insulation Plate 1 22 Rear Cover 1

10 Rail Connection 2

11 RCCB Component 1

12 RCCB Lock Bolt 1

13 Sealing Ring 1

REQUIRED EQUIPMENT, TOOLS and ACCESSORIES

1 - SUPPLIED INSTALLATION EQUIPMENT and ACCESSORIES

Dowels (M8x50 Plastic Dowels)

Torx T25 Security Screw (M6x75)

Torx T20 Security L-Wrench

Wrench*

Triangle Key*

Table-3

2 - RECOMMENDED TOOLS

Drill Bit 8mm Impact Drill Water Level

T25

Volt Indicator Torx T25 Security

Screwdriver Tester

Flathead Screwdriver (Tip

width 2.00-2.5 mm) Pointed Spudger Right Angle Screwdriver Adapter /

Torx T20 Security Bit

Table-4

TECHNICAL SPECIFICATIONS

This product is compliant to IEC61851-1 (Ed3.0) standard for Mode 3 use.

Model EVC04-AC22 Series EVC04-AC11 Series

IEC Protection class Class - I Class - I

Vehicle

Interface

Socket Model Socket TYPE 2 (IEC 62196) Socket TYPE 2 (IEC 62196)

Cable Model 5 m Cable with TYPE 2 ( IEC

62196) Female Plug

5 m Cable with TYPE 2 ( IEC

62196) Female Plug

Voltage and Current Rates 400VAC 50/60 Hz - 3-phase 32A 400VAC 50/60 Hz- 3-phase 16A

AC Maximum Charge Output 22kW 11kW

Idle Power Consumption 3.5W 3.5W

Required Circuit Breaker on

AC Mains

C-Curve. Check “2.5 ADJUSTING

CURRENT LIMITER“ section

table-9 for current limits

C-Curve. Check “2.5 ADJUSTING

CURRENT LIMITER“ section table-9

for current limits

Required RCCB on AC Mains

(for products which are not

equipped with RCCB Type A)

4P -40A - 30mA RCCB Type-A 4P -20A - 30mA RCCB Type-A

Required AC Mains Cable 5x 6 mm² (< 50 m)

External Dimensions: Ø 15-21 mm

5x4 mm² (< 50 m)

External Dimensions: Ø 15-21 mm

Model EVC04-AC7 Series

IEC Protection class Class - I

Vehicle

Interface

Socket Model Socket TYPE 2 (IEC 62196)

Cable Model 5 m Cable with TYPE 2 (IEC 62196) Female Plug

Voltage and Current Rates 230VAC 50/60 Hz - 1-phase 32A

AC Maximum Charge Output 7.4kW

Idle Power Consumption 3.5W

Required Circuit Breaker on

AC Mains

C-Curve. Check “2.5 ADJUSTING CURRENT LIMITER“ section table-9 for

current limits

Required RCCB on AC Mains 2P -40A - 30mA RCCB Type-A

Required AC Mains Cable 3x 6 mm² (< 50 m)

External Dimensions: Ø 11-15 mm

AUTHORIZATION

RFID / NFC Module (Only for supporting

models)

ISO-14443A/B and ISO-15693

NFC (ISO/IEC 18092 – ISO / IEC 21481)

MECHANIC SPECIFICATIONS

Material Plastic

Size

Dimensions (Package)

Weight

AC Mains Cable Dimensions

315 mm (Width) x 460 mm (Height) x 135 mm (Depth)

405 mm (Width) x 530 mm (Height) x 325 mm (Depth)

5 kg for socket model, 8.9kg cable model, with package

For 22 kW version Ø 15-21 mm

For 11 kW version Ø 15-21 mm

For 7.4 kW version Ø 11-15 mm

ENVIRONMENTAL TECHNICAL SPECIFICATIONS

Protection Class Input Protection

Impact Protection

IP54

IK10

Usage Conditions Temperature

Humidity

Altitude

-35 °C to 55 °C (without direct sunlight)

5% - 95% (relative humidity, no dew)

0 - 4,000m

Storage Conditions Temperature

Humidity

Altitude

-40 °C to 80 °C

5% - 95% (relative humidity, no dew)

0 - 5,000m

Table-5

INSTALLING CHARGE STATION

1 - BOX CONTENTS FOR CHARGING STATION WITH SOCKET AND CABLE

Installation and User Guide

EVC02-AC22GR

EVC02-AC11GR

EVC02-AC7GR

Master

User

1 Master + 2 User RFID Card

2 - PRODUCT INSTALLATION STEPS

CAUTION!

• Ensure that ground resistance of the installation less than 100ohms

• Prior to mounting your charging station on the wall, read these instructions.

• Do not mount your charging station to the ceiling or an inclined wall.

• Use the wall mounting screws and other accessories speciﬁed.

• This charging station is classiﬁed as indoor and outdoor installation compatible. If the device

is installed outside the building, the hardware that will be used to connect the cables to the

charger shall be compatible with outdoor use and the charging station shall be mounted

preserving the IP rate of the charger.

2.1 OPENING THE COVER OF THE CHARGING STATION

CAUTION

RISK OF ELECTRIC SHOCK

Please power off the charging station mains supply

1 2

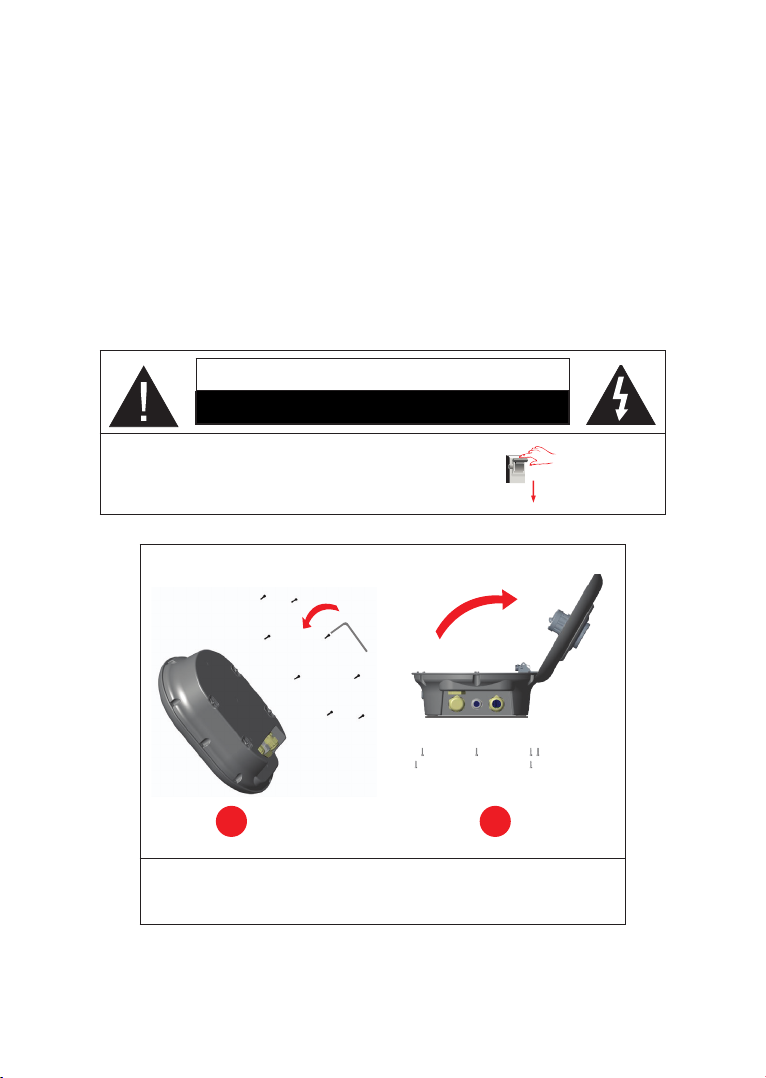

1- Remove the cover screws with Torx T20 security L-Wrench or

Right Angle Screwdriver Adapter using Torx T20 Security Bit.

2- Open the cover.

Figure-4

2.2 - WALL MOUNT INSTALLATION

Figure-5

Before next step (7), Please check the instructions for Single Phase or Three

Phase cable connections in sections 2.3 or 2.4.

AC Mains

Cable

Cable for Power

Optimizer

Wrench

8 9

Figure-6

1- Open the product front cover following the instructions for cover opening under section 5.2.

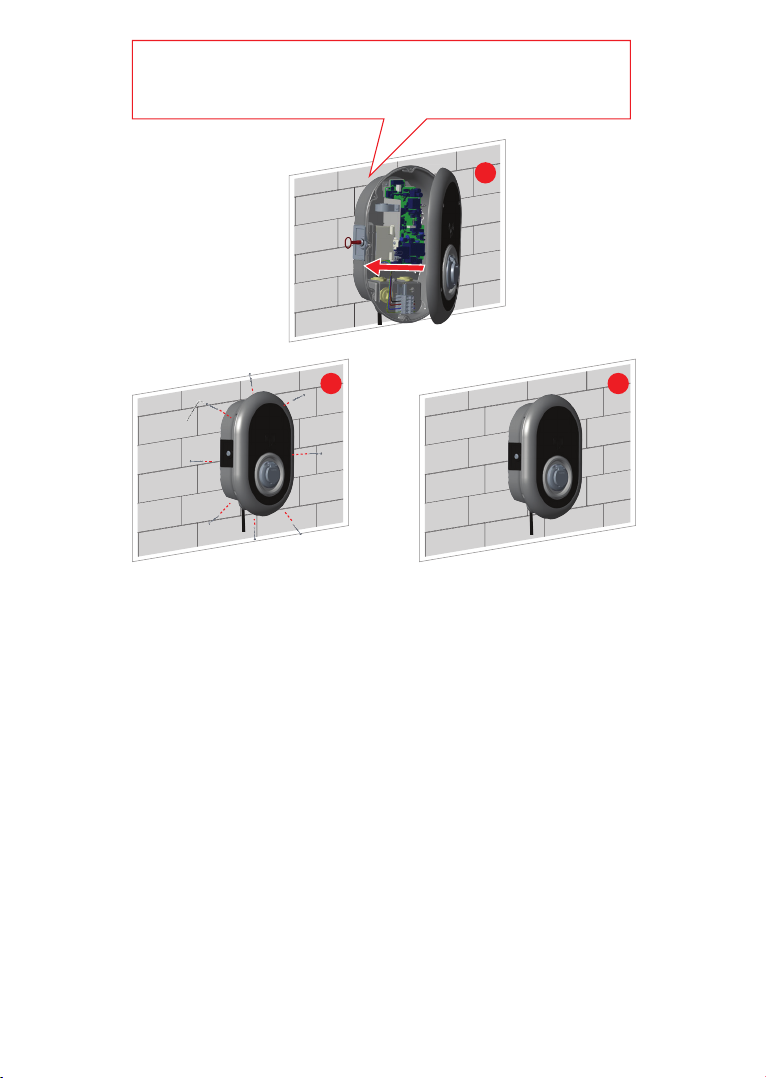

2- Center the charging station using the alignment template, and mark the drill bit holes with a

pencil.

3- Drill the wall on the marked points using the impact drill (8mm drill bit).

4- Place the dowels into the holes.

5- Tighten the security scews (M6x75) of the product using Torx T25 Security Screwdriver.

6- Insert the open lead wires into the charging station through the hole on the lower left. Follow

the AC Mains Connection instructions on the next pages, see section 2.3 or 2.4 depending on the

model of the charger. (Single/Three Phase)

7- Tighten the cable glands as shown in the ﬁgure. Before close the cover of the charging station,

follow instructions in sections 2.6.2, 2.6.3, 2.6.5 and 2.7 if any function related to these sections

(2.6.3, 2.6.5 and 2.7) are used.

8- To close the cover of the charging station, tighten the cover screws that you removed before

with Torx T20 Security L-Wrench or Right Angle Screwdriver Adapter using Torx T20 Security Bit.

9- Mounting the charging station on wall is now ﬁnished.

Before closing the cover of the charging station, check instructions

in sections 2.6.2, 2.6.3, 2.6.5 and 2.7 if any function related to these

sections (2.6.3, 2.6.5 and 2.7) are used.

2.3- SINGLE PHASE CHARGING STATION AC MAINS CONNECTION

Figure-7

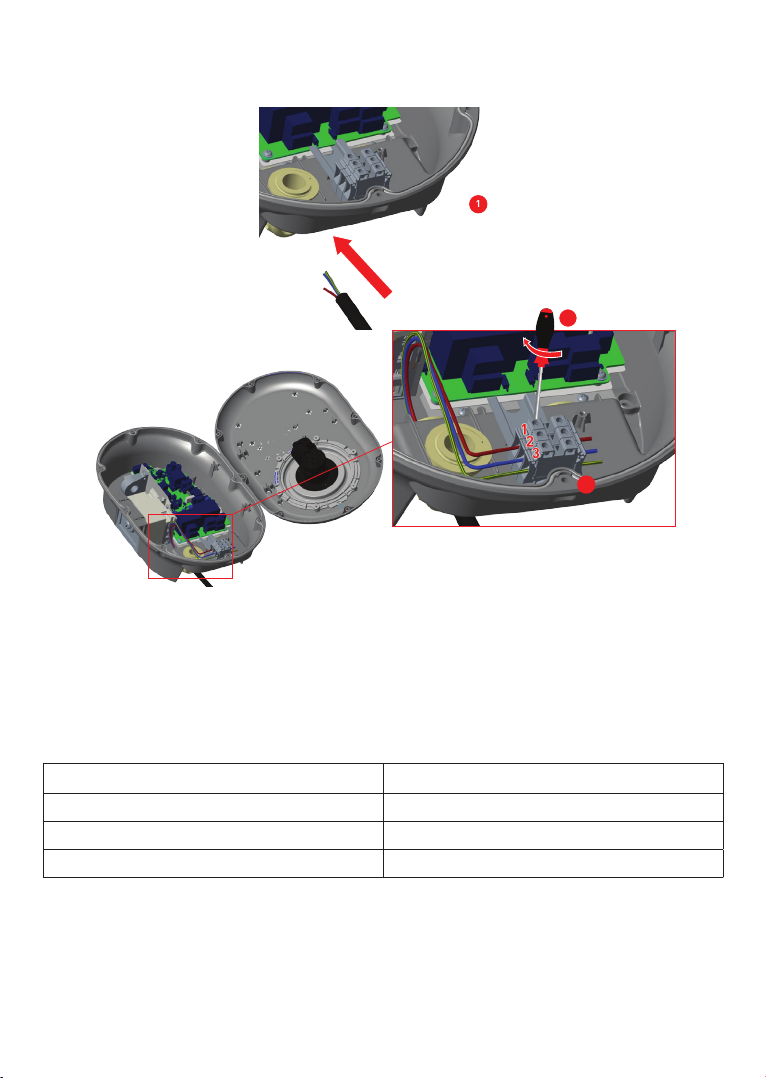

1- Insert the cables to the terminal block as shown in the image. Check the table-6 below to match

Electric Terminal number with AC Cable Color.

2- Tighten the screws on the terminal block as shown in the image with the tightening tourqe of

2.5Nm.

Electric Terminal AC Cable Color

1 AC L1 (Brown)

2 AC Neutral (Blue)

3 Earth (Green-Yellow)

Table-6

2.4- THREE PHASE CHARGING STATION AC MAINS CONNECTION

Figure-8

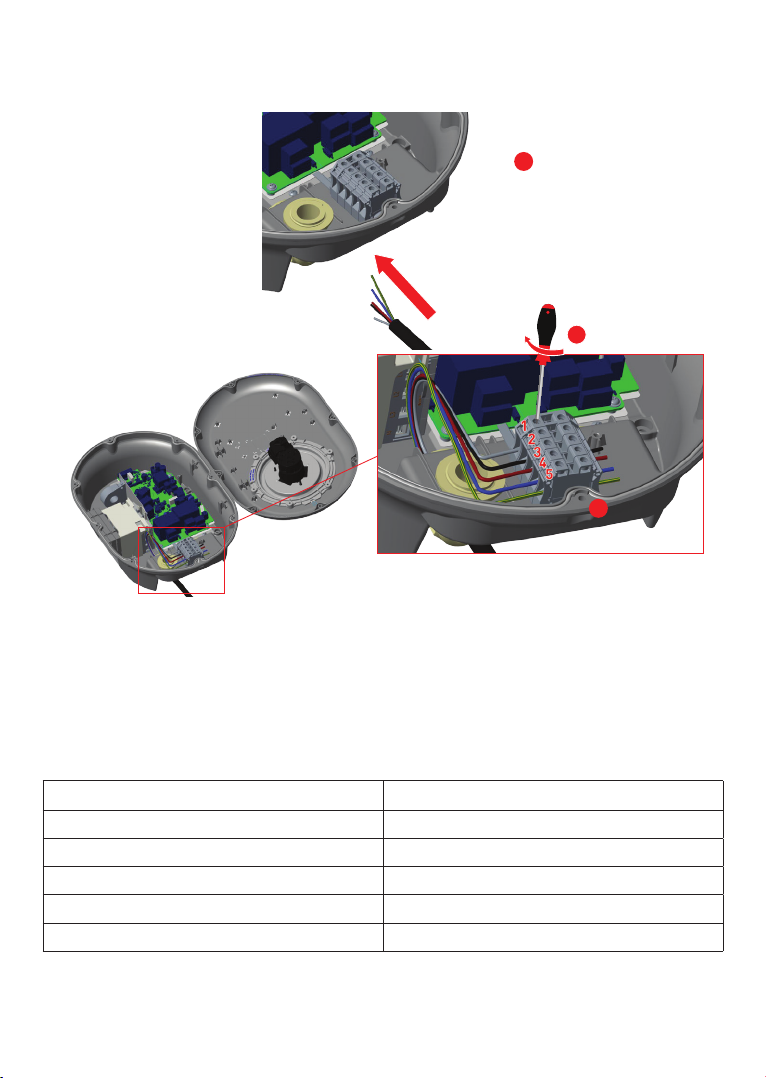

1- Insert the cables to the terminal block as shown in the image.

2- Tighten the screws on the terminal block as shown in the image with the tightening tourqe of

2.5Nm.

Electric Terminal AC Cable Color

1 AC L3 (Grey)

2 AC L2 (Black)

3 AC L1 (Brown)

4 AC Neutral (Blue)

5 Earth (Green-Yellow)

Table-7

2.5 - ADJUSTING CURRENT LIMITER

The arrow in the middle of the rotary switch must be adjusted by gently rotating with a ﬂathead

screwdriver (Tip width 2.00-2.5 mm)to the position of the required current rate. The device current

limiter is set to 16A in production by default.

SW2

Current

Limiter

Position

Current Limit Value

Phase EVC04-

AC22*-*

EVC04-

AC11*-*

EVC04-

AC7*-*

1- Phase

10 A 10 A 10 A

1 13 A 13 A 13 A

2 16 A 16 A 16 A

3 20 A 20 A

4 25 A 25 A

5 30 A 30 A

6 32 A 32 A

3- Phase

10 A 10 A

9 13 A 13 A

A 16 A 16 A

B 20 A

C 25 A

D 30 A

E 32 A

Table-8

Required Circuit Braker on AC Mains

EV Charging Station Current

Limiter Setting C-Curve MCB

10 A 13 A

13 A 16 A

16 A 20 A

20 A 25 A

25 A 32 A

30 A 40 A

32 A 40 A

Table-9

2.6 - DIP SWITCH SETTINGS

23456

Figure-9

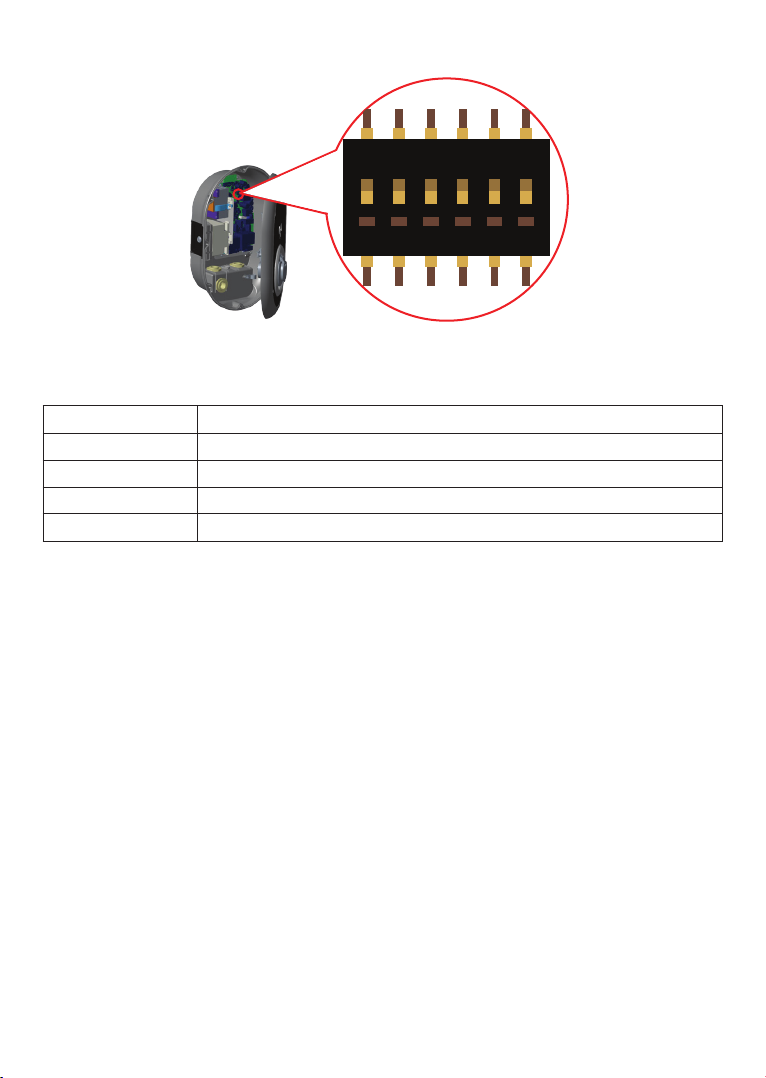

Brief descriptions of the DIP switch pin settings can be found in below table.

Pin Number Description

Pin-1 RFID Master and User Card Reset

Pin-2 External Enable Input Functionality

Pin-3 Locked Cable Function (only for socket models)

Pin-4-5-6 Power Optimizer (Requires Optional Accessories)

Table-10

Other manuals for EVC04-AC7

This manual suits for next models

Table of contents

Languages:

Other VESTEL Batteries Charger manuals

VESTEL

VESTEL EVC04 Series User manual

VESTEL

VESTEL EVC04 Series Instruction sheet

VESTEL

VESTEL EVC04 Series User manual

VESTEL

VESTEL EVC04 Series Instruction sheet

VESTEL

VESTEL EVC04 Series User manual

VESTEL

VESTEL EVC02-AC22 Series User manual

VESTEL

VESTEL EVC04-AC Series User manual

VESTEL

VESTEL EVC03 Series User manual

VESTEL

VESTEL EVC03 Series Instruction sheet

VESTEL

VESTEL EVC04 Series User manual

Popular Batteries Charger manuals by other brands

Carel

Carel EVBAT00400 manual

Nikon

Nikon MH-19 instruction manual

Monacor

Monacor JTS TG-10CH2 manual

IKEA

IKEA BETTORP manual

ToughTested

ToughTested TT-PBLL26 user manual

Fullwat

Fullwat FUM - 1205CBP user manual

Orbegozo

Orbegozo EN 1100 instruction manual

Vertiv

Vertiv DELTA 600 Installation and user guide

PRACHT

PRACHT NRG1010 manual

PowerTraveller

PowerTraveller POWERMONKEY EXPLORER instructions

Applied Energy Solutions

Applied Energy Solutions Maverick Installation and operating instructions

WilTec

WilTec Class 430 Operation instructions

GRAUPNER

GRAUPNER ULTRAMAT 18 operating manual

Deltran

Deltran Battery Tender manual

Hitachi

Hitachi UC 18YFL Safety and instruction manual

ABSINA

ABSINA WALLBOX operating manual

AddEnergie

AddEnergie FLO SmartDC installation guide

Bosch

Bosch GAA18V-24 Original instructions

VESTEL EVC04-AC7 User manual

Popular Batteries Charger manuals by other brands
