VEVOR GB-GO16A-R User manual

Technical Support and E-Warranty Certificate www.vevor.com/support

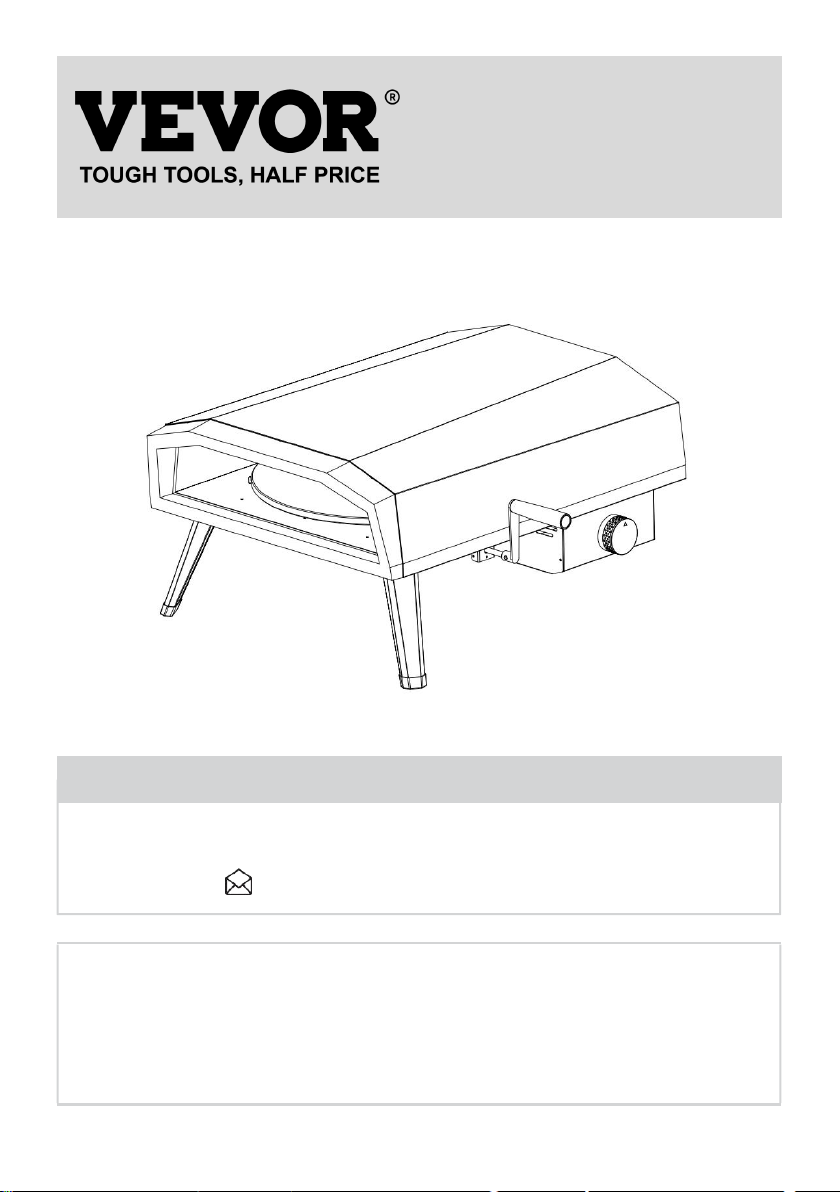

16 INCH PIZZA OVEN
INSTRUCTION MANUAL
MODEL: GB-GO16A-R
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

- 1 -
MODEL: IMN1000-UL
GB-GO16A-R
Have product questions? Need technical support? Please feel free to
contact us:
[e-mail]
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
16 INCH PIZZA OVEN

- 2 -
CSA-EN
WARNINGS
WARNING
To reduce the risk of fire, burn hazard or other injury, read this safety manual
carefully and completely before using this appliance.
WARNING
Before cleaning, make sure the gas supply and control knob is in the OFF position
and that the burner and oven has cooled.
DANGER
Never operate this appliance unattended. If a fire should occur, keep away from
the appliance and immediately call your fire department. Do not attempt to
extinguish an oil or a grease fire with water.
DANGER
If you smell gas:
• Shut off gas from the appliance
• Extinguish any open flame
• If odor continues, keep away from the appliance and immediately call your gas
supplier or your fire department.
Failure to follow these instructions could result in fire, explosion or burn hazard
which could cause property damage, personal injury or death.
WARNING
FOR OUTDOOR USE ONLY.

- 3 -
WARNING
a.Keep the fuel supply hose away from any heated surface(s).
b.The use of alcohol, prescription or non-prescription drugs may impair the
consumer’s ability to properly assemble or safely operate the appliance.
c.Keep children and pets away from the appliance at all times.
d.Do not move the appliance when in use.
e.This appliance is not intended for and should never be used as a heater.
WARNING
Spiders and insects can nest inside the burner of the appliance and disrupt gas
flow. Inspect the burner at least once a year.
WARNING
When using a match to light the appliance, make sure to use the included
matchstick holder.
WARNING
Do not store this appliance indoors unless the gas cylinder is disconnected.
WARNING
Do not store gas cylinder in a building, garage or any other enclosed area and
keep out of reach of children at all times.
WARNING
This appliance is not intended to be installed in or on recreational vehicles and/or
boats.

- 4 -
WARNING
Before each use, check all air supply connections for leaks. Do not use the
appliance until all connections have been checked and there are no leaks.
WARNING
Do not smoke while leak testing. Neve use an open flame for the leak test.
WARNING
When lighting, keep your face and hands as far away from the appliance as
possible.
WARNING
Minimum clearance from sides of unit to combustible construction is 914mm (36
inches).
WARNING
This instruction manual contains important information required for the proper
assembly and safe use of the appliance. Read and follow all warnings and
instructions before assembling and using the appliance. Follow all warnings and
instructions when using the appliance.
Keep this manual for future reference.
WARNING
This manual states that an oven, fryer or broiler shall not be used on or under any
apartment or condominium balcony or deck.
WARNING

- 5 -
This appliance is not intended to be installed in or on a boat. This appliance is not
intended to be installed in or on a recreational vehicle.
WARNING
Keep the fuel supply hose away from any heated surface(s).
WARNING
This manual contains instructions for cleaning and inspecting the hoses before
each use of the appliance. If there is evidence of abrasion, wear, cuts, or leaks, the
hose must be replaced prior to the appliance being put into operation. The
replacement hose assembly shall be that specified by the manufacturer.
WARNING
This appliance shall be used only outdoors, and shall not be used in a building,
garage, or any other enclosed area.
WARNING
This manual includes a list of required parts necessary for the safe operation of the
appliance, directions for proper assembly and for assembly of installed parts and
accessories supplied with the appliance, and proper procedures for gas leak
testing.
WARNING
The appliance should not be located or used under overhead unprotected
flammable building materials or surfaces. For grills, fryers or griddles, the minimum
clearance to any structure or combustible material should be at least 10 feet (3
metres).

- 6 -
NOMINAL HOURLY GAS CONSUMPTION
Gas Typ
GB-GO16A - R Outdoor Use Gas Grill
eNumber of
Burners
Injector Size
Main Burner
Total Gas
Consumption BTU
Gas Pressure
KPa
Propane 1 2.70.93 19000 4
MANUFACTURER
Guangdong Sheng Bao Industrial Co.,Ltd
Unit 601,602,603,Building 27,Shunde Zhifu garden, No.8, 2nd Ring Road, Gaozan
village, Xingtan town, Shunde District Foshan, Guangdong 528325 China
BEFORE LIGHTING
Inspect the gas supply hose prior to turning on the gas. If there is evidence of cut,
wear or abrasion, it must be replaced prior to use. Screw the regulator onto the
gas cylinder. Check the hose and regulator connections for leaks with a soap and
water solution before igniting the appliance.
LP GAS CYLINDER WARNING
1.Do not store spare liquid propane gas cylinder under or near this appliance.
2.Never fill the cylinder beyond 80 percent capacity.
3.Liquid propane cylinder must be fitted with an OVERFILL PROTECTION
DEVICE (OPD).
4. If the above information is not strictly adhered to, a fire may occur resulting in
death or serious injury.
5.This manual states that the installation must conform to local codes or, in the
absence of local codes, to the National Fuel Gas Code, ANSI Z223.1/NFPA 54,

- 7 -
Storage and Handling of Liquefied Petroleum Gases, ANSI/NFPA 58; or Natural
Gas and Propane Installation Code, CSA B149.1; Propane Storage and Handling,
CSA B149.2.
SAFETY PRACTICES TO AVOID INJURY
When properly cared for, your oven will provide safe, reliable service for many
years. However, extra care must be taken as the heat generated by the oven can
increase the risk of accidents.
When using this oven basic practices must be followed, including but not
limited to following:
•Do not repair or replace any part of the oven unless specifically recommended in
this manual. All other service should be referred to a qualified technician.
•Children should not be left alone or unattended in an area where the oven is
being used. Do not allow children to sit, stand or play around the oven at any time.
•Never let clothing or other flammables come in contact with or too close to any
burner or hot surface until it has cooled. Fabrics can catch fire and cause serious
personal injury.
•For personal safety, wear proper apparel. Loose fittings garments or sleeves
should never be worn while using the oven. Some synthetic fabrics are highly
flammable and should not be worn while cooking.
•Do not heat unopened food containers as a build-up of pressure may cause the
containers to burst. When lighting the burner, always pay close attention to what
you are doing.
•When using the oven, do not touch the outer shell, stone baking board or
immediate surroundings as these areas become extremely hot and could cause
burns.
•Do not use the oven to cook extremely fatty meats or other products which
increase flare-up.
•Keep the area surroundings the oven free from combustible material including
fluids, trash and vapours such as gasoline or charcoal lighter fluid.
•Do not obstruct the flow of combustion and ventilation air.
•Never use the oven in extremely windy conditions

- 8 -
Avoid bumping of or impact with the appliance.
LPG cylinders used must be manufactured and marked in accordance with the
specifications for LP gas cylinders,U.S.Department of Transportation (DOT)or the
Standard for Cylinders,Spheres and Tubes for the Transportation of Dangerous
Goods,CAN/CSA-B339
•The temperature under the oven is high. Do not place the oven on a table with
flammable table clothes, plastic or any other inflammable materials.
Guangdong Sheng Bao Industrial Co.,Ltd
Unit 601,602,603,Building 27,Shunde Zhifu garden, No.8, 2nd Ring Road, Gaozan
village, Xingtan town,
Shunde District Foshan, Guangdong 528325 China
The appliance is not intended for commercial us
1. In the event of an oil or grease fire, do not attempt to extinguish the fire with
water. Call the fire service immediately. In some cases, type BC or ABC
extinguishers may suppress the fire.
2. If it rains, snows, hails, sleet or other forms of precipitation, turn off the
appliance burner and gas supply. Do not attempt to move the appliance or cooking
vessel.
3. When cooking, the appliance fryer or boiler must be located on a horizontal,
stable, non-combustible surface and free from combustible materials. For this
reason, asphalt surfaces (tarred surfaces) may not be acceptable.
Do not move the appliance when in use. Allow the cooking vessel to cool to 115°
F(45℃) before moving or storing.
This appliance will be hot during and after use. Use insulated oven mitts or gloves
for protection from hot surfaces or splatter from cooking liquids.
;
Cylinders must be stored outdoors out of the reach of children and shall not be
stored in a building,garage, or any other enclosed area;
the pressure regulator and hose assembly supplied with the appliance must be
used. Replacement pressure regulators and hose assemblies shall be those

- 9 -
specified by the appliance manufacturer;
the cylinder supply system must be arranged for vapor withdrawal;
xii）a statement:
1.do not store a spare LP gas cylinder under or near this appliance;
2.never fill the cylinder beyond 80 percent full;and
3.if the instructions in(b)(xii)(1)and(b)(xii)(2)are not followed exactly, a fire causing
death or serious injury may occur.
"Install dust caps on the cylinder valve outlet when the cylinder is not in use. Install
only the type of dust cap on the cylinder valve outlet of the cylinder valve. Other
types of dust caps or plugs may cause propane to leak."
PARTS LIST
ASSEMBLY
Before assembly, make sure all parts are present. If any part is missing or

- 10 -
damaged, do not attempt to assemble the appliance. Contact customer service for
replacement parts.
1.Insert the stone baking board.
2.Unfold legs.
3.Install the handle of rotating base.
4.Gas hose has been preinstalled.

- 11 -

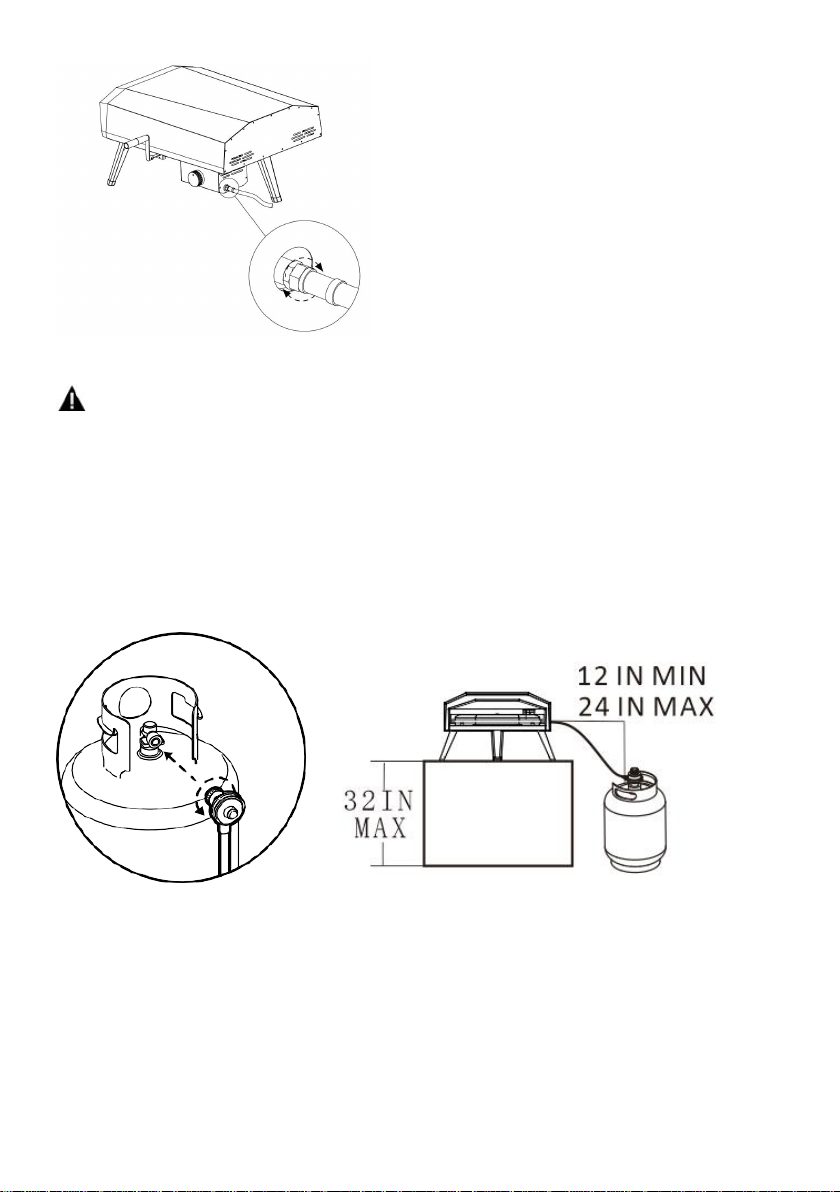

5.Connecting to gas tank.
WARNING
•Please always keep the gas bottle in upright position.
•The 20 lb LPG cylinder measures 12.2 inches in diameter and 17.9 inches high.
•If the appliance is not in use, the gas must be turned off at the supply cylinder.
•The cylinder used must include a collar to protect the cylinder valve.
•The minimum distance for the appliance and the 20lb gas tank is 40 inches
apart.
Xd01 GAS REGULATOR
This gas fitting is clockwise. Make sure that the tank is completely switched off and
screw the regulator as far as possible into the gas tank valve.
CONNECTING THE LIQUID PROPANE GAS CYLINDER
1.To connect the liquid propane gas cylinder:

- 12 -
2.The cylinder valve should be in OFF position.
3.Make sure the burner valve is in OFF position.
4.Inspect the valve connections, port and regulator assembly. Remove debris and
inspect the hose for damage.
5.When connecting the regulator assembly to the valve, tighten the nut clockwise
by hand until it stops.
Use of a wrench could damage the quick coupling nut and result in a hazardous
situation.
6.Open the cylinder valve fully by turning the valve counterclockwise.
7.Before lighting the oven, use a soap and water solution to check all connections
for leaks.
8.If a leak is found, turn the cylinder valve OFF, and do not use the oven until local
liquid propane dealer can make repairs.
CONNECTING THE LIQUID PROPANE GAS CYLINDER
1.Turn the oven burner valve OFF and make sure the oven is cool.
2.Turn the liquid propane cylinder valve OFF by turning clockwise until it stops.
3.Detach the regulator assembly from the cylinder valve by turning the quick
coupling nut counterclockwise.
4.Place dust cap for cylinder valve outlet whenever the cylinder is not in use.
LEAK TESTING
GENERAL
Although the gas connections of the appliance are leak tested prior to packing and
shipment, a complete test must be performed at the installation site.
Before each use, check all the gas connections for leak testing using the
procedure listed below. If the smell of gas is detected at any time, you should
immediately stop using and check the entire system for leaks.
BEFORE TESTING
Make sure all packing material has been removed from the appliance.
Make a solution of one part liquid detergent and one part water. You will need a

- 13 -
spray bottle, brush or rag to apply the solution to the fittings.
TO TEST
1.Turn the burner valve OFF.
2.Turn the liquid propane cylinder valve on counterclockwise to open the valve.
3.Apply the soap solution to all gas fittings. Soap bubbles would appear where a
leak is present.
4.If a leak is present, immediately turn the gas supply OFF and tighten leaky
fittings.
5.Turn the gas back ON and recheck.
6.Should the gas continue to leak from any of the fittings, turn the gas supply OFF
and contact customer service.
OPERATING INSTRUCTIONS
LIGHTING INSTRUCTION
TO LIGHT THE BURNER
1.Make sure the control knob is in OFF position, and then turn the liquid propane
cylinder valve ON by slowly turning counterclockwise.
2.Push in and slowly turn the control knob anticlockwise until you hear a click and
the burner ignites.
3.If burner doesn't light, turn the knob OFF, wait 5 minutes and repeat the lighting
USING THE OVEN
Each burner is rated at 19 0 0 0 BTU/Hr.
To begin:
1.Make sure the oven has been leak tested and properly placed.
2.Remove any remaining packing material.
3.Light the burner using the LIGHTING INSTRUCTIONS below.
.

- 14 -
TO LIGHT WITH A MATCH
1.If burner will not light after several attempts using the control knob, the burner
may be lit with a match.
2.If you have already attempted to light the burner using the control knob, wait 5
minutes for any gas to dissipate.
3 Insert a match into the matchstick holder, ignite the match and insert through the
oven opening to the burner.
4.Push and turn the control knob to HI slowly, the burner should ignite immediately.
5.If the burner does not light within seconds, turn the control knob OFF and wait 5
minutes and try again.
CARE AND MAINTENANCE
STONE BAKING BOARD
1.DO NOT use the stone over an open flame
When storing GB-GO16A-R, avoid direct sunlight if possible and store indoors for
long-term storage. GB-GO16A - R
should not be exposed to harsh weather conditionssuch as snow,
heavy rain and strong winds.
Wait for GB-GO16A-Rto cool completely before moving.
The outer shell of GB-GO16A may fade over time and through use. This will not
affect performance.
.

- 15 -
2.Avoid extreme temperature change to the stone. DO NOT place frozen foods on
a hot stone.
3.The stone is fragile and can break if bumped or dropped.
4.The stone is very hot during use and stays hot for a long time after use.
5.DO NOT cool the stone with water when the stone is hot.
6.After cleaning the stone with water, please dry the stone before use. This can be
done in a conventional oven at 60°C (140°F) for 2 hours.
Problem
Possible Cause
Prevention/Solution
Burner will
not light
1.No gas flow.
2.Coupling nut and
regulator not fully
connected.
3.Obstruction of gas
flow.
4.Disengagement of
burner to valve.
5.Incorrect assembly.
1.Check to see if propane tank
is empty.
2.Turn the coupling nut about
one- half to three quarters
additional turn until solid stop.
Tighten by hand only - do not
use tools.
3.Clear burner tube.
4.Reengage burner and valve.
5.Check steps in assembly
instructions.
Sudden
drop in gas
flow or low
flame
1. Out of gas.
1.Check for gas in propane tank.
2.Turn off gas control knob, wait 30
seconds and light oven. If flames
are still low, turn off gas control
knob and propane tank valve.
Disconnect regulator. Reconnect
regulator and leak test. Turn on
propane tank valve, wait 30
seconds and then light oven.

- 16 -
Flames blow
out
1.High or gusting
winds.
2.Low on propane gas.
1.Turn front of oven away from wind.
2.Refill propane tank.
3.Refer to sudden drop in gas flow
above.
Flare-up
1.Grease build up.
2.Excessive fat in
meat.
3.Excessive cooking
temperature.
4.Excess flour on the
cooking surface.
1.Clean oven.
2.Trim fats from meat before
cooking.
3.Adjust (lower) temperature
accordingly.
4.Brush remnant flour from
cooking surface.
Flashback
(fire in
burner
tube,
roaring
sound from
burner)
1.Burner and/or
burner tubes are
blocked.
2.Pressure drop
during ingition.
1.Turn gas control knob off.
Clean burner and/or burner
tubes.
2.Turn off oven, ensure the tank
valve is fully open (if applicable)
and relight.
Made In China

Technical Support and E-Warranty Certificate
www.vevor.com/support
