ELECTRIC PIZZA OVEN
USER’S MANUAL
Model：ZH-PT-21M/ZH-1M/ZH-3M
/ZH-PT-1D/ZH-PT-1M
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

- 1 -
Have product questions? Need technical support? Please feel free to
contact us:
[e-mail]
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
ELECTRIC PIZZA OVEN

- 2 -
INSTRUCTIONS
Welcome to purchase and use our electric pizza oven!
Give full play to the performance of this product, to reduce unnecessary
losses and injuries, read the instructions carefully before use and retain for
future reference.
This series of products is to absorb foreign and domestic benefits of the
product of the same type of design is made, fashionable and vivid color,
reasonable structure, convenient operation, fast heat up, good insulation
properties, energy-saving advantages. This product series includes baked
pizza, uniform color, crisp and delicious, and excellent flavor.
1. ZH-1M,ZH-3M,ZH-PT-1M,ZH-PT-21M:Baking instructions:Open the
power switch, adjust the thermostat knob to the desired temperature, then
adjust timer(must adjust thermostat and timer, then machine will start
heating);
2. ZH-PT-1D:Baking instructions:After 3-5 minutes of baking, please open
the drawer to check the baking status of the food and confirm if it is ready
for consumption. If it is not yet cooked, you can continue to put it in for
baking(Baking time needs to be controlled by oneself)
3.When the temperature reaches the set temperature, you can start to
bake the Roast; When finishing the grilled pizza, turn off the power switch
and open the door to remove the pizza.
WARNING!
Read all safety warnings, instructions, illustrations and
specifications provided with this electric pizza oven. Failure to follow
all instructions listed below may result in electric shock, fire and/or
serious injury.
1. This product is a commercial machine by trained personnel.
2. This product can not be demolished or modified, or tilt the installation.
3. Demolition and conversion of this product will cause serious accidents
have occurred.

- 3 -
4. To protect against risk of electric shock, do not immerse the cord, plug
or cooking unit in water or any other liquid. When cleaning, cut off the
power, do not direct spray water to the product. Water conductivity, the
product may cause an electric shock due to leakage. Do not pat the
product or place heavy objects on the product, normal operation can cause
equipment damage and danger.
5. In the course of their work, front and rear, due to the high-temperature
relationship, do not make direct contact with the body inside and door by
hand.
6. Prohibit the use of the product labeling other than the power supply
power. Prohibit the use of a power supply that does not meet safety
standards. FOR HOUSEHOLD USE ONLY
7. Keep the appliance and its cord out of reach of children less than 8
years. Close supervision is necessary when any appliance is used by or
near children.
8. This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children unless they are older
than 8 and supervised.
9. TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, ONLY
AUTHORIZED PERSONNEL SHOULD DO REPAIRS. Any modification,
improper installation, adjustment, repair, or maintenance may result in
property damage or personal injury. For adjustment or repair, you should
contact the supplier by trained professionals.
10. For your safety, please do not store or use flammable or explosive
gases, liquids or articles in the vicinity of this product.
11. GROUNDED PLUG：To reduce the risk of electric shock this
appliance has a grounded plug . If the plug does not fit fully into the
12. electrical outlet contact a qualified electrician. Do not modify the plug
in any way or use an adaptor.

- 4 -
13. To reduce the risk of burns,electrocution,fire or injury to persons!
a) Do not disassemble the unit except for the authorized serviceman.
b) Unplug the unit before filling it. Do not exceed the MAX mark.
c) Do not touch the socket with wet hand to reduce the risk of
electrocution.
Attention!
1. Occurrence of thunder and lightning, disconnect the power as soon as
possible to avoid lightning damage. Prohibit the use of complex, sharp
objects to damage the body surface and the control panel. After use,
disconnect the power. A qualified professional engineering staff must
carry out circuit installation and maintenance.
2. If the power cord is damaged, it will be replaced by the manufacturer,
the maintenance department, or similarly qualified persons to avoid
danger.
SAVE THESE INSTRUCTIONS
PRODUCTS SPECIFICATIONS
Name
Electric
pizza
oven
(ZH-3M)
Electric
pizza oven
(ZH-1M)
Electric
pizza
oven(ZH-
PT-21M)
Electric
pizza
oven
(ZH-PT-1
M)
Electric
pizza oven
(ZH-PT-1
D)
Power
(KW)
1.74
1.3
1.7
1.5
1.5
Voltage
(V)
110
110
110
110
110

- 5 -
PRODUCT BRIEF

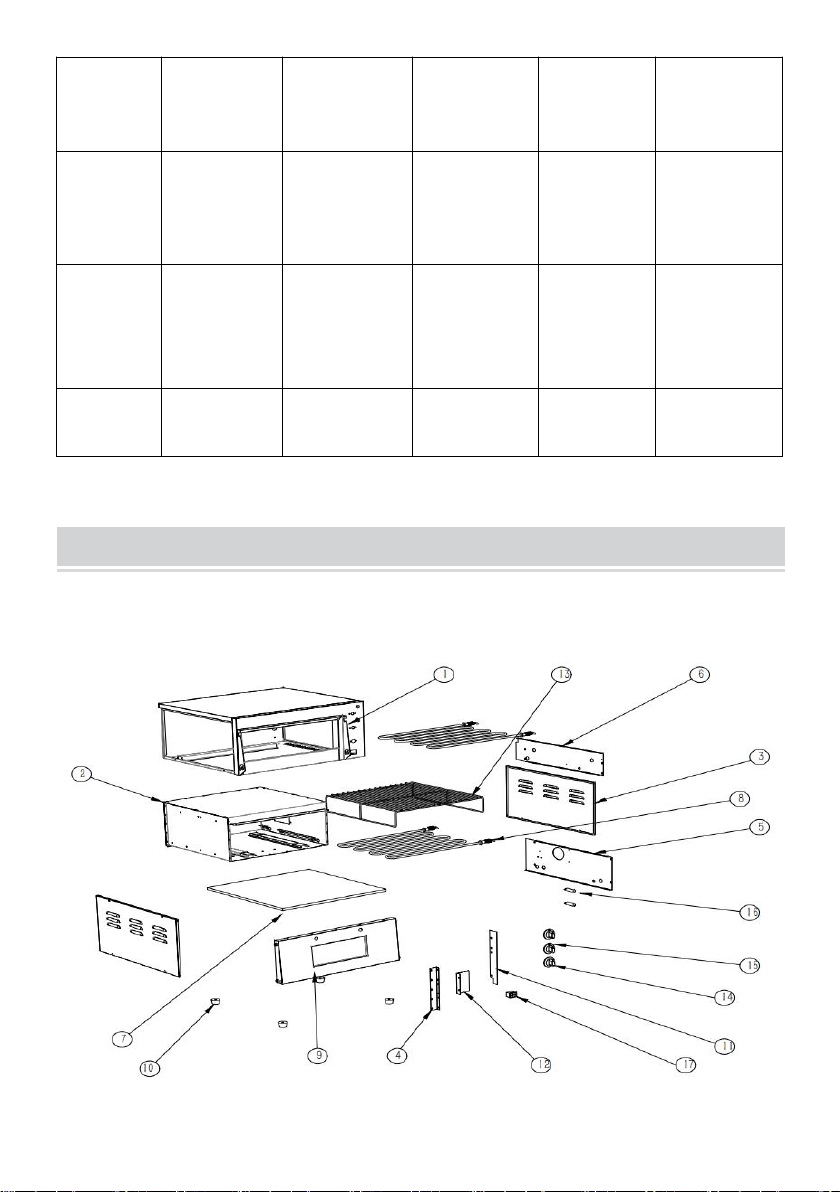

Maintenance of three-dimensional exploded view:
ZH-1M/ZH-PT-21M：
Frequen
cy
(Hz)
60
60
60
60
60
Dimensi
ons
(mm)
560×556×
435
560 × 556
× 270
585x584x
290
485x390x
215
485x390x
215
Inner
size
(mm)
400×400×
150
400 × 400
× 150
445*445*1
50
345x342x
120
345x342x
120
Layers
2
1
1
1
1

- 6 -
1.outermost shell
2.Inner tank
3.left and right sealing plates
4.cotton pressing positioning plate
5.under the cotton plate
6.on the cotton plate
7.ceramic wafer
8.heating tube
9.door
10.rubber feet
11.control box sealing cotton
12.light barrier
13.layer frame
14.time-meter
15.temperature controller
16.pilot light
17.double fish eye switch

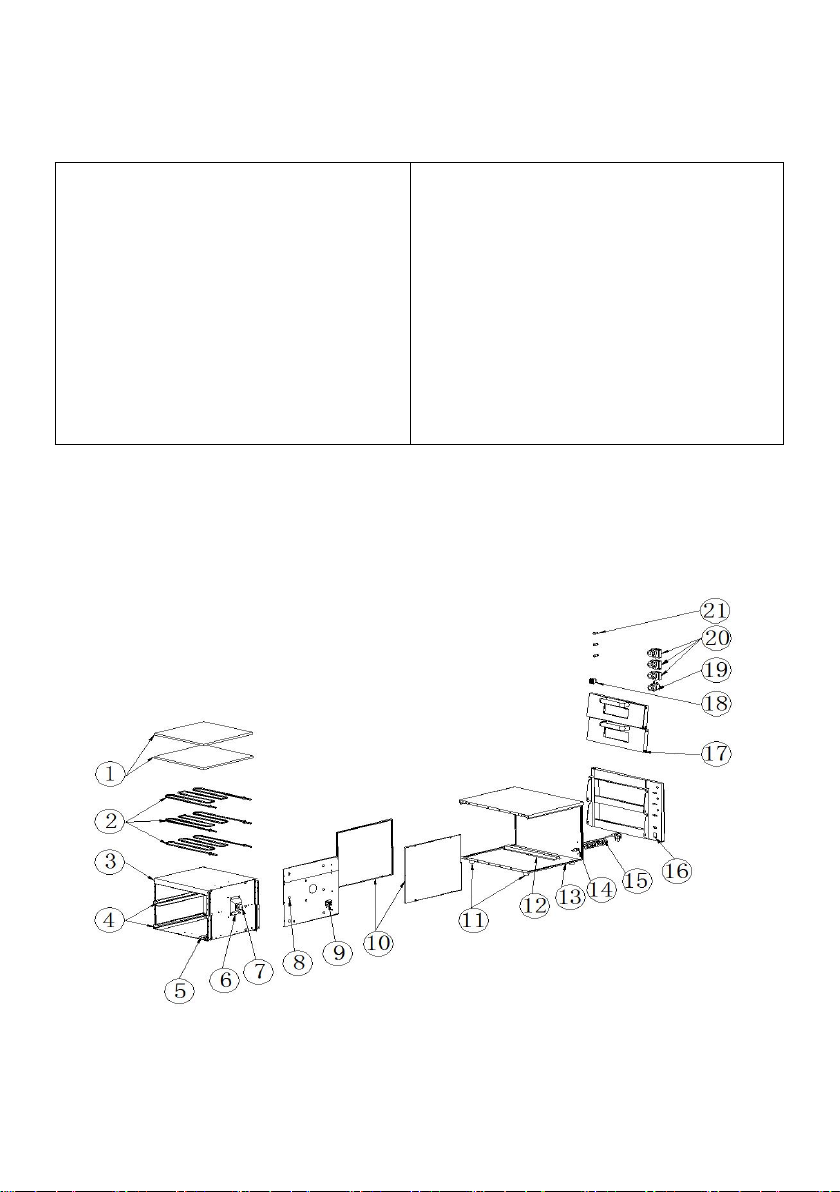

ZH-3M：

- 7 -
1.pizza stone, 400*400*9.5mm
2.heating tube,
3.inside components
4.support place of pizza stone
5.downside support plate of
heating tube
6.lampshade
7.Heat lamp
8.board that holds down cotton
9.Five cylinder terminal
10. left and right plate of machine
11.supporting leg
12.support plate of inside
components
13.outside components
14. Cable head
15.power line
16.Before frame components
17.components of door
18.on-off switch
19.timer
20.Thermostat
21.indicator light

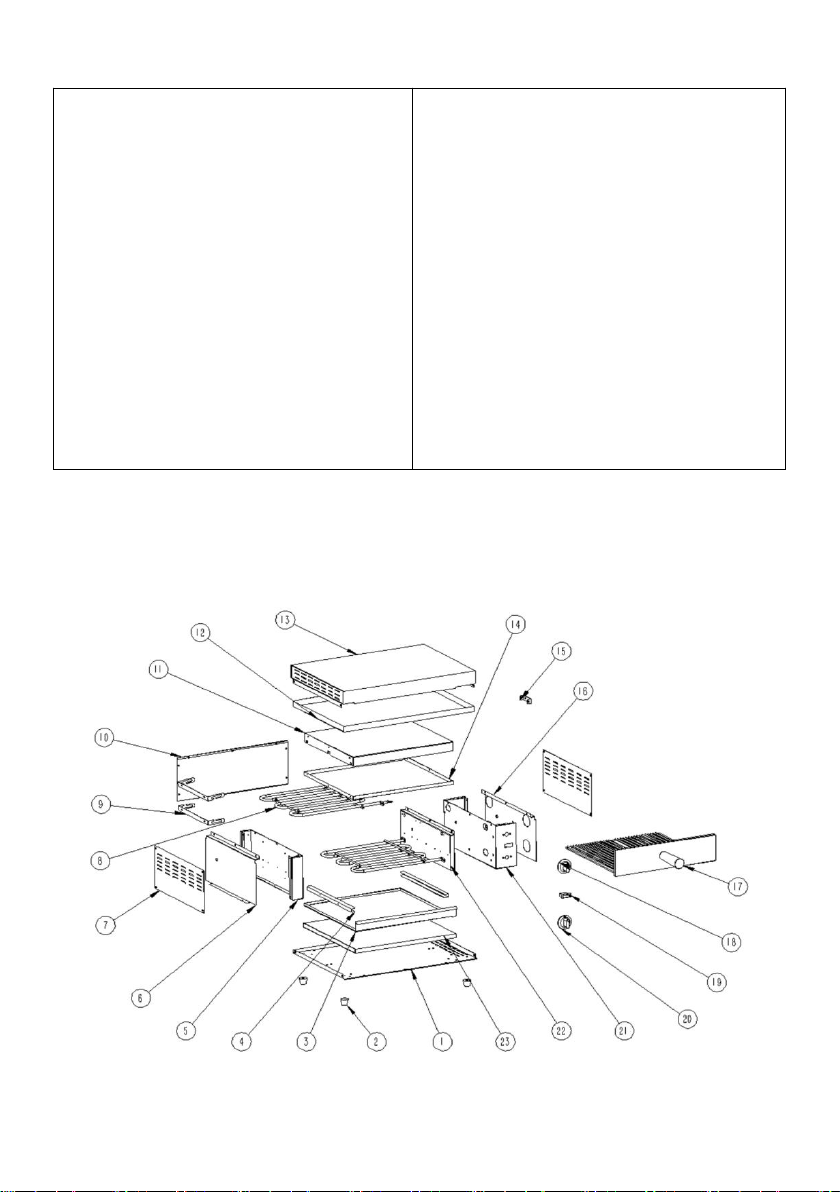

ZH-PT-1M

- 8 -
1.the new baseplate
2.rubber feet
3.the new sundry basin
4.the new baked net fixed strip
5.the new left board
6.left cotton plate
7.the new left and right sealing
plate
8.the new heating tube
9.heat tube fixed plate
10.after the sealing plate
11.top pressure cotton 1
12.the new top pressing cotton
board
13.the new top tray
14.the new upper side connecting
plate
15.turbine stent
16.right cotton plate
17.drawer components
18.time-meter
19.single jade eye switch
20.temperature controller
21.the new right board
22.inside the right plate
23.bottom pressure cotton board

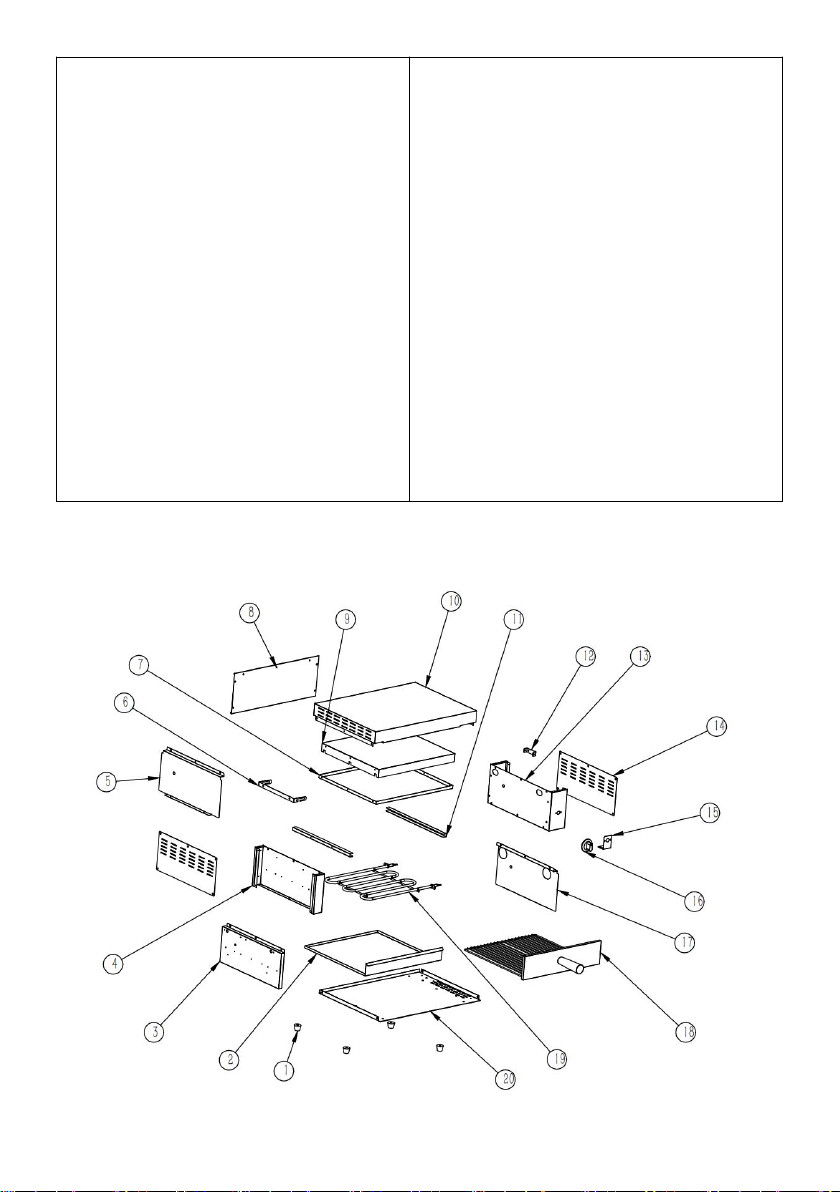

ZH-PT-1D

- 9 -
1.rubber feet
2.sundry basin
3.inner chamber right plate
4.the left board
5.left sealing cotton board
6.heating tube fixing plate
7.upper connecting plate
8.after the sealing plate
9.top pressing cotton 1
10.top tray
11.grill net fixing strip
12.probe bracket
13.the right board
14.left and right sealing plates
15.temperature control bracket
16.time-meter
17.right sealing cotton board
18.drawer assembly
19.heating tube
20.baseplate

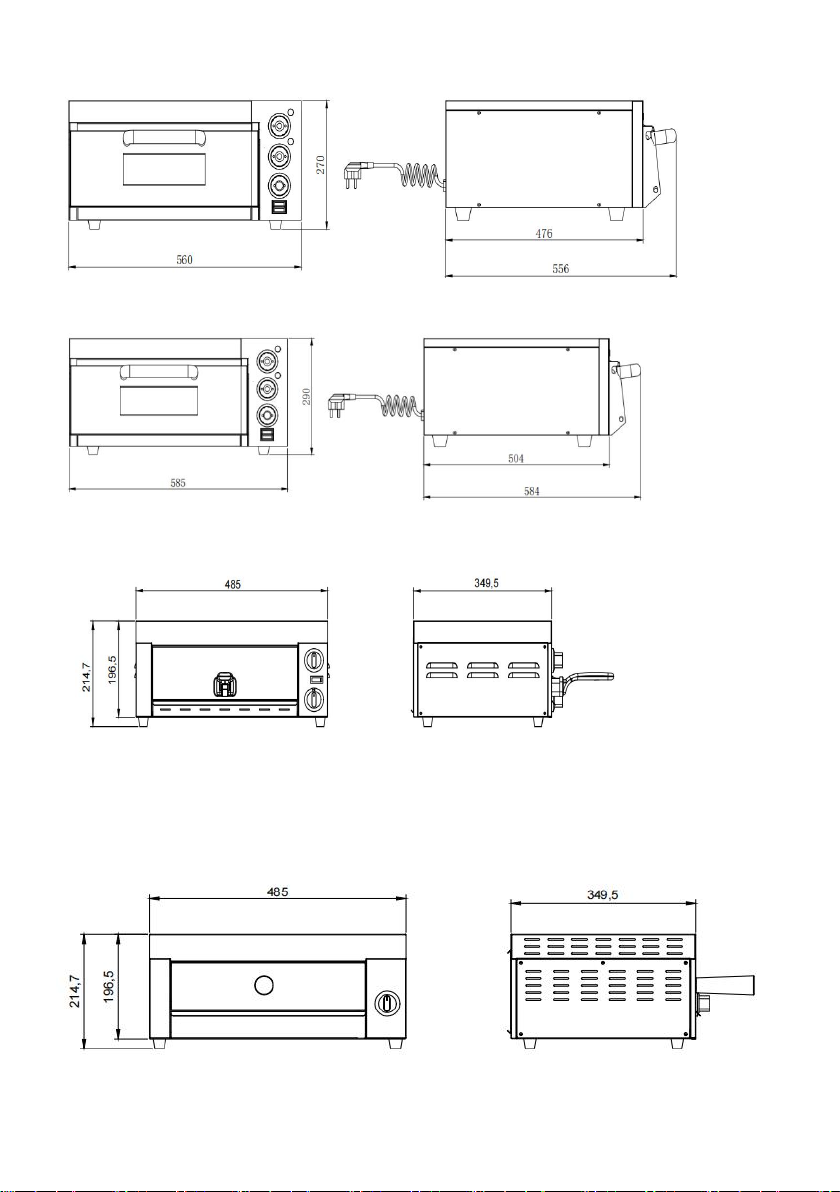

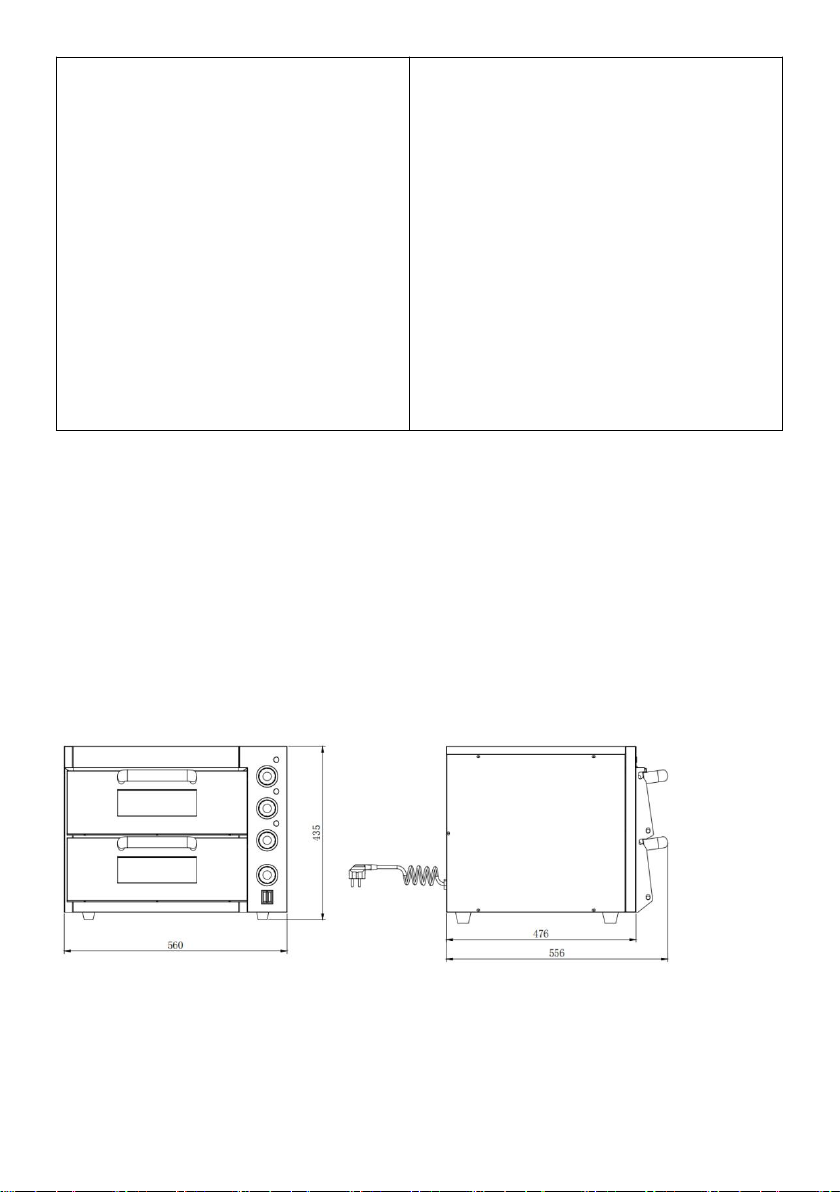

Product Shape Structure:
ZH-3M

- 10 -
ZH-1M
ZH-PT-21M
ZH-PT-1M
ZH-PT-1D

- 11 -
INSTALLATION NOTES
1. The supply voltage must be consistent with the supply voltage of the
product nameplate.
2. The furnace should be placed on the balance left and right side of the
left objects 10cm or more, on the back should be away from combustible
material (such as brick, etc.) 20cm
Or more. Work can not be placed at the top of combustible materials
such as towels, clothing, etc.
3. When used, can not open the door to pick and place items in order to
avoid danger (cut off the power).
4. The device temperature adjustment range is between 50-350 ℃; it is
recommended that the normal use temperature of 200-300 ° C
(depending on the need to adjust themselves to the set temperature).
5. Near the installation location is no flammable and explosive materials
storage.
6.The product installation should be invited professional and technical
personnel to operate, who are not free to make changes.
7. Electrical connection and furnace installation should be invited to hold
the electrical operating permit to install.
TRANSPORTATION AND STORAGE
During transport, the product should be handled carefully, not upside
down, to prevent damage to the shell and internal. The packaging has a
sound effect and should be placed within the warehouse of
well-ventilated, non-corrosive gases. Need temporary storage should be
taken when the rain measures.
DAILY CHECKS
Before and after use to pay attention to check the machine status
Before using the machine is tilted?

- 12 -
Are power lines aging, cracked, or broken?
The control panel is not damaged?
Is it heated?
Is there no abnormal noise or loss of control?
WARNING!
Must often carry out routine inspections. Regular checks of the product can
prevent serious accidents have occurred. Feel the circuit, and stop using
the machine failure. They have notified as soon as professional and
technical personnel are inspected and maintained.
ELECTRICAL SCHEMATIC
ZH-1M/ZH-PT-21M
ZH-3M
ST1/ST2/ST3：Thermostat S1: Switch
S2:Switch of inner lighting PT: Timer Switch
R1: Top heating tube R2: Middle heating tube R3: Bottom heating tube

- 13 -
H1,H2,H3: Heating indicator HL: Lighting
CLEANING AND MAINTENANCE
1.Before cleaning off the power to prevent the occurrence of an accident.
2. Work a week after the wet towels are available free of corrosive
detergent, and scrub the pizza plate, body surface, and the power cord.
Never use water to flush directly. Prevent the water from penetrating the
destruction of the electrical properties, resulting in electrical safety
incidents.
3.When unused for long periods should be cleaned and placed in
well-ventilated, non-corrosive gases inside the warehouse.

- 14 -
we suggest you out this machine on stainless steel table, and do not
put flammable materials under machine
THE GENERAL FAULT DIAGNOSIS
malfunction
reason
methods
1
Switch on the power
supply, the indicator light
is on, but the machine
does not heat up
1.Thermostat
damaged.
2.The heating
tube burns out
1.Replace the
temperature
controller
2. Replace theating
tube
2
Switch on the power
supply, turn the
thermostat, temperature
rise can not be
controlled
Thermostat
malfunction
Replace temperature
controller
3
Switch on the power
supply, the indicator light
is not on
Indicator light
damage
Replacing an
indicator
4
When the power supply
is switched on, the
indicator light is not on
and heating tube not
heated
The power
supply is
abnormal.
2.The fuse
blew out
1. Check the power
supply and
connection cables to
ensure that the power
supply is normal.
2.Replace fuse
The fault projects for reference only, if failure occurs, stop using them
immediately and notified as soon as the inspection and maintenance of
professional and technical personnel.
Made In China

Technical Support and E-Warranty Certificate
www.vevor.com/support
