Viatom Checkme Pro User manual

Checkme Pro Health Monitor
User’s Manual………………….…….English 1-27
Manuel de l'utilisateur……..…Français 28-52
Benutzerhandbuch …………...Deutsch 53-76
Manuale d’uso……………………Italiano 77-99
Manual de usuario……………………Español 100-140

Contents
1. Introduction ............................................................................................2
2. Using Checkme........................................................................................6
3. Settings..................................................................................................17
4. Review...................................................................................................19
5. Maintenance .........................................................................................20
6. Accessories............................................................................................21
7. Specifications ........................................................................................21
8. Electromagnetic Compatibility ..............................................................24
1. Introduction ..........................................................................................29
2. Utiliser Checkme ...................................................................................33
3. Réglages ................................................................................................44
4. Revoir ....................................................................................................47
5. Maintenance .........................................................................................48
6. Accessoires............................................................................................49
7. Spécifications ........................................................................................49
1. Einleitung ..............................................................................................54
2. Checkme - so wird das Gerät verwendet...............................................58
3. Einstellungen.........................................................................................69
4. Auswertung ...........................................................................................71
5. Wartung ................................................................................................72
6. Zubehör.................................................................................................73
7. Technische Angaben..............................................................................74
1. Introduzione ..........................................................................................78
2. Usare Checkme .....................................................................................82
3. Impostazioni..........................................................................................92
4. Controllo dati ........................................................................................95
5. Manutenzione .......................................................................................95
6. Accessori ...............................................................................................96
7. Specifiche ..............................................................................................97
1

1. Introduction
1.1 Safety
Warnings and Cautionary Advices
We recommend not to use this device if you have a pacemaker or other
implanted devices. Follow the advice given by your doctor, if applicable.
Do not use this device with a defibrillator.
Do not use this device during MRI examination.
Do not use the device in a combustible environment (i.e., oxygen-enriched
environment).
Do not place this device in pressure vessels or gas sterilization device.
This device is not intended for use by people (including children) with restricted
physical, sensory or mental skills or a lack of experience and/or a lack of
knowledge, unless they are supervised by a person who has responsibility for
their safety or they receive instructions from this person on how to use the
device.
Do not allow the electrodes of the device to come into contact with other
conductive parts (including earth).
Do not store the device in the following locations: locations in which the device is
exposed to direct sunlight, high temperatures or levels of moisture, or heavy
contamination; locations near to sources of water or fire; or locations that are
subject to strong electromagnetic influences.
Vital signs measurements, such as those taken with this device, cannot identify all
diseases. Regardless of the measurement taken using this device, you should
consult your doctor immediately if you experience symptoms that could indicate
acute disease.
Do not self-diagnose or self-medicate on the basis of this device without
consulting your doctor. In particular, do not start taking any new medication or
change the type and/or dosage of any existing medication without prior approval.
The device has no alarms and will not sound if the measurement reading is too
low or too high.
Check the SpO2 sensor application site every 6-8 hours to determine the
positioning of the sensor and the circulation and skin sensitivity of the patient.
Patient sensitivity varies depending on medical status or skin condition. For
patients with poor peripheral blood circulation or sensitive skin, inspect the
sensor site more frequently.
Do not use the Oximeter on the same hand/arm when using a blood pressure cuff
2

or monitor.
1.2 Intended Use
The Checkme Pro health monitor is intended to be used for measuring, displaying,
reviewing and storing of multiple physiological parameters including ECG, pulse oxygen
saturation (SpO2), pulse rate, temperature and blood pressure variation in home or
healthcare facilities environment.
ECG and Blood pressure variation is intended for use with adult.
The data and results provided by this device are for pre-check screening purpose only
and cannot be directly used for diagnostic or treatment.

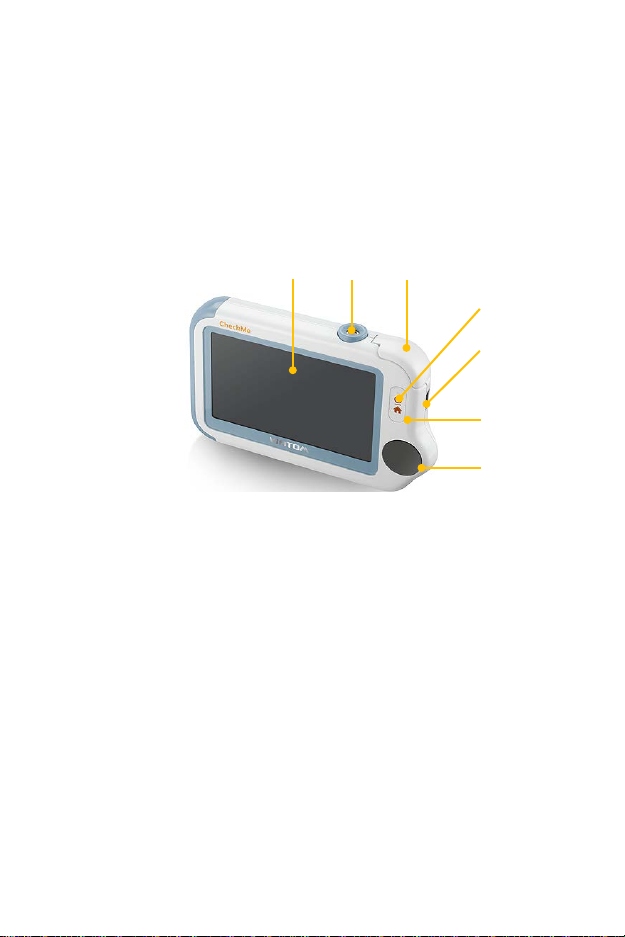

1.3 About Checkme
1. Touch Screen
2. Infrared temperature sensor
3. Internal SpO2sensor
4. LED indicator
Off: the monitor is turned off or working in Standby Mode;
Green: the monitor is turned on, and working normally; or when the
battery is fully charged;
Blue: the battery is being charged;
Red: the battery is low;
5. Multi-functional connector
It connects with external SpO2cable, ECG cable, or charging cable.
6. Home, Power On/Off
When the monitor is off, press this button to power it on.
When the monitor is on, press and hold it for 2 seconds to turn it off.
During operation, press this button will switch to Main Screen, or Calendar
Screen, or return to upper menu.
7. ECG right electrode
Use right thumb to press on it.
5
6
7
2
1
3
4
3

8. Speaker
9. ECG left electrode
Put it to your left palm, left abdomen or left knee.
10. Neck stripe hole
11. ECG back electrode
Use right forefinger or middle finger to press on it.
1.4 Main Screen
The Main Screen is shown as below. Slipping your finger from right to left can switch to
the second page, and vice versa.
*Minimonitor and ECG Holter are optional function.
1.5 Calendar Screen / Standby Mode
The device will enter Calendar Screen / Standby Mode when:
No operation is detected for 120 seconds in other screen interface, the device will
automatically switch to the Calendar Screen.
Pressing the Home button in the Main Screen.
9
11
8
10
1
2
3
4
6
7
5
4

1. Current time
2. Current date
When a reminder event happens, this area displays the event name, e.g. “Daily
Ch eck”.

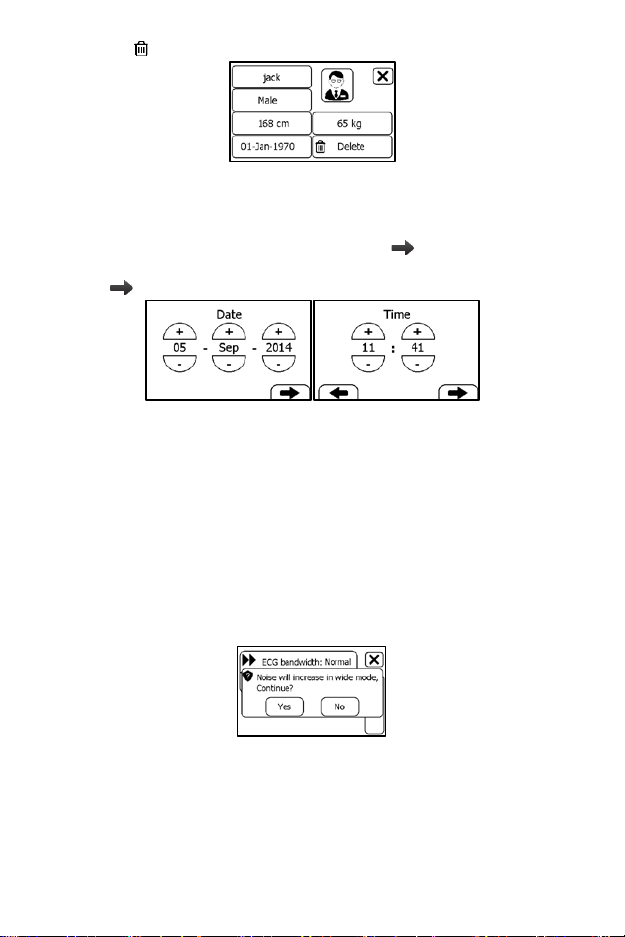

You are allowed to change the current time and date when the device is powered on at
the first time. Or you can also go to the Setting menu to change it.
3. This arrow indicates users to press the Home button to exit the Calendar Screen /
Standby Mode.
4. Battery indicator
5. If you failed to respond to the previous reminder event, then that event will be
shown in this area.
6. This icon appears when <Quick ECG> is enabled.
7. This icon appears if you have set reminder event.
1.6 Result Screen
For each measurement, a Result report will be provided after the measurement is
finished. An example is shown as below.
1. Measured parameters and readings
2. A summary of this measurement
3. A graphic indicator about the health status
: All measured parameters are within the reference range;
: One or more than one measured parameter(s) is (are) out of reference
range. When the icon appears, it is suggested to test again, and consult
your doctor for help.
4. Buttons
Select button to start a measurement again.
Press and hold the button to add voice memo. Voice memo is only
available for Daily Check and ECG Recorder measurements.
Select button to review previous results.
Press button to open the help information.
1
2
3
4
5

1.7 Symbols
Symbol
Meaning
Application part type BF
Manufacturer
CE0197
In conformity with Directive 93/42/EEC
European Representative
Symbol for “ENVIRONMENT PROTECTION – Waste electrical
products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your local authority or
retailer for recycling advice”.
IP22 Against ingress of solid foreign objects ≥12.5mm diameter, Against
dripping(15° tilted)
Follow operating instructions
No alarm system.
2. Using Checkme
2.1 Prior to Use
Charge the Battery
To charge the battery,
1. Connect the smaller end of the USB charging cable to the multi-functional
connector
2. Connect the other end of the USB charging cable to the USB charging port.
3. When the LED turns to green, it means the battery is fully charged.
Warnings and Cautionary Advices
The device cannot be used for any measurement during charging.
Use charging adapter provided by manufacturer, or USB charging devices which
comply with the standard of IEC 60950.
Power On/Off
Press the Power On/Off button to power on the device. Press and hold Power On/Off
button for 2 seconds to power off the device.
6

2.2 Daily Check
About Daily Check
Daily Check measurement is a function that combines the measuring of ECG
(Electrocardiograph), SpO2(blood oxygenation) and systolic blood pressure. It takes only
20 seconds to collect your vital signs before giving you vital signs readings and your
health evaluation.
Using Daily Check
To start a Daily Check, follow the steps as below.
1. If you have not created user, then please follow the instruction in [Settings
Section] to add your user account.
2. Tap the <Daily Check> icon in the middle of the screen.
3. Choose the right user.

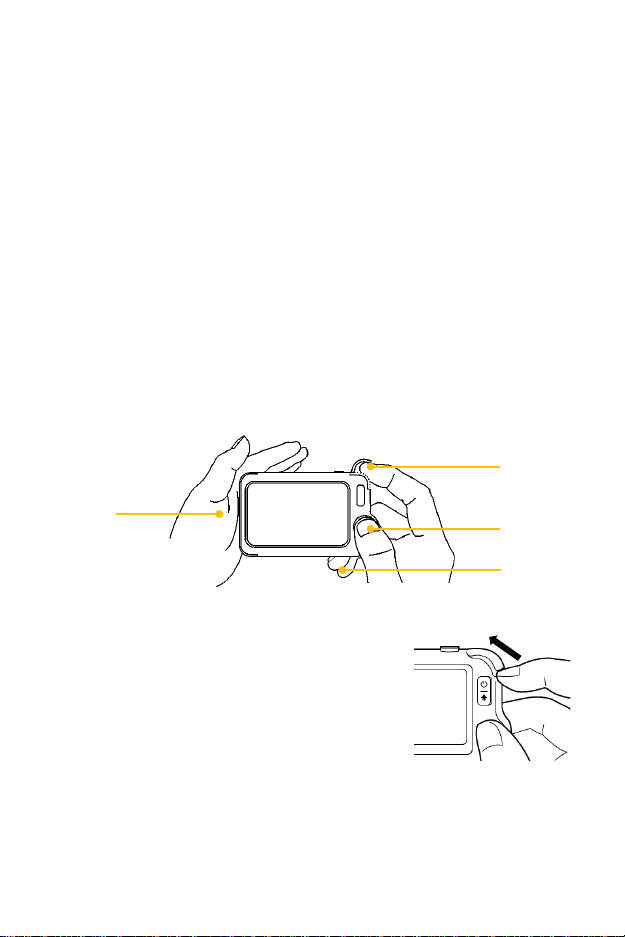

4. Hold the device according to the instruction, keep the device at the same level as
your heart, and keep stable posture and stay calm. Don’t exert too much pressure
on the ECG electrode, which may result in EMG (electromyograph) interference.
Just hold gently and ensure good contact with the ECG electrode. Do not exert
pressure on the finger that put in the SpO2sensor. Just fit it inside but gently to
ensure good blood perfusion.
(1) Put the right forefinger into the built-in SpO2sensor. Use the finger nail to
squeeze the edge of the SpO2sensor cover, then move in upward to the left
to raise it up as shown below.
(2) Press the right thumb on the right electrode.
(3) Press the right middle finger on the back
electrode.
(4) Press the left electrode to the left palm.
5. Once the device detects stable waveform, it will
automatically start the measurement. The
countdown bar moves from left to right.
6. When the bar is fully filled, the device will analysis your data, and then show the
measurement result.
(1)
(2)
(3)
(4)
7

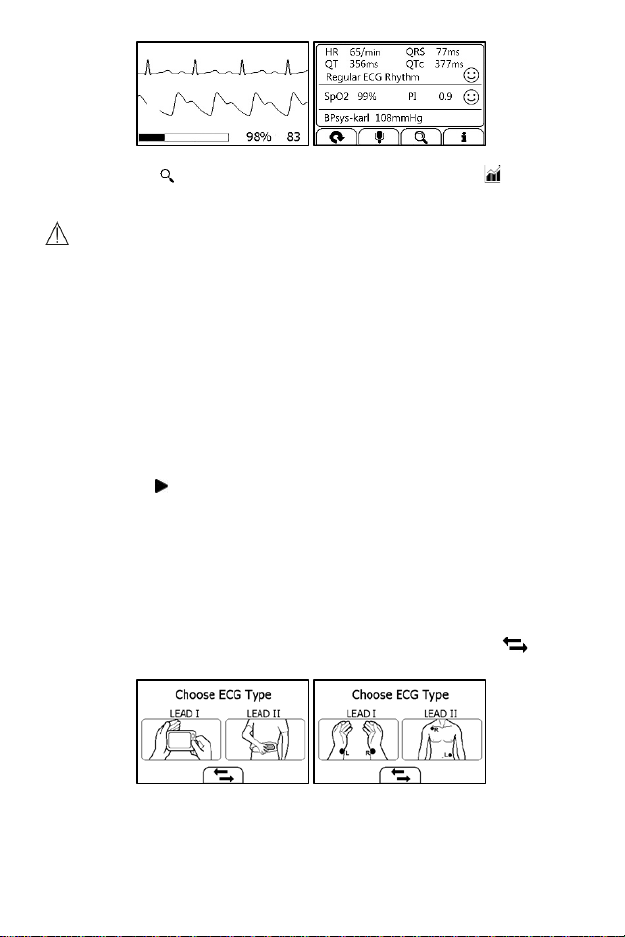

Daily Check provides the trending graph of heart rate, SpO2and blood pressure. To view
the trend, tap the button, then select one record, and then tap the button.
BP Calibration
Warnings and Cautionary Advices
For a given user, it is suggested to make BP calibration every three months.
To get blood pressure readings, this device should be calibrated by a doctor with a
traditional cuff blood pressure (BP) meter. Because of individual differences, each user
must make his/her own calibration before using Daily Check to measure or track the
blood pressure. The calibration should be performed when the user is under calm
status.
To calibrate with a cuff BP meter, follow the steps as below.
1. Select the <Settings> icon, select <BP Calibration>, and then choose the right
user.
2. Ensure that the cuff and the Checkme monitor are at the same level as your heart.
Then start the blood pressure measurement from the cuff BP meter.
3. Press the button on the Checkme screen, and start the DailyCheck
measurement.
4. When the blood pressure measurement is finished, manually input the readings
of systolic pressure reading in the Checkme.
5. Repeat the calibration once again by following the above steps.
2.3 ECG Recorder

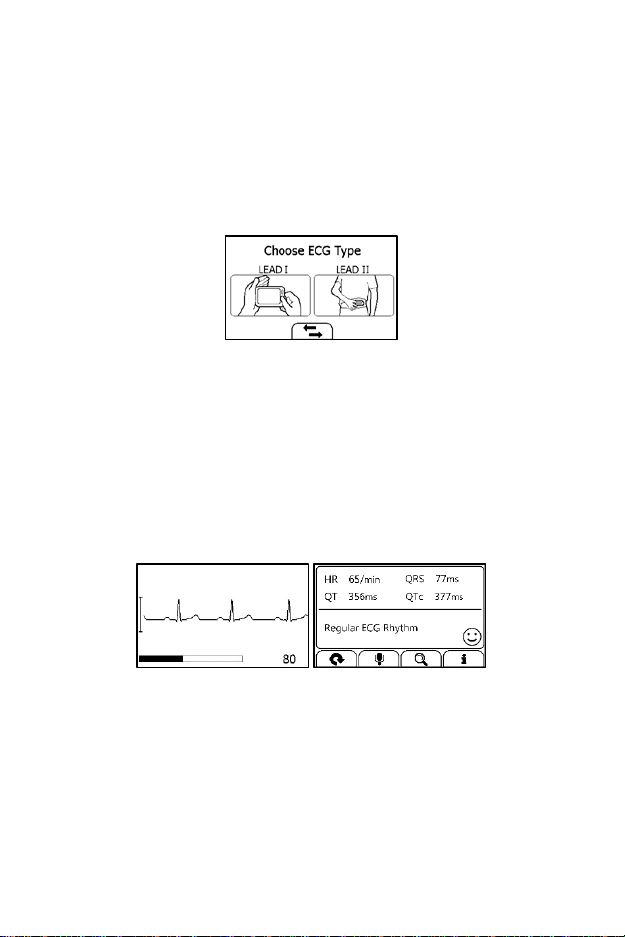

About ECG Recorder
The ECG recorder offers four different methods to measuring ECG. Tap the icon to
switch between two pages.
As shown above, from left to right, there are:
Method A: Lead I, right hand to left hand
Method B: Lead II, right hand to left abdomen
Method C: Lead I, left wrist to right wrist
8

Method D: Lead II, right wrist to left lower abdomen
ST segment analysis is performed on selected LEAD.
Method A and B offer maximum comfort, than method C and D, but no ST segment
value. No matter which method you choose to measure ECG, please keep stable
posture and stay calm during the measurement.
Measuring without Cable
To start an ECG Recorder measurement without cable,
1. Choose the method A or B.
2. Follow the instruction according to the mode you selected.
Press the right thumb on the right electrode;
Press the right forefinger on the back electrode;
For method A, press the left electrode to the left palm;
For method B, press the left electrode to the left lower abdomen;
Do not press the device too firmly against your skin, which may result in EMG
(electromyograph) interference. After you finish the above steps, hold the device
stably and stay calm.
3. Once the device detects stable waveform, it will automatically start the
measurement. The countdown bar moves from left to right.
4. When the bar if fully filled, the device will analysis your data, and then show the
measurement result.
Measuring with Cable
To start an ECG Recorder measurement with cable,
1. Choose the method C or D.
2. Follow the instructions to connect the ECG cable and place the ECG electrodes.
9

Sit down or stand, stay calm;
Palms facing up, place an electrode in the middle of right wrist;
For method C, place another electrode in the middle of left wrist;
For method D, place another electrode in the left lower abdomen;
3. The display will then show your ECG waveform.
The device will monitor your ECG continuously, however no data will be saved
until you press the button.
4. Press the button to start collecting your ECG data. The countdown bar moves
from left to right.
5. When the bar is fully filled, the device will analysis your data, and then show the
measurement result.
Quick ECG
If the <Quick ECG> function is enabled, then you can start an ECG measurement very
quickly by picking up the device and hold it according to method A. This saves time and
is much easier for use.
In the Settings menu and tap <Quick ECG> to enable or disable this function.
2.4 Temperature
About thermometer
Warnings and Cautionary Advices
The thermometer is only designed for the measuring area on the human body
stated in this manual.
The device needs to be in the room which the measurement is taken for at least
10

10 minutes before use.
Physical activity, increased perspiration on the forehead, taking vasoconstictive
medication and skin irritations can distort the result.
The forehead (temples) must be free from perspiration and cosmetics.
Influences on forehead temperature include but not limited to
A person’s individual metabolism;
Age; Forehead temperature is higher in babies and infants than in adults.
Greater temperature fluctuations occur faster and more often in children.
Normal forehead temperature decreases with age.
Environmental temperature;
Time of day; Forehead temperature is lower in the morning and increases
throughout the day towards evening.
Activities; Physical and, to the lesser extent, mental activities increases forehead
temperature.
Taking Temperature Measurement
To start a temperature measurement,
1. In the Main Screen, select <Thermometer>.
2. Put the thermometer sensor on your temple.
3. Press the Home button once, you will hear “Bi-Bi” beep, which indicates the
measurement starts. Then move the thermometer around the temple for around
3 seconds until you hear a long “Bi” beep, which indicates the measurement is
finished.
4. Take down the device, and the screen shows the measurement result.
In the Settings menu, tap the <Thermometer> area to change between Celsius degree
(°C) and Fahrenheit degree (°F).
11

2.5 Oximeter
About Oximeter
The Checkme Health Monitor measures the amount of oxygen in your blood, your
pulse rate and pulse index. The oxygen saturation (SpO2) is measured and displayed as a
percentage of full capacity.

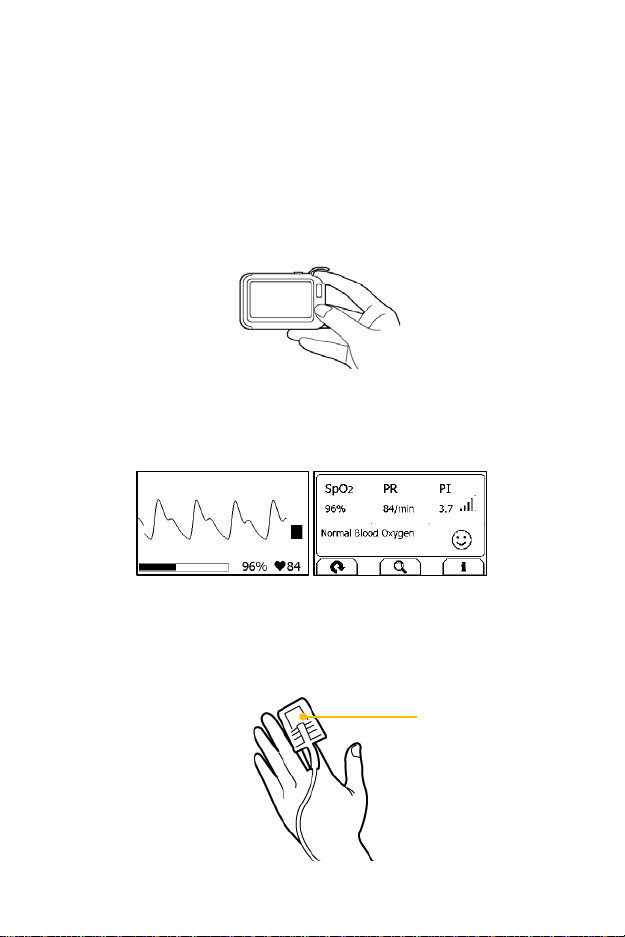

Measuring without Cable
To start a Oximeter measurement without cable,
1. In the Main Screen, tap the <Pulse Oximeter> icon.
2. Insert the forefinger into the built-in SpO2sensor as shown below.
Relax your forefinger and do exert pressure.
3. When the device detects stable waveform, it will automatically start the
measurement. The countdown bar moves from left to right.
4. When the bar is fully filled, the device will analysis your data, and then show the
measurement result.
Measuring with Cable
1. Connect the external SpO2sensor to the multi-functional connector.
2. Put your index finger or middle finger into the external SpO2sensor. Make sure
the cable is positioned along the top of the hand, and the finger nail is in the
position as shown below.
Finger nail position
12

3. Tap the <Pulse Oximeter> icon.
4. The display will then show your PLETH waveform, SpO2and pulse rate.
The device will monitor continuously, however no data will be saved until you
press the button.
5. Press the button to start collecting your SpO2data. The countdown bar moves
from left to right.
6. When the bar is fully filled, the device will analysis your data, and then show the
measurement result.
2.6 Sleep Monitor
Checkme offers a non-invasive method to monitor sleep status for adult users who
have sleep problem, sleep related breathing disorders and obstructive sleep apnea.
Warnings and Cautionary Advices
Before using as a sleep monitor, please ensure the battery is fully charged.
To start a sleep monitor measurement,
1. Tie the wristband on one of your left hand.
2. Insert the SpO2cable into the multi-functional
connector.
3. Put one of your finger into the sensor. Forefinger or
middle finger is suggested. If needed, remove the
colored nail polish from the finger. Make sure that
the sensor is correctly placed so that the cable goes
above your hand back.
4. Press the Home button to enter the Main Screen. Then Tap the Sleep Monitor
icon to enter the screen as below.
5. Tap the button to start the sleep monitoring. During monitoring, a countdown
timer is always displayed at the lower left part.
6. You can press Home button to lock the screen, as shown below. The device will
work in a very low power consumption mode.
7. Insert the device into the wrist band cover, and then begin to sleep.
13

8. When you get up, or when you want to stop monitoring, you can press the Home
button again to unlock the screen, and then tap icon to stop sleep
monitoring.
9. You can tap button to view the SpO2trending during your sleep, or tap “Close”
button and return to the Main Screen.
2.7 NIBP（Optional）
Checkme can work with the NIBP unit (optional accessory) to
measure blood pressure.
1. In the Checkme Main Screen, select <NIBP>, choose the
right user.
2. Turn on the NIBP unit to connect it via Bluetooth.
3. Sit correctly. Place the cuff on the left upper arm. Press the <start>.
4. Following the instruction on Checkme, pump to the target pressure then keep
still until the results.
5. Deflate the cuff.
2.8 Minimonitor (Optional)
About Minimonitor
The Minimonitor function is able to continuously monitor and display patient's ECG and
SpO2. Real-time waveform and readings can be sent and displayed on a tablet or phone.
Before using this function, please search and download "Check Trace" from APP store
or Google Play to your tablet or phone.
14

Using Minimonitor
To start a Minimonitor function, follow the steps as below.
1. In the Checkme Main Screen, select <Minimonitor>
2. Correctly connect the "Minimonitor adaptor", SpO2cable and ECG cable with the
device.
3. Put finger into the external SpO2sensor. Place the ECG electrodes as shown
below.
4. Turn on the Bluetooth on your pad and open “Check Trace “app. The app will
search the device through Bluetooth.
5. Choose the device you’re monitoring via SN.
6. When the devices are connected successfully, you can see the waveform and
measurement data on both Checkme and app. Please see below the displaying
screen on app.
7. When you finish measuring, press the Home button to stop monitoring.
2.9 ECG Holter (optional)
2.9.1 Choose Holter Lead
Choose the proper ECG lead in the setting menu.
There are 4 options: LEAD II; CC5; CM5; User defined.
2.9.2 Meaurement
1. In the Main sceen, tap the ECG Holter icon.
2. Choose the right user, enter the guidance screen.
3. Plug ECG cable and place eletrodes on the right postions as guided.
4. The display will show ECG waveform, press the button to start recording. (The
recording will start to record 1 minutes later automatically without pressing the
15

button)
5. Wear the Holter Belt around your waist
6. Put Checkme in the pocket of the Belt, then close the pocket.
Keep recording for 24 hours or less. During this process, the device will beep if the
cable or any electrode is off.
2.9.3 Report on PC
Checkme Holter Browser is a PC software to check and print the report.
1. Connect device and PC by USB cable.
2. Operation on device:
Settings->To PC; or Review-> Holter icon->To PC icon
3. Operation on PC:
Open the software, press the button in the leftup corner to download the data
from device. Then you can check the report.
2.10 Pedometer
To start a Pedometer measurement,
1. In the Main Screen, select <Pedometer> icon. If you have not created user, then
please add your user account.
2. Select a user to enter the screen as below.
3. Tap the button to set your target, if needed.
4. Tap the button to start calculating steps.
5. Place the device into your pocket.
6. When you finished calculating steps, press the Home button to stop the
pedometer.
16

7. Press Home button again to exit pedometer function.
2.11 Reminder
Up to 6 reminder events can be set by user. You can add, edit and delete reminder
events.
3. Settings
3.1 Changing Sound Volume
In the Settings menu, tap the <Volume> area to change volume directly. “X” means the
volume is turned off.
3.2 Enabling/Disabling Voice Guide
In the Settings menu, tap the <Voice Guide> to enable or disable this function.
3.3 User Management
To use the Daily Check measurement, you must create your account. If the Daily Check
measurement is used by more than one user, then each user must create his/her own
account.
To create a user account:
1. In the Settings menu, choose <User Management>.
2. Tap a “+” button to open the menu below.
3. Tap each button to edit corresponding information.
4. Tap to return the < User Management > menu.
To edit the information of a user:
1. In the Settings menu, choose <User Management>.
2. Choose the user that you want to edit.
3. Tap the information that you want to edit, and then modify.
4. Tap <OK> and to return the < User Management > menu.
To delete a user:
1. In the Settings menu, choose <User Management>.
2. Choose the user that you want to delete.
17

3. Tap the button.
4. Choose <Yes> to confirm.
3.4 Setting Date & Time
1. In the Settings menu, choose <Date & Time>
2. Tap “+” or “-” button to change the date, then tap .
3. Tap “+” or “-” button to change the time.
4. Tap to finish the setting.
3.5 Choosing Language
1. In the Settings menu, choose <Language>.
2. Choose the language from the list.
3.6 Changing ECG waveform length
To change the length of ECG waveform saved for each ECG Recorder measurement:
1. In the Settings menu, choose<ECG Length>.
2. Then choose among <30s>, <60s>. And tap <OK> to enable the change.
3.7 Setting ECG Bandwidth
In the Setting menu and choose <ECG bandwidth> to change between <Normal> and
<Wide>.
3.8 Changing Holter ECG Lead
To change the lead of ECG Holter for ECG Holter measurement:
1. In the Settings menu, tap <Holter Lead>.
2. choose among <LEAD II>, <CC5>,<CM5> and <User-defined>
3. Tap <YES> to enable the change.
18

3.9 Erasing Data
In the Setting menu, Tap <Erase All Data>, and then <Yes>.
All measurements saved in the device will be deleted.
3.10 Factory Reset
In the Setting menu, Tap <Factory Reset>, then tap <Yes>.
All measurements, user information and other settings saved in the device will be
deleted, and the device will be restored to the factory default settings.
4. Review
4.1 Reviewing Daily Check

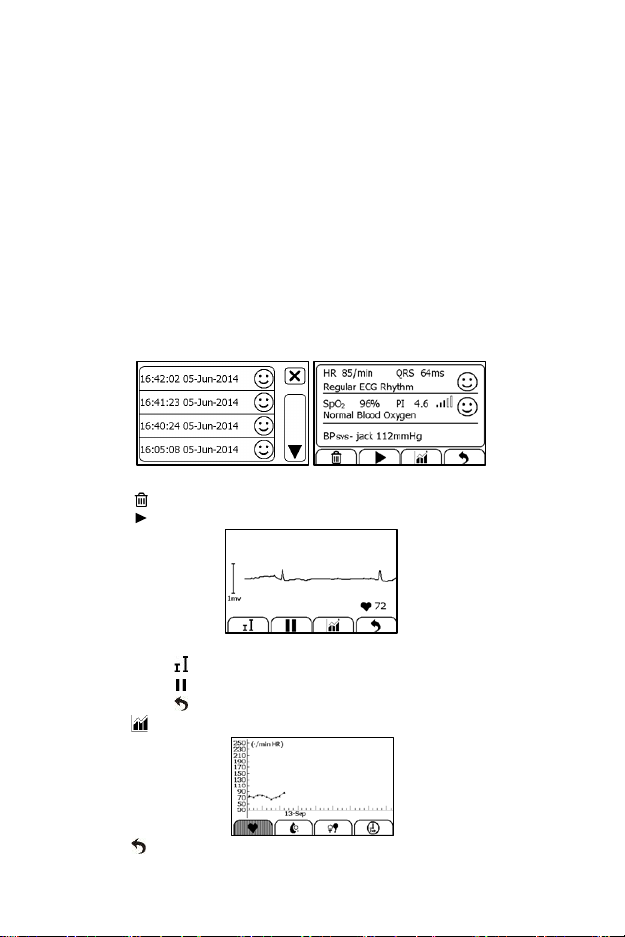

To review Daily Check records,
1. In the <Review> menu, select <DailyCheck>.
2. Choose the right user to open the list as below, then select one record to review
more information as below.
In this menu, you can:
Select to delete this measurement
Select to replay the ECG waveform as shown below.
When the ECG waveform is being replayed, you can
Select to change the waveform amplitude.
Select to pause it.
Select to return Daily Check list.
Select to view the trend of heart rate, SpO2and blood pressure
Select to return to the Daily Check list.
19
