Section One - Counter Arrangement
Counter top cut-outs 3
Heated units 4
Refrigerated units 5
Refrigeration venting options 6-9
Refrigeration venting grills 10
Section Two- Specications
Curved Glass - Heated 11-13
Curved Glass - Refrigerated 14-15
Flat Glass - Heated 16-18
Flat Glass - Refrigerated 19-20
Units without Gantry 20-21
Other Units 21-22
Section Three - Dimensioned Drawings
Heated Units
Ceramic Hotplates, Dry Heat Bains Maire (65mm deep)
DHHP, SSHHP, SFHHP, DHBM, SSHBM, SFHBM 23
Dry Heat Bains Maire (150mm deep)
DHBD, SSHBD, SFHBD 24
Wet/Dry Heat Bains Maire
DHBW, SSHBW, SFHBW 25
Heated Recessed Top / Deli Units
DHRT, SSHRT, SFHRT, DHDL, SFHDL 26
Refrigerated Units
Refrigerated Well
DRWL, DRIW, SSRWL, SFRWL, SSRIW 27
Refrigerated Decks & Delis
DRDK, SSRDK, DRDL, SFRDL 28
Refrigerated High Delis
DHDH
Refrigerated Multi-tiers 29
DRMT, SSRMT 30
Contents

V
Page 3
© VML 01/12
Victor Manufacturing Limited. Lonsdale Works, Gibson Street, Bradford, BD39TF
Tel:[phone], Fax:[phone], [email protected]
www.victoronline.co.uk
Arrangement of Drop Ins in Counters
Drop in units are not complete products, they are only components of a nished counter. They have some
requirements which need to be met in order to achieve satisfactory performance. Please ensure that: you create the
right environment for the drop ins and that the installer puts the drop ins into the counter correctly.
Module units utilise a cut out in the counter top with the carcass projecting into cavity or cupboard below. The unit
may be installed with the outer ange resting on the counter top (method 1) or the ange can be inset into the counter
top (method 2). It is essential that the counter top is perfectly level before the unit is installed and should incorporate
some feature such as adjustable levelling feet.
Method 1 is easier and is more suitable if the counter top uses thin surface materials.
Method 2 involves more work but gives a neater installation and is more suitable for thick or solid surface materials.
Counter Arrangements
Counter Top Cut-outs

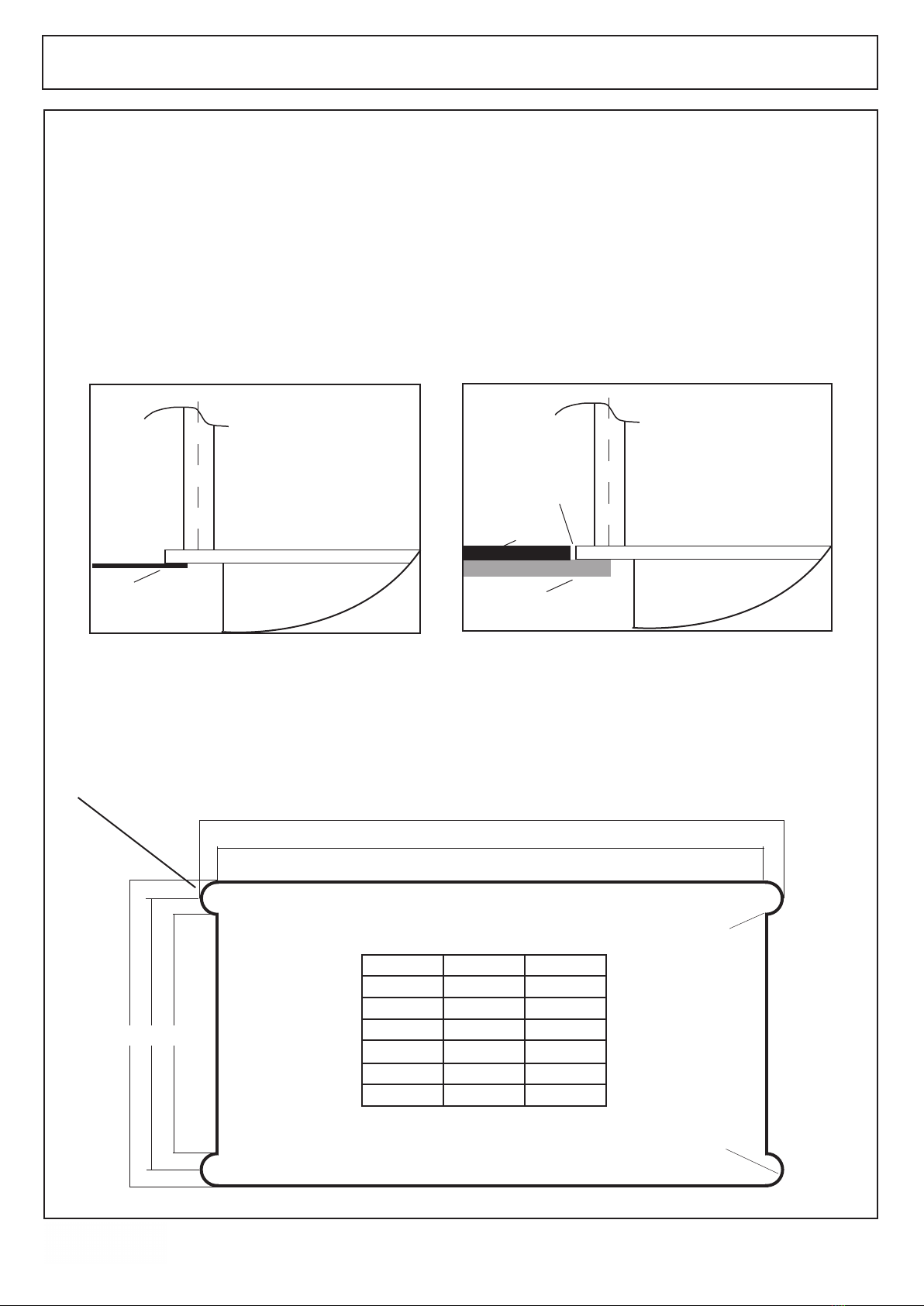

Each unit is dropped into the counter top. The size of the cut out required is detailed within the specication of each
unit. For sheet metal or Granite top counters the cut out can have square corners.
Where heated Synergy appliances are used in laminate worktops, the following cut-out arrangements should be
adhered to:
Radiused internal corners to avoid chipping and stress cracking.
Method 1
for use with sheet
metal counter top
Method 2
for use with solid surface
counter tops e.g. Granite,
Tiles,
Module Top
Gantry Arm
Counter Top
Module Top
Gantry Arm
Counter Top
Substrate
4mm min gap lled with
silicone sealant
Dim A
Dim B
36
mm
36
mm
646
mm 574
mm 502
mm
R36
mm
R10
mm
Unit Size Dim A (mm) Dim B (mm)
1 pan 477 405
2 pan 797 725
3 pan 1117 1045
4 pan 1442 1370
5 pan 1772 1700
6 pan 2097 2025
Victor Manufacturing Ltd will not accept responsibility for Laminate cracking faults if these instructions are not followed.

V
Page 4
© VML 01/12
Victor Manufacturing Limited. Lonsdale Works, Gibson Street, Bradford, BD39TF
Tel:[phone], Fax:[phone], [email protected]
www.victoronline.co.uk
Daily access
required here to
drain Bains Marie
- Wet well models
only
Counter Top
Occasional service access required here.
Any panelling must be removable
Plinth
Heated Drop In
60mm
140mm
400mm
400mm

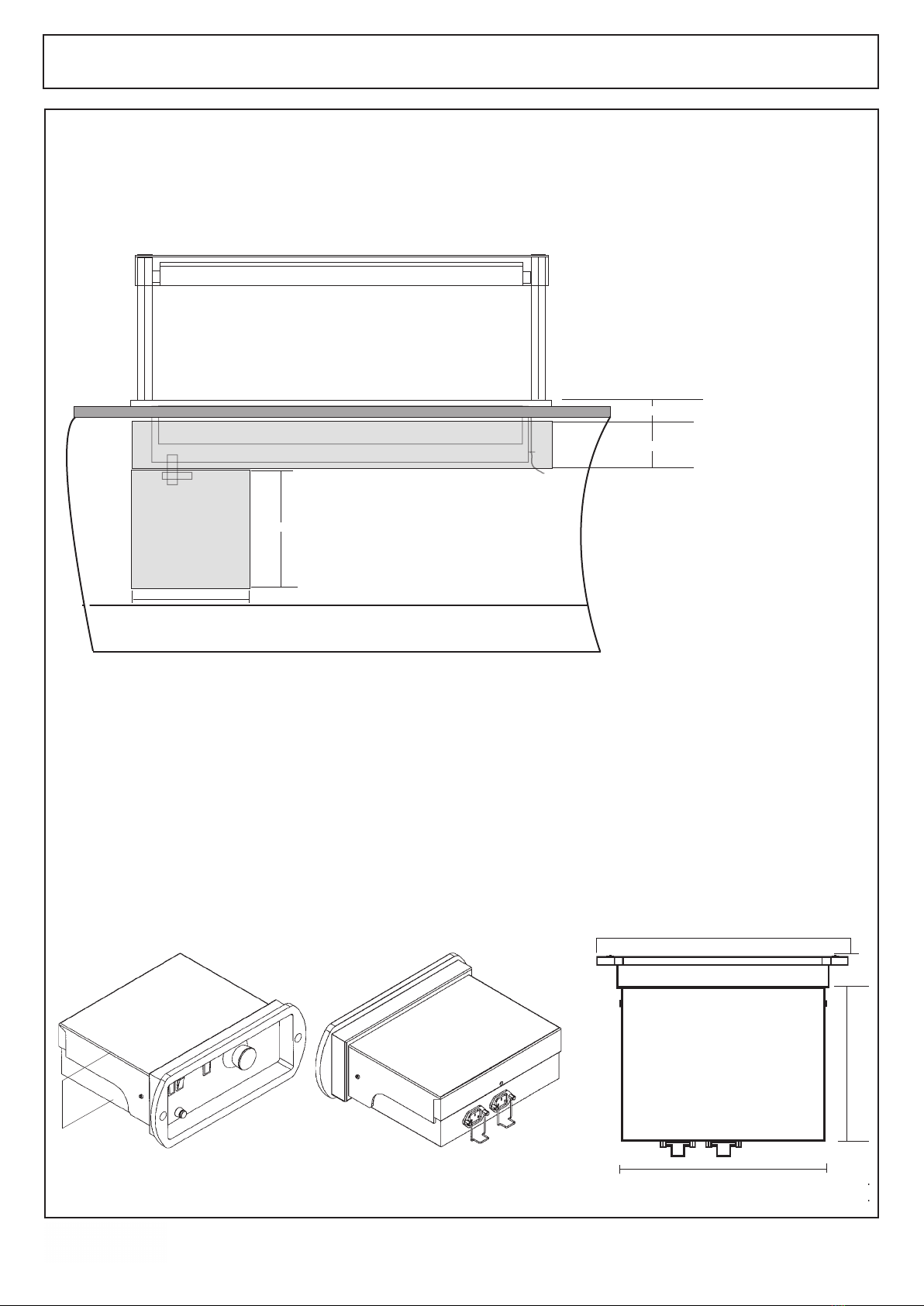

Rear panel arrangements for Heated units
All heated drop-ins require service access to the rear of the units for access to the elements and other electrical wiring.
If the counter is against a wall then access is required from the front. Wet Well bains marie units require additional
access to the drain tap as shown.
MODELS WITHOUT GANTRIES.
Heated Units
Heated units without gantries are supplied with 1.5 metres of cable and an energy regulator (supplied loose) for
mounting into a suitable control panel. This method is designed for experience counter builders and should be wired
in accordance with the latest electrical wiring regulations.
For ease of installation an optional Victor control box can be purchased at addition cost. Dimension details below.
CONTROL CONSOLES
Models without gantries have separate control consoles, which need to be tted into a 280mm x 116mm cut out in the
counter rear vertical panel. The electrical wires from the unit need to be pulled through the control aperture and plugged
into the control console before the console is xed to the panel. Refrigerated units without gantries are supplied with
a dimensionally similar control box with a mains cable and a plug inconnector operating the refrigerated unit.
108mm
272mm
200mm
30mm
328mm
Counter Arrangements

V
Page 5
© VML 01/12
Victor Manufacturing Limited. Lonsdale Works, Gibson Street, Bradford, BD39TF
Tel:[phone], Fax:[phone], [email protected]
www.victoronline.co.uk
Refrigerated units.
In order to create a successful counter you must
1) Provide adequate ventilation through the drop in and counter.
2) Prevent hot air exhaust re-circulating into the cold air intake
3) Provide access to clean the condenser. Cleaning needs to be carried out at least every 6 months.
4) Provide adequate service access.
Note: failure to provide proper ventilation and access to refrigerated units will invalidate any warranty
û
É
Ð
Í
Ì
ü
ââ

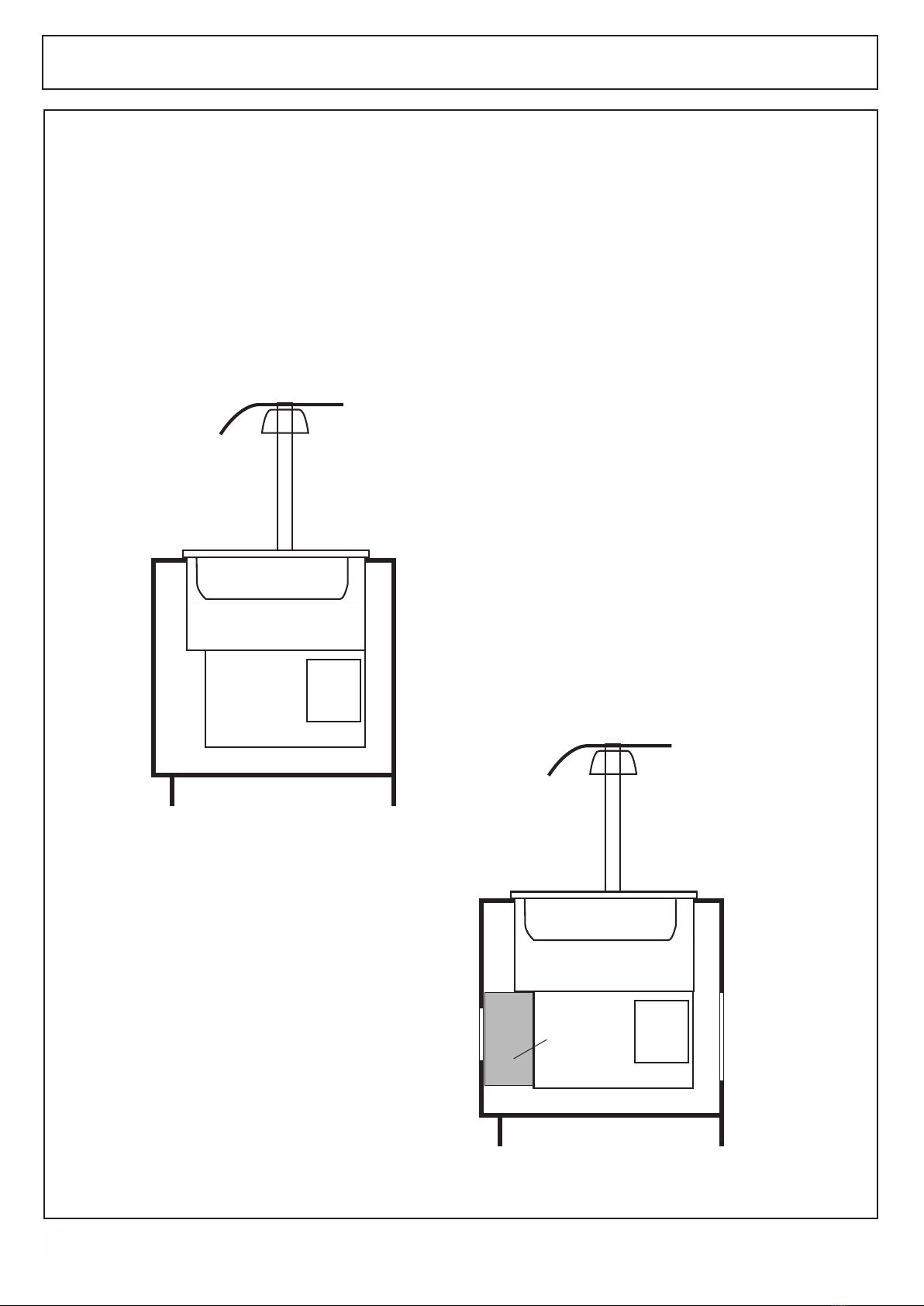

BIG AIR INLET & OUTLET VENTS
MUST BE PROVIDED
No vent for
cool air into
refrigeration No vent for
warm air out off
refrigeration
Recirculation
Refrigeration circuit overheats.
Component failure likely.
Well not cold enough
Warranty void
Cool air into
refrigeration
No Recirculation
Warm air out of
refrigeration
Refrigeration circuit properly
ventilated, Well down to
temperature
To prevent air
re-circulation
secure slide out
bafe using xing
holes provided
Refrigerated Units

V
Page 6
© VML 01/12
Victor Manufacturing Limited. Lonsdale Works, Gibson Street, Bradford, BD39TF
Tel:[phone], Fax:[phone], [email protected]
www.victoronline.co.uk
ââ
Cool air into
refrigeration
through front
grill
Front grill must be
removable to allow
access to clean
condenser No Recirculation
Warm air out
of refrigeration
through rear grill
Access for service
required through
rear grill 1 metre
clear space
required

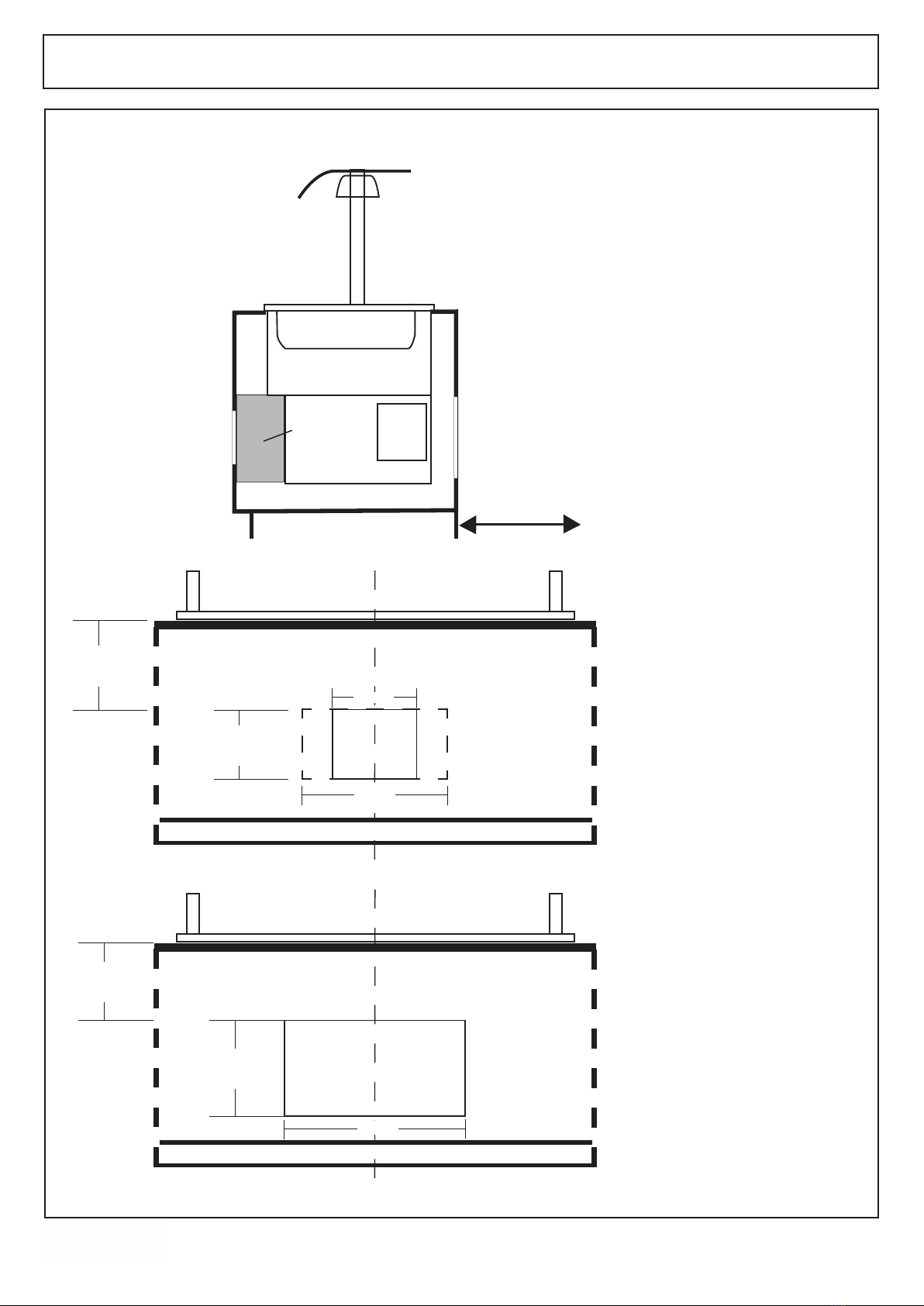

Through Ventillation - The best method

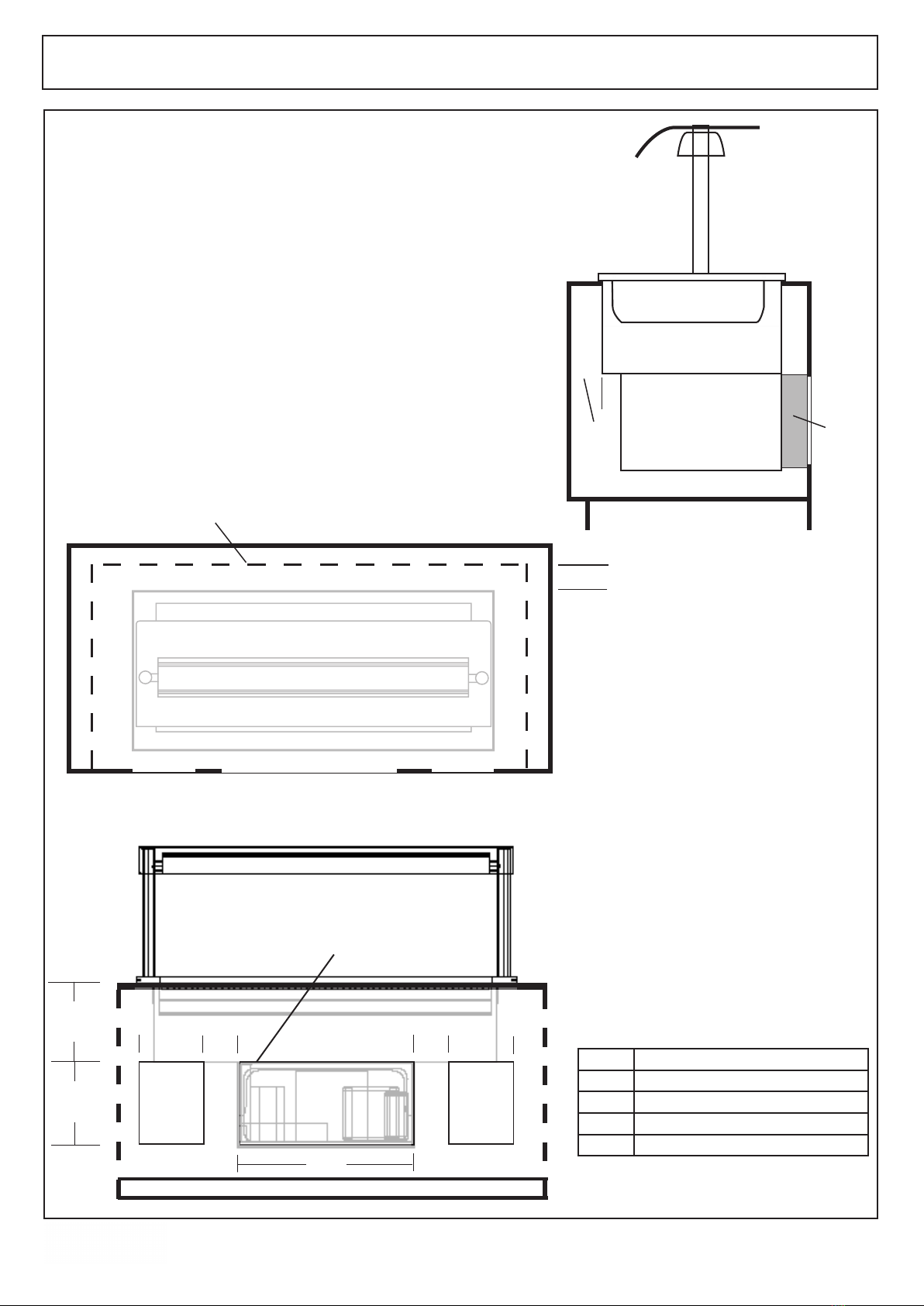

350mm
360mm
290mm
Front Elevation of Counter
Hole in front of counter Do not allow any
obstruction between
the hole and the
Synergy Module
718mm
315mm
380mm
Rear Elevation of Counter
Hole in rear of counter Do not allow any
obstruction between
the hole and the
Synergy Module
Front of Counter
zCut a hole through the front of the
counter as shown.
zFit the small grill supplied over the
aperture.
zCleaning access is to be gained
via this grill, so it needs to be
removable
Rear of Counter
zCut a hole through the rear of the
counter as shown.
zFit the large grill supplied over the
aperture.
zService access is to be gained
via this grill, so it needs to be
removable.
See page 10 for detail of grills
Through venting is the simplest and
most efcient method.
zEnsure that the holes to the correct
size are cut in both the front and rear of
the counter.
zDrop the unit into the hole cut in
the counter top ensuring that the
condenser is aligned with the hole at
the front of the counter.
zSlide out the bafe from the condenser
housing and x into position.
zFix grills supplied to counter panels.
These grills should easily be removed
for cleaning and servicing.
See page 10 for detail of grills
500mm
on DRMT5/25
Slide out bafe
to prevent air
re-circulation
Refrigeration Venting - Through ventilation

V
Page 7
© VML 01/12
Victor Manufacturing Limited. Lonsdale Works, Gibson Street, Bradford, BD39TF
Tel:[phone], Fax:[phone], [email protected]
www.victoronline.co.uk
Cool air into
refrigeration
through front
grill
Front panel & grill
must be
removable to allow
access for cleaning
and service. No Recirculation

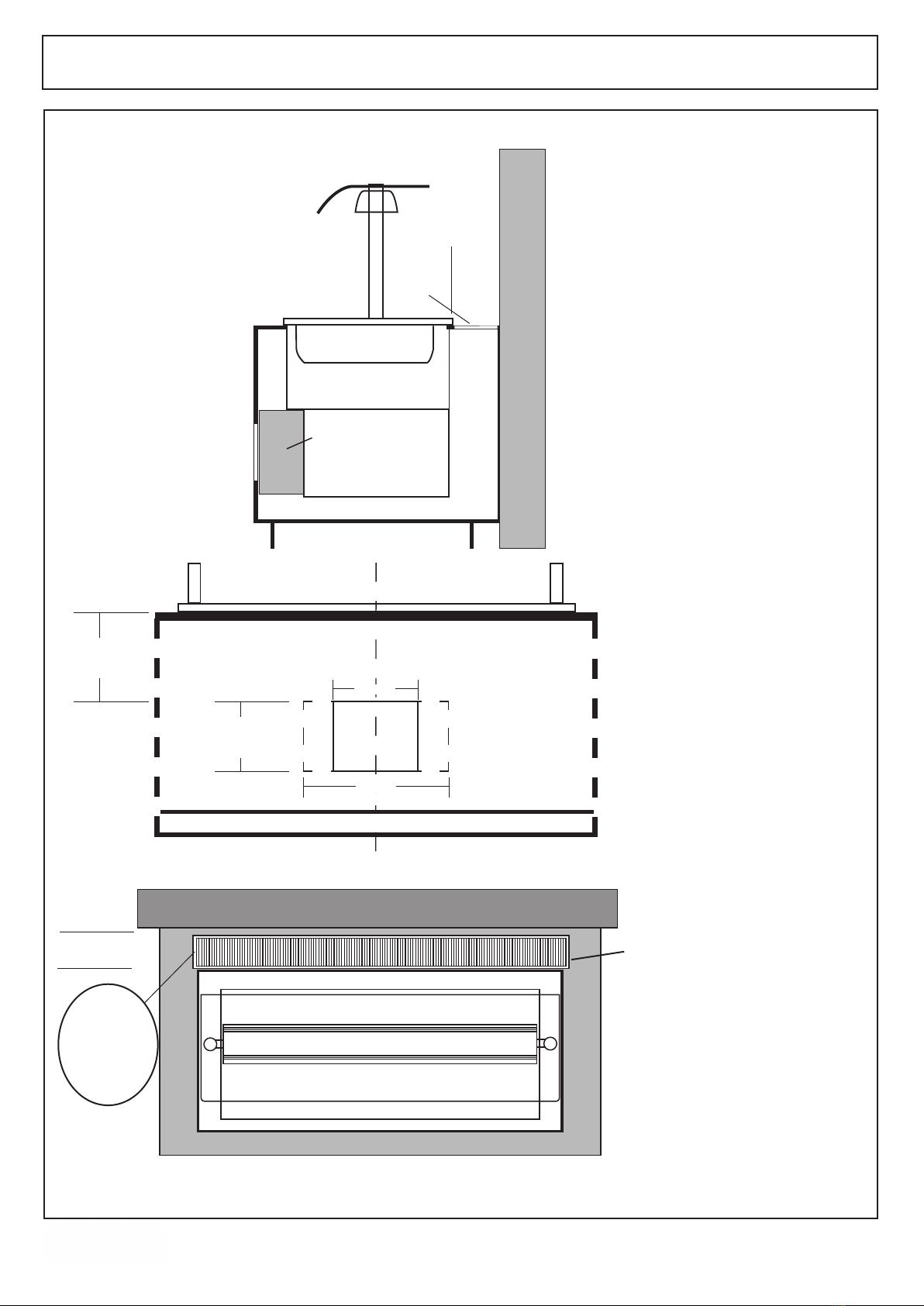

Air in the front out up through the rear
350mm
360mm
290mm
Front Elevation of Counter
Hole in front of counter Do not allow any
obstruction between
the hole and the
Synergy Module
Front of Counter
zCut a hole through the front of the
counter as shown.
zFit the small grill supplied over the
aperture.
zThe front panel (or the middle
800mm of it) must be removable
to allow access for servicing
Counter Top
The hot exhaust air is vented up
behind the back of the unit
zYou need a gap at least 150mm
between the rear of the unit top
and the wall. This can be left
uncovered or the grill provided with
customer facing control models
can be tted.
zShould you wish to use an
alternative grill it must extend the
full length of the unit and have an
aperture area of at least 63%.
For units sited against a wall
It is preferable to order the Customer facing
controlversionoftherequireddropin.These
have controls to the front and are supplied
with a full length rear grill to be tted on the
counter top behind the unit
zRear of the unit must be a minimum of
150mm away from wall
zDrop the unit into the hole cut in
the counter top ensuring that the
condenser is aligned with the hole at
the front of the counter.
zSlide out the bafe from the condenser
housing and x into position.
zFix front grill supplied to front counter
panel. .
See page 10 for detail of grills
500mm
on DRMT5/25
ââ
Ð
â â â â
Warm
air out of
refrigeration
through grill
in counter
top
â
Slide out bafe
to prevent air
re-circulation
150mm
min
Ù Ù
This front panel (or the
middle 800mm of it) must
be removable to allow
access for servicing
Plan view of Counter
Cool air into refrigeration through front grill
Open
area of grill
to be
at least 63%
Grill to
extend length
of unit
150
mm

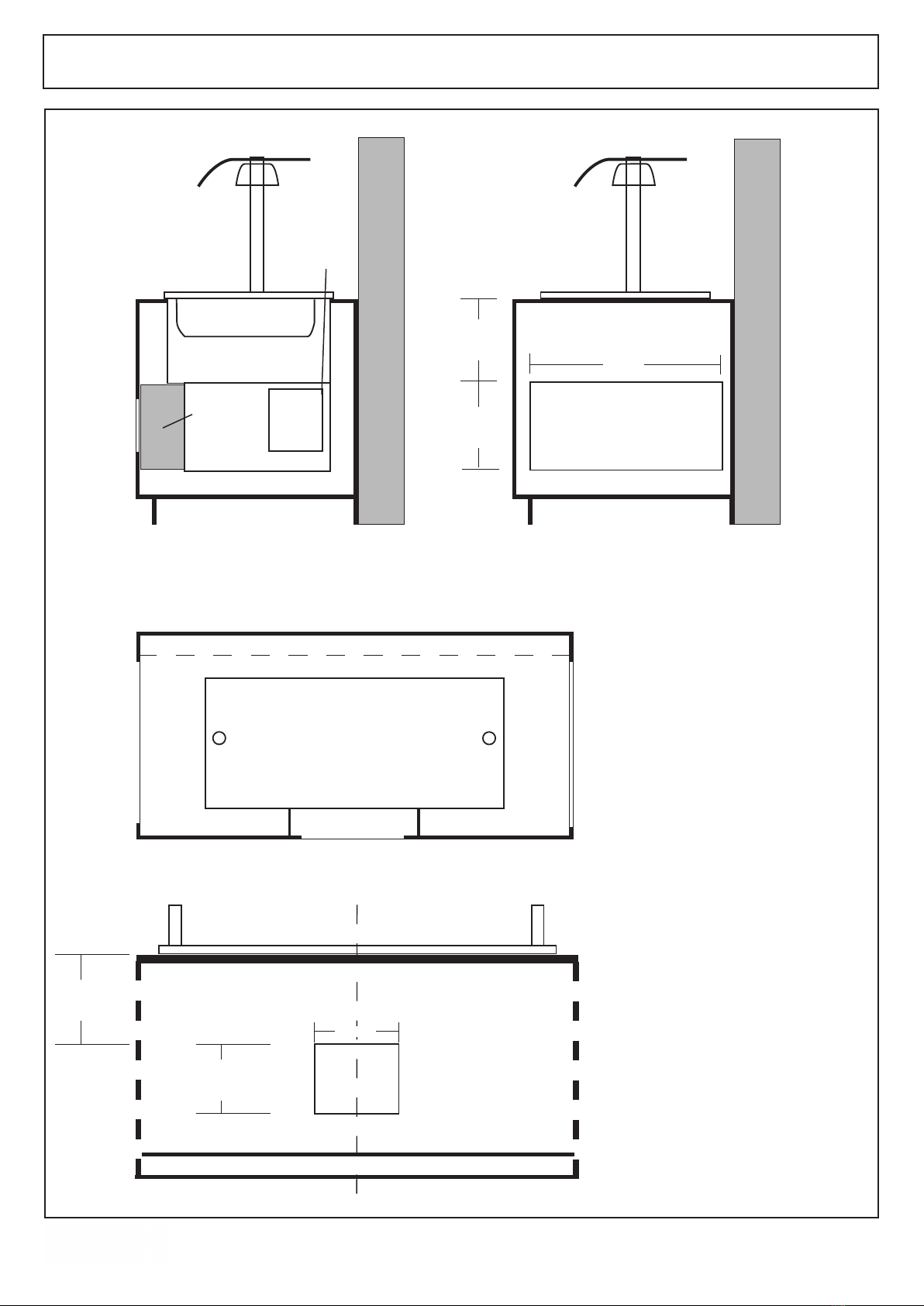

Refrigeration Venting - Units against a wall method 1

V
Page 8
© VML 01/12
Victor Manufacturing Limited. Lonsdale Works, Gibson Street, Bradford, BD39TF
Tel:[phone], Fax:[phone], [email protected]
www.victoronline.co.uk
â
â â â â â
â â â â â
â â â â â
â â â â â
350mm
360mm
290mm
Front Elevation of Counter
Hole in front of counter Do not allow any
obstruction between
the hole and the
Synergy Module
End(s) of Counter
zCut hole as indicated into the ends
of the counter and t suitable grill
with a total aperture area of at
least 0.17m2
This front panel (or the
middle 800mm of it) must
be removable to allow
access for servicing
Plan of Counter - Front
Air outlet
required
min size
718 x 380mm
Drill out
pilot holes with
5mm drill
Slide out bafe
to prevent air
re-circulation
View with end panel removed
Cool air in to
refrigeration
View of end panel
718mm
315mm
380mm
Air in the front out through the side
Refrigeration Venting - Units against a wall method 2
You can vent the exhaust air out of an open end of the counter or if possible
both ends.
To do this drill out the pilot holes in the side of the refrigeration system
housing with a 5mm drill and remove panels
Panel off the rear of the refrigeration housing using a suitable material (Not
provided)
Front of Counter
zCut a hole through the front of the
counter as shown.
zFit the small grill supplied over the
aperture.
zThe front panel (or the middle
800mm of it) must be removable
to allow access for servicing
zSlide out telescopic bafe to front
of counter and x into postion
Not Suitable for DRMT5 and DRMT25 multi-tier units
Not Suitable for
DRMT5 and DRMT25
multi-tier units

V
Page 9
© VML 01/12
Victor Manufacturing Limited. Lonsdale Works, Gibson Street, Bradford, BD39TF
Tel:[phone], Fax:[phone], [email protected]
www.victoronline.co.uk
â
â â â â â â â
â â â â â
â â â â â â â
â â â â â â â
â â â â â
315mm
380mm
718mm
83mm 83mm
AA
Cool air into refrigeration
through grill
Front panel
removable to allow
access for cleaning
and service.
Slide out bafe
to prevent air
re-circulation
80mm
min
Front panel removable to allow
access for cleaning and service.
Cool air into refrigeration
through grill
Grill must be removable
for servicing
80mm
min
Air in and out of the rear
For this method before dropping the unit into the
counter you need to remove the telescopic bafe
from the front of the refrigeration housing and
place it in the rear of the housing
zTo allow for sufcient air ow into the unit the
cut out in the counter top needs to be atleast
80mm back from the front panel
zThe front panel of the unit must be removable
to allow for cleaning and servicing.
Rear of Counter
zThe cut out for the air out is centrally
positioned and must be 718mm x 380mm. Fit
the large grill provided
zThe size of the air in cutouts are dependant
upon the size of the unit see table below
A Unit type / Size
145mm 2 & 3 GN1/1 size wells, decks & delis
300mm 4 & 5 GN1/1 size wells, decks & delis
300mm 3 & 4 GN1/1 size multi-tiers
350mm 5 GN1/1 size multi-tiers
Refrigeration Venting - Venting from the rear
Rear of Counter
zEnsure that warm air (above25O C)
is not drawn into the unit.
zA minimum of 700mm is required
behind the unit.
zThe Inlet grills supplied are not
suitable for this arrangement
zEnsure that the transit brackets (if
Fitted) have been removed.

V
Page 10
© VML 01/12
Victor Manufacturing Limited. Lonsdale Works, Gibson Street, Bradford, BD39TF
Tel:[phone], Fax:[phone], [email protected]
www.victoronline.co.uk

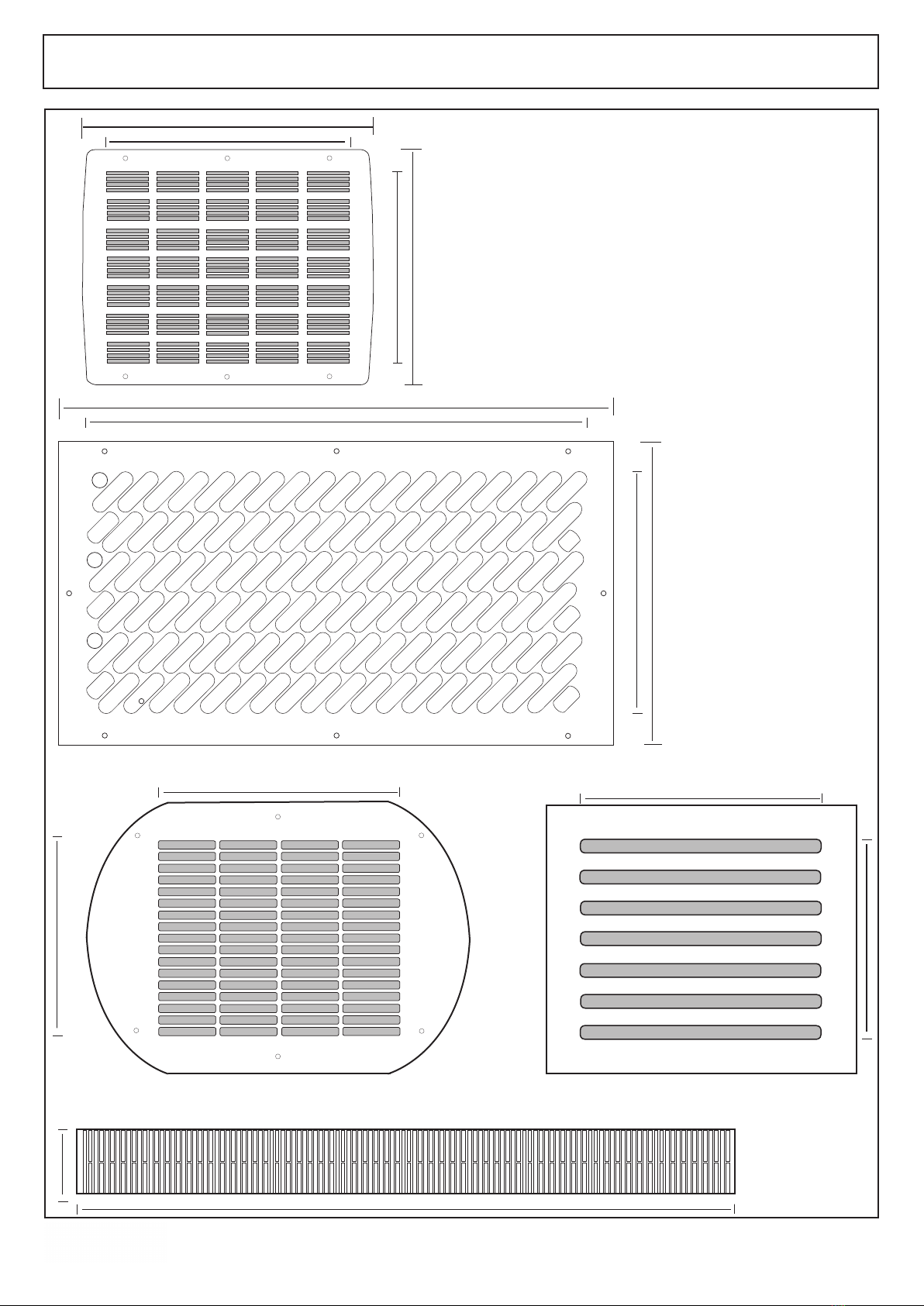

Ventilation Grills
ÙÚ
410mm
Ú
Ú
345mm
ÙÚ
330mm
270mm Ú
Ù
ÙÚ
780mm
Ú
Ú
690mm
ÙÚ
430mm
340mm Ú
Ù
Ú
Ú
350mm
290mm ÚÙ
Ú
Ú
350mm
290mm ÚÙ
Alternative bright polished metal front grill
4 columns x 17 rows of 83mm x 12mm slots on a 17.5 mm pitch 7 x 20mm wide slots on a 45 mm pitch
Alternative grill design to be routered into MDF/wood panels
- must be removable
Standard front grill
Supplied with all refrigerated units to be tted centrally
to front of unit. The grill should be removable to allow
regular cleaning of the condenser. Alternative grills
detailed at the bottom of the page may be tted instead.
You may provide your own grill but to enable the unit to
function correctly and to preserve the warranty it must
have an open area of at least 0.041m2 (0.09m2 for 5
pan size multi-tier units)
Note a larger grill is supplied for DRMT5 & DRMT25
Dimensions: 550 x 330mm (482 x 269mm aperature)
Standard rear grill
supplied with all refrigerated
units with operator facing
controls, to be tted centrally
to the rear of unit. The grill
should be removable to allow
for servicing of the equipment.
You may provide your own
grill but to enable the unit
to function correctly and to
preserve the warranty it must
have an open area of at least
0.17m2.
150mm Ú
Ù
Ú
Ú
A
Grill supplied with units to be sited against a wall
Size “A”
2 pan 850mm
3 pan 1176mm
4 pan 1503mm
5 pan 1830mm
470mm on DRMT5/25 470mm on DRMT5/25

V
Page 11
© VML 01/12
Victor Manufacturing Limited. Lonsdale Works, Gibson Street, Bradford, BD39TF
Tel:[phone], Fax:[phone], [email protected]
www.victoronline.co.uk
Heated Bains Marie - Dry heat 65mm deep well - controls to rear
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DHBM2 725 x 636 850 x 660 1.5 45
DHBM3 1045 x 636 1177 x 660 2.4 60
DHBM4 1370 x 636 1504 x 660 3.0 75
DHBM5 1700 x 636 1831 x 660 3.9 90
DHBM6 2025 x 636 2158 x 660 4.8 100
Heated Bains Marie - Dry heat 65mm deep well - controls to front
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DHBM2C 725 x 636 850 x 660 1.5 45
DHBM3C 1045 x 636 1177 x 660 2.4 60
DHBM4C 1370 x 636 1504 x 660 3.0 75
DHBM5C 1700 x 636 1831 x 660 3.9 90
DHBM6C 2025 x 636 2158 x 660 4.8 100
Heated Bains Marie - Dry heat 65mm deep well - enclosed
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DHBM2E 725 x 636 850 x 660 1.5 60
DHBM3E 1045 x 636 1177 x 660 2.4 75
DHBM4E 1370 x 636 1504 x 660 3.0 90
Heated Bains Marie - Dry heat 150mm deep well - controls to rear
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DHBD2 725 x 636 850 x 660 1.5 45
DHBD3 1045 x 636 1177 x 660 2.4 60
DHBD4 1370 x 636 1504 x 660 3.0 75
DHBD5 1700 x 636 1831 x 660 3.9 90
DHBD6 2025 x 636 2158 x 660 4.8 100
Heated Bains Marie - Dry heat 150mm deep well - controls to front
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DHBD2C 725 x 636 850 x 660 1.5 45
DHBD3C 1045 x 636 1177 x 660 2.4 60
DHBD4C 1370 x 636 1504 x 660 3.0 75
DHBD5C 1700 x 636 1831 x 660 3.9 90
DHBD6C 2025 x 636 2158 x 660 4.8 100
Heated Bains Marie - Dry heat 150mm deep well - enclosed
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DHBD2E 725 x 636 850 x 660 1.5 60
DHBD3E 1045 x 636 1177 x 660 2.4 75
DHBD4E 1370 x 636 1504 x 660 3.0 90
Specications - Curved Glass, Heated
Heated units
Designed to maintain the temperature of hot food by providing heat from below, supplemented by quartz halogen heat lamps from above. Both top
and lower heat levels are fully controllable. Controls are housed in the gantry hood to the operator side as standard. Model sufxed C the controls
are on the customer side. For models without gantries controls are in a remote panel that mounts on the counter body within 1 metre of the unit. .
Units below 3100W are tted with 2 metres of cable and a 13 amp plug.
Units 3100W or over are supplied with 2 metres of cable and a 32 amp plug
Mains supply cables enter all units from the underneath to the left hand side of the unit (as view by the customer)

V
Page 12
© VML 01/12
Victor Manufacturing Limited. Lonsdale Works, Gibson Street, Bradford, BD39TF
Tel:[phone], Fax:[phone], [email protected]
www.victoronline.co.uk
Heated Bains Marie - Wet or dry heat 150mm deep well - controls to rear
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DHBW2 725 x 646 850 x 660 1.5 45
DHBW3 1045 x 646 1177 x 660 2.4 60
DHBW4 1370 x 646 1504 x 660 3.0 75
DHBW5 1700 x 646 1831 x 660 3.9 90
Heated Bains Marie - Wet or dry heat 150mm deep well - controls to front
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DHBW2C 725 x 646 850 x 660 1.5 45
DHBW3C 1045 x 646 1177 x 660 2.4 60
DHBW4C 1370 x 646 1504 x 660 3.0 75
DHBW5C 1700 x 646 1831 x 660 3.9 90
Heated Bains Marie - Wet or dry heat 150mm deep well - enclosed
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DHBW2E 725 x 646 850 x 660 1.5 60
DHBW3E 1045 x 646 1177 x 660 2.4 75
DHBW4E 1370 x 646 1504 x 660 3.0 90
Heated ceramic hot plate - controls to rear
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DHHP2 725 x 636 850 x 660 1.5 45
DHHP3 1045 x 636 1177 x 660 2.4 60
DHHP4 1370 x 636 1504 x 660 3.0 75
DHHP5 1700 x 636 1831 x 660 3.9 90
DHHP6 2025 x 636 2158 x 660 4.8 105
Heated ceramic hot plate - controls to front
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DHHP2C 725 x 636 850 x 660 1.5 45
DHHP3C 1045 x 636 1177 x 660 2.4 60
DHHP4C 1370 x 636 1504 x 660 3.0 75
DHHP5C 1700 x 636 1831 x 660 3.9 90
DHHP6C 2025 x 636 2158 x 660 4.8 105
Heated ceramic hot plate - enclosed
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DHHP2E 725 x 636 850 x 660 1.5 60
DHHP3E 1045 x 636 1177 x 660 2.4 75
DHHP4E 1370 x 636 1504 x 660 3.0 90
Specications - Curved Glass, Heated

V
Page 13
© VML 01/12
Victor Manufacturing Limited. Lonsdale Works, Gibson Street, Bradford, BD39TF
Tel:[phone], Fax:[phone], [email protected]
www.victoronline.co.uk
Heated recessed top - controls to rear
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DHRT2 725 x 646 850 x 660 1.2 60
DHRT3 1045 x 646 1177 x 660 1.8 75
DHRT4 1370 x 646 1504 x 660 2.4 90
DHRT5 1700 x 646 1831 x 660 3.0 105
Heated recessed top - controls to front
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DHRT2C 725 x 646 850 x 660 1.2 60
DHRT3C 1045 x 646 1177 x 660 1.8 75
DHRT4C 1370 x 646 1504 x 660 2.4 90
DHRT5C 1700 x 646 1831 x 660 3.0 105
Heated recessed top - enclosed
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DHRT2E 725 x 646 850 x 660 1.2 75
DHRT3E 1045 x 646 1177 x 660 1.8 90
DHRT4E 1370 x 646 1504 x 660 2.4 105
Heated display deli
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DHDL2 725 x 646 850 x 660 1.4 85
DHDL3 1045 x 646 1177 x 660 2.1 100
DHDL4 1370 x 646 1504 x 660 2.8 115
Specications - Curved Glass, Heated

V
Page 14
© VML 01/12
Victor Manufacturing Limited. Lonsdale Works, Gibson Street, Bradford, BD39TF
Tel:[phone], Fax:[phone], [email protected]
www.victoronline.co.uk
Refrigerated blown air deck - controls to rear
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DRDK2 725 x 646 850 x 755 1.6 75
DRDK3 1045 x 646 1177 x 755 1.6 100
DRDK4 1370 x 646 1504 x 755 2.1 125
DRDK5 1700 x 646 1831 x 755 2.4 150
Refrigerated blown air deck - controls to front
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DRDK2C 725 x 646 850 x 755 1.6 75
DRDK3C 1045 x 646 1177 x 755 1.6 100
DRDK4C 1370 x 646 1504 x 755 2.1 125
DRDK5C 1700 x 646 1831 x 755 2.4 150
Refrigerated blown air well - controls to rear
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DRWL2 725 x 646 850 x 660 1.6 75
DRWL3 1045 x 646 1177 x 660 1.6 100
DRWL4 1370 x 646 1504 x 660 2.1 125
DRWL5 1700 x 646 1831 x 660 2.4 150
Refrigerated blown air well - controls to front
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DRWL2C 725 x 646 850 x 660 1.6 75
DRWL3C 1045 x 646 1177 x 660 1.6 100
DRWL4C 1370 x 646 1504 x 660 2.1 125
DRWL5C 1700 x 646 1831 x 660 2.4 150
Refrigerated blown air well - enclosed
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DRWL2E 725 x 646 850 x 660 1.6 90
DRWL3E 1045 x 646 1177 x 660 1.6 115
DRWL4E 1370 x 646 1504 x 660 2.1 140
Refrigerated island well
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DRIW3 1045 x 646 1177 x 660 1.6 105
DRIW4 1370 x 646 1504 x 660 2.1 130
Specications - Curved Glass, Refrigerated
Refrigerated units
Designedto maintain the temperatureof pre-chilled food food- Refrigerated Units -Wells,Deck,Delis and drop-inMulti-tierscomply with thestringent
requirements of EN ISO 23953 - 2:2005 Performance level M1 (-1°C to + 5°C) in Climate class 3 (25°C, 60%RH,0.2m/s) and Performance level
M2 (-1°C to + 7°C) in Climate class 4 (30°C, 55%RH,0.2m/s)
Controls are housed in the gantry hood to the operator side as standard. Model sufxed C the controls are on the customer side. For models without
gantries, controls are in a remote panel that mounts on the counter body within 1 metre of the unit. .
Mainssupply cables enter allunits from the underneathto the lower lefthand side of therefrigeration system housing unit(as viewed by thecustomer)

V
Page 15
© VML 01/12
Victor Manufacturing Limited. Lonsdale Works, Gibson Street, Bradford, BD39TF
Tel:[phone], Fax:[phone], [email protected]
www.victoronline.co.uk
Refrigerated display deli
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DRDL2 725 x 646 850 x 755 1.6 105
DRDL3 1045 x 646 1177 x 755 1.6 140
DRDL4 1370 x 646 1504 x 755 2.1 175
Refrigerated high deli
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DRDH3 1045 x 646 1177 x 755 1.6 150
DRDH4 1370 x 646 1504 x 755 2.1 190
Refrigerated deep deli
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DRDD2 725 x 796 850 x 905 1.6 110
DRDD3 1045 x 796 1177 x 905 1.6 150
DRDD4 1370 x 796 1504 x 905 2.1 190
Refrigerated three tier multi-deck - doors to rear
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DRMT2 725 x 646 850 x 660 2.1 200
DRMT3 1045 x 646 1177 x 660 2.6 220
DRMT4 1370 x 646 1504 x 660 3.0 270
DRMT5 1700 x 646 1831 x 660 3.4 320
Refrigerated three tier multi-deck - solid back
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DRMT2W 725 x 646 850 x 660 2.1 200
DRMT3W 1045 x 646 1177 x 660 2.6 220
DRMT4W 1370 x 646 1504 x 660 3.0 270
DRMT5W 1700 x 646 1831 x 660 3.4 320
Refrigerated two tier multi-deck - doors to rear
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DRMT22 725 x 646 850 x 660 2.1 190
DRMT23 1045 x 646 1177 x 660 2.6 210
DRMT24 1370 x 646 1504 x 660 3.0 260
DRMT25 1700 x 646 1831 x 660 3.4 310
Refrigerated two tier multi- deck - solid back
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
DRMT22W 725 x 646 850 x 660 2.1 190
DRMT23W 1045 x 646 1177 x 660 2.6 210
DRMT24W 1370 x 646 1504 x 660 3.0 260
DRMT25W 1700 x 646 1831 x 660 3.4 310
Specications - Curved Glass, Refrigerated

V
Page 16
© VML 01/12
Victor Manufacturing Limited. Lonsdale Works, Gibson Street, Bradford, BD39TF
Tel:[phone], Fax:[phone], [email protected]
www.victoronline.co.uk
Heated Bains Marie - Dry heat 65mm deep well - controls to rear
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SSHBM2 725 x 636 850 x 660 1.5 45
SSHBM3 1045 x 636 1177 x 660 2.4 60
SSHBM4 1370 x 636 1504 x 660 3.0 75
SSHBM5 1700 x 636 1831 x 660 3.9 90
SSHBM6 2025 x 636 2158 x 660 4.8 100
Heated Bains Marie - Dry heat 65mm deep well - controls to front
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SSHBM2C 725 x 636 850 x 660 1.5 45
SSHBM3C 1045 x 636 1177 x 660 2.4 60
SSHBM4C 1370 x 636 1504 x 660 3.0 75
SSHBM5C 1700 x 636 1831 x 660 3.9 90
SSHBM6C 2025 x 636 2158 x 660 4.8 100
Heated Bains Marie - Dry heat 65mm deep well - enclosed
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SFHBM2 725 x 636 850 x 660 1.5 60
SFHBM3 1045 x 636 1177 x 660 2.4 75
SFHBM4 1370 x 636 1504 x 660 3.0 90
SFHBM5 1700 x 636 1831 x 660 3.9 100
SFHBM6 2025 x 636 2158 x 660 4.8 115
Heated Bains Marie - Dry heat 150mm deep well - controls to rear
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SSHBD2 725 x 636 850 x 660 1.5 45
SSHBD3 1045 x 636 1177 x 660 2.4 60
SSHBD4 1370 x 636 1504 x 660 3.0 75
SSHBD5 1700 x 636 1831 x 660 3.9 90
SSHBD6 2025 x 636 2158 x 660 4.8 100
Heated Bains Marie - Dry heat 150mm deep well - controls to front
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SSHBD2C 725 x 636 850 x 660 1.5 45
SSHBD3C 1045 x 636 1177 x 660 2.4 60
SSHBD4C 1370 x 636 1504 x 660 3.0 75
SSHBD5C 1700 x 636 1831 x 660 3.9 90
SSHBD6C 2025 x 636 2158 x 660 4.8 100
Heated Bains Marie - Dry heat 150mm deep well - enclosed
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SFHBD2 725 x 636 850 x 660 1.5 60
SFHBD3 1045 x 636 1177 x 660 2.4 75
SFHBD4 1370 x 636 1504 x 660 3.0 90
SFHBD5 1700 x 636 1831 x 660 3.9 100
SFHBD6 2025 x 636 2158 x 660 4.8 115
Specications - Flat Glass, Heated

V
Page 17
© VML 01/12
Victor Manufacturing Limited. Lonsdale Works, Gibson Street, Bradford, BD39TF
Tel:[phone], Fax:[phone], [email protected]
www.victoronline.co.uk
Heated Bains Marie - Wet or dry heat 150mm deep well - controls to rear
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SSHBW2 725 x 646 850 x 660 1.5 45
SSHBW3 1045 x 646 1177 x 660 2.4 60
SSHBW4 1370 x 646 1504 x 660 3.0 75
SSHBW5 1700 x 646 1831 x 660 3.9 90
Heated Bains Marie - Wet or dry heat 150mm deep well - controls to front
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SSHBW2C 725 x 646 850 x 660 1.5 45
SSHBW3C 1045 x 646 1177 x 660 2.4 60
SSHBW4C 1370 x 646 1504 x 660 3.0 75
SSHBW5C 1700 x 646 1831 x 660 3.9 90
Heated Bains Marie - Wet or dry heat 150mm deep well - enclosed
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SFHBW2 725 x 646 850 x 660 1.5 60
SFHBW3 1045 x 646 1177 x 660 2.4 75
SFHBW4 1370 x 646 1504 x 660 3.0 90
SFHBW5 1700 x 646 1831 x 660 3.9 100
Heated ceramic hot plate - controls to rear
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SSHHP2 725 x 636 850 x 660 1.5 45
SSHHP3 1045 x 636 1177 x 660 2.4 60
SSHHP4 1370 x 636 1504 x 660 3.0 75
SSHHP5 1700 x 636 1831 x 660 3.9 90
SSHHP6 2025 x 636 2158 x 660 4.8 100
Heated ceramic hot plate - controls to front
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SSHHP2C 725 x 636 850 x 660 1.5 45
SSHHP3C 1045 x 636 1177 x 660 2.4 60
SSHHP4C 1370 x 636 1504 x 660 3.0 75
SSHHP5C 1700 x 636 1831 x 660 3.9 90
SSHHP6C 2025 x 636 2158 x 660 4.8 100
Heated ceramic hot plate - controls to rear - enclosed
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SFHHP2 725 x 636 850 x 660 1.5 60
SFHHP3 1045 x 636 1177 x 660 2.4 75
SFHHP4 1370 x 636 1504 x 660 3.0 90
SFHHP5 1700 x 636 1831 x 660 3.9 100
SFHHP6 2025 x 636 2158 x 660 4.8 115
Specications - Flat Glass, Heated

V
Page 18
© VML 01/12
Victor Manufacturing Limited. Lonsdale Works, Gibson Street, Bradford, BD39TF
Tel:[phone], Fax:[phone], [email protected]
www.victoronline.co.uk
Heated recessed top - controls to rear
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SSHRT2 725 x 646 850 x 660 1.5 45
SSHRT3 1045 x 646 1177 x 660 2.4 60
SSHRT4 1370 x 646 1504 x 660 3.0 75
SSHRT5 1700 x 646 1831 x 660 3.9 90
Heated recessed top - controls to front
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SSHRT2C 725 x 646 850 x 660 1.5 45
SSHRT3C 1045 x 646 1177 x 660 2.4 60
SSHRT4C 1370 x 646 1504 x 660 3.0 75
SSHRT5C 1700 x 646 1831 x 660 3.9 90
Heated recessed top - controls to rear - enclosed
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SFHRT2 725 x 646 850 x 660 1.5 60
SFHRT3 1045 x 646 1177 x 660 2.4 75
SFHRT4 1370 x 646 1504 x 660 3.0 90
SFHRT5 1700 x 646 1831 x 660 3.9 100
Heated display deli
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SFHDL2 725 x 646 850 x 660 1.4 70
SFHDL3 1045 x 646 1177 x 660 2.1 85
SFHDL4 1370 x 646 1504 x 660 2.8 100
Refrigerated blown air deck - controls to rear
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SSRDK2 725 x 646 850 x 775 1.6 75
SSRDK3 1045 x 646 1177 x 775 1.6 100
SSRDK4 1370 x 646 1504 x 775 2.1 125
SSRDK5 1700 x 646 1831 x 775 2.4 150
Refrigerated blown air deck - controls to front
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SSRDK2C 725 x 646 850 x 660 1.6 75
SSRDK3C 1045 x 646 1177 x 660 1.6 100
SSRDK4C 1370 x 646 1504 x 660 2.1 125
SSRDK5C 1700 x 646 1831 x 660 2.4 150
Specications - Flat Glass, Heated & Refrigerated

V
Page 19
© VML 01/12
Victor Manufacturing Limited. Lonsdale Works, Gibson Street, Bradford, BD39TF
Tel:[phone], Fax:[phone], [email protected]
www.victoronline.co.uk
Refrigerated blown air well - controls to rear
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SSRWL2 725 x 646 850 x 660 1.6 75
SSRWL3 1045 x 646 1177 x 660 1.6 100
SSRWL4 1370 x 646 1504 x 660 2.1 125
SSRWL5 1700 x 646 1831 x 660 2.4 150
Refrigerated blown air well - controls to front
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SSRWL2C 725 x 646 850 x 660 1.6 75
SSRWL3C 1045 x 646 1177 x 660 1.6 100
SSRWL4C 1370 x 646 1504 x 660 2.1 125
SSRWL5C 1700 x 646 1831 x 660 2.4 150
Refrigerated blown air well - controls to rear - enclosed
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SFRWL2 725 x 646 850 x 660 1.6 90
SFRWL3 1045 x 646 1177 x 660 1.6 115
SFRWL4 1370 x 646 1504 x 660 2.1 140
SFRWL5 1700 x 646 1831 x 660 2.4 165
Refrigerated island well
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SSRIW3 1045 x 646 1177 x 660 1.6 105
SSRIW4 1370 x 646 1504 x 660 2.1 130
SSRIW5 1700 x 646 1831 x 660 2.4 155
Refrigerated display deli
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SFRDL2 725 x 646 850 x 755 1.6 105
SFRDL3 1045 x 646 1177 x 755 1.6 140
SFRDL4 1370 x 646 1504 x 755 2.1 175
SFRDL5 1700 x 646 1831 x 755 2.4 200
Refrigerated three tier multi-deck - doors to rear
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SSRMT2 725 x 646 850 x 660 2.1 200
SSRMT3 1045 x 646 1177 x 660 2.6 220
SSRMT4 1370 x 646 1504 x 660 3.0 270
SSRMT5 1700 x 646 1831 x 660 3.4 320
Specications - Flat Glass, Refrigerated

V
Page 20
© VML 01/12
Victor Manufacturing Limited. Lonsdale Works, Gibson Street, Bradford, BD39TF
Tel:[phone], Fax:[phone], [email protected]
www.victoronline.co.uk
Refrigerated three tier multi-deck - solid back
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SSRMT2W 725 x 646 850 x 660 2.1 200
SSRMT3W 1045 x 646 1177 x 660 2.6 220
SSRMT4W 1370 x 646 1504 x 660 3.0 270
SSRMT5W 1700 x 646 1831 x 660 3.4 320
Refrigerated two tier multi-deck - doors to rear
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SSRMT22 725 x 646 850 x 660 2.1 190
SSRMT23 1045 x 646 1177 x 660 2.6 210
SSRMT24 1370 x 646 1504 x 660 3.0 260
SSRMT25 1700 x 646 1831 x 660 3.4 310
Refrigerated two tier multi-deck - solid back
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
SSRMT22W 725 x 646 850x 660 2.1 190
SSRMT23W 1045 x 646 1177 x 660 2.6 210
SSRMT24W 1370 x 646 1504 x 660 3.0 260
SSRMT25W 1700 x 646 1831 x 660 3.4 310
Heated Bains Marie - Dry heat 65mm deep well - no gantry
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
WDHBM2 725 x 636 850 x 660 0.9 30
WDHBM3 1045 x 636 1177 x 660 1.5 45
WDHBM4 1370 x 636 1504 x 660 1.8 60
WDHBM5 1700 x 636 1831 x 660 2.4 75
WDHBM6 2025 x 636 2158 x 660 3.0 90
Heated Bains Marie - Dry heat 150mm deep well - no gantry
Part No. Cut out Top Size Power Weight
Size (mm) (mm) (kW) (kg)
WDHBD2 725 x 636 850 x 660 0.9 30
WDHBD3 1045 x 636 1177 x 660 1.5 45
Specications - Flat Glass, Refrigerated
