RECEIVING A CALL
OPEN THE DOOR
During a call
During a
conversation
To answer an incoming call press the talk button . The LED behind
the talk symbol will illuminate to indicate the videophone is
switched ON. A conversation can now begin.
OVERVIEW
Privacy ON/OFF button
Privacy LED
Door Open LED
Brightness Display adjustment
Speech Volume adjustment
LCD Colour Screen
Microphone
Talk (answer call),
Camera Recall button
Talk
(ON/OFF) LED
Call Tone Volume adjustment
Speaker
Service button
QG_6788_V.1.0_08/17
ART. 6788
6700 Series Hands Free Videophone incorporating a 7” Hi-Res full colour
active matrix LCD monitor specic for the "True Two wire" 2300 Digital
System.
It includes 4 buttons: "answer call/camera recall", "door open", "service"
and "privacy".
3 LEDs indicate the call is answered, privacy is activated and door open.
Programmable privacy duration time and number of rings.
Intercommunicating call and door call.
Adjustments: speech volume control, call tone volume switch (3 levels),
picture hue, contrast and brightness controls.
6788
Colour Hands Free Videophone
QUICK GUIDE
Door Open button, intercommunicating button
Press the lock button to open the door. The LED behind the
lock symbol will illuminate to indicate that the door is open
(if the DOL terminals were connected during the installation).

zZz
zZz
zZz
zZz
zZz
zZz
zZz
zZz
beep!
beep!
zZz
zZz
beep!
beep!
zZz
zZz
beep!
beep!
zZz
zZz
beep!
beep!
zZz
zZz
beep!
beep!
zZz
zZz
beep!
beep!
zZz
zZz
beep!
beep!
zZz
zZz
beep!
beep!
zZz
zZz
beep!
beep!
zZz
zZz
beep!
beep!
zZz
zZz
beep!
beep!

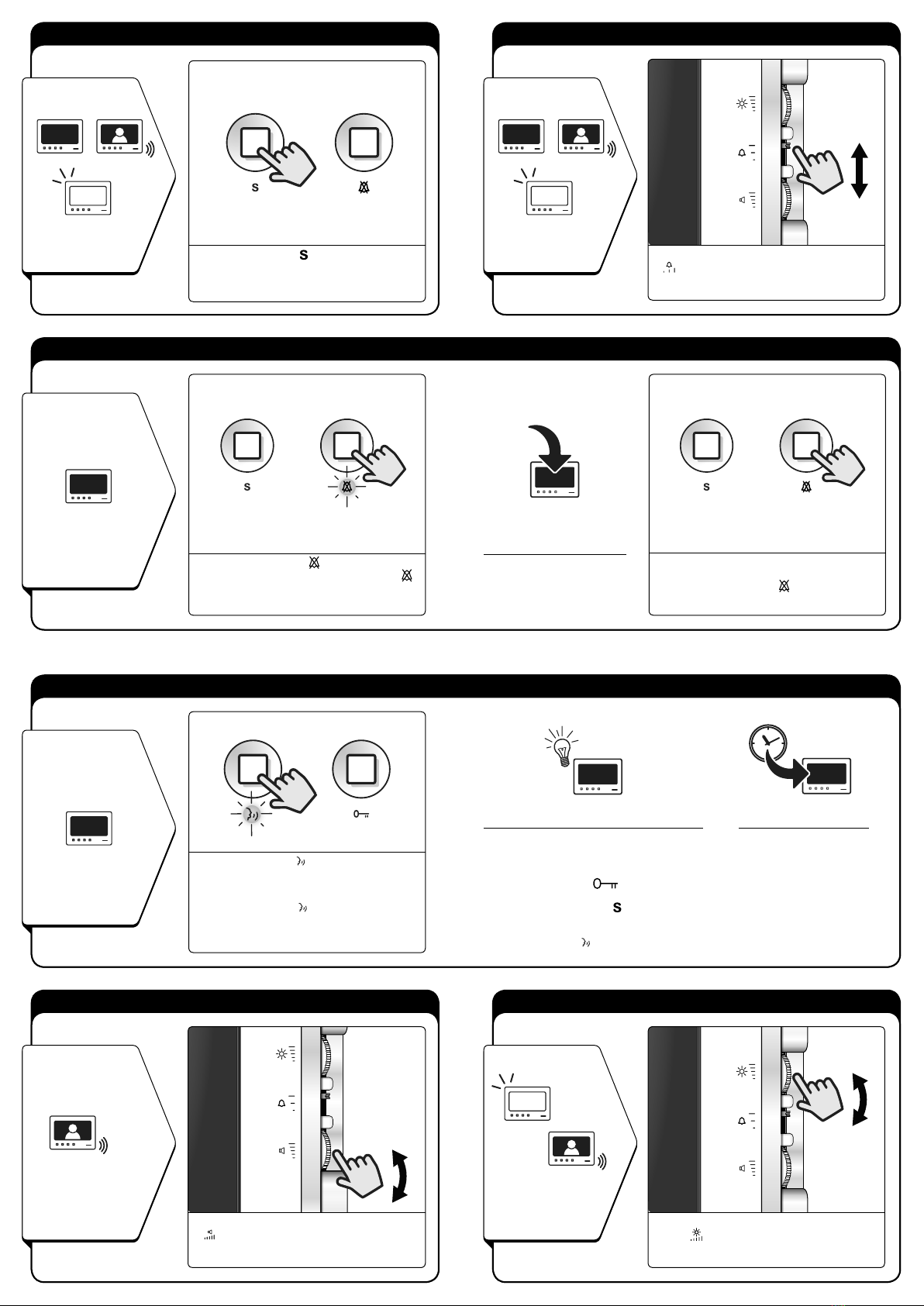

PRIVACY FUNCTION
