Viessmann VITOTRONIC 200 Operating instructions

Operating instructions
for the system user
VIESMANN
Heat pump control unit
Vitotronic 200, type WO1A
VITOTRONIC 200
5592 647 GB 8/2010 Please keep safe.

2
Please follow these safety instructions closely to prevent accidents and mate-
rial losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
!Please note
This symbol warns against the
risk of material losses and envi-
ronmental pollution.
Note
Details identified by the word "Note" con-
tain additional information.
Target group
These operating instructions are
designed for system users.
This appliance is not designed to be
used by persons (including children) with
limited physical, sensory or mental
capacities, or lacking experience and/or
knowledge, unless they are supervised
by a person responsible for their safety,
or have received instructions from such
a person as to how to use the appli-
ance.
!Please note
Children should be supervised.
Ensure that children never play
with the appliance.
Danger
Incorrect work on the system can
lead to life-threatening acci-
dents.
Work on electrical equipment
must only be carried out by a
qualified electrician.
In case of fire
Danger
With fire there is a risk of burn-
ing.
■ Shut down the system.
■ Use a tested fire extinguisher,
class ABC.
Installation conditions
!Please note
Incorrect ambient conditions can
lead to system damage and can
put the safe operation at risk.
Appliances installed inside:
■ Ensure ambient temperatures
above 0 ºC and below 35 ºC.
■ Avoid air contamination
through halogenated hydrocar-
bons (e.g. as in paints, solvents
and cleaning agents).
■ Avoid continuously high humid-
ity levels (e.g. through frequent
drying of washing).
Appliance installed outside:
■ Only operate appliance at
ambient temperatures above
-20 ºC and below 35 ºC.
Safety instructions
For your safety
5592 647 GB

3
Auxiliary components, spare and
wearing parts
!Please note
Components that are not tested
with the system may cause sys-
tem damage, or may affect its
functions.
Installation or replacement work
must only be carried out by quali-
fied personnel.
Safety instructions
For your safety (cont.)
5592 647 GB

4
Introductory information
Device description................................................................................................ 7
Commissioning..................................................................................................... 7
Your system is preset at the factory..................................................................... 7
Terminology.......................................................................................................... 8
Energy saving tips................................................................................................ 9
Operation
Controls................................................................................................................ 11
■ Opening the control unit.................................................................................... 11

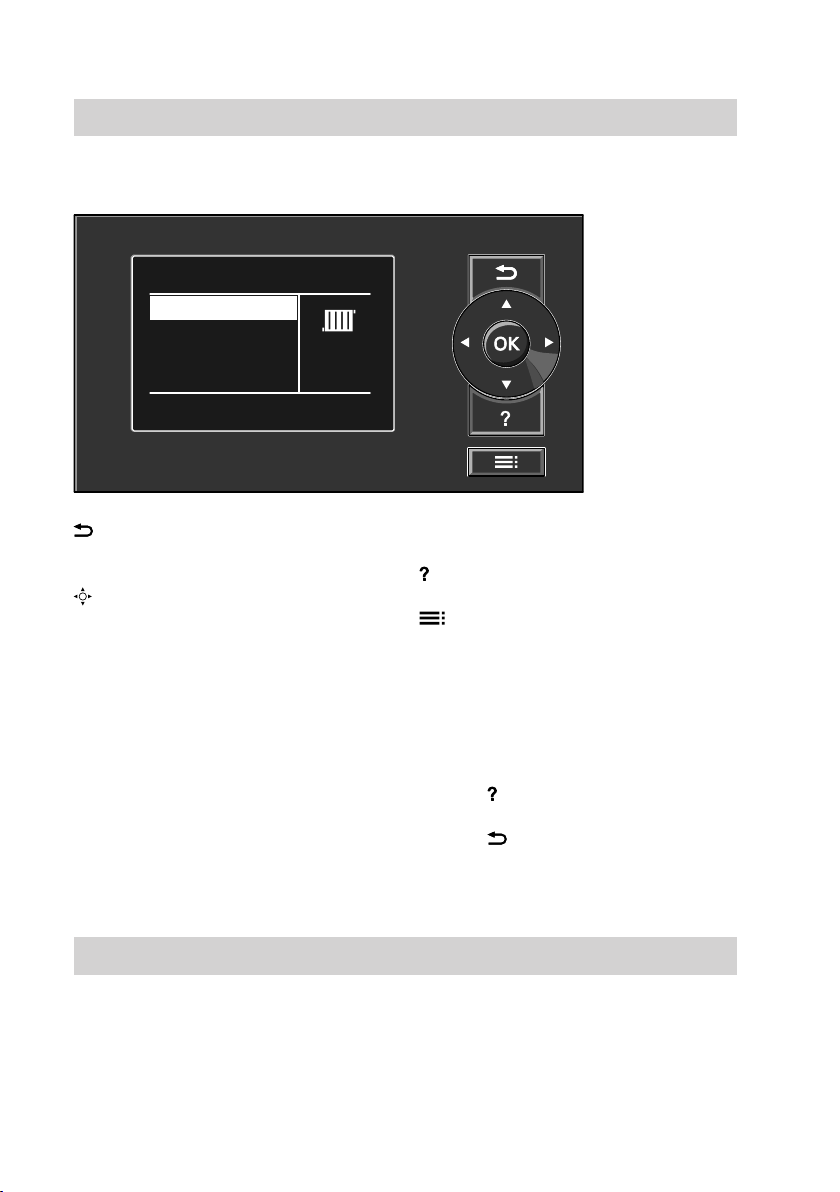

■ Programming unit.............................................................................................. 14
Menu.................................................................................................................... 14
How to operate..................................................................................................... 16
Start-up/shutdown
Starting the heat pump......................................................................................... 19
Stopping the heat pump....................................................................................... 22
■ With frost protection monitoring........................................................................ 22
■ Without frost protection monitoring (shutting down the system)....................... 22
Central heating/cooling
Required settings................................................................................................. 24
Selecting the heating/cooling circuit..................................................................... 24
Setting the room temperature............................................................................... 25
Setting the operating program.............................................................................. 26
Setting a time program......................................................................................... 26
■ Operating status for heating/cooling................................................................. 28
Enabling an electric booster heater...................................................................... 29
Changing the heating curve................................................................................. 29
Enabling and blocking active cooling mode......................................................... 30
Stopping central heating/cooling.......................................................................... 30
Comfort and energy saving functions
Selecting party mode............................................................................................ 31
Selecting economy mode..................................................................................... 32
Selecting the holiday program.............................................................................. 32
DHW heating
Required settings................................................................................................. 34
Setting the DHW temperatures............................................................................ 34
Setting the operating program.............................................................................. 34
Index
Index
5592 647 GB

5
Setting the time program...................................................................................... 35
■ Operating status for DHW heating.................................................................... 37
■ Start optimisation.............................................................................................. 37
■ Stop optimisation.............................................................................................. 37
■ DHW heating outside the time program............................................................ 38
Setting the time program for the DHW circulation pump...................................... 38
■ Operating status for DHW circulation pump...................................................... 40
Enabling an electric booster heater...................................................................... 40
Switching off DHW heating................................................................................... 41
Heating water buffer cylinder
Setting a time program......................................................................................... 42
■ Operating status for the heating water buffer cylinder...................................... 43
Further adjustments
Setting the display brightness.............................................................................. 44
Setting the display contrast.................................................................................. 44
Entering heating circuit designations.................................................................... 44
Setting the time and date..................................................................................... 45
Language selection.............................................................................................. 45
Setting the temperature unit (°C/°F)..................................................................... 45
Restoring factory settings..................................................................................... 46
Scanning
Scanning information............................................................................................ 47
Scanning messages............................................................................................. 48
Manual mode...................................................................................................... 50
What to do if...
Rooms are too cold.............................................................................................. 51
Rooms are too hot................................................................................................ 51
There is no hot water............................................................................................ 52
" " flashes and "Note" is displayed...................................................................... 52
" " flashes and "Warning" is displayed............................................................... 52
" " flashes and "Fault" is displayed..................................................................... 52
"Power-OFF C5" is displayed............................................................................... 53
"External program" is displayed........................................................................... 53
Maintenance........................................................................................................ 54
Appendix
Refrigerant............................................................................................................ 55
Index
Index
5592 647 GB

6
Menu overview..................................................................................................... 56
■ Standard menu ................................................................................................ 56
■ Extended menu................................................................................................. 57
Terminology.......................................................................................................... 59
Keyword index.................................................................................................... 66
Index
Index (cont.)
5592 647 GB

7
Subject to the type of heat pump and
accessories installed, your heating sys-
tem may be equipped as follows:
■ Heating circuits:
Up to 3 heating circuits (2 with mixers)
can be heated.
■ Dual mode:
The heat pump control unit supports
dual mode operation with an additional
heat source, e.g. an oil condensing
boiler or electric instantaneous heat-
ing water heater.
■ Cooling:
The natural cooling and active cooling
functions are supported if the required
accessories are installed. Cooling is
provided via a heating circuit, e.g.
underfloor heating circuit, or via a sep-
arate cooling circuit, e.g. chilled ceiling
or fan convector.
■ DHW heating:
DHW heating using an external DHW
cylinder, and control of a DHW circu-
lation pump are possible.
■ Heat pump control unit:
All connected components are oper-
ated and controlled via the heat pump
control unit with plain text menus.
Note
These operating instructions also
describe functions that are only available
on some heat pump models or only with
accessories. These functions are not
specially identified.
For questions relating to the extent of
functions and accessories for your heat
pump and your heating system, check
with your local heating contractor.
Commissioning
The commissioning and matching up of
the heat pump control unit to local con-
ditions and to the structural characteris-
tics of the building, plus the instruction of
the user in operating the system, must
be carried out by your heating contrac-
tor.
Your system is preset at the factory
At the factory, the heat pump control unit
is set to "Heating and DHW".
Introductory information
Device description
5592 647 GB

8
Your heating system is therefore ready
for use:
Central heating/Central cooling
■ From 00:00 to 24:00 h your rooms are
heated to 20 °C "Set room temp."
(standard heating mode).
■ If a heating water buffer cylinder is
installed, it will be heated.
■ Cooling will be switched off.
■ Your heating contractor can make fur-
ther settings for you during commis-
sioning.
You can change any settings individu-
ally at any time to suit your require-
ments (see chapter "Central heating/
cooling").
DHW heating
■ Every day, DHW is heated from 00:00
to 24:00 h to 50 °C "Set DHW tem-
perature".
■ Any installed DHW circulation pump is
switched off.
■ Your heating contractor can make fur-
ther settings for you during commis-
sioning.
You can change any settings individu-
ally at any time to suit your require-
ments (see chapter "DHW heating").
Frost protection
■ Frost protection for your heat pump,
the DHW cylinder and any heating
water buffer cylinder that may be
installed is enabled.
Note
At temperatures below
−
20 °C, the
frost protection of the heat pump, the
DHW cylinder and the heating water
buffer cylinder is only ensured if an
instantaneous heating water heater is
installed on site.
Winter/summertime changeover
■ This changeover is automatic.
Time and date
■ The day and time were set by your
heating contractor during commission-
ing.
Power failure
■ All data is saved if there is a power
failure.
Terminology
The appendix contains a chapter entitled
"Terminology" to provide you with a bet-
ter understanding of the functions of your
heat pump control unit.
Introductory information
Your system is preset at the factory (cont.)
5592 647 GB

9
Utilise the setting options offered by the
heat pump control unit and the remote
control (if installed):
■ Never overheat your rooms. Every
degree by which the room temperature
is reduced saves up to 6% on heating
costs.
Never set your room temperature
higher than 20 °C (see page 25).
■ Heating system with radiators:
Heat your rooms to the standard room
temperature during the day and the
reduced temperature at night. Set the
time program for this. Select the time
phases according to your habits, e.g.
differently at the weekend to the week-
days.
■ Heating system with underfloor heat-
ing:
Underfloor heating systems are slow,
low temperature heating systems and
only respond very slowly to short term
temperature changes.
Therefore, heating to the reduced
room temperature at night and ena-
bling "Economy mode" during short
absences do not result in significant
energy savings.
■ For central heating/cooling, select the
operating program that meets your
current requirements:
– For short absences (a few hours,
e.g. shopping trips), select "Econ-
omy mode" (not for underfloor
heating systems; see explanations
above).
As long as economy mode is activa-
ted, the room temperature is
reduced.
– If you are going away, set the "Hol-
iday program" (see page 32).
As long as the holiday program is
activated, the room temperature is
reduced and DHW heating is off.
– In summer, if you do not want to heat
any rooms but do need DHW, select
the operating program "Only
DHW" (see page 34).
– If you don't want to heat the rooms
and don't require DHW for an exten-
ded period, select the operating pro-
gram "Standby mode" (see
page 22).
■ Never set the DHW cylinder tempera-
ture too high (see page 34).
■ Only activate the DHW circulation
pump for times when DHW is drawn off
regularly. Set the time program for this
(see page 38).
For additional energy saving functions of
the heat pump control unit, please con-
tact your heating contractor.
Introductory information
Energy saving tips
5592 647 GB

10
Further recommendations:
■ Correct ventilation.
Briefly open windows fully and at the
same time close thermostatic valves (if
no domestic ventilation system is
installed).
■ Close roller shutters (if installed) at
dusk.
■ Set thermostatic valves correctly.
■ Never cover radiators or thermostatic
valves.
■ Controlled DHW consumption: a
shower generally uses less energy
than a bath.
Introductory information
Energy saving tips (cont.)
5592 647 GB

11
You can change all heat pump control
unit settings centrally at the program-
ming unit.
If remote control units are installed in
your rooms, you can also adjust the set-
tings at the remote control units.
Remote control operating instruc-
tions
Note
The programming unit can be placed in
a wall mounting base. This is available
as an accessory. Ask your heating con-
tractor for more information.
Opening the control unit
The heat pump control unit may look dif-
ferent depending on the type of heat
pump.
Control unit in the front of the heat pump
A
Flow temperature
DHW
Solar energy
Information
Select with
40℃
Heating/cooling
i
BCD
AON/OFF switch
BProgramming unit
CON indicator (green)
DFault indicator (red)
Operation
Controls
5592 647 GB

12
Control unit on top of the heat pump
i
(
A
B
CD
AButton for changing the angle
BProgramming unit
CON indicator (green)
DFault indicator (red)
Operation
Controls (cont.)
5592 647 GB

13
Control unit mounted on the wall
i
(
A BCD
i
(
AON/OFF switch
BProgramming unit
CON indicator (green)
DFault indicator (red)
Operation
Controls (cont.)
5592 647 GB

14
Programming unit
DHW
Solar energy
Information
Select with
40°C
Heating/cooling
Flow temperature
i
(
Takes you to the previous step in
the menu or cancels a setting that
has been started.
Cursor keys
To scroll in the menu or to set val-
ues.
OK Confirms your selection or saves
the setting.
Calls up the help text relevant to the
selected menu point.
Calls up the extended menu.
"Help" menu
This displays a short guide giving an
explanation of the controls and informa-
tion about heating circuit selection (see
page 24).
Call up the short guide as follows:
■ If the screen saver is active (see
page 16):
Press .
■ If you are somewhere in the menu:
Press until the standard menu is
displayed (see page 15).
Call up the "Help" menu option.
Menu
There are two control levels available,
the "Standard menu" and the "Extended
menu".
Operation
Controls (cont.)
5592 647 GB

15
Standard menu
DHW
Solar energy
Information
Select with
40°C
Heating/cooling
Flow temperature
i
(
In the standard menu, you can adjust
and scan the settings used most fre-
quently:
■ Selecting the set room temperature
■ Selecting the operating program
■ Setting the comfort function "Party
mode"
■ Selecting the energy saving function
"Economy mode"
■ Selecting the set DHW temperature
■ Starting once-only DHW heating
■ Scanning the solar yield
■ Scanning information
– Temperatures, e.g. outside or col-
lector temperature
– Operating state of pumps, compres-
sor and cooling function
– Seasonal performance factors
(SPF)
■ Starting manual mode
■ Scanning information, warning and
fault messages
The menu overview can be found on
page 56.
Call up the standard menu as follows:
■ If the screen saver is active:
Press any key.
■ If you are somewhere in the menu:
Press repeatedly until the standard
menu is displayed.
Operation
Menu (cont.)
5592 647 GB

16
Extended menu
DHW
System
Information
Select with
Heating/cooling
Menu
(
i
In the extended menu, you can adjust
and scan the settings from the control
unit's range of functions used less fre-
quently, e.g. holiday program and time
programs.
The menu overview can be found on
page 57.
Call up the extended menu as follows:
■ If the screen saver is active:
Press any key and then .
■ If you are somewhere in the menu:
Press .
How to operate
The screen saver will become active if
you have not adjusted any settings on
the programming unit for a few minutes.
Operation
Menu (cont.)
5592 647 GB

17
Press OK. This takes you to the standard
menu (see page 15).
A
DHW
Solar energy
Information
40 °C
Heating/cooling
Flow temperature
Select with
i
ADialogue line
The selected menu option is highlighted
in white.
The dialogue line gives the necessary
instructions.
The following example shows the setting
procedure with the various dialogue
lines.
Operation
How to operate (cont.)
5592 647 GB

18
Heating circuit 1
Heating program
Party mode
Economy mode
ß
22°C
ÙÚ
Set room temp.
HC1
22°C
(
Set room temperature HC1
22°C
OK
Vv
or
OK
Ú
OK
Htg circuit selection ÙÚ
HC2
Was selected
Heating circuit 2
OK
Set room temperature HC1
22°C
Adopted
DHW
Solar energy
Information
40 °C
Heating/cooling
Flow temperature
Select with (
OK
Heating circuit 1
Heating program
Party mode
Economy mode
ß
20 °C
ÙÚ
Set room temp.
HC1
Select with (
ÙÚ
HC1
Heating circuit 2
Heating program
Party mode
Economy mode
ß
20 °C
ÙÚ
Set room temp.
HC2
(
ÙÚ
HC2
Select with
Set room temperature HC1
20 °C
(Change with
Adopt with
Select with
i
Operation
How to operate (cont.)
5592 647 GB

19
The heat pump control unit may look dif-
ferent depending on the type of heat
pump.
Control unit at the front of the heat pump
A
Flow temperature
DHW
Solar energy
Information
Select with
40℃
Heating/cooling
i
BCD
AON/OFF switch " "
BProgramming unit
CON indicator (green)
DFault indicator (red)
Start-up/shutdown
Starting the heat pump
5592 647 GB

20
Control unit on top of the heat pump
A
C
D
B
Warmwasser
Solarenergie
Information
Wählen mit
40°C
Heizung/Kühlung
Vorlauftemperatur
i
(
i
(
AON/OFF switch " "
BProgramming unit
CON indicator (green)
DFault indicator (red)
Start-up/shutdown
Starting the heat pump (cont.)
5592 647 GB
