Viking E-1600A-BLT-EWP Instructions for use

Many new building codes require emergency communication in elevators and “Area
of Refuge” sites. Now you can provide added safety for your patrons, employees,
and students with the addition of high visibility, ADA Compliant emergency commu-
nication. At the simple push of a button, the E-1600A-BLT-EWP will initiate a call to
your emergency personnel and send a digital announcement to identify the location
of the emergency call. In addition, the tower phone’s bright (1million candle power)
strobe light will instantly begin flashing to deter further activity and make it fast and
easy for Police or Security personnel to locate the site of the emergency.
Though the strobe requires external power to operate, rest assured that communi-
cation is possible, even during power failures! All phone numbers, location num-
bers and programming parameters are stored in non-volatile memory. No batteries
are required to hold the memory.
The E-1600A-BLT-EWP and E-1600A-BLT2-EWP are equipped for outdoor or
harsh environments with Enhanced Weather Protection (EWP). EWP features rub-
ber gaskets and boots, hand soldered silicon sealed connections, gel filled butt con-
nectors, as well as urethane potted circuit boards with internally sealed, field-
adjustable trim pots and DIP switches for easy on-site programming.
P
Pr ra ac ct ti ic ce e
T
TE
EL LE EC CO OM MS
SO
OL LU UT TI IO ON NS SF FO OR RT TH HE E2
21 1S
ST TC
CE
EN NT TU UR RY Y
Phone Power: Telephone line powered. Minimum 24V DC talk battery
voltage, with a minimum loop current of 20mA. Loop current may be
boosted on low current lines with a Viking Model TBB-1 talk battery
booster (Fax Back # 630).
Strobe Power: 120V AC/12V DC power adapter (included)
Maximum Strobe Power Run: 200 feet using 24 awg wire
Dimensions: 1070mm x 152.4mm x 109.3mm (42” x 6” x 4.5”)
Shipping Weight: 9.1 kg (20 lbs)
Mounting: Surface mount to rigid wall or post
Environmental: -26°C to 54°C (-15°F to 130°F) with 5% to 95%
non-condensing humidity
Strobe Output: 1,000,000 candle power
Material: Enclosure - .125 aluminum, 76.2mm x 152.4mm (3” x
6”) tube, powder painted high-visible yellow, Phone - .074 (14
gauge) stainless steel with stainless steel button, Strobe - Vandal
resistant polycarbonate plastic
Connections: Color-coded wires with gel-filled butt connectors
• Campus Security Sites
• Area of Refuge sites
• Parking Ramps/Lots
• Automated Tellers (ATM)
• Entryways
• Roadside Emergency Sites
• Stairwells in Public Buildings
TECHNICAL
TECHNICAL
A
Ap pp pl li ic ca at ti io on ns s
S
Sp pe ec ci if fi ic ca at ti io on ns s
ADA Compliant Emergency Tower Phone
with Blue Strobe Light and Voice Announcer
E-1600A-BLT-EWP
E-1600A-BLT-EWP
E-1600A-BLT2-EWP
E-1600A-BLT2-EWP
ADA Compliant Emergency
Tower Phone with Strobe
March 7, 2008
• Enhanced Weather Protection (EWP)
• Meets ADA requirements for Emergency Phones:
- Can automatically light the “Call Connected” LED for the
hearing impaired
- Transmits a unique location I.D. code or voice announcement
- Grade 2 Braille label for the visually impaired
• 16 second non-volatile digital voice announcer
• 1 million candle power blue strobe light
• Advanced call progress detection
• Handsfree operation
• Phone line powered emergency phone (strobe requires power)
• Non-volatile memory (no batteries required)
• Touch Tone or pulse dialing
• Dials up to 5 emergency numbers
• Cycles through backup emergency and non-emergency
numbers on busy or no-answer
• E-1600A-BLT2-EWP can also dial up to 3 non-emergency
“Info” numbers
• Hangs up on CPC, silence, busy signal, dial tone, time-out or
Touch Tone command
• Programmable to auto-answer on incoming calls
• Remotely programmable
• Extended temperature range (-15°F to 130°F)
• Central Station Monitoring capability (dials 2 numbers)
• Separate central station voice speed dial number
• Optional PB-100 Polling System available (see page 10)
• High visibility, vandal and weather resistant
• Vandal resistant polycarbonate strobe lens
• Surface mountable
F
Fe ea at tu ur re es s
P
Ph ho on ne e. .. .. .7 71 15 5. .3 38 86 6. .8 88 86 61 1
CAUTION - When installing on an analog extension of a phone system: Some phone
systems do not conform to analog telecom standards and might not be compatible with the
1600A Series emergency phones. For a detailed description of the telephone line specifica-
tions required for any of the 1600A Series phones, retrieve Fax Back Document 869.
E-1600A-BLT-EWP E-1600A-BLT2-EWP

S1
12
ON
3
11
10
9
8
7
6
5
4
3
2
1

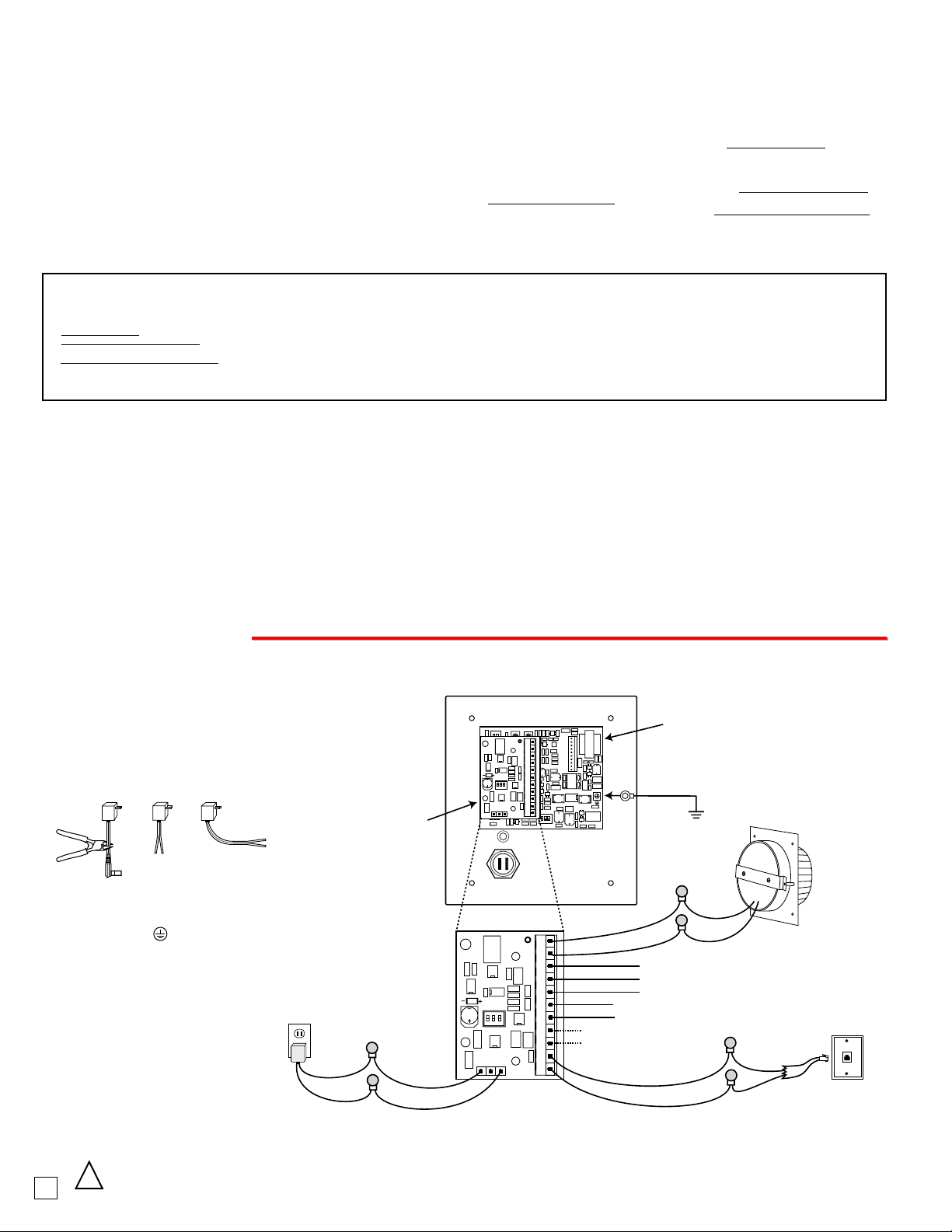

Rear View of the
E-1600A-BLT-EWP Phone Panel
Ring Connector
(included)
* Earth Ground
(optional)
1600A Emergency
Phone Board
LDB-3 Control
Module
** Gel-Filled Butt
Connectors (included)
Note: Polarity Sensitive!
(-) Black with
White stripe
120V AC
(+) Red with
Black stripe
(+) Black
** Gel-Filled Butt
Connectors
(included)
Red (+)Red (+)
Black (-)Black (-)
Red with Yellow stripe
Green with Yellow stripe
Auxiliary
Contact Output
Blue
Blue
Incoming
Analog Phone
Line
Disable Feature, see LDB-3 Programming section D
(not available for E-1600A-BLT2-EWP)
Purple
Orange
Yellow
N.C.
COM.
N.O.
12V DC
Adapter
Included
(-) Black with
White stripe
Positions 3 and 4 come factory
wired directly to the 1600A
Emergency Phone Board
Red
Green
Rear View
of the Strobe
Light Panel
(included)
*** Drip
Loop
*** Drip Loop
S1
12
ON
3
11
10
9
8
7
6
5
4
3
2
1
I
In ns st ta al ll la at ti io on n
IF YOU HAVE A PROBLEM WITH A VIKING PRODUCT, PLEASE CONTACT: VIKING TECHNICAL SUPPORT AT [phone]
Our Technical Support Department is available for assistance weekdays between 8 a.m. and 5 p.m. central time. So that we can give you better service, before you call please:
1. Know the model number, the serial number and what software version you have (see serial label).
2. Have your Technical Practice in front of you.
3. It is best if you are on site.
RETURNING PRODUCT FOR EXCHANGE
The following procedure is for equipment that has failed out-of-box (within 10 days of purchase):
1. Customer must contact Viking’s Technical Support at 715-386-8666 to determine possible causes for the problem. The
customer MUST be able to step through recommended tests for diagnosis.
2. If the Technical Support Product Specialist determines that the equipment is defective based on the customer's input
and troubleshooting, a Return Authorization (R.A.) number will be issued. This number is valid for fourteen (14)
calendar days from the date of issue.
3. After obtaining the R.A. number, return the approved equipment to your distributor, referencing the R.A. number. Your
distributor will then replace the product over the counter at no charge. The distributor will then return the product to
Viking using the same R.A. number.
4. The distributor will NOT exchange this product without first obtaining the R.A. number from you. If you haven't
followed the steps listed in 1, 2 and 3, be aware that you will have to pay a restocking charge.
RETURNING PRODUCT FOR REPAIR
The following procedure is for equipment that needs repair:
1. Customer must contact Viking's Technical Support Department at 715-386-8666 to obtain a Return Authorization (RA)
number. The customer MUST have a complete description of the problem, with all pertinent information regarding the
defect, such as options set, conditions, symptoms, methods to duplicate problem, frequency of failure, etc.
2. Packing: Return equipment in original box or in proper packing so that damage will not occur while in transit. Static
sensitive equipment such as a circuit board should be in an anti-static bag, sandwiched between foam and individual-
ly boxed. All equipment should be wrapped to avoid packing material lodging in or sticking to the equipment. Include
ALL parts of the equipment. C.O.D. or freight collect shipments cannot be accepted. Ship cartons prepaid to:
Viking Electronics, 1531 Industrial Street, Hudson, WI 54016
3. Return shipping address: Be sure to include your return shipping address inside the box. We cannot ship to a PO Box.
4. RA number on carton: In large printing, write the R.A. number on the outside of each carton being returned.
* Note: To increase surge protection, loosen the PCB mount-
ing screw labeled (as shown) and fasten a wire with ring
connector (included) from the mounting screw to Earth Ground
(grounding rod, water pipe, etc.)
A. Wiring
IMPORTANT: Electronic devices are susceptible to lightning and power station electrical surges from both the AC outlet and the telephone line. It is recom-
mended that a surge protector be installed to protect against such surges. Contact Panamax at [phone] or Electronic Specialists Inc. at [phone].
!
** Note: The gel-filled (water-
tight) butt connectors are
designed for insulation displace-
ment on 19-26 gauge wire with a
maximum insulation of 0.082
inches. Do not strip wires prior to
terminating.
(+) Black
(-) Black with
White Stripe
Step 1. Step 2. Step 3.
IMPORTANT: Do NOT plug in the
adapter until after Step 3 is completed.
Step 1. Cut off the barrel connector.
Step 2. Seperate the wires.
Step 3. Connect 12V adapter wires to power supply wires
on the LDB-3 Control Module using the supplied
butt connectors and then plug in power supply.
Preparing the Power Supply
Connect power supply
wires to LDB-3 module
power supply wires
*** Note: When wires are routed from above, a “drip loop” is recommended to keep water away from the circuit board.
2
If trouble is experienced with the E-1600A-BLT-EWP or E-1600A-BLT2-EWP, for repair or warranty information, please contact:
Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI 54016 [phone]
If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the prob-
lem is resolved.
Connection to Party Line Service is subject to State Tariffs. Contact the state public utility commission, public service commission or corporation
commission for information.
WHEN PROGRAMMING EMERGENCY NUMBERS AND (OR) MAKING TEST CALLS TO EMERGENCY NUMBERS:
Remain on the line and briefly explain to the dispatcher the reason for the call. Perform such activities in the off-peak hours, such as early morn-
ing or late evenings.
It is recommended that the customer install an AC surge arrester in the AC outlet to which this device is connected. This is to avoid damaging the
equipment caused by local lightning strikes and other electrical surges.
PART 15 LIMITATIONS
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These lim-
its are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.
FCC REQUIREMENTS
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the side of this equipment is a label that
contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the tele-
phone company.
The REN is used to determine the number of devices that may be connected to a telephone line. Excessive REN's on a telephone line may result
in the devices not ringing in response to an incoming call. In most but not all areas, the sum of the REN's should not exceed five (5.0) To be cer-
tain of the number of devices that may be connected to a line, as determined by the total REN's, contact the local telephone company. For prod-
ucts approved after July 23, 2001, the REN for this product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits
represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the label.
The plug used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and
requirements adopted by the ACTA. If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of
this E-1600A-BLT-EWP or E-1600A-BLT2-EWP does not disable your alarm equipment. If you have questions about what will disable alarm equip-
ment, consult your telephone company or a qualified installer.
If the E-1600A-BLT-EWP or E-1600A-BLT2-EWP causes harm to the telephone network, the telephone company will notify you in advance that
temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon
as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.
The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of the equipment.
If this happens, the telephone company will provide advance notice in order for you to make the necessary modifications to maintain uninterrupt-
ed service.
LIMITED WARRANTY
Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of one year from the date of purchase from any authorized Viking distributor or 18 months from the date manufactured, which ever is greater. If at any time dur-
ing the warranty period, the product is deemed defective or malfunctions, return the product to Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016. Customer must contact Viking's Technical Support Department at 715-386-8666 to obtain a Return Authorization (R.A.) number.
This warranty does not cover any damage to the product due to lightning, over voltage, under voltage, accident, misuse, abuse, negligence or any damage caused by use of the product by the purchaser or others.
NO OTHER WARRANTIES. VIKING MAKES NO WARRANTIES RELATING TO ITS PRODUCTS OTHER THAN AS DESCRIBED ABOVE AND DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTIES OR MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.
EXCLUSION OF CONSEQUENTIAL DAMAGES. VIKING SHALL NOT, UNDER ANY CIRCUMSTANCES, BE LIABLE TO PURCHASER, OR ANY OTHER PARTY, FOR CONSEQUENTIAL, INCIDENTAL, SPECIAL OR EXEMPLARY DAMAGES ARISING OUT OF OR RELATED TO THE
SALE OR USE OF THE PRODUCT SOLD HEREUNDER.
EXCLUSIVE REMEDY AND LIMITATION OF LIABILITY. WHETHER IN AN ACTION BASED ON CONTRACT, TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY) OR ANY OTHER LEGAL THEORY, ANY LIABILITY OF VIKING SHALL BE LIMITED TO REPAIR OR REPLACEMENT
OF THE PRODUCT, OR AT VIKING'S OPTION, REFUND OF THE PURCHASE PRICE AS THE EXCLUSIVE REMEDY AND ANY LIABILITY OF VIKING SHALL BE SO LIMITED.
IT IS EXPRESSLY UNDERSTOOD AND AGREED THAT EACH AND EVERY PROVISION OF THIS AGREEMENT WHICH PROVIDES FOR DISCLAIMER OF WARRANTIES, EXCLUSION OF CONSEQUENTIAL DAMAGES, AND EXCLUSIVE REMEDY AND LIMITATION OF LIABILITY,
ARE SEVERABLE FROM ANY OTHER PROVISION AND EACH PROVISION IS A SEPARABLE AND INDEPENDENT ELEMENT OF RISK ALLOCATION AND IS INTENDED TO BE ENFORCED AS SUCH.

35.76"
Use 5/16" bolt
and flat washer
(included)
Phone Panel Mounting
Rain Guard (included)
Strobe Panel Mounting
Adhere gasket to chassis,
centering over mounting holes
(4) Stainless steel spanner head
screws (bit and screws included)
42.0"
6.0"
3.12"
1.5"
1.25"
3.0"
3.0"
0.875"
Diameter
0.35"
Diameter
0.35"
Diameter
Front
View
Rear
View
Bottom View
2.87"
1.37"
Knockout for
1/2 inch conduit
Condensation
Drain Hole
"Help" Push to Call Button
Call Connected Red LED
"Info" Push to Call Button
(E-1600A-BLT2-EWP Only)
(4) stainless steel spanner
head screws (included)
Condensation Drain Hole
Adhere gasket to chassis,
centering over mounting holes
Grade 2 Braille Label
INFO HELP
EMERGENCY
PHONE
CALL
CONNECTED
High Visibility
Safety Yellow
Powder Paint
1 Million Candle
Power Blue Strobe Light
E
M
E
R
G
E
N
C
Y
E
M
E
R
G
E
N
C
Y
Step 1. Mount the tower phone approximately 42” above the floor to a flat, sturdy surface using 5/16 hardware. Note: Flat
washers should be used on the main mounting bolts for additional strength.
Step 2. Locate the strobe light panel and pass the red and black wires from the strobe panel through the gasket and the upper
hole in the tower.
Step 3. Mount the strobe panel to the tower using the four security screws provided.
Step 4. Locate the phone panel. Using the gel-filled butt connectors, connect the red and black wires labeled “Strobe Light” to
the red and black wires on the strobe panel.
Step 5. Connect the phone line to the red and green wires (this connection is not polarity sensitive).
Step 6. Connect the 12V DC adapter wires black (+) and black with white stripe (-) to the red with black stripe (+) and black with
white stripe (-) wires from the LDB-3 control module.
Step 7. Mount the phone panel to the tower using the remaining four security screws.
B. Mounting
L
LD DB B- -3 3C Co on nt tr ro ol lM Mo od du ul le eP Pr ro og gr ra am mm mi in ng g
A. DIP Switches
Sw 1
ON
OFF
ON
Sw 3
OFF
ON
ON
Description
Ring Indication Only.
Off-Hook/Loop Current Detection Only.
Ring and Off-Hook/Loop Current Detection.
Sw 2
ON
OFF
Ring Cadence Mode (see section B)
Ring Cadence Mode ON - strobe remains activated in between rings.
Ring Cadence Mode OFF - strobe is activated only during ringing.
S1
12
ON
3
11
10
9
8
7
6
5
4
3
2
1
1 2 3
ON
OFF
3

1
16 60 00 0A AE Em me er rg ge en nc cy yP Ph ho on ne eB Bo oa ar rd dP Pr ro og gr ra am mm mi in ng g
B. Ring Cadence Mode
DIP switch 2is used for switching between different ring detection modes. In the OFF position, the strobe light and
relay will activate only while ring voltage is present and will turn off between rings. In the ON position, the strobe light
and relay will remain on for up to 5.75 seconds after the ringing has stopped. This allows the strobe light and relay to
remain on between rings of a standard ring cadence. Note: To use the Ring Cadence Mode, ring detection MUST be
enabled (DIP switch 1- ON).
D. Disable Feature
The “Disable” input can be connected to a switch for remotely disabling/turning off the strobe light and the device con-
trolled by the auxiliary contacts (camera, etc.).
C. Relay Contacts
Normally open and normally closed relay contacts are available on the orange, purple and yellow wires. The contacts
are rated at .5A @ 125VAC/1A @ 30VDC. If contacts are driving an inductive load, place a suppression device at the
load to snub high voltage spikes.
4
2. Loop/Off-hook Indication Only
Place DIP switch 1 OFF and DIP switch 3 ON. In this configuration, the E-1600A-BLT-EWP will only flash the strobe
light while off-hook (while the emergency phone is in use).
1. Ring Indication Only
Place DIP switch 2on the 1600A emergency phone board in the OFF position (not shown in the diagram - see
1600A Emergency Phone Board Programming section J). Note: With DIP switch 2in the OFF position, the
1600A emergency phone board will not answer an incoming call. The LDB-3 control module can monitor for ring-
ing any place along the ringing line. Place DIP switch 1 ON and DIP switch 3 OFF.
3. Both Ring and Loop/Off-hook Indication
If the application requires ring and loop/off-hook indication, place DIP switch 1and 3in the ON position.
?
The 1600A Series emergency phones can be programmed from any Touch Tone
phone using a C.O. line, analog PABX/KSU station, or a DLE-200B Line Simulator.
A. Accessing the Programming Mode
Step 1. Move DIP switch 2 to the ON position (sets unit to answer incoming calls, see section J).
Step 2. From a Touch Tone phone call the line attached to the 1600A Series phone.
Step 3. When the 1600A Series phone answers, enter the 6-digit security code (factory set to 845464, see section C). A
double beep should then be heard indicating you have entered the programming mode.
2. Without the Security Code
1. Using the Security Code
Step 1. Move DIP switch 2 to the ON position (sets unit to answer incoming calls, see section J).
Step 2. Move DIP switch 3 to the OFF position (incoming calls enter Programming without security code, see section J).
Step 3. From a Touch Tone phone call the line attached to the 1600A Series phone.
Step 4. When the 1600A Series answers, a double beep will be heard and will automatically enter the programming mode.
Step 5. When finished programming, move DIP switch 3 back to the ON position (see section J).
Need More Information on the DLE-200B?
Call [phone] and select 605.

5
C. Security Code (memory location #19)
The security code allows the user/installer to program the 1600A series phone while DIP switch 3is in the ON (normal)
position. The factory set security code is 845464 (V-I-K-I-N-G). It is recommended that the factory set security code
be changed. Example: To store 123456 as the security code:
Enter Your Security Code Here:
#19
Step 1. Access programming as shown is Programming section A.
Step 2. Enter 123456 #19..
Step 3. Hang-up.
Note: The security code must be 6 digits and cannot include a , or a #.
B. Quick Programming Features
First emergency speed dial number .........................................................................
Second emergency speed dial number ...................................................................
Third emergency speed dial number .......................................................................
Fourth emergency speed dial number .....................................................................
Fifth emergency speed dial number .........................................................................
Central station receiver number ...............................................................................
Central station voice number ...................................................................................
First “Info” speed dial number (E-1600A-BLT2-EWP) .............................................
Second “Info” speed dial number (E-1600A-BLT2-EWP only) .................................
Third “Info” speed dial number (E-1600A-BLT2-EWP only) .....................................
Voice announcer/miscellaneous options (factory set to 000210) .............................
Timing/Dialing options (factory set to 234111) .........................................................
Security code (factory set to 845464) ......................................................................
Identification number (factory cleared) ....................................................................
Second central station identification number (factory cleared) .................................
To add a ,at any point in the dialing string ..............................................................
To add a #at any point in the dialing string ..............................................................
To add a four second pause at any point in the dialing string ...................................
To switch to pulse dialing at any point in the dialing string ........................................
To clear any speed dial number ...............................................................................
Diagnostic tones (used to check mic and speaker operation) ..................................
Exit programming and disconnect ...........................................................................
Reset all programming to factory default settings ....................................................
Note: A double beep indicates a valid memory position, four beeps indicate an error.
0-20 digits
0-20 digits
0-20 digits
0-20 digits
0-20 digits
0-20 digits
0-20 digits
0-20 digits
0-20 digits
0-20 digits
6 digits
6 digits
6 digits
0-20 digits
0-20 digits
,,
,#
,7
,6
(no digits)
,0
#7
###
#00
#01
#02
#03
#04
#05
#06
#07
#08
#09
#17
#18
#19
#20
#21
#00 - #09
Enter Digits
then
then
then
then
then
then
then
then
then
then
then
then
then
then
then
then
- then - Enter Memory Location
D. Speed Dial Numbers
The emergency speed dial number programmed in location #00 is the number that
is dialed when the “HELP” / ”CALL” button is first pressed. Additional speed dial
numbers will be dialed when there is no answer or a busy signal is detected and the
next number redial features are activated. To program, enter the desired speed dial
number followed by the location number (#00 - #04). To clear a speed dial location,
simply enter the memory location (#00 - #04) alone. The 1600A series phone is
factory set with no speed dial number programmed.
1. Emergency Speed Dial Numbers (memory locations #00 - #04)
Note: Up to 20 digits can be stored in each dial position. Special features such as pause, mode change, Touch Tone
, and #count as single digits.
To Program:
,
#
4 second pause
switch to pulse mode
0, 1, 2...9
Enter:
,,
,#
,7
,6
0, 1, 2...9

6
To Program the 1600A Series Phone...
...to store 555-1234 as the first emergency speed dial number
...to store a Touch Tone 9, a four second pause and then a pulse
dialed 333-4444 into the second “Info” speed dial memory position
...to clear the first emergency speed dial number
Step 2 - Enter Digits:
5 5 5 1 2 3 4 # 0 0
9 ,7 ,6 3 3 3 4 4 4 4 # 0 8
# 0 0
Step 1 -
See Section A
Enter Programming
Enter Programming
Enter Programming
2. “INFO” Speed Dial Numbers (E-1600A-BLT2-EWP) (memory locations #07 - #09)
The information speed dial number programmed in location #07 is the telephone or extension number that is dialed
when the “INFO” button is first pressed. Additional information speed dial numbers will be dialed when there is no
answer or a busy signal is detected and the next number redial features are activated. The E-1600A-BLT2-EWP
phone will cycle through the programmed speed dial numbers until answered. To program, enter the desired speed
dial number followed by the location number (#07 - #09). To clear a speed dial location, simply enter the location
(#07 - #09) alone.
3. Speed Dial Programming Examples
E. Identification Number (memory location #20)
The Touch Tone I.D. number (up to 20 digits) is used by emergency personnel to identify the location of the caller and
is given out when the receiving party presses a Touch Tone ,. The security office can display the number using a
Touch Tone decoder. To program the I.D. number, enter the desired number followed by #20. Example: To store 333
as the I.D. number, enter: 3 3 3 # 2 0
F. Timing/Dialing Options (memory location #18)
There are six positions in the timing/dialing options. To program these options, enter the six desired timing/dialing num-
bers followed by #18. The six available timing/dialing options are defined as follows:
Dial: A +B+C+D+E+F+#+1+8
Factory Default Setting:2+3 +4+1+ 1+1
Talk/Listen Delay
Call Length
Silence Time Out
Dial Next Number on Ring No Answer
Dial Next Number on Busy
Pulse Dial Speed
Enter Timing/Dialing Settings Here:
A B C D E F
#18
Touch
Tone
1
2
3
4
5
6
7
8
9
Talk/Listen
Delay
.1 sec
.2 sec *
.3 sec
.4 sec
.5 sec
.6 sec
.7 sec
.8 sec
.9 sec
Setting A - Talk/Listen Delay
This feature selects switching time between talk and listen modes (VOX switching time).
Use chart at the right. * Note: The factory default is .2 seconds.
Setting B - Call Length Time Out
This feature selects the maximum length of time that calls can be connected.
Programmable in increments of 1 minute up to a maximum of 9 minutes (Touch Tones 1 -
9). Program 0 in this location to disable the call length time out. With the call length dis-
abled, the 1600A series phone must rely on a CPC signal, busy signal, silence or return to
dial tone to hang-up. Use chart at the right. * Note: The factory default is 3 minutes.
Touch
Tone
0
1
2
3
4
5
6
7
8
9
Call Length
Time Out
Disabled
1 min
2 min
3 min*
4 min
5 min
6 min
7 min
8 min
9 min

7
If enabled and a busy is detected, the 1600A series phone will dial the next pro-
grammed speed dial number, and continue to cycle through the emergency num-
bers until a call is completed. * Notes: This feature is disabled in the factory
default setting. If the busy signal is interrupted with a promotional message, con-
tact your central office to have it removed.
Setting E - Dial Next Number on Busy
Setting F - Pulse Dialing Rate (Pulses per second)
The 1600A series phone is capable of different pulse dialing speeds.
* Note: The factory default setting is 10pps.
Touch Tone
1
2
Setting F
10 pps*
20 pps
Touch Tone
1
2
Setting E
Disabled*
Enabled
Setting C - Silence Time Out
This feature selects the length of time that calls will remain connected without voice activ-
ity. Programmable in increments of 10 seconds up to a maximum of 90 seconds (Touch
Tones 1 - 9). To disable the silence time out, program 0 in this location. Use chart at the
far right. * Note: The factory default is 40 seconds.
Setting D - Dial Next Number on Ring No Answer
If enabled and a ring-no-answer is detected, the 1600A series
phone will dial the next programmed speed dial number, and con-
tinue to cycle through the emergency numbers until a call is com-
pleted. * Note: This feature is disabled in the factory default setting.
Touch Tone
1 or 0
2, 3, 4...9
Setting D
Disabled*
Dials second number after
2, 3, 4...9 rings respectively
Touch
Tone
0
1
2
3
4
5
6
7
8
9
Silence
Time Out
Disabled
10 sec
20 sec
30 sec
40 sec*
50 sec
60 sec
70 sec
80 sec
90 sec
The 1600A series phone is factory set to automatically start playing the
voice announcement after it has determined the call has been answered.
Alternately, the announcement may be programmed to play after a pro-
grammed amount of time, from 1 to 99 seconds after dialing.
* Note: If the announcement delay time is used, you must allow enough time for the 1600A series phone to detect
ring-no-answer and busy signals when using the redial features. The factory default is set to play automatically.
Settings A and B - Announcement Delay
Touch Tone
00
01-99
Setting A/B
Play automatically
1-99 seconds*
G. Voice Announcer/Miscellaneous Options (memory location #17)
The 1600A series phones have a built-in non-volatile digital voice announcer that may be used to identify the location
of the emergency phone call. The 16 seconds of digital record time is recorded remotely from a Touch Tone phone.
Programming options are as follows:
Dial: A +B+C+D+E+F+#+1+7
Factory Default Setting:0+0 +0+2+ 1+0
Two Digit Announcement Delay {
Repeat Announcement Setting
Hang-up on Return to Dial Tone
Panasonic Mode
Future Use (enter “0”)
Enter Settings Here:
A B C D E F
0 #17

8
M i c r ophon e
S e n s i t i v i t y
S p eake r
V olu m e
O N
OFF
O N
OFF
123
12
J. DIP Switch Programming/Speaker and Microphone Adjustments
Two POTs are provided to increase or decrease speaker volume and microphone sensitivity. In certain noisy locations
the microphone sensitivity may need to be decreased as shown below. Caution: Setting the microphone gain too high
may cause distorted audio, prevent the distant party from breaking over and inhibit second number redialing.
DIP
Switch
1
1
2
2
3
3
Position
ON
OFF
ON
OFF
ON
OFF
Description
“HELP” / “CALL” button alternately connects
and disconnects calls (factory default)
“HELP” / “CALL” button connects calls only
Incoming calls answered (factory setting)
Incoming calls are not answered
Normal operation mode (factory setting)
Learn mode - Any incoming calls are automatically entered
into the programming mode (no security code required).
Use this option if you have forgotten your security code.
H. Recording the Announcement
I. Automating the Call Connected LED
There are two methods of turning on the Call Connected LED. The LED will turn on after a Touch Tone ,is detected
from the distant party or after the voice announcer is finished playing a programmed number of times. If you want the
Call Connected LED to light automatically when the call has been answered, but you don’t want a voice announcement
to be played, follow these programming steps:
Step 1:
Access Programming as shown in section A
Step 3:
Enter digits: 001000#17
Step 2:
Make a short (1 second) recording of silence
Step 1. Call into the 1600A series phone with a Touch Tone phone and access programming.
Step 2. Enter ,4, wait for the tone and then begin recording. Sixteen seconds of record time is available.
Step 3. Enter any Touch Tone to stop the recording. Playback is automatic.
Step 4. Enter ,5to review the announcement again.
Step 5. If you choose to not use a voice announcement, enter ,3to clear the recording.
Example: “Elevator number 1215, located in the Financial Building, needs assistance. Press the asterisk (,) key on
your telephone to start and stop this announcement...”
The 1600A can be programmed to play the announcement from 1-9 times,
or to continuously repeat the announcement every 8 seconds until a
Touch Tone ,is detected from the distant party. The I.D. number (if pro-
grammed) will be sent and the call connected LED will turn on automati-
cally after the announcement has stopped repeating.
* Note: The factory default for the 1600A series phone is to repeat until a
, is detected (digit 0).
Touch Tone
0
1-9
Setting C
Repeat every 8 secs*
Repeat 1-9 times
Setting C - Repeat Announcement Option
If enabled and a return dial tone is detected, the 1600A will hang up.
* Note: The factory default setting is enabled.
Touch Tone
1
2
Setting D
Disabled
Enabled*
Setting D - Hang Up on Return to Dial Tone
The 1600A series phone can be programmed to recognize the double ring cadence
that is typical of Panasonic phone systems. If the 1600A series phone is connect-
ed to a Panasonic extension, (or any other system that provides a double ring
cadence) enable “Panasonic Mode” will allow for proper call progress detection.
* Note: This feature is disabled in the factory default setting.
Touch Tone
1
2
Setting E
Disabled*
Enabled
Setting E - Panasonic Mode
Switch
1
ON
OFF
Description
Normal audio detection
Increase audio detect sensitivity for low level lines. Useful
in applications in which voice or busy signals have trouble
breaking over the speaker.
Switch
2
ON
OFF

9
The 1600A Series phone can be programmed to dial a central station receiver only, or dial up to 5 voice num-
bers first, and if no answer, then dial the central station receiver. When calling the first numbers (memory posi-
tions #00-#04 (see Programming section D), the phone stays in “two-way talk mode” allowing two-way con-
versation. When calling the Central Station number (memory position #05), the phone is in a “listen only mode”
in order to interpret the hand shake signals of the receiver.
A second central station number position has been provided in
location #06 that is used when the central station receiver does
not have a talk over mode. If a number is placed in position
#05 and position #06 is cleared, the E-1600A will call the cen-
tral station monitor receiver. One or two alarm messages can
be sent to the receiver (see Operation section B, note 3). After
the receiver sends a kiss-off, the E-1600A lights the “Call
Connected” LED and goes into two-way talk mode. If numbers
are in both positions #05 and #06, the E-1600A will call the
receiver first, and after the kiss-off, will hang-up and redial the
number in position #06 for two-way voice communication
Notes: If only a central station is to be dialed, the central sta-
tion phone number must be preprogrammed in memory loca-
tion #05 and memory locations #00-#04 must be cleared.
d. Speed Dial Numbers
Location
#00
#01
#02
#03
#04
#05
#06
#07
#08
#09
Call Type
Voice - Emergency
Voice - Emergency
Voice - Emergency
Voice - Emergency
Voice - Emergency
Central Station Receiver
Central Station Voice Line
Voice - “Info” (E-1600-20A/52A only)
Voice - “Info” (E-1600-20A/52A only)
Voice - “Info” (E-1600-20A/52A only)
b. Enabling/Disabling Central Station Mode
The 1600A Series emergency phone can be placed in the “Central Station Mode” by entering a central station
phone number in position #05 while programming. To cancel the “Central Station Mode,” clear position #05 by
entering #05 only (see Programming section D).
c. Ring No Answer
When the 1600A Series emergency phone is in the “Central Station Mode”, it is best to have the ring no answer
set to a minimum of three, because some receivers send a long tone after answering the line that sounds like
a ring back. If the 1600A is set to a ring no answer of two, the phone will disconnect (see Programming
section F).
a. Accessing the Programming Mode
Before programming, you must access the programming mode (see Programming section A).
1. Central Station Programming Features
To Program the 1600A Series Phone...
...to enable central station programming and dial 952-2567
...to disable central station programming
Step 2 - Enter Digits:
9 5 2 2 5 6 7 # 0 5
# 0 5
Step 1:
Enter Programming
Enter Programming
The standard 1600A emergency phone is capable of communicating using the “Ademco Contact I.D.”, “Ademco High
Speed”, “DTMF 4+1 Express”, or the “DTMF 4+2 Express” formats. All formats use the programming memory location
#20 to store the account code and alarm details.
K. Central Station Programming

10
2. Central Station Formats
The following examples explain the receiver formats and how to properly program memory location #20. Each for-
mat starts with a four digit account code. This is the code that is assigned by your central station for billing purpos-
es. You must access the programming mode before programming these features (see Programming section A).
Important: If a number is shown, you must use that number. If an “X” is shown, use any appropriate number.
Note: A second information alarm message can be sent to the receiver, for any receiver that requires two separ-
rate messages. The second alarm message is programmed in #21 location. For additional information about the
second alarm mesage, see Operation section B.
a. Ademco Contact ID Format
This DTMF format consists of a four digit account code, two digit message type, and a nine digit data field.
Account Code
Message Type
New Event
XXXX 18 1 14000 XXX #20
Memory Location
Any number to identify phone
General Alarm
Enter Contact ID Settings Here: 18 1 14000 #20
c. 4+1 Express Format
This DTMF format consists of a four digit account code, two digit message type, and a single digit event code.
Account Code
Message Type
XXXX 17 X #20
d. 4+2 Express Format
This DTMF format consists of a four digit account code, two digit message type, and a two digit event code.
Account Code
Message Type
XXXX 27 XX #20
Memory Location
Event Code
Memory Location
Event Code
Enter 4+1 Express ID Settings Here: 17 #20
Enter 4+2 Express ID Settings Here: 27 #20
b. Ademco High Speed Format
This DTMF format consists of a four digit account code, eight zone codes and one alarm type digit. With this
format you can identify up to eight different phones by using a zone per phone. A “5” in a zone position means
no alarm. The following example shows an alarm from the third phone.
Account Code
Idle Zone
XXXX 55 1 55555 7 #20
Memory Location
Normal Alarm
New Event
Enter Ademco High Speed ID Settings Here: 55 1 55555 7 #20

11
O
Op pt ti io on ns s
PB-100 Polling and Diagnostics Kit
The PB-100 system provides centralized polling and diagnostics of all Viking
1600 and 1600A series emergency phones through a standard Windows 9x/NT
P.C. In addition, any device or human capable of returning DTMF Touch Tones
can be automatically polled.
Up to 500 individual phones can be polled, at timed intervals, for the diagnosis
of proper programming and operation. The included software provides storage
of complete contact/location records associated with the phones ID. Devices
that are polled successfully are stored in a "success" log while devices that
returned any kind of error are stored in a "failure" log.
PB-100
System
?Need More Information on the PB-100?
Call [phone] and select 860.
A. Standard Operation
1. “HELP” / “CALL” Button
When the “HELP” / “CALL” button is pressed, the 1600A series phone goes off-hook and dials a pre-programmed
telephone number. The Call Connected LED momentarily flashes during tone or pulse dialing. In the event that the
line is busy or there is a ring-no-answer, the unit can be programmed to call additional phone numbers. The phone
then cycles through up to 5 pre-programmed emergency numbers until the call is answered. When the call is
answered, handsfree communication to emergency personnel is established. The digital voice announcer will auto-
matically play to identify the location of the emergency call. The ,key will stop the announcement, send the I.D.
number (if programmed) and light the “Call Connected” LED. Alternatively, the phone can be programmed to auto-
matically light the “Call Connected” LED after the announcement has played a programmed number of times. The
distant party will know the location of the emergency call by either the voice announcement or by decoding the
Touch Tone I.D. number. Pressing the ,key again will send the I.D. number and play the message again. Once
the ,key has been pressed, the #key can be used to force the phone to hang-up.
O
Op pe er ra at ti io on n
2. “INFO” Button (E-1600A-BLT2-EWP only)
When the “INFO” button is pressed (E-1600A-BLT2-EWP only), the phone goes off-hook and dials the first “INFO”
phone number programmed. If a busy signal is detected or the call goes unanswered, the phone will cycle through
all three “INFO” phone numbers until the call is answered. When answered, handsfree communication is estab-
lished. Note: The voice announcement is for Emergency/Help calls only and will not play on a call initiated from
the “INFO” button.
B. Central Station Operation
After the “HELP” / “CALL” button on the 1600A Series phone has been pressed the 1600A Series phone will begin to
dial. If a voice number is programmed in memory locations #00-#04, these numbers will be dialed first. Upon detect-
ing a busy signal or after a preprogrammed ring delay the 1600A Series phone will hang-up and dial the central sta-
tion phone number stored in memory location #05. When the central station receiver answers, it will send a handshake
tone to the 1600A phone. Upon detecting the handshake tone, the 1600A Series phone will begin uploading the infor-
mation stored in memory location #20.
Once the 1600A Series emergency phone has sent the information stored in memory location #20, it waits for a “kiss-
off” tone from the central station. When the “kiss-off” tone is received, the emergency phone turns on the call connect-
ed LED and goes into the “two-way talk mode” or hangs up and dials position #06 if programmed (see Note 3 below).
Notes:
1. The central station should have a “talk-over” feature that will allow a two-way conversation at this time. If your receiver does not support “talk-
over”, a voice phone number should be programmed into position #06.
2. If the central station answers the call, sends the handshake tone, but does not send a “kiss off” tone after the information is sent, the 1600A
resends the information three additional times, waiting for a “kiss-off” after each attempt. If “kiss-off” has not been received after the fourth attempt,
the 1600A hangs up and dials position #05 again.
3. The 1600A has the capability to send a second informational message to the receiver after the first “kiss-off” is received, but only if a second
informational message is stored in memory location #21. After the first “kiss-off” is received, the 1600A sends the information stored in memory loca-
tion #21. It then waits for a second “kiss-off” from the central station receiver. When the second “kiss-off” is received, the emergency phone turns on
the call connected LED and goes into the “two-way talk mode” or hangs up and dials position #06 if programmed.

12
Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking Electronics, and its affiliates and/or
subsidiaries assume no responsibility for errors and omissions contained in this information. Revisions of this document or new editions of it may be issued to incorporate
such changes.
Fax Back Doc 217
ZF302640 Rev A
Printed in the U.S.A.
P
Pr ro od du uc ct tS Su up pp po or rt tL Li in ne e. .. .. .7 71 15 5. .3 38 86 6. .8 86 66 66 6F Fa ax xB Ba ac ck kL Li in ne e. .. .. .7 71 15 5. .3 38 86 6. .4 43 34 45 5
O
Ot th he er rP Pr ro od du uc ct ts s
Touch Tone code may also be delivered. A “Call
Connected” LED can be initiated manually or automatically. All programming parameters, including phone numbers and
location numbers, are stored in non-volatile memory. All units are phone line powered, requiring no batteries or external
power and are compatible with common Central Station Monitoring equipment.
The 1600A Series ADA Compliant Emergency Phones are designed to
provide quick and reliable handsfree communication for any standard
analog telephone line or analog phone system station port. All 1600A
Series phones meet ADA requirements for elevator/ emergency tele-
phones, and can be programmed from any Touch Tone phone.
The phones can dial up to 5 programmable emergency num-
bers, as well as 2 central station numbers. In addition, the E-
1600-20A and E-1600-52A feature a second "INFO" but-
ton that will dial up to 3 non-emergency numbers.
The 1600A Series phones can be programmed to auto-
matically deliver a digital announcement to identify the
location of the emergency call. Alternatively, a DTMF
ADA Compliant Emergency Phones with Built-In Digital Voice Announcer
E-1600-45A
K-1600-EHFA
E-1600A
E-1600-02A
E-1600-03B
E-1600-20A
E-1600-55A
Provide Strobe Light Indication of Line Status
Ideal for Use with Two-Button Emergency Phones!
The BLK-3-EWP provides high visibility indication of analog line status through a high pow-
ered one million candle power strobe light. The BLK-3-EWP is the ideal solution for the hear-
ing impaired and can be used equally well in loud warehouses or factories, where ringing
phones can not be heard. Alternatively, the BLK-3-EWP can be used to add emergency noti-
fication to pre-existing emergency phones by turning on the strobe light when the emergency
phone is in use.
The control module can be installed on any standard telephone line or analog PABX/KSU sta-
tion. The 1 million candle power strobe can be interfaced to flash on ringing, off-hook or a
combination of ringing and off-hook (line in-use). The LDB-3 ring/loop detect control module
is also available separately.
A Smart Line Sharing Device with Inbound Switching Capability
Why pay for a dedicated line for your elevator/emergency phone or alarm panel?
The LSD-2 Line Sharing Device allows the user to share an existing phone line with
an emergency phone or other priority alarm device. This can save hundreds of dollars
a year over leasing a dedicated phone line. The LSD-2 can be used on any C.O. line
or analog PABX/KSU station.
An outbound call on the DEVICE 2 (PRIORITY) port takes priority over a call in
progress on the DEVICE 1 port. Any call in progress on the DEVICE 1 port will be dis-
connected for 2 seconds, returning dial tone to the DEVICE 2 (PRIORITY) port. A busy
signal is then sent to the DEVICE 1 port.
For incoming calls, the LSD-2 can route calls to the DEVICE 2 (PRIORITY) port using Caller ID, Distinctive Ring, or Quick
Call Back. All other calls will be routed to the DEVICE 1. Alternatively, the LSD-2 can be set up so that all inbound calls
are routed to the DEVICE 2 (PRIORITY) port. Note: Caller ID is not passed through the LSD-2 to the devices.
