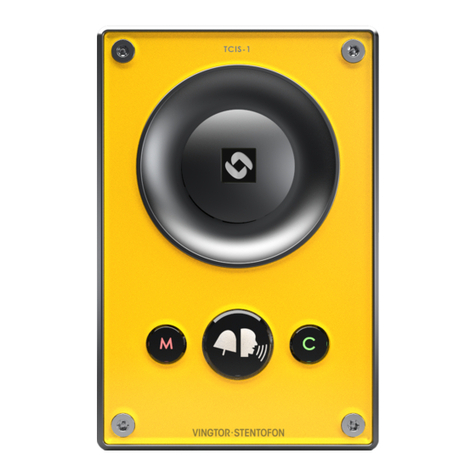

Vingtor Stentofon TCIS-1SIP Guide

1 Turbine SIP Stations
This document describes the dimensions, mounting procedure, and connections of the Turbine SIP Stations.
Zenitel takes no responsibility for damages caused by improper or inadequate mounting.
The Turbine SIP product range comprises the following stations & accessories:
Item Number Type Item Name
1008211010 TCIS-1SIP Turbine SIP Station
1008211020 TCIS-2SIP Turbine SIP Station
1008211030 TCIS-3SIP Turbine SIP Station
1008211040 TCIS-4SIP Turbine SIP Station
1008211050 TCIS-5SIP Turbine SIP Station
1008211060 TCIS-6SIP Turbine SIP Station
1008140010 TA-1 Turbine On-Wall Back Box
1008140020 TA-2 Turbine Flush Mount 2-Gang Double-Depth Back Box
1008140050 TA-5 Turbine Bracket for Flush Mount Back Box
1.1 Station Dimensions
120 mm
96 mm
156 mm
180 mm
23.8 mm49 mm
TCIS-1SIP TCIS-2SIP TCIS-3SIP TCIS-4SIP TCIS-5SIP TCIS-6SIP
Turbine SIP Station Mounting Manual

2 On-Wall Surface Mounting
2.1 On-Wall Surface Mount Back Box - TA-1
2.2 On-Wall Surface Mounting Procedure
1. Mount the back box onto the wall
2. Fit the gasket onto the back box with the ridged side facing down
–Plug the Ethernet cable into the RJ-45 port on the station
3. Mount the Turbine station onto the back box with the M5 fasteners provided applying
1.5 Nm torque
76 mm
150 mm
D6.5 mm
25 mm
120 mm
Mounting holes are to be drilled
as shown.
Max. recommended screw
diameter: ISO M6 or ANSI 1/4".
Screw length must be greater
than 25 mm or 1".
A4 stainless steel socket head
screws/bolts are recommended.
Max. recommended screw
head diameter: 9.5 mm or 3/8".
3”
5.90”
4.72”
1”
0.25”
D
Mounting Hole
Mounting Hole Mounting Hole
Mounting Hole
Optional washers for extra protection
against corrosive effects between
surfaces are provided.
They should be placed at the bottom
of the 4 mounting holes.
Grommets and an M20 cable gland
are provided.
cable holes
M20 M16
Surface
Mount
Back Box
Gasket
1
2
Microphone
Washers
Turbine
Station
3LThe Gasket MUST be mounted to
seal the station!
LEnsure the station is mounted verti-
cally with the microphone aperture
facing down.
LEnsure there is enough clearance
under the station so that the micro-
phone aperture is NOT smothered.
LPlace the washers at the bottom of
the 4 mounting holes on the back
box.
LUse the grommets and M20 cable
gland provided for the cable holes
on the back box.

3 Flush Mounting
3.1 Flush Mount 2-Gang Double-Depth Back Box - TA-2
LIt is recommended to utilize back boxes with weep holes at the bottom.
3.2 Flush Mount Bracket - TA-5
LThe TA-5 Bracket is mandatory for flush mounting.
96 mm / 3.78?
48 mm
25 mm
23 mm
89 mm / 3.50?
89 mm / 3.50?
96 mm / 3.78?
46 mm
SIDE
SIDE
22 mm
1.81? 0.98?
0.90?
0.87?
1.89?
83 mm
87 mm
46 mm
50 mm
4 mm
4 mm
74 mm
91 mm
Fits US 2-GANG electrical boxes.
Recommended screw diameter: up to M4 (5/32")
Use screw recommended by back box manufacurer.
CUTOUT
0.16”
1.81”
0.16”
3.58”
1.97”
3.42”
3.27” 2.91”

DOC NO.
Zenitel and its subsidiaries assume no responsibility for any errors that may appear in this publication, or for damages arising from the information therein. VINGTOR-STENTOFON products are developed and
marketed by Zenitel. The company’s Quality Assurance System is certified to meet the requirements in NS-EN ISO 9001. Zenitel reserves the right to modify designs and alter specifications without notice.
ZENITEL PROPRIETARY. This document and its supplementing elements, contain Zenitel or third party information which is proprietary and confidential. Any disclosure, copying, distribution or use is
prohibited, if not otherwise explicitly agreed in writing with Zenitel. Any authorized reproduction, in part or in whole, must include this legend. Zenitel – All rights reserved.
3.3 Flush Mounting Procedure
1. Mount the 2-gang back box into the wall
2. Mount the bracket onto the back box
3. Fit the gasket onto the bracket with the
ridged side facing down
–Plug the Ethernet cable into the RJ-45 port on
the station
4. Mount the Turbine station onto the
bracket with the M5 fasteners provided
4 Connections
The Turbine SIP station has a RJ-45 PoE/LAN port, and 6-pin & 10-pin external connectors.
Ethernet /
Power
10/100 Mbps Ethernet RJ-45 port for LAN
(uplink) connection. Supports PoE (802.3af).
Draws power from either spare line or signal
line.
Secondary
Power
24 VDC (16 – 48 V) secondary power is provided
from an external adapter.
Relays There is one Double Throw relay contact with
60W switching power. COM, NO, NC contacts
are provided. Max: 250VAC/220VDC, 2A, 60W.
Input/Output 6 I/Os are available. Each I/O can be configured
as either input, output, or LED driver.
Audio Line Out A balanced 600 ohm audio line out with
induction loop signal
LUse cables crimped with ferrules for terminal block connectors
• When the station is connected to the network, its IP address is automatically
obtained from a DHCP server or an IP address in the range 169.254.x.x will be
assigned.
• To make the station speak its IP address, press the call button on the station.
2-Gang
Back Box
Gasket
1
3
Microphone
Bracket
2
Turbine
Station
4
1
5
4
3
2
1
6
10
5
4
3
2
9
8
7
RJ-45
PoE
port
24 VDC for external secondary power
if PoE is not used. Pin 1 is positive.
- 5.3V (LED driver)
- GND
- Input/Output 5
- COM relay
- NC relay
- NO relay
- Input/Output 1
- Input/Output 2
- Input/Output 3
- Input/Output 6
- 600 ohm balanced line out +
- 600 ohm balanced line out -
- Input/Output 4
Ethernet Connection
29.8.2018
A100K11825 customer[email protected]
LThe Gasket MUST be mounted to seal the station! LEnsure the station is mounted verti-
cally with the microphone aperture
facing down.
LEnsure there is enough clearance
under the station so that the micro-
phone aperture is NOT smothered.
LApply silicone sealant all around
the aluminum frame of the station,
making sure to leave the micro-
phone aperture open.
