INDEX
Safety instructions 3-4
Checklist 5-6
Assembly instructions 7-10
Folding instructions 11-12
Maintenance treadmill 13-14
Problem solutions 15-16
Control panel 17-23
App possibilities 24
Exploded drawing 25
Parts list 26-29
Training instructions 30

ENG
VirtuFit TR-900i Treadmill
3
SAFETY INSTRUCTIONS
WARNING: Now here we suggest that you should consult with your physician or health
professional before starting your workout, especially for the age up to 35 old or
once-health problem people. We take no responsible for any problems or injuries
if you don’t following our specication. Treadmill will be carefully assembled and
covered the motor shield, then connect to the power.
– Ensuring the safety clamps were attached to the clothing or belts before using the treadmill.
– Please do not insert any items to any part of the equipments, which would damage the equipment.
– Position the treadmill on a clear, level surface. Do not place the treadmill on thick carpet as it may
interfere with proper ventilation. Do not place the treadmill near water or outdoors.
– Never start the treadmill while you are standing on the walking belt. After turning the power on and
adjusting the speed control, there may be a pause before the walking belt begins to move, always
stand on the foot rails on the sides of the frame until the belt is moving.
– Wear appropriate clothing when exercising on the treadmill. Do not wear long, loose tting clothing
that may be caught in the treadmill. Always wear running or aerobic shoes with rubber soles.
– Keep the children and pets away from the treadmill while starting workout.
– Don’t exercise in 40 minutes after dinner.
– The equipment is suitable for adults, children need be accompanied with adults while workout.
– You must hold on to the handrails until you become comfortable and familiar with the treadmill
when it is your rst workout.
– Treadmill is indoor-using equipment, not outdoor-using for avoiding damage. Keep the store-place
clean and at, drying. Prohibiting the other purpose using, only for workout.
– Please purchase the power-line to the distributor or contact with our company directly, for the
powerline only equip to the treadmill.
ATTENTION

ENG
VirtuFit TR-900i Treadmill
4
SAFETY INSTRUCTIONS
– The treadmill is for indoor and not outdoor use to prevent damage on the product. Keep the storage
area dry, clean and at. It is forbidden to use the device for other purposes than before training.
– Only use the power cable supplied by the supplier for the treadmill. If the cable is missing, please
contact our company.
– If the treadmill should suddenly increase in speed due to an electronics failure or the speed being
inadvertently increased, the treadmill will come to a sudden stop when the pull pin is disengaged
from the console.
– Do not connect line to the middle of cable; do not lengthen cable or change the cable plug; do not
put any heavy thing on cable or put the cable near the heat source; forbid using socket with several
holes, these may cause re or people may be hurt by the power.
– Cut o the power when the equipment is not used. When the power is cut o , do not pull the
power line to keep the wire unbroken. Insert the plug to the socket with the safety ground circuit,
for the power-line is professional equipment .You must contact with the professional people directly
while the line is damaged.
– This Treadmill only for home-using, the max user weight is 150 KGS.
– Please keep the space at least 1 X 2 meter at the end of base frame to escape any accidents!

ENG
VirtuFit TR-900i Treadmill
5

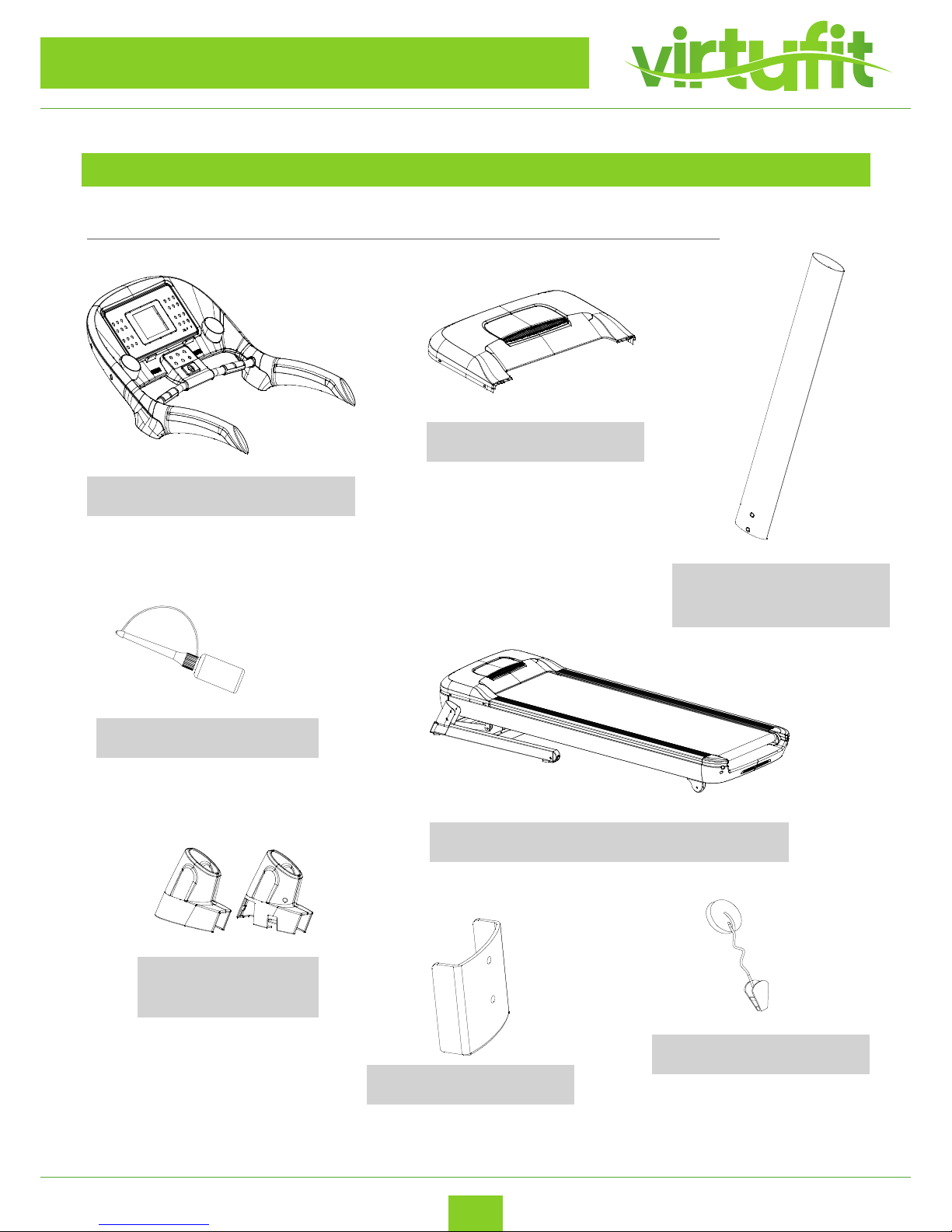

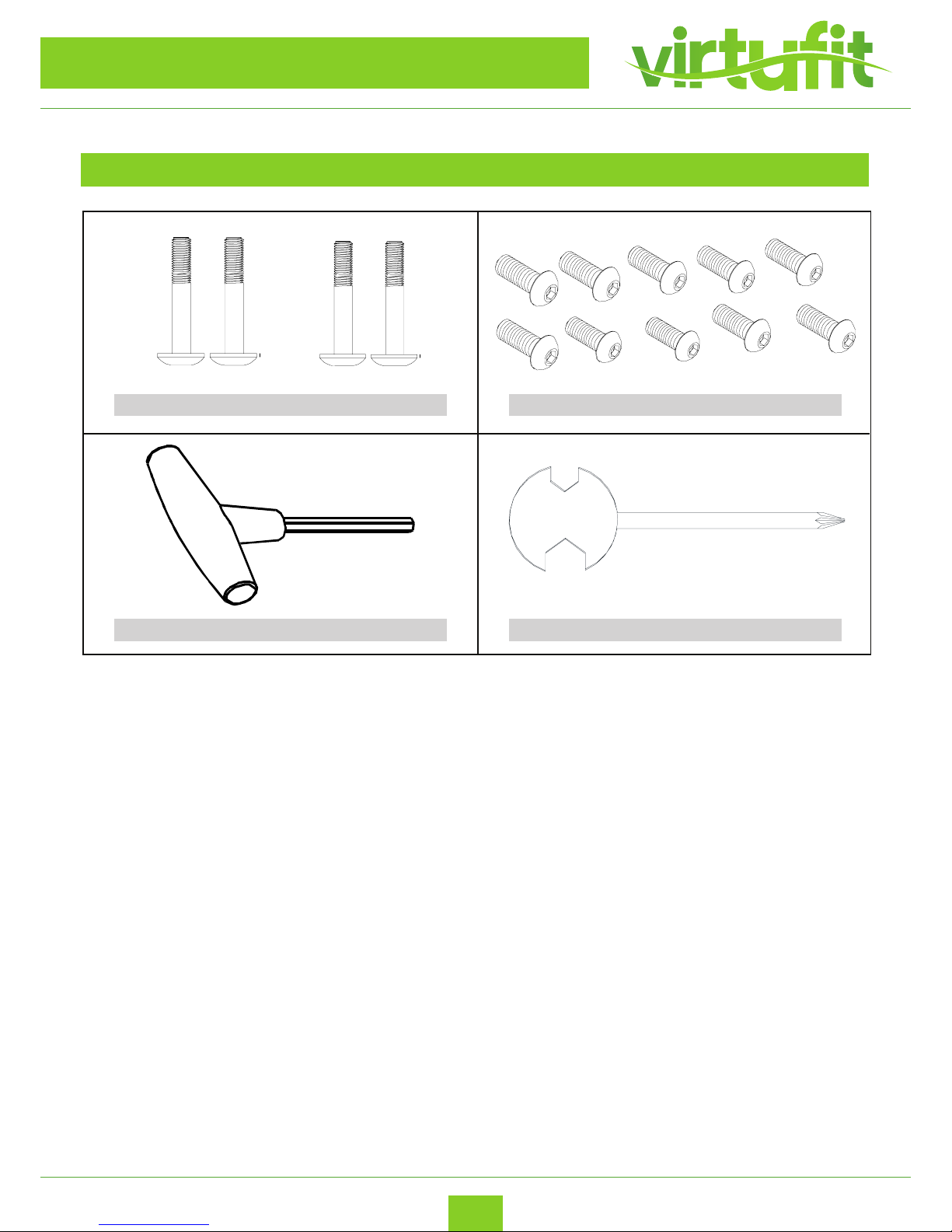

CHECKLIST
TOOL KIT
When you open the carton, you will find the below parts in the carton:
Console
Motor cover
Upright post
(L/R)
Silicon oil
Safety key
Main frame
Base cap 1 & 2 (L)
Base cap 1 & 2 (R)
Console clamping ring

ENG
VirtuFit TR-900i Treadmill
6
CHECKLIST
TOOL KIT
Allen screw (half) M8*60*20 (4 pieces) Allen screw (full) M8*15 (10 pieces)
T shaped wrench M6 (1 piece) Cross wrench (1 piece)

ENG
VirtuFit TR-900i Treadmill
7
ASSEMBLY INSTRUCTIONS
Missing parts: If you think you are missing certain parts in your package, carefully check the styrofoa and
the treadmill. Some parts (bolts, screws, etc.) are already attached to / in the treadmill.
Socket screws: The treadmill contains socket screws, make sure that the allen key is rmly in the bolt
before you apply force to the key. In this way you prevent the head of the socket head screw from being
rotated.
– Take out the machine from box and put in on a at oor.
– Insert the upright post into the clamping ring of both sides of the main frame;
– Attach the upright post with two M8*60*20 bolts on the side of the tube and with a M8*15 bolt
on the front. Tighten all bolts securely.
STEP 1

ENG
VirtuFit TR-900i Treadmill
8
– Put the console on a at and clean oor. Preferably use a mat to prevent scratches;
– Remove the clamping ring fromt the console frame and align the hole on the two sides of the
handles (note: take the cable from the right handle out of the hole of the clamping ring to prevent
the cable from pinching), lock them using two M8*15 screws.
STEP 2
ASSEMBLY INSTRUCTIONS

ENG
VirtuFit TR-900i Treadmill
9
– Insert the console with the installed console clamping ring into the upright tubes (connect the
cable until they snap in). Be careful and avoid pinching o the cable;
– Use screw M8*15 to secure the console to the upright tubes. Tighten all screws securely.
STEP 3
ASSEMBLY INSTRUCTIONS

ENG
VirtuFit TR-900i Treadmill
10

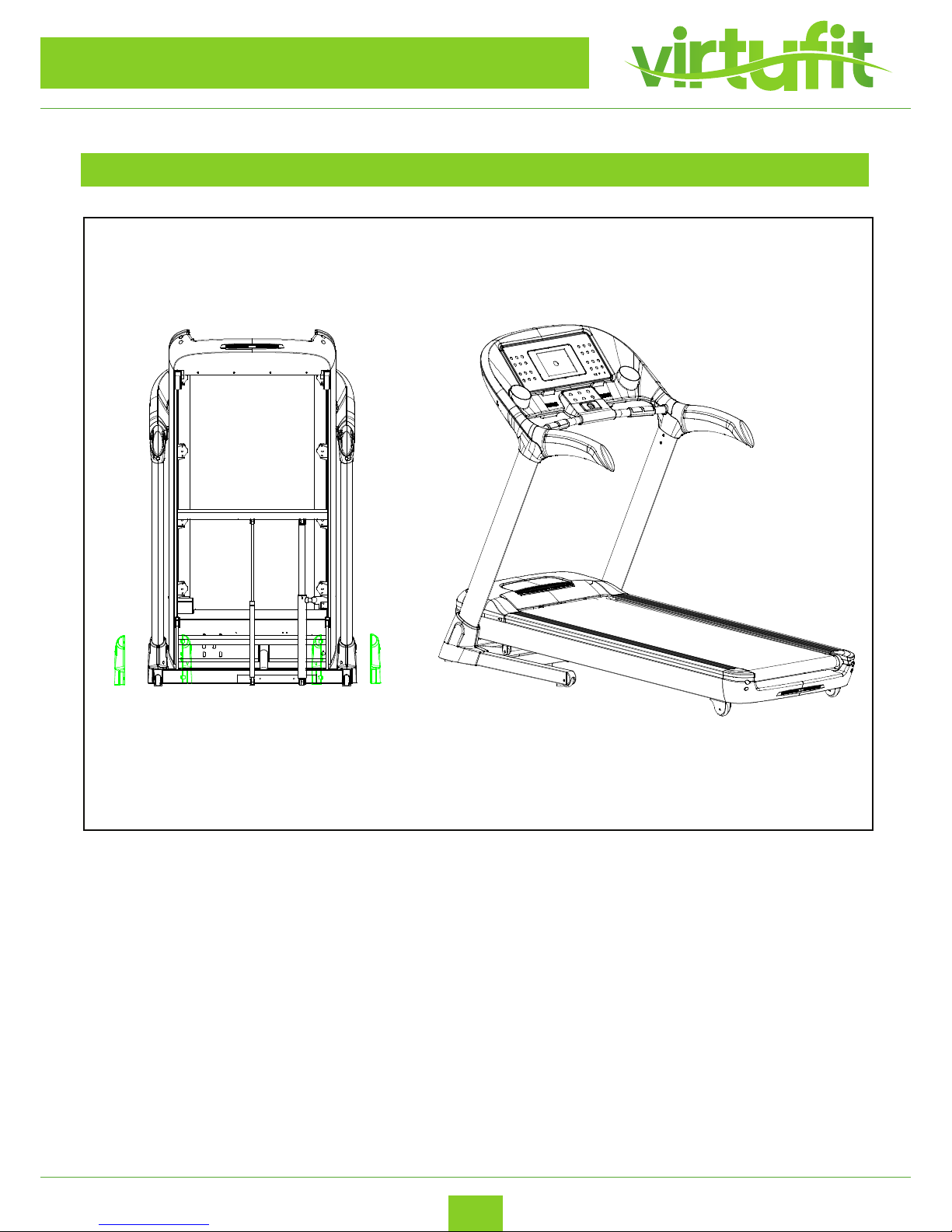

– Fold the machine by lifting the Running desk at the back. Install the caps L 1&2 and R 1& 2 (63,
64, 65, 66) with the self-tapping screw (33);
– Place the security key (78-8) on the console;
– The treadmill is ready to be used.
STEP 4
ASSEMBLY INSTRUCTIONS

ENG
VirtuFit TR-900i Treadmill
11
FOLDING INSTRUCTIONS
FOLDING INSTRUCTION
Unfolding
1. Place one hand on handIe bar, use the other to
push top of the running deck forward.
2. Press one foot on the middle section of the
cylinder to disengage the locking mechanism.
3. Hold the deck for a few seconds when it’s slowly
dropping then you can release your hands. Do not
depress the running desk, it will fall down
automatically with the gas spring.
Fold up
Restore the incline in at position. Unplug form
power point before unfolding. Hold the running
deck which and then fold it up with the arrow
direction until you hear a “bang” voice from the air
cylinder.
Attention: check to ensure cylinder locking
device is enabled
Cylinder
Transport
wheels

ENG
VirtuFit TR-900i Treadmill
12
FOLDING INSTRUCTIONS
TRANSPORT THE TREADMILL
To transport, hold the treadmill from position“F”
to support it. Place one foot in position D to gold
the bottom of the treadmill in place. Lower the
treadmill (F). When the lower point is reached with
(F), the wheels of the treadmill will become active.
To transport the treadmill, hold the treadmill at
postition and lift the treadmill so it can roll over
the ground with the wheels.
D
F

ENG
VirtuFit TR-900i Treadmill
13
MAINTENANCE TREADMILL
RUNNING BELT AND DECK LUBRICATION
This treadmill is equipped with a pre-lubricated, low maintenance deck system. The belt/ deck friction
may play a major role in the function and life of your treadmill, thus requiring periodic lubrication. We
recommend a periodic inspection of the deck. You need contact with our service center if you nd the
damage of the deck.
We recommend lubrication of the deck according to the following timetable:
I. Light user (less than 3 hours/ week) annually
II. Medium user (3-5 hours/ week) every six months
III. Heavy user (more than 5 hours/ week) every three months
Best indicator is to lubricale when the walking platform feels dry. We recommend that you buy the
lubrication from our distributor or directly to our company.
Attention: Any repair need the professional technician.
I. We suggest that you should cut o the power
for 10 minutes after keep running 2HS ,so that it’s
good for maintain the treadmill.
II. For avoiding the slipping during running , the
belt not too loose; for avoiding the more abrasion
between the roller and belt and maintain the
machine’s good running ,the belt not too tight.
You can adjust the distance between plates and
belt, the belt be away from the plates about 50-
75mm on both sides, if the best not too tight and
loose.
We strongly recommend that you do the following:
1. Switch o and remove the power cable from the wall after every use, especially if children are present.
2. Clean your treadmill after use.
3. Use a dry cloth to clean the control panel and areas around the power switch. Use a soft clean cloth
and cleanser to remove stubborn stains and dirt o the running belt.
4. Tighten the running belt once a month.
5. Keep your treadmill in a safe dry place away from heat and water.
LUBRICATING THE BELT

ENG
VirtuFit TR-900i Treadmill
14
MAINTENANCE TREADMILL
(1) Running belt deviates to left - Start the machine, set speed at 2-3 km/h without a load on the belt,
use Allen key to turn the screw 1/4 turn (see g. 1). Then allow the machine to run without a load for 1-2
minutes. Repeat process until the belt becomes central.
(2) Running belt deviate to right - Start the machine, set speed at 2-3 km/h without a load on the belt,
use Allen key to turn the screw 1/4 turn (see g. 2). Then allow the machine to run without a load for 1-2
minutes. Repeat process until the belt becomes central.
(3) Running belt jam - If the running belt is in dead condition, use the Allen key to turn the screw 1/2 a
turn both left and right until the jam solved (see g 3).
RUNNING BELT ADJUSTMENT

ENG
VirtuFit TR-900i Treadmill
15
LOOPBAND AFSTELLEN
PROBLEM SOLUTIONS
PROBLEM REASON SOLUTION
Loopband werkt
niet.
A: Did not connect the power
supply Connect the power supply or switch on
Loopband werkt
niet B: Safety key did not put well Put the safety key on the correct positions
Loopband werkt
niet
C: The circuit of the signal short
out
Check the input port of the controller and the
signal port
Loopband werkt
niet D: Circuit broken Check input and output port and communication wire
Loopband werkt
niet
E: Transformer not connect well
or transformer is defective
Reconnect the transformer or replace the
transformer
A: Safety key drop out Reconnect the safety key
B: System abnormal Ask for repairing
Button invalid
1. Replace the keyboard and press the keyboard
cable
2. Replace the motherboard
3. Replace the electronic form
A: Connect wire loose or
defected Well connect the wire or change the wire
B: Console gets broken Replace the console
C: Transformer gets broken Replace the transformer
D: Motor controller gets broken Replace the controller
A: Motor cable or motor breaks Replace the motor
B: Motor cable not connect well
with the controller, or controller
breaks
Check and reconnect the cable, or replace the
controller
A: Speed sensor cable does not
connect well with the controller
Check an reconnect the cable or replace the
controller
B: Controller defected Replace the controller
Treadmill
doesn’t
work
Treadmill
stops
Button out
of work
E-01
E-02
E-03

ENG
VirtuFit TR-900i Treadmill
16
LOOPBAND AFSTELLEN
PROBLEM REASON SOLUTION
Loopband werkt
niet. C: Speed sensor not placed well Place Speed sensor correctly
Loopband werkt
niet D: Speed sensor defected Replace the speed sensor
Loopband werkt
niet A: Controller defected Replace the controller
Loopband werkt
niet B: Motor defected Change the motor
E-07 Console can not detect safety key
1. Check the safety key whether it is on right
position
2. Install the safety devise again, conrm the
hole is in the middle
3. Replace the console
A: Bluetooth defected Change bluetooth part
B: Bluetooth not connect right Reset and reconnect bluetooth device
A: Handle pulse wire did not
connect well or wire defected Well connect the wire or chang the wire
B: Console circuitry defected Change the console
A: The screw on the PCB is loose Tight the screw well
B: Console defected Change the console
PROBLEM SOLUTIONS
E-05
Bluetooth
can not
connect
No pulse
Console
short of
display

ENG
VirtuFit TR-900i Treadmill

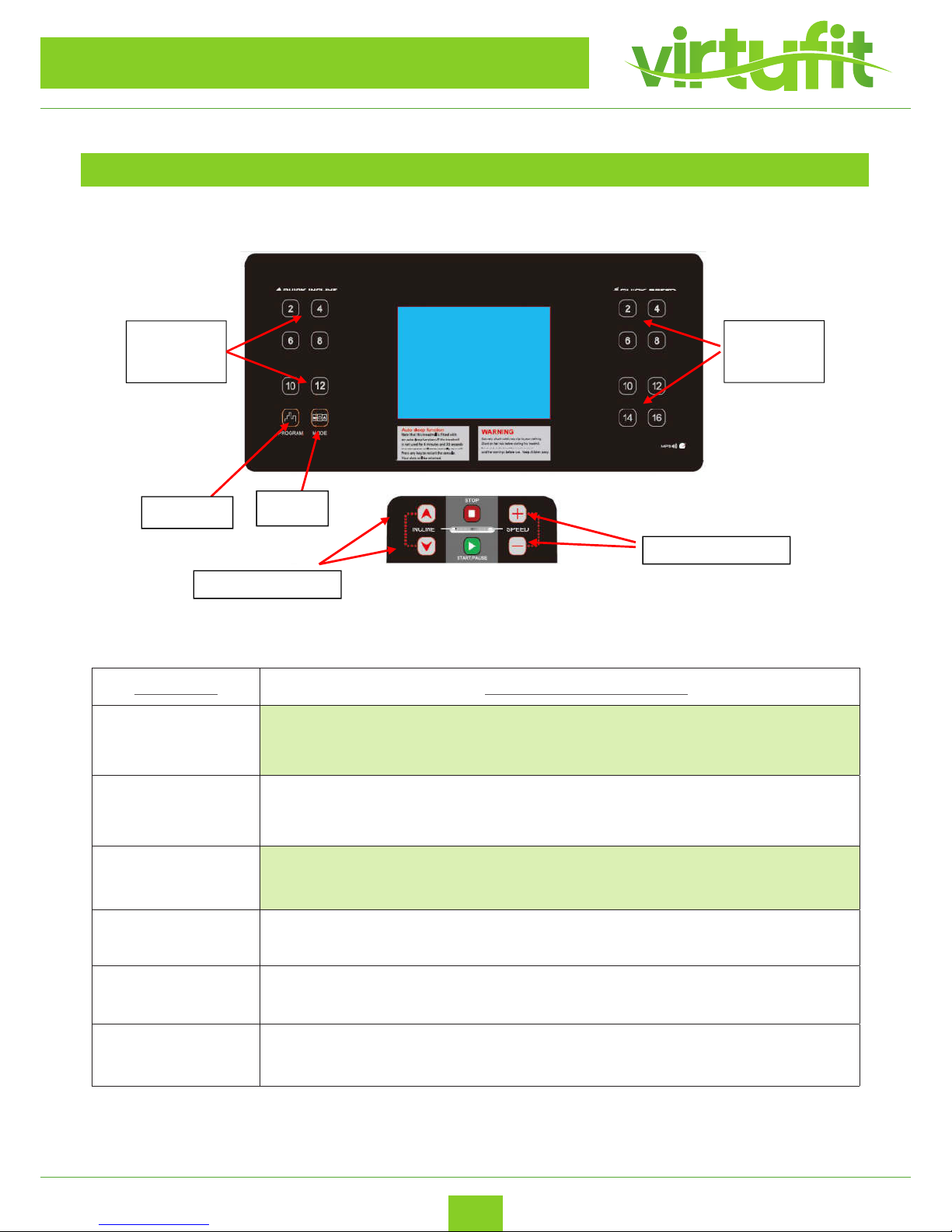

17
CONTROL PANEL
LOOPBAND AFSTELLENTREADMILL USE INSTRUCTION
I. Power on, the treadmill will start to the lowest position, check the machine is normal.
II. Attatch the safety clip to the shirt.
III. Before running, check that the treadmill is stable and that the treadmill is operating
normally while standing on the side rails. When the treadmill is switched on, grasp the
handlebar with one hand and press “START”. The treadmill will go to 1.0 km/h in 5 seconds.
Now stand on the treadmill. Press“SPEED”“+” and the engine accelerates with 2.5 ~ 3.5
km/h (this is the most suitable running speed). Grasp the handle with both hands at a
constant pace on the running belt.
IV. After a few minutes you can speed up running, it is required to hold the handlebars. Press
“SPEED”“-”to slow down.
V. Shortcuts can be used to go quickly to the desired speed while running.
VI. Press “STOP” to stop the engine at any time while running.
VII. Preset-mode: Press“SELECT” in standby mode to select one of the automatic operating
mode as the current operating mode. Press“START” to start the treadmill. The treadmill
starts to run automatically according to the selected mode. While walking press “SPEED”
“+” or “SPEED”“-” to change the current speed.
VIII. HRC-test (optional): Switch on the treadmill. Hold the HRC mental sensors with your hands,
after a few seconds the heart rate display shows the heart rate value.
NOTE: The measured value can not be considered as the basis of medical treatment and is
an approximation.

ENG
VirtuFit TR-900i Treadmill
18
LOOPBAND AFSTELLEN
CONTROL PANEL
FUNCTION FUNCTION EXPLANATION
DISTANCE Displays the distance value.
CALORIE Displays the calorie value.
TIME Displays the time value.
INCLINE Displays the incline value.
PULSE Displays the heart rate value.
SPEED Displays the speed value.
KEY DEFINITION
Incline
shortcut
Speed
shortcut
Program Mode
Incline “+”“-”
Speed “+”“-”

ENG
VirtuFit TR-900i Treadmill
19
BUTTON FUNCTION EXPLANATION
PROG
Program select key: when the treadmill is stopped, cycle select the
program”P0-P3--> U01 ~U03 ----. FAT “as you prefer.
MODE Mode selection key: When in manual mode press PO for normal mode to select
from: Time count mode, distance count mode and calorie count mode.
START/PAUSE When the treadmill has stopped, press“START” to switch the treadmill on again.
When the running belt is moving, press “START”to pause the treadmill.
STOP
When the running belt is moving, press “STOP” once to slowly the treadmill.
When the running belt is moving, press “STOP” twice to stop the treadmill
abruptly. When the LCD window shows an ERR message, press “STOP” to delete
the error message.
SPEED “+” Increase the speed when running. lncrease the parameter under the body fat
testing.
SPEED “-” Decrease the speed when running. Decrease the parameter under the body fat
testing.
QUICK SPEED With this shortcut, the treadmill can go at once to the desired speed.
Increase the incline by pressing this key.
Decrease the incline by pressing this key.
QUICK INCLINE When the treadmill is moving, you can use this shortcut to go at once to the
desired incline.
CONTROL PANEL

ENG
VirtuFit TR-900i Treadmill
20
LOOPBAND AFSTELLEN
CONTROL PANEL
PROGRAM / START INSTRUCTION
SAFETY KEY INSTRUCTION
A: PROGRAM
1. PO: Normal mode, time counting down, distance counting down, calories count mode.
2. 36 setting program: P01,P02,P03,P04,P05, ······,P36.
3. HRC-function (optional)
4. Body fat function: FAT
B: START INSTRUCTION
1. Place the safety clip on the safety key switch, the console lights up for 3 seconds.
2. Press “START” the time window shows: 5-4-3-2-1, which makes a beeping sound every second, the
treadmill starts to move when counter is at 0.
The safety key can be removed in each status, after which the display shows “E-07” and a buzzer sounds.
Then carefully reset the safety key after which all buttons will light up for 2 seconds, then go to the
manual start mode (equivalent reset).
MANUAL MODE
1. How to enter manual mode:
A: If the device is switched on, press the normal manual mode.
B: If the device is switched o, press “MODE” to eneter manual mode.
2. You can set three functions in manual mode: time setting, distance setting and calorie burning setting;
Go to manual mode, press “MODE” to set another mode and press“START” to restart the treadmill. Set the
speed and incline. Standard speed: 1.0 km/u, standard incline: 0%.
A: When the manual mode is open, the window shows 0:00. When the engine is running, press“STOP” to
stop the treadmill slowly. All settings are reset to the default settings.
B: In standard manual mode, press “MODE” to set the time. The time window lights up. The initial time is
30:00 minutes. Press “SPEED”“+” or “-” to set the time. Setting range of the time is: 5:00 ~ 99:00 minutes.
C: When in time settings, press“MODE” to set the distance. The distance window lights up. The initial time
is 1.0 KM. Press “SPEED”“+” or “-” to set the distance. Setting range of the distance is: 1.0 ~ 99.0 KM.
