VIRTUFIT TR-90i User manual

User manual
EN
VirtuFit TR-90i
Product may vary slightly from the item pictured due to model upgrades
USER’S MANUAL
This is HIGH-POWER item; please DO NOT USE THE SAME OUTLET WITH OTHER
HIGH-POWER HOUSEHOLD APPLIANCE like air-conditioning etc.
Please choose an outlet exclusively for the machine and make sure the fuse is 10A.
Foldable TR-90i Treadmill

EN Virtufit Foldable TR-90i Treadmill
2
SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS
CHECKLISTCHECKLIST
ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS
FOLDING INSTRUCTIONSFOLDING INSTRUCTIONS
MAINTENANCEMAINTENANCE
TROUBLE SHOOTINGTROUBLE SHOOTING
CONTROL PANELCONTROL PANEL
APP INSTRUCTIONSAPP INSTRUCTIONS
EXPLODED DRAWINGEXPLODED DRAWING
PARTS LISTPARTS LIST
TRAINING INSTRUCTIONSTRAINING INSTRUCTIONS
3 - 4
5
6 - 10
11
12 - 14
15
16 - 24
25
26
27 - 28
29
INDEX

EN
Virtufit Foldable TR-90i Treadmill 3
SAFETY INSTRUCTIONS
– It is important to read this entire manual before assembling and using the device. Safe and
effective use can only be achieved if the device is assembled, maintained and used properly.
It is your responsibility to ensure that all users of the device are informed of all warnings and
precautions.
– Before starting any exercise program, you should consult your doctor to determine if you have
any medical or physical conditions that could put your health and safety at risk, or prevent you
from using the device properly. Your doctor’s advice is essential if you are taking medication
that affects your heart rate, blood pressure or cholesterol level.
– Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do
experience any of these conditions you should consult your doctor before continuing with your
exercise program.
– Keep children and pets away from the device. The device is designed for adult use only.
– Use the device on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the device should have at least 0.5 metres of free space all around it.
– Before using the device, check that the nuts and bolts are securely tightened.
– The safety of the device can only be maintained if it is regularly examined for damage and/or
wear and tear.
ATTENTION
WARNING:
Before beginning any exercise program consult your physician. This is especially
important for people who are over 35 years old or who have pre-existing health
problems. Read all instructions before using any fitness equipment. Do not operate this
device without properly fitted guards, as the moving parts can present a risk of serious
injury if exposed.

EN Virtufit Foldable TR-90i Treadmill
4
SAFETY INSTRUCTIONS
– Always use the device as indicated. If you find any defective components while assembling or
checking the device, or if you hear any unusual noises coming from the device during use,
stop immediately. Do not use the device until the problem has been rectified.
– Wear suitable clothing while using the device. Avoid wearing loose clothing that may get caught
in the device or that may restrict or prevent movement.
– The max user weight is 150 KGS. Braking ability is independent of speed.
– The device is not suitable for therapeutic use.
– Care must be taken when lifting or moving the device so as not to injure your back. Always use
proper lifting techniques and/or seek assistance if necessary.
– Please keep the space at least 1 to 2 meter at the end of base frame to escape any accidents!
– Place the device on a clean and flat surface. Do not place the device on a thick carpet.
– The device is for indoor use and not for outdoor use to prevent damage. Keep the storage location
dry, clean and flat. It is forbidden to use the device for purposes other than training.
– Only use the machine in an environment with an ambient temperature between 10 °C and 35 °C.
Only store the device at an ambient temperature between 5 °C and 45 °C.
Warranty claim is excluded if the cause of the defect is the result of:
– Maintenance assembly and repair work not carried out by an official dealer.
– In the event of improper use, neglect and / or poor maintenance.
– Failure to maintain the device in accordance with the manufacturer’s instructions (see the enclosed
manual).

EN
Virtufit Foldable TR-90i Treadmill 5
When you open the carton, and you will find the below parts in the carton:
TOOLKIT
5

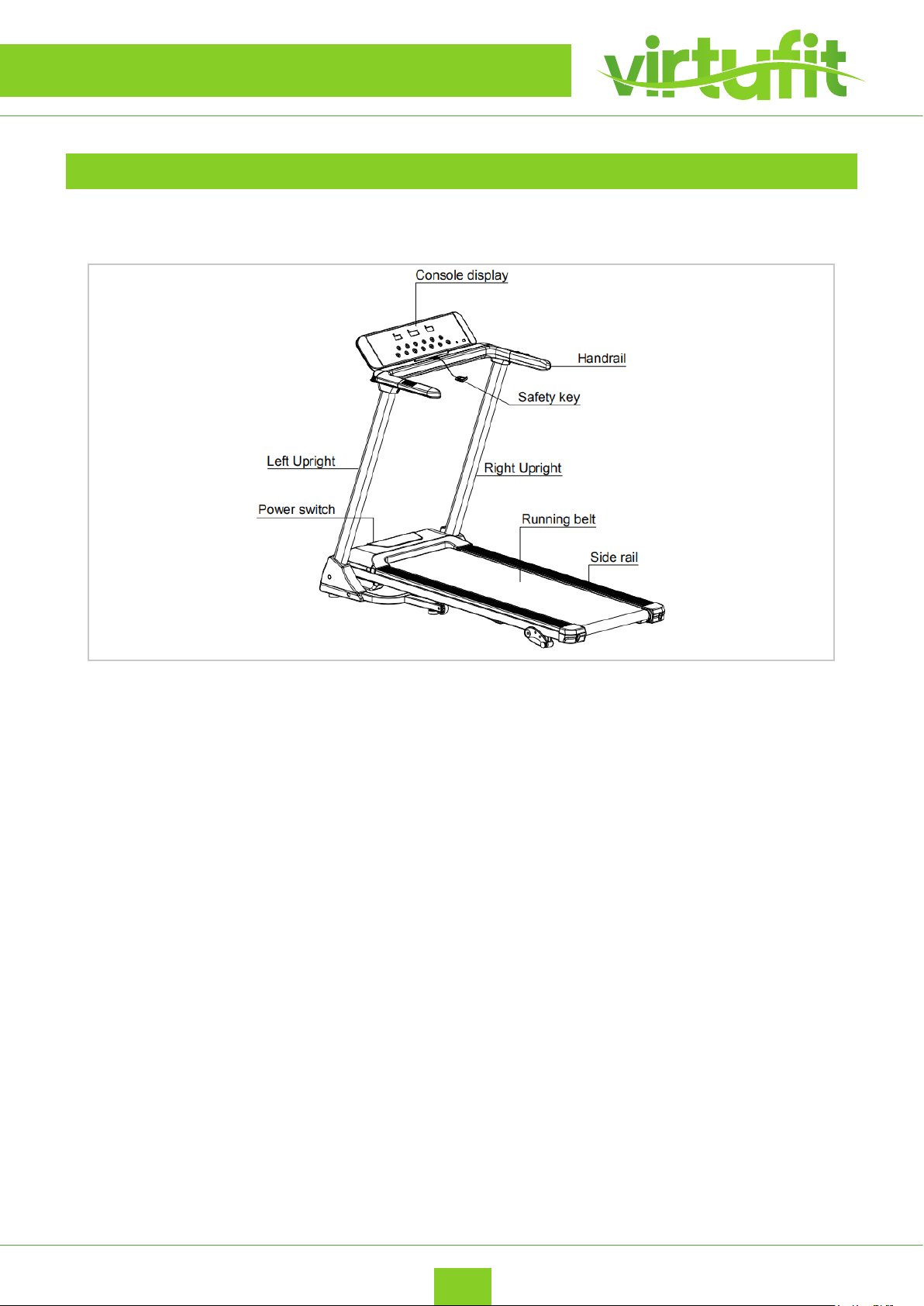

2.BRIEF DESCRIPTION
This motorized treadmill can help complete your goal of keeping fit. Together with the unique, elegant and
dignified shape, it takes a little space when folded by gasoline spring.
Speed range: 1.0-14km/h
Manual incline: 3 levels
Programs: 15pcs pre-set programs (P1-P15)
CHECKLIST
NOTE! Do not connect the appliance to the mains before it has been completely set up.

EN Virtufit Foldable TR-90i Treadmill
6
22
8. INSTALLATION GUIDE
Step1:
Step 2:
Missing parts: If you think you are missing certain parts in your package, carefully check the styrofoa and
the device. Some parts (bolts, screws, etc.) are already attached to/in the device.
Error message: Ensure that all cables are carefully attached. The aluminum legs are very sensitive and
must remain straight. Do you receive an error message after mounting your device? Then you have to
straighten these aluminum legs again, this may cause the error message to disappear.
Socket screws: The device contains socket screws, make sure that the allen key is firmly in the
bolt before you apply force to the key. In this way you prevent the head of the socket head screw from
being rotated.

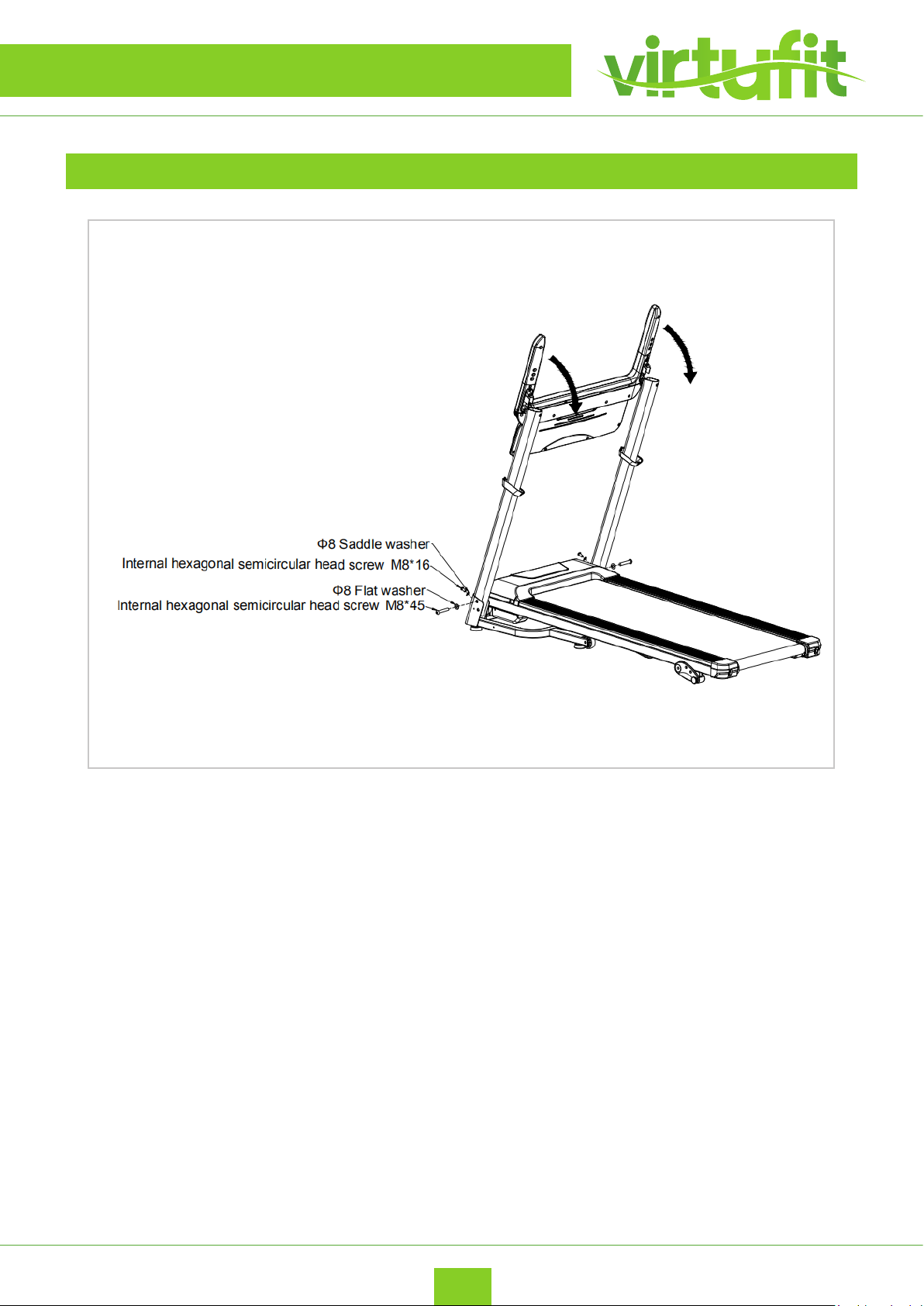

STEP 1
• Open the box, remove all parts from the box and place the main frame on a flat surface.
• Lift the uprights until they drop into the hinge of the main frame.
ASSEMBLY INSTRUCTIONS

EN
Virtufit Foldable TR-90i Treadmill 7
STEP 2
• Attach the uprights to the side with the screws and washers, then turn the panel in horizontal
position.
23

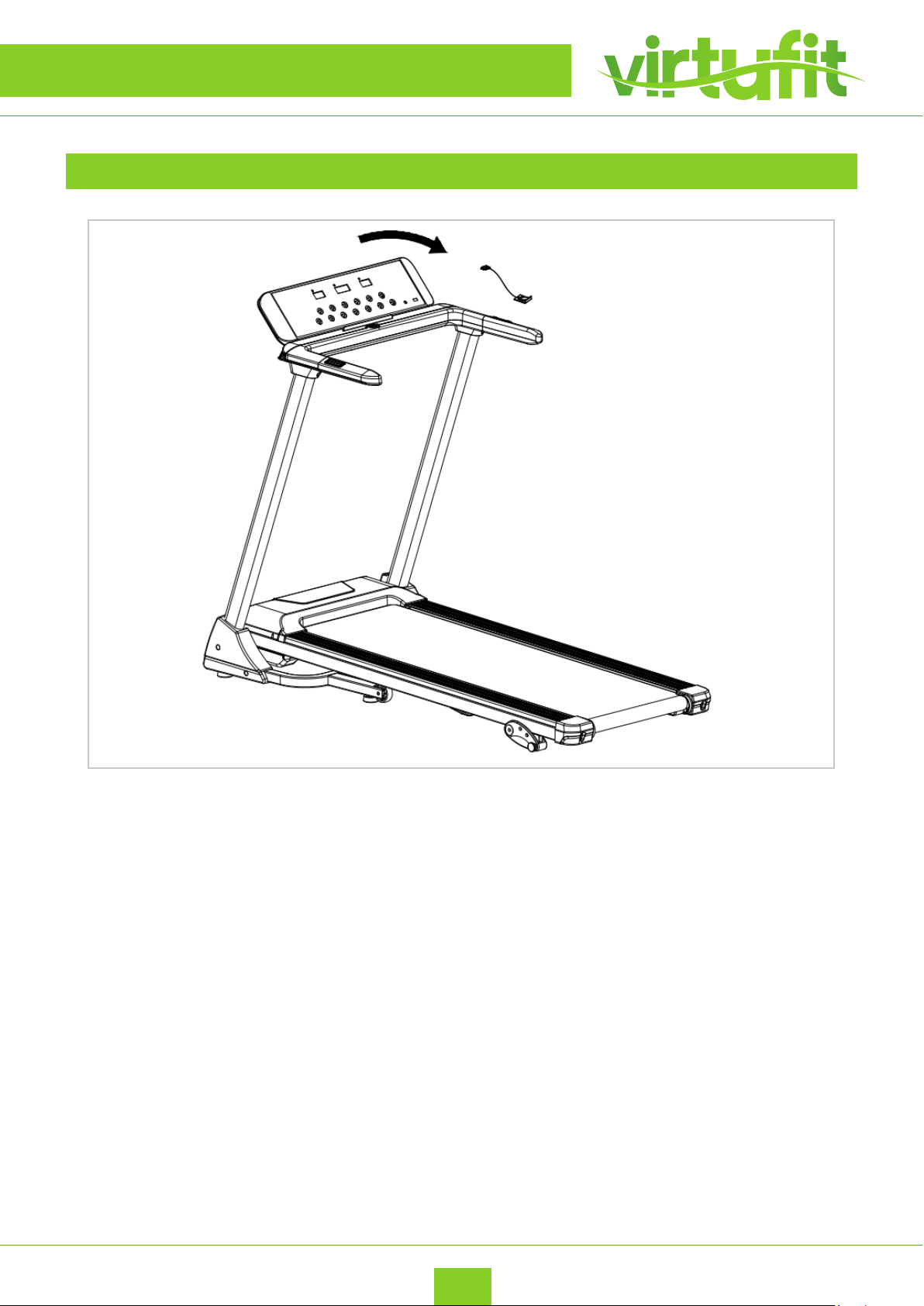

Step 3:
ASSEMBLY INSTRUCTIONS

EN Virtufit Foldable TR-90i Treadmill
8
STEP 3
24

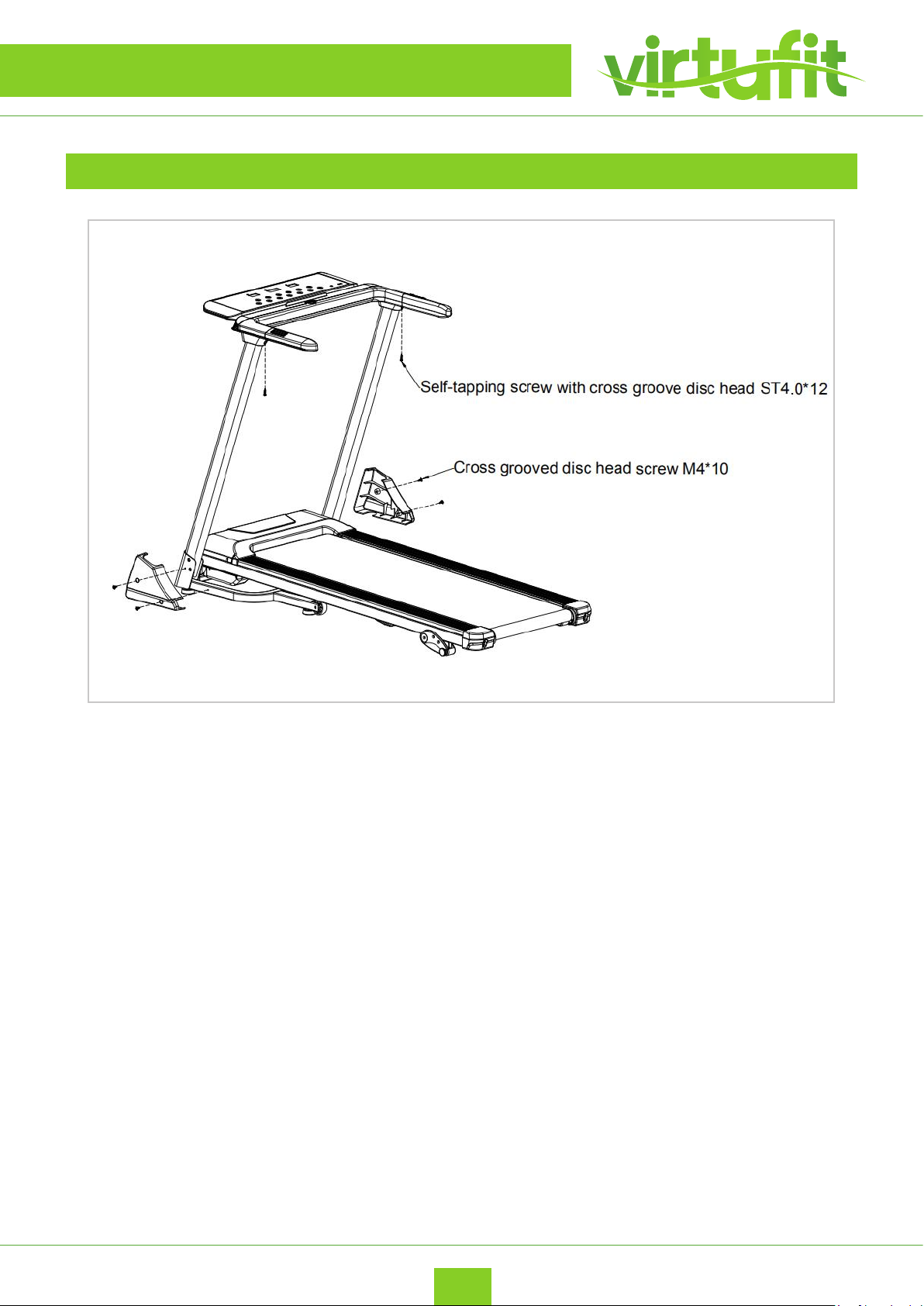

Step 4:
Step 5:
• Secure the console with the screws and washers.
• Slide the protective caps up.
ASSEMBLY INSTRUCTIONS

EN
Virtufit Foldable TR-90i Treadmill 9
STEP 4
24
Step 4:
Step 5:
• Attach the protective caps as shown in the picture.
ASSEMBLY INSTRUCTIONS

EN Virtufit Foldable TR-90i Treadmill
10
STEP 5
25
We have checked the words carefully in the manual. If there is something wrong in printing, please kindly
consider it.
If the pictures are different from the product, please take the product as the final and correct one.
Please note:If there are changes in function and specification due to technical improvement, we will not
keep you informed.
• Install the safety key in the console.
• When you start walking, attach the safety key to your clothes. Pull in an emergency on the safety
cord of the key and the walking belt will stop immediately.
• Rotate the display window at a right angle. The treadmill is now ready for use. The switch is too
located on the front of the treadmill.
NOTE!
•When you use the treadmill, always go before the treadmill rolls on the rails. Once the belt rolls,
you can stand on the walking platform. This way the engine is least loaded.
•After using the treadmill, turn off the power switch (on / off). In addition, use the emergency stop
not unnecessary, only in an emergency. In this way, the circuit board is least loaded.
ASSEMBLY INSTRUCTIONS

EN
Virtufit Foldable TR-90i Treadmill 11
FOLDING INSTRUCTIONS
NOTE! Store your machine in a dry area away from children and high trac areas as shown in the
illustration. Be sure it is secure and cannot fall onto small animals or children.
FOLDING
UNFOLDING
First, lift the back part of the frame board with your hand till you hear a light sound, which means the
folding system has been locked. Running board can’t be turned to the opposite direction now.
Place the folded treadmill in a spacious area. Lift the back part of the frame board with your hand,then click
the spring to unfold the machine.
Please stand back for more than 1.5 meters and release it, then it will open automatically.

EN Virtufit Foldable TR-90i Treadmill
12
CLEANING
WARNING
Before cleaning the machine, please make sure the power has been switched o.
Cleaning:General cleaning of the device will extend the life of the treadmill. Hold clean the treadmill by
dusting regularly. Be sure to clean the exposed area of the belt and the foot rails of the treadmill on both
sides.
In addition, wear clean shoes to reduce the risk of contamination of the treadmill. Remove the hood at least once
a year to vacuum underneath.
MAINTENANCE
SEMIANNUAL MAINTENANCE
DAILY MAINTENANCE
• Clean and remove sweat after each use Do not use aggressive cleaning agents and ensure that
the device remains free of moisture.
• Check that the rail and the wheels under the seat are free from dust and dirt.
• Inspect all bolts and nuts in connection with moving parts of the device, tighten as required.
• Check the mobility of moving parts and components of the use equipment, silicone spray if
necessary.
Safeandeectiveusecanonlybeachievedifthedevicewillbeassembledandmaintained
well. It is your responsibility to ensure that the equipment is regularly maintained. Parts
that are already used and / or damaged must be replaced before continuing using. The
rower machine may only be used indoors and stored away, prolonged exposure to
weathering and changes in temperature / humidity can have a serious impact on the
electrical components and moving parts of the device.

EN
Virtufit Foldable TR-90i Treadmill 13
This treadmill is equipped with a pre-lubricated, low maintenance deck system. The belt/ deck friction
may play a major role in the function and life of your treadmill, thus requiring periodic lubrication. We
recommend a periodic inspection of the deck. You need contact with our service center if you nd the
damage of the deck.
We recommend lubrication of the deck according to the following timetable:
•Light user (less than 3 hours/ week) annually
•Medium user (3-5 hours/ week) every six months
•Heavy user (more than 5 hours/ week) every three months
Best indicator is to lubricale when the walking platform feels dry. We recommend that you buy the
lubrication from our distributor or directly to our company.
NOTE: Any repair need the professional technician.
• We suggest that you should cut o the power for 10 minutes after keep running 2 hours, so that it’s
good for maintain the treadmill.
• For avoiding the slipping during running, the belt not too loose; for avoiding the more abrasion
between the roller and belt and maintain the machine’s good running ,the belt not too tight. You can
adjust the distance between plates and belt, the belt be away from the plates about 50-75 mm on
both sides, if the best not too tight and loose.
We strongly recommend that you do the following
• Switch o and remove the power cable from the wall after every use, especially if children are
present.
• Clean your treadmill after use.
• Use a dry cloth to clean the control panel and areas around the power switch. Use a soft clean cloth
and cleanser to remove stubborn stains and dirt o the running belt.
• Tighten the running belt once a month.
• Keep your treadmill in a safe dry place away from heat and water.

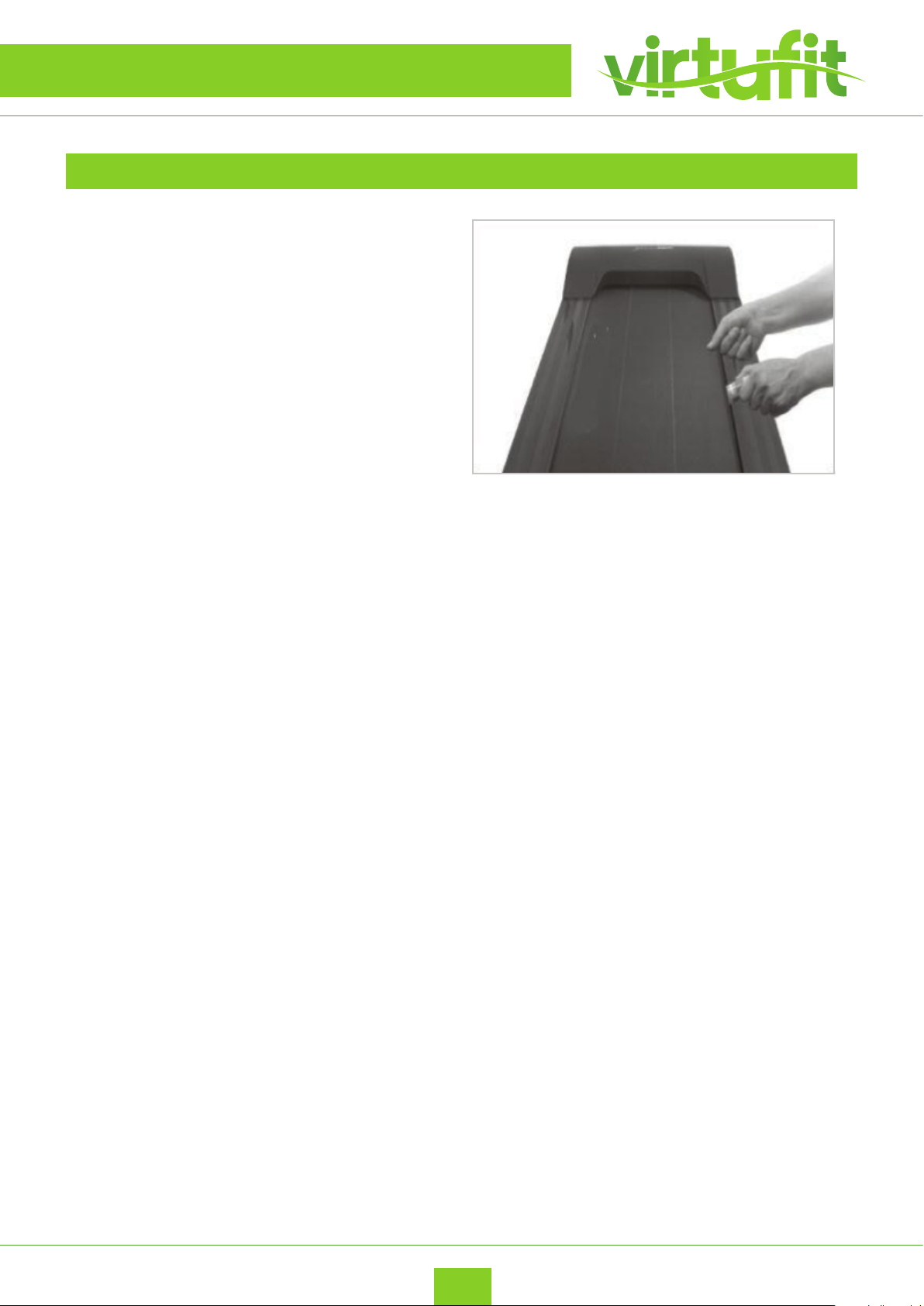

LUBRICATING THE BELT
MAINTENANCE

EN Virtufit Foldable TR-90i Treadmill
14
USAGE OF SILICONE OIL
Pull up tightly of the running belt. Then put the
silicone oil to running board. Then start the machine
to running 3 minutes without loading. It is better
to maintain like this every 30 hours working of the
machine. This can save lifetime of parts properly.
We recommend that you do the following:
• Disconnect the power cord after every use, especially when children are present.
• Clean the treadmill after use.
• Use a dry cloth to cover the control panel and areas around the on/o switch clean.
• Use a soft clean cloth and detergent to remove stubborn stains and dirt from the treadmill.
• Tighten the treadmill once a month.
• Keep your treadmill away from heat and water in a safe, dry place.
Regular maintenance prolongs the life of your treadmill and prevents injury!
MAINTENANCE

EN
Virtufit Foldable TR-90i Treadmill 15
ALARM SIGNALS
This treadmill is designed in a way that in the event of an electrical fault, the machine will turn off
automatically to prevent any injuries to the user and to prevent damage to the machine (i.e. motor).
When the treadmill behaves erratically, simply reset the treadmill by turning the power switch off, waiting
for 1 minute then turning the power button back on.
E02 Over voltage protection of motor
• Make the machine self-checking again.
• Change controller.
E03 Over current protection
• Clean the dust between running board and belt, then put some oil.
• If the running belt wear seriously, please change the running belt.
E04 Motor open circuit
• Check the check the connect wire of motor ,if the connect wire loose, please connect it again.
• The motor carbon brush wear, replace carbon brush or motor.
E05
EEPROM damage or access problems change the controller board.
E06 Communication error
• Check the connect wire between computer and controller board, if it loose or broken, please connect
it again or change it.
• Change the incline motor.
E09 short-circuit protection
Change the controller board.
“---” Safety key not connected.
Insert the safety key.
No Power
• Check fuses (They are located on the controller under the motor cover).
• Check power outlet (Plug something else into the power outlet to ensure that the power outlet is
working correctly).
• Check Power Cable (You may need to take it to an electrician).
TROUBLE SHOOTING

EN Virtufit Foldable TR-90i Treadmill
16
CONSOLE
BUTTON FUNCTION
1 MODE Turn on the machine, press the button to choose the preset programs P1-P15.
Press CLEAR / SET to exit.
2 START/
STOP
Turn on the machine, press the button to start walking. While walking, press the
button to stop and register walking. Press CLEAR / SET to clear the registration.
3 CLEAR/
SET
Turn on the machine, press the button to choose time, distance and calorie
count-down training. While walking, the button can clear time, distance and
calories.
4 SPEED+ While walking, press the button to increase the speed by 0.5 km / h. Hold the
button to increase speed continuously.
5 SPEED  While walking, press the button to decrease the speed by 0.5 km / h. Hold the
button to decrease the speed continuously.
6 QUICK
SPEAD Speeds 2,4,6,8,10,12 can be selected during this run.
CONTROL PANEL

EN
Virtufit Foldable TR-90i Treadmill 17
FUNCTIONS
BUTTON FUNCTION
7 SPEED +
IN HANDRAIL
While walking, press the button to increase the speed by 0.5 km / h. Hold the
button to increase speed continuously.
8 SPEED 
IN HANDRAIL
While walking, press the button to decrease the speed by 0.5 km / h. Hold the
button to decrease the speed continuously.
9 “START”
LEFT HAND BAR Has the same function as the “START” key.
10 “STOP”
RIGHT HAND BAR Has the same function as the “STOP” key.
11“SPEED+”
LEFT HAND BAR Has the same function as the “SPEED +” key.
12 “SPEED”
RIGHT HAND BAR Has the same function as the “SPEED -” key.
SAFETY KEY
A safety key is supplied with this machine. Remove the safety key to stop the treadmill; the treadmill will
turn off automatically. Inserting the safety key will reset the display.
CONTROL PANEL

EN Virtufit Foldable TR-90i Treadmill
18
Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power switch located
at the front of the treadmill below the motor shield. Ensure that the safety key is installed, as the treadmill
will not power on without it. When the power is turned on, the display is ready for operation.
Press and release the START/STOP to begin belt movement, at 1.0 Km/h, then adjust to the desired speed
using the ‘+’ or ‘-’. You may also use the quick speed keys (2, 4,6,8,10 and 12) to adjust the speed. You can
also use ‘speed +’ or ‘speed -’to adjust the speed on handrail.
• To slow the treadmill down, press and hold the ‘speed -’key to desired speed. You may also press the
rapid speed adjust keys:2,4,6,8,10,12.
• In a state of running, single press START/STOP, the walking belt will gradually slow down.
• In the state of running, single press CLEAR/SET will reset time, distance, calorie.
INCLINE FEATURE
When use the treadmill,you can select the different incline according to your favor.
PULSE GRIP FEATURE
Hold on both stainless steel pulse sensors in the handrails, the The Pulse (Heart Rate) console window will
display your current heart rate during the workout within 15 seconds .
NOTE! You must use both stainless steel sensors to display your pulse.
CALORIE WEERGAVE
Displays the cumulative calories burned at any given time during your workout.
NOTE! This is only a rough guide used for comparison of different exercise sessions, which cannot be
used for medical purposes.
FUNCTION DESCRIPTION
CONTROL PANEL

EN
Virtufit Foldable TR-90i Treadmill 19
MODE
USER MANUAL MODE
Press “START” then the treadmill will run at a speed of 0.8km / h. All other screens count from 0. Press
“-SPEED +” to adjust the speed..
MODE
•Count-down training: power on the machine, press CLEAR/SET to enter TIME count-down training,
press it again to enter DISTANCE count-down training, press it once more to enter CALORIE count-
down training. Finally press MODE to exit.
•TIME count-down training: power on the machine, press CLEAR/SET, TIME figure glittering, showing
30:00. Press SPEED+,- to choose the time between 5-99minutes. Press START/STOP to start at speed
of 1.0km/h. Speed can be adjusted by pressing SPEED+,-. The machine stops when time shows 00:00.
•DISTANCE count-down training: power on the machine, press CLEAR/SET two times, distance figure
glittering, showing 1.0km. Press SPEED+,- to choose the distance between 1.0-9.0km. Press START/
STOP to start at speed of 1.0km/h.Speed can be adjusted by pressing SPEED+,-. The machine stops
when distance shows 0.00.
•CALORIE count-down training: Power on the machine, press CLEAR/SET three times, calorie figure
glittering, showing 50CAL. Press SPEED+,- to choose the calorie between 10-990CAL. Press START/
STOP to start at speed of 1.0km/h.Speed can be adjusted by pressing SPEED+,-. The machine stops
when calorie shows 0.
TO SELECT A PROGRAM
• Power on the machine, press‘MODE’to choose desired program, then press and release‘START/STOP’
to begin the program with default values.
• The speed window will now be showing the preset speed of the selected program.
• After every one minute speed can be altered automatically according to the programs, and can be
altered manually. 3 Seconds before the ending of program a buzzer will sound three times, then the
running belt will come to a stop.
CONTROL PANEL

EN Virtufit Foldable TR-90i Treadmill
20
Each preset program has a maximum speed level that is displayed when a desired workout is chosen. The
speed that the particular program will achieve will be displayed in the Speed window. Each program has
various speed changes throughout.
PROGRAMS
10
Programs:
1. WALKING AND JOGGING
CONTROL PANEL
