Vision Fitness S70-02 (EP78B) Service Manual

2
TABLE OF CONTENTS
CHAPTER 1: MAINTENANCE PROCEDURE
1.1 Preventive Maintenance Schedule……………..……..……………………………………….……..4
1.2 Cleaning the Grooves………………………………………...........................................................5
CHAPTER 2: WIRING DIAGRAM INSTRUCTION
2.2 Electrical Installation.……………………………………………………………………….…………..6
2.2 Electrical Diagram………………………………………………………………………………………7
2.3 Wiring Diagram………….………………………………………………………………………………8
2.4 LCB Wiring Diagram……………………………………………………………………………………8
2.5 Console Wiring Diagram……………………………………………………………………………….9
CHAPTER 3: ENGINEERING MODE
3.1 Using Engineering Mode………………….…………………………………………………………...10
3.2 Using Engineering Mode – Continued………………………………………………………………..11
CHAPTER 4: TROUBLESHOOTING
4.1 Console Error Codes…………………………………………………………………………………….12
4.2 Troubleshooting – No Display on the Console or the Display is Dim……………………….……...13
4.3 Troubleshooting – No RPM is Displayed During the Exercise………………………………………14
4.4 Troubleshooting – All or Some of the Function Keys do not Respond…..…………………………15
4.5 Troubleshooting – High or No Resistance……………………………………………………………. 16
4.6 Troubleshooting – Pedals Slipping……………………………………………………………………..17
4.7 Troubleshooting – Knocking or Creaking Noise………………………………………………………17
4.8 Troubleshooting – Heart Rate Function Does Not Work or is Reading Incorrectly……………….18
CHAPTER 5: PART REPLACEMENT GUIDE
5.1 Shroud Replacement…………….…………....................................................................................19
5.2 Lower Control Board Replacement...……………….......................................................................21
5.3 Power Resistor Replacement………………...................................................................................22
5.4 Generator Replacement………………...........................................................................................23
5.5 Generator Belt Replacement…………………................................................................................25
5.6 Drive Axle Replacement……………..............................................................................................27
5.7 Pulley Axle Set Replacement……….………..................................................................................28
5.8 Drive Axle Set Replacement..........................................................................................................29
5.9 Crank Replacement…………….....................................................................................................33
5.10 Console Replacement………………..............................................................................................34
5.11 Incline Motor Replacement…………………...................................................................................35
5.12 Dual Action Handlebar Replacement……………………................................................................37

3
CHAPTER 5: PART REPLACEMENT GUIDE
5.13 Console Mast Replacement……………………………................................................................38
5.14 Foot Pedal Replacement……………….......................................................................................39
5.15 Pedal Arm Replacement……………...........................................................................................40
5.16 Link Arm Replacement………….................................................................................................42
5.17 Incline Arm Replacement………………………...........................................................................43
5.18 Swing Arm Replacement…………..............................................................................................44
5.19 Vertical Stabilizer Arm Replacement..........................................................................................45
5.20 Incline Arm Replacement............................................................................................................46
5.21 Hear Rate Grip Replacement……………….................................................................................47
5.22 Testing the Elliptical………………...............................................................................................48
CHAPTER 6: SOFTWARE UPGRADE PROCEDURE
6.1 Software Upgrade Instructions……………..…............................................................................49

4
CHAPTER 1: MAINTENANCE PROCEDURE
1.1 Preventive Maintenance Schedule
PREVENTIVE MAINTENANCE SCHEDULE
Item Daily Weekly Monthly Quarterly Biannual Annual
Console Mounting
Bolts
Inspect
Frame Clean Inspect
Display Console Clean Clean
Handlebar Clean Inspect
Handrail &
Handlebar Clean
Inspect
Foot pad Inspect
V Belt Inspect

5
CHAPTER 1: MAINTENANCE PROCEDURE
1.2 Cleaning the Grooves
If there is any dust in the grooves of the Poly-V belts and pulleys, noises will be generated during operation.
Frequency: Every 3 to 4 months.
[Procedure]:
1. Remove the Poly-V belts (490-J8) and check the grooves of the belt for dirt or dust and clean if any is present.
2. Check the grooves in the pulley for dirt or dust and clean if any is present.
3. Check the grooves in the roller pulley for dirt or dust and clean if any is present.

6
CHAPTER 2: WIRING DIAGRAM INSTRUCTION
2.1 Electrical Installation

7
CHAPTER 2: WIRING DIAGRAM INSTRUCTION
2.2 Electrical Diagram

8
CHAPTER 2: WIRING DIAGRAM INSTRUCTION
2.3 Wiring Diagram
P06- CONSOLE WIRE
P08- INCLINE MOTOR WIRE
2.4 Lower Control Board Wiring Diagram

9
LED# Color Descriptions LED# Color Descriptions
LED1 Red Generator RPM LED10 Green INCLINE 1 down
LED2 Red AC Plug IN LED11 Red INCLINE 2 down
LED3 Green Vcc(5V) LED12 Yellow Charging (PWM)
LED4 Red Status indicator (ref. Note) LED13 Red 40HR-discharging
LED5 Red Status indicator (ref. Note) LED14 Green 12V/6A-main power
LED6 Red Status indicator (ref. Note) LED15 Green Console power
LED7 Yellow PWM-Resistance LED16 Red E_RPM-Extra power
LED8 Green INCLINE 1 up LED17 Green 15V/8A-Charge power source
LED9 Red INCLINE 2 up LED18 Red FAN
LED 4 :
(System operation display)
LED 5 :
Error Message Display LED 6
Pulse times
per sec. Description Pulse times per sec. Description Pulse times per sec. Description
2 times Self-Power System 2 times Class B Error 2 times Class C Error
1 times AC Plug-in System 0.5 times Class A Error bright NO Resistance Offset
1 times Burn-in (1) 0.5 time Burn-in (1)
2.5 Console Wiring Diagram
Port Function
JQK Quick key cable for S70
JQK1 Quick key cable for R70
JHD Console wire for S70
JAI Console wire for S60, U70, R70
JHG1/JHG2 Hand grip cable for all models
Select switch Select current model by hand

10
CHAPTER 3: ENGINEERING MODE
3.1 Using Engineering Mode
1. Press & Hold both UP and DOWN RESISTANCE keys at the same time for 3-5 second to enter Engineering Mode as shown in Figure A. The display
will show “P1 MAX TIME” as shown in Figure B.
2. To scroll through the list of options in Engineering Mode, use the UP and DOWN RESISTANCE keys.
3. Press the ENTER key to see the value of the function.
4. To change the value of the setting, use the UP and DOWN RESISTANCE keys.
5. To confirm and save the value of the setting, press the ENTER key.
6. Press and hold the START key for 3-5 seconds to return to normal operation.
FIGUREA FIGUREB
KEY NAME POSITION FUNCTION
UP SELECT FUNCTION OR ADJUST VALUE
DOWN SELECT FUNCTION OR ADJUST VALUE
ENTER ENTER THE FUNCTION ITEM
HOLD “ENTER” KEY 3’S TO SAVE THE CHANGE
HOLD “ START” KEY 3’S TO BACK OUT OF SUB MENU OR EXIT TO
MAIN MENU
HOLD RESISTANCE
“ UP&DOWN” KEY 3’S
TO ENTER ENGINEERING MODE
HOLD RESISTANCE
“ UP&DOWN” KEY 3’S
ON THE
“VERSION”
SYSTEM PARAMETER
RESET
HOLD RESISTANCE
“ UP&DOWN” KEY 3’S
ON THE “AC TIME”,OR “AC DIST” TO CLEAR THE AC TIME OR AC DISTANCE
HOLD ENTER KEY 3'S ON “INCLINE CAL” INCLINE CALIBRATION

11
CHAPTER 3: ENGINEERING MODE
3.2 Using Engineering Mode – Continued
CUSTOM
SETTING DEFAULT MINIMUM MAXIMUM DESCRIPTION
MAX TIME 99 min 5 min 99 min Set a maximum workout time
USER TIME 60 min 5 min 99 min Set a default workout time
DF AGE 40 10 100 Set a default age for all programs
DF WEIGHT 80kg
/150lbs
40kg
/80lbs
182kg
/400lbs Set a default user weight for all programs
DF LEVEL 1 1 20 Set a default resistance level for all programs
DF GENDER MALE FEMALE MALE Set a default gender for all programs
UNIT MILE KM MILE Set the unit to miles or kilometers
MACHINE EP －－Set machine to elliptical mode
AC TIME 0 0 999999 hr
A
ccumulate time
AC Distance 0 0 999999 mile
A
ccumulate distance
DISPLAY
TEST －－－Used by service technicians to test LED displays
MACHINE
TEST －－－For factory setting only
KEYPAD TEST －－－For keypad test
VERSION －－－Display Current software version
LANGUAGE English The native language prompts in the instruction center
INCLINE CAL Incline calibration
INCLINE
HOMING ON OFF ON On/off incline automation reset to zero position

12
CHAPTER 4: TROUBLESHOOTING
4.1 Console Error Codes
Error Messages on the Console
Code Class Description Solution
0x0140 B
When UCB implements an Incline command, Incline
has no action for 3 seconds. Replace incline motor
0x0142 B
When the incline position does not match the noted
position and the difference is not reduced to 3% for 3
seconds.
A
uto calibration or replace incline motor
0x0441 B
When UCB implements a command, LCB has not
received this command. Check the console cable connection, replace the LCB.
0x01A1 C
Incline calibration error. When calibration time is too
long or calibration distance is too short Replace Incline motor
0x01A7 C
Incline has short circuited (7A) or the current is over 5A
for 1 second. Replace Incline motor
0x01AC C
Power resistor is short circuited (over 4A), or the current
is over 3.7A for 1 second. Check the connection of power resistor or replace power resistor
0x02AB C Machine Type Error Set the Machine Type to the correct type of LCB
0x02B3 C Resistance Type Error Set the Machine Type to the correct type of LCB
0x04A0 C
The LCB has no message returned to the UCB for ove
r
3 seconds. Check the console cable connections, replace the LCB / UCB as needed.
0x0201 A LCB Battery Low Voltage Check battery recharge function or replace new battery
0x0248 B Battery disconnection or fail. Check the connection of battery or replace new battery
0x01A0 C Incline Motor no connection Check the connection of incline motor or replace incline motor

13
CHAPTER 4: TROUBLESHOOTING
4.2 Troubleshooting – No Display on the Console or the Display is Dim
NO DISPLAY ON THE CONSOLE OR THE DISPLAY IS DIM
POSSIBLE CAUSES:
1. The console is damaged or the console cable is not connected properly.
2. Poor connection to all the terminals on the lower control board.
3. The lower control board is damaged.
4. The generator is damaged.
SOLUTION:
1. Check the connection of the console cable at the UCB.
2. Remove the console cable from the JHD socket on the console. Pedal the machine and set your multi-meter to DC voltage and place both
terminals on pins 1 & 7 of the console cable. There should be a reading of more than 5.5VDC (Figure A).
- If voltage is more than 5.5VDC, replace the console.
- If voltage is less than 5.5VDC, or the new console does not resolve the issue, replace the console cable.
3. Open the shrouds then check if all the wire harnesses are connected properly to the terminals of the LCB.
4. Unplug the generator cable from the control board, pedal the machine and set your multi-meter to AC voltage and place both terminals on pins 1 &
2, pins 2 & 3, and pins 3 & 1 of the console cable to check if the voltage is variable (Figure B).
- If the voltage reading shown is variable (varies based on RPM), replace the LCB.
- If the voltage reading shown is not variable, replace the generator.
FIGUREA FIGUREB

14
CHAPTER 4: TROUBLESHOOTING
4.3 Troubleshooting – No RPM is Displayed During the Exercise
NO RPM IS DISPLAYED DURING THE EXERCISE
POSSIBLE CAUSES:
1. The console is damaged or the console cable is not connected properly.
2. Poor connection to all the terminals on the lower control board.
3. The lower control board is damaged.
4. The generator is damaged.
SOLUTION:
1. Check the connection of the console cable at the UCB.
2. Remove the console cable from the J5 socket on the console. Pedal the machine and set your multi-meter to resistance and place a terminal on pin
3 of the console cable at both the LCB and UCB. There should be a resistance (ohm) reading (Figures A & B).
- If a resistance reading is shown, replace the console.
- If the there is no resistance reading, or a new console does not resolve the issue, replace the console cable.
3. Open the shrouds and check if all the wire harnesses are connected properly to the terminals of the LCB.
4. Unplug the generator cable from the LCB and pedal the machine to check if the voltage is variable.
- If a variable voltage reading is shown (varies based on RPM), replace the LCB.
- If the voltage reading shown is not variable, replace the generator.
FIGUREA FIGUREB

15
CHAPTER 4: TROUBLESHOOTING
4.4 Troubleshooting – All or Some of the Function Keys Do Not Respond
ALL OR SOME OF THE FUNCTION KEYS DO NOT RESPOND
POSSIBLE CAUSES:
1) The keypad connection ribbon cable has not been plugged in correctly.
2) The keypad is damaged.
3) The UCB is damaged.
SOLUTION:
1) Check the connections of the keypad at the UCB.
a. Remove the console from the console mast.
b. Remove the 4 screws holding the back of the console to the front (Figure A).
c. Inspect the keypad ribbon cable connection at the UCB (Figure B).
d. Even if the keypad ribbon cable appears to be connected correctly, unplug and reseat the cable, then retest.
2) Replace the affected keypad.
3) Replace the UCB.
FIGUREA FIGUREB

16
CHAPTER 4: TROUBLESHOOTING
4.5 Troubleshooting – High or No Resistance
HIGH OR NO RESISTANCE
POSSIBLE CAUSES:
1) The console is damaged or the console cable is not connected properly.
2) The console cable is damaged.
3) The power resistor is damaged.
4) The LCB is damaged.
5) The generator is damaged.
SOLUTION:
1) Check the console cable connections at the UCB and LCB.
2) Remove the rear shrouds and check if the console cable is connected properly to the LCB.
3) Set your multi-meter to resistance (ohms) and place both terminals on the power resistor wires .Check the power resistor wires for resistance (Figure
A).
-If the power resistor wire does not have resistance, replace the power resistor.
4) Unplug the generator cable from the LCB. Pedal the machine and set your multi-meter to AC voltage and place both terminals on pins 1 & 2, pins 2 &
3, and pins 3 & 1 of the console cable to check if the voltage is variable (Figure B).
- If a variable voltage reading is shown (varies based on RPM), replace the LCB.
- If the voltage reading shown is not variable, replace the generator.
FIGUREA FIGUREB

17
CHAPTER 4: TROUBLESHOOTING
4.6 Troubleshooting – Pedals Slipping
PEDALS SLIPPING
POSSIBLE CAUSES:
1) The belt tension is not high enough.
2) The one way bearing is damaged.
SOLUTION:
1) Remove the shrouds and check the belt tension.
a. Tighten the drive belt tension if needed by moving the spring tension clip to another hole.
b. The generator belt should be tightened to 85 ft / lbs.
2) If the belts are tensioned correctly, the one way bearing is damaged, replace the drive assembly.
4.7 TROUBLESHOOTING – KNOCKING OR CREAKING NOISE
KNOCKING OR CREAKING NOISE
POSSIBLE CAUSES:
1) There is hardware that is not tight or is missing.
2) The noise is related to the incline.
3) The belt tension is not high enough, or the belts are too dirty.
SOLUTION:
1) Inspect the unit and check for any loose hardware. Pay special attention to areas where arms meet. Tighten hardware where found.
2) If the noise is present only during incline, check to make sure the Teflon washers are installed at the incline motor connection point (Figure A).
a. Lubricate the gear shaft of the incline motor with grease (Vision recommends Super Lube brand Lithium Grease where available).
3) Remove the covers and check the belt tension.
a. Tighten the drive belt tension if needed by moving the spring tension clip to another hole (see Section 5.17). It should be set to 180 ft / lbs of
tension.
b. The generator belt should be tightened to 90 ft / lbs.
4) Clean the belts. If they are worn or will not clean, replace the belts.
FIGURE A

18
CHAPTER 4: TROUBLESHOOTING
4.8 Troubleshooting – Heart Rate Function Does Not Work or is Reading Incorrectly
HEART RATE FUNCTION DOES NOT WORK OR IS READING INCORRECTLY
POSSIBLE CAUSES:
1) The heart rate grips are not connected properly or are defective.
2) The heart rate grip wiring is damaged or not connected correctly.
3) The HR board is damaged.
4) The UCB is damaged.
SOLUTION:
1) With a multi-meter set for DC voltage, place one terminal on each of the HR grip plates. The HR grip should give a voltage reading of between 0.5 and
2.0VDC.
a. If the voltage is not between 0.5 and 2.0VDC, remove the 3 screws holding the HR grip together and check the connection of the HR grip wiring.
2) Check continuity of the HR grip wiring.
a. Place one terminal of a multi-meter set for resistance on the HR grip wiring at the HR grip, and the other terminal on the HR grip wiring at the
console. An ohm reading of around 1 should be expected. If the reading is higher than 1, replace the HR grip wiring.
3) Remove the console. Remove the 6 screws holding the front of the console to the rear. Check the connection of the HR board wiring to the UCB.
a. If all the wiring is intact and has good contact, replace the HR board.
4) If the HR board, HR grips, and HR grip wiring do not solve the issue, replace the UCB.

19
CHAPTER 5: PART REPLACEMENT GUIDE
5.1 Shroud Replacement
1) Remove the link arm plastic caps (Figures A).
2) Detach the link arm (Figure B).
FIGUREA FIGUREB
3) Remove the 6 screws that hold the back cover to the shrouds and remove the back cover (Figure C).
FIGURE C
FIGURE D

20
CHAPTER 5: PART REPLACEMENT GUIDE
5.1 Shroud Replacement – Continued

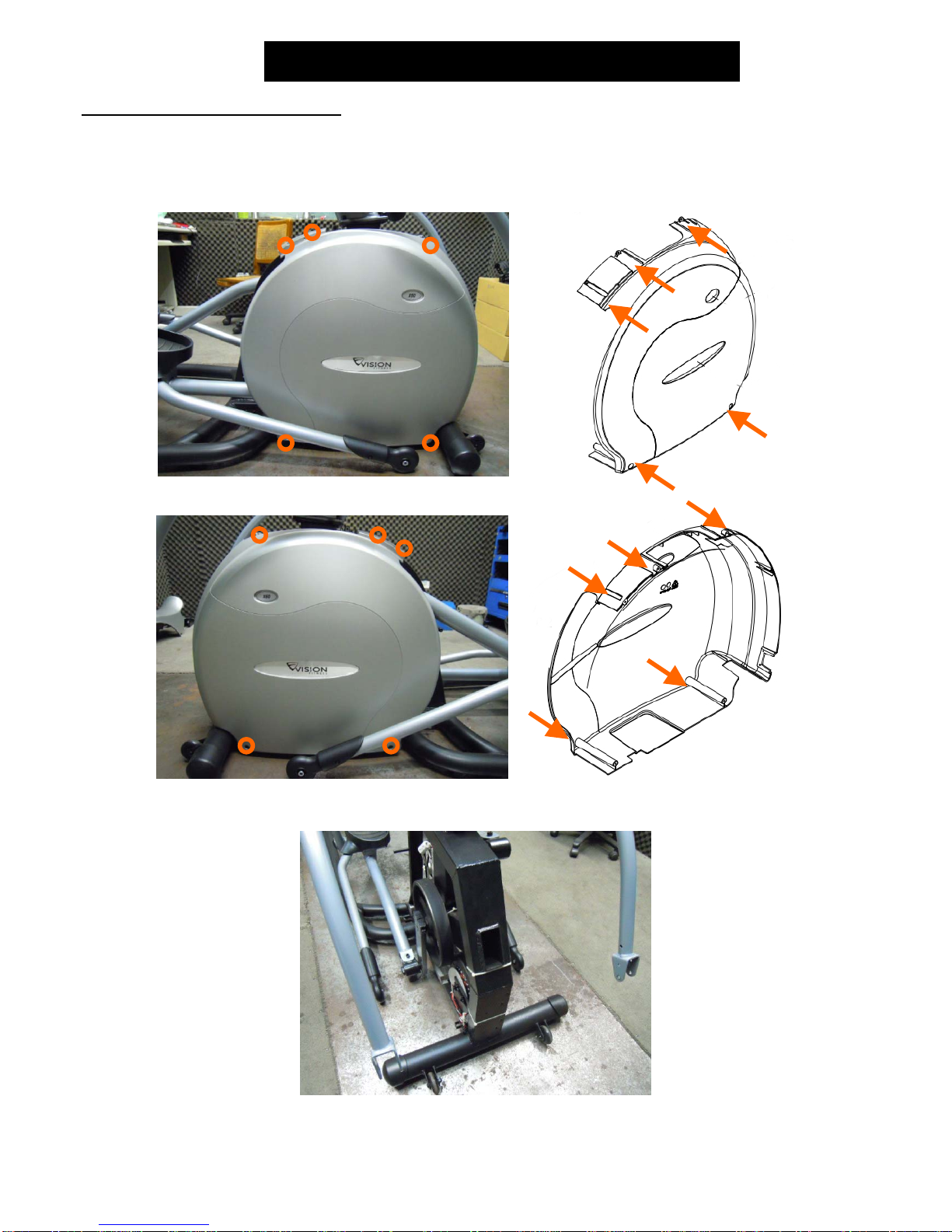

4) Remove the 5 screws on right side holding the shrouds in place (Figures E).
5) Remove the 5 screws on left side holding the shrouds in place (Figures F).
FIGURE E
FIGUREF
6) Remove the shrouds for frame access (Figure G).
FIGURE G
7) Reverse Steps 1- 6 to install new shrouds.
