Vision Fitness S7200HRT User manual

OWNER’S GUIDE
S7200HRT
Suspension Elliptical Trainer

d
Congratulations on choosing a VISION FITNESS Suspension Elliptical Trainer. You’ve taken
an important step in developing and sustaining an exercise program! Your Suspension
Elliptical Trainer is a tremendously effective tool for achieving your personal fitness
goals. Regular use of your Suspension Elliptical Trainer can improve the quality of
your life in so many ways…
Here are just a few of the health benefits of aerobic exercise:
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
• Reduced Stress
• Help in Countering Anxiety and Depression
• An Improved Self Image
The key to reaping these benefits is to develop an exercise habit. Your new Suspension
Elliptical Trainer will help eliminate the obstacles that prevent you from getting in your
exercise time. Neither bad weather or darkness will interfere with your workout when
you have your Suspension Elliptical Trainer in the comfort of your home. This Owner’s
Guide provides you with basic information on starting an exercise program. A more
complete knowledge of your new Suspension Elliptical Trainer will assist you in realizing
your goal of a healthy lifestyle.
Please contact your authorized VISION FITNESS retailer should service be
required. If a question or problem arises which cannot be handled by your
VISION FITNESS retailer, please contact us:
VISION FITNESS
1600 Landmark Drive
Cottage Grove, WI 53527
Ph: 1.800.335.4348
Fax: [phone]
www.visionfitness.com

1
INTRO CONSOLE GENERAL
ALL MODELS
PREVENTATIVE MAINTENANCE .. 29
TROUBLESHOOTING..................... 30
TROUBLESHOOTING HEART RATE
CHEST STRAP................................ 31
HOME WARRANTY......................... 32
CORPORATE WARRANTY............. 34
DEVELOPING A FITNESS PROGRAM. 36
EXERCISE GUIDELINES................ 37
TARGET HEART RATE................... 38
BALANCED FITNESS ..................... 39
Table of Contents
CONSOLE OVERVIEW................... 10
CONSOLE DESCRIPTIONS ............ 11
ON/OFF SWITCH ............................ 13
PROGRAM OVERVIEWS ............... 14
USING THE PROGRAMS............... 18
USING THE SPRINT 8 PROGRAM 20
USING HEART RATE TRAINING... 21
USING THE HEART RATE
CHEST STRAP................................ 22
ALL HRT®PROGRAMS .................. 23
USING THE USER PROGRAMS.... 25
USING THE GOAL PROGRAMS.... 26
ENGINEERING MODE.................... 28
SAFETY INSTRUCTIONS................. 4
POWER REQUIREMENTS............... 5
ASSEMBLY & MOVING .................... 6
PLACEMENT, STABILIZING,
& POWER .......................................... 7
CONTACT HEART RATE ................. 8
VARIABLE INCLINE .......................... 9
CONSOLE
GENERAL

2

3
INTRO
SUSPENSION ELLIPTICAL TRAINER
S7200HRT
FRONT FOOT &
TRANSPORT WHEELS
FOOT PAD
CONSOLE
DUAL-ACTION
HANDLEBARS
SIDE STABILIZER

4
INTRO
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be
followed, including the following:
Read all instructions before using this exercise product.
To reduce the risk of burns, fire, electrical shock or
injury to persons:
• Use this exercise product for its intended use as described in
this Owner’s Guide. Only use attachments recommended by the
manufacturer.
• Never drop or insert any object into any opening.
• Do not remove the Suspension Elliptical Trainer side covers. Service
should be performed only by an authorized VISION FITNESS retailer.
• Never operate this Suspension Elliptical Trainer if it has a damaged
cord or plug, if it is not working properly, or if it has been damaged or
immersed in water. Please contact your authorized VISION FITNESS
retailer for service.
• Keep the cord away from heated surfaces.
• Do not use outdoors.
• To disconnect, turn the switch to the OFF position, then remove plug
from outlet.
• Only use the power cord provided with your VISION FITNESS
Suspension Elliptical Trainer.
• Never place the power cord under carpeting or place any object on
top of the power cord that may pinch and damage it.
• Unplug your Suspension Elliptical Trainer when not in use and before
moving it.
CHILDREN
• Keep children off your Suspension Elliptical Trainer at all times.
• When the Suspension Elliptical Trainer is in use, young children and
pets should be kept at least 10 feet away.
WARNING!

5
INTRO
OTHER SAFETY TIPS FOR YOUR VISION FITNESS SUSPENSION
ELLIPTICAL TRAINER
CAUTION! If you experience chest pains, nausea, dizziness or shortness
of breath, stop exercising immediately and consult your physician before
continuing.
• Do not wear loose clothing that might catch on any part of the
Suspension Elliptical Trainer.
• Read this Owner’s Guide before operating this Suspension Elliptical
Trainer.
CLEANING
• Clean only with mild soap and a slightly damp cloth; never use solvents.
SAFETY MODE
Your S7200HRT is equipped with a Safety Mode that keeps your S7200HRT in its
highest resistance level while not in use to help prevent the pedals from being moved.
By default this mode is disabled, but it can be enabled in the Engineering menu (see
Page 28).
POWER REQUIREMENTS
This product is for use on a nominal 120-volt circuit, and has a grounding plug
that looks like the plug illustrated below. An improper connection of the equipment
grounding conductor can result in a risk of an electrical shock. Do not modify the
plug that was provided with this product. If this plug does not fit into your outlet, have
a qualified electrician install the proper outlet. Adapters, extension cords and surge
protectors should not be used with this product. NOTE: 120V is for use in North
America. This product may take 120V or 220V power in other regions.

6
INTRO
ASSEMBLY
It is recommended, when possible, that an authorized VISION FITNESS retailer
assemble your Suspension Elliptical Trainer. If you have elected to assemble this
product yourself, for your safety, please read and follow each of the steps in the
enclosed assembly instructions. If you have any questions regarding any component
or function of your Suspension Elliptical Trainer, contact your retailer.

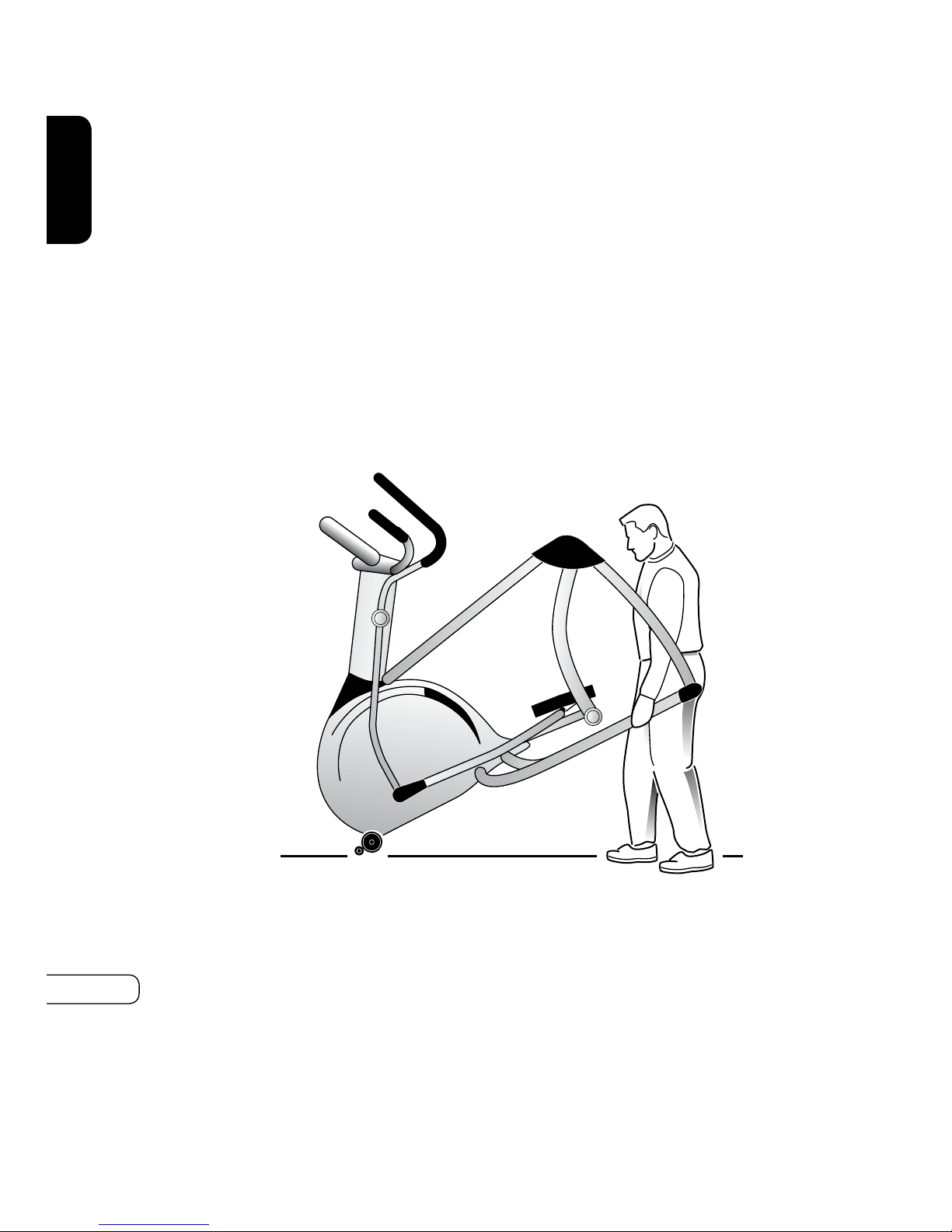

MOVING
Your VISION FITNESS Suspension Elliptical Trainer has transport wheels included
for ease of mobility. To move, firmly grasp the rear of the frame assembly. Carefully lift
and roll on the transport wheels.
CAUTION: Our Suspension Elliptical Trainers are well-built and heavy, weighing up to
340 pounds! Use care and additional help if necessary.

7
LOOSEN
ROTATE
TIGHTEN
PLACEMENT IN YOUR HOME
Please follow the safety instructions to place the Suspension Elliptical Trainer in the
location where it will best be used. It is important that you place your Suspension
Elliptical Trainer in a comfortable and inviting room. Avoid putting your Suspension
Elliptical Trainer in an unfinished basement or undesirable setting. Exercise adherence
will be easier to achieve only if you exercise in an attractive setting.

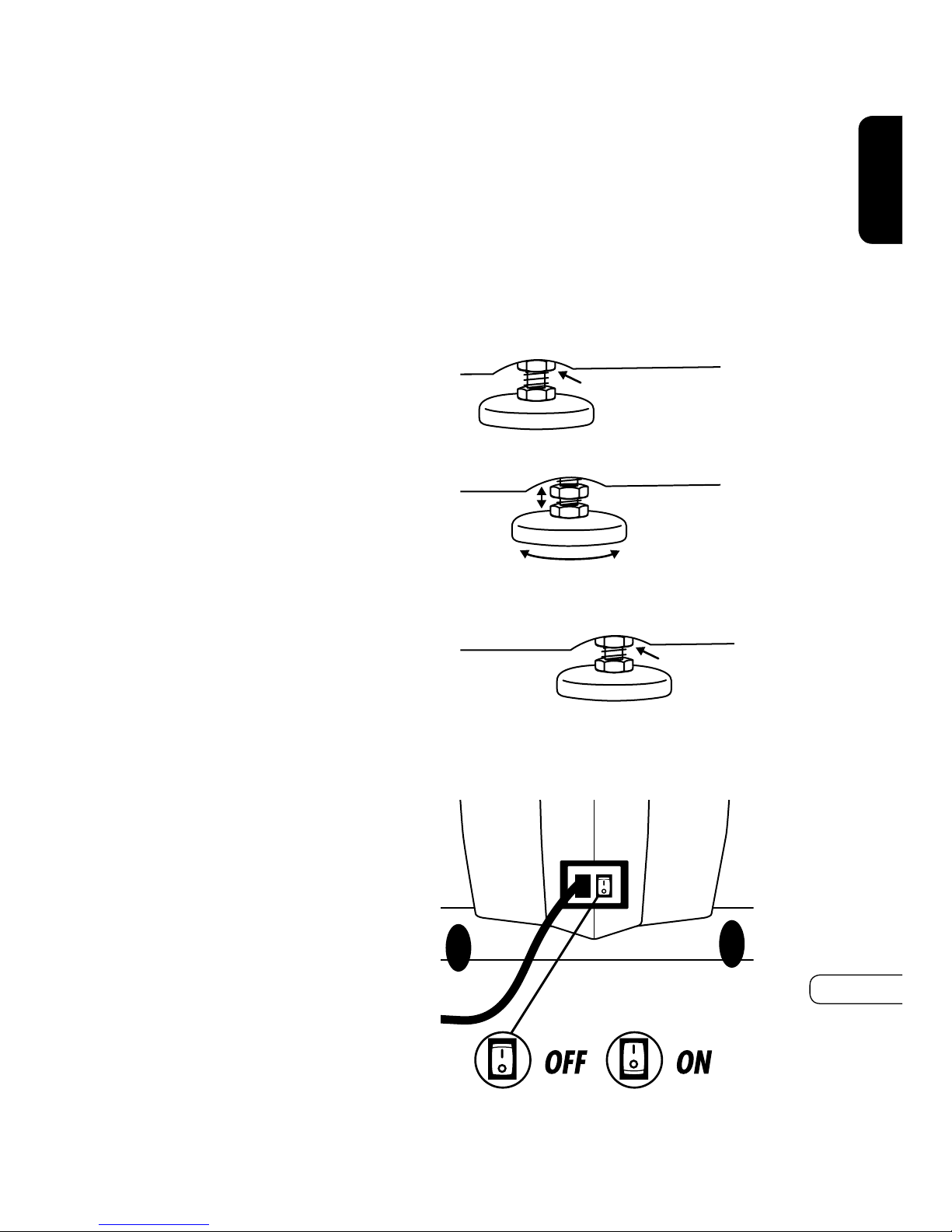

STABILIZING THE
SUSPENSION ELLIPTICAL
TRAINER
After positioning the Suspension
Elliptical Trainer in its intended location,
check the unit’s stability. Rocking or
wobbling indicates that your Suspension
Elliptical Trainer needs to be leveled.
Determine which leveler is not resting
completely on the floor. Loosen the nut
at the base of the leveler to allow the
leveler to rotate. Now rotate the leveler
to the left or right until the Suspension
Elliptical Trainer is stable. Lock the
adjustment by tightening the nut against
the support tube.

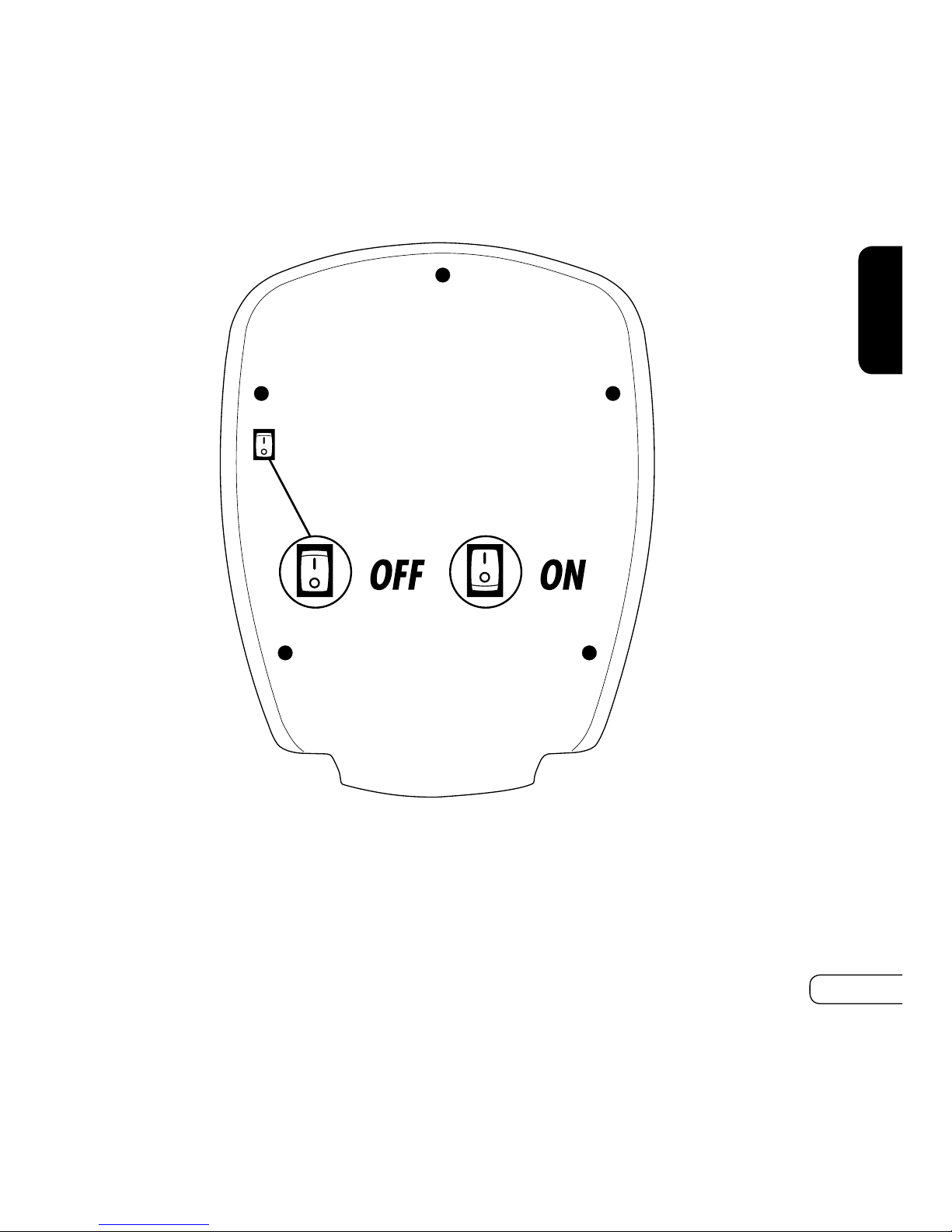

TURNING THE UNIT ON AND
OFF
Use the power switch on the front of the
unit to turn the machine ON and OFF. It
is recommended to turn the machine off
when not in use.
NOTE:You can also turn the power off
at the console.
ALL MODELS

8
CONTACT HEART RATE
HAND PULSE HEART RATE
SENSORS
The Contact Hand Pulse Sensors are
included on each product to monitor
your heart rate. To use, grasp both of
the sensors with a comfortable grip
during your workout. The console will
display your heart rate. It may take
the system a few seconds to zero in
on your actual heart rate. Most people
have a grip that is conductive enough
to transmit a good signal. However,
some people have erratic heart rates or
improper body chemistry to transmit a
good signal through the touch sensitive
hand pulse grips.
INTRO

9
S7200HRT
Resistance
Pause • Hold to Reset
PROGRAMS
WARNING
Heart rate monitoring systems may be innacurate. Over exercising may result in serious
injury or death. If you feel faint stop exercising immediately.
Incline
Enter
Start
GOAL
HRT
USER
SPRINT 8
®
INTERVALS
GLUTE
BURN
SUMMIT
HIKE
CONSTANT
WATTS
3
6
9
12
15
18
21
24
12345678910111213141516
Heart Rate
% Max Heart Rate
Target Heart Rate
INCLINEDISTANCESTRIDES/MINTIME
RESISTANCE WATTSMETSCALORIES
S7200
HRT
VARIABLE INCLINE
Press the INCLINE UP or DOWN arrows
to adjust the incline from level 1 to 24.
This incline setting represents a range
of motion.
Incline changes are not immediate. They
will take time to get to the target incline
angle.

10
S7200HRT
S7200HRT CONSOLE
DISPLAY CONSOLE OVERVIEW
The computerized display allows the user to select a workout that meets their desired
fitness goals. It also allows the user to monitor the progress and feedback of each
workout so they can track improvements in overall fitness over time.
Resistance
Pause • Hold to Reset
PROGRAMS
WA RNING
Heart rate monitoring systems may be innacurate. Over exercising may result in serious
injury or death. If you feel faint stop exercising immediately.
Incline
Enter
Start
GOAL
HRT
USER
SPRINT 8
®
INTERVALS
GLUTE
BURN
SUMMIT
HIKE
CONSTANT
WATTS
3
6
9
12
15
18
21
24
12345678910111213141516
Heart Rate
% Max Heart Rate
Target Heart Rate
INCLINEDISTANCESTRIDES/MINTIME
RESISTANCE WATTSMETSCALORIES
S7200
HRT
ABC
D
EG
F

11
S7200HRT
S7200HRT CONSOLE DESCRIPTIONS
A. START/HOLD TO RESET
Press the START key to begin a MANUAL workout immediately without having to
set individual information. When the program begins, you have the ability to adjust
resistance and incline levels with the ARROW keys.
PAUSE: If you need to PAUSE your program during a workout, pressing the
START key will PAUSE your program for five minutes. Pressing START will
return you to your workout.
RESET: If you need to RESET the console during your workout, you can do so
by holding down the START key for three seconds or until the display resets.
B. ENTER/HOLD TO SCAN
This key is used after entering each piece of information in setup such as age,
weight, or level.
SCAN: When exercising in a program, pressing the ENTER key will allow you
to SCAN the feedback display views. If you hold down the ENTER key for three
seconds during your workout, the SCAN function will automatically alternate
feedback display views.
C. ARROW KEYS
These keys are used to change values in setup mode prior to your workout.
During your workout, they are used to change workout levels. In HRT®programs,
they are used to change your target heart rate.
D. PROGRAM KEYS
These keys provide quick access to your favorite workouts. There is no need to
scroll through the programs to find the one you want. Simply press the program
key and begin user setup.

12
S7200HRT CONSOLE DESCRIPTIONS (continued)
E. PROFILE DISPLAY
This window provides a dot matrix profile of the workout segments you are about
to complete, as well as those you have already completed, and the level of
resistance for each segment.
F. MESSAGE/FEEDBACK WINDOWS
These windows provide step-by-step instructions in the setup mode, instructions,
feedback and motivational messages during your workout.
FEEDBACK:
During your workout, these windows display exercise feedback about your
workout, including:
TIME: the time elapsed or the time remaining in your workout.
DISTANCE: the total distance traveled in miles or kilometers since the
start of your workout.
STRIDES/MIN: your stride rate or strides per minute.
WATTS: a measurement of workload; one watt is equal to six kilogram-
meters per minute.
CALORIES: an estimate of calories burned since the beginning of the
workout.
RESISTANCE: the current resistance level of your workout.
INCLINE: the level of incline. There are 24 levels that represent a 23%
grade change.
METS: a measurement of oxygen consumption; one MET equals the
approximate amount of oxygen consumed per minute by a person at rest.
G. HEART RATE/HRT FEEDBACK WINDOW
This window provides feedback on your current heart rate and the percent of your
predicted maximum heart rate (% Heart Rate). It also includes your target heart
rate when using one of the HRT®programs on this product.
S7200HRT

13
ON/OFF SWITCH Turn your Suspension Elliptical Trainer off if you will not use it
for an extended period of time.
S7200HRT

14
S7200HRT
CONSTANT WATTS automatically adjusts the
resistance to keep you within a set watts range and
maintains your desired level of exercise intensity.
SPRINT 8 is an anaerobically-based interval program.
It is effective in recruiting fast twitch muscle fibers and
improving athletic performance.
THE S7200HRT PROGRAMS
PROGRAM OVERVIEWS
INTERVALS is an efficient workout that
strengthens your cardiovascular system by alternating
work intervals and recovery intervals. Be sure to
challenge yourself with intense work intervals.
GLUTE BURN is a challenging program designed
to tone the lower half of the body. This program
includes incline changes and user prompts for
maximum effectiveness.
SUMMIT HIKE is a variable incline program that
adds variety and targets your muscles from different
angles.

15
CUSTOM allows you to preset up to four workout
programs by setting the resistance and profile of
each segment in the program. You have the ability
to save or change the workouts whenever you wish.
CUSTOM will save your resistance and incline
changes throughout the program. Every 30 seconds
your settings will be saved to provide an identical program for your next exercise
session.
HRT CARDIO is a high-intensity program that
keeps you at the upper range of your predicted
maximum heart rate and promotes cardiovascular
endurance and maximum calorie burning. The user
must grasp the hand pulse sensors or wear a
telemetric heart rate chest strap during use. The
program will automatically adjust resistance to keep you at 80% of your predicted
maximum heart rate.
HRT WEIGHT LOSS is a lower intensity workout that will help your body burn
a higher percentage of calories from your body’s fat reserves. The user must grasp
the hand pulse sensors or wear a telemetric heart rate chest strap during use. The
program will automatically adjust resistance to keep you at 65% of your predicted
maximum heart rate.
HRT INTERVAL alternates between effort intervals of 80% and 70% of
your predicted maximum heart rate. This program is designed to increase your
cardiovascular fitness capacity. The user must grasp the hand pulse sensors or wear
a telemetric heart rate chest strap during use.
HRT HILL increases your intensity level from 65%, to 70%, to 75%, to 80% of your
predicted maximum heart rate to promote cardiovascular strength and endurance. The
user must grasp the hand pulse sensors or wear a telemetric heart rate chest strap
during use.
S7200HRT

16
S7200HRT
GOAL PROGRAMS
TARGET GOALS
TIME, DISTANCE, CALORIES are essentially
manual programs in which duration is determined by
your particular goal.
WATTS is a program that lets the user exercise
at a set work level. As you increase your strides
per minute, your resistance will decrease; if you
decrease your strides per minute, your resistance
will increase.
