Vision Fitness R40 User manual

Read the BIKE/ELLIPTICAL GUIDE before using this CONSOLE MANUAL.
Lisez le GUIDE DU VÉLO/EXERCISEUR ELLIPTIQUE avant d'utiliser ce MANUEL DE LA CONSOLE.
Lea la GUÍA DE LA BICICLETA/MÁQUINA ELÍPTICA antes de utilizar este MANUAL DE LA CONSOLA.
BIKE/ELLIPTICAL CONSOLE MANUAL
MANUEL DE LA CONSOLE DU VÉLO/EXERCISEUR ELLIPTIQUE
MANUAL DE LA CONSOLA DE LA BICICLETA/MÁQUINA ELÍPTICA

2
Before proceeding, find your console's serial number located on a white
barcode sticker on the bottom of the console.
ENTER YOUR SERIAL NUMBER AND SELECT CONSOLE MODEL:
CONSOLE SERIAL NUMBER:
MODEL: CLASSIC ELEGANT+ TOUCH+
SERIAL NUMBER LOCATION
2 ENGLISH
44 FRANÇAIS
86 ESPAÑOL

3
CONSOLE OPERATION
DOWNLOADING A SOFTWARE UPDATE FROM VISIONFITNESS.COM
Occasionally a software update may be available for your console, via the USB port.
Please visit http://www.visionfitness.com/support/software-update/ to see if an update is available and get detailed
instructions on how to download the latest software from your PC or Mac.
This section explains how to use your console and programming.
The BASIC OPERATION section in the BIKE/ELLIPTICAL GUIDE has instructions for the following:
• LOCATION OF THE BIKE/ELLIPTICAL
• POWER/GROUNDING INSTRUCTIONS
• FOOT POSITIONING
• MOVING THE BIKE/ELLIPTICAL
• LEVELING THE BIKE/ELLIPTICAL
• USING THE HEART RATE FUNCTION

4
DCFK HG
A
E
I
B
J
E
CLASSIC
CONSOLE

5
CLASSIC CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before
use.
A) LARGE LED DISPLAY WINDOW: displays workout time.
B) ALPHANUMERIC DISPLAY WINDOW: displays resistance, distance, calories, RPMs, watts, speed and heart
rate and workout profile.
C) START: press to start your workout or resume exercising after pause.
D) STOP: press to pause your workout. Press stop again to end workout.
E) PROGRAM KEYS: press to select workout.
F) RESISTANCE KEYS: used to adjust resistance level up and down and to adjust program settings.
G) ENTER / CHANGE DISPLAY KEY: press to confirm programming selections during workout setup. Press to
change display feedback during workout.
H) BACK: press to go back to the previous step during program setup.
I) USB PORT ACCESS POCKET: USB for software updates or charging devices.*
J) READING RACK: holds reading material.
K) ENERGY SAVER LIGHT: indicates if machine is in energy saver mode. Press any key to wake up the
machine.
* Will not charge USB devices that require more than 500 mA.
CLASSIC
CONSOLE

6
CLASSIC
CONSOLE
CLASSIC DISPLAY WINDOWS
• TIME: Shown as minutes : seconds. View
the time remaining or the time elapsed in
your workout.
• DISTANCE: Shown as miles. Indicates
distance traveled.
• CALORIES: Total calories burned.
• RPMs: Rotations Per Minute.
• WATTS: Displays current user power output.
• SPEED: Shown as MPH. Indicates how fast
the footpads/pedals are moving.
• HEART RATE: Shown as BPM (beats per
minute). Used to monitor your heart rate
(when wearing a wireless heart rate strap or
when contact is made with both pulse grips).
WORKOUT PROFILE: Shows the resistance level of selected workout.
The dot matrix will show the resistance profile
as you progress through a program.

7
CLASSIC CONSOLE GETTING STARTED
1) Check to make sure no objects are nearby that will hinder the movement of the elliptical bike.
2) You have the following options to start your workout:
A) QUICK STARTUP
Simply press the START key to begin working out.
Time, distance, and calories will all count up from zero. OR...
B) SELECT A PROGRAM
1) Select USER 1, USER 2 or GUEST using and press ENTER to confirm.
2) Set Age & Weight using or keypad and press ENTER to confirm.
3) Select a program using PROGRAM KEYS and press ENTER to confirm.
4) Complete the program setup using and press ENTER to confirm.
5) When setup is complete, press START to begin your workout.
FINISHING YOUR WORKOUT
When your workout is complete, the display will flash “WORKOUT COMPLETE” and beep. Your workout information will
stay displayed on the console for 30 seconds and then reset.
TO CLEAR SELECTION/RESET THE CONSOLE
Hold STOP key for 3 seconds.
CLASSIC
CONSOLE

8
CLASSIC
CONSOLE
CLASSIC CONSOLE PROGRAM INFORMATION
NOTE: If resistance is changed during your workout, the remaining segments will be affected accordingly.
CLASSIC PROGRAMS: Workout programs include manual and interval training.
MANUAL: A workout that allows you to manually adjust the machine at any time.
INTERVALS: A resistance-based workout that automatically adjusts the resistance of the machine at regular intervals.
INTERVALS - PROGRAM SEGMENTS REPEAT
Warm-Up Program Segments - Repeat Cool-Down
Seconds 60 60 60 60 30 60 60 30 30 60 30 60 60 30 30 60 60 60 60 60
Segments 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Level112235115515115513221
Level212236226626226623221
Level312247337737337734221
Level412258448848448845221
Level523569559959559956532
Level 6 2 3 5 7 10 6 6 10 10 6 10 6 6 10 10 6 7 5 3 2
Level 7 2 3 5 8 11 7 7 11 11 711 7 7 11 11 78532
Level 8 2 3 5 9 12 8 8 12 12 8 12 8 8 12 12 8 9 5 3 2
Level 9 3 4 5 10 13 9 9 13 13 9 13 9 9 13 13 9 10 5 4 3
Level 10 3 4 8 11 14 10 10 14 14 10 14 10 10 14 14 10 11 843
Level 11 3 6 10 12 15 11 11 15 15 11 15 11 11 15 15 11 12 10 6 3
Level 12 3 6 10 13 16 12 12 16 16 12 16 12 12 16 16 12 13 10 6 3
Level 13 5 9 13 14 17 13 13 17 17 13 17 13 13 17 17 13 14 13 9 5
Level 14 5 9 13 15 18 14 14 18 18 14 18 14 14 18 18 14 15 13 9 5
Level 15 5 9 13 16 19 15 15 19 19 15 19 15 15 19 19 15 16 13 9 5
Level 16 5 9 13 17 20 16 16 20 20 16 20 16 16 20 20 16 17 13 9 5

9
CLASSIC
CONSOLE
WEIGHT LOSS: Promotes weight loss by increasing and decreasing the resistance level, while keeping
you in your fat burning zone. Segments repeat every 60 seconds.
WEIGHT LOSS (BIKE/ELLIPTICAL) - PROGRAM SEGMENTS REPEAT
Warm-Up Program Segments - Repeat Cool-Down
Seconds 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60
Level 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
1 12233344555544333221
2 12234455666655443221
3 12245566777766554221
4 12256677888877665221
5 23567788999988776532
6 235788991010101099887532
7 2 3 5 8 9 9 10 10 11 11 11 11 10 10 9 9 8 5 3 2
8 2 3 5 9 10 10 11 11 12 12 12 12 11 11 10 10 9 5 3 2
9 3 4 5 10 11 11 12 12 13 13 13 13 12 12 11 11 10 5 4 3
10 3 4 8 11 12 12 13 13 14 14 14 14 13 13 12 12 11 843
11 3 6 10 12 13 13 14 14 15 15 15 15 14 14 13 13 12 10 6 3
12 3 6 10 13 14 14 15 15 16 16 16 16 15 15 14 14 13 10 6 3
13 5 9 13 14 15 15 16 16 17 17 17 17 16 16 15 15 14 13 9 5
14 5 9 13 15 16 16 17 17 18 18 18 18 17 17 16 16 15 13 9 5
15 5 9 13 16 17 17 18 18 19 19 19 19 18 18 17 17 16 13 9 5
16 5 9 13 17 18 18 19 19 20 20 20 20 19 19 18 18 17 13 9 5

10
CLASSIC
CONSOLE
CONSTANT WATTS: This workout automatically adjusts the resistance to keep you within a set Watts
range and maintains your desired level of exercise intensity.
1) After selecting User or Guest press the Constant Watts program button and press enter.
2) Set time using resistance or and press enter.
3) Select desired watts using resistance or and press enter.
4) Press start to begin the program.
CLASSIC CONSOLE PROGRAM INFORMATION
NOTE: If resistance is changed during your workout, the remaining segments will be affected accordingly.

11
CLASSIC
CONSOLE
Target Heart
Rate Zone Workout Duration Example THR (age 30) Your THR Recommended For
VERY HARD
90 – 100% <5 min 171 – 190 BMP Fit persons and for
athletic training
HARD
80 – 90% 2 – 10 min 152 – 171 BMP Shorter workouts
MODERATE
70 – 80% 10 –40 min 133 – 152 BMP Moderately long
workouts
LIGHT
60 – 70% 40 – 80 min 114 – 133 BMP
Longer and
frequently repeated
shorter exercises
VERY LIGHT
50 – 60% 20 –40 min 104 – 114 BMP
Weight
management and
active recovery
TARGET HEART RATE: Automatically adjusts resistance to maintain your target heart rate. Perfect for simulating
the intensity of your favorite sport or everyday activity. Time-based goal.
1) Select Target Heart Rate program and press ENTER.
2) Select TIME using and press ENTER.
3) The HEART RATE window will flash showing the default target heart rate of 80 beats per minute. Select your target
heart rate (from the chart above) using and press START to begin program.
HEART RATE TRAINING
The first step in knowing the right intensity for your training is to
find out your maximum heart rate (max HR = 220 – your age).
The age-based method provides an average statistical prediction
of your max HR and is a good method for the majority of people,
especially those new to heart rate training. The most precise
and accurate way of determining your individual max HR is to
have it clinically tested by a cardiologist or exercise physiologist
through the use of a maximal stress test. If you are over the age
of 40, overweight, have been sedentary for several years or
have a history of heart disease in your family, clinical testing is
recommended. This chart gives examples of the heart rate range
for a 30-year-old exercising at 5 different heart rate zones. For
example, a 30-year-old’s max HR is 220 – 30 = 190 BPM and
90% max HR is 190 × 0.9 = 171 BPM.
NOTES:
• Target heart rate is selected in multiples of 5 beats.
• There is a warm-up built into this program.
• After the warm-up, the resistance will automatically adjust to bring
your heart rate within 5 beats of the target number you selected at
the beginning of the program.
• If there is no heart rate detected, the unit will not change
resistance levels up or down.
• If your heart rate is 25 beats over your target zone, the
program will shut down.

12
ELEGANT+
CONSOLE
CBDI FE
A
G
H

13

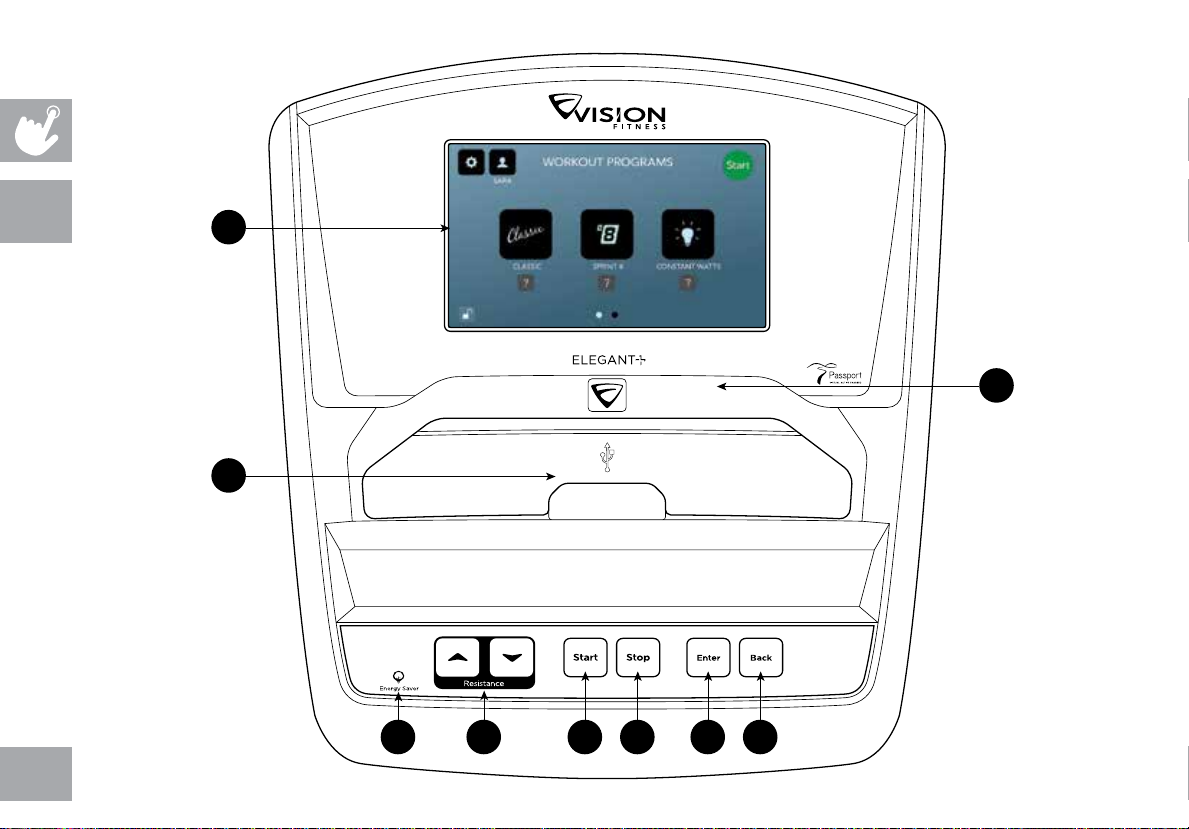

ELEGANT+ CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) TOUCH DISPLAY: see next page for more information.
B) START: press to start your workout.
C) STOP: press to end workout.
D) RESISTANCE KEYS: used to adjust resistance level up and down and to adjust program settings.
E) ENTER: press to confirm programming selections during workout setup.
F) BACK: press to go back to the previous step during program setup.
G) ACCESS POCKET: USB for software updates, play additional VA videos or charging devices.*
H) READING RACK: holds reading material.
I) ENERGY SAVER LIGHT: indicates if machine is in energy saver mode. Press any key to wake up the machine.
NOTE: To PAUSE your workout stop pedalling.
* Will not charge USB devices which require more than 1 amp.
ELEGANT+
CONSOLE

14
ELEGANT+
CONSOLE
ELEGANT+ DISPLAY OPERATION
The Elegant+ has a fully integrated touchscreen display. All information required for workouts is explained on screen. Exploration of
the interface is highly recommended. The information explaining how to program for various workouts will give an explanation about
the contents of each screen. The screen uses arrow buttons to set inputs.
WELCOME SCREEN WORKOUT SETUP
A) START: Press for quick start or to start a program.
B) SETTINGS: Press to adjust brightness, volume, demo
mode, date and time, language, wifi and Passport sync.
C) USER LOGIN: Press to log in a User.
D) ? BUTTON: Press to see description of program or feature.
E) PROGRAMS: Press a button to select a workout.
F) PAGE DOTS: Swipe to see additional pages.
G) SECONDARY PROGRAMS: Press to select specific
workouts, goals or settings within a program category.
H) ARROWS: Press to adjust setting up or down.
I) DISPLAY WINDOW: Shows current level program is
set to.
J) HOME: Press to return to the home screen or back up
a step.
A
B C
D
E
G
HI
JA
F

15
ELEGANT+
CONSOLE
A) TRACK: Follows progress around a simulated track.
Segments light up with every 12.5 meters (82.5 ft)
completed.
B) LAPS: Shows how many laps have been completed.
One lap is 400 meters (¼ mile).
C) PROGRAM PROFILE: Represents the resistance profile
of the current program.
D) KEYPAD BUTTON: Press to open a keypad.
Type in desired resistance and press to
confirm.
E) ARROW BUTTONS: Press to adjust
resistance level up and down.
F) LEVEL GAUGE: Represents the current level of
resistance or RPM.
G) FEEDBACK WINDOW: Press any window to
customize feedback.
H) VOLUME: Press to adjust speaker volume.
I) LOCK SCREEN: Press to lock screen.
J) HOME: Press to return to the home screen. Workout
data will be saved to the logged in user's account.
K) SEGMENT ARROW BUTTONS: Press to cycle
through workout segments to see data for each
segment.
RUN SCREEN WORKOUT SUMMARY
A
B
C
I
H
E
J
KK
G
F
D

16
ELEGANT+
CONSOLE
GETTING STARTED
CONNECT WI-FI
The Wi-Fi connection is set up directly on the console. The first time you turn on your machine, you will be prompted to connect
to Wi-Fi.
1) Choose from the available wireless networks detected and shown on screen. If you do not see your network, press
REFRESH. If it is still not showing up, you can add it manually via the OTHER option. If you do not want to set up Wi-Fi at
this time, press . NOTE – You can set up or change your Wi-Fi connectivity at any time under the SETTINGS option on the
home screen.
2) Use the keyboard to enter your Wi-Fi network password. Press to confirm.
3) The network will have a by it to confirm you are connected to the network.
4) Use the Date and Time setup screen to select your time zone or set the current date and time.
SET UP XID ACCOUNT FOR VIA FIT CONNECTIVITY
Creating an xID account will allow you to save and share workout data online at www.ViaFitness.com
Create and save up to four xID accounts directly from the console.
1) If you already have an xID, press the SIGN-IN WITH xID button. To continue without creating an xID press .
2) On the user setup screen, press the CREATE AN xID button.
3) Enter your phone number or another easy-to-remember 10-14 digit number. This will be your account number. Press to
confirm.
4) Create an easy to remember 4-digit passcode. Press to confirm.
5) Enter your email address. This must be an email address not associated with any other xID account. Press to confirm.
6) Continue entering the user information, press after each entry.
7) Confirm your information and select the I ACCEPT THE TERMS AND CONDITIONS box to review the Terms and
Conditions. Press to complete xID setup.

17
ELEGANT+
CONSOLE
GETTING STARTED
1) Check to make sure no objects are nearby that will hinder the movement of the elliptical or bike.
2) Press USER LOGIN button to select a USER or select GUEST if you do not want to save your workout stats.
3) You have two options to start your workout:
A) QUICK STARTUP
Simply press the START button to begin working out.
OR...
B) SELECT A PROGRAM
4) Press desired PROGRAM BUTTON to select workout.
5) Follow the on-screen prompts to complete the program setup.
6) When setup is complete, press START to begin your workout.
FINISHING YOUR WORKOUT
When your workout is complete, your workout information will stay displayed on the console for 2 minutes and
then is automatically saved to the user profile if xID Terms and Conditions were accepted.

18
ELEGANT+
CONSOLE
ELEGANT+ CONSOLE PROGRAM INFORMATION
NOTE: If resistance is changed during your workout, the remaining segments will be affected accordingly.
CLASSIC PROGRAMS: Workout programs include manual, intervals and weight loss.
MANUAL: A workout that allows you to manually adjust the machine at any time.
INTERVALS: A resistance-based workout that automatically adjusts the resistance level of the machine at regular
intervals.
INTERVALS - PROGRAM SEGMENTS REPEAT
Resistance 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Level1 1131513151315131
Level2 1242514251425151
Level3 2252525252525252
Level4 2252625262526252
Level5 2362726272627262
Level6 2362826282628262
Level7 3463836383638363
Level8 3583838383838383
Level 9 4 6 8 4 10 4 8 4 10 4 8 4 10 4 8 4
Level 10 4 6 10 4 10 4 10 4 10 4 10 4 10 4 10 4
Level 11 5 6 10 5 12 5 10 5 12 5 10 5 12 5 10 5
Level 12 5 7 12 5 12 5 12 5 12 5 12 5 12 5 12 5
Level 13 6 8 12 6 14 6 12 6 14 6 12 6 14 6 12 6
Level 14 6 9 14 6 14 6 14 6 14 6 14 6 14 6 14 6
Level 15 7 9 14 7 16 7 14 7 16 7 14 7 16 7 14 7
Level 16 7 9 16 7 16 7 16 7 16 7 16 7 16 7 16 7
Level 17 8 9 17 8 17 8 17 8 17 8 17 8 17 8 17 8
Level 18 8 10 18 8 18 8 18 8 18 8 18 8 18 8 18 8
Level 19 9 10 19 9 19 9 19 9 19 9 19 9 19 9 19 9
Level 20 9 11 209209209209209209209

19
WEIGHT LOSS: Promotes weight loss by increasing and decreasing the resistance level, while keeping you in your fat
burning zone.
ELEGANT+
CONSOLE
WEIGHT LOSS - PROGRAM SEGMENTS REPEAT
Resistance 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Level1 1131313131313131
Level2 2232423242324232
Level3 2332332332332332
Level4 2442442442442442
Level5 2353535353535352
Level6 2464646464646462
Level7 3615867586758673
Level8 4886886886886886
Level 9 5 8 10 8 10 8 10 8 10 8 10 8 10 8 10 5
Level 10 6 10 10 8 10 10 8 10 10 8 10 10 8 10 10 6
Level 11 6 10 12 10 12 10 12 10 12 10 12 10 12 10 12 6
Level 12 6 12 12 10 12 12 10 12 12 10 12 12 10 12 12 6
Level 13 8 12 14 12 14 12 14 12 14 12 14 12 14 12 14 7
Level 14 8 14 14 12 14 14 12 14 14 12 14 14 12 14 14 8
Level 15 9 14 16 14 16 14 16 14 16 14 16 14 16 14 16 9
Level 16 10 16 16 14 16 16 14 16 16 14 16 16 14 16 16 10
Level 17 10 17 17 15 17 17 15 17 17 15 17 17 15 17 17 10
Level 18 11 18 18 16 18 18 16 18 18 16 18 18 16 18 18 11
Level 19 11 19 19 17 19 19 17 19 19 17 19 19 17 19 19 11
Level 20 12 20 20 17 20 20 17 20 20 17 20 20 17 20 20 12

20
ELEGANT+
CONSOLE
ELEGANT+ CONSOLE PROGRAM INFORMATION
SPRINT 8®: The Sprint 8 program is an anaerobic interval program designed to build muscle, improve speed,
and naturally increase the release of human growth hormone (HGH) in your body. Producing HGH through
exercise and a proper diet has been shown to be an effective way to burn fat and build lean muscle mass,
according to Phil Campbell, author of Ready, Set, Go! Synergy Fitness. Please go to Mr. Campbell’s website,
www.readysetgofitness.com, for more details about this efficient new approach to fitness.
1) WARM-UP should gradually increase your heart rate and increase respiration and blood flow to working muscles. The
warm-up is controlled by the user to meet your specific needs.
2) INTERVAL TRAINING starts immediately after the warm-up with a 30-second sprint interval. Seven recovery intervals of
one minute and 30 seconds will alternate with the eight 30-second sprint intervals. The message display will prompt you
to increase your RPMs during the sprint interval and decrease RPMs during the recovery interval. A difference of 30 to
50 RPM between sprint interval and recovery interval is recommended for bikes. A difference of 20 to 30 RPMs between
sprint interval and recovery interval is recommended for elliptical trainers.
3) COOL-DOWN helps return your body’s systems to resting levels. Less demand is placed on your heart during recovery
if an appropriate cool-down is used following the exercise.
In order to keep track of each segment/interval, the segment time is counted down in the timer. It takes only 20 minutes to
complete the Sprint 8 workout.
