STANDARD CONSOLE FOR:
T9800S (CVTM0033) & T9800HRT (CVTM0031)
DGF1J
ENGINEERING GUIDE
Date of last revision: 11.06TREADMILL.UPPERBDENG.DGF1J.CVTM0033.CVTM0031.REV2

ENGINEERING GUIDES
2
Date of last revision: 11.06 TREADMILL.UPPERBDENG.DGF1J.CVTM0033.CVTM0031.REV2
1. OVERVIEW
1.1 T9800 CONSOLE DISPLAY FIELDS & KEYS
1.2 OPERATION MODES
1.3 GENERAL NOTES
2. USER ENGINEERING MODE
USER ENGINEERING MODE MENU NAVIGATION
USER ENGINEERING MODE SCREENS
3. ENGINEERING MODE
ENGINEERING MODE MENU NAVIGATION
3.1 CONFIGURATION MENU
3.2 SYSTEM TESTS
3.2.1 HARDWARE TEST
3.2.2 DISPLAY TEST
3.2.2.1 DOT MATRIX
3.2.2.2 ALPHA NUMERIC
3.2.2.3 SEVEN SEGMENT
3.2.3 KEYBOARD TEST
3.2.4 SAFETY SWITCH TEST
3.2.5 IO TEST
3.2.6 BURN-IN TEST
3.2.7 ELEVATION BURN-IN TEST
3.2.8 EXIT
3.3 AUTO-CALIBRATION
3.4 MANUAL CALIBRATION
3.4.1 P0 PWM MIN SPEED
3.4.2 P1 PWM 1/2 MAX SPEED
3.4.3 P2 PWM MAX SPEED
3.4.4 P4 ELEVATION MIN
3.4.5 P5 ELEVATION MAX
3.4.6 P13 ELEVATION DIRECTION
3.4.7 P19 MAGNET COUNT
3.4.8 P20 EFFECTIVE DIAMETER
3.4.9 P21 PWM START SPEED
3.4.10 P29 RAMP TIME
3.4.11 EXIT
3.5 MAINTENANCE
3.5.1 TOTAL HOURS
3.5.2 TOTAL DISTANCE
3.5.3 BELT/MOTOR HOURS
3.5.4 LIFT MOTOR HOURS
3.5.5 LUBRICATE DECK MESSAGE
3.5.6 CLEAN TREADMILL MESSAGE
3.5.7 ERROR LOG
3.5.8 EXIT
3.6 SOFTWARE VERSION
3.7 EXIT
4. SYSTEM CALIBRATION PROCEDURE
4.1 ENTER ENGINEERING MODE
4.2 SET ELEVATION DIRECTION
4.3 SET ELEVATION MINIMUM
4.4 SET ELEVATION MAXIMUM
4.5 SET MAGNET COUNT
4.6 SET EFFECTIVE DIAMETER
4.7 RUN AUTO-CALIBRATION
5. TROUBLESHOOTING GUIDE
5.1 ERROR CODES
5.2 ELEVATION MOVEMENT RELATED ERRORS
5.2.1 E1 – ELEVATION REVERSED ERROR
5.2.2 E2 – ELEVATION RANGE ERROR
5.2.3 E3 – ELEVATION STALL ERROR
5.3 SPEED MOVEMENT RELATED ERRORS
5.3.1 E5 – OVER-SPEED ERROR
5.3.2 E6 – INPUT BELT SPEED ERROR
5.3.3 E7 – SPEED STALL ERROR
5.3.4 E9 – SPEED RANGE ERROR
5.3.5 CORRECTIVE ACTION PROCEDURES – SPEED ISSUES
5.3.5.1 SPEED FEEDBACK ISSUES
5.3.5.2 SPEED CONTROL ISSUE
5.3.5.3 SPEED CALIBRATION ISSUE
5.4 SYSTEM OPERATION ERRORS
5.4.1 E16 – STUCK KEY ERROR
5.4.2 E18 – SAFETY SWITCH TEST FAILURE
5.4.3 E19 – NOVRAM FAILURE
TABLE OF FIGURES
FIGURE 1.1-1.1.1
FIGURE 1.2-1.2.1
FIGURE 1.3-2.1
DGF1J Upper Board: Engineering Guide

ENGINEERING GUIDES
Date of last revision: 11.06TREADMILL.UPPERBDENG.DGF1J.CVTM0033.CVTM0031.REV2
3
OVERVIEW
1.1 T9800 SERIES CONSOLE DISPLAY FIELDS & KEYS
FIGURE 1.1-1.1.1
DGF1J Upper Board: Engineering Guide
MUX LED’s MESSAGE CENTER
SPEED 7 SEGMENT
QUICK
SPEED KEY
NUMERIC KEYPAD
PROGRAM
QUICK KEYS
ELEVATION 7
SEGMENT
DOT MATRIX
QUICK
ELEVATION KEY

ENGINEERING GUIDES
1.2 OPERATION MODES
At power-up the console software performs self-tests and initialization, then displays the Start-Up screen. From the Start-Up
screen the software can enter one of three modes, based on which keys are pressed. Simultaneously pressing and
holding the
“SPEED DOWN” and “ENTER” or “SPEED DOWN” AND “ELEVATION UP” keys for 5 seconds will
cause the software to enter, respectively, User Engineering Mode or Engineering Mode. Pressing any of the Program
Select keys or the
“START” key will cause the software to enter the normal User Mode of operation.

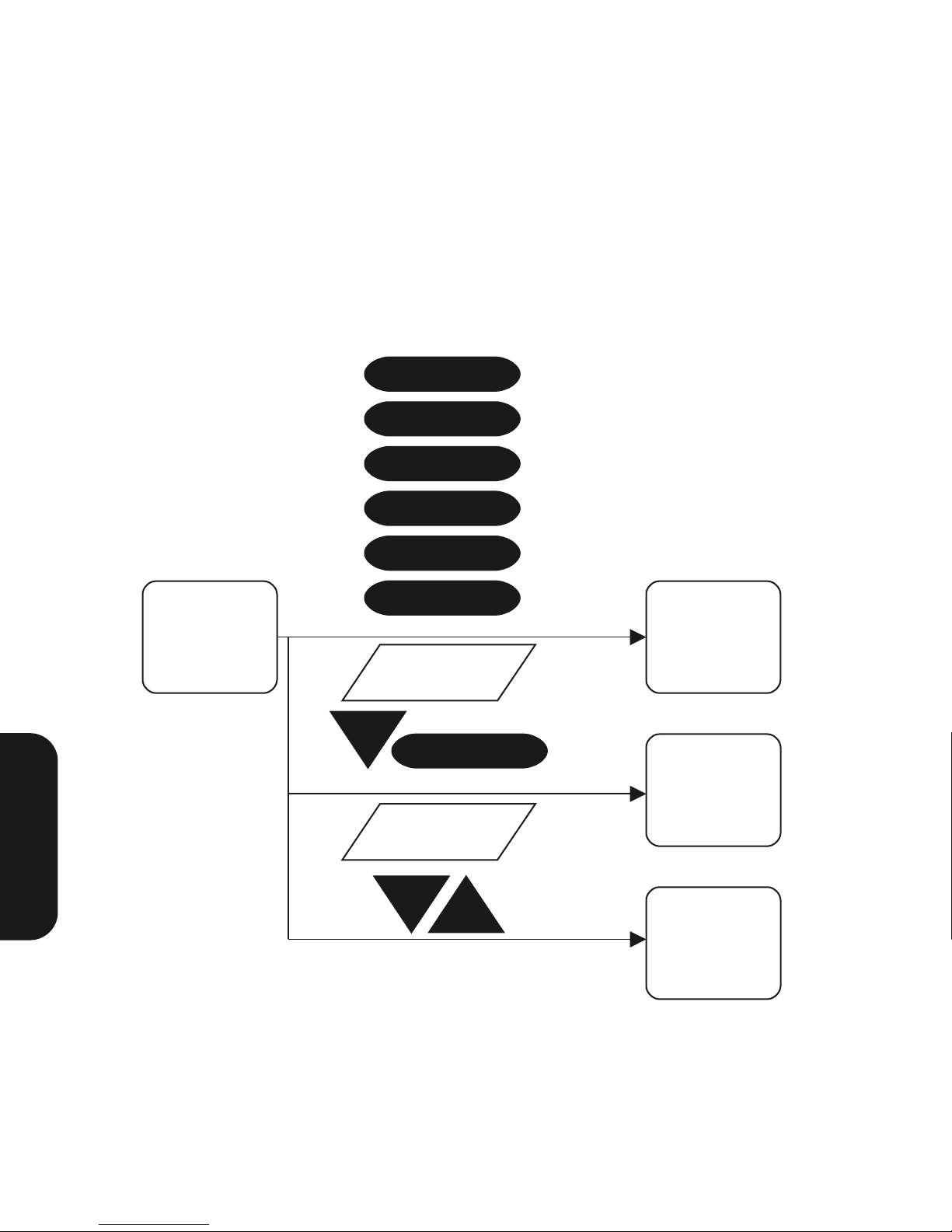

FIGURE 1.1-1.2.1
Date of last revision: 11.06 TREADMILL.UPPERBDENG.DGF1J.CVTM0033.CVTM0031.REV2
4
DGF1J Upper Board: Engineering Guide
START
ENTER
SPRINT 8
FITNESS SOLUTIONS
HRT HEART RATE
CUSTOM
START-UP
SCREEN PROGRAM
SCREENS
USER
ENGINEERING
MODE
SCREEN
ENGINEERING
MODE
SCREEN
PRESS AND HOLD
FOR 5 SECONDS
PRESS AND HOLD
FOR 5 SECONDS
SE
S
ENTER

ENGINEERING GUIDES
Date of last revision: 11.06TREADMILL.UPPERBDENG.DGF1J.CVTM0033.CVTM0031.REV2
5
1.3 GENERAL NOTES
• Outputs to motor controller disabled in hardware while in the safety startup screen. All control outputs and speed
inputs must go inactive before advancement to the next screen
• Failure of program checksum, ram check and register check will cause rapid beeping with no display/function
(initial startup check).
• Initial failure of critical non-volatile parameter load/verify will cause re-initialization to default values. Message
““RRSSTTNNOOVVRRAAMM””will appear briefly in the alphanumeric display.
• Repeat failure of critical non-volatile load/verify will cause system to jump to error screen (hard failure).
• Failure of non-critical non-volatile load/verify will briefly display ““NNOOVVRRAAMMFFAAIILLUURREE””in the alphanumeric display
and will re-initialize non-critical parameters to default values (allowing the treadmill to operate).
2. USER ENGINEERING MODE
The user must hold down “ENTER” and “SPEED DOWN” keys for 5 seconds while at the Startup Screen. The console
will beep twice and ““UUSSEERREENNGGMMOODDEE””will appear in the Message Center. After another five seconds the console will
beep twice and ““UUNNIITTSSEENNGG//MMEETTRRIICC””will appear in the Message Center.
USER ENGINEERING MODE MENU NAVIGATION
•Usethe “ELEVATION UP/DOWN” keys to step through menu items. Menu will wrap from last item to first
item and vice-versa.
• Use
“ENTER” key to select Menu item.
•Usethe
“SPEED UP/DOWN” keys to change the item value.
• Press the
“STOP” key to return from a menu item to menu without saving any changes.
• Press the
“ENTER” key to save a change or initiate action.
• When the ““EEXXIITT””menu item is displayed, pressing
“ENTER” will exit User Engineering.
USER ENGINEERING MODE MENU
• Units-English/Metric
• Maximum Work-Out Time
• Pause Time
• Default Age
• Default Weight
• Scroll Speed
• Maximum Speed
• Disable Elevation Errors
• Auto-Calibration
• Total Hours
• Total Distance
• Belt/Motor Hours
• Lift Motor Hours
• Lubricate Deck Message
• Clean Treadmill Message
• Software Version
•Exit
DGF1J Upper Board: Engineering Guide

ENGINEERING GUIDES
Date of last revision: 11.06 TREADMILL.UPPERBDENG.DGF1J.CVTM0033.CVTM0031.REV2
6
USER ENGINEERING MODE MENU
# Menu Item Description Default Value Min.Value MaxValue
P24 UNITS Measurement units English English Metric
P7 MAX WO TIME Maximum program time - minutes 99 5 99
P23 PAUSE TIME Pause time - min:sec 10:00 0:05 10:00
P27 DEFAULT AGE Default age - years 40 15 99
P8 DEFAULT WEIGHT Default weight - lbs 150 80 400
P15 SCROLL SPEED Sets speed of text scrolling 3 1 5
P30 MAX SPEED Maximum treadmill speed - MPH 12.0 2.0 12.0
P14 DISABLE ELV ERRS Toggles Elevation Errors off/on no yes yes
P9 TOTAL HOURS Accumulated hours 0 0 6553.5
P10 TOTAL DISTANCE Accumulated distance 0 0 65535
P25 BELT/MOTOR HOURS Accumulated belt/treadmill motor hours 0 0 6553.5
P26 LIFT MOTOR HRS Accumulated lift motor hours 0 0 6553.5
P17 LUBRICATE DECK MSG Prompt when due for lube1OFF On OFF
P18 CLEAN TREADMILL MSG Prompt when due for cleaning1OFF On OFF
DGF1J Upper Board: Engineering Guide

ENGINEERING GUIDES
Date of last revision: 11.06TREADMILL.UPPERBDENG.DGF1J.CVTM0033.CVTM0031.REV2
7
USER ENGINEERING MODE SCREENS
FIGURE 1.3-2.1
DGF1J Upper Board: Engineering Guide
UNITS ENG/METRIC
MAXIMUM WO TIME
PAUSE TIME
DEFAULT AGE
DEFAULT WEIGHT
SCROLL SPEED
MAXIMUM SPEED
DISABLE ELV ERRORS
AUTO-CALIBRATION
TOTAL HOURS
TOTAL DISTANCE
BELT/MOTOR HOURS
LIFT MOTOR HOURS
LUBRICATE DECK MSG
CLEAN TREADMILL MSG
EXIT
SAVING PARAMETERP24 – UNITS ENG/METRIC
P7 – MAXIMUM WO TIME
P23 – PAUSE TIME
P27 – DEFAULT AGE
P8 – DEFAULT WEIGHT
P15 – SCROLL SPEED
P30 – MAXIMUM SPEED
P14 – DISABLE ELV ERRORS
AUTO-CALIBRATE
P9 – TOTAL HOURS
P10 – TOTAL DISTANCE
P25 – BELT/MOTOR HOURS
P26 – LIFT MOTOR HOURS
P16 – LUBRICATE DECK MSG
P17 – CLEAN TREADMILL MSG
SAVING PARAMETER
SAVING PARAMETER
SAVING PARAMETER
SAVING PARAMETER
SAVING PARAMETER
SAVING PARAMETER
SAVING PARAMETER
SAVING PARAMETER
SAVING PARAMETER
SAVING PARAMETER
SAVING PARAMETER
SAVING PARAMETER
SAVING PARAMETER
SAVING PARAMETER

ENGINEERING GUIDES
Date of last revision: 11.06 TREADMILL.UPPERBDENG.DGF1J.CVTM0033.CVTM0031.REV2
8
3. ENGINEERING MODE
The user must hold down “ELEVATION UP” and “SPEED DOWN” keys for 5 seconds while at the Startup Screen.
The console will beep twice and ““EENNGGIINNEEEERRIINNGGMMOODDEE””will appear in the Message Center. After another five seconds
the console will beep twice and ““CCOONNFFIIGGUURRAATTIIOONN””will appear in the Message Center.
ENGINEERING MODE MENU NAVIGATION
• Use “UP/DOWN” keys to step through menu items. Menu will wrap from last item to first item and vice-versa.
• Use
“ENTER” key to select menu item.
• Some menu items lead to sub-menus, other to action or information screens.
• Press the
“STOP” key to return from a menu item to main menu without saving any changes.
• Press the
“ENTER” key to save a change or initiate action.
• When the EXIT menu item is displayed, pressing
“ENTER” will return to the menu or exit Engineering mode if
at top level.
ENGINEERING MODE MAIN MENU
• Configuration
• System Tests
• Auto-Calibration
• Manual Calibration
• Maintenance
• Software Version
•Exit
ENGINEERING MODE SUB-MENUS
• Configuration
• Treadmill Model
• Units-English/Metric
• Maximum Work-Out Time
• Default Work-Out Time
• Pause Time
• Default Age
• Default Weight
• Scroll Speed
• Maximum Speed
• Disable Elevation Errors
• Reset NOVRAM
•Exit
• System Tests
• Hardware Test
• Display Test
• Keyboard Test
• Safety Switch Test
•IOTest
• Burn-In Test
• Elevation Burn-In
•Exit
DGF1J Upper Board: Engineering Guide

ENGINEERING GUIDES
Date of last revision: 11.06TREADMILL.UPPERBDENG.DGF1J.CVTM0033.CVTM0031.REV2
9
ENGINEERING MODE SUB-MENUS (CONTINUED)
• Auto-Calibration
• Manual Calibration
• P0 PWM Minimum Speed
• P1 PWM 1/2 Maximum Speed
• P2 Maximum Speed
• P4 Elevation Minimum
• P5 Elevation Maximum
• P13 Elevation Direction
• P19 Magnet Count
• P20 Effective Diameter
• P21 PWM Start Speed
• P29 Ramp Time
• P30 Max Speed
•Exit
• Maintenance
• Total Hours
• Total Distance
• Belt/Motor Hours
• Lift Motor Hours
• Lubricate Deck Message
• Clean Treadmill Message
• Error Log
•Exit
• Software Version
•Exit
DGF1J Upper Board: Engineering Guide

ENGINEERING GUIDES
Date of last revision: 11.06 TREADMILL.UPPERBDENG.DGF1J.CVTM0033.CVTM0031.REV2
10
USER ENGINEERING MODE MENU
DGF1J Upper Board: Engineering Guide
Address
P0 PWM MIN
SPEED
P1 PWM 1/2
MAX
P2 PWM MAX
SPD
P3 (unused)
P4 ELV MIN
P5 ELV MAX
P6 TREADMILL
MODEL
P7 MAX WO
TIME
P8 WEIGHT
P9 OP HOURS
P10 OP DIST
P11 (unused)
P12 (unused)
P13 ELV DIR
P14 DISABLE ELV
ERRS
P15 SCROLL
SPEED
P16 LUBRICATE
DECK MSG
P17 CLEAN
TREADMILL MSG
P18 (unused)
P19 MAGNET
COUNT
P20 EFF DIAMETER
P21 PWM START
SPEED
Description
PWM value at min speed (0.5 mph)
PWM value at 1/2 max speed
(6.4 mph/10.0 kph)
PWM value at max speed (12.0
mph/20.0 kph)
Value at zero or minimum elevation (0%)
Value at maximum elevation (15%)
0 – T9800 HRT
1 – T9800 HRT INT
2 – T9800 S
Maximum program time
Weight used for calories
Accumulated hours
Accumulated distance
Elevation pot inverter
Toggles Elevation Errors off and on
Sets speed of text scrolling
Number of hours since last
lube/Message enable
Distance since last
cleaning/Message enable
Magnet Count- number of speed
sensor pulses per belt roller revolution.
Effective Diameter
PWM value at start speed
Min.Value
1
111
250
10
150
0
15
80/36
0
0
yes
no
1
0/OFF
0/OFF
1
57.1 (2)
2
Default Value
34
167/173
333/346
50
205
0
99
150/68
0
0
yes
no
3
0/OFF
0/OFF
26
67.8 (331)
31*
MaxValue
110
250
485
149
255
2
99
400/182
6553.5
65535
no
Yes
5
0xffff/on
0xffff/on
48
127.0 (511)
75
Units
ticks
ticks
ticks
A/D ticks
A/D ticks
minutes
lbs/kg
hours
miles/km
hours
miles/km
mm
ticks

ENGINEERING GUIDES
Date of last revision: 11.06TREADMILL.UPPERBDENG.DGF1J.CVTM0033.CVTM0031.REV2
11
USER ENGINEERING MODE MENU
DGF1J Upper Board: Engineering Guide
Address
P22 DFLT WO
TIME
P23 PAUSE TIME
P24 MEAS. UNITS
P25 BELT/MOTOR
HRS
P26 LIFT MOTOR
HRS
P27 DFLT AGE
P28 (unused)
P29 RAMP TIME
P30 MAX SPEED
EXIT
Description
Default program time
Default program pause time
Measurement units
Accumulated belt/motor hours
Accumulated lift motor hours
Default Age
Speed ramp-up time
Maximum speed
Returns user to Main Engineering
Menu
Min.Value
5
0:05
English
0
0
15
12
2.0
Default Value
30
10:00
English
0
0
40
30
12.0/20.0
MaxValue
99
10:00
Metric
6553.5
6553.5
99
40
12.0/20.0
Units
minutes
min:sec
hours
hours
years
seconds
MPH/KPH
3.1 CONFIGURATION MENU
CONFIGURATION MENU
• Treadmill Model
• Units-English/Metric
• Maximum Work-Out Time
• Default Work-Out Time
• Pause Time
• Default Age
• Default Weight
• Scroll Speed
• Maximum Speed
• Disable Elevation Errors
• Reset NOVRAM
•Exit

ENGINEERING GUIDES
Date of last revision: 11.06 TREADMILL.UPPERBDENG.DGF1J.CVTM0033.CVTM0031.REV2
12
CONFIGURATION MENU
DGF1J Upper Board: Engineering Guide
P6
P24
P7
P22
P23
P27
P8
P15
P30
P14
Menu Item
T9800 HRT
T9800 HRT INT
T9800 S
UNITS
MAX WO TIME
DEFAULT WO TIME
PAUSE TIME
DEFAULT AGE
DEFAULT WEIGHT
SCROLL SPEED
MAX SPEED
DISABLE ELV ERRS
Description
Heart Rate
Heart Rate, International
Standard
Measurement units
Maximum program time – min.
Default program time – min.
Pause time - min:sec
Default age - years
Default weight - lbs
Sets speed of text scrolling
Maximum treadmill speed - MPH
Toggles Elevation Errors off/on
Default Value
T9800 HRT
English
99
30
10:00
40
150
3
12.0
no
Min.Value
T9800 HRT
English
5
5
0:05
15
80
1
2.0
yes
MaxValue
T9800 S
Metric
99
99
10:00
99
400
5
12.0
yes
3.2 SYSTEM TESTS
SYSTEM TESTS MENU
• Hardware Test
• Display Test
• Keyboard Test
• Safety Switch Test
•IOTest
• Burn-In Test
• Elevation Burn-In
•Exit

ENGINEERING GUIDES
Date of last revision: 11.06TREADMILL.UPPERBDENG.DGF1J.CVTM0033.CVTM0031.REV2
13
3.2.1 HARDWARE TEST
This screen allows the direct operation of treadmill elevation and belt.
Key Function
ENTER Starts test
ELEVATION UP Increases incline
ELEVATION DOWN Decreases incline
SPEED UP Directly increases the PWM value and outputs it to the motor controller without ramping
SPEED DOWN Directly decreases the PWM value and outputs it to the motor controller without ramping
STOP Stops test, turns off motors, returns to menu
START N/A
Display Function
Dot Matrix PWM output value
Alphanumeric Displays “HARDWARE TEST” flashing on and off. If Heart Rate detected displays actual
heart rate in BPM
Elevation Elevation a/d ticks.
Speed Speed in native units (MPH or KPH).
3.2.2 DISPLAY TEST
This screen allows testing of all screen display elements.
Key Function
ENTER Starts test
ELEVATION UP
ELEVATION DOWN
SPEED UP
SPEED DOWN
STOP Stops test, returns to menu
START N/A
DGF1J Upper Board: Engineering Guide

ENGINEERING GUIDES
Date of last revision: 11.06 TREADMILL.UPPERBDENG.DGF1J.CVTM0033.CVTM0031.REV2
14
3.2.2 DISPLAY TEST
Test Order 1 2 3
Dot Matrix
Alphanumeric “DISPLAY TEST”
7-Segments
Display test initially comes up with all displays on and the message ““DDIISSPPLLAAYYTTEESSTT””toggling in the alpha numeric with
the last line being fully illuminated. An auto-increment feature can be used to sequence through the display test or the
auto-increment feature can be used.
Each display will be tested during display test in the following order (when auto increment is used):
• Dot Matrix Display’s
• Alpha Numeric Display and Discrete LED’s
• Seven Segment Display’s
3.2.2.1 DOT MATRIX
The dot matrix display test will proceed in the following manner:
• Row from bottom to top, single color (green then red).
• Columns from left to right, single color (green then red).
• Full display, single colors (green, red and then amber). Each color takes 14 key presses to clear.
Dot matrix display left in all on, amber color mode.
3.2.2.2 ALPHANUMERIC
The alpha numeric display test will proceed in the following manner:
• Count from 0 to 9, all displays.
• Segments clockwise from top segment, all displays (including decimal point).
• All segments in a single character illuminate, left to right.
• All characters on
Alphanumeric returns to the toggling message ““DDIISSPPLLAAYYTTEESSTT””and then all segments on.
DGF1J Upper Board: Engineering Guide

ENGINEERING GUIDES
Date of last revision: 11.06TREADMILL.UPPERBDENG.DGF1J.CVTM0033.CVTM0031.REV2
15
3.2.2.3 SEVEN SEGMENT
The seven-segment display test will proceed in the following manner:
• Count from 0 to 9, all displays.
• Segments clockwise from top segment, all displays (including decimal point).
• All segments in a single character illuminate, left to right, in the following order: elevation window and speed window.
• All characters on
Seven-segment display test leaves all displays on.
KEYS
• START Key – Starts display test auto increment or resumes auto increment at current location.
• ENTER Key – Stop display test auto increment at current location.
• STOP Key – Jumps out of display test.
• UP/DOWN Keys - Stop auto increment and steps through display test in forward or reverse direction.
3.2.3 KEYBOARD TEST
Display indicates the pressed key in the alphanumeric display. The stop key jumps out of the key test and as such verifies
its operation.
3.2.4 SAFETY SWITCH TEST
This screen allows testing of the push-button and magnetic safety switches.
Key Function
ENTER Starts test
ELEVATION UP N/A
ELEVATION DOWN N/A
SPEED UP N/A
SPEED DOWN N/A
STOP Stops Test, returns to test menu
START N/A
Display Function
Dot Matrix blank
Alphanumeric Displays “SAFETY SWITCH TEST”
Elevation OFF/ON status of pushbutton safety switch
Speed OFF/ON status of magnetic safety switch
DGF1J Upper Board: Engineering Guide

ENGINEERING GUIDES
Date of last revision: 11.06 TREADMILL.UPPERBDENG.DGF1J.CVTM0033.CVTM0031.REV2
16
3.2.5 IO TEST
Wrap back fixture must be present for this test.
Key Function
ENTER Starts test
ELEVATION UP N/A
ELEVATION DOWN N/A
SPEED UP N/A
SPEED DOWN N/A
STOP Stops Test, returns to test menu
START N/A
Display Function
Dot Matrix blank
Alphanumeric Displays “WRAP BACK”
Elevation Received characters
Speed blank
3.2.6 BURN-IN TEST
The burn in mode can be used to run tests that require the treadmill to continually run. The program is based on the 5K
Run. Segment changes occur every 0.1 mi. or 0.1 km, depending on the treadmill configuration. When the system
reaches the last segment, it loops to the first segment. Speed at program start is at 1/2 maximum speed. The user
can adjust speed and incline. The program returns to the preset incline upon segment completion. Keyboard functions
are the same as in normal operating mode.
DGF1J Upper Board: Engineering Guide

ENGINEERING GUIDES
Date of last revision: 11.06TREADMILL.UPPERBDENG.DGF1J.CVTM0033.CVTM0031.REV2
17
3.2.7 ELEVATION BURN-IN TEST
The elevation burn-in test continually runs from minimum elevation to maximum elevation.
Key Function
ENTER Starts test
ELEVATION UP N/A
ELEVATION DOWN N/A
SPEED UP N/A
SPEED DOWN N/A
STOP Stops Test, returns to test menu
START N/A
Display Function
Dot Matrix # up/down cycles
Alphanumeric Displays “ELEVATION BURN-IN TEST”
Elevation Elevation a/d ticks
Speed Target Elevation in % Grade
3.2.8 EXIT
Press the “ENTER” key to return to the main Engineering Mode menu.
3.3 AUTO-CALIBRATION
The Auto-Calibration routine automatically finds and sets the start, minimum, half-maximum and maximum PWM values
and the maximum and minimum elevation values. Success or failure of the auto calibration routine will be temporarily
indicated in the alphanumeric display upon completion of the auto calibration routine. Exits Engineering Mode at completion.
See Section 4.7 for details.
CAUTION!!! BELT WILL START TO MOVE UNDER SOFTWARE CONTROL WITH NO RAMPING!!!
DGF1J Upper Board: Engineering Guide

ENGINEERING GUIDES
Date of last revision: 11.06 TREADMILL.UPPERBDENG.DGF1J.CVTM0033.CVTM0031.REV2
18
3.3 AUTO-CALIBRATION
The Auto-Calibration routine automatically finds and sets the start, minimum, half-maximum and maximum PWM values
and the maximum and minimum elevation values. Success or failure of the auto calibration routine will be temporarily
indicated in the alphanumeric display upon completion of the auto calibration routine. Exits Engineering Mode at completion.
See Section 4.7 for details.
CAUTION!!! BELT WILL START TO MOVE UNDER SOFTWARE CONTROL WITH NO RAMPING!!!
Key Function
ENTER Starts test
ELEVATION UP N/A
ELEVATION DOWN N/A
SPEED UP N/A
SPEED DOWN N/A
STOP Stops Test, turns off motors, returns to test menu
START N/A
Display Function
Dot Matrix PWM output value
Alphanumeric Displays “AUTO-CALIBRATING”, then “START PWM”, “MIN PWM”,
“HALF PWM”, “MAX PWM” and “DC”
Elevation Elevation a/d ticks
Speed Speed in native units (MPH or KPH)
DGF1J Upper Board: Engineering Guide

ENGINEERING GUIDES
Date of last revision: 11.06TREADMILL.UPPERBDENG.DGF1J.CVTM0033.CVTM0031.REV2
19
3.4 MANUAL CALIBRATION
MANUAL CALIBRATION MENU
• P0 PWM Minimum Speed
• P1 PWM 1/2 Maximum Speed
• P2 Maximum Speed
• P4 Elevation Minimum
• P5 Elevation Maximum
• P13 Elevation Direction
• P19 Magnet Count
• P20 Effective Diameter
• P21 PWM Start Speed
• P29 Ramp Time
•Exit
Key Function
ENTER Selects Menu Item or saves value
ELEVATION UP Next Menu Item
ELEVATION DOWN Previous Menu Item
SPEED UP Increments Value
SPEED DOWN Decrements Value
STOP Returns to menu
START N/A
3.4.1 P0 PWM MIN SPEED
PWM minimum speed is the PWM when the belt is the minimum speed (0.5 MPH/0.4 KPH). This setting is used to
calibrate the PWM output to the motor controller.
3.4.2 P1 PWM 1/2 MAX SPEED
PWM at half the maximum speed (12.0 MPH). This setting is used to calibrate the PWM output to the motor controller.
3.4.3 P2 PWM MAX SPEED
PWM at maximum speed (12.0 MPH), used to calibrate the PWM output to the motor controller.
3.4.4 P4 ELEVATION MIN
Current elevation minimum value is displayed in the Speed window.
CAUTION!!! THERE IS NO MECHANICAL STOP OR LIMIT SWITCH TO LIMIT ELEVATION UPWARD
TRAVEL. CARE MUST BE TAKEN TO PREVENT RUNNING THE ELEVATION MOTOR OFF THE “TOP”.
3.4.5 P5 ELEVATION MAX
Current elevation maximum value is displayed in the Speed window.
DGF1J Upper Board: Engineering Guide

ENGINEERING GUIDES
Date of last revision: 11.06 TREADMILL.UPPERBDENG.DGF1J.CVTM0033.CVTM0031.REV2
20
3.4.6 P13 ELEVATION DIRECTION
When set to YES the elevation direction is reversed to allow different configuration elevation motors/motor controllers
to be used. When set to NO the elevation direction reading is used as is.
3.4.7 P19 MAGNET COUNT
The magnet count adjustment allows use of different number of speed sensor pulses per belt roller revolution allowing
for use with different configured motor controllers.
Current magnet count displayed in the Speed window..
3.4.8 P20 EFFECTIVE DIAMETER
The effective diameter value is used to set the distance per magnet count used in the speed calculations. Adjust this
value to compensate for different roller diameters/belt thickness and, in the case of motor mounted speed sensors,
adjust for pulley ratios.
Current value is displayed in the Speed window.
3.4.9 P21 PWM START SPEED
PWM start speed is the PWM at which the belt begins to move. This setting is used to calibrate the PWM output to
the motor controller.
3.4.10 P29 RAMP TIME
Ramp time is used to set the ramp up/down rate (acceleration) for the belt speed. Ramp time is limited by the ramp
time of the motor controller in use.
Current ramp time (in seconds) is displayed in the time window.
Ramp time message will flash during edit mode.
3.4.11 EXIT
Press the “ENTER” key to return to the main Engineering Mode menu.
DGF1J Upper Board: Engineering Guide
