vissonic CLASSIC-D User manual

CLASSIC-D
Full Digital Network Conference system
User Manual
V2.0
VISSONIC ELECTRONICS LIMITED

www.vissonic.com
The meaning of symbols
■ Safety instructions
For your safe and correct use of equipment, we use a lot of symbols on the equipment and in the manuals,
demonstrating the risk of body hurt or possible damage to property for the user or others. Indications and their
meanings are as follow. Please make sure to correctly understand these instructions before reading the manual.
This isA level product, which may cause radio interference in the living
environment. In this case, users may need to take the feasible measures to get
around the interference.
Remind users that the dangerous voltage without insulation occurring within the
equipment may cause people suffer from shock.
CE certification means that the product has reached the directive safety
requirements defined by the European Union. Users can be assured about the use of
it.
SGS certification means that the product has reached the quality inspection
standards proposed by the world's largest SGS.
This product passed the ISO9001 international quality certification (certification
body: TUV Rheinland, Germany).
Warning: in order to avoid electrical shock, do not open the machine cover, nor is
the useless part allowed to be placed in the box. Please contact the qualified service
personnel.
■ General information instructions
It lists the factors leading to the unsuccessful operation or set and the relevant
information to pay attention to.

www.vissonic.com
Important note
Warning
In order to ensure the reliable performance of the
equipment and the safety of the user, please observe
the following matters during the process of
installation, use and maintenance:
The matters needing attention of installation
◆Please do not use this product in the following
places: the place of dust, soot and electric
conductivity dust, corrosive gas, combustible gas; the
place exposed to high temperature, condensation,
wind and rain; the occasion of vibration and impact.
Electric shock, fire, wrong operation can lead to
damage and deterioration to the product, either;
◆In processing the screw holes and wiring, make
sure that metal scraps and wire head will not fall into
the shaft of controller, as it could cause a fire, fault,
or incorrect operation;
◆When the installation work is over, it should be
assured there is nothing on the ventilated face,
including packaging items like dust paper. Otherwise,
this may cause a fire, fault, incorrect operation for the
cooling is not free;
◆Should avoid wiring and inserting cable plug in
charged state, otherwise it is easy to cause the shock,
or electrical damage;
◆The installation and wiring should be strong and
reliable, contact undesirable may lead to false action;
◆For a serious interference in applications, should
choose shield cable as the high frequency signal input
or output cable, so as to improve the anti-jamming
ability of the system.
Attention in the wiring
◆Only after cutting down all external power source,
can install, wiring operation begin, or it may cause
electric shock or equipment damage;
◆This product grounds by the grounding wires. To
avoid electric shocks, grounding wires and the earth
must be linked together. Before the connection of
input or output terminal, please make sure this
product is correctly grounded;
◆Immediately remove all other things after the
wiring installation. Please cover the terminals of the
products cover before electrification so as to avoid
cause electric shock.
Matters needing attention during operation and
maintenance
◆Please do not touch terminals in a current state, or it
may cause a shock, incorrect operation;
◆Please do cleaning and terminal tighten work after
turning off the power supply. These operations can
lead to electric shock in a current state;
◆Please do the connection or dismantle work of the
communication signal cable, the expansion module
cable or control unit cable after turning off the power
supply, or it may cause damage to the equipment,
incorrect operation;
◆Please do not dismantle the equipment, avoid
damaging the internal electrical component;
◆Should be sure to read the manual, fully confirm the
safety, only after that can do program changes,
commissioning, start and stop operation.
Matters needing attention in discarding product
◆Electrolytic explosion: the burning of electrolytic
capacitor on circuit boards may lead to explosion;
◆Please collect and process according to the
classification, do not put into life garbage;
◆Please process it as industrial waste, or according to
the local environmental protection regulations.

www.vissonic.com
Version
Version
Update
Date
1.0
/
2018.08.06
2.0
Adding VIS-DOC/DOD-T, modifying Camera
Track.
2023.06.28

www.vissonic.com
Content
1. About this manual.........................................................................................................................1
Safety Instructions.....................................................................................................................1
2. System Overview..........................................................................................................................2
2.1 Conference Controller VIS-DCP1000 ................................................................................3
2.2 Conference Unit VIS-DEC-T/VIS-DED-T.........................................................................4
2.3 Conference Unit with Physical Button VIS-DOC-T/VIS-DOD-T......................................6
3. System Design and Plan................................................................................................................9
3.1 Install in the 19’ rack.........................................................................................................10
4. Connection..................................................................................................................................11
4.1 Power supply.....................................................................................................................11
4.2 Audio inputs......................................................................................................................11
4.3 Audio outputs....................................................................................................................12
4.4CU/DU ..............................................................................................................................12
4.5 CONTROL........................................................................................................................15
4.6 ETHERNET......................................................................................................................16
5. Configuration and Operation ......................................................................................................17
5.1 Configuration on the VIS-DCP1000.................................................................................17
5.1.1 Basic Setting ..........................................................................................................17
5.1.2 Turn ON/OFF the built-in speaker of the delegate/chairman unit..........................19
5.1.3 Setting ID for chairman/delegate unit....................................................................19
5.1.4 Setting the default system ......................................................................................20
5.1.5 Camera Auto-tracking Setup & Application ..........................................................20
5.2 Chairman/delegate unit operation.....................................................................................24

www.vissonic.com
Page
1
1. About this manual
This manual introduces how to use or install the conference system in the common way and how
to control it by commands. We insist you reading the SAFETY INSTRUCTIONS and QUICK
START before using it. In most of our user manual, we are putting important note, instructions
and hints in frames of different color, please pay attention to those symbols.
Safety Instructions
Avoid plug in power connector with power on, otherwise will lead to electric shock, or cause
damage to the circuit
Installation and wiring must be solid and reliable, otherwise it may result in malfunction on
device.
Make sure the device has been well connected to the ground before using
Do not touch the terminals while power on, or may cause electric shock, malfunctions
Do not disassemble the equipment without permission, to avoid damage to the internal electrical
components and will void the warranty.
The user manual gives the installers and operators the guide to install, configure and operate the
CLEACON system.
Copyright: VISSONIC Electronics Limited.
NOTE: This information is the supplementary explanation to the contents, usage or glossary.
CAUTION: Avoid improper operations to damage the products or third-party devices
connecting to it.

www.vissonic.com
Page
2
2. System Overview
The CLASSIC-D system is based on theAUDIO-LINKTM audio distribution and processing
technology. The system is combined with wired CAT5 and can be used for camera tracking and
simultaneous controlling by PC software.
Figure 2.1 CLASSIC-D system overview
The CLASSIC-D system comprises:
Full Digital Networked Conference ControllerVIS-DCP1000
CAT5 Digital Discussion Chairman/Delegate Unit VIS-DEC-T/VIS-DED-T
CAT5 Digital Discussion Chairman/Delegate Unit with Physical Button
VIS-DOC-T/VIS-DOD-T

www.vissonic.com
Page
3
2.1 Conference Controller VIS-DCP1000
The full digital networked conference controller VIS-DCP1000 controls all the units in the chain,
and supplies power to all. You can configure it by the button on front panel.
Figure 2.1.1 Front and rear view of VIS-DCP1000
On front panel, the controller contains:
1. Power Switch - Power on or off the controller.
2. Conference Mode Selector - Show the current conference mode status and select the mode
option as “Open”, “Apply”, “Voice”, “Override”.
3. MaximumActive Delegate Unit Quantity - Show the current maximum active delegate unit
microphone quantity and select the quantity option as “1”, “2”, “4”, “6”.
4. Volume Buttons - Control output volume level of the system.
5. Audio Recording - Press to start/stop recording the audio of whole conferencecontent.
6. USB Slot - Toinsert USB disk (Up to 32G) for recording, with status light indicator which is
flashing during the recording.
On rear panel, the controller contains:
7. Audio Inputs (IN 1) - RCAaudio input from external audio sources likeMP3.
8. AudioInputs (IN 2) - XLR audio inputfromexternal audio sources like Microphone and
remote audio input.
9. Audio Outputs (OUT 1) - RCA audio output to external audio devices like PAsystem,
loudspeakers etc. and can be set as zone output.
10. Audio Outputs (OUT 2) - XLR audio output to external audio devices like PA system,
loudspeakers etc. and can be set as zone output.
11. Audio Outputs (OUT3) - Phoenix audio output.
12. CU/DU - Connect to the delegate unit, chairman unit and interpreter unit.The CU/DU port 1

www.vissonic.com
Page
4
and CU/DU port 2 or CU/DU port 2 and CU/DU port 3 can be the closed loop.

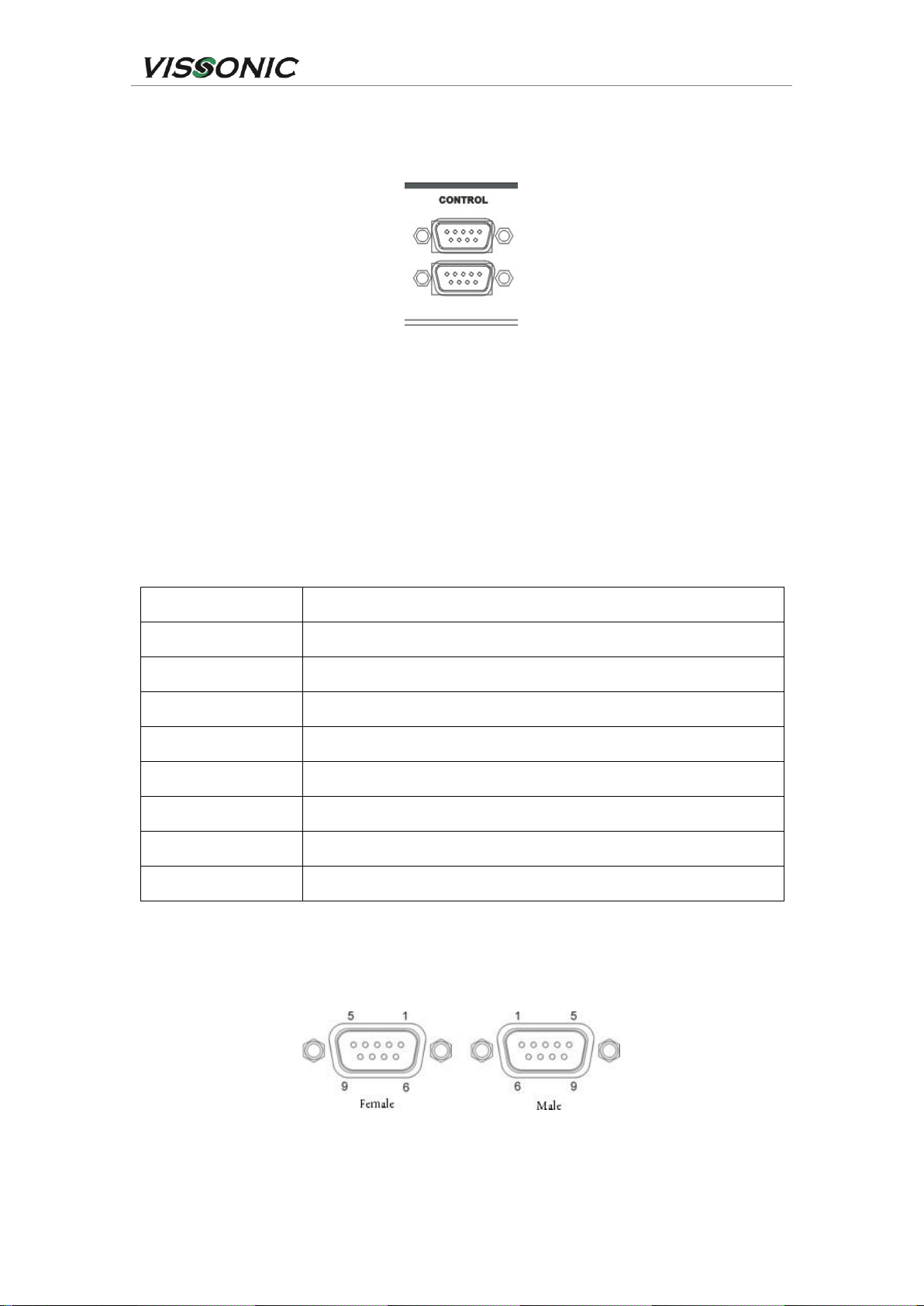

13. Control - Female DB9 connector is used to connect with camera auto-tracking controller.
14. Control - Male DB9 connector is used to connect with the camera (or third-party central
control device).
15. Ethernet - Connect to PC or switch for the software control.
16. Ground Screw - Connect the controller to the ground.
17. Power Inlet - Connect the controller to the power supply with a power cable (100-240VAC,
50/60Hz, 150W).
2.2 Conference Unit VIS-DEC-T/VIS-DED-T

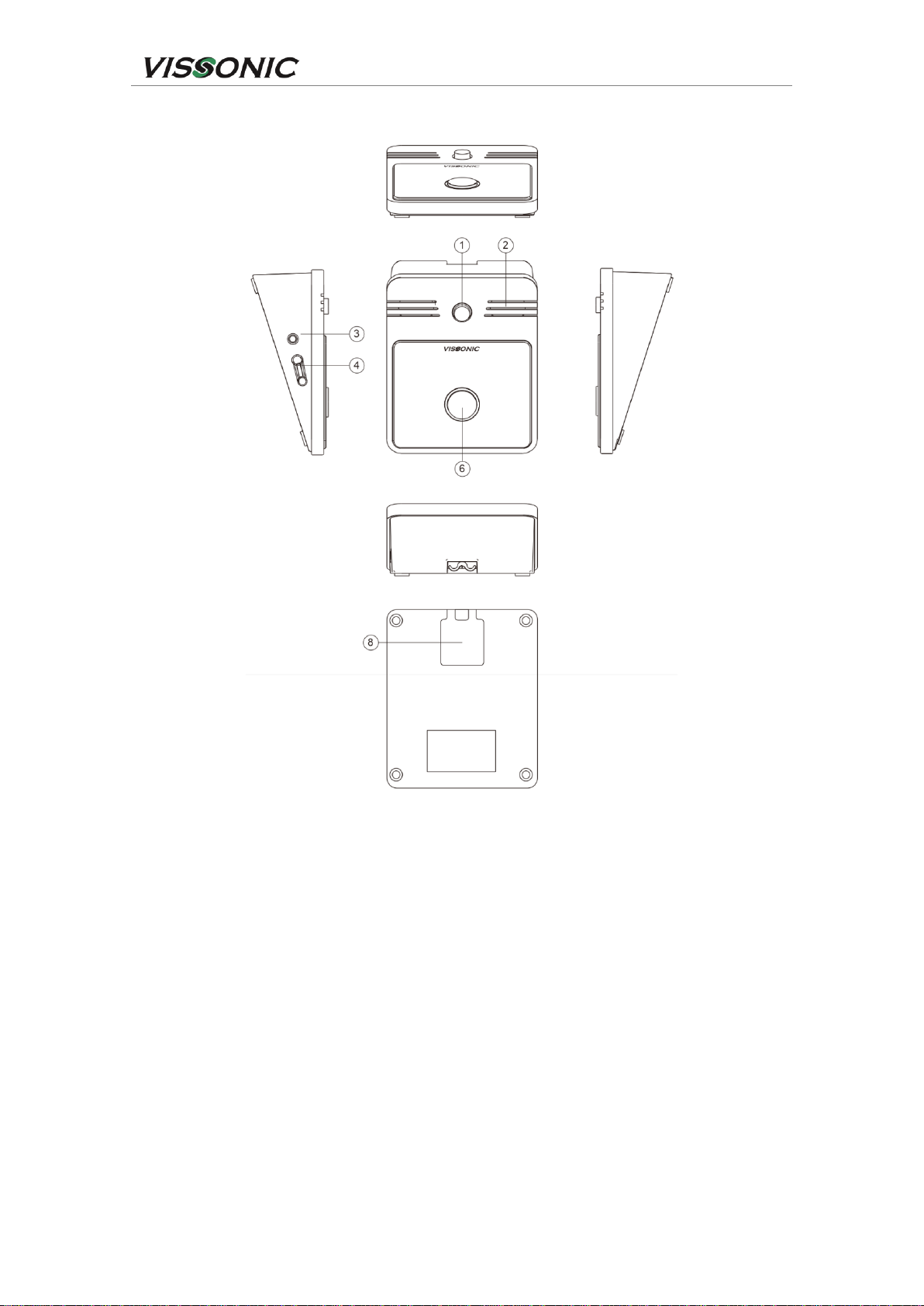

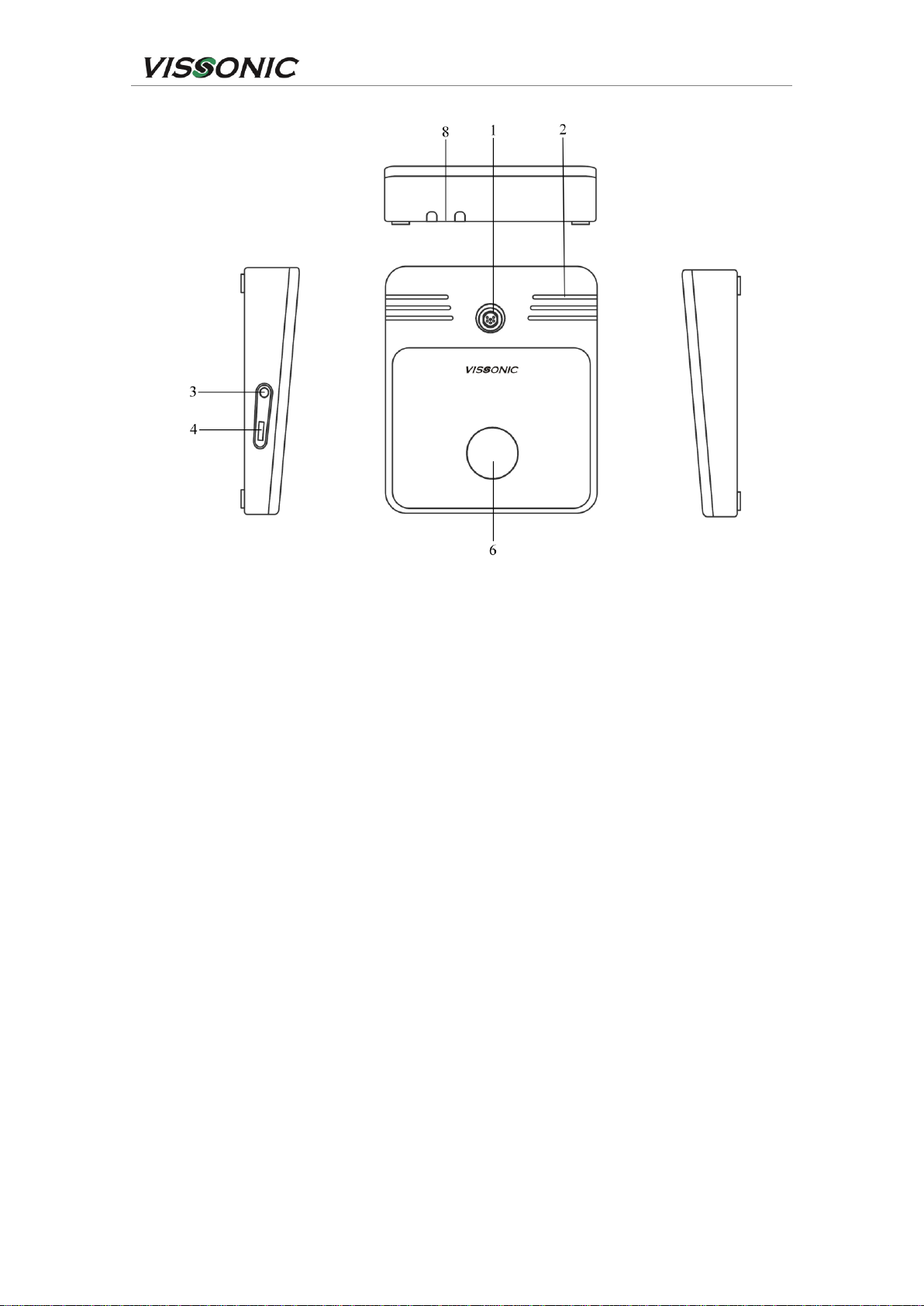

Figure 2.2.1 Full Digital Discussion Chairman Unit VIS-DEC-T

www.vissonic.com
Page
5
Figure 2.2.2 Full Digital Discussion Delegate Unit VIS-DED-T
1. MicrophoneSocket - Connecta pluggable gooseneck microphone(Model no.: VIS-M330,
VIS-M410, VIS-M485, VIS-M600) to thediscussionunits.
2. Loudspeaker - Give the audio signal from the floor to the delegate unit, when the
microphone is enabled, the signal of the loudspeaker is muted.
3. Headphone Socket - Headphone connection.
4. Volume Knob -Adjust the earphone and speaker volume.
5. Clear Button - Clear/deactivate all active delegate unit microphone or mute thesystem.
6. Microphone Button - Enables or disables the microphone. The microphone button has a LED
that shows the condition of the microphone.
7. Approval Button -Approve the applying microphone to be enabled under the apply mode
and work as mute while pressed clear button.
8. CU/DU RJ45 Socket - Makes a loop-through in the CEALCON system with the discussion
unit.

www.vissonic.com
Page
6
2.3 Conference Unit with Physical Button VIS-DOC-T/VIS-DOD-T

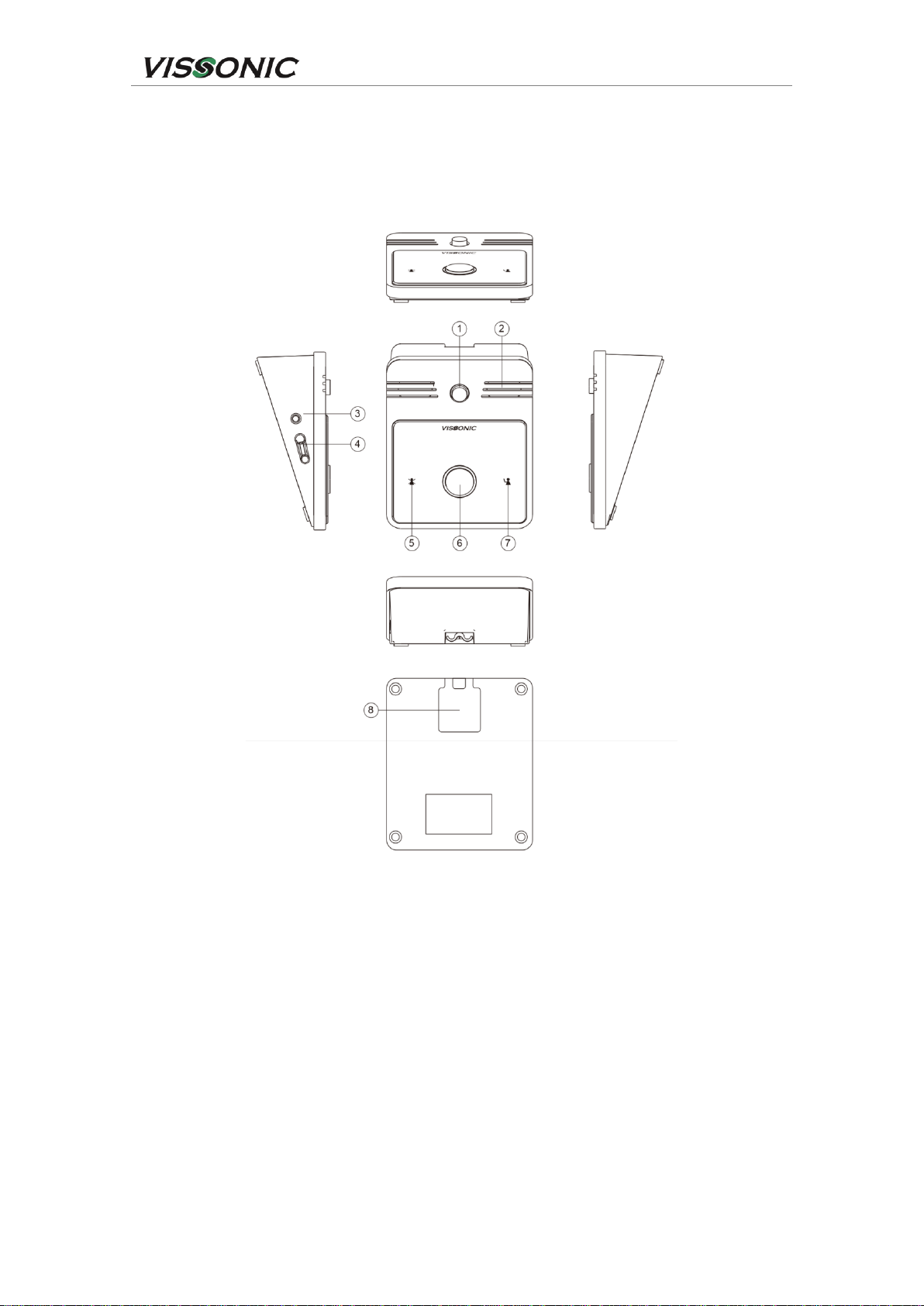

Figure 2.3.1 Full Digital Discussion Chairman Unit with Physical Button VIS-DOC-T

www.vissonic.com
Page
7

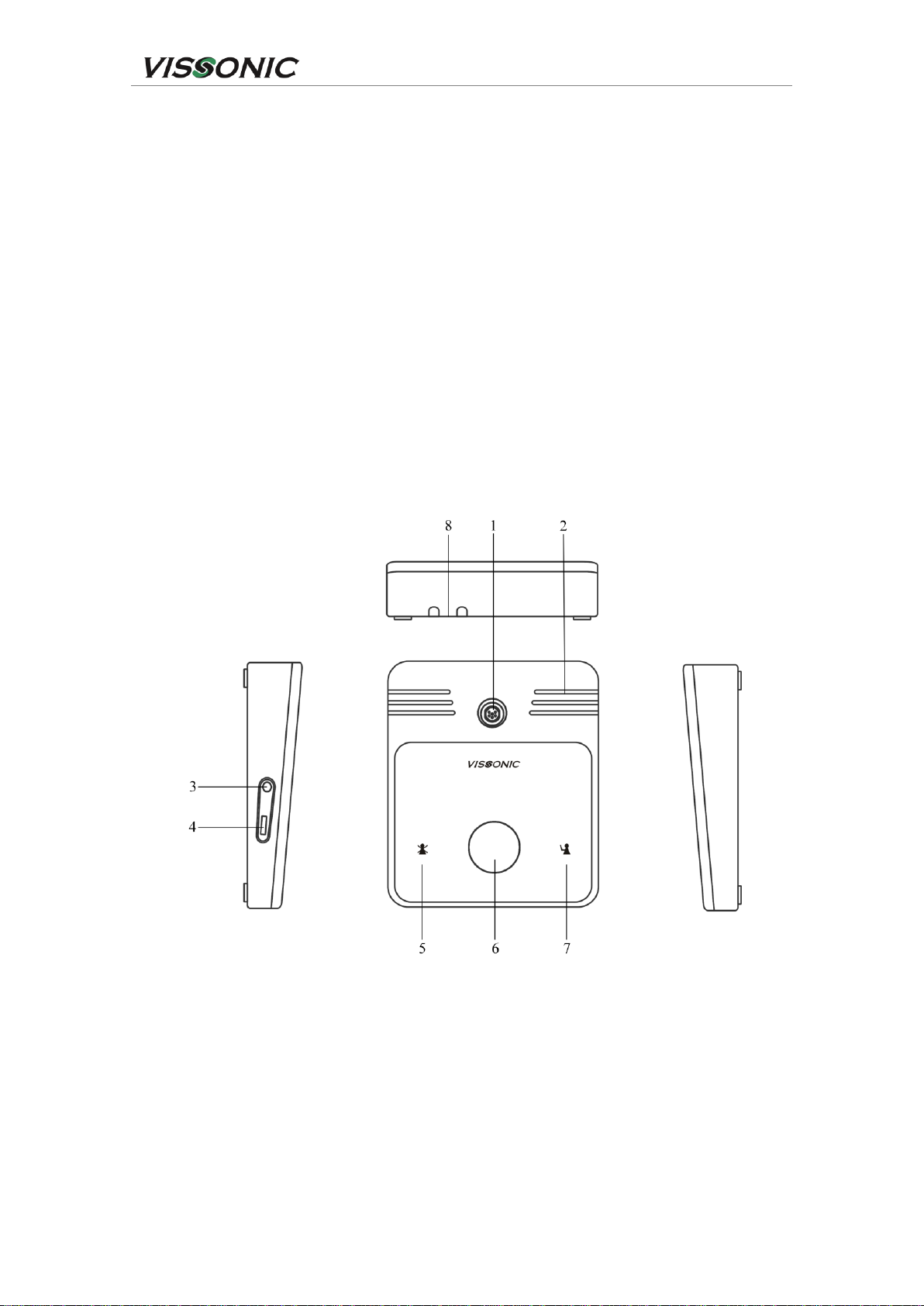

Figure 2.3.2 Full Digital Discussion Delegate Unit with Physical Button VIS-DOD-T

www.vissonic.com
Page
8
①MicrophoneSocket - Connecta pluggable gooseneckmicrophone (Model no.: VIS-M330,
VIS-M410, VIS-M485, VIS-M600)to thediscussionunits.
②Loudspeaker - Give the audio signal from the floor to the delegate unit, when the
microphone is enabled, the signal of the loudspeaker is muted.
③Headphone Socket - Headphone connection.
④Volume Knob - Adjust the earphone and speaker volume.
⑤Clear Button - Clear/deactivate all active delegate unit microphone or mute thesystem.
⑥Microphone Physical Button - Enables or disables the microphone. The microphone button
has a LED that shows the condition of the microphone.
⑦Approval Button -Approve the applying microphone to be enabled under the apply mode
and work as mute while pressed clear button.
⑧CU/DU RJ45 Socket - Makes a loop-through in the CEALCON system with the discussion
unit.

www.vissonic.com
Page
9
3. System Design and Plan
Before using ourconference system, there are some basic points for you to plan/design a conference
room.
The controller is powered by 110V to 220V wide range power supply, while it has a basic control
capacity (with power relay devices it can load more units). Here we list a basic capacity of active
units for one controller.
The capacity is decided by:
1. Number of active units in the system.
2. Length of extension cable from the first delegate or chairman unit to conference
controllerVIS-DCP1000.
Model
Extension
cable (m)
VIS-DCP1000
CU/DU1
CU/DU2
CU/DU3
Max.
total
VIS-DEC-T
VIS-DED-T
VIS-DOC-T
VIS-DOD-T
0m
30
30
30
90
5m
30
30
30
90
10m
28
28
28
84
20m
24
24
24
72
50m
20
20
20
60
100m
10
10
10
30
NOTE: Extension cable has direct effect on the control capacity. The longer extension cable is
used, the less power is available to drive the devices connected in the system. The length of the
cable needs to be selected according to the practical situation.

www.vissonic.com
Page
10
3.1 Install in the 19’ rack
The conference controller VIS-DCP1000 can be installed in a standard 19-inch cabinet. The unit
has standard accessories of a pair of installation supports. Below is the following diagram for
installation:
Figure 3.1 Installation of the conference controller

www.vissonic.com
Page
11
4. Connection
4.1 Power supply
Connect the conference controller and the power supply firmly together.
4.2 Audio inputs
The conference controller provides RCA or XLR type audio input connector.
Pin
Type
Signal
Description
1
RCA
Hot
Positive
2
Ground
Shield Ground
3
XLR
Ground
Shield Ground
4
Hot
Positive
5
Cold
Negative
Figure 4.1 Power connection
CAUTION: Main power supply should well grounded, otherwise it may cause fatal incident.
Figure 4.2Audio input connection

www.vissonic.com
Page
12
4.3 Audio outputs
The conference controller provides RCA, XLR or phoenix type audio output connector
Pin
Type
Signal
Description
1
RCA
Hot
Positive
2
Ground
Shield Ground
3
XLR
Hot
Positive
4
Ground
Shield Ground
5
Cold
Negative
6
Phoenix
+
Positive
7
-
Negative
8
G
Shield Ground
4.4 CU/DU
Use the CU/DU socket to connect to the chairman/delegate unit or extension main unit. Use the
VISSONIC tested CAT5e cable or better.
There are three connection ways available for CLASSIC-D conference system.
Figure 4.3Audio output connection
Figure 4.4 CU/DU port

www.vissonic.com
Page
13

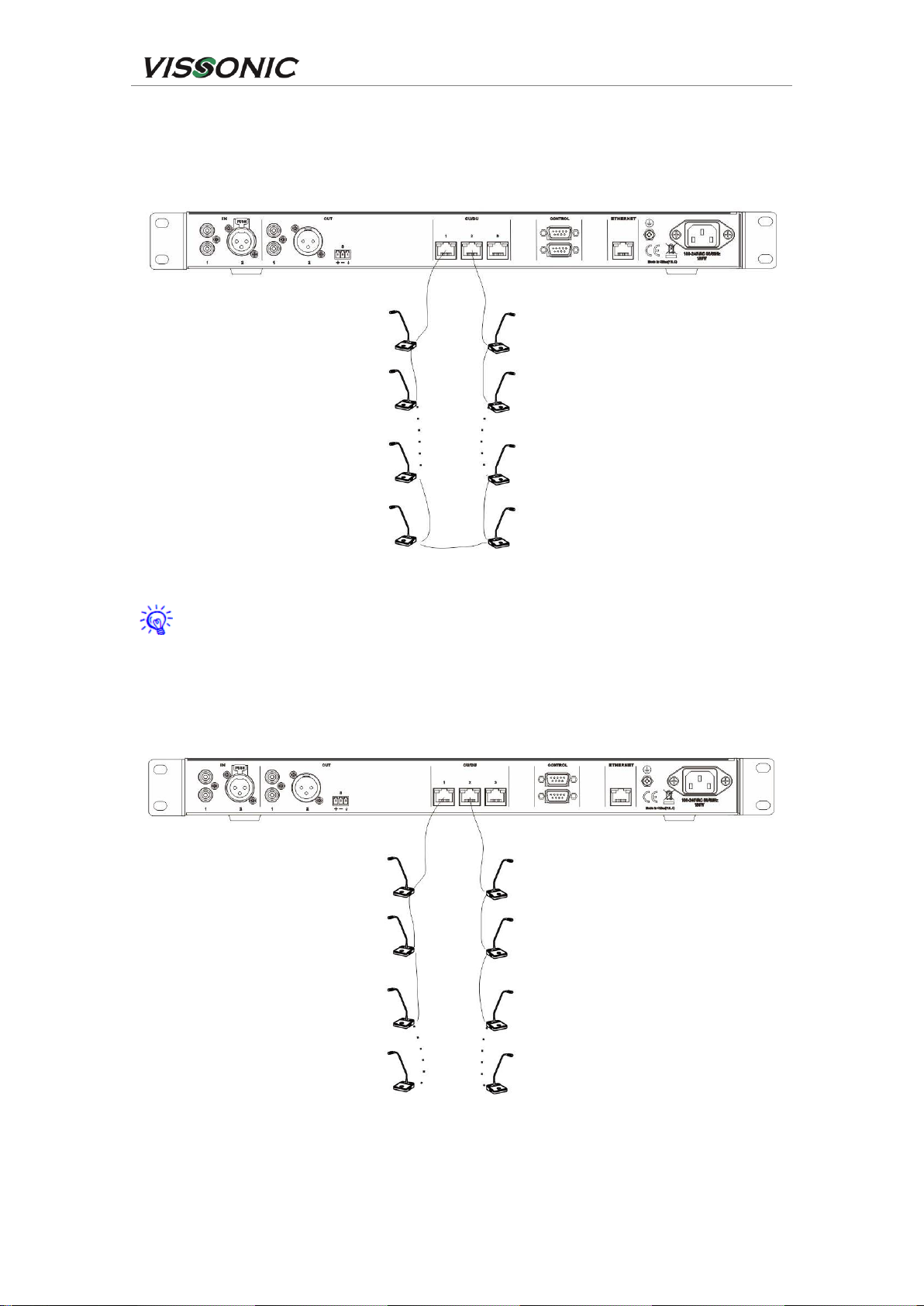

Hand in Hand Loop Network
Hand in Hand Loop Network is an important feature for CLASSIC-D conference system.
You can use this connection way to make the system steadier.
Figure 4.4.1 Hand in Hand Loop Network connection
“Hand-in-Hand-Loop-Network” connection is only available between CU/DU1 and
CU/DU2, or CU/DU2 and CU/DU3, but not valid between CU/DU1 and CU/DU3.
Hand in Hand connection
Figure 4.4.2 Hand in Hand connection

www.vissonic.com
Page
14

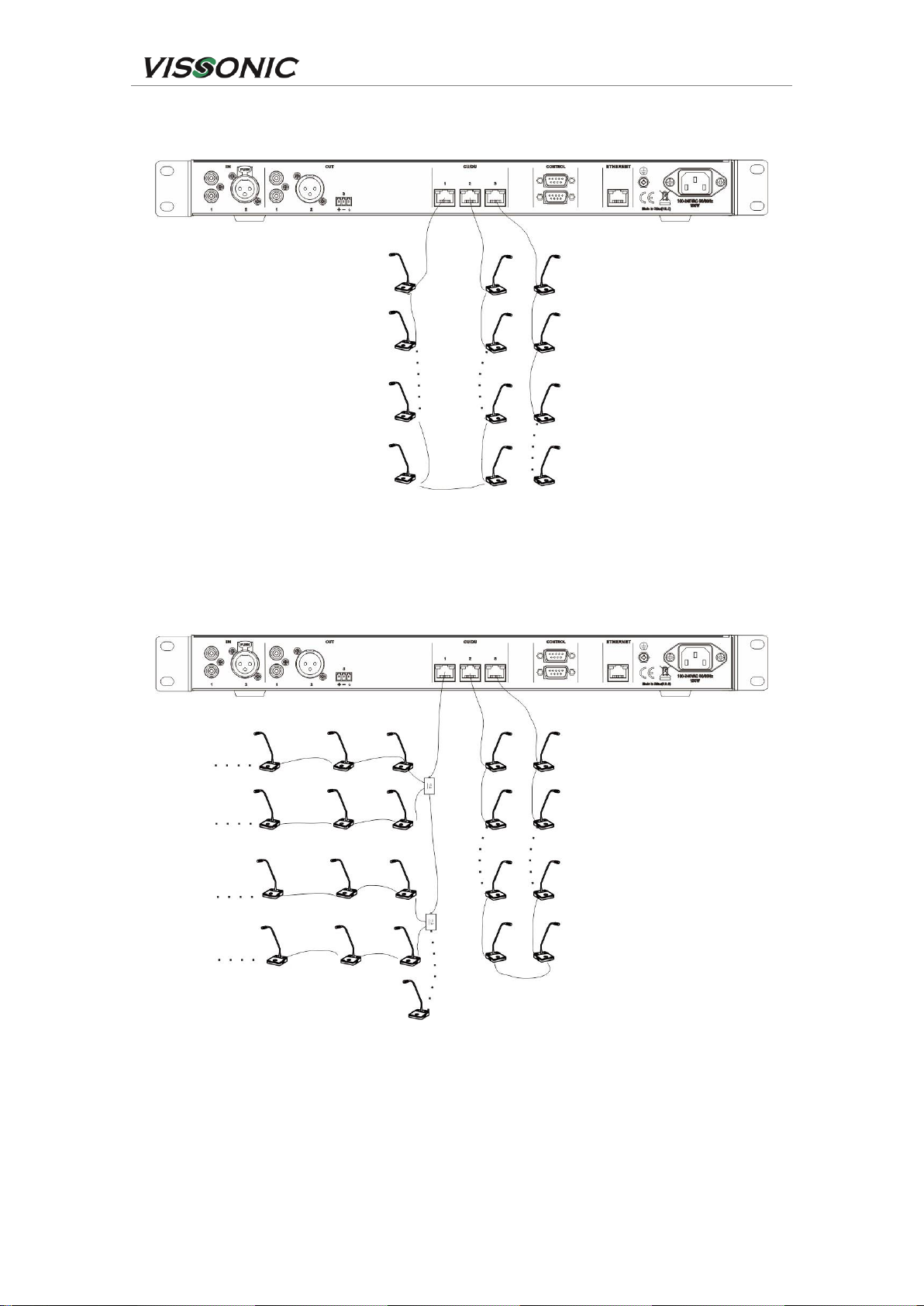

Hand in Hand connection + Hand in Hand Loop connection
Figure 4.4.3 Hand in Hand connection + Hand in Hand Loop connection
Extension Main Unit + Hand in Hand Loop connection
Figure 4.4.4 Extension Main Unit + Hand in Hand Loop Connection

www.vissonic.com
Page
15
4.5 CONTROL
Full digital conference system can be compatible with various control systems via RS232 serial
interface. The upper COM port is used to connect with camera auto-tracking controller for
camera auto-tracking function. The lower COM port is used to connect the camera (or third-party
central control device).
The default switching command is
Baud rate: 9600 bps; Parity: 8; Stop: 1
Command
Description
1V1.
Switch the channel 1 to output
2V1.
Switch the channel 2 to output
3V1.
Switch the channel 3 to output
4V1.
Switch the channel 4 to output
......
......
14V1.
Switch the channel 14 to output
15V1.
Switch the channel 15 to output
16V1.
Switch the channel 16 to output
If you need other commands, please contact with us to upgrade the firmware online.
COM port pin is described as follows:
Figure 4.5.1 Control Port
Figure 4.5.2 Description of COM port pin
