Group 37 Wiring diagram FL6 Example of wiring diagram
Example of wiring diagram
T3009608
Refer to the list of contents for the designation of the
circuit diagram. If the circuit diagram designation is
boxed in with broken lines this means that the circuit
diagram is not standard on all market or vehicle models.
Seek column.
30 Voltage battery, kl.30.
15 Voltage with starting key in drive position, kl.15.
61 Voltage when alternator charges, kl.61.
Reference arrow (for circuit diagram EA, seek column
13).
Switch, comp. no. (104).
Single lines, cables.
Relay, comp. no. (303).
Cable area and colour (0.75 mm² blue).
Connector (CLA terminal 4).
Bulb, comp. no. (403)
A broken line box round the component number shows
that the component is not standard on all markets or
vehicle models.
If the line is broken this means the cable is not standard
on all markets or vehicle model.
Earth connection point no: 2. and earth terminal no: 4.
(see diagram Earth Connections).
Joint sleeve.
2

Group 37 Wiring diagram FL6 Examples of symbols on wiring diagram
Examples of symbols on wiring diagram
T3009609
Battery
Connector
Junktion
Fuse
Joint sleeve
Cable
Twisted cables
Conductor on circuit card
Earth connection and cable
Switch
Switch, starting switch
Closing contakt
Closing contakt, pressure-regulated
Break contakt, temperature-regulated
Closing contakt, time-regulated
Slip contakt, horn
Relay
Relay with internal circuit diagram
3

Group 37 Wiring diagram FL6 Examples of symbols on wiring diagram
T3009610
Bulb
Bulb, full beams and dipped beams
Bulb, tail light
Alternator
Starter motor
Washer motor
Windscreen wiper motor
Solenoid valve with diode
Pressure sensor
Temperature sensor
Level sensor
Starting heater
Cigarette lighter
Horn
Rheostat
Buzzer
Loudspeaker
4

Group 37 Wiring diagram FL6 Component wiring diagram index
Component wiring diagram index
AA Power supply, starting system, immobiliser ..................................................................... page 7
AC Vehicle ECU ..................................................................................................................... page 8

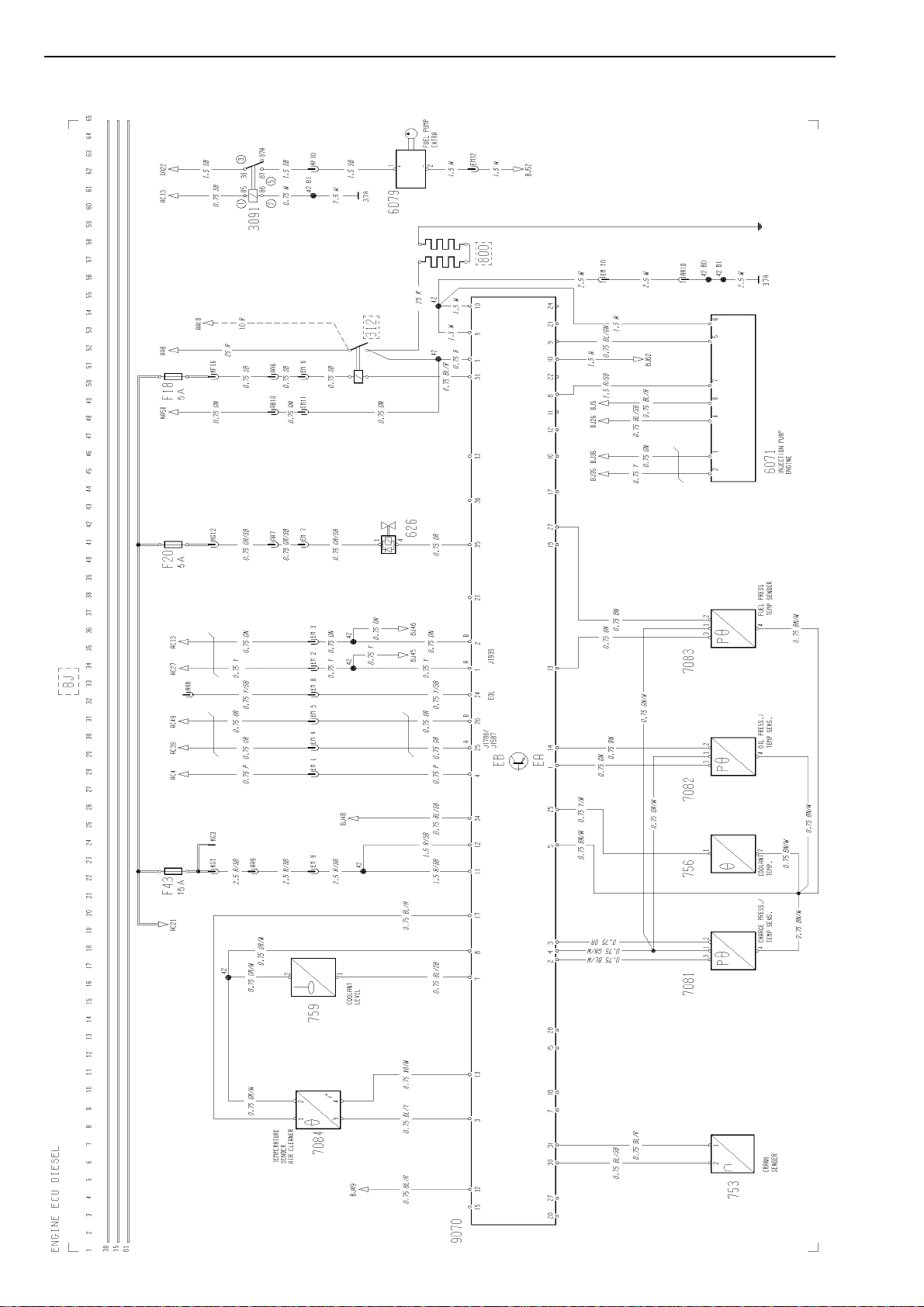

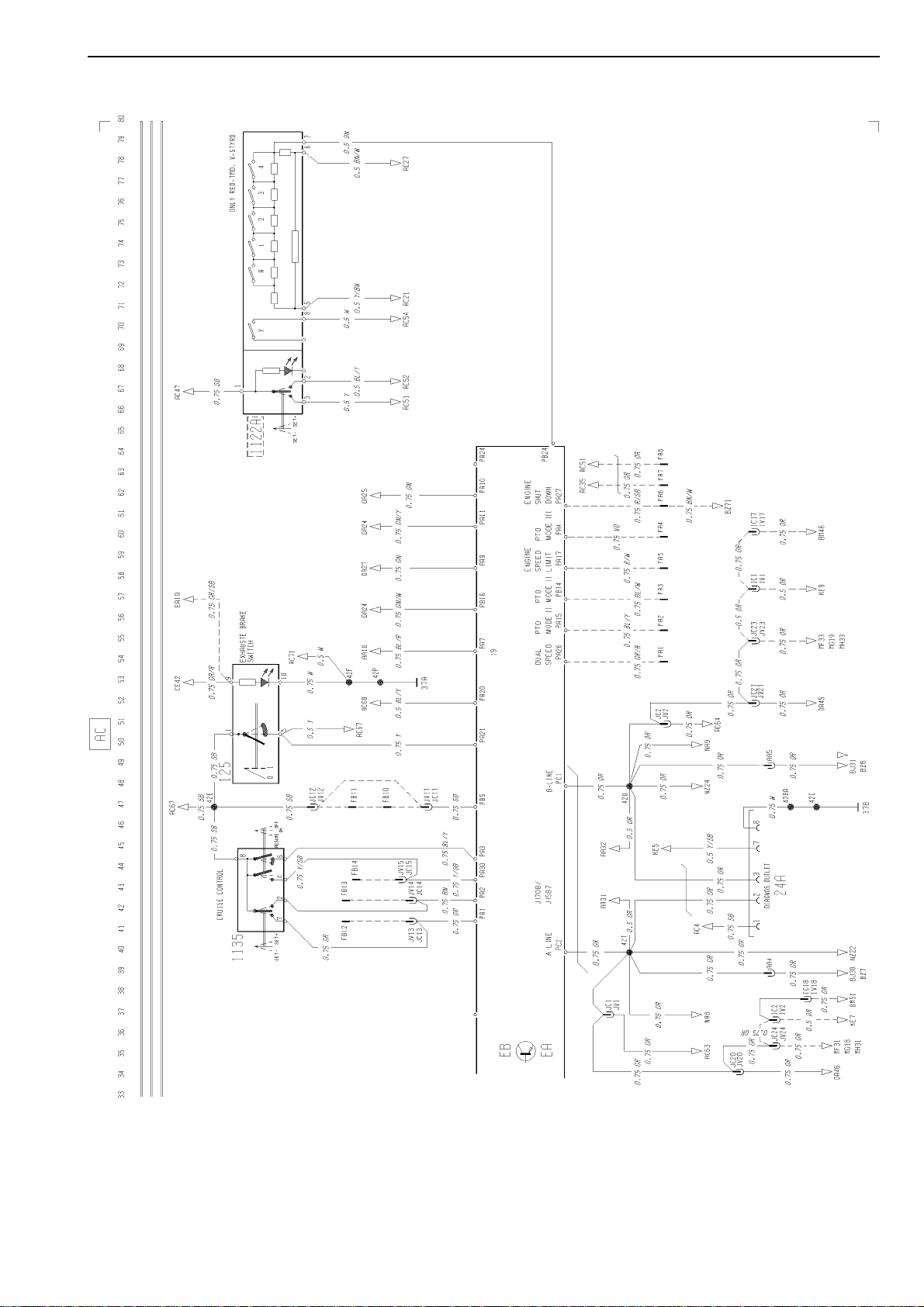

BJ Engine ECU, DIESEL ...................................................................................................... page 10

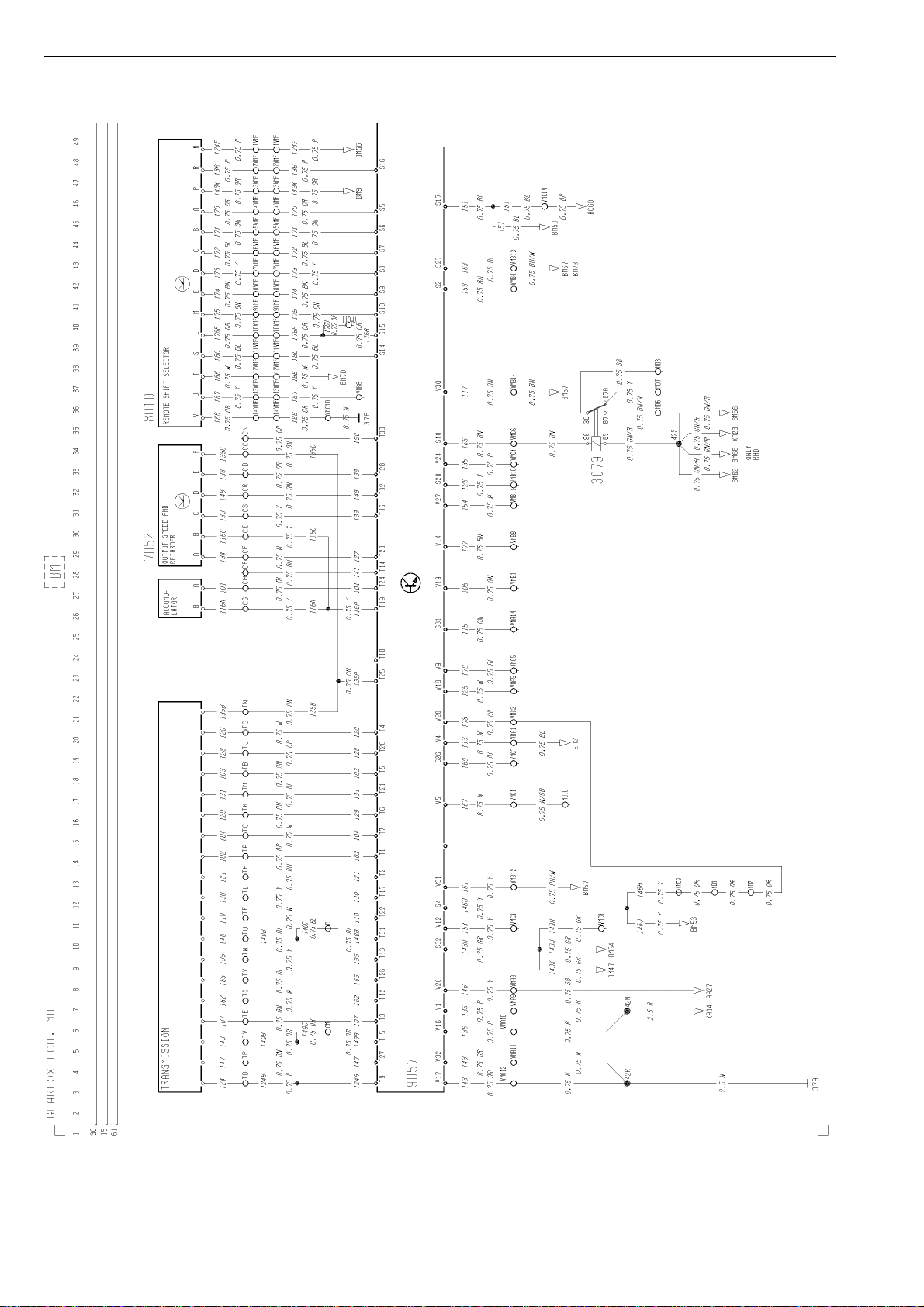

BM Gearbox ECU, MD3060P5/MD3560P5 ........................................................................... page 12

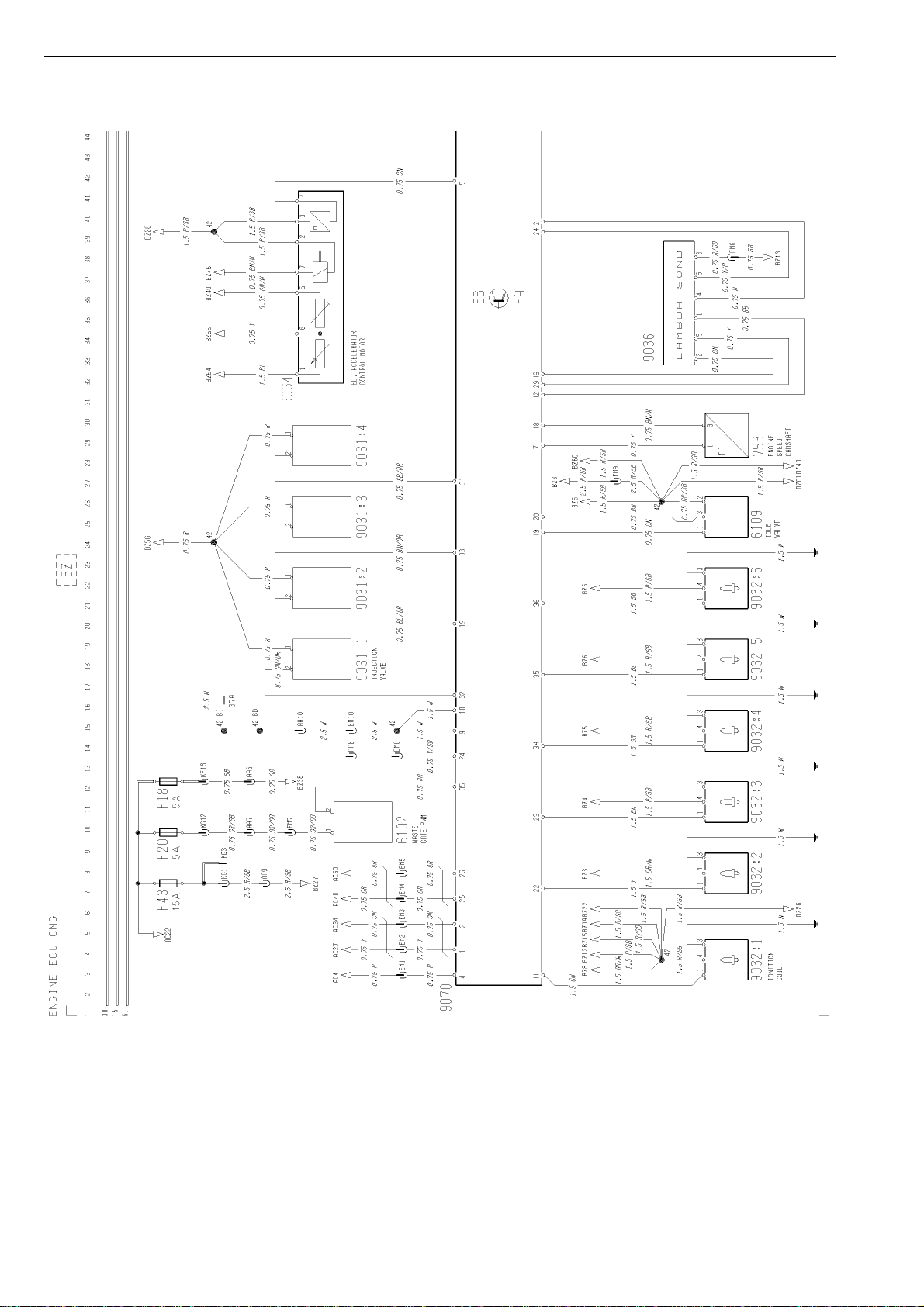

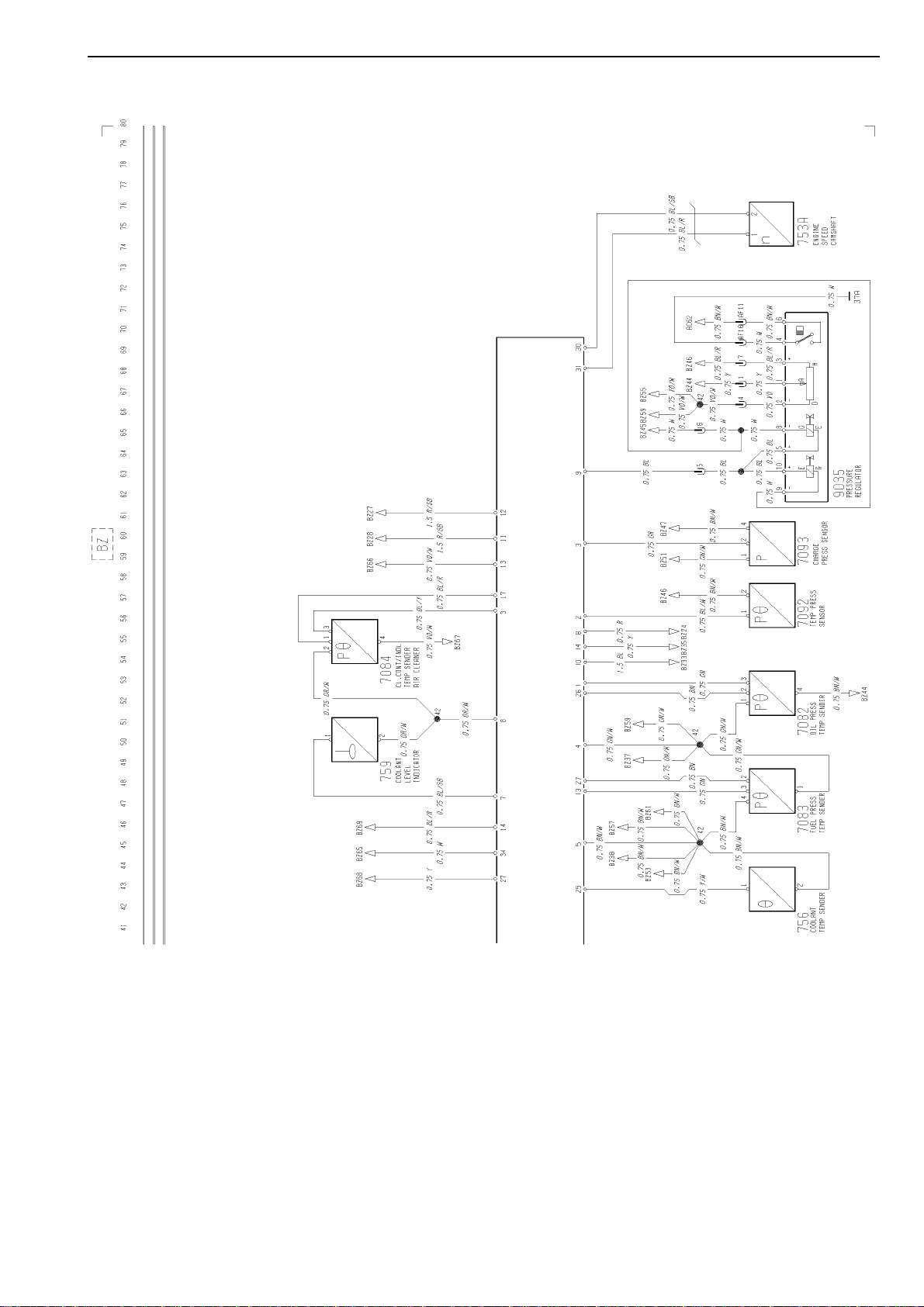

BZ Engine ECU, CNG ........................................................................................................... page 14
CE Head light, parking light, DRL .......................................................................................... page 16
CG Fog light, rear fog light ..................................................................................................... page 17
CH Spot light ......................................................................................................................... page 17
CK Brake light ........................................................................................................................ page 18
CN Direction indicator, hazard warning light .......................................................................... page 18
EA Reversing light, reversing warning alarm ......................................................................... page 19
ED Loading light/fifth wheel light ........................................................................................... page 19
EJ Identification lamps .......................................................................................................... page 20
EN Rotating warning light ...................................................................................................... page 20
ER Interior lighting ................................................................................................................. page 20
EV Cigarette lighter ............................................................................................................... page 21
EX 12 V power supply ........................................................................................................... page 21
FA Horn ................................................................................................................................. page 21
GA Wiper, washer .................................................................................................................. page 22
HA Climate unit ...................................................................................................................... page 23
HB Cab heater, air ................................................................................................................. page 24
HC Cab and engine heater, PH-ENGCA (EBERSPÄCHER) ................................................. page 25
HD Rest heater, short stop cab heater .................................................................................. page 26
HE Electrically heated seat .................................................................................................... page 26
HG Electrically heated mirrors ............................................................................................... page 27
HH Electrically operated mirrors ............................................................................................ page 27
HM Fuel filter heater, water separator heater ......................................................................... page 28
JA Radio ............................................................................................................................... page 28
KA Electrically operated window winders .............................................................................. page 29
KE SRS, air-bag .................................................................................................................... page 30
KH Central locking CHID -B276335 ....................................................................................... page 30
KH Central locking CHID B276336- ....................................................................................... page 31
LD Power take-off or KOBLAM .............................................................................................. page 31
LE Power take-off and KOBLAM ........................................................................................... page 32
LG Differential lock ................................................................................................................ page 32
LK Automatic gearbox ........................................................................................................... page 33
5

Group 37 Wiring diagram FL6 Component wiring diagram index
MA Bogie lift, A-ride ............................................................................................................... page 34
MF Air suspension, 4x2/6x2, RIGID, E-MEDIUM CHID-B344350 ......................................... page 35
MF Air suspension, 4x2/6x2, RIGID, E-MEDIUM CHID B344351– ....................................... page 36
MG Air suspension, 4x2, TRACTOR CHID-B344350 ............................................................. page 37
MG Air suspension, 4x2, TRACTOR CHID B344351– ........................................................... page 38
MH Air suspension, 4x2, RIGID, L-H MEDIUM CHID-B344350 ............................................. page 39
MH Air suspension, 4x2, RIGID, L-H MEDIUM CHID B344351– ........................................... page 40
MV Air-dump .......................................................................................................................... page 41
NA Instrument LHS module CHID-B356223 ......................................................................... page 42
NA Instrument LHS module CHID B356224– ........................................................................ page 43
NC Instrument RHS module .................................................................................................. page 44
NF Tachograph ...................................................................................................................... page 45
NZ Instrument center module ............................................................................................... page 46
OA Basic ABS, D-version ...................................................................................................... page 48
PA Headlight adjust ............................................................................................................... page 50
RA Taillift ................................................................................................................................ page 50
XA Extra fuse block, key switch relay .................................................................................... page 51
XD Extra connection body builder ......................................................................................... page 52
ZA Earth connections ............................................................................................................ page 54
ZB Earth connections CHID-B356223 .................................................................................. page 56
ZB Earth connections CHID B356224– ................................................................................ page 58
ZD ADR battery main switch, current limiter CHID-B340450 ................................................ page 60
ZD ADR battery main switch, current limiter CHID B340451– .............................................. page 61
