Von Duprin 6226 User manual

*931241-00*
931241-00
Electric Strike, Double Door Closed Back Mortise or
Cylindrical Application
6226/6226DS
Installation Instructions
© Allegion 2014
Printed in U.S.A.
931241-00 Rev. 01/14-b

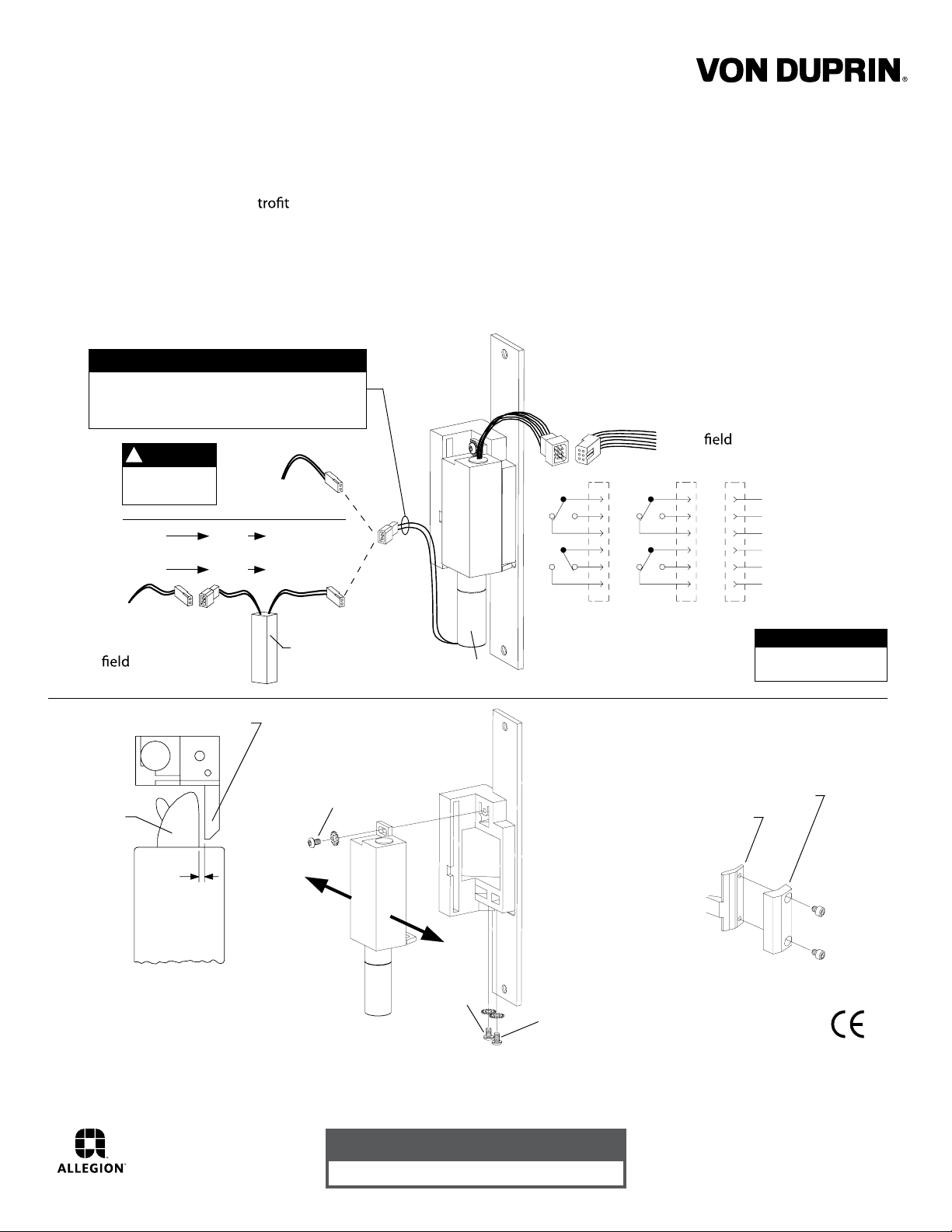

Figure 1
DC input is
nonpolarized.
NOTE
!
J1
J2 P2
Switches shown with tripper
depressed, strike lip closed and locked
(switches and tripper on 6226DS only)
Use crimp connectors to
splice wiring to P2
leads; insulate unused leads
P1
P1 J1A P1A
SO-12 or SO-24
12 VDC
or
24 VDC
12 VAC SO-12 12 VDC
or
24 VAC SO-24 24 VDC
{
{
J2
Fail safe (FS)
J2
Fail secure (FSE)
S1
S2
1
2
3
4
5
6
S1
S2
1
2
3
4
5
6
Wiring
for DC
supply
Wiring
for AC
supply
4. Test strike: Apply solenoid power. Fail secure (FSE) lip unlocks.
Fail safe (FS) lip locks. Figure 1 shows status of switches.
5. Install strike with two #12-24 screws. Make sure clearance
between latch bolt and strike lip is 1/32” (Figure 2). If not,
uninstall strike, adjust (Figure 3), and reinstall.
6. If latch bolt does not extend far enough to actuate tripper,
install extension (Figure 4). (Tripper on 6226DS only.)
7. Test door: With strike unlocked, door opens
with latch bolt extended. When door closes,
latch bolt rides over strike lip.
Solenoid
89/336/EEC
Standard: 5 A, 30 VDC
Gold: 0.25 A, 30 VDC
SWITCH RATINGS
}
P2
Red (C)
Blue
Yellow
White (C)
Gray
Violet }
S1
(monitors
tripper)
S2
(monitors
strike lip)
Use crimp
connectorsto
splice wiring
to P1 leads
Tripper
Figure 4
Extension
Figure 3
To adjust strike,
loosen screws A, B,
and Cand move
backboxsideways
asnecessary
A
B
C
Figure 2
Top view;
faceplate not
shown for clarity
1/32”
Latch bolt
Strike lip
Yellow solenoid wires = 12 VDC, 0.57 A
Black solenoid wires = 24 VDC, 0.29 A
(also shown on strike label)
SOLENOID POWER REQUIREMENTS
Notes: Deadbolt will not function with this strike.
Check with factory for re applications.
1. For lock or device preparation, see their directions.
2. Prepare door for strike (see other side).
3. Wire strike (Figure 1). (Switches on 6226DS only.)
NOTE:
Static Strength Rating 1500 lb.
Dynamic Strength Rating 70ft.-lb.
Endurance Rating 250,000 c.
Customer Service
1-877-671-7011 www.allegion.com/us

Strike Dimensions and Required Clearances
Door Preparation for Strike
#16 drill and
#12-24tap
2 places Suggested
cutout
Reinforce for strike
attachment as required
LHR shown
RHR opposite
Cdoor
L
C strike
L
RHR door
shown inactive
Strike
backbox
assembly
1-7/16” minimum
clearance
Lock and strike CL
C strike
and
latch bolt
L
6”
5/32”
1-3/8”
1-1/2”
3-3/4”
8-3/8”
1-5/8”
1-7/8”
9”
4-3/16”
4-1/2”
12” minimum
clearance
1-7/8”
minimum
clearance
1-3/8”
11/16”
