Von Duprin 33 User manual

Installation Instructions
33/3549A
CS 33/3549A
© Allegion 2014
Printed in U.S.A.
24795379 Rev. 04/14-a
FOR DEVICES SOLD
PRIOR TO
4-14-14
Customer Service
1-877-671-7011 www.allegion.com/us
2-Point
Latch
includes
these
additional
parts
1-Point
Latch
(LBL)
AL
HM
AL
= for Aluminum Door applications
= for Hollow Metal Door applications
= for Hollow Metal Door Retrofit applications
HM
AL
HM
RF
HM
RF
This instruction covers new installation of the 33/3549A
concealed vertical device for aluminum and hollow metal
doors.
Also covered is the CS 33/3549A retrofit cabling system
for converting 33/3547A Series to 33/3549A Series
(compatible with models 33/3547A, 33/3547A-F,
33/3547A-LBR, and 33/3547A-F-LBR).

2

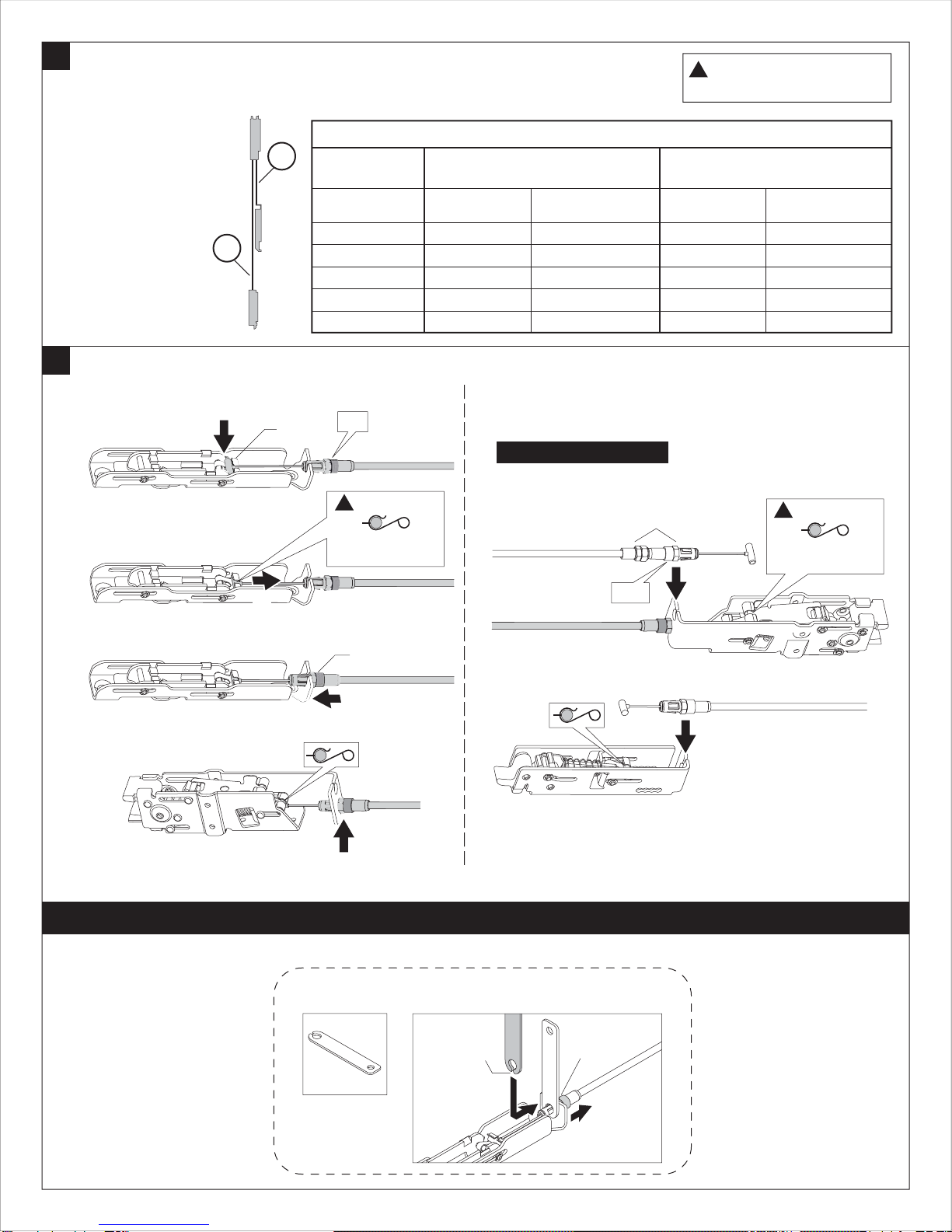

2Install Cable(s).
c. Push cable snap against center slide to secure cable
b. Pull cable into clip to snap it into place
a. Position red cable end to clip on center slide
d. In the same way, install opposite end of red cable to top latch in the
position marked red
d
aclip Red
b
cable snap
c
A cable removal tool has been provided. Slot in tool fits over cable,
holding tabs down. Pull on cable snap to loosen cable for removal.
b
cable
snap
slot
a
CABLE REMOVAL
Ensure cable end is
fully seated in clip
IMPORTANT:
!
For 2-Point Latch Only
f. Install opposite end of white cable to bottom latch
e. There is an adjuster on one end of the white cable. Install this end to the
remaining top latch position (marked as white)
f
Ensure cable end is
fully seated in clip
IMPORTANT:
!
1Identify Cables and Locations. NOTE: For retrofit installations,
begin at Step 5.
!
(if not preinstalled in door)
For easy identification,
each cable is labeled
with part number and
location.
A
B
6' 8"
7' 0"
8' 0"
9' 0"
10' 0"
23925803
Top Cable (Red)
A
Top Cable (Red)
A
23925647
23925522 23925522
23925407
23925761
23925647
23925407
23925761
CABLE IDENTIFICATION (STANDARD SIZES)
HOLLOW METAL AND
WIDE STILE ALUMINUM DOORS
NARROW STILE
ALUMINUM DOORS
Door Opening
Height Bottom Cable (White)
23926058 23926058
23925936
23925811
23926173
23925936
23925811
23926173
2392621523925795 23926207
BB
Bottom Cable (White)
White e
adjuster

3

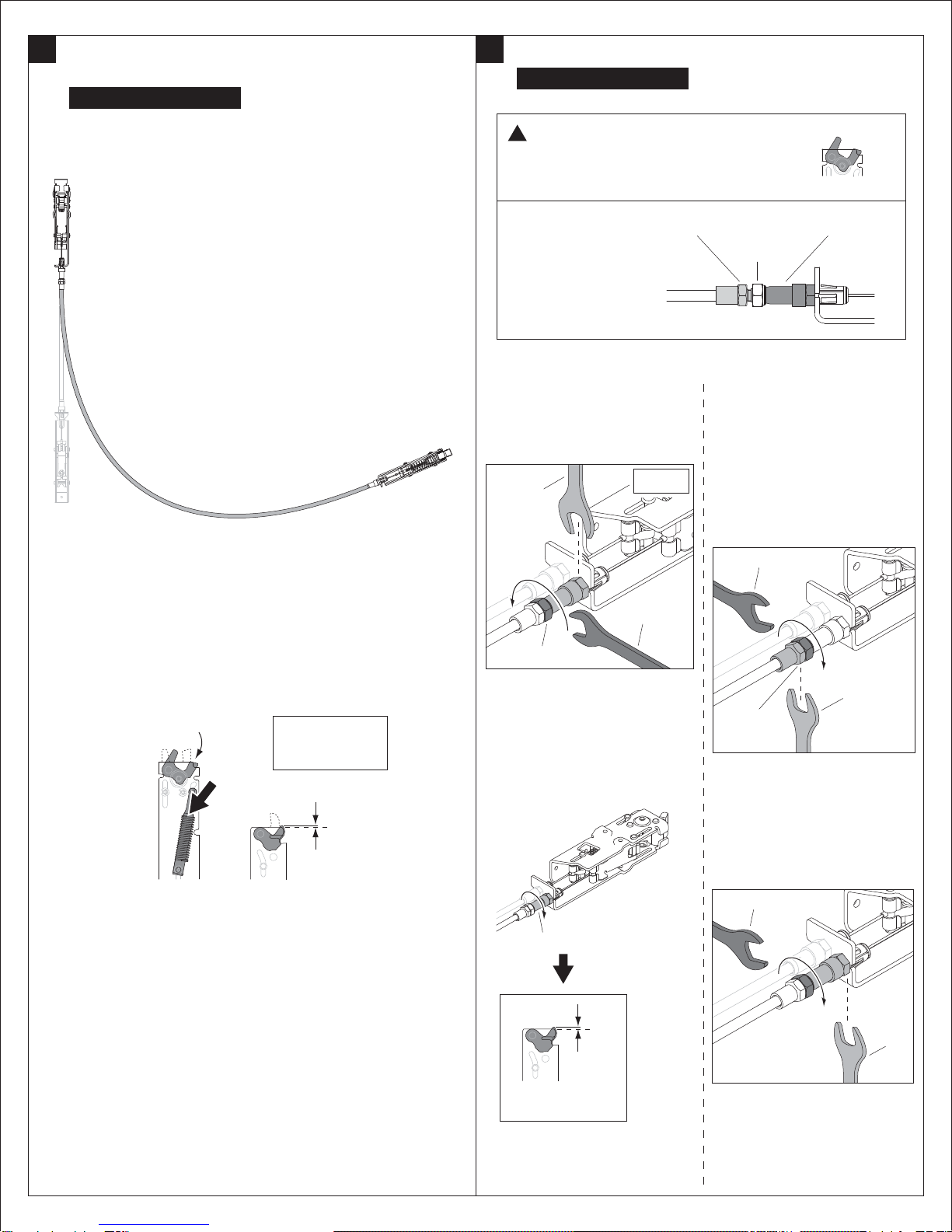

3Determine if Bottom Latch Retraction Adjustment is
Necessary.
For 2-Point Latch Only
a. Flex the cable into an L-shape as shown to simulate the installed
condition of the latches.
top latch
(hold-open
position)
bottom latch
(retracted)
¹⁄₁₆"
flush
press
b. To determine whether an adjustment is required, actuate the top
latch to the hold-open position by pressing down on the connecting
rod. Bottom latch should retract to within ¹⁄₁₆" of flush. If it does not,
an adjustment is necessary.
4Adjust Bottom Latch Retraction (if necessary).
For 2-Point Latch Only
d. While holding the snap-fitting
with a ³⁄₈" wrench, continue to
tighten the locknut until it is
secure.
c. While holding the conduit cap
with a ³⁄₈" wrench, use a 10mm
wrench to turn the locknut in a
clockwise direction to close the
gap between the lock nut and
snap-fitting. Stop when the gap
is closed and the snap-fitting
begins to turn with the locknut.
a. While holding the snap-fitting
with a ³⁄₈" wrench, use a 10mm
wrench to break loose the lock
nut.
b. While holding the lock nut in
place, rotate the barrel of the
snap-fitting clockwise by hand
until the bottom latch is
retracted to within ¹⁄₁₆" of flush.
bottom latch
(retracted)
¹⁄₁₆"
flush
snap-fitting
locknut
conduit cap
NOTE: Adjustment must be made while the top
latch is in the hold-open position, with cable
flexed into an L-shape to simulate the installed
condition of the latches.
!
These (3) hex
components
are used to
make the
adjustment.
snap-fitting
³⁄₈"
10mm
10mm
³⁄₈"
conduit
cap
lock nut
10mm
³⁄₈"top latch
If no adjustment is
needed, proceed
to Step 5.

4

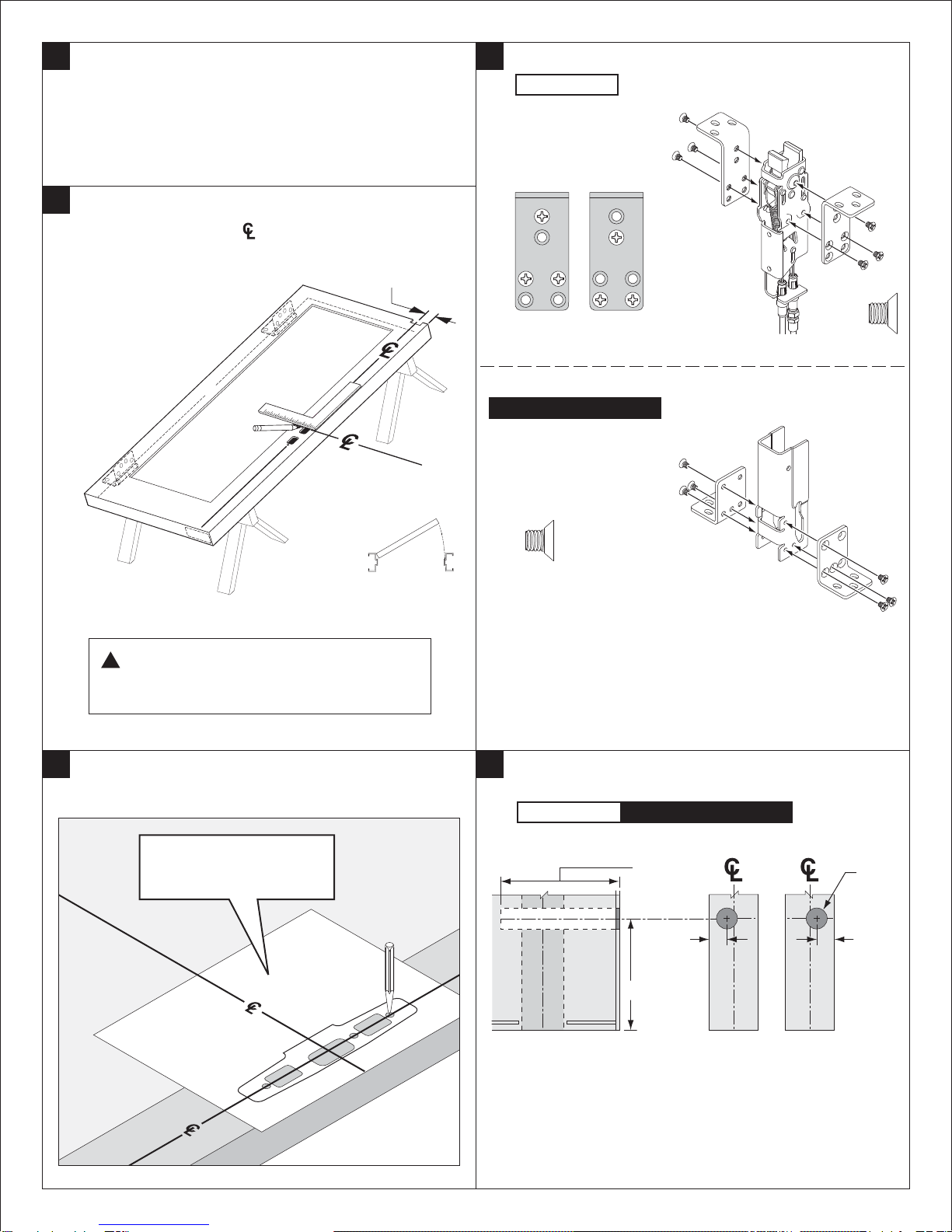

7Align Paper Template to Mark and Prepare Door, if
Required.
6With Door Laying Flat, Draw Horizontal and Vertical
Device Center Lines ( ).
RHR shown
(LHR opposite)
See template
for Backset
5If Retrofit Installation
a. Remove device
from existing
door.
b. Remove and
discard existing
door.
c. Remove and
discard existing
strikes.
RHR shown
(LHR opposite)

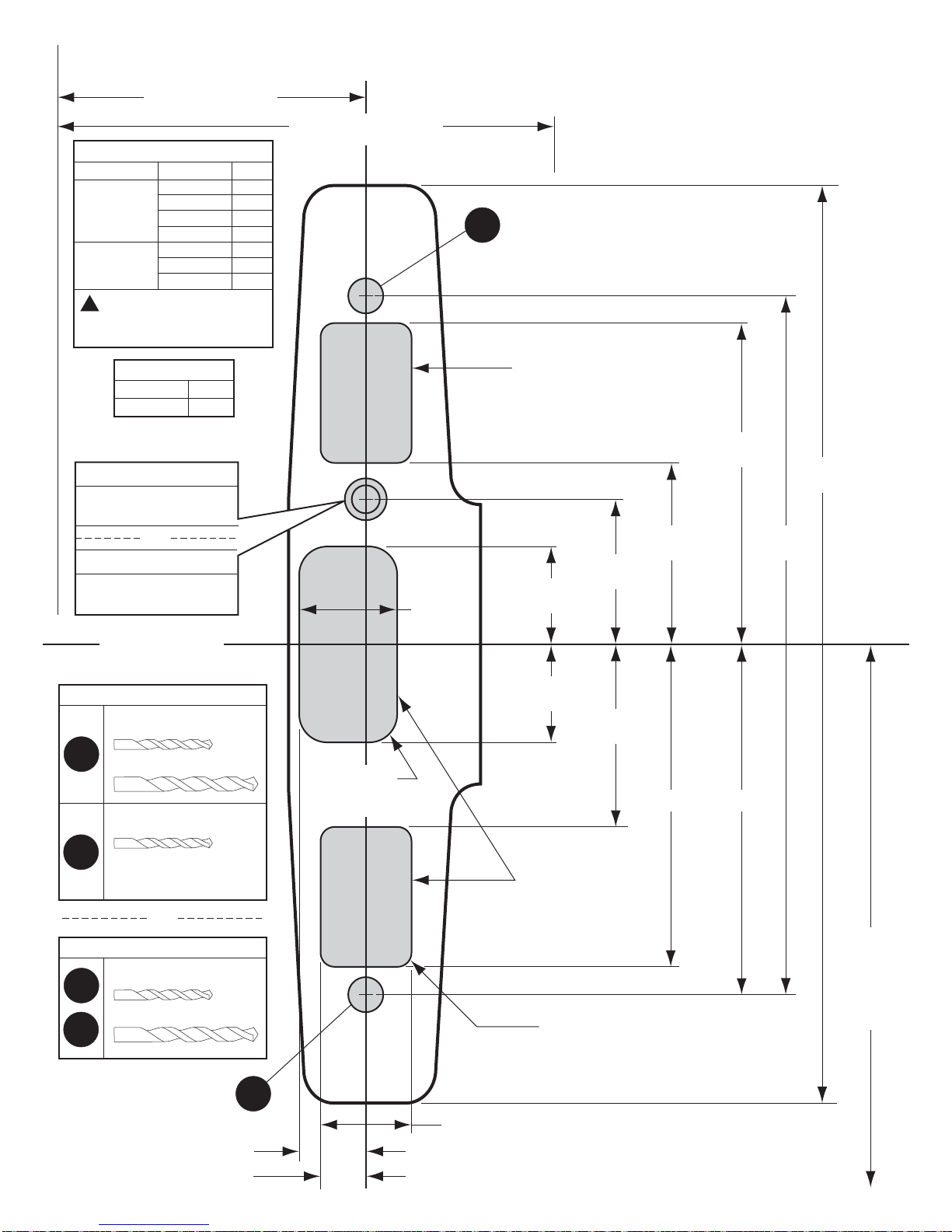

See pages 11 and 12
for paper templates.
NOTE: Centerlines are predetermined by cutout. If no
cutout exists, refer to templates at the back of this
instruction to determine centerlines.
!
9Prepare Access Hole for Bottom Latch Adjustment
Pin.
3¹⁵⁄₁₆"
⁵⁄₈" from
push side
of door
Bottom of Door Door Edge
RHR
⁵⁄₈" from
push
side of
door
Door Edge
LHR
³⁄₄" Dia.
hole
4¹⁄₄" depth
clearance
required
Door Door
Hollow Metal For 2-Point Latch Only
8Assemble Latch Mounting Brackets.
Top
Bottom
For 2-Point Latch Only
Top Door Channel
3/4"
1/4"
3/4"
1/4"
1/4"3/4"
Hollow Metal
³⁄₄" mounting
shown

5
13 If Using 360/386/388 Thru-Bolting Trim, Remove
Center Slide Mounting Nut.
mounting nut has
left-handed
threading
³⁄₈" socket
with ¹⁄₄" drive
center slide
mounting nut
Thru-bolting trim
uses standoffs
(360L trim shown)

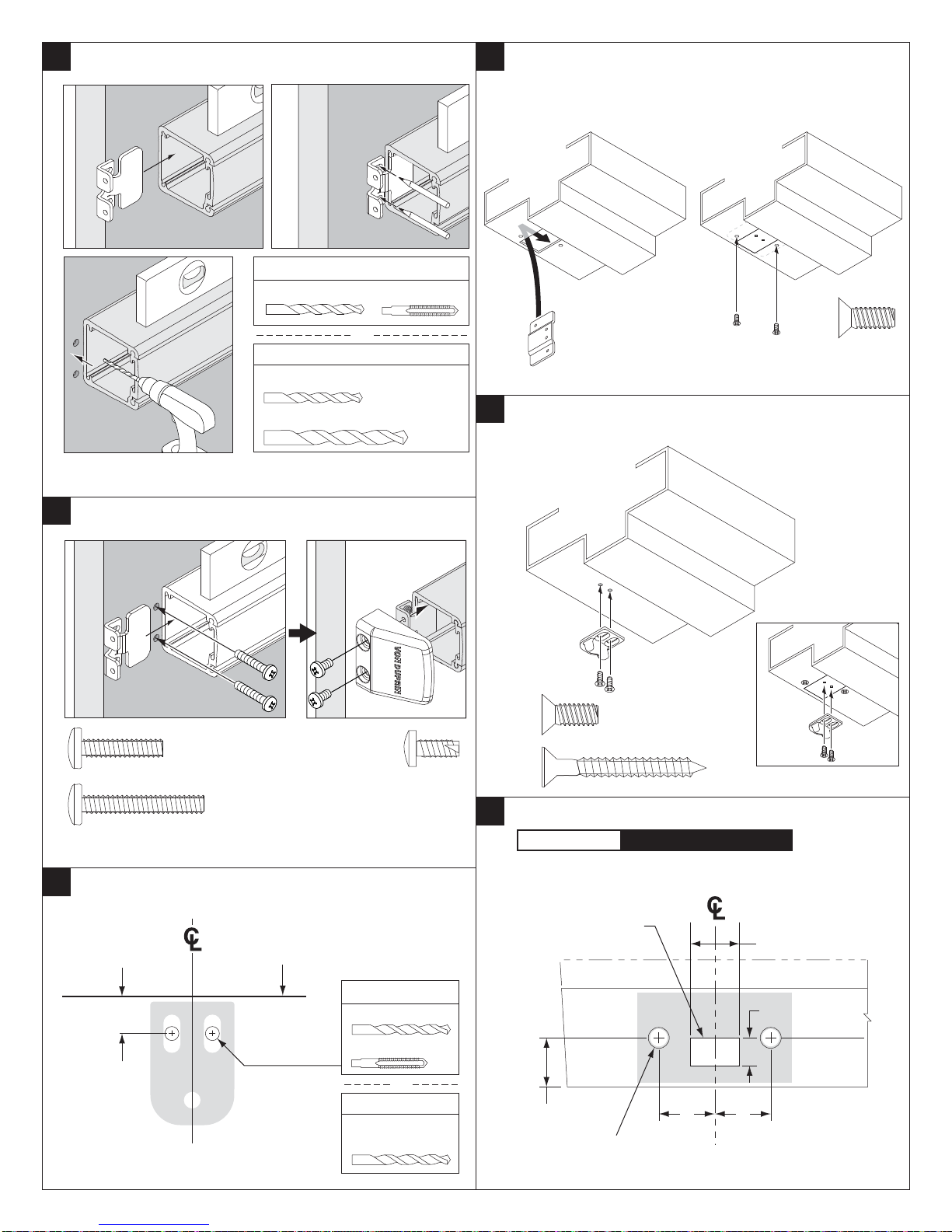

12 Prepare Bottom of Door for Latch Mounting.
Latch
1¹⁄₂"
2¹⁄₄"
⁷⁄₃₂" Dia. x2
82˚ Csk to ³⁄₈" Dia.
Push Side of Door
Aluminum For 2-Point Latch Only
11 Prepare Top of Door for Latch Mounting.
Latch
1¹⁄₂"
3⁷⁄₁₆"
⁷⁄₃₂" Dia. x2
82˚ Csk to ³⁄₈" Dia.
Push Side of Door
Aluminum
10 If Necessary, Prepare Door for Top Strike Cutout.
1¹⁄₄"
⁹⁄₁₆"
Cut out material
this side only
Latch
Push side of door, RHR shown
NOTE: Confirm top latch (and bottom latch, if applicable) is in correct orientation before proceeding.
NOTE: It is normal for the
cable to bend inside the door,
forcing the latch outward.
!
14 Slide Latch and Center Slide Assembly thru Door.
Top
Aluminum Door application shown
2-Point Latch
1-Point Latch (LBL)
Top
Holes should face
push side of door
Holes should face
push side of door
Holes should face
push side of door
!
!

6

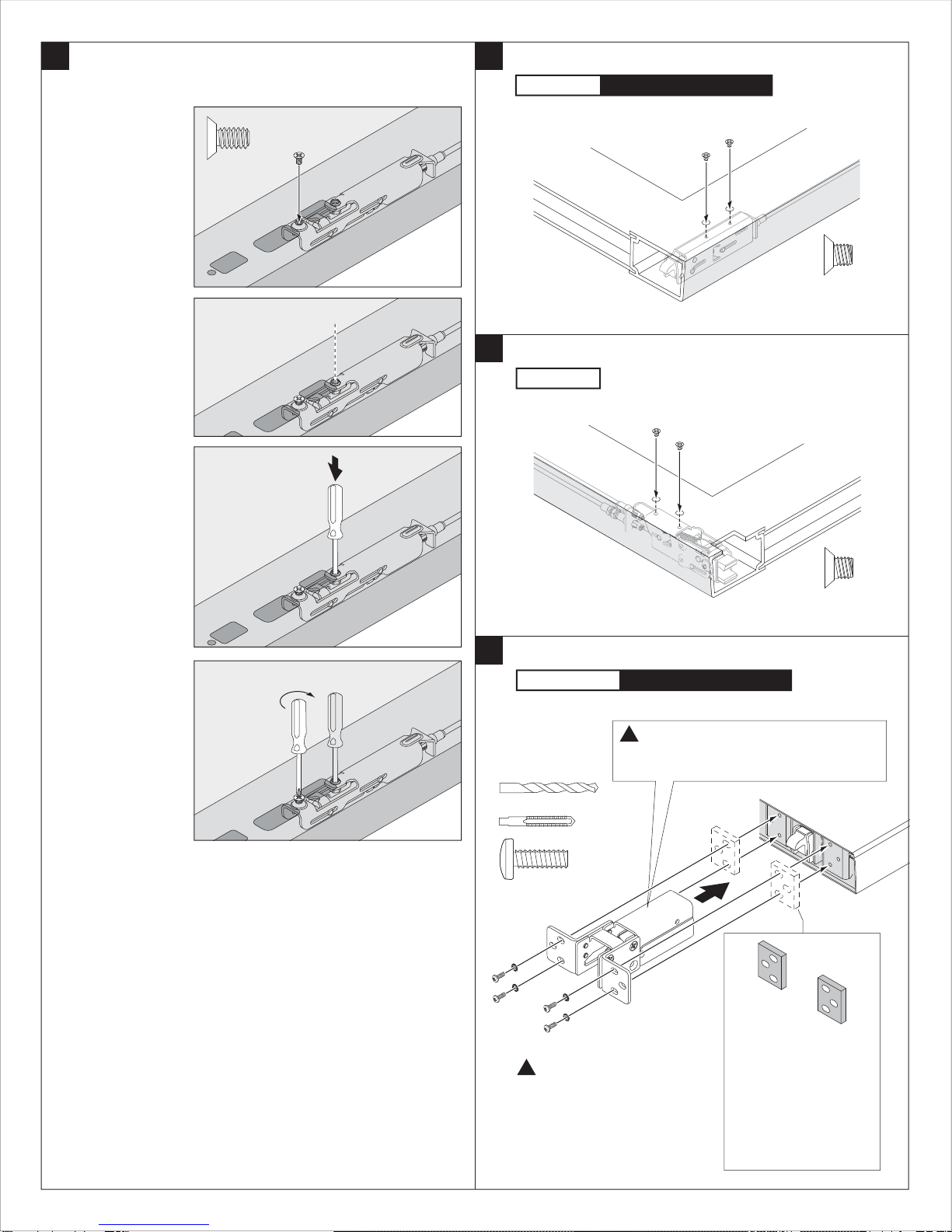

15 Secure Center Slide to Door.
Secure center slide to
door by lightly
tightening lower screw
Align upper hole
visually
Insert small screwdriver
into upper hole to
prevent center slide
from rotating
Fully tighten lower
screw
a
b
c
d
16 Align Bottom Latch and Install Mounting Screws.
Aluminum For 2-Point Latch Only
18 Install Bottom Latch Mounting Bracket Assembly.
Hollow Metal For 2-Point Latch Only
NOTE: Use 2 screws per
bracket (center hole not
used for this application).
!
#25
#10-24
Push Side
of Door
NOTE: Confirm correct orientation of
assembly before proceeding. Open side of
housing should face pull side of door.
!
If using
³⁄₄" undercut door
spacer blocks (2)
are required
Spacer Block Kit
(24231516)
purchased separately
17 Secure Top Latch with 2 Screws.
Aluminum

7
22 If Necessary, Cut Device.
Door
1¹⁄₂" (38 mm)
Recommended
Jamb
Jamb
Cover Plate
Flush
Temporarily Remove
Anti-Rattle Clip
23 Attach Center Case to Door.
Sex Bolt
Thru-bolting Trim
Block may need to
be pushed down
to insert screw
(1³⁄₄" door)
(2¹⁄₄" door)
(Bottom hole only)
(1³⁄₄" door)
(2¹⁄₄" door)
OR
Top mounting screw is secured
into upper hole of center slide
NOTE: If using 360/386/388
trim, this screw will pass
thru top center slide hole
and secure directly into trim.
!
21 Hang Door on Frame.
CAUTION: For 2-point latches, bottom latch cannot be in locked
position while hanging door on frame. Latch must be retracted.
!
19
Insert Latch Adjustment Pin to Hold Bottom Latch
in Place.
Hollow Metal For 2-Point Latch Only
Pin must
go thru
both sides
of bracket
Bottom edge of latch
housing should be flush
with bottom of door (for
³⁄₈" standard undercut)
Squeeze tabs on
cap, then insert pin
Assemble pin
ab
20 Secure Top Latch Mounting Bracket.
#25
#10-24
NOTE: Use 2 screws per
bracket (center hole not
used for this application).
!
NOTE: It is normal for
the cable to bend
inside the door, forcing
the latch outward as
shown here.
!
Hollow Metal

8
28 Install 2 Top Strike Screws Using the Slot Features
on the Strike.
29 Prepare Floor for Bottom Strike.
Hollow Metal For 2-Point Latch Only
⁷⁄₈"1" 1"
⁷⁄₈"
¹⁄₂"
³⁄₈" Dia. x 1¹⁄₄" Deep
2 places
Chisel out pocket
¹⁄₂" Deep
Latch
Push Side
Pull Side
27 If Retrofit Installation, Install Steel Cover Plate to
Cover Existing 338 Strike Opening in Accordance
with the Frame Manufacturer’s Fire Listing.
b
a
249 Top Strike
Retrofit installation
(metal)
(wood)
Strike Filler Plate
(3FP0116A001-GL)
purchased separately
25 Install End Cap Bracket and End Cap.
Surface Mount or Sex Bolts
(1³⁄₄" door)
Sex Bolts
(2¹⁄₄" door)
26 If New Installation, Prepare Door Frame for Top
Strike.
24 Mark and Prepare 2 Holes.
Surface Mount (metal doors only)
Sex Bolts
¹⁄₄" (device side)
¹³⁄₃₂" (trim side)
OR
#25 #10-24
b
c
a
Edge
of
stop
¹⁄₂"
Use strike to
mark location
of 2 holes
Latch
Metal
Wood
#25 x ¹⁄₂" Deep x2
#10-24
¹⁄₈" Drill
Pilot 1" Deep x2
OR

9
30 Install Bottom Strike.
Clear holes of debris, then
drop in anchors (slotted end
first)
Secure the anchors using a
hammer and punch
Install strike plate and secure
with 2 screws
a
c
Hollow Metal For 2-Point Latch Only
349 Bottom Strike
bIMPORTANT:
Anchors must
be below flush.
!
31 Prepare Threshold.
Aluminum For 2-Point Latch Only
a. After closing door with bottom latch installed, mark the location the
bottom latch bolt is contacting the threshold.
b. Drill a ³⁄₄" diameter hole in the threshold.
Stop
³⁄₄" Dia.
Latch
Latch bolt
33 Adjust Lift Finger.
Loosen retainer clip
screw
Loosen adjustment
screw until the lift
finger drops and
you feel contact
with the center
slide
Tighten retainer clip
screw
a
b
c
32 Install Lift Finger and Retainer Clip.
Slide L-shaped lift finger thru block in
device center case and then into
center slide
Insert adjustment
screw through top
slot and rotate
with screwdriver
to raise lift finger
until it is snug
against block
Secure lift
finger and
retainer clip
with screw
a
c
de
slot
Lift finger must insert
into center slide here
b
For 2-Point Latch Only
Push cable to the side
so it does not interfere
with lift finger.
Install retainer clip against
lift finger, snapping it
into the slot of the
adjustment screw
NOTE: The lift finger installation and adjustment must be performed
while the latches are in the extended (latched) position.
!
NOTE: Lift finger adjustment must be performed while
the latches are in the extended (latched) position.
!

10
34 Perform Functional Test of Door.
For 2-Point Latch Only
a. Depress pushbar. Door should begin to open when pushbar is nearly
fully depressed. If necessary, refer to Step 33 to readjust lift finger.
b. With door closed, top latch should be secure.
c. With door closed, bottom latch should be secure.
d. Confirm that bottom latch does not drag against floor when door is
opened.
If this occurs, remove latch adjustment pin and raise latch, then reinsert
pin in next notch.
Pin must go thru
both sides of bracket
Hollow Metal For 2-Point Latch Only
Squeeze tabs
on cap before
reinserting pin
To remove pin, slide a
screwdriver beneath the
latch adjustment pin cap
1. Remove mortise cylinder cam and reinstall in reverse (Figure 1).
2. Insert key and rotate cam to install the cylinder to the cover plate (Figure 2).
3. Remove key to slide cover plate in position in the mechanism case.
Std. mortise
cylinder
Mortise
cylinder cam
Std. mortise
cylinder
Mortise
cylinder cam
CD function conversion
Dogging procedure
Turn cylinder key approximately ¹⁄₈
turn for standard dogging
Depress pushbar
Figure 1
Figure 2
Std. mortise
cylinder
Offset toward
pushbar
Dogging plate
cover
Cylinder collar
Cylinder
locking washer Cylinder
locking nut
Mechanism
case
OPTIONAL EQUIPMENT
CD (CYLINDER DOGGING)
Remove protective film
from pushbar
36 Install Center Case Cover.
35 Adjust Top Strike as Necessary, then Install the
Third Strike Screw to Fix the Strike Position.
Metal
Wood
#25 x ¹⁄₂" Deep
#10-24
¹⁄₈" Drill
Pilot 1" Deep
OR
(metal) (wood)

11
RHR
2⁷⁄₈"
39⁵⁄₈"
to
finished
floor
¹⁄₈" Radius
(8 places)
¹⁹⁄₃₂"
¹³⁄₃₂"
¹³⁄₁₆"
⁷⁄₈"
8³⁄₁₆"
6¹⁄₄"
3¹⁄₈"
2⁷⁄₈"
1⁵⁄₈"
1⁵⁄₈"
1⁵⁄₁₆"
⁷⁄₈"
⁷⁄₈"
Device Side
only
Device Side
only
C Latch
L
C Device
L
A
2¹⁄₈" to 2³⁄₄"
2³⁄₄" to 3³⁄₄"
3³⁄₄" to 5"
5" to flush
2¹⁄₂" to 3³⁄₄"
3³⁄₄" to 5"
5" to flush
33/3549A
B
1³⁄₁₆"
1¹⁄₂"
1⁷⁄₈"
2¹⁄₂"
1¹⁄₂"
1⁷⁄₈"
2¹⁄₂"
Installation
pair of doors
single door
Use of outside trim may alter minimum
stile requirement. See trim template.
s
A
3⁵⁄₈" Min.
33/3549A-F
B
2³⁄₄"
B = backset
A = stile width
¹⁄₄" Radius
(4 places)
ALUMINUM AND HOLLOW METAL
DOORS - RHR
33/3549A Device Template
Hollow Metal Door
OR
¹⁄₄" Dia. (Device Side only)
82° Csk to ⁷⁄₁₆" Dia.
NOTE: Consult aluminum
door manufacturer to confirm
backset compatibility.
!
C
D
⁵⁄₁₆" (device side)
¹³⁄₃₂" (trim side)
Sex Bolt (for bottom hole only)
⁵⁄₁₆" (device side)
(Screw will tighten directly
into center slide)
C
D
Thru-Bolting Trim
C
D
⁵⁄₁₆" (device side)
¹⁄₂" (trim side)
OR
¹⁄₄" Dia. (Device Side only)
82° Csk to ³⁄₈" Dia.
Aluminum Door

12
LHR L
C Device
L
2⁷⁄₈"3¹⁄₈"
39⁵⁄₈"
to
finished
floor
¹⁄₈" Radius
(8 places)
¹⁹⁄₃₂"
¹³⁄₃₂"
¹³⁄₁₆"
⁷⁄₈"
8³⁄₁₆"
6¹⁄₄"
2⁷⁄₈"
1⁵⁄₈"
1⁵⁄₈"
1⁵⁄₁₆"
⁷⁄₈"
⁷⁄₈"
Device Side
only
Device Side
only
A
2¹⁄₈" to 2³⁄₄"
2³⁄₄" to 3³⁄₄"
3³⁄₄" to 5"
5" to flush
2¹⁄₂" to 3³⁄₄"
3³⁄₄" to 5"
5" to flush
33/3549A
B
1³⁄₁₆"
1¹⁄₂"
1⁷⁄₈"
2¹⁄₂"
1¹⁄₂"
1⁷⁄₈"
2¹⁄₂"
Installation
pair of doors
single door
Use of outside trim may alter minimum
stile requirement. See trim template.
s
A
3⁵⁄₈" Min.
33/3549A-F
B
2³⁄₄"
B = backset
A = stile width
OR
¹⁄₄" Radius
(4 places)
ALUMINUM AND HOLLOW METAL
DOORS - LHR
33/3549A Device Template
Hollow Metal Door
¹⁄₄" Dia. (Device Side only)
82° Csk to ⁷⁄₁₆" Dia.
NOTE: Consult aluminum
door manufacturer to confirm
backset compatibility.
!
Latch C
C
D
⁵⁄₁₆" (device side)
¹³⁄₃₂" (trim side)
Sex Bolt (for bottom hole only)
⁵⁄₁₆" (device side)
(Screw will tighten directly
into center slide)
C
D
Thru-Bolting Trim
C
D
⁵⁄₁₆" (device side)
¹⁄₂" (trim side)
OR
¹⁄₄" Dia. (Device Side only)
82° Csk to ³⁄₈" Dia.
Aluminum Door
