VPro SR User manual

OSPSR225-EN
1/14
Instruction manual
Pneumatic Actuated
B
all
Valve
SR
SH
MS
MV
MH
H
HH
ST
SL
SP-1474
Please read this manual before installation and use.
GENERAL
Threaded-end ball valve with pneumatic actuator.
Actuator
Double-acting type
PND
TAD
Single-acting type
PSO (Airless SHUT)
TAO (Airless SHUT)
PSC (Airless OPEN)
TAC (Airless OPEN)
Valve
SR type For food / Corrosive fluid.
SH type For high temp. (up to 2 MPa)
MS type 3 piece / For heavy load.
MV type 3 piece / For control.
MH type 3 piece / For high pressure.
H type For high pressure.
HH type For ultra-high pressure.
ST type 4 seats, 3 way. (with flow paths)
SL type 4 seats, 3 way.
PRODUCT CODE
SR type S R 9 5 U U T - -
SH type S H 9 5 U U F - -
MS type M S 9 5 U U P - -
MV type (V-port) M V 9 5 U U P - - -
(Reduced port) M V 9 5 U U P R - -
MH type M H 9 5 U U - -
H type H - 9 5 U D - -
HH type H H 9 5 S U D - -
ST type S T 9 5 U U F - - -
SL type S L 9 5 U U F - -
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11)
(1) Actuator
PND TAD
PSO TAO
PSC TAC
(2)
Valve
SR SH
MS MV
MH
H HH
ST SL
(3)
Voltage
9 : Air
(4) Sizing code
0 : Standard
1 : Light
2 : Heavy
(5) Connection
5 : Threaded End Rc
(6) Body material
U : SCS14A / SUS316Ti
S : Carbon steel
(7) Ball material
U : SCS14A / SUS316
(8) Seat material
T : PTFE
F : F-PTFE
P : R-PTFE
D : POM
R : R-F-PTFE
(9) Size [mm]
ex. 25 A ® 025
(10) Option
FR : Filter Regulator Unit
LB : Limit Switch Box
EP : Positioner
EX : Smart Positioner
ES : Smart Positioner
ER : Smart Positioner
(11) Positioner control pattern (TADMV)
A : SHUT by 4 mA « OPEN by 20 mA
B : SHUT by 20 mA « OPEN by 4 mA
(11) Positioner control pattern (PSOMV / TAOMV)
C : OPEN by 20 mA « SHUT by 4 mA (Airless SHUT)
D : OPEN by 4 mA « SHUT by 20 mA (Airless SHUT)
(11) Positioner control pattern (PSOMV / TAOMV)
E : SHUT by 4 mA « OPEN by 20 mA (Airless OPEN)
T : SHUT by 20 mA « OPEN by 4 mA (Airless OPEN)
(11) Flow paths
a to d : ST type
MS / MV / MHSHSR
ST / SLH / HH

OSPSR225-EN
2/14

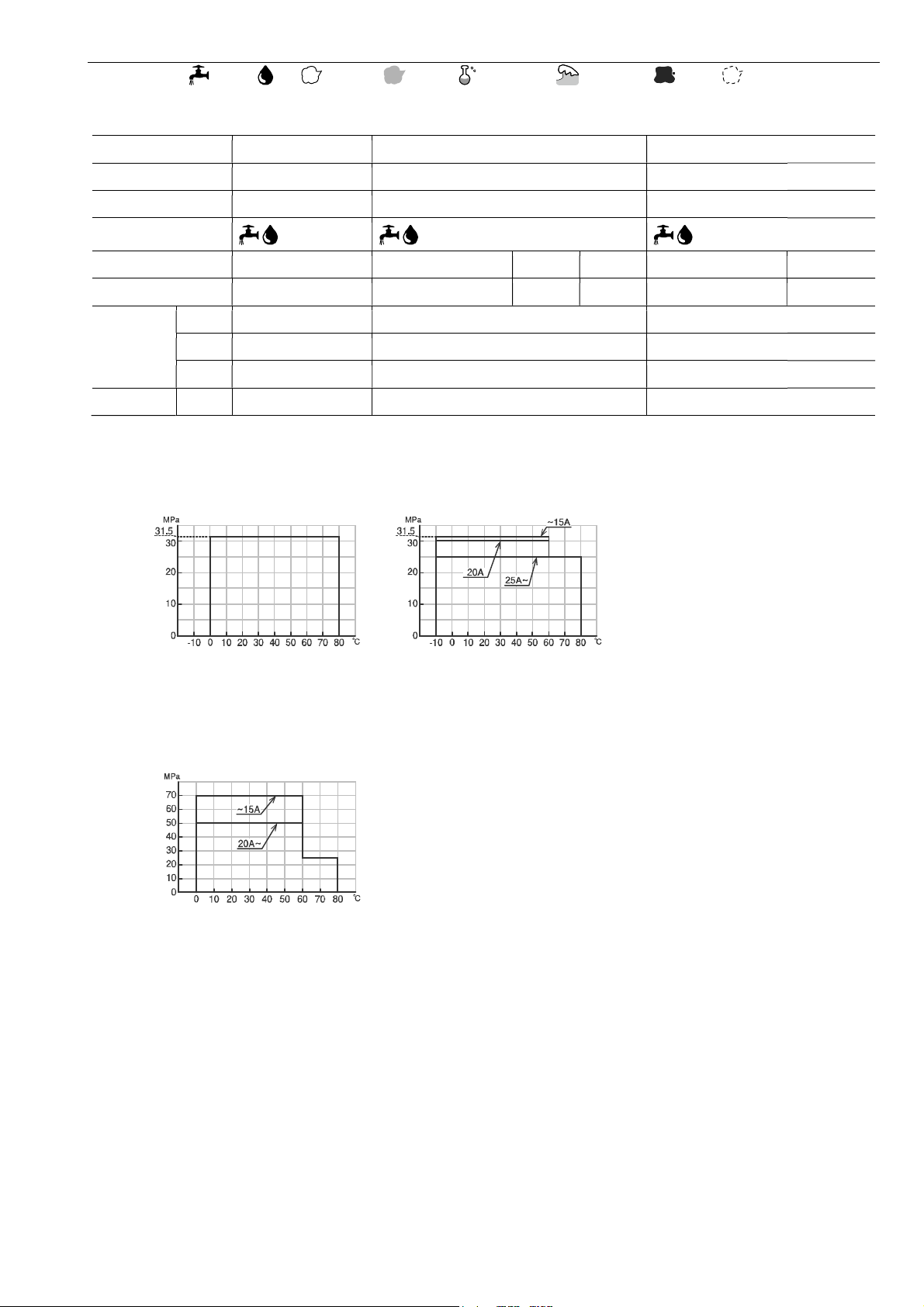

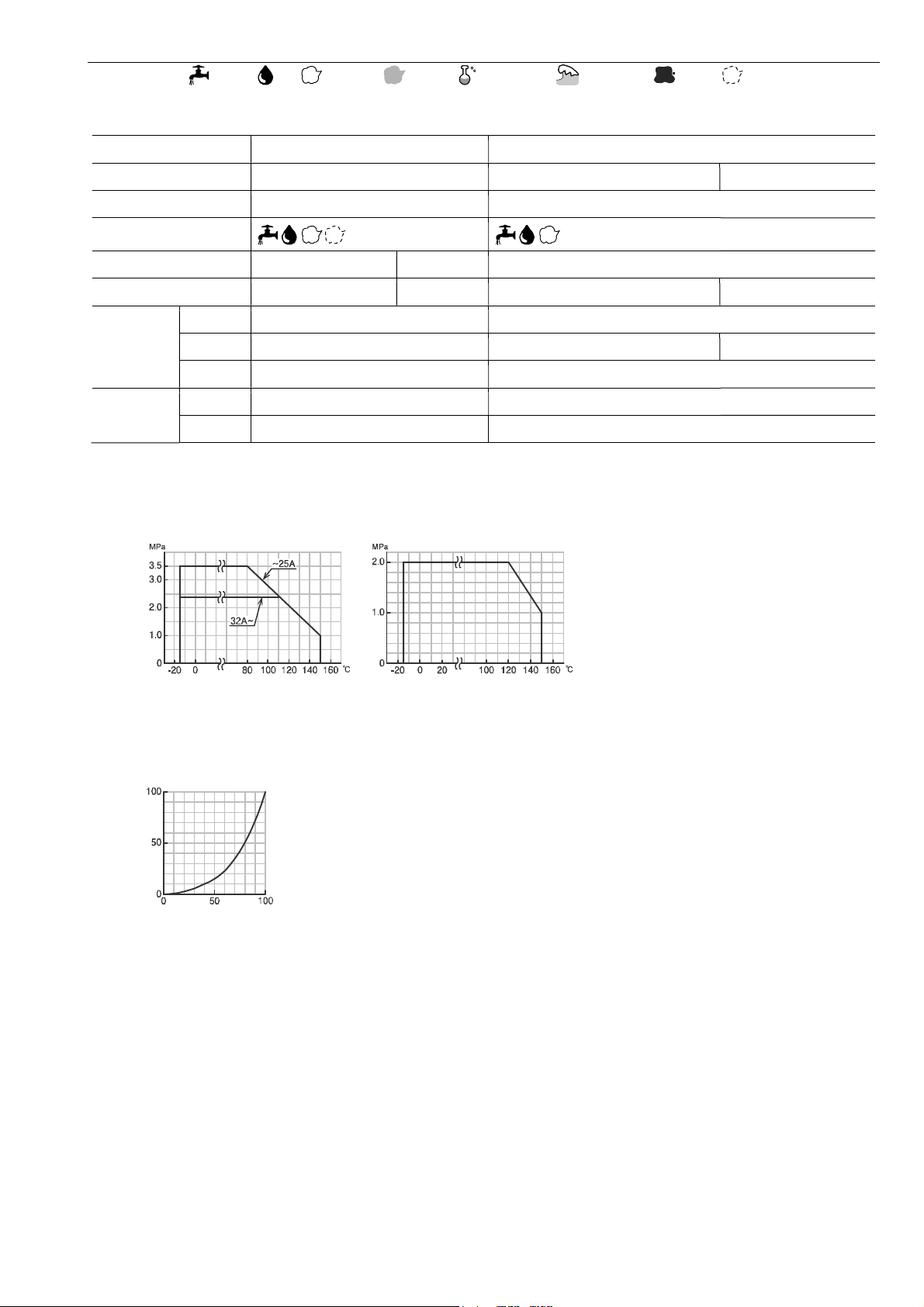

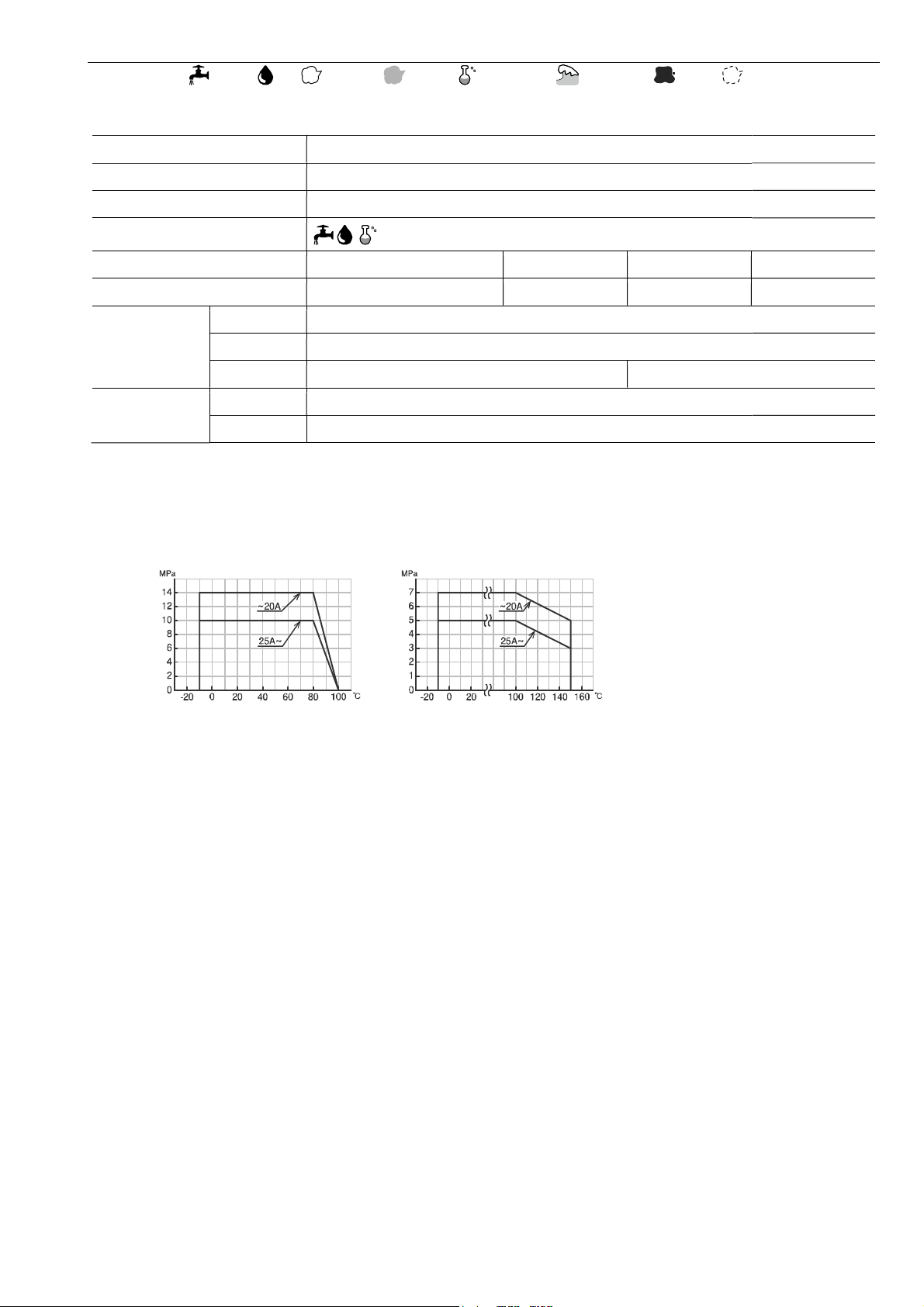

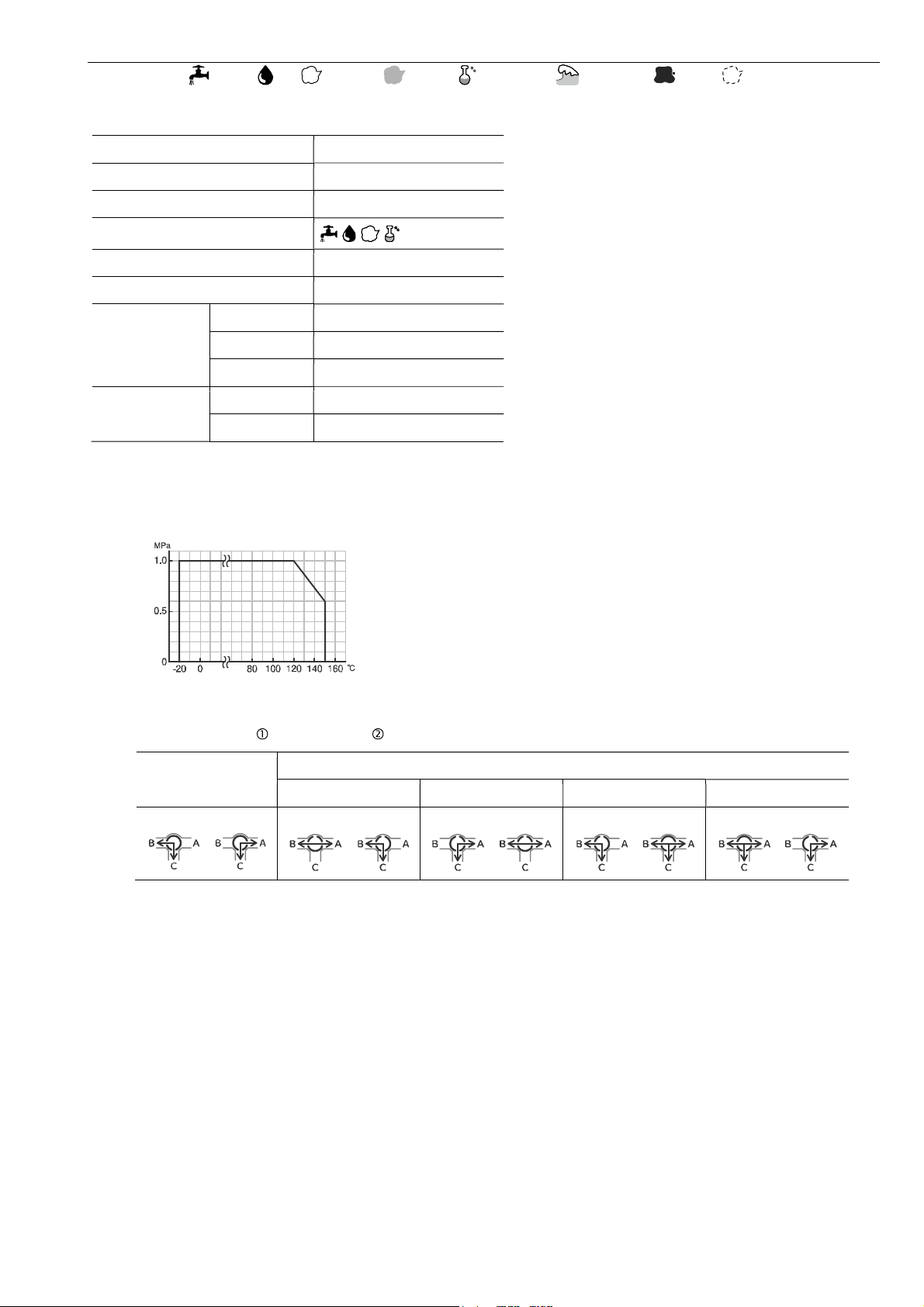

VALVES SPECIFICATIONS
Water Oil Air, Gas Steam Chemicals Sea water Slurry Negative pressure
SR SH type
Valve type SR SH
Design 2-way, Full port 2-way, Full port
Connection Threaded End Rc Threaded End Rc
Fluid
Max pressure 2 MPa 1.4 MPa 2 MPa
Size [mm] 015 to 020 025 to 040 015 to 032
Material Body SCS14A SCS14A
Ball SCS14A SCS14A
Seat PTFE F-PTFE
Stem seal Packing F-PTFE R-PTFE
O-ring - Steam resistant FKM
PRESSURE & TEMPERATURE RATING
SR SH

OSPSR225-EN
3/14
VALVES SPECIFICATIONS
Water Oil Air, Gas Steam Chemicals Sea water Slurry Negative pressure
MS MV type
Valve type MS MV
Design 2-way, Full port 2-way, V-port (Reduced port) 2-way, V-port
Connection Threaded End Rc Threaded End Rc
Fluid
Max pressure 3.5 MPa 2.4 MPa 2 MPa
Size [mm] 010 to 025 032 to 050 010 to 015 015 to 050
Material Body SCS14A SCS14A
Ball SCS14A SUS316 SUS316 / SCS14A
Seat R-PTFE R-PTFE
Stem seal Packing R-PTFE R-PTFE
O-ring FKM FKM
PRESSURE & TEMPERATURE RATING
MS MV
INHERENT FLOW CHARACTERISTIC (MV)
Cv value (%)
Valve
opening (%)
Range ability
MV-5UUP - 015 to 050
MV-5UUP R 010 to 015
50:1
100:1

OSPSR225-EN
4/14
VALVES SPECIFICATIONS
Water Oil Air, Gas Steam Chemicals Sea water Slurry Negative pressure
MH type
Valve type MH
Design 2-way, Full port
Connection Threaded End Rc
Fluid
Max pressure 14 MPa 10 MPa 7 MPa 5 MPa
Size [mm] 010 to 020 025 to 040 010 to 020 025 to 040
Material Body SCS14A
Ball SCS14A (HCr)
Seat POM R-F-PTFE
Stem seal Packing -
O-ring FKM
Note) It cannot be used POM seat for a water solution of more than 85 °C. (MH type)
PRESSURE & TEMPERATURE RATING
Seat material: POM Seat material: R-F-PTFE
MH-5UUD MH-5UUR

OSPSR225-EN
5/14
VALVES SPECIFICATIONS
Water Oil Air, Gas Steam Chemicals Sea water Slurry Negative pressure
H HH type
Valve type H (Carbon steel) H (Stainless) HH
Design 2-way, Full port 2-way, Full port 2-way, Full port
Connection Threaded End Rc Threaded End Rc Threaded End Rc
Fluid
Max pressure 31.5 MPa 31.5 MPa 30 MPa 25 MPa 70 MPa 50 MPa
Size [mm] 008 to 025 008 to 015 020 025 010 to 015 020 to 025
Material Body Carbon steel SUS316Ti Carbon steel
Ball SUS316Ti (HCr) SUS316Ti (HCr) SUS316Ti (HCr)
Seat POM POM POM
Stem seal O-ring FKM FKM FKM
PRESSURE & TEMPERATURE RATING
Body material: Carbon steel Body material: Stainless
H-5SUD H-5UUD
PRESSURE & TEMPERATURE RATING (HH)

OSPSR225-EN
6/14
VALVES SPECIFICATIONS
Water Oil Air, Gas Steam Chemicals Sea water Slurry Negative pressure
ST SL type
Valve type ST / SL
Design 3 way, Standard port
Connection Threaded End Rc
Fluid
Max pressure 1 MPa
Size [mm] 015 to 032
Material Body SCS14A
Ball SCS14A
Seat F-PTFE
Stem seal Packing F-PTFE
O-ring -
PRESSURE & TEMPERATURE RATING
FLOW PATHS (Position / P1) (Position / P2)
SL ST
Form: a Form: b Form: c Form: d
P1 P2 P1 P2 P1 P2 P1 P2 P1 P2
Note) When a closed path is exposed to high pressure, it may leak slightly to an open path.

OSPSR225-EN
7/14
PNEUMATIC ACTUATOR SPECIFICATIONS
3 way valve: SHUT / Position , OPEN / Position
PND type
Classification Double-acting type
Actuator type PND-03S PND-03D PND-04D PND-05D
Weight [kg] 0.2 0.3 0.5 0.8
Air consumption []
(round-trip) 0.05 0.08 0.19 0.35
Operation time [s] Less than 1.
Operation SHUT by air to port A. « OPEN by air to port B.
Air pressure 0.4 to 0.7 MPa
Piping connection Rc 1/8
Method of operation Scotch yoke
Housing material PPS resin
Ambient temperature -10 to 50 °C (Please be careful when you use in 5 °C or less, so that there no freeze.)
Manual operation Operates the upper shaft of the actuator directly.
PSO PSC type
Classification Single-acting type (Spring-return)
Actuator type PSO - 03S
PSC - 03S
PSO - 03D
PSC - 03D
PSO - 04D
PSC - 04D
PSO - 05D
PSC - 05D
PSO - 05W
PSC - 05W
Weight [kg] 0.2 0.4 0.6 1.2 1.8
Air consumption []
(round-trip) 0.03 0.04 0.1 0.2 0.53
Air exit One side Both sides
Operation time [s] Less than 1.
Operation PSO : OPEN by air to intake port. « SHUT by spring-return. (Airless SHUT)
PSC : SHUT by air to intake port. « OPEN by spring-return. (Airless OPEN)
Air pressure 0.4 to 0.7 MPa
Piping connection Rc 1/8
Method of operation Scotch yoke
Housing material PPS resin
Ambient temperature -10 to 50 °C (Please be careful when you use in 5 °C or less, so that there no freeze.)
Manual operation No manual operation.

OSPSR225-EN
8/14
PNEUMATIC ACTUATOR SPECIFICATIONS
3 way valve: SHUT / Position , OPEN / Position
TAD type
Classification Double-acting type
Actuator type TAD-040 TAD-050 TAD-063 TAD-080 TAD-100 TAD-125 TAD-160
Weight [kg] 0.9 1.3 2.1 3.4 6.1 9.8 18.2
Air consumption []
(round-trip) 0.11 0.18 0.34 0.66 1.36 2.72 5.56
Operation SHUT by air to port A. « OPEN by air to port B.
Air pressure 0.4 to 0.7 MPa
Piping connection Rc 1/8 Rc 1/4
Method of operation Rack-and-pinion Scotch yoke
Housing material Aluminum alloy
Ambient temperature -10 to 50 °C (Please be careful when you use in 5 °C or less, so that there no freeze.)
Manual operation Operates the upper shaft of the actuator directly.
TAO TAC type
Classification Single-acting type (Spring-return)
Actuator type TAO
-
040
TAC
-
040
TAO-050
TAC-050
TAO-063
TAC-063
TAO-080
TAC-080
TAO-100
TAC-100
TAO-125
TAC-125
TAO-160
TAC-160
Weight [kg] 2.3 3 4.9 8.5 16.4 27.6 51.2
Air consumption []
(round-trip) 0.23 0.34 0.67 1.26 2.62 4.44 8.77
Operation TAO : OPEN by air to intake port. « SHUT by spring-return. (Airless SHUT)
TAC : SHUT by air to intake port. « OPEN by spring-return. (Airless OPEN)
Air pressure 0.4 to 0.7 MPa
Piping connection Rc 1/4
Method of operation Rack-and-pinion Scotch yoke
Housing material Aluminum alloy
Ambient temperature -10 to 50 °C (Please be careful when you use in 5 °C or less, so that there no freeze.)
Manual operation No manual operation. Option: MT (Manual handle unit)

OSPSR225-EN
9/14
PNEUMATIC ACTUATOR SPECIFICATIONS
3 way valve: SHUT / Position , OPEN / Position
OPTIONAL PARTS
Classification Code PND PSO PSC TAD TAO TAC
Speed Controller with bypass valve (Housing material: PPS) BS
FR Unit (Regulator with Filter) TA2-FR (KONAN) FR
Limit Switch Box (Standard load signal) LB
Explosion Proof Limit Switch / VCX7001 (azbil) Ex d e II C T6 LR
Speed Controller (with One-touch Fitting) One set SE
Speed Controller (with One-touch Fitting) Two sets SS
Speed Controller (with One-touch Fitting) Dual Speed Controller SF
Manual handle unit (for TAO-050 to 160 / TAC-050 to 160) MT
Sealing the spring unit. (Oil-free) 92
Smart positioner for PSO / PSC (Except 03S) EX
Explosion Proof Electro-Pneumatic Positioner Ex dmb II B T5 (TIIS) EP
Smart positioner ES
ER
Smart positioner (with 4 to 20mA output) ET
EU
SHUTby 4 mA. « OPEN by 20 mA. A
SHUTby 20 mA. « OPEN by 4 mA. B
OPENby 20 mA. « SHUT by 4 mA. (Airless SHUT) C
OPENby 4 mA. « SHUT by 20 mA. (Airless SHUT) D
SHUTby 4 mA. « OPEN by 20 mA. (Airless OPEN) E
SHUTby 20 mA. « OPEN by 4 mA. (Airless OPEN) T
SHUT by 4 mA. « OPEN by 20 mA. A
SHUTby 20 mA. « OPEN by 4 mA. B
OPENby 20 mA. « SHUT by 4 mA. (Airless SHUT) C
OPENby 4 mA. « SHUT by 20 mA. (Airless SHUT) D
SHUTby 4 mA. « OPEN by 20 mA. (Airless OPEN) Y
SHUTby 20 mA. « OPEN by 4 mA. W
OPENby 4 mA. « SHUT by 20 mA. (Airless SHUT) X
SHUTby 4 mA. « OPEN by 20 mA. (Airless OPEN) E
SHUTby 20 mA. « OPEN by 4 mA. (Airless OPEN) T
5-Port Solenoid Valve Voltage: 100 V AC 1S
(with speed controller, silencer, DIN connector) Voltage: 200 V AC 2S
Voltage: 110 V AC 3S
Voltage: 220 V AC 4S
VZ3190- D-X213 Voltage: 24 V DC 5S
Positioner operationSmart positioner
OPEN by loss of signal
Smart positioner SHUT by loss of signal

OSPSR225-EN
10/14
PNEUMATIC ACTUATOR SPECIFICATIONS
3 way valve: SHUT / Position , OPEN / Position
SOLENOID VALVE (Applicable Pneumatic Actuators: PND-05D / TAD / TAO / TAC)
Classification ( : Voltage code) Code
5-port
Solenoid Valve
Return
(with bypass valve)
Lead wire 4N3S102K-L N43SL : Voltage
1 : 100V AC
3 : 200V AC
5 : 24V DC
DIN Connector 4N3S102K-D N43SD
DIN Connector (with lamp) 4N3S102K-N N43SN
Watertight cover 4N3S102K-W N43SW
5-port
Explosion proof
solenoid valve
Return
(with bypass valve)
Conduit 4N4S102K-E01-H B0-R 4N4S01- B0, NO
Flame proof packing
(Cable size 9.5 to 10.4 mm)
4N4S102K-E10-H B0-R 4N4S10- B0, NO
Operate by solenoid valve (Normally Open)
PND / TAD SHUT by solenoid off. « OPEN by power to solenoid.
PSO / TAO (Airless SHUT) OPEN by power to solenoid. « SHUT by solenoid off. (Spring-return)
PSC / TAC (Airless OPEN) SHUT by power to solenoid. « OPEN by solenoid off. (Spring-return)
