Waferlock L701 User manual

User Manual
EN DE FR
ES IT
Smart Lock
L701

L701
User Manual
Smart Lock
www.waferlock.com
ISO9001 CERTIFIED

1
WAFERLOCK CORPORATION
CONTENT
Your Warranty
CE Marking
Your Warranty covers all manufacturers' defects in workmanship and material. It does not cover any unit that is damaged beyond normal
usage, by improper installations, by contacts to chemicals, or any other acts or omissions unsanctioned within the user manual.
All components are covered for one (1) year after the date of purchase or installation from supplier.
The user is required to provide dated proof of purchase. Waferlock or its authorized distributor will determine if there is a warrantable
condition associated with material and/or manufacturing workmanship.
If the lock conforms to the warranty conditions, the lock will be repaired free of charge. The shipping freights would be at owner's expense.
The warranty does not include any further obligation whatsoever, including but not limited to the installation of the replacement unit to the
customer's lock.
All other warranties, express or implied, are disclaimed. All collateral agreements, which purport to modify this limited warranty, are of no
effect.
This device has been tested to and conforms to the regulatory requirements of the European Union and has attained CE Marking. The CE
Mark is a conformity marking consisting of the letters “CE”. The CE Mark applies to products regulated by certain European health, safety
and environmental protection legislation. The CE Mark is obligatory for products it applies to: the manufacturer afxes the marking in order
to be allowed to sell his product in the European market.
This product conforms to the essential requirements of the R&TTE directive 1999/5/EC in order to attain CE Marking.
The CE Marking is not a quality mark. Foremost, it refers to the safety rather than to the quality of a product. Secondly, CE Marking is
mandatory for the product it applies to, whereas most quality markings are voluntary.
P02Main Feature
Technical Specication
STANDALONE MODE PROGRAMMING INSTRUCTION
P03
Program New User Cards / Tags
Program New Pin Code
Delete Individual User (Cards / Tags / Pin Codes)
Delete All User (Cards / Tags / Pin Codes)
Set Up The Lock As Toggle Mode / Set Up The Lock As Standard Mode
Set Up The Lock As Dual Mode / Set Up The Lock As Single Mode
Combination Of Lock Modes / Reset The Lock Master Code

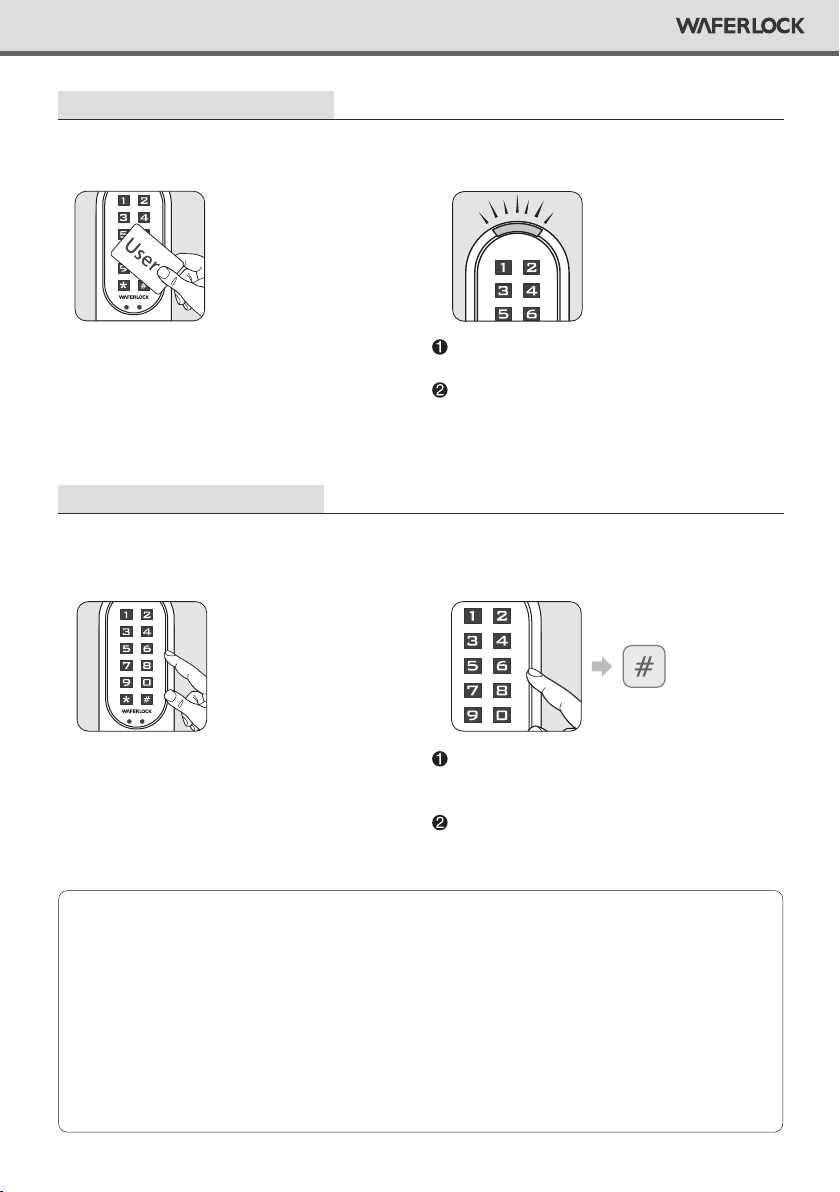

Open Door With User Card / Open Door With Pin Code
P05
P06
P07
P08
P09
P10
P11
P12
P13
P14
Change Master Pin Code
P04Lock set up with App

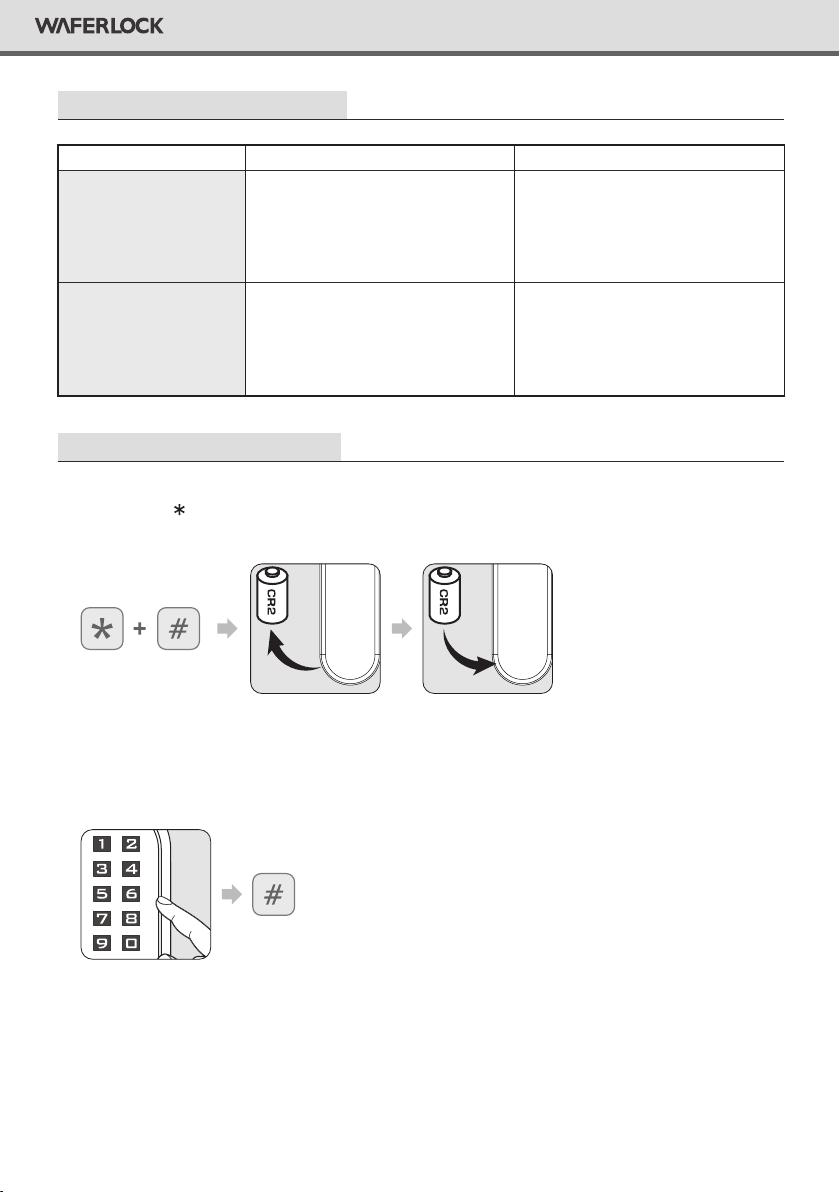

Low Power Warning / Emergency External Power Supply
Serial No. / Name List

2
WAFERLOCK CORPORATION
• 3 in 1: Opening the door by pin code, user card / tag and mobile phone
• UID with Mifare Classic / DESFire and ISO 14443A card
• Low battery with acoustic warning sound
• Number of users:
Standalone mode: Pin Code + Key Card / Tag, up to 250
Pairing with App: App Access + Pin Code + Key Card / Tag, up to 2,000
• 4~6 digits user code
• 4~6 digits master code
• Support 9V external power supply
• Adjustable opening mode:
• Escutcheon size: 290mm (H) x 40mm (W) x 20.5mm (D)
• Battery life: Up to 1.5 years (10 opening a day), at service 20°C
• Battery: CR2 x 1 pcs
• Suitable for door thickness 35-73mm as standard
Main Feature
Technical Specication
④
③
②
①
②
①
Standard + Single Mode ( Once unlocking, then automatically locking after 6 seconds. )
Standard + Dual Mode ( Once unlocking, then automatically locking after 6
seconds + Dual access authentication. )
Toggle + Single Mode ( Toggling automatic to manual locking mode. )
Toggle + Dual Mode
( Toggling automatic to manual locking mode + Dual access authentication.)

3
WAFERLOCK CORPORATION
• Master Pin Code can be programmed from 4 to 6 digits.
• Master Pin Code can be used to open door if no user code/card/tag is programmed, once a new
user is programmed, Master Pin Code will not be able to use to open the door.
• Master Pin Code can be used to open door if all user cards/tags are deleted.
Step 1
Step 2
Step 3
Step 4
Press any button to activate the keypad, then press 0 # to set up the Master Pin Code.
Enter Default Master Pin Code 123456, then press #.
Enter NEW Master Pin Code, then press #.
Re-enter the new 4~6 digits again, then press #.
Change Master Pin Code (Default is 123456)
Default Master Pin Code is 123456.
Correct Master Pin Code: 1 beep followed by green
light ashing 1 time.
Incorrect Master Pin Code: 2 beeps followed by red
light ashing 2 times, then standby.
If enter less than 4 digits or over 6 digits, 2 beeps
followed by red light ashing 2 times.
If code already exists, 2 beeps followed by red light
ashing 2 times, then standby.
If new Master Pin Code is programmed, 1 beep
followed by green light ashing 1 time.
If the code does not match rst code you entered,
2 beeps followed by red light ashing 2 times, then
standby.
If the code matches, 1 beep followed by green light
ashing 1 time.
Note

4
WAFERLOCK CORPORATION
• The WAFERKEY App works on iPhone with iOS 13.6 or later, or devices with Android 8.0 or later.
• Be sure to accept any available rmware update.
• Please refer to the instruction in WAFERKEY App for more information.
• Once the lock turns to App Mode, ALL the existing user access settings (Key Card, Passcode ...)
will be deleted.
Note
Lock Setup with App
Follow below steps to get your lock setup with WAFERKEY App.
You can also use the mobile App to set up your lock step-by-step and access installation videos.
Step 2
Open the App, simply use a Third Party Login
or register a WAFERKEY account.
Step 3
Turn on Bluetooth on your smartphone, stay near
the lock and follow the instruction in the App.
Step 4
Pair the lock in the App and start to use it.
Step 1
Download the App by searching “WAFERKEY”
in the App Store (iOS) or on Google Play (Android).
DON’T WANT TO USE THE APP?
Please go to page P05-12 for manual programming instructions for Standalone Mode.
Questions about your new lock?
Let us help you!
[email protected]

5
WAFERLOCK CORPORATION
STANDALONE MODE PROGRAMMING INSTRUCTION
• When programming a new user card or new pin code, it will create a 3-digit (001, 002, 003...)
“Serial Number” inside lock's memory. Please write down this serial number.
• When performing deleting function, this serial number will be needed. Please use Serial No. /
Name List page in last pages as a note to copy down the serial number for the user.
Note
Program New Users Card / Tags
Step 1
Step 2
Step 3
Press any button to activate the keypad, then press 1 # to program new users.
Enter Master Pin Code, then press #.
Tap new user card to the reader.
Default Master Pin Code is 123456.
Correct Master Pin Code: 1 beep followed by green
light ashing 1 time.
Incorrect Master Pin Code: 2 beeps followed by red
light ashing 2 times, then standby.
If the lock has been programmed
with 250 users already, 2 beeps
followed by red light ashing 2
times, then standby.
If user card/tag is programmed: 1 beep followed by
green light ashing 1 time, then standby.
If a user card/tag card already exists, 2 beeps followed
by red light ashing 2 times, then standby.
User
Standalone Mode programming functions
(Master Pin Code) are NOT available after
the lock is paired with mobile App!
If you would like to use Standalone Mode, please
unpair the lock via WAFERKEY App.
Please remember to change
Master Pin Code (Default is 123456),
referring to the instruction on P03.
WARNING

6
WAFERLOCK CORPORATION
• When programming a new user card or new pin code, it will create a 3-digit (001, 002, 003...)
“Serial Number” inside lock's memory. Please write down this serial number.
• When performing deleting function, this serial number will be needed. Please use Serial No. /
Name List page in last pages as a note to copy down the number for the user.
Step 1
Step 2
Step 3
Step 4
Press any button to activate the keypad, then press 1 #.
Enter Master Pin Code , then press #.
Enter 4~6 digits, then press # (0~9 only, it does not include Pin Code # sign).
Re-enter the new 4~6 digits again, then press #.
Program New Pin Code
Default Master Pin Code is 123456.
Correct Master Pin Code: 1 beep followed by green
light ashing 1 time.
Incorrect Master Pin Code: 2 beeps followed by red
light ashing 2 times, then standby.
If enter less than 4 digits or over 6 digits, 2 beeps
followed by red light ashing 2 times, then standby.
If code already exists, 2 beeps followed by red light
ashing 2 times, then standby.
If code is programmed, 1 beep followed by green light
ashing 1 time.
If the code does not match rst code you entered, 2
beeps followed by red light ashing 2 times, then standby.
If the code matches, 1 beep followed by green light
ashing 1 time.
Note
If the lock has been programmed
with 250 users already, 2 beeps
followed by red light ashing 2
times, then standby.

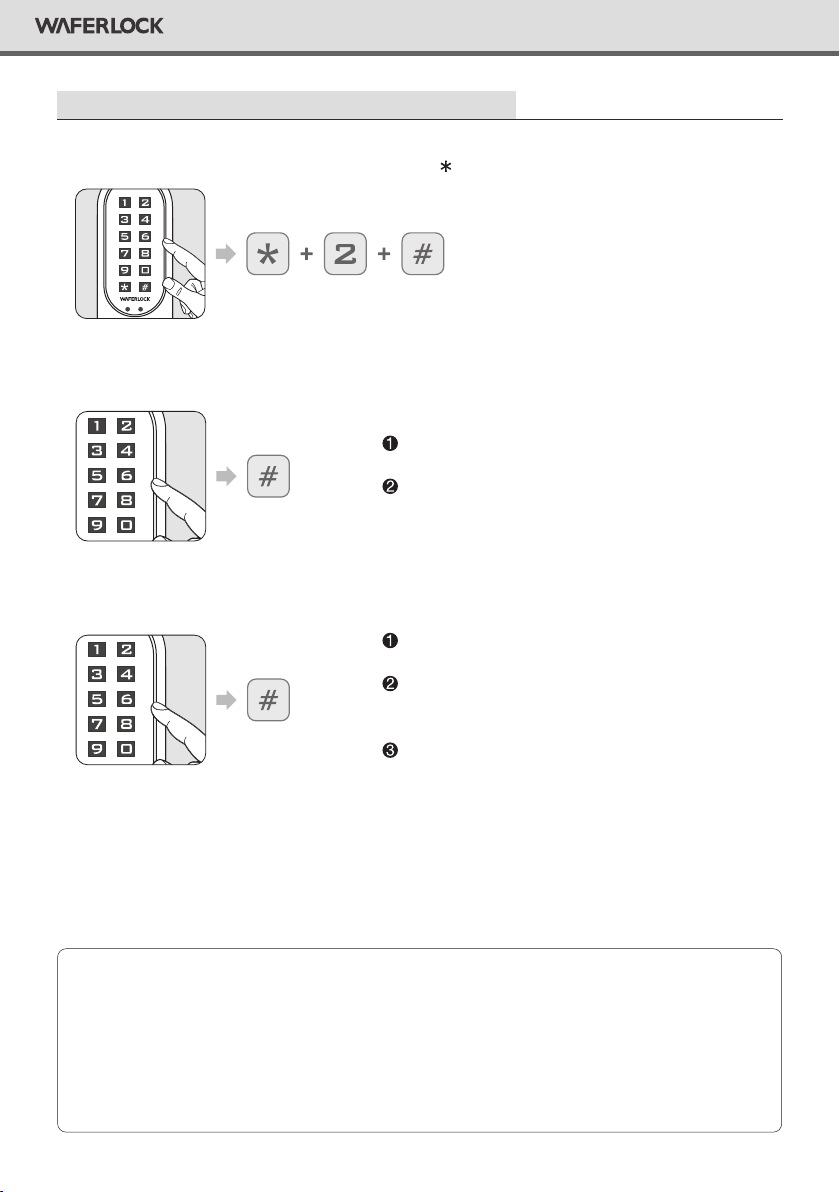

Delete Individual User (Cards / Tags / Pin Codes)
• When performing deleting function, other user's serial number will not be changed.
• When the existing user is deleted, user's serial number will be left blank, the next programmed
user will replace this blank spot. “i.e.: Deleting serial no.004, and then programming a new user,
this new user will be serial no. 004”.
• If there are more than one serial no. deleted, the next programmed user will replace that spot
ascending sequence; i.e.: no.004 and no.100 are deleted, the next programmed user will replace
the no.004 spot, and the following programmed user will replace no.100.
Note
Step 1
Step 2
Step 3
Press any button to activate the keypad, then press 2 #.
Enter current Master Pin Code, then press #.
Enter the existing serial number (3 digits, 001~250), then press #.
Correct Master Pin Code: 1 beep followed by green
light ashing 1 time.
Incorrect Master Pin Code: 2 beeps followed by red
light ashing 2 times, then standby.
If enter less than 3 digits or over 3 digits, 2 beeps
followed by red light ashing 2 times, then standby.
If the serial number does not exist, it will be successful
delete individual user, 1 beep followed by green light
ashing 1 time.
If correct, user will be deleted, 1 beep followed by
green light ashing 1 time.
7
WAFERLOCK CORPORATION

8
WAFERLOCK CORPORATION
Step 1
Step 2
Step 3
Press any button to activate the keypad, then press 3 #.
Enter current Master Pin Code, then press #.
Re-enter Master Pin Code, then press #.
Delete All User (Cards / Tags / Pin Codes) Reset the lock to default
Correct Master Pin Code: 1 beep followed by green
light ashing 1 time.
Incorrect Master Pin Code: 2 beeps followed by red
light ashing 2 times, then standby.
Correct Master Pin Code: 1 beep followed by green
light ashing 1 time.
Incorrect Master Pin Code: 2 beeps followed by red
light ashing 2 times, then standby.
• When all User Card and Pin Code are deleted, the lock will be reset to default setting.
Master Pin Code will be reset to 123456.
• If the lock was in Dual Mode or Toggle Mode, it will also be set back to Standard + Single Mode.
Note

• Toggle Mode: the lock will switch between “Always Open” and “Always Close” when a valid PIN
Code is entered to the lock, or a valid user card is tapped to the reader.
Note

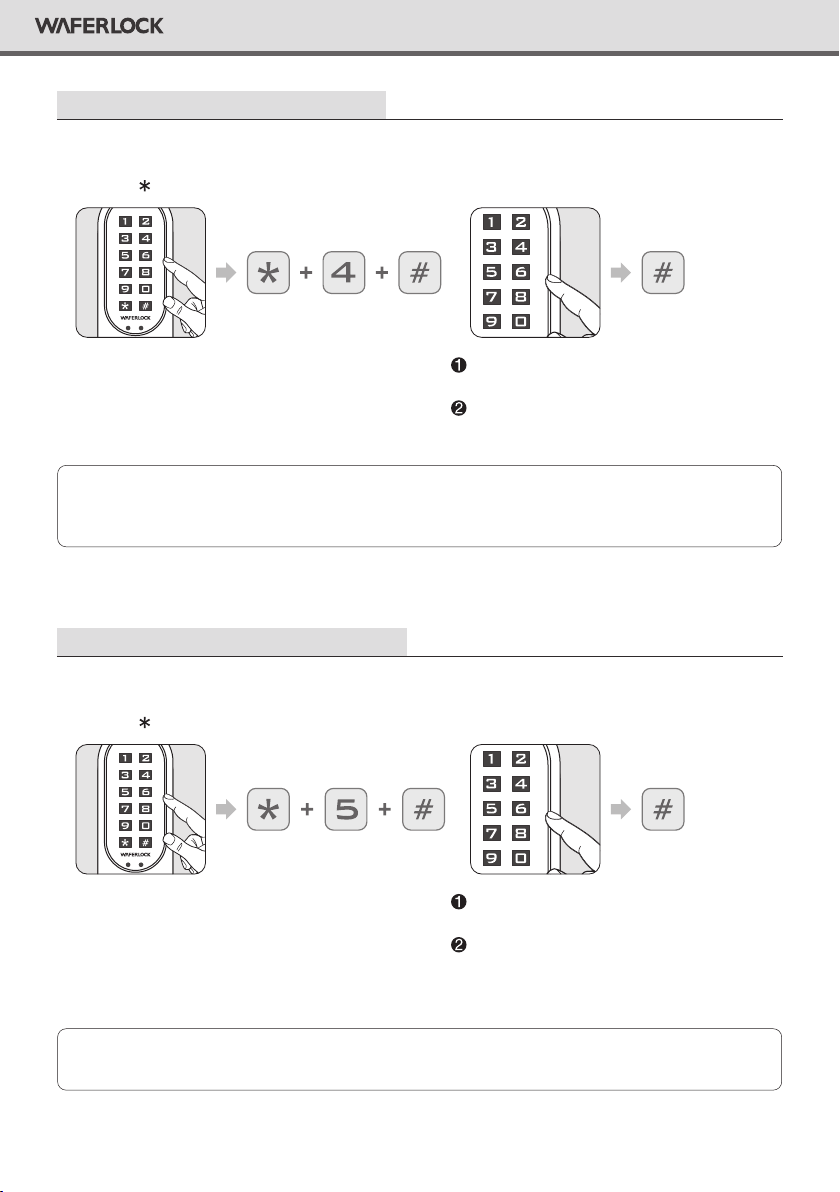

Set Up The Lock As Toggle Mode
Step 1
Press any button to activate the keypad,
then press 4 #.
Correct Master Pin Code: 1 beep followed
by green light ashing 1 time.
Incorrect Master Pin Code: 2 beeps followed
by red light ashing 2 times, then standby.
Step 2
Enter current Master Pin Code, then press #.
• After setting the door as Standard Mode, The lock will be set from manual locking to automatic.
Note
Set Up The Lock As Standard Mode
Step 1
Press any button to activate the keypad,
then press 5 #.
Correct Master PIN Code: 1 beep followed
by green light ashing 1 time..
Incorrect Master Pin Code: 2 beeps followed
by red light ashing 2 times, then standby.
Step 2
Enter current Master Pin Code, then press #.
9
WAFERLOCK CORPORATION

10
WAFERLOCK CORPORATION
• Dual Mode will require a user to swipe a valid user card then enter a valid PIN Code to access.
• Dual Mode can be used in high security place such as bank ofce doors.
Note
Set Up The Lock As Dual Mode
Step 1
Press any button to activate the keypad,
then press 6 #.
Correct Master Pin Code: 1 beep followed
by green light ashing 1 time.
Incorrect Master Pin Code: 2 beeps followed
by red light ashing 2 times, then standby.
Step 2
Enter current Master Pin Code, then press #.
Set Up The Lock As Single Mode
Step 1
Press any button to activate the keypad,
then press 7 #.
Correct Master PIN Code: 1 beep followed
by green light ashing 1 time..
Incorrect Master Pin Code: 2 beeps followed
by red light ashing 2 times, then standby.
Step 2
Enter current Master Pin Code, then press #.

Combination Of Lock Modes
Reset The Lock Master Code Back to default 123456 and all the programmed users will remain.
Step 1
Hold and press and # button together. There will be 2 beeps (1 long beep, 1 short beep)
and remove the battery, then insert it at the same time.
Step 2
After a long beep followed by red and green light blink alternatively, enter a valid PIN Code
or tap a valid user card, then press #.
Step 3
After long beep, the Master PIN Code will be reset back to default: 123456.
Single
Dual
When lock is in Toggle + Single
mode, the lock will switch between
“always open” and “always close”
when a valid PIN Code is entered or
valid user card is tapped on.
When the lock is in Toggle + Dual
mode, the lock will switch between
“always open” and “always close”
when swiping a valid user card and
enter a valid PIN Code.
Toggle
Standard
This is a default setting. When the
lock is in Standard + Single mode,
once unlocking the door, it will be
automatically locked after 6 seconds.
When the lock is in standard + dual
mode, the lock will require user to
ash a valid user card and enter a
valid PIN Code to access.
11
WAFERLOCK CORPORATION

12
WAFERLOCK CORPORATION
Note
• During entering PIN Code, if the users approach to the reader with a user card, the lock will be
interrupted then react to the user card rst.
• If an invalid code (Master PIN/PIN) has been entered to the lock more than 5 times, the anti-theft
function will be initiated for 3 minutes. During this period, the keypad will be locked.
• If enter the invalid code 1 time after 3 minutes, the anti-theft function will be initiated for
3 minutes again.
• The anti-theft counter will be reset once the valid PIN Code is entered to the lock. When the lock is
in Dual Mode, the counter will only reset when both valid PIN Code & valid user card are presented
to the lock.
• During the 3 minutes lock-up, a valid user card can still be used to access.
Open Door With User Card
Step 1
Approach the reader by a user card.
If the card is valid (Programmed), 1 beep followed
by green light ashing 1 time.
If the card is invalid (Not programmed), 2 beeps
followed by red light ashing 2 times, then
standby.
Step 2
The Led light up.
Open Door With Pin Code
Step 1
Press any button to activate the keypad.
If enter less than 4 digits or over 6 digits, 2
beeps followed by red light ashing 2 times,
then standby.
If code is programmed, 1 beep followed by
green light ashing 1 time.
Step 2
Press previous programmed PIN Code, then
press # button.

Low Power Warning
Step 1
When using user cards to unlock, lock the door, or programming card to program.
When using pin codes to unlock or lock the door.
Step 2
If the lock battery is low, there is an acoustic warning for the user with 3 short beeps 5 times,
followed by orange light ashing. Please replace a new battery to keep lock operating well.
Emergency External Power Supply
Step 1
Backup 9V battery contact point is at the front panel.
OR
Step 2
Connect 9V battery with contact points.
13
WAFERLOCK CORPORATION

14
WAFERLOCK CORPORATION
Serial No. / Name List
Serial No. User Name Remark
001
002
003
004
005
006
007
008
009
010
011
012
013
014
015
016
017
018
019
020
021
022
023
024

025
026
027
028
029
030
031
032
033
034
035
036
037
038
039
040
041
042
043
044
045
046
047
048
049
15
WAFERLOCK CORPORATION
Serial No. User Name Remark

16
WAFERLOCK CORPORATION
050
051
052
053
054
055
056
057
058
059
060
061
062
063
064
065
066
067
068
069
070
071
072
073
074
075

076
077
078
079
080
081
082
083
084
085
086
087
088
089
090
091
092
093
094
095
096
097
098
099
100
17
WAFERLOCK CORPORATION
Serial No. User Name Remark

18
WAFERLOCK CORPORATION
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
