WAGNER W 610 User manual

W 610
D/GB/F/NL
2 Jahre
Garantie
2 years
WARRANTY
2 ans de
GARANTIE
2 ans de
GARANTIE 
Originalbetriebsanleitung

W 610
1
1/2
9
83
15
6
754
14
13
11
10
2
➟
➟
➟
➟
➟
➟
16
12
17

W 610
4
➟
a
b
B
5
3
B
A

W 610
a
b
8
11
10
67
2
1
9

W 610
12
234
13
14
12
7
6
8
10
7
5
12 A
C
12 B
12
13
11
12 A
16
15
14
12 B
4321
18
17

12
W 610
GB
Translation of the original operating instructions
You have purchased a proprietary device that requires careful cleaning and care to ensure
trouble-free functioning. Read the operating instructions carefully before using the
tool and observe the safety instructions. Keep the operating instructions in a safe
place.
General Safety Instructions
Caution! Read all the instructions. Non-observance of the instructions below can
cause electric shock, re and or serious personal injuries. The term "power
tool" used below covers both mains-operated power tools (with mains lead)
and accumulator-operated power tools (without mains lead).
1. Workplace
Keep your workplace clean and tidy.a) Untidiness and unlit working areas can lead
to accidents.
Never use the tool in hazardous areas that contain ammable liquids, gasesb) or dusts. Power tools generate sparks that can ignite the dust or vapors.
Keep children and other persons away when using the power tool.c) You can
lose control of the tool if you are distracted.
2. Electrical Safety
The tool plug must t into the socket. The plug may not be modied in anya) form. Do not use adaptor plugs together with protective-earthed tools.
Unmodied plugs and suitable sockets reduce the risk of an electric shock.
Avoid physical contact with earthed surfaces such as pipes, heatingb) elements, stoves and refrigerators. The risk through electric shock increases if
your body is earthed.
Keep the equipment away from rain and moisture.c) The risk of an electric shock
increases if water penetrates electrical equipment.
Do not misuse the mains lead by carrying the tool by the lead, hanging itd) from the lead or by pulling on the lead to remove the plug. Keep the lead
away from heat, oil, sharp edges or moving tool parts. Damaged or twisted
leads increase the risk of an electric shock.
If you work outdoors, use only extension leads that are approved fore) outdoor use. The use of an extension lead that is suitable for outdoors reduces the
risk of an electric shock.
3. Safety of Persons
Be attentive. Pay attention to what you are doing and work sensibly witha) a power tool. Do not use the tool if you are tired or under the inuence of
drugs, alcohol or medication. Just a moment of inattentiveness while using the

13
W 610 GB
tool can lead to serious injuries.
Wear personal safety equipment and always wear safety goggles.b) Wearing
personal protective equipment, such as dust mask, non-slip safety shoes, safety helm
or ear protection, depending on the type of power tools, reduces the risk of injury.
Avoid accidental starting-up. Ensure that the switch is in the "OFF" positionc) before inserting the plug into the socket. Accidents can occur if you carry the
power tool while your nger is on the switch or if you connect the power tool to the
power supply which it is on.
Remove setting tools or wrenches before switching on the power tool.d) A tool
or wrench that is in a rotating tool part can lead to injuries.
Do not overestimate your abilities. Ensure that you are standing securelye) and have your balance at all times. This ensures that you can control the tool
better in unexpected situations.
Wear suitable clothing. Do not wear wide clothing or jewelry. Keep your hair,f) clothes and gloves away from moving parts. Loose clothing, jewelry or long hair
can be caught in moving parts.
This appliance is not intended for use by persons (including children) withg) reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
4. Careful Handling and Use of Power Tools
Do not overload the tool. Use the power tool designed for the work that youa) are doing. You work better and safer in the specied performance range if you use
the suitable power tool.
Do not use power tools whose switch is defective.b) A power tool that cannot be
switched on or o is dangerous and has to be repaired.
Remove the plug from the socket before carrying out tool settings, changingc) accessories or putting the tool away. This precautionary measure prevents
unintentional starting of the tool.
Store unused power tools so that they are inaccessible to children. Do notd) let persons use the tool who are not familiar with it or who have not read
these instructions. Power tools are dangerous when they are used by inexperienced
persons.
Take proper care of your tools. Check whether the moving parts functione) trouble-free and do not jam, whether parts are broken or damaged so that
the tool function is impaired. Have damaged parts repaired before using the tool.
Many accidents have their origin in power tools that have been maintained badly.
Use the power tool, accessories, insert tools, etc. in accordance with thesef) instructions and in a fashion specied for this special tool type. Take the

14
W 610
GB
working conditions and the activity to be carried out into consideration. The
use of power tools for purposes other than the intended ones can lead to dangerous
situations.
5. Service
Have your tool repaired only by qualied specialist personnel and only witha) original spare parts. This ensures that the tool safety is maintained.
If the supply cord is damaged, it must be replaced by the manufacturer or it’sb) service agent or a similarly qualied person in order to avoid a safety hazard.
Safety Instructions for Spray Guns
Caution!
• Wear breathing equipment: Paint mist and solvent vapors are damaging to
health. Always wear breathing equipment and only work in well ventilated rooms or
using supplementary ventilating equipment. It is advisable to wear working clothing,
safty glasses, ear protection and gloves.
CAUTION: DANGER OF INJURY!
Never point the spray stream towards human beings or animals.
The spray gun is to be used only for paints and solvents with a 21°C (32° in UK)
•
ashpoint or higher (See information on the material tin. Hazard class A II and A III
permitted).
Do not use the spray guns to spray ammable substances.
•
The spray guns are not to be cleaned with ammable solvents which have a ashpoint
•
under 21°C.
Caution against dangers that can arise from the sprayed substance and observe the
•
text and information on the containers or the specications given by the substance
manufacturer.
Do not spray any liquid of unknown hazard potential.
•
The device may not be used in workplaces covered by the explosion-protection
•
regulations.
To avoid the hazard of explosion when spraying, provide for eective natural or
•
articial ventilation.
There must be no sources of ignition such as, for example, open res, smoke of lit
•
cigarettes, cigars and tobacco pipes, sparks, glowing wires, hot surfaces, etc. in the
vicinity during spraying.
Ensure that no solvent vapors are sucked in by the unit. Do not spray onto the unit!
•
The spray gun is not a toy; children must therefore not be allowed to handle it or play
•
with it.
Before working on the spray gun remove the power plug from the socket.
•
Cover areas that are
• not to be sprayed. When working keep in mind that wind, for
example, may transport paint mist over great distances and cause damage.
The units may only be used with a functional valve.
• If paints rises in the ventilating
hose (Fig. 12 A, item 14) do not operate the unit further! Dismantle and clean the
ventilating hose, valve and diaphragm and replace the diaphragm if necessary.
Do not lay the spray gun.
•
With original WAGNER accessories and spare parts, you have the guarantee that all
safety regulations are fullled.

15
W 610 GB
Technical Data
Max. viscosity: 110 DIN-s
Power source: 230 V ~
Power consumption: 300 W
Atomizing output: 75 W
Double insulation:
Sound pressure level: 81 dB (A)
Oscillation level: < 2.5 m/s²
Air hose length: 1.8 m
Weight: approx. 1.7 kg
Description (Fig. 1)
1 Air cup 10 Carrying belt
2 Nozzle 11 Air lter
3 Union nut 12 Mains lead
4 Gun body standard spray attachment 13 Spray gun holder
5 Trigger guard 14 Container
6 Material volume regulation 15 Ventilating hose
7 Handle 16 Valve
8 ON/OFF switch 17 Stir stick
9 Air hose
Coating Materials Suitable for Use
Water- and solvent-based paints, nishes, primers, 2-component paints, clear nishes,
automotive nishes, staining sealers and wood sealer-preservatives.
All coating materials with the red Perfect Spray logo.
Coating Materials Not Suitable for Use
Wall paints without the red Perfect Spray logo.
Alkali and acidic paints. Coating materials with a ash point below 21°C.
Preparation of the Coating Material
The enclosed spray attachment can be used to spray paints, varnishes and glazes that are
undiluted or slightly diluted. Detailed information is available in the technical data sheet
of the manufacturer (Internet Download).
Stir the material up and put the required amount into the paint container.1.
Thinning recommendation
Sprayed material
Glazes undiluted
Wood preservatives, mordants, oils, disinfection agents,
plant protective agents undiluted
Paints containing solvents and water-soluble paints,
primers, vehicle coating paints, thick-lm glazes dilute by 5 - 10 %

16
W 610
GB
Thinning recommendation
Wall paints with the red Perfect Spray logo dilute in accordance
with manufacturer's
instructions
If the convey capacity is too low, add 5 - 10 % dilution step-by-step until the convey2. capacity fulfils your requirements.
Start-up
Before connecting to the mains supply, be sure that the supply voltage is identical with
the value given on the rating plate.
Attach the carrying strap to the unit.
• (Fig. 2)
Unscrew the container from the spray gun.
•
Aligning suction tube.
• (Fig. 3)
If the suction tube is positioned correctly, the container contents can be sprayed
without almost any residue.
When spraying horizontal surfaces, turn suction tube forward. (Fig. 3 A)
When spraying objects overhead, turn suction tube back. (Fig. 3 B)
Set the container on a sheet of paper, pour in the prepared coating material and
•
screw the container tightly onto the spray gun.
Connect the front part with the rear part of the gun. (Fig. 5)
•
Mount the air hose (Fig. 4, a + b). Insert the air hose rmly into the connection of the
•
unit and the gun handle. The position of the hose is not relevant.
Insert the spray gun into the gun holder on the unit.
•
Put the machine down only on a level, clean surface. Otherwise, the gun may suck in
•
dust, etc.
Sling on the carrying strap with the unit.
•
Remove the spray gun from the gun holder and point it at the object to be coated.
•
It is advisable to test spray cardboard or a similar material in order to determine the
•
material quantity and the spray pattern.
Press the ON/OFF switch at the device.
•
Three dierent spray jet settings can be chosen on the spray gun, depending on the
application and target object.

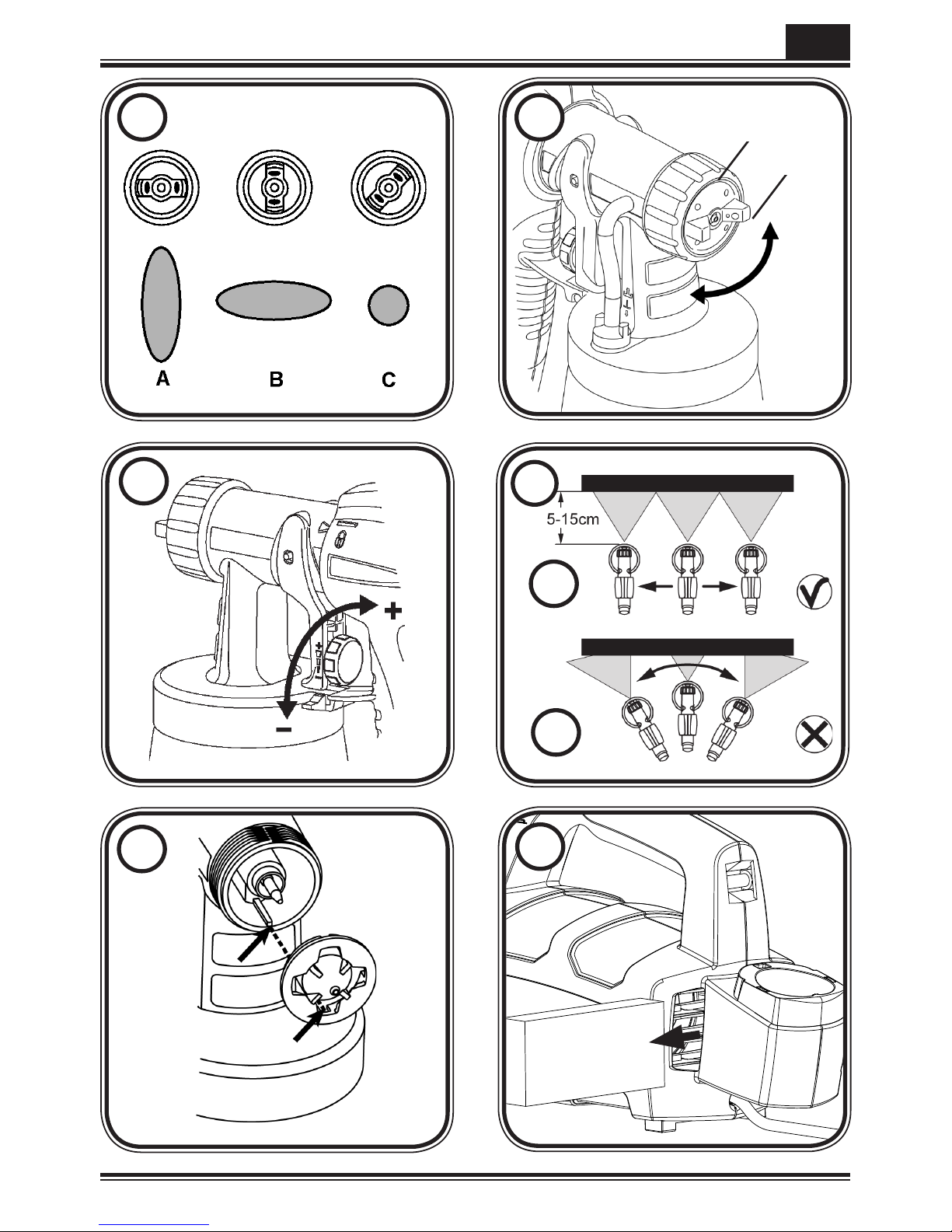

Selecting the Spray Setting
Fig. 6 A = horizontal at jet for horizontal surfaces
Fig. 6 B = vertical at jet for vertical surfaces
Fig. 6 C = circular jet for corners, edges and hard-to-reach
surfaces
Adjusting the desired Spray Setting (Fig. 7)
With the union nut (1) slightly unscrewed, turn the air cap (2) to the desired spray-setting
position (arrow). Then tighten the union nut.
WARNING! Danger of injury!
Never pull the trigger guard while adjusting the air cap.

17
W 610 GB
Adjusting the Material Volume (Fig. 8)
Set the material volume by turning the regulator on the trigger guard of the spray gun
- turn to the left lower material volume
+ turn to the right higher material volume
Spray Technique
The spray result depends heavily on the smoothness and cleanliness of the surface to
•
be sprayed. Therefore the surface should be carefully prepared and kept free of dust.
Cover all surfaces not to be sprayed.
•
Cover screw threads or similar parts of the target object.
•
It is advisable to test the spray gun on cardboard or a similar surface to nd the
•
correct setting.
Important: Begin spraying outside of the target area and avoid interruptions inside
the target area.
The spray movement should come from the arm, not just from the wrist. This ensures
that a uniform distance is maintained between the spray gun and the spray surface
during the spray operation. Select a distance of 5 - 15 cm, depending on the desired
spray jet width.
Fig. 9 a: CORRECT Even distance to the object.
Fig. 9 b: INCORRECT Uneven distance causes uneven coating.
Move the spray gun evenly cross-wise or up-and-down, depending on the spray
•
pattern setting.
An even movement of the spray gun results in an even surface quality.
•
When coating material builds up on the nozzle and air cap, clean both parts with a
•
solvent or water.
Interruption of Work till 4 Hours
Turn the machine o.
•
Insert the spray gun into the gun holder.
•
When processing 2-component varnishes, clean the device immediately.
•
Taking Out of Operation and Cleaning
Proper cleaning is the prerequisite for problem-free operation of the paint application
device. No warranty claims are accepted in case of improper or no cleaning.
Turn the machine o. Vent the container in case of longer breaks and after the work1) has been terminated. This can be done by briey turning open and then closing the
container or by pulling the trigger guard and letting the paint into the original paint
container.
Divide the spray gun. Press the hook (Fig. 5 "click") slightly downwards. Turn the gun2) front part and gun rear part against each other.
Unscrew the container. Empty any remaining coating material back into the material3) tin.
Preclean the container and feed tube with a brush. Clean the ventilating bore 4) (Fig. 12, C).
Pour solvent or water into the container. Screw the container back on.5) Use only solvents with a ashpoint over 21 °C.
Assemble the gun again (Fig. 5).6)

18
W 610
GB
Turn on the machine and spray the solvent or water into a container or a cloth.7) Repeat the above procedure until the solvent or water emerging from the nozzle is8) clear.
Turn o the machine and divide the spray gun.9)
Screw of the container and empty it. Pull out the suction tub with container seal. 10)
CAUTION! Never clean seals, diaphragm and nozzle or air holes of the spray gun
withmetalobjects.
The ventilation hose and diaphragm are only solvent-resistant to a limited
extent. Do not immerse in solvent, only wipe.
Pull the ventilating hose (Fig.12 A, 14) at the top from the gun body. Screw o the valve 11)cover (15). Remove the diaphragm (16). Clean all the parts carefully.
Unscrew the union nut and remove the air cap and nozzle. Clean the air cap, nozzle12)seal and nozzle with a brush and solvent or water (Fig. 12, 5).
Clean the outside of the spray gun and container with a cloth soaked in solvent or 13)water.
Assemble the parts again (see “Assembly”).14)
Assembly
The unit may only be operated with an integer diaphragm (Fig. 12 A, 16). Place the
diaphragm with the pin facing upwards on the bottom section of the valve. Also see
the marking on the gun body. Place on the valve cover and screw it closed. Place the
ventilating hose on the valve cover and on the nipple at the gun body.
Slide the nozzle seal (Item 4) with the groove (slot) facing forwards into the nozzle (Fig.12 B).
Put the nozzle onto the gun body and nd the correct position by turning it. Put the air
cap onto the nozzle and tighten it using the union nut.
Place the container seal from below on the suction tube and slide it over the collar, while
turning the container seal slightly. Insert the suction tube with container seal in the gun
body.
Maintenance
Change the air lter if it is soiled. For this pull the air lter out of the unit (Fig. 11). Insert a
new air lter with the at side at the back (looking towards the unit).
WARNING! Never operate the machine without the air lter; dirt could be sucked in
and interfere with the function of the machine.
In order to mount the gun more easily apply lubricating grease (enclosed) liberally
to the O-ring at the gun front part (Fig. 12, 18).
Spare Parts List (Fig. 12)
Pos. Name Order No.
1 Union nut 0417 319
2 Air cap 2305 129
3 Nozzle (2.5 mm) 2305 131
4 Nozzle seal 0417 706
5 Perfect Spray spray attachment incl. 800 ml. container 0417 914
6 Handle 0414 240

19
W 610 GB
Spare Parts List (Fig. 12)
7 Air hose 2308 501
8 Carrying belt 0414 204
10 Air lter 2308 502
11 Container with cover 800 ml 0413 909
12 Suction tube 0417 357
13 Container seal 0417 358
14 Ventilating hose
15 Valve cover 2304 027
16 Diaphragm
17 Stir stick 2304 419
Lubricating grease 2315 539
The new CLICK&PAINT SYSTEM with additional spray attachments and accessories
oers the right tool for each work.
i
We recommend against using the W 610 with the WallPerfect spray
attachment.
Accessories (not included in the delivery)
Name Order No.
HVLP handle extension
For easier coating of ceilings and horizontal objects. 2307 678
Container with cover 800 ml
Ensures that the paint does not dry out and the solvent does not evaporate. 0413 909
Brilliant spray attachment incl. 600 ml container
Optimised nozzle and air guidance for brilliant paint results 0417 932
Perfect Spray spray attachment incl. 800 ml. container
For a rapid paint change. For medium- and large-scale objects and furniture. 0417 914
Small-scale spray attachment incl. 250 ml container
For ligree objects, detailed and creative work. 0417 918
Perfect Spray spray attachment incl. 1400 ml container
Rapid working at larger objects such as timber houses, garage doors, etc. 0417 917
Detail / Radiator spray attachment incl. 600 ml container
For inaccessible places, such as radiators, cupboard corners, recesses etc. 0417 915
Further information about theWAGNER range of products for renovating is available
under www.wagner-group.com

20
W 610
GB
Environmental protection
The appliance and accessories should be recycled in an environmentally
friendly way. Do not dispose of the appliance with household waste. Support
environmental protection by taking the appliance to a local collection point or
obtain information from a specialist retailer.
Important Note regarding Product Liability!
Due to an EC ordinance in eect since 01.01.1990, the manufacturer is liable for his product
only if all parts originate from or were approved by the manufacturer and the devices
are assembled and operated correctly. The use of other accessories and spare parts can
partially or completely invalidate the liability.
Correction of Malfunctions
Problem Cause Remedy
No coating material
emerges from the
nozzle
Nozzle clogged
•
Material volume setting
•
turned too far to the left (-)
No pressure build-up in
•
container
Container empty
•
Feed tube loose
•
Feed tube clogged
•
Clean➞
Turn to the right (+)➞
Tighten container➞
Rell➞
Insert➞
Clean➞
Coating material
drips from the
nozzle
Coating material assembly
•
at air cap, nozzle or needle
Nozzle loose
•
Nozzle seal worn
•
Nozzle worn
•
Clean➞
Union nut tighten➞
Change➞
Change➞
Atomisation too
coarse Material volume too large
•
Material volume adjusting
•
screw turned too far to the
right (+)
Nozzle contaminated
•
Viscosity of coating material
•
too high
Too little pressure build-up
•
in container
Air lter heavily soiled
•
Turn material volume➞
adjusting screw to the
left (-)
Clean➞
Dilute further➞
Tighten container➞
Change➞
Spray jet pulsates Coating material in
•
container running out
Nozzle seal worn
•
Air lter heavily soiled
•
Rell➞
Replace➞
Change➞

21
W 610 GB
Problem Cause Remedy
Coating material
causes "paint tears" Too much coating material
•
applied
Viscosity of coating material
•
too low
Turn material volume➞
adjusting screw to the left (-)
Too much fog of
coating material
(Overspray)
Distance to the object too
•
large
Too much coating material
•
applied
Reduce distance➞
Turn material volume➞
adjusting screw to the left (-)
Paint in the
ventilating hose Diaphragm soiled
•
Diaphragm defective
• Clean the diaphragm➞
Replace the diaphragm➞
Warning
If the supply cord of this appliance is
damaged, it must only be replaced
by a repair shop appointed by the
manufacturer, because special purpose
tools are required.
Warning: Do not connect the blue
or brown wire to the earth
terminal of the plug! The
wires in this mains lead are
coloured in accordance with
the following code:
blue = neutral brown = live
As the colours of the wires in the mains lead of this appliance may not correspond with
the coloured markings identiying the terminals in your plug, proceed as follows:
Should the moulded plug have to be replaced, never re-use the defective plug or
•
attempt to plug it into a dierent 13 A socket. This could result in an electric shock.
Should it be necessary to exchange the fuse in the plug only use fuses approved by
•
ASTA in accordance with BS 1362. 5 Amp fuses may be used.
To ensure that the fuse and fuse carrier are correctly mounted please observe the
•
provided markings or colour coding in the plug.
After changing the fuse, always make sure that the fuse carrier is correctly inserted.
•
With out the fuse carrier, it is not permissible to use the plug.
he correct fuses and fuse carriers are available from your local electrical supplies
•
stockist.

22
W 610
GB
2 years guarantee
The guarantee runs for two years, counting from the date of sale (sales slip). It covers and
is restricted to free-of-charge rectication of faults which are demonstrably attributable
to the use of faulty materials in manufacture, or assembly errors; or free-of-charge
replacement of the defective parts. The guarantee does not cover incorrect use or
commissioning or tting or repair work which is not stated in our operating instructions.
Wearing parts are also excluded from the guarantee.The guarantee excludes commercial
use. We expressly reserve the right to full the guarantee. The guarantee expires if the
tool is opened up by persons other than WAGNER service personnel. Transport damage,
maintenance work and loss and damage due to faulty maintenance work are not covered
by the guarantee. Under any guarantee claim, there must be proof of purchase of the
tool through submission of the original receipt.Wherever legally possible, we exclude all
liability for injury, damage or consequential loss, especially if the tool has been used for a
purpose other than that stated in the operating instructions, commissioned or repaired
other than in accordance with our operating instructions or if repairs are performed by
someone who is unqualied. We reserve the right to perform any repairs in excess of
those stated in our operating instructions. In case of guarantee or repair, please refer
to your point of sale.

45
W 610
CE Konformitätserklärung
Wir erklären in alleiniger Verantwortung, dass dieses Produkt den folgenden
einschlägigen Bestimmungen entspricht:
2006/42/EG; 2004/108 EG; 2002/95/EG; 2002/96/EG
Angewandte harmonisierte Normen:
EN 55014-1: 2006, EN 55014-2: 2001, EN 61000-3-2: 2006, EN 61000-3-3: 2005,
EN 60335-1: 2008, EN 62233: 2008; EN 50144-2-7: 2000
PD
CE Declaration of Conformity
We declare under sole responsibility that this product conforms to the following
relevant stipulations:
2006/42/EG; 2004/108 EG; 2002/95/EG; 2002/96/EG
Applied harmonised norms:
EN 55014-1: 2006, EN 55014-2: 2001, EN 61000-3-2: 2006, EN 61000-3-3: 2005,
EN 60335-1: 2008, EN 62233: 2008; EN 50144-2-7: 2000
PGB
CE Déclaration de conformité
Nous déclarons sous notre responsabilité que ce produit est en conformité avec les
réglementations suivantes :
2006/42/EG; 2004/108 EG; 2002/95/EG; 2002/96/EG
Conforme aux normes et documents normalisés :
EN 55014-1: 2006, EN 55014-2: 2001, EN 61000-3-2: 2006, EN 61000-3-3: 2005,
EN 60335-1: 2008, EN 62233: 2008; EN 50144-2-7: 2000
PF
CE Conformiteitsverklaring
Wij verklaren dat dit product voldoet aan de volgende normen:
2006/42/EG; 2004/108 EG; 2002/95/EG; 2002/96/EG
En normatieve dokumenten:
EN 55014-1: 2006, EN 55014-2: 2001, EN 61000-3-2: 2006, EN 61000-3-3: 2005,
EN 60335-1: 2008, EN 62233: 2008; EN 50144-2-7: 2000
PNL
i.V. T. Jeltsch i. V. J. Ulbrich
Vice President Development Manager
Product Strategy & Planning
Dokumentationsverantwortlicher
Responsible person for documents
Responsable de la documentation
Documentatieverantwoordelijke
J. Wagner GmbH Otto-Lilienthal-Str. 18 D-88677 Markdorf

46
W 610
Part. No. 2308 356 07/2011_RS
© Copyright by J.Wagner GmbH
NL
Wagner Spraytech Benelux B.V.
Zoonebaan 10
3542 EC Utrecht
+31/30/2 41 41 55 +31/30/2 41 17 87
AUS
Wagner Spraytech
Australia Pty. Ltd.,
14-16 Kevlar Close,
Braeside, VIC 3195/Australia
+61/3/95 87 20 00 +61/3/95 80 91 20
HR
Adresa servisa:
EL-ME-HO
Horvatinčićev put 2
10436 Rakov Potok/Kroatien
/ [phone] - 028
SK
Phobos Corporation Spol.r.o
Stanicna 6, 92700 Sala
Slowakei
+421/31/7 70 78 84 +421/31/7 70 22 42
PL
PUT Wagner Service
ul. E. Imieli 14
41-605 Swietochlowice
+48/32/2 45 06 19 +48/32/2 41 42 51
CH
J. Wagner AG
Industriestraße 22
9450 Altstätten
+41/71/7 57 22 11 +41/71/7 57 23 23
H
Magyarországi szerviz
Hondimpex KFT.
Kossuth L. u. 48-50
8060 Mór
+36(-22)/407 321 +36(-22)/407 852
DK/S
Wagner Spraytech
Scandinavia A/S
Helgeshøj Allé 28
DK-2630 Tåstrup
+45/43 27 18 18 +45/43 43 05 28
E
J. Wagner Spraytech Ibérica S.A.
Ctra. N-340, Km 1245,4
08750 Molins de Rei (Barcelona)
+34/93/6 80 00 28 +34/93/6 68 01 56
B
Wagner Spraytech Belgie
Veilinglaan 58
1861 Meise-Wolvertem
+32/2/2 69 46 75 +32/2/2 69 78 45
SLO
Adresa servisa:
GMA Elektromehanika d.o.o.
Cesta Andreja Bitenca 115,
Ljubljana 1000/Slowenien
+386(1)/583 83 04 +386(1)/518 38 03
GB
Wagner Spraytech (UK) Ltd.
The Coach House
2 Main Road
Middleton Cheney OX17 2ND
UK-Helpline 0844 335 0517
5 p per minute (landline)
D
J. Wagner GmbH
Otto-Lilienthal-Str. 18
D-88677 Markdorf
Hotline [phone]
+49/ (0) 75 44/ 505-1169
CZ
E-Coreco s.r.o.
Na Roudné 102
301 00 Plzen
[phone] [phone]
F
Wagner France S.a.r.l.
Parc de Gutenberg - Bâtiment F8
8 voie la Cardon
91127 Palaiseau Cedex
0 825 011 111 0169 81 72 57
www.wagner-group.com
Irrtümer und Änderungen vorbehalten.
Not responsible for errors and changes.
Sour réserves d’erreurs et de modications.
Fouten en wijzigingen voorbehouden.
