WaterLogic CUBE Reference guide

CUBEManual Page50–Revision10‐8‐2018

PRE‐INSTALLATIONPROCEDURES


DANGER!ELECTRICALSHOCKHAZARD.
Onlyqualifiedpersonnelwhohavereadandunderstandthisentiremanualshouldattempttoinstall,
orservicethisunit,failuretodosocouldresultindeathorseriousinjury.DONOTplugintoan
electricalsupplyuntilspecificallyinstructed.

WARNING!ReadandunderstandthecontentsofthismanualbeforeattemptingtoserviceCUBE
WaterTreatmentSystem.Failuretofollowtheinstructionsinthismanualcouldresultindeath,
seriouspersonalinjury,orseverepropertydamage.Onlytrainedandqualifiedtechniciansshould
attempttoinstall,maintain,orserviceWaterlogicEquipment.

WARNING!ALWAYSSANITIZEBEFOREUSE.
Sanitizebeforeusetoeliminateanypotentialmicrobiologicalcontaminates.

MaterialsNeeded:
 PersonalProtectiveEquipment.RubberorNitrileSafetyGlovesandProtectiveEyewear
 PhillipsScrewdriver
 TemperatureGauge
 WaterPitcherorContainertocollectwaterfromthefaucet
 5‐galloncontainerordrainbasin
 Sanitizer‐HouseholdBleach(5.25%SodiumHypochlorite)orCitricAcidBasedCleaner
 ¼”PlasticTubing,atleast4feetinlength,andassorted¼”quickconnectfittings.
 TDSMeterandTestStripsformeasuringchlorine.‐Optional
 1/8NPTFemaleThreadto¼”CompressionFitting(Usedtoconnecthosetodrainfittings)

1. UnpacktheWaterlogicCubeWaterTreatmentSystemandcheckexteriorfordamage.

FlushFilters

CAUTION!FILTERFLUSHREQUIRED.

TheCUBEWaterTreatmentSystemsaresuppliedwithafilter.Inorderforourfilterstoperformas
representedandtoprovidethebestqualitywaterpossible,itisessentialthatfiltersbereplaced
periodically.Thefrequencyoffilterchangesdependsuponyourwaterqualityandyourwaterusage.
Forexample,ifthereisalotofsedimentand/orparticlesinyourwater,thenyouwillhavetochange
yourfiltersmorefrequentlythanalocationwithlittletonosediment.Besuretoreplaceyourfilters
wheneveryounoticeadeclineintheperformance,whetheritisadrop‐inflowrateand/orpressure
oranunusualtasteinthewater.

2. SelectAmbientWaterSelection+DispensingButton.Dispenseapproximately10litersofwaterto
removetheexcesscarbonfinesandgeneratethefilter.

NOTE:
 Filtersshouldnotbeflushedpriorto24hoursbeforeinstallationtolimitMicrobialGrowth.


CUBEManual Page51–Revision10‐8‐2018

Sanitizing

SanitizeusingaHouseholdBleach(5.25%SodiumHypochloritesolution)orotherapprovedcleaner
throughoutthecoldandsparklingwatercircuits.Followallinstructionsonthesanitizerandflush
withfreshwaterthroughthefaucetuntilodorandtasteisacceptable.

WARNING!USEPROPERPERSONALPROTECTIVEEQUIPMENT
Alwaysensureproperventilationanduseproperpersonalprotectiveequipmentsuchasgloves
andeyeprotectionwhenusingchemicals.RefertoMaterialSafetyDataSheetforspecific
requirementsofeachchemicalproduct.Takeallnecessaryprecautionstopreventsanitizerfrom
contactingeyes,clothing,andanyothersurfacesincoulddamage(carpets).

3. RemovethetwoscrewsattherearofthemachinethatholdtheTopCoverinplace. 



4. RemovetheTopCoverbyplacingyourhandsontheTopinthepictureandpushit
backwardsandthenliftituptoremove.




DANGER!HIGHVOLTAGEELECTRICALHAZARD.Unplugbeforeinspectionand
service.

5. Visuallyinspectallelectricalandwaterconnectionsforsignsofwearordamage.TheCUBEshould
notbeenergizedduringinspectionatthispoint.


6. Insertfingerintotheroundholeofthefilterhead.Pulltovertical
position.





7. Pulltheleverstraightuptoremovethefilterassembly.Slightforcemayberequired.









CUBEManual Page52–Revision10‐8‐2018

8. Unscrewthefilterbody
fromthefilterheadby
turningthebaseina
clockwisedirection
9. Removethefiltercartridge
fromthefilterheadby
pullingit out.
10. Addtherequiredamount
ofsanitizingfluidtothe
emptyfilterhousing.

11. Reinstallthefilterbodytothefilterheadbyturningthebaseincounter‐clockwise
direction.Tightenfirmlytoensureproperseal.

12. Reinstallfilterbodycontainingsanitizerinmachineandlockingthefilterinplace
byuntilit“clicks”inplace.

13. ReinstallTopCoverandsecurewithtwoscrewsholdingTopCoverinplace. 
14. Connect40‐60psiregulated,potablewatersupplytothewaterinletbulkhead
fittinglocatedonthebackoftheCubeWaterTreatmentSystem.Turnonwatersupplyandcheck
forleaks.

 DANGER!ELECTRICALSHOCKHAZARD.
Donotpluginunitunlessqualified.Onlyqualifiedpersonnelwhohavereadandunderstandthis
entiremanualshouldattempttoinstallorservicethisunit.

15. ConnectCubeWaterTreatmentSystemtopower.
CAUTION!NEVERTURNONHEATERBEFOREFILLINGHOTTANK. Green
HeaterandCompressorPowerSwitchmustbeintheO=OFFpositionwhile
thehottankisempty.Damagecouldoccurwithinoneminuteandthe
overload(highlimit)willrequiremanualresetifheateristurnedonwithan
emptyHotTank.



CUBEManual Page53–Revision10‐8‐2018

FilltheColdCircuitwithSanitizer

16. Placeacontainerunderthedispenseareaanddispense2cupsofcoldwaterandthen1cupof
ambientwater.

WARNING!USEPROPERPERSONALPROTECTIVEEQUIPMENT
Alwaysensureproperventilationanduseproperpersonalprotectiveequipmentsuchasgloves
andeyeprotectionwhenusingchemicals.RefertoMaterialSafetyDataSheetforspecific
requirementsofeachchemicalproduct.Takeallnecessaryprecautionstopreventsanitizerfrom
contactingeyes,clothing,andanyothersurfacesincoulddamage(carpets).

17. LeavethesanitationfluidtostandintheColdTankfor10minutes.

FlushingtheSanitizerfromtheMachine

18. Selectthedispensebuttonandflush10litersofcoldwaterand4litersofambientwaterthrough
themachinetodiluteandremovethesanitizerfromthecoldcircuit.Youcanuse
chlorineteststripstoevaluatethewater.

19. Oncethesanitizerodor/tastehasbeenflushedoutofthecoldsideofthemachine,
thesanitizationprocessfortheColdCircuitiscomplete.

20. Turnoffthewatersupplyattheisolationpoint.

21. Selectthecold‐watericonandthenthedispensebuttonuntilnomorewaterisbeingdispensed.

22. SwitchofftheRedPowerSwitchattherearofthemachineO=OFFandremovethe
powerleadfromtheunit.

23. UnscrewtheFilterBodyfromthefilterheadbyturningthebaseinan
anti‐clockwisedirection. 
24. Pourawaytheexcesswater.



25. Removethenewfiltercartridgefromthepackagingandfititbyfirmlypushingitintothe
filterhead,makingsureitisfirmlyandsecurelyfitted.


ThesanitizationprocessfortheColdCircuitsisnowcomplete.


CUBEManual Page54–Revision10‐8‐2018

ENABLINGHOTTANK

DuringInitialInstallationoranytimetheunitlosespower,youmustfollowtheHotTankEnabling
Procedure.

CAUTION!NEVERTURNONHEATERBEFOREFILLINGHOTTANK. Green
HeaterandCompressorPowerSwitchmustbeintheO=OFFpositionwhile
thehottankisempty.Damagecouldoccurwithinoneminuteandthe
overload(highlimit)willrequiremanualresetifheateristurnedonwithan
emptyHotTank.

26. ConnectCubeWaterTreatmentSystemtopower.

27. TurntheRedPowerSwitchonbackofCUBEWaterTreatmentSystem.I=ON

28. Ensuregreenheater/compressionswitchisintheO=OFF.

CAUTION!NEVERTURNONHEATERBEFOREFILLINGHOTTANK. Green
HeaterandCompressorPowerSwitchmustbeintheO=OFFpositionwhilethehottankisempty.
Damagecouldoccurwithinoneminuteandtheoverload(highlimit)willrequiremanualresetif
heateristurnedonwithanemptyHotTank.

29. PresstheHotSelectIconfor2secondsuntilitilluminates.

30. PresstheDispenseButtoncontinuouslyforaminimumof10seconds.Thedispensebacklightwill
turnRedIndicatingHotWater.

31. ContinuetodispenseuntilwatercomesoutthefaucettoensuretheHotTankisfullbeforeturning
ontheheatercircuit.

32. TurnontheGreenHeater/Compressorswitch.I=ON.ThisensurestheHot
WaterisfullofwaterbeforetheHeatCircuitwillenable.



CUBEManual Page55–Revision10‐8‐2018

CUBEDRAININGINSTRUCTIONS


DrainingNotes
Thereare2tanksthatmustbedrainedintheCUBEWaterTreatmentSystem.

PriortodrainingtheHotTank,turnoffGreenHeater/CompressorSwitch
(O=OFF)locatedonbackoftheCUBEWaterTreatmentSystem

Dispense2liters(0.5gallons)ofhotwaterfromthemachine.

AsHotWaterisdispensedfromthefaucetoftheunit,colderwaterwillbeintroducedintotheHot
Tank.SincetheGreenPowerSwitchisturnedoff,theHeaterwillnotenergizeandheattheincoming
tapwater.

Followingthisprecautionpreventsexposingpersonnelandequipment(drains,catchbasin,etc.)to
scaldinghotwater.

WARNING!VERYHOTWATER.UnitproducesVeryHotWaterupto203
o
F.Waterabove125
o
F
cancausesevereburnsorscalding.Hotwatershouldbedispensedcarefullyintoinsulatedcontainer
toavoidinjury.

DisableColdandHotTanks

1. TurnofftheGreenPowerHeaterandCompressorSwitchtodisabletheheater
andcompressor. O=OFF 

2. Dispense2litersofwaterthroughtheHotTanktocoolthewatertemperatureintheHotTankand
avoidburns.

WARNING!VERYHOTWATER.UnitproducesVeryHotWaterupto203
o
F.Waterabove125
o
F
cancausesevereburnsorscalding.Hotwatershouldbedispensedcarefullyintoinsulatedcontainer
toavoidinjury.

TurnoffWaterSupplyandBleedWaterPressure

3. Isolatetheunitfromfeedwaterbyturningoffthesupply.

4. Dispensecoldstillwatertorelieveanypressurebuiltupinthesystem.

5. Removethewatersupplylinefromtheunit.

6. Installdustcaporplugintowatersupplylinebulkheadfitting.

7. RemovetheHotandColddrainlinecapandalwaysallowtankstodrainandreinstallalldraincaps.


CUBEManual Page56–Revision10‐8‐2018

INSTALLATIONPROCEDURES

SafetyandInstallationGuidelines
EnsureallLocal,State,andFederalLawsandCodesincludinghealthandsafetyguidelinesaremetwhen
installingWaterlogicEquipment.Onlyqualifiedservicetechniciansshouldattemptinstallationand
serviceofWaterlogicEquipment.

WARNING!ELECTRICALSHOCKHAZARD.Alwaysunplug(isolatefrompowersupply)toprevent
electricalshockexceptwhereelectricaltestsarespecified.

WARNING!IMPROPERSUPPLYORCONNECTIONCANRESULTISRISKOFSHOCK.
Connecttoa15amp120V60Hzproperlygroundedoutlet(GFIisrecommended).Ensurepolarityis
correctandalwaysusea3‐prongoutlet.Consultaqualifiedelectricianifyouhaveanyquestions.

WARNING!USEONLYWaterlogicSUPPLIEDPOWERCORD(EL‐5001‐A).Locatesystemwithin5
feetofpowersupply.Neveruseanextensioncordoradapter.Donotuseadamagedpowercordor
plug.Keeppowercordoutofheavytrafficareasandawayfromheatsources.Donot,underany
circumstances,removegroundprongoralterthepowercord.Neverpullthepowerplugfromthe
outletwithawethandorallowtheplugtogetwet.Failuretousethesuppliedpowercordwillvoid
ULCertificationandWarranty.

CAUTION!INDOORUSEONLY.Neverexposedtodirectsunlight,heatsources,orambientair
temperatureabove97°F(3°6C)orbelow50°F(10°C).Installindoorsandkeepunitawayfrom
excessivehumidity.Neverexposetofreezingtemperatures.Ensurethereisadequateclearance
aroundtheunittoallowrefrigerationsystemcondensertodissipateheat.Warmerenvironments
requiremoreclearancearoundtheunit.Minimumclearancearoundallsurfacesofthemachineis2‐
inches.Installswheretheambienttemperatureexceeds80°Frequireaminimumof4‐inches
clearanceforproperheatdissipationandefficientoperation.

CAUTION!USEAWATERPRESSUREREGULATOR.Waterlogicwillnotberesponsibleforinjuryor
damagecausedbyexcessivewaterpressure.Operatingpressuremustbe40psito60psi.Beaware
anyofpotentialpressuresurgescausedbybuilding/municipalpumpingstations.

CAUTION!USEUVSTABILIZEDSUPPLYLINES.Feedtheunitwithapotableambientorcold‐water
supplyonly.Feedwaterover105°F(40°C)candamagethetreatmentcomponents.Waterblock
devicesandexternalleakdetectorsarestronglyrecommended.Locatetheunitasclosetothewater
supplyandtheelectricalconnectionsaspossible.

WARNING!STOREUNITEMPTY.ALWAYSSANITIZEBEFOREUSE.
Theunitmustbecompletelydrainedandsealedbeforestoringtoavoidstagnationandreduce
microbiologicalcontamination(potentialbacterialgrowth).Sanitizebeforeusetoeliminateany
potentialmicrobiologicalcontaminates 

Pre‐installationandsanitizationproceduresasprescribedinthismanualmustbeperformedbefore
installingtheCUBEWaterTreatmentSystem.



CUBEManual Page57–Revision10‐8‐2018



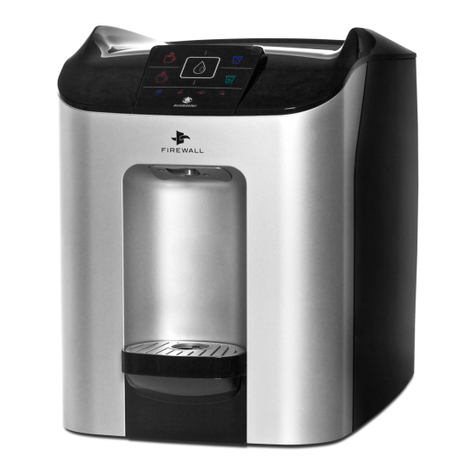

AlwaysinstallindoorsandplacetheWaterlogicCUBEWaterTreatmentSystemonafirm,flatand
stablesurface.

1. Attachthe¼”flexibletubingtothebulkhead
locatedatlowerrearofunit.

AttachthePressureReducerlocatedinthedrip
traywiththeFlowArrowincorrectorientation
tothetubingalreadyattachedtotheCube.

Connect¼”flexibletubingtotheReducerand
theWaterSupply.












Waterlogicrequirestheuseofawaterpressureregulator.Waterfeedpressuremustbebetween
40‐60psi.

2. Turnonthewatersupplyandcheckalloftheconnectionsforleaks. 

3. ConnectthepowercordtothebackoftheWaterlogicCUBEWaterTreatmentSystemandtoa120
Voltsupply.

4. TurntheRedPowerSwitchon‐I=ONposition.







5. Theunitwillrunthroughaself‐testcycle.Oncetheself‐testcyclehas
completedtheiconwillstopflashing.







PressureReducerisshippedinDripTray
Factor
y
PNPU‐0013‐L00‐00
DirectionofFlowArrow

CUBEManual Page58–Revision10‐8‐2018


6. Placeacontainerinthedispenseareaforflushingprocess.Thefilterwillnow
needtobeflushed.






7. TurnoffboththeRedPowerandtheGreenHeater/CompressorSwitch’s.
O=OFF

NOTE:SwitcheshaveinternalLEDthatilluminateswhenplacedinI=ON
position.


CAUTION!NEVERTURNONHEATERBEFOREFILLINGHOTTANK.
GreenCompressor/HeaterSwitchmustbeintheO=OFFpositionwhiletheHotTankisempty.
Damagecouldoccurwithinoneminuteandtheoverload(highlimit)willrequiremanualresetif
heateristurnedonwithanemptyHotTank.

8. SelecttheAmbientWaterIconfollowedbythemaindispensingbutton,dispense10litersofwater.
Thiswillremoveexcesscarbonfinesandsufficientlygeneratethefilter.

9. PrimetheHotTank.Holdingacontainerunderthedispensingfaucet,pressthehotbuttonuntilit
lightsup.Whilethehotwatericonislit,selectandholdthecentraldispensebuttonuntila
continuousflowofwaterisobtained(thiscouldtake2to4minutes).Onceacontinuousflowis
obtained,flush5litersofwaterbycontinuingtoholdthehotbutton.HotTankisnowfull.


10. PrimetheColdCircuit.Holdingacontainerunderthedispensingfaucet,Selectandholdthecold‐
watericonuntilitlightsup.Whilethecold‐watericonislit,selectthecentraldispensebuttonto
startfillingthecoldtankwithwater.Afteroneminute,themachinewillautomaticallyun‐selectthe
centraldispensebutton.Repeatselectionofthecentraldispensebuttonuntilthecoldtankhasfilled
andwateriscomingoutofthefaucet(thiscouldtake2to4minutes),pressandholdthemain
dispensingbuttonuntilacontinuousflowofwaterisobtained.Onceacontinuousflowisobtained,
releasethedispensingbutton.Coldtanksarenowfull.

11. PrimetheAmbientCircuit.Holdingacontainerunderthedispensingfaucet,Selectandholdthe
Ambientwatericonuntilitlightsup.WhiletheAmbientwatericonislit,selectthecentraldispense
buttontostartfillingtheAmbientlinewithwater(thiscouldtake10–20seconds).Continueto
dispense15‐20fluidouncesmoreofwaterthroughtheambientoption.


12. TurnontheGreenHeater/Compressorswitchattherearofthemachine.





CUBEManual Page59–Revision10‐8‐2018




13. TheCUBEWaterTreatmentSystemwillnowbegintoheat/chillthewater.Thehotwatershould
beuptooperatingtemperatureafter8to10minutesandtheoldwaterwilltakebetween60to90
minutestochill.

14. Tastetestthewater,ifthereisanyhintoftasteinthewater,flushanadditional1½gallonsofhot
water,then1½gallonsofcoldwater.Doanothertastetestandifnecessaryrepeattheflushagain.

15. VerifythattheUVLampoperatesasexpected(noUVLampalarmwillsoundonthedisplay).

WARNING!ULTRAVIOLETRADIATION.Protectyourskinandeyesagainstultravioletrays.
NeverlookdirectlyatanoperatingUVlight.Alwaysdisconnectbeforeremoval.

16. MovetheWaterlogicCUBEWaterTreatmentSystemintoitsfinaloperatingposition.Besurethata
minimumof2”clearanceismaintainedaroundboththesidesandthebackoftheunit.Thisis
importanttoallowproperairflowandheatexchangeofrefrigerationsystem.

17. WhentheunithasreacheditsHotTempSetPoint,theheaterwillcycleoff.Whentheunithas
reacheditsColdTempSetPointTemperature,thecompressorwillcycleoff.

18. Oncetheunitisatthetargettemperature(s),samplethewatertoensurewatermeetsexpectations
anadditionalrinsingoradjustmentisnotrequired.

19. Checktheunitforanyleaks.ExternalLeakProtectionisalwaysrecommended.

