WaterLogic WL290 User manual

WL290 Manual Page 4Revision: 10-21-21
SAFETY ALERT SYMBOLS
Read and follow all safety information carefully. The signal words used in this manual are selected as
shown below and based on an assessment of the degree of potential injury or damage (severe or
minor) and the occurrence of injury (definitely occurs or has the potential to occur) when the
warning is ignored:
DANGER!
Indicates a situation which, when not avoided, results in death or severe injury.
WARNING!
Indicates a situation which, when not avoided, has the potential to result in death or severe
injury; and/or severe property damage.
CAUTION!
Indicates a situation which, when not avoided, results or has the potential to result in minor
injury; and/or minor property damage.
SAFETY PRECAUTIONS
Basic safety precautions should be followed, including the following:
Ensure all local, state, and federal laws and codes including health and safety guidelines are met
when installing Waterlogic Equipment. Only qualified service technicians should attempt
installation and service of Waterlogic Equipment. Always read the entire operating instructions
before using the appliance and save these instructions for future use.
DANGER! ELECTRICAL SHOCK HAZARD. Always use a dedicated and properly grounded outlet.
Unit should be protected by ground-fault circuit interrupter (GFCI) or residual current device (RCD)
having a rated residual operating current not exceeding 30mA. Use only Waterlogic supplied
power cord. Never use extension cords or power strips to connect unit. Do not use if the power
supply cord is damaged. Always unplug from power supply prior to servicing.
WARNING! AUTHORIZED USE ONLY. This appliance is to be used for its intended purpose as
described in this manual and untrained individuals who use this manual assume the risk of any
resulting property damage or personal injury. This appliance can’t be used by children and persons
with reduced physical, sensory or mental capabilities or lack of experience.
WARNING! DO NOT OPERATE IF DAMAGED. Unplug if abnormal case occurs. Contact Waterlogic
or authorized dealer for repair, service, and installation to avoid hazards.
WARNING! HOT WATER. Unit produces Hot Water in excess of 87°C (188°F). Water above 52°C
(125°F) can cause severe burns or scalding. Keep unauthorized people and children away from the
unit to avoid accidental dispensing of hot water.

WL290 Manual Page 5Revision: 10-21-21
WARNING! CONNECT TO POTABLE WATER SUPPLY. This system is to be used for water only and is
not intended for use where water is microbiologically unsafe or with water of unknown quality
without adequate disinfection before or after the system.
WARNING! TIP HAZARD. Dispenser could tip or fall causing serious injury. Always install unit on
a firm, flat, and level surface and secure the WL290 Water Treatment System to the base cabinet
with the screw provided to lock the components together. Secure unit to cabinet, wall, or floor if
needed. Never place heavy items on top of unit and never climb, stand, or hang on unit or storage
cabinet to prevent injury and damage.
WARNING! UNIT IS HEAVY. TWO PERSON LIFT REQUIRED. Transport unit empty and always use
material handling equipment or two people with proper lifting technique to reduce injury risk.
WARNING! STORE AND TRANSPORT UNIT EMPTY. ALWAYS SANITIZE BEFORE USE.
The unit must be completely drained and sealed before storing to avoid stagnation and reduce
microbiological contamination (potential bacterial growth). Sanitize before use to eliminate any
potential microbiological contaminates.
CAUTION! INDOOR USE ONLY. Intended for household use only. Never expose to direct sunlight,
heat sources, or ambient air temperature above 37°C (100°F) or below 2°C (35°F). Install indoors
and keep unit away from excessive humidity. Never expose to freezing temperatures. Ensure
there is adequate clearance around the unit to allow refrigeration system condenser to dissipate
heat. Warmer environments require more clearance around the unit. Minimum clearance around
all surfaces of the machine is 2-inches. Installs where the ambient temperature exceeds 27°C
(80°F), require a minimum of 4-inches clearance for proper heat dissipation and efficient
operation.
CAUTION! USE A WATER PRESSURE REGULATOR. Waterlogic will not be responsible for injury or
damage caused by excessive water pressure. Input or feed pressure must be 40 psi to 60 psi. Be
aware of any potential pressure surges caused by building/municipal pumping stations.
CAUTION! USE UV STABILIZED SUPPLY LINES. Feed the unit with a potable ambient or cold
water supply only. Feed water over 37°C (100°F) can damage the treatment components. Water
block devices and external leak detectors are strongly recommended. Locate the unit as close to
the water supply and the electrical connections as possible. Locate the unit as close to the water
supply and the electrical connections as possible. Immediately isolate or close water supply valve
and contact service representative if leak is noticed.
Contact Waterlogic for assistance or help finding an Authorized Service Representative.

WL290 Manual Page 6Revision: 10-21-21

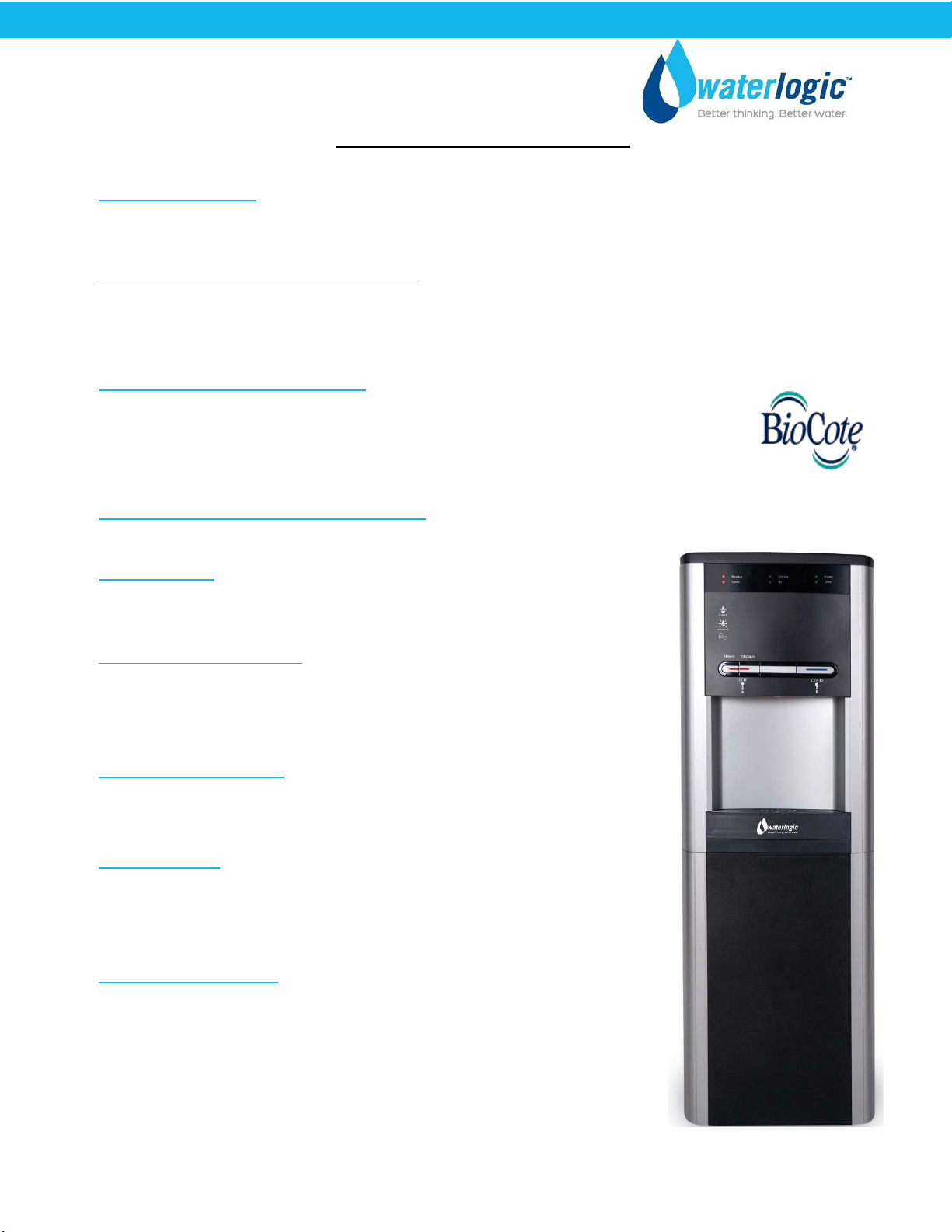

WL290 FEATURES AND BENEFITS
Cold, and Hot Water
The WL290 Water Treatment System unit comes standard with Cold and Hot Selections to meet a
wide range of customer demands. Cold Water temperature is adjustable.
High Volume Storage and Water Capacity
The WL290 Water Treatment System unit has 4 liters (1 Gallon) in Cold Tank and 11.2 Liters (3
Gallons) in the Cold-Water Reservoir (total of 15 Liters of Ice Cold Water) and 1.6 Liters (.42 Gallons)
of Hot Water Capacity.
BioCote®Anti-Microbial Protection
Certain plastic, silicon, and painted surfaces surrounding the dispensing areas and
drip tray are infused with an exclusive additive called BioCote®. BioCote® provides
an effective barrier against microbes like bacteria and mold, which may cause odors
or staining.
Large Dispense Area with Recessed Faucet
9.0 inch dispense height with BioCote® recessed faucet to protect from cross-contamination.
Leak Detection
The WL290 Water Treatment System unit is supplied with a Sensor in
the Leak Tray that halts water supply to prevent overflow.
Energy Saving Sleep Mode
If no input of water for 3 hours, the WL290 goes into Energy Saving Sleep
and turns off the Hot Tank. The WL290 Water Treatment System can be
programmed to turn off the Sleep Mode.
Advanced Programming Customizable settings for optimizing each
WL290 Water Treatment System including; Cold Temp Set Point, Hot
Temp Set Point, Filters Timer Setting, and Energy Saver Sleep Mode
Child Safeguard
The WL290 Water Treatment System unit requires two separate buttons
to be held down in the correct sequence to prevent accidental
dispensing of hot water.
In-Tank UV Purification
Industry leading In-Tank UV Purification prevents the growth of bio-film
within the Stainless Steel Cold Tank.

WL290 Manual Page 7Revision: 10-21-21
WL290 CERTIFICATIONS
Waterlogic Water Treatment Systems have been tested, and certified to rigorous NSF and UL
Standards. We believe that performance testing and certifications validate Waterlogic as a world-
leader in water treatment systems.
WL290 Certifications Include
UL399 – Certified Drinking Water Cooler
Intertek Labs (ETL) Certified the WL290 Water Treatment System to ANSI/UL 399
Standard for Drinking Water Coolers.
CSA C22.2 No. 120 CSA Standard for Refrigeration.
BPA Free - Waterlogic tests for BPA and declares that all of its products are Bisphenol-
A FREE and contain no harmful BPA plastics.
NSF/ANSI-61 – Certified Drinking Water System Components
NSF / ANSI 372 – Drinking Water System Components – Lead Content
CSA B483.1 - Drinking Water Treatment Systems
This System has been tested and certified in accordance with NSF/ANSI-61 – Certified
Drinking Water System Components, NSF / ANSI 372 – Drinking Water System
Components for low Lead Content, and CSA B483.1 - Drinking Water Treatment
Systems by the Water Quality Association (WQA)
Waterlogic is certified to ISO 9001:2015 – Quality Management Systems
(certified by Intertek). ISO 9001 is the internationally accepted standard for
well managed organizations that have adopted the key quality management
principles to its operations to bring consistent quality products and a culture
of continuous improvement.
Safe Drinking Water Act
Waterlogic water treatment systems conform to the Safe Drinking Water Act (SWDA) “lead-free”
amendment effective January 4, 2014.

WL290 Manual Page 8Revision: 10-21-21
MODEL/PART DESIGNATIONS
BRAND NAME DESCRIPTION
MODEL
PART NUMBER
WL290
Waterlogic WL290 – Cold and Hot
GF Max
F-1010-FS-HC-UT-CS-WLU
Serial Number Prefix - 19
SPECIFICATIONS
ITEM
Water Connection ¼” Quick Connect
Cold Water Temperature Cold Water Temperature – Factory Set Point 5°C (41°F)
(Programmable) 3° - 7°C (37° - 45° F.)
Cold Tank and Cold-Water
Reservoir Size
4 Liter (1 Gallon) Cold Tank plus 11.2 Liter (3 Gallons) Cold Tank Reservoir
Total of 15.2 Liters (4 Gallons) of Ice Cold Water capacity
Cold-Water Reservoir 11.2 Liter (3 Gallons)
Hot Water Temperature
Hot Water Temperature – Factory Set Point 85°C (185°F)
(Adjustable) 80°C – 93°C (176° - 199°F)
Hot Tank Size 1.6 Liters (0.4 Gallons)
Resettable Hot Tank
Overload Devices (High
Limit Safety)
105°C (221°F)
Recommended Service
Pressure
40-60 psi (275-414 kPa) – Use Pressure Regulator
Maximum Service Pressure 100 psi (689 kPa) – Use Pressure Regulator
Rated Service Flow Out 1.89 Liters per Minute (0.5 gallons per minute)
Environmental Temperature 2° - 37°C (35° - 100°F)
UV Lamp 8 Watts
Heater 500 W
Pump 24V DC – 120 psi – Flow 1000ml/min
Refrigerant Gas R134a, 58 grams, 2.05 ounces
R134a Pressures High (230 psi), Low (90 psi)

WL290 Manual Page 9Revision: 10-21-21
SHIPPING SPECIFICATIONS
ITEM WL290
Width/Depth/Height
15.4” x 14.4” x 45.7”
391 x 366 x 1161 mm
Weight (dry) 62 pounds (28 kg)
ELECTRICAL SPECIFICATIONS
ELECTRICAL SUPPLY
120V/60Hz, 1PH
15 Amp Service
COMPONENT
POWER (approximate)
AMP DRAW (approximate)
Heater
500
4.2 Amps
Compressor 207 1.75 Amps
UV Lamp System
8
0.07 Amps
Pump 0.5 0.004 Amps
WL290 TOTAL 716 6.03 Amps
15.4”
14.4
45.7”

WL290 Manual Page 10 Revision: 10-21-21
OPERATING INSTRUCTIONS

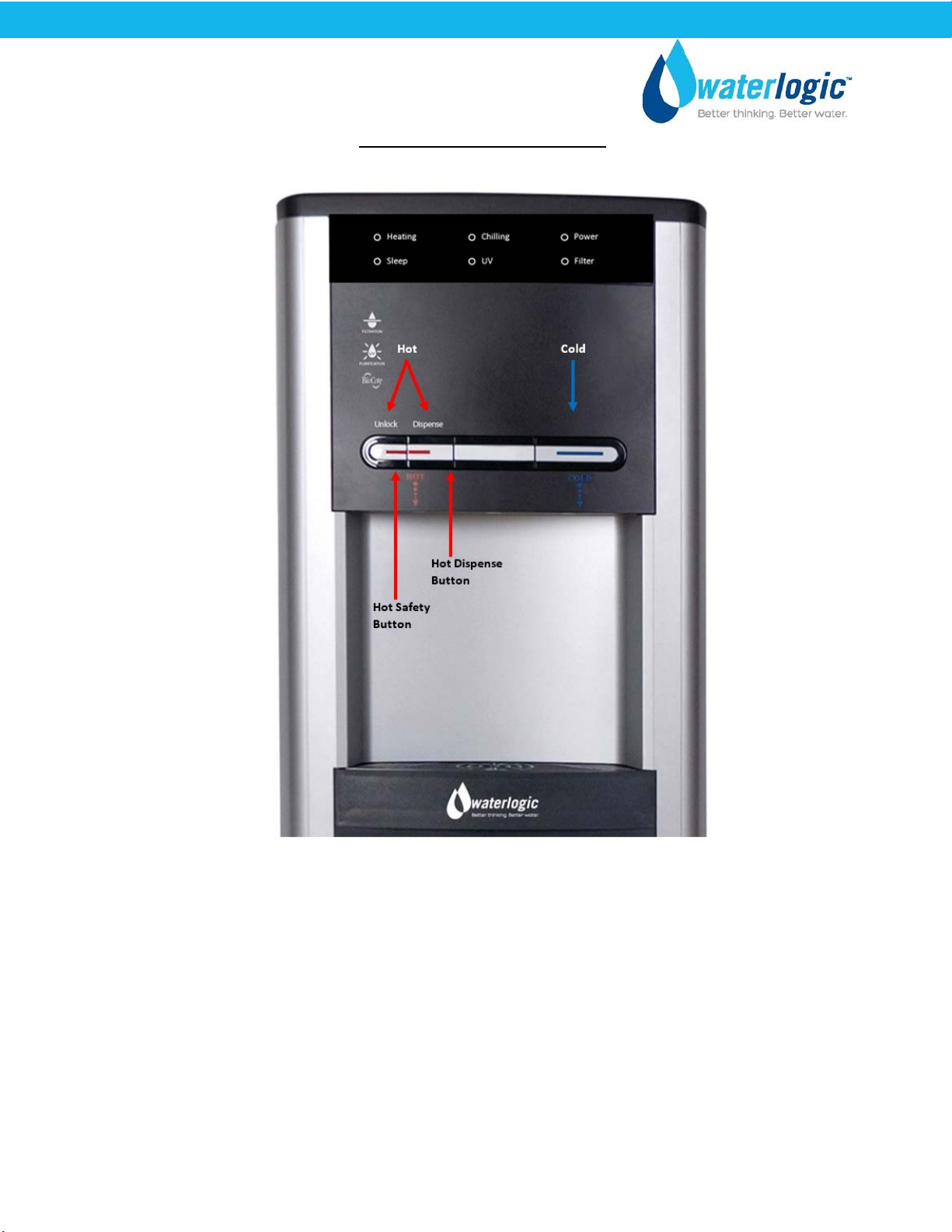

The above picture shows the Front Water Dispense Buttons for the Waterlogic WL290 Water
Treatment System.
Place appropriate receptacle under the Hot or Cold areas for dispensing water.
For Hot Water: 1. Press and hold down the Red-Hot Safety Button (LEFT hand side)
2. Press the Red Hot Dispense Button (RIGHT hand side)
*Both buttons must be held at the same time to dispense Hot Water. This is a
safeguard when dispensing hot water to prevent accidental dispensing of hot
water.
For Cold Water: Press Blue Cold Water Select Button

WL290 Manual Page 11 Revision: 10-21-21
WATERLOGIC MANUFACTURED WATER TREATMENT SYSTEM LIMITED WARRANTY
UNITED STATES AND CANADA ONLY
Waterlogic water treatment systems are guaranteed to the original purchaser to be free of defects in
materials and workmanship for a period of three (3) years from the date of purchase, but in no event
longer than forty-eight (48) months from the date of manufacture. Waterlogic Commercial Products,
LLC (“Waterlogic”) based in the U.S.A. and its affiliated companies are not liable for any cost of
removal, installation, transportation, or any other charges which may arise in connection with a
warranty claim.
This warranty does not cover damage or wear to products caused by abnormal operating conditions,
accident, abuse, misuse, unauthorized or improper alteration or repair, damage caused by or
resulting from shipping or accident, damage caused by hot water, freezing, flood, fire, or acts of God.
The effects from chlorine corrosion, scaling and normal wear are specifically excluded from this
warranty. This warranty does not cover products used outside the countries where the unit was
purchased, and does not cover products that were not installed in accordance with Waterlogic printed
installation and operating instructions obtained in training or from www.waterlogic.us. Failure to
follow all instructions for operation and maintenance voids the warranty. This warranty is not
transferable.
To obtain warranty repairs or replacement, you must obtain a Return Authorization from Waterlogic.
To obtain a Return Authorization, you must submit a Return Authorization form with supporting
documentation to Waterlogic for evaluation. The form is available at www.waterlogic.us. Supporting
documentation must include, but is not limited to; proof of purchase, installation date, failure date,
and supporting installation and maintenance data. After you submit a Return Authorization form and
supporting documentation, Waterlogic will determine whether a reasonably apparent defect in
materials or workmanship covered by this limited warranty exists. If Waterlogic determines the
claimed defect is covered by this warranty, Waterlogic will, at its sole discretion, determine whether
to correct the defect or replace the unit, free of charge to you. If Waterlogic determines that the unit
should be returned for warranty service, Waterlogic will approve of return in writing and will issue a
Return Authorization which you must obtain prior to shipping the product. You are responsible for the
cost of freight in to Waterlogic.
Waterlogic and its affiliated companies hereby limit the duration of any and all implied warranties to
a maximum period of three (3) years from the date of purchase including, but not limited to, the
implied warranties of merchantability and fitness for a particular purpose. Some states do not allow
limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Consequential and incidental damages are not recoverable under this warranty. Some states do not
allow the exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which may vary from
state to state.
New Warranty Policy issued by Waterlogic Commercial Products LLC, USA - January 10, 2014
Waterlogic Commercials Products LLC Tel: [phone]
3175 Bass Pro Drive Website: waterlogic.us
Grapevine, TX 76051
