WaterLogic WL200 User manual

Waterlogic Commercial Products, LLC
11710 Stonegate Circle
Omaha, NE 68164
[phone] www.waterlogicdealers.com
Tech Portal Website: techportal.waterlogic.com
Waterlogic International, LTD – Global Headquarters Grenfell Road, Maidenhead, Berkshire, SL6 1HN,
United Kingdom
WL200
MANUAL

WL200 Manual Page 2 - Revision: 4-29-2019
WL200 MANUAL
Congratulations on your choice of the Waterlogic WL200 Water Treatment System. The WL200
Water Treatment System model dispenses cold water. Every WL200 Water Treatment System
includes:
Bio-Cote Anti-Microbial Protection
Filter configuration can be optimized for all water conditions
The Waterlogic WL200 Water Treatment System provides exceptional quality and great tasting
water with every use.
INTRODUCTION
Carefully read and follow all instructions to ensure proper and efficient operation of your WL200
Water Treatment System. Contact Waterlogic or an Authorized Waterlogic Dealer if you have any
questions.
Waterlogic and Authorized Waterlogic Dealers employ trained service personnel who are
experienced in the installation, function and repair of Waterlogic equipment. This publication is
written for use by these qualified individuals. Waterlogic encourages users to learn about products,
however, we believe that product knowledge and service is best obtained by consulting Waterlogic
or an Authorized Waterlogic Dealer.
Waterlogic water treatment systems should be combined with selected water treatment
components to create a system specifically tailored for each application by trained and qualified
personnel.
Products manufactured and marketed by Waterlogic and its affiliates are protected by patents
issued or pending in the United States and other countries.
Waterlogic reserves the right to change the specifications referred to in this literature at any time,
without prior notice. Changes or modifications not expressly approved by Waterlogic could void the
warranty and user’s authority to operate the equipment.

WL200 Manual Page 3 - Revision: 4-29-2019
TABLE OF CONTENTS
USER GUIDE
•Safety Alert Symbols................................................................4
•Safety Precautions...................................................................4
•Features and Benefits..............................................................6
•Certifications............................................................................7
•Model Designations and General Specifications.....................8
•Electrical and Shipping Specifications......................................9
•Operating Instructions...........................................................10
•Warranty ...............................................................................11
SERVICE GUIDE
•LG Compressor Upgrade........................................................13
•Service Requirements............................................................13

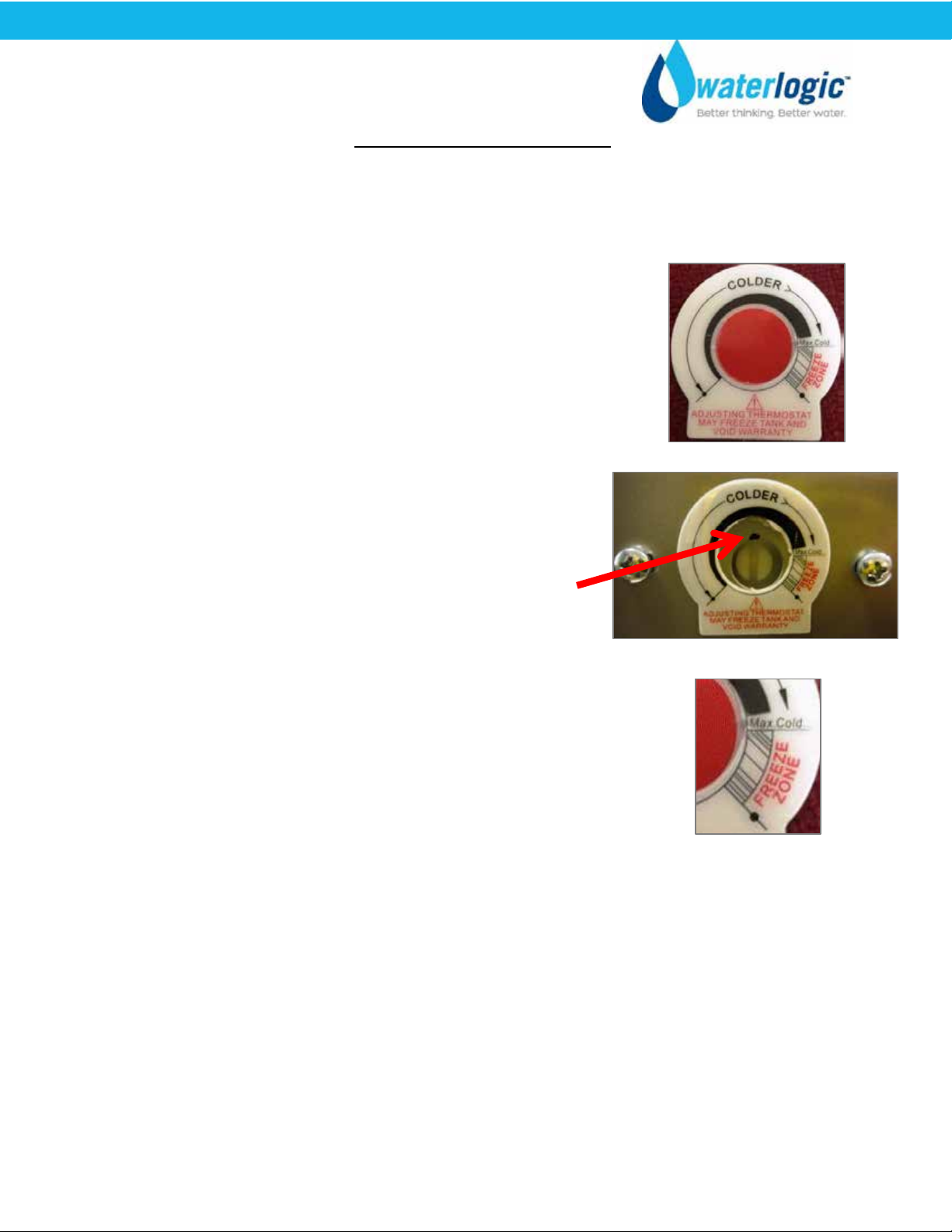

•Adjusting Cold Water Set Point .............................................14

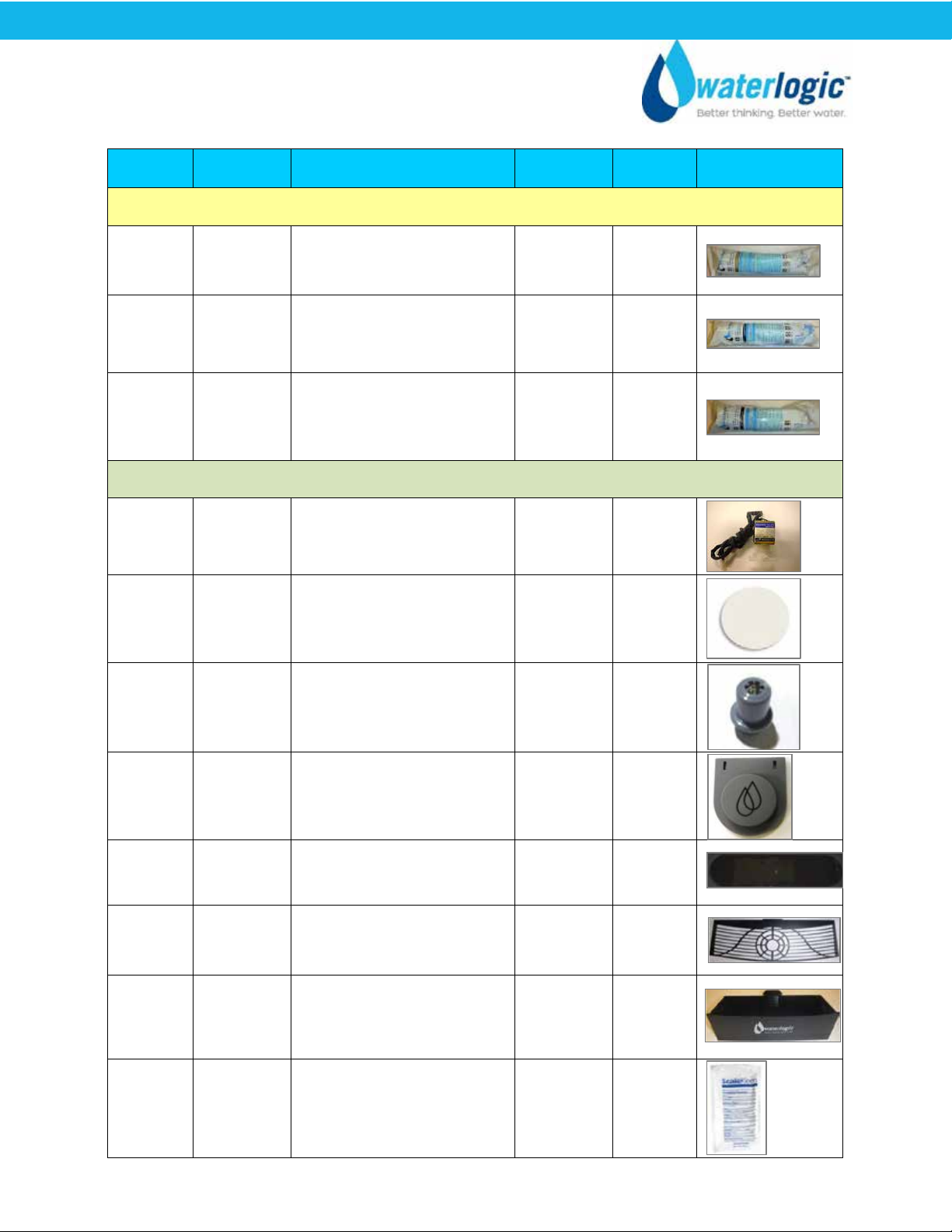

•Replacement Components (Consumables) ...........................15

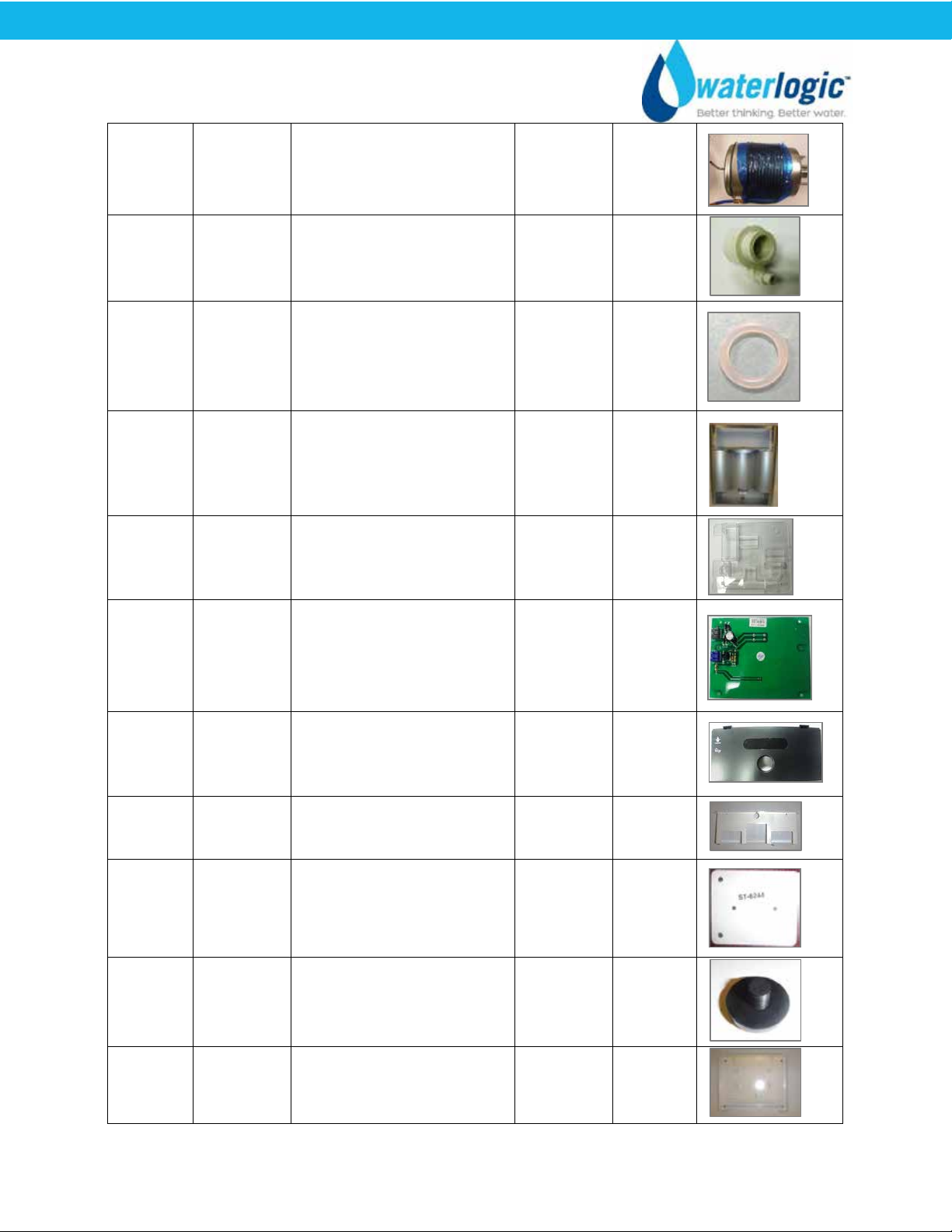

•Countertop Drawings and Parts List......................................16
•Tower Drawings and Parts List…………………… ........................22
•Flow Diagrams........................................................................28
•Electrical Schematics..............................................................30
INSTALLATION GUIDE
•Pre-Installation Procedures ...................................................32
•Countertop Draining Procedure ............................................35
•Tower Draining Procedure.....................................................36
•Installation Instructions.........................................................37
TROUBLESHOOTING GUIDE
•Power Troubleshooting .........................................................39
•Dispense Troubleshooting.....................................................41
•Cold Water Troubleshooting..................................................48

WL200 Manual Page 4 - Revision: 4-29-2019
SAFETY ALERT SYMBOLS
Read and follow all safety information carefully. The signal words used in this manual are selected as
shown below and based on an assessment of the degree of potential injury or damage (severe or
minor) and the occurrence of injury (definitely occurs or has the potential to occur) when the
warning is ignored:
DANGER!
Indicates a situation which, when not avoided, results in death or severe injury.
WARNING!
Indicates a situation which, when not avoided, has the potential to result in death or severe
injury; and/or severe property damage.
CAUTION!
Indicates a situation which, when not avoided, results or has the potential to result in minor
injury; and/or minor property damage.
SAFETY PRECAUTIONS
Basic safety precautions should be followed, including the following:
Ensure all Local, State, and Federal Laws and Codes including health and safety guidelines are met
when installing Waterlogic Equipment. Only qualified service technicians should attempt
installation and service of Waterlogic Equipment. Always read the entire operating instructions
before using the appliance and save these instructions for future use.
DANGER! This product can cause death or severe injury if incorrectly operated, installed or
maintained. The installation, maintenance, sanitizing and any repair must be performed by
qualified persons trained by Waterlogic International or their approved distributors only. Do not
remove any panel or cover to protect against electrical shock and exposure to UV radiation.
DANGER! ELECTRICAL SHOCK HAZARD. Always use a dedicated and properly grounded outlet.
Unit should be protected by ground-fault circuit interrupter (GFCI) or residual current device (RCD)
having a rated residual operating current not exceeding 30mA. Use only Waterlogic supplied
power cord. Never use extension cords or power strips to connect unit. Do not use if the power
supply cord is damaged. Always unplug from power supply prior to servicing.
WARNING! AUTHORIZED USE ONLY. This appliance is to beused for its intended purpose as
described in this manual and untrained individuals who use this manualassume the risk of any
resulting property damage or personal injury. This appliance can’t be used by children and persons
with reduced physical, sensoryor mental capabilities or lack of experience.
WARNING! DO NOT OPERATE IF DAMAGED. Unplug and isolate water supply if abnormal
conditions exist. Contact Waterlogic or authorized dealer forrepair, service, and installation to
avoid hazards.

WL200 Manual Page 5 - Revision: 4-29-2019
WARNING! CONNECT TO POTABLE WATER SUPPLY. This system is to be used for water onlyand is
not intended for use where water is microbiologicallyunsafe or with water of unknown quality
without adequate disinfection before or after the system.
WARNING! TIP HAZARD. Dispenser could tip or fall causing serious injury. Always install unit on a
firm, flat, and level surface and secure the WL200 Water Purification System to the base cabinet
with the screw provided to lock the componentstogether. Secure unit to cabinet, wall, or floor if
needed. Never place heavy items on top of unit and never climb, stand, or hang on unit or storage
cabinet to prevent injury and damage.
WARNING! UNIT IS HEAVY. TWO PERSON LIFT REQUIRED. Transport unit empty and always use
material handling equipment or two people with proper lifting technique to reduce injury risk.
WARNING! STORE AND TRANSPORT UNIT EMPTY. ALWAYS SANITIZE BEFORE USE.
The unit must be completely drained before storing to avoid stagnation and reduce
microbiological contamination (potential bacterial growth). Always sanitize before use to
eliminate any potential microbiological contaminates.
CAUTION! INDOOR USE ONLY. Intended for Household Use. Never expose to direct sunlight,
heat sources, or ambient air temperature above 37°C (100°F) or below 2°C (35°F). Install indoors
and keep unit away from excessive humidity. Never expose to freezing temperatures. Ensure
there is adequate clearance around the unit to allow refrigeration system condenser to dissipate
heat. Warmer environments require more clearance around the unit. Minimum clearance around
all surfaces of the machine is 2-inches. Installs where the ambient temperature exceeds 27°C
(80°F), require a minimum of 4-inches clearance for proper heat dissipation and efficient
operation.
CAUTION! USE A WATER PRESSURE REGULATOR. Waterlogic will not be responsible for injuryor
damage caused by excessive water pressure. Input or feed pressure must be 40psi to 60 psi. Be
aware of any potential pressure surges caused by building/municipal pumping stations.
CAUTION! USE UV STABILIZED SUPPLY LINES. Feed the unit with a potable ambient or cold
water supply only. Feed water over 37°C (100°F) can damage the treatment components. Water
block devices and external leak detectors are strongly recommended. Locate the unit as close to
the water supply and the electrical connections as possible. Locate the unit as close to the water
supply and the electrical connections as possible. Immediately isolate or close water supply valve
and contact service representative if leak is noticed.
Contact Waterlogic for assistance or help finding an Authorized Service Representative.

WL200 Manual Page 6 - Revision: 4-29-2019

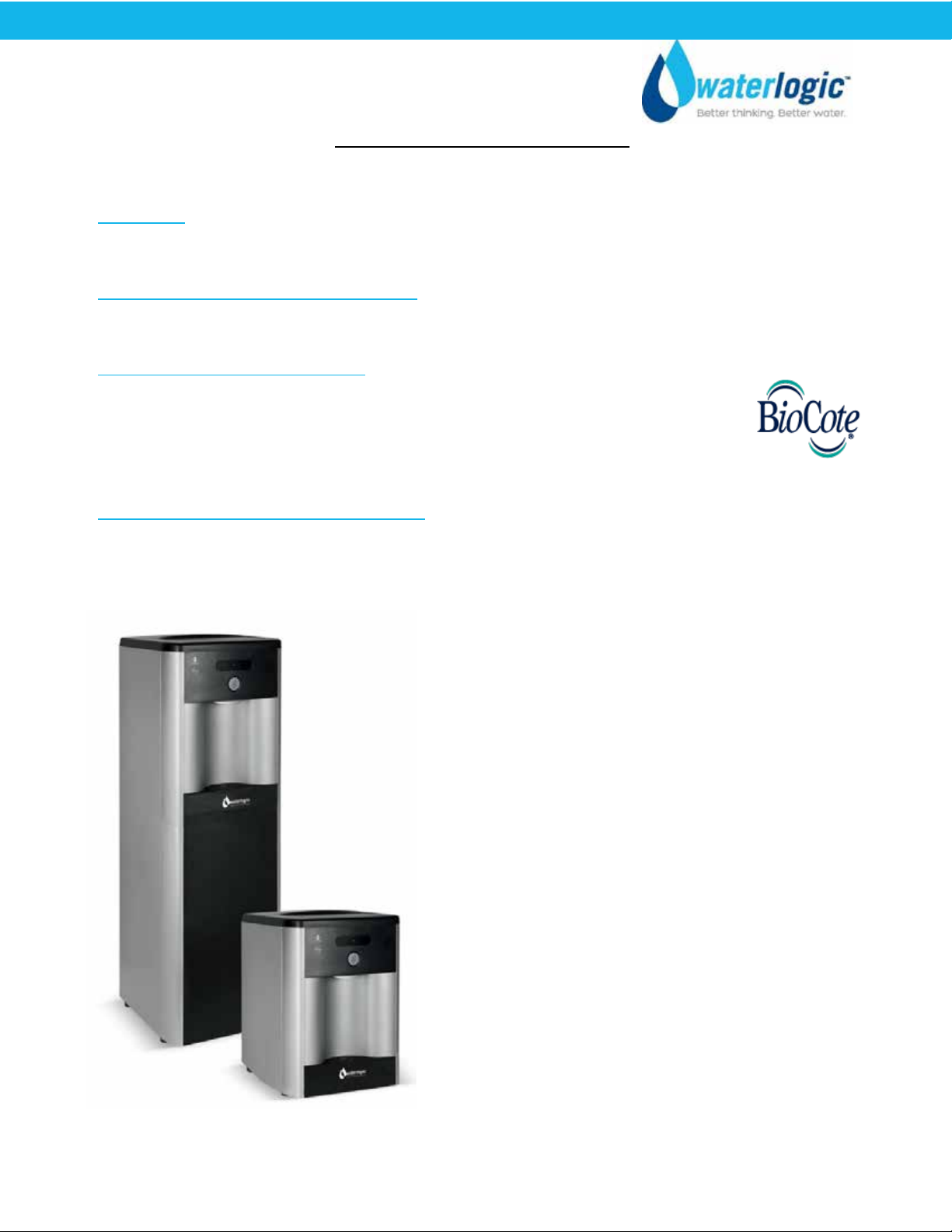

WL200 FEATURES AND BENEFITS
Cold Water
Waterlogic WL200 Water Treatment System comes standard with Cold Water Selection.
High Volume Storage and Water Capacity
Tower Model has 4 liters of Cold Water Capacity. Counter Top has 2 liters of Cold Water Capacity.
BioCote®Anti-Microbial Protection
Certain plastic, silicon, and painted surfaces surrounding the dispensing areas and
drip tray are infused with an exclusive additive called BioCote®. BioCote® provides
an effective barrier against microbes like bacteria and mold, which may cause odors
or staining.
Large Dispense Area with Recessed Faucet
8.5 inch dispense height with BioCote® recessed faucet to protect from cross-contamination.

WL200 Manual Page 7 - Revision: 4-29-2019
WL200 CERTIFICATIONS
Waterlogic water treatment systems have been tested, and certified to rigorous NSF and UL
Standards. We believe that performance testing and certifications validate Waterlogic as a world-
leader in water treatment systems.
WL200 Water Treatment Systems Certifications Include
UL399 – Certified Drinking Water Cooler
Intertek Labs (ETL) Certified the WL200 Water Treatment System to ANSI/UL 399
Standard for Drinking Water Coolers.
CSA C22.2 No. 120 CSA Standard for Refrigeration.
BPA Free - Waterlogic tests for BPA and declares that all of its products are
Bisphenol-A FREE and contain no harmful BPA plastics.
Waterlogic is certified to ISO 9001:2015 – Quality Management Systems
(certified by Intertek). ISO 9001 is the internationally accepted standard for
well managed organizations that have adopted the key quality management
principles to its operations to bring consistent quality products and a culture of
continuous improvement.
Safe Drinking Water Act
Waterlogic water treatment systems conform to the Safe Drinking Water Act (SWDA) “lead-free”
amendment effective January 4, 2014.

WL200 Manual Page 8 - Revision: 4-29-2019
MODEL/PART DESIGNATIONS
BRAND NAME DESCRIPTION
MODEL -
PART NUMBER
WL200 Counter Top
Waterlogic WL200 Counter Top -Cold Water
12-WL200CTF-6002-M-C-TT-CS-WLU
Serial Number Prefix: 50 or HJ2C116CS
WL200 Tower Waterlogic WL200 Tower -Cold Water 12-WL200FSF-6002-FS-C-TT-CS-WLU
Serial Number Prefix: 29 or HJ1C116CS
SPECIFICATIONS
ITEM WL200 Counter Top WL200 Tower
Water Connection ¼” Quick Connect
Cold Water Temperature
Cold Water Temperature – Factory Set Point 5°C (41°F)
Adjustable 1.1° - 12.2°C (34°- 54°F)
Cold Tank Size
Tower: 4 Liters (1.1 Gallons)
Counter Top: 2 Liters (.53 Gallons)
Recommended Service
Pressure
40-60 psi (275-414 kPa) – Use Pressure Regulator
Maximum Service Pressure 100 psi (689 kPa) – Use Pressure Regulator
Rated Service Flow 1.89 liters per minute (0.5 gallons per minute)
Environmental Temperature 2° - 37°C (35° - 100°F)
Refrigerant Gas R134a, 40g, 1.41 ounces R134a, 65g, 2.29 ounces
R134a Pressures High (230 psi),Low (90 psi)

WL200 Manual Page 9 - Revision: 4-29-2019
SHIPPING SPECIFICATIONS
ITEM WL200 Counter Top WL200 Tower
Width/Depth/Height
13.5” x 14.5” x 17.75”#(34cm x 37cm x
45cm)
13.5” x 14.5 x 40.5” (34cm x 41cm x
103cm)
Weight (dry) 42 pounds (19.5 kg) 58 pounds (26.5 kg)
ELECTRICAL SPECIFICATIONS
ELECTRICAL SUPPLY 120V/60Hz, 1PH 15 Amp Service
COMPONENT POWER (approximate) AMP DRAW (approximate)
Compressor 216 1.8 Amps
WL200 TOTAL 216 1.8 Amps
#WL200 Counter Top is 17.75 in. tall and may not fit between Counter Tops and cabinets - Check installation to ensure adequate clearance.

WL200 Manual Page 10 - Revision: 4-29-2019
OPERATING INSTRUCTIONS

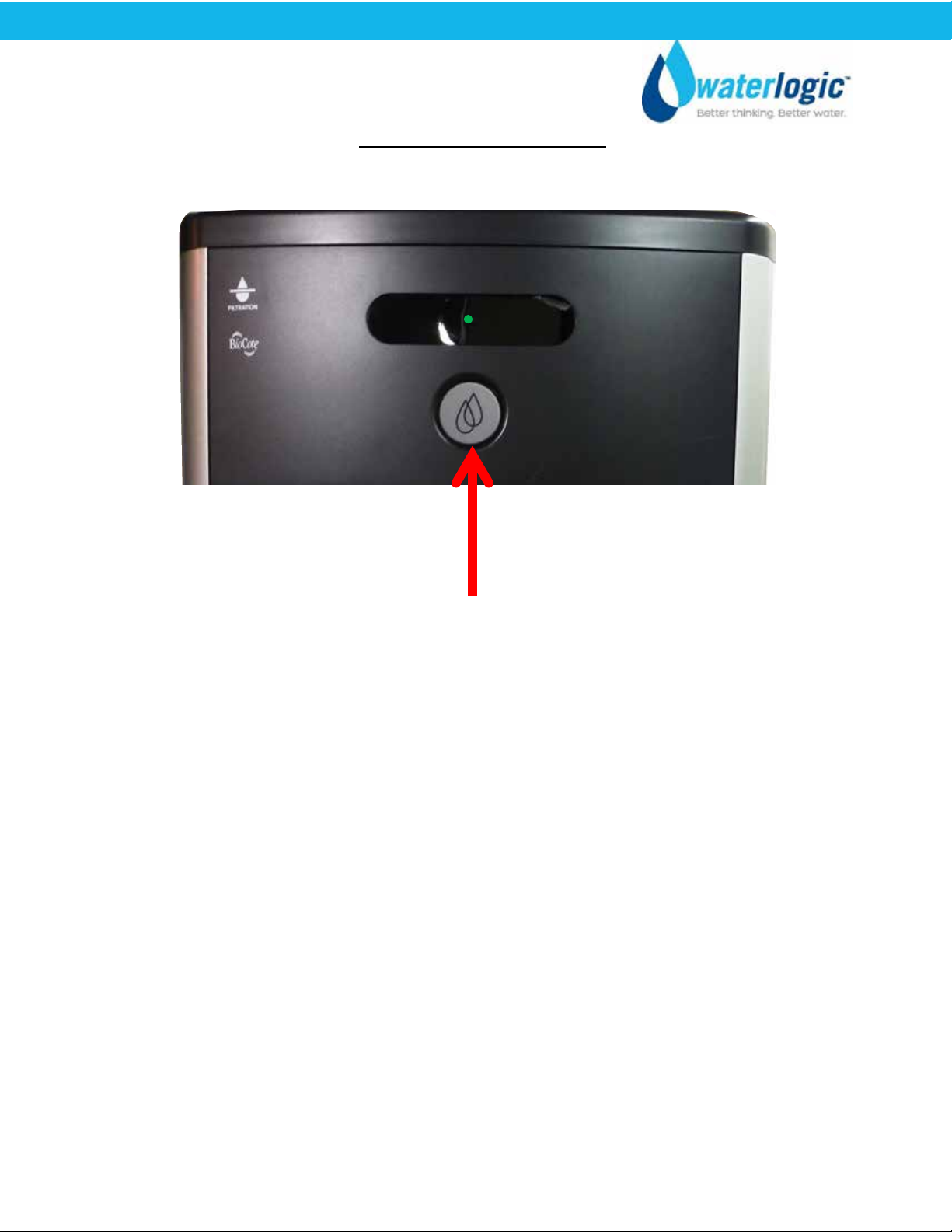

The above picture shows front LCD display and control panel for the Waterlogic WL200 Water
Treatment System.
For Cold Water: Press the Dispensing Button.
Dispensing Button

WL200 Manual Page 11 - Revision: 4-29-2019
WATERLOGIC MANUFACTURED WATER TREATMENT SYSTEM LIMITED WARRANTY
UNITED STATES AND CANADA ONLY
Waterlogic water treatmentsystems are guaranteed to the original purchaser to be free of defects in
materials and workmanship for a period of three (3) years from the date of purchase, but in no event
longer than forty-eight (48) months from the date of manufacture. Waterlogic Commercial Products,
LLC (“Waterlogic”) based in the U.S.A. and its affiliated companies are not liable for any cost of
removal, installation, transportation, or any other charges which may arise in connection with a
warranty claim.
This warranty does not cover damage or wear to products caused by abnormal operating conditions,
accident, abuse, misuse,unauthorized or improper alteration or repair, damage caused by or
resulting from shipping or accident, damage caused by hot water, freezing, flood, fire, or acts of God.
The effects from chlorine corrosion, scaling and normal wear are specificallyexcluded from this
warranty. This warranty does not cover products used outside the countries where the unit was
purchased, and does not cover products that were not installed in accordance with Waterlogic printed
installation and operating instructions obtained in training or from www.waterlogic.us. Failure to
follow all instructions for operation and maintenance voids the warranty. This warranty is not
transferable.
To obtain warranty repairs or replacement, you must obtain a Return Authorization from Waterlogic.
To obtain a Return Authorization, you must submit a Return Authorization form with supporting
documentation to Waterlogic for evaluation. The form is available at www.waterlogic.us. Supporting
documentation must include, but is not limited to; proof of purchase, installation date, failure date,
and supporting installation and maintenance data. After you submit a Return Authorization form and
supporting documentation, Waterlogic will determine whether a reasonably apparent defect in
materials or workmanship covered by this limited warranty exists. If Waterlogic determines the
claimed defect is covered bythis warranty, Waterlogic will, at its sole discretion, determine whether
to correct the defect or replace the unit, free of charge to you. If Waterlogic determines that the unit
should be returned for warranty service, Waterlogic will approve of return in writing and will issue a
Return Authorization which you must obtain prior to shipping the product.You are responsible for the
cost of freight in to Waterlogic.
Waterlogic and its affiliated companies hereby limit the duration of any and all implied warranties to
a maximum period of three (3) yearsfrom the date of purchase including,but not limited to, the
implied warranties of merchantability and fitness for a particular purpose. Some states do not allow
limitations on how long an implied warrantylasts, so the above limitation maynot apply to you.
Consequential and incidental damages are not recoverable under this warranty. Some states do not
allow the exclusion or limitation of incidental or consequential damages, so the above limitationor
exclusion may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which may vary from
state to state.
New Warranty Policy issued by Waterlogic Commercial Products LLC, USA - January 10, 2014
Waterlogic Commercials Products LLC Tel: [phone]
11710 Stonegate Circle Website: waterlogic.us
Omaha, NE 68164

WL200 Manual Page 12 - Revision: 4-29-2019
SERVICE REQUIREMENTS
WARNING! Read and understand the contents of this manual before attempting to service
WL200 Water Purification System. Failure to follow the instructions in this manual could result
in death, serious personal injury, or severe property damage. Only trained and qualified
technicians should attempt to install, maintain, or service Waterlogic Equipment.
1. Visually inspect all electrical and water connections for signs of wear or damage.
DANGER! HIGH VOLTAGE ELECTRICAL HAZARD. Unplug before inspection and service.
2. Ensure there is adequate (minimum of 2”) clearance around the unit and clean the condenser
grill and compressor fan to provide efficient cooling system operation.
3. Sanitize the cold tank per instructions in the pre-installation procedures.
4. Clean and sanitize external surfaces of the unit. Use soap and water or chemicals that are
compatible with ABS plastic and will not damage or degrade the product surfaces.
5. Empty and clean the drip tray on a regular basis.
6. Remove and clean the Faucet. Replace as needed.
WARNING! SANITIZER MAY CONTAIN HAZARDOUS CHEMICALS. Use of proper personal
protective equipment such as rubber gloves and eye protection is required.

WL200 Manual Page 13 - Revision: 4-29-2019
LG COMPRESSOR UPGRADE
*Parts List in this manual updated to reflect these changes.
New LG Compressor 120V R134A 1/8HP CSB035LJCM with external start/run
capacitor.
New LG Compressor with External Start/Run Capacitor
External Capacitor
New LG CSB035 LJCM
Compressor
Repair/Replacement Parts for are
not interchangeable with
older/other compressors.
Older version of LG compressor is
obsolete and no longer available.
Part # CO-0017-L00-00 LG Compressor 120V CSB035LJCM-PTC Relay
Part # CO-0018-L00-00 LG Compressor 120V CSB035LJCM-Overload Protector
Part # CO-0019-L00-00 LG Compressor 120V CSB035LJCM-Capacitor
New LG CSB035LJCM 120V R134A 1/8HP Compressor Repair Parts

WL200 Manual Page 14 - Revision: 4-29-2019
ADJUSTING COLD SET POINT
Cold Water Temperature – Factory Set Point is 41°F (5°C) and can be adjusted to 34°F - 54°F (1.1°C to
12.2°C)
The cold set point can be adjusted by accessing the cold
thermostat adjustment screw under the decal at the rear of the
unit.
Remove the red portion of the Cold Tank Temperature label to
access the adjustment screw.
The factory set point is ~41°F and is indicated by the dot on
sheet metal.
Turning the adjustment screw clockwise to lower the set point
temperature.
Do not adjust past the “Max Cold” position at 3:00 position to
avoid freezing the cold tank.
Turning the adjustment screw counter-clockwise to raise the set
point temperature.

WL200 Manual Page 15 - Revision: 4-29-2019
REPLACEMENT COMPONENTS
Component
WLCP Part No.
Frequency of Replacement
GAC Filter - 10" Carbon Activated
Inline Filter – Optional
*Filter Element PN FT-0038-WLT FT-0035
Every 6-months or as required. Local
water conditions will determine
proper filter type and maintenance
schedule.
FT-0035-IL-WLT
Carbon Block - 10" CBC 1 Micron
Lead and Cyst Reduction Inline
Filter – Optional
*Filter Element PN FT-0064-WLT
FT-0063
Every 6-months or as required. Local
water conditions will determine
proper filter type and maintenance
schedule.
FT-0063-IL-WLT
Sediment Filter - 10" Sediment
20 Micron Inline Filter – Optional
*Filter Element PN FT-0055-WLT FT-0053
Every 6-months or as required. Local
water conditions will determine
proper filter type and maintenance
schedule.
FT-0053-IL-WLT
Replacement parts can be obtained from Waterlogic or an Authorized Waterlogic Dealer.
See Parts Layouts, Drawings, and Lists for additional repair parts.
Surface Cleaning
Clean on a regular basis with damp lint free cloth. Never use harsh chemicals (alcohol or acid based)
or abrasive agents on any part of the product to avoid damage. A mild cleaner such as Simple Green
or equivalent is recommended.
DISPOSAL
End of Life
At the end of this product’s life, ensure that it is disposed of in an environmentally friendly manner
which is fully compliant with all Federal/State/Local Requirements and Guidelines.Do not dispose
of this appliance with normal household or business waste.

WL200 Manual Page 16 - Revision: 4-29-2019

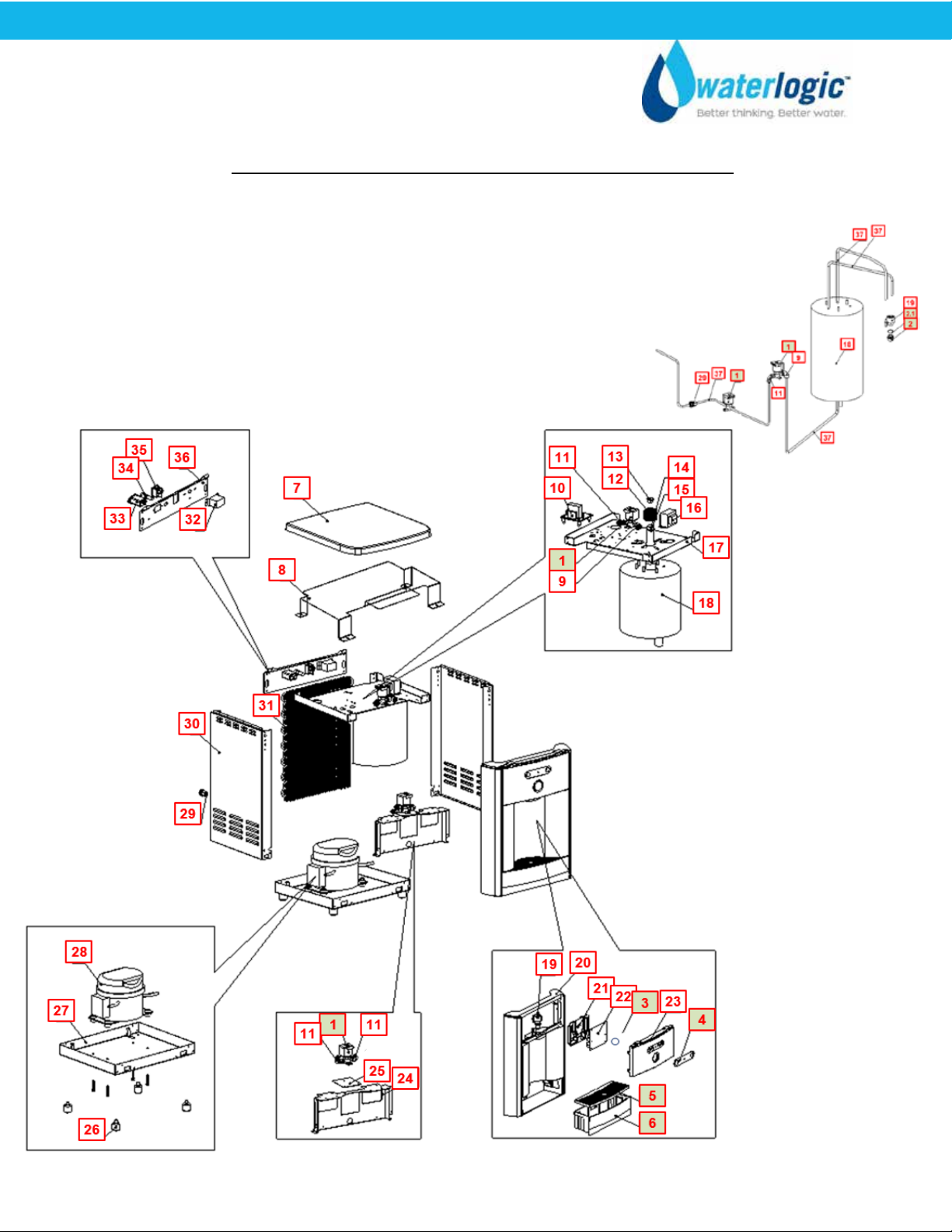

WL200 COUNTER TOP DRAWINGS with PART NUMBERS
Wetted Parts

WL200 Manual Page 17 - Revision: 4-29-2019
No
WLCP Part
No.
Description Part No Stocked?
Consumables
Optional FT-0035 GAC Filter - 10" Carbon Activated Inline Filter - Optional
Filter Element PN FT-0038-WLT
FT-0035-IL-
WLT Yes
Optional FT-0063
Carbon Block - 10" CBC 1-Micron
Lead and Cyst Reduction Inline
Filter - Optional
Filter Element PN FT-0064-WLT
FT-0063-IL-
WLT Yes
Optional FT-0053
Sediment Filter - 10" Sediment
20 Micron Inline Filter
Optional
Filter Element PN FT-0055-WLT
FT-0053-IL-
WLT Yes
Recommended Spare Parts
1 12-1500 Solenoid Valve 500 mm Recommend stocking 2 each per
every 10 units purchased PU-4016 Yes
1.1 CU-0001 Solenoid Cushion Recommend stocking 2 each per
every 10 units purchased CU-0001 Yes
2 10-3048
Faucet Nipple – Blue with
Screen
Recommend stocking 2 each per
every 10 units purchased
PL-1013 Yes
3 12-8600
Silicon Button Key Mat
Cold Only
Recommend stocking 5 each per
every 10 units purchased
PL-1100 Yes
4 12-8610 Button Label - Cold Only Recommend stocking 2 each per
every 10 units purchased LP-7085 Yes
5 12-8150 Drip Tray Grill – Charcoal Recommend stocking 4 each per
every 10 units purchased PL-1152 Yes
6 12-8055
Drip Tray - Charcoal with
Waterlogic Logo
Recommend stocking 4 each per
every 10 units purchased
PL-1156 Yes
Not
Shown 01-2076 ScaleKleen
Recommend stocking 2 each per
every 10 units purchased NA Yes

WL200 Manual Page 18 - Revision: 4-29-2019
Remaining of Parts
7 12-8060 Flat Top Cover - Charcoal with Texture
Counter Top Only PL-1249-CN Yes
8 ST-0049-
L00-00
High Voltage Metal Cover (ETL-
Certification)
Counter Top Only
ST-0049-
L00-00 Yes
9 Purchase from John
Guest
5/16” x ¼” Reducing Elbow John
Guest P/N PI211008S PU-4007 No
10 NA Leak Detection PCB EN-6111-A No
10.1 10-3017 PCB Stand-off Pin EN-6059 Yes
11 Purchase from John
Guest
1/4” Union Elbow John Guest
P/N P10308S PU-4008 No
12 12-1210 UV Lamp Retaining Threaded Nut
Counter Top Only PL-1128 Yes
13 10-8085 UV Lamp Fixing Rubber (Silicon)
Counter Top Only CT-2001-B Yes
14 NA Quartz Sleeve (100mm)
Counter Top Only CT-2062-CN No
15 10-2500 Black O-Ring for Quartz Sleeve
Counter Top Only CT-2006 Yes
16 12-3117 Power Transformer 120V EL-5003-A Yes
17 12-3165 Upper Shelf
Counter Top Only ST-8150-B Yes

WL200 Manual Page 19 - Revision: 4-29-2019
18 12-3110 2L UV Cold Tank Assembly
Counter Top Only CT-2060 Yes
19 NA Faucet - Cold only PL-1012 Yes
19.1 10-2600 Natural Faucet O-Ring – Silicon White
CT-2007 Yes
20 12-8050 Front Upper Drip Tray Insert
Panel PL-1146 Yes
21 12-8605 PCB Cover PL-1180-CN Yes
22 12-8615 Main PCB EN-6086 Yes
23 NA Front Upper Insert Panel -
Charcoal PL-0084- L00-CL No
24 12-3175 Filter Bracket
Counter Top Only ST-8152 Yes
25 12-3195 Leak System Inlet Solenoid
Bracket ST-8244 Yes
26 12-3150 Unit Rubber Feet
Counter Top Only PL-1251-CN Yes
27 12-3170 Bottom Tray
Counter Top Only ST-8151 Yes

WL200 Manual Page 20 - Revision: 4-29-2019
Verify compressor in machine before ordering parts as the Compressor P/N CO-0020-L00-00
and 10-2200 (CO-0001A) and related parts are not interchangeable.
CO-0020-L00-00 Compressor
34A.1 CO-0020-
L00-00 LG Compressor 120V R134A CSB035LJCM CO-0020- L00-00 Yes
34A.2 CO-0019-
L00-00 Compressor Capacitor CO-0019- L00-00 Yes
34A.3 ST-0216-
L00-00 Capacitor Bracket ST-0216- L00-00 Yes
34A.4 CO-0017-
L00-00 PTC Relay CO-0017- L00-00 Yes
34A.5
CO-0018-
L00-00 Overload Protector
CO-0018-
L00-00 Yes
CO-9001-A / 10-2200 Compressor
34B.1 10-2200 Compressor (R134a 1/8HP)
120V/60Hz CO-9001-A Yes
34B.2 10-3003 Compressor Starter Relay CO-9016 Yes
34B.3 10-5018 Compressor Overload CO-9015 Yes
28.1 12-1001 Filter Dryer CO-9008 Yes
29 10-3067 Bulkhead Union ¼” x ¼” John
Guest P/N PI1208S PU-4028 Yes
30 12-8062 Side Panel
Counter Top Only ST-8245 Yes
31 12-3100 Wire Condenser
Counter Top Only CO-9031 Special Order
