WaterLogic WL400 Series Manual

WL400
OPERATING, INSTALLATION, AND SERVICE MANUAL
Waterlogic Commercial Products, LLC
11710 Stonegate Circle
Omaha, NE 68164
[phone]
www.waterlogic.us

WL400 OPERATING, INSTALLATION, AND SERVICE MANUAL
Congratulations on your choice of the Waterlogic WL400 water treatment system. The WL400
model dispenses cold, and hot. Every WL400 includes:
High Performance Multi-Stage Filtration
Bio-Cote Anti-Microbial Protection
Firewall Advanced Purification
The Waterlogic WL400 provides exceptional quality and great tasting water with every use.
TABLE OF CONTENTS
•Features and Benefits ................................................................. 3
•Certifications............................................................................... 4
•Introduction ................................................................................ 5
•Safety Alert Symbols ................................................................... 5
•Safety Precautions ...................................................................... 6
•Model and Part Designations...................................................... 7
•Specifications .............................................................................. 7
•Operating Instructions ................................................................ 9
•Display Panel and Icons............................................................. 11
•Flow Diagram …………………… ..................................................... 12

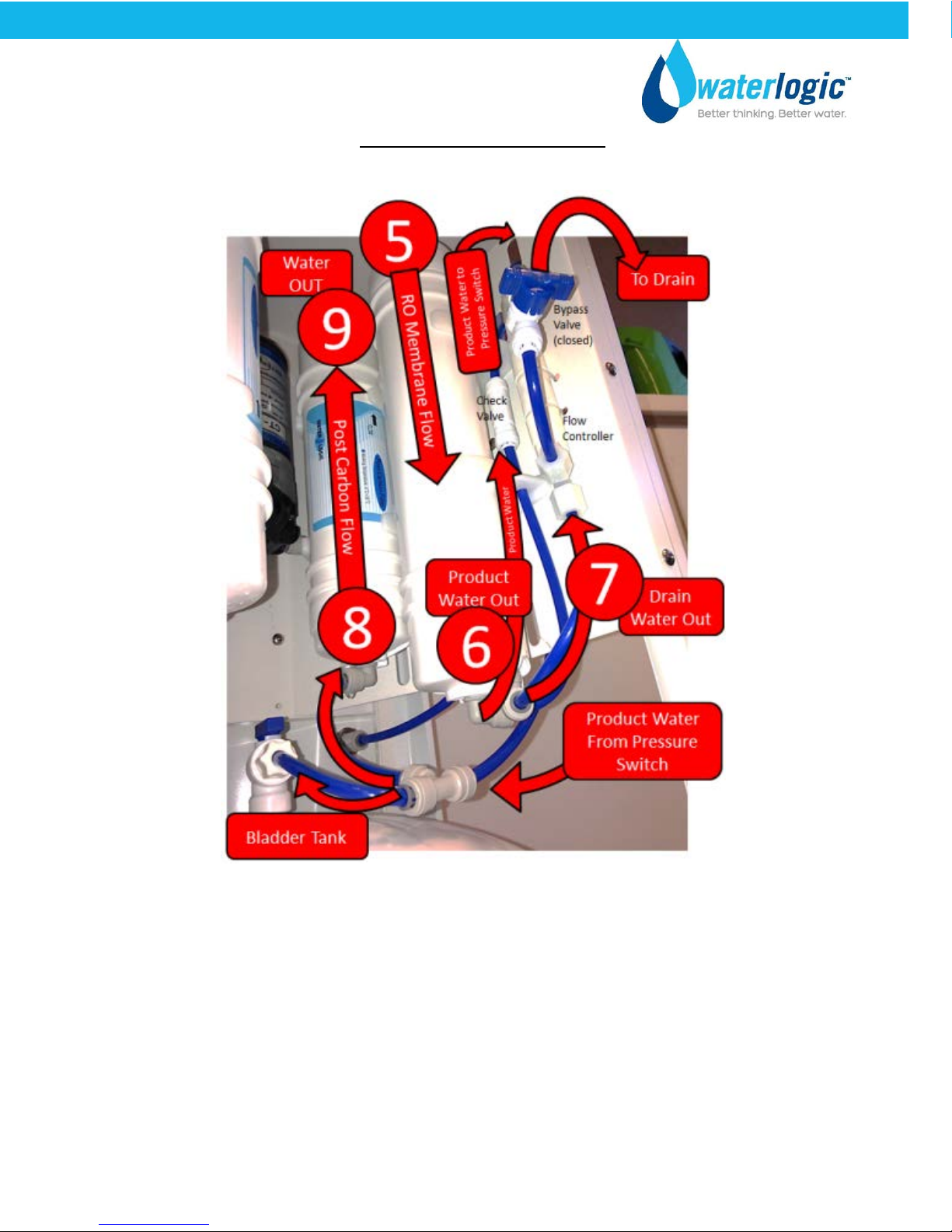

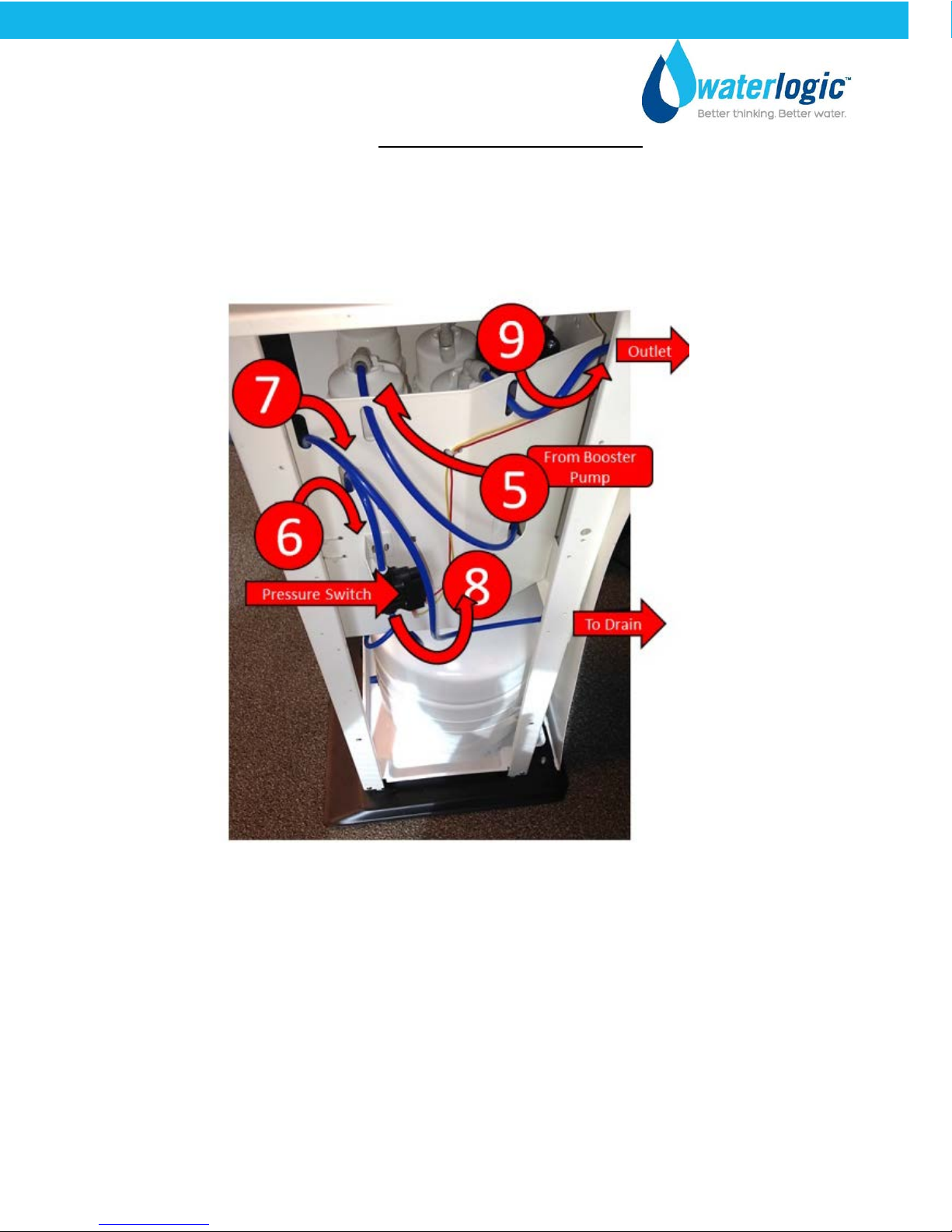

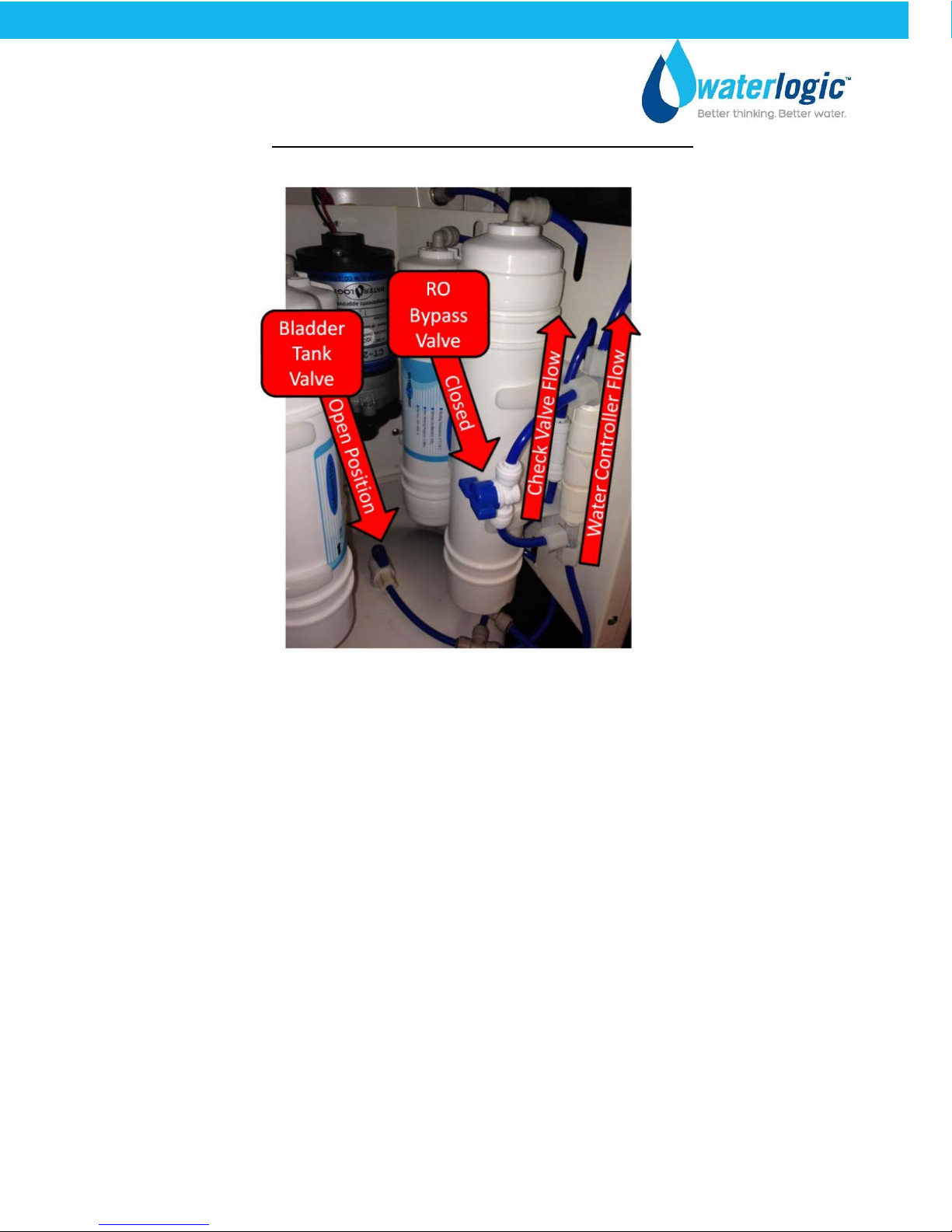

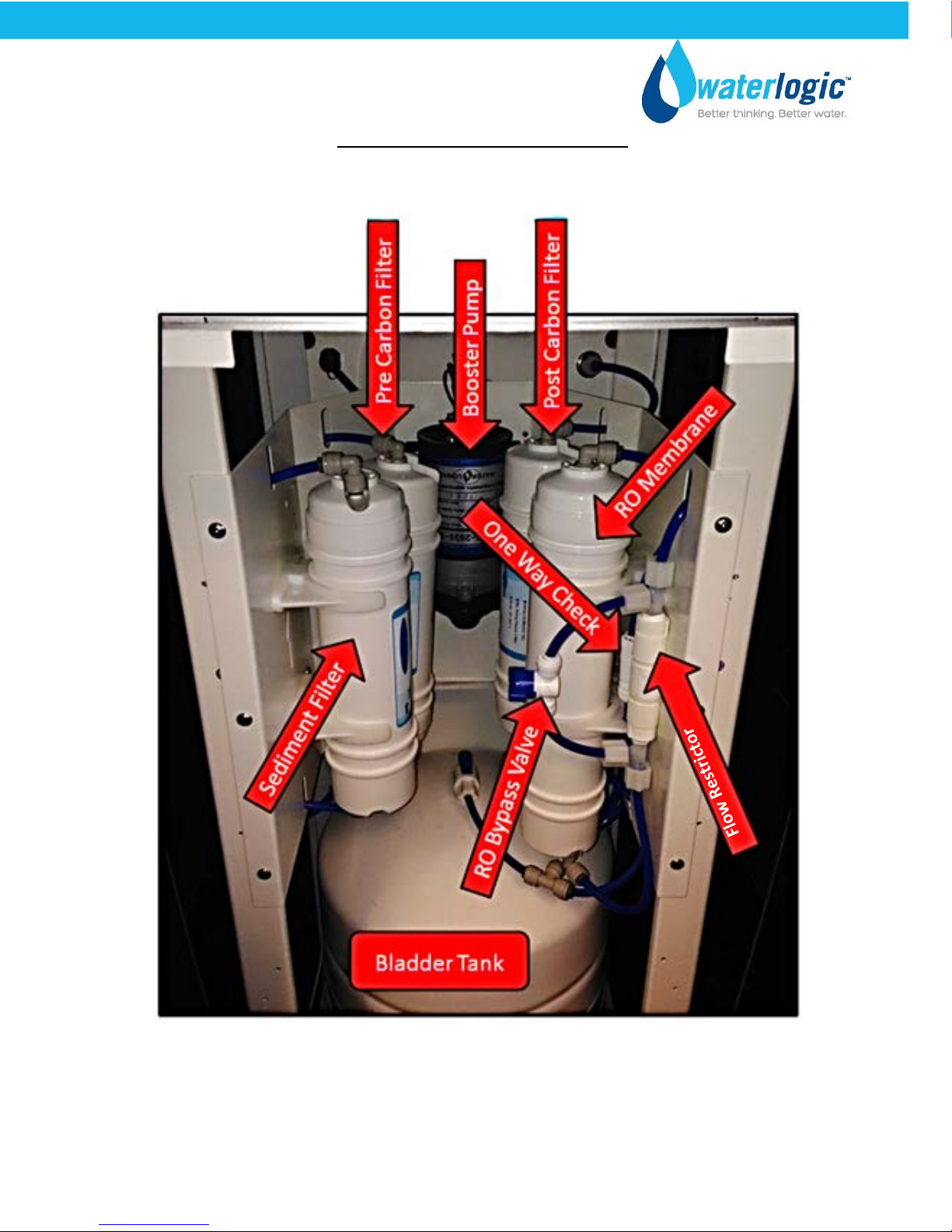

•RO Quick Guide…………………… ................................................... 13

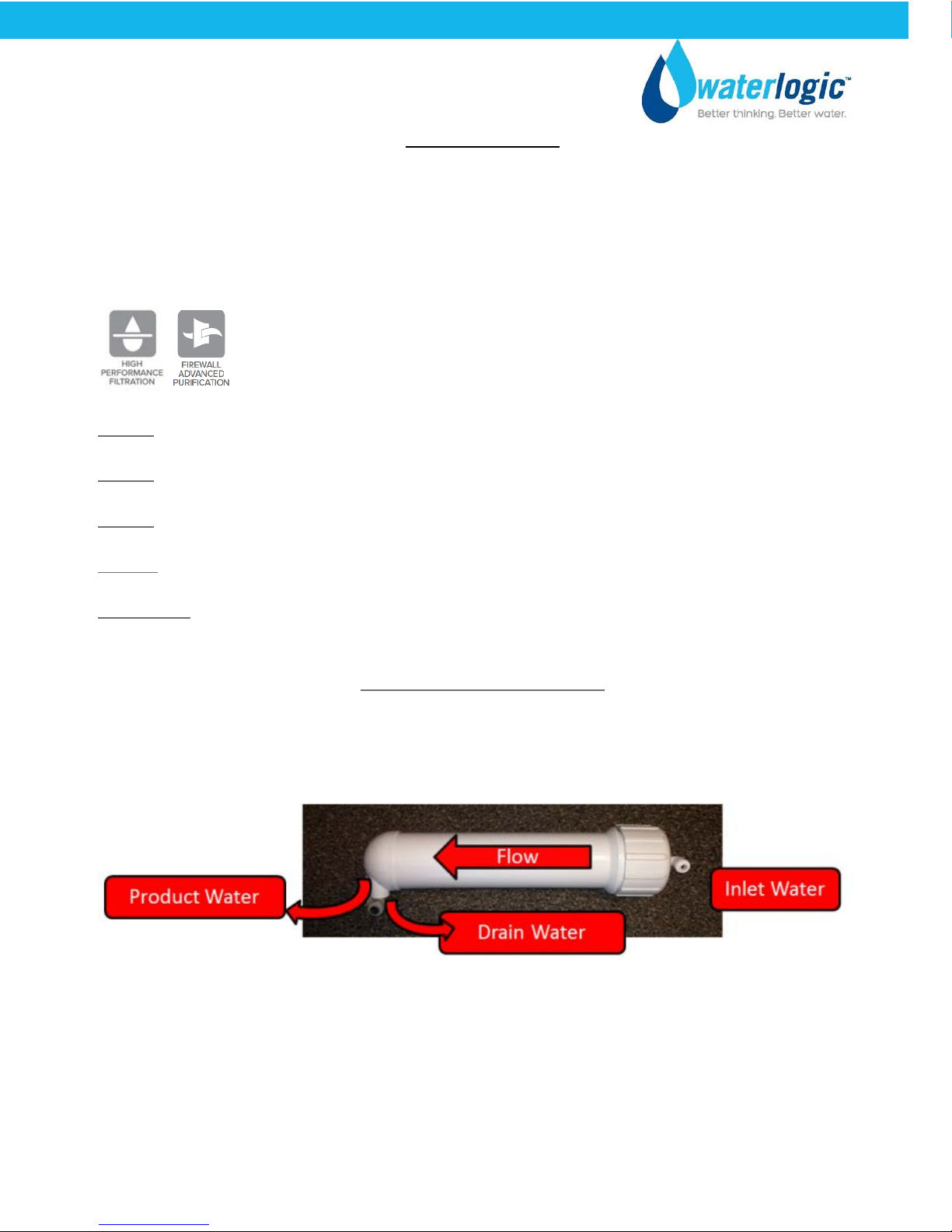

•Replacing RO Membrane…………………… .................................... 20
•Programming Instructions ........................................................ 23

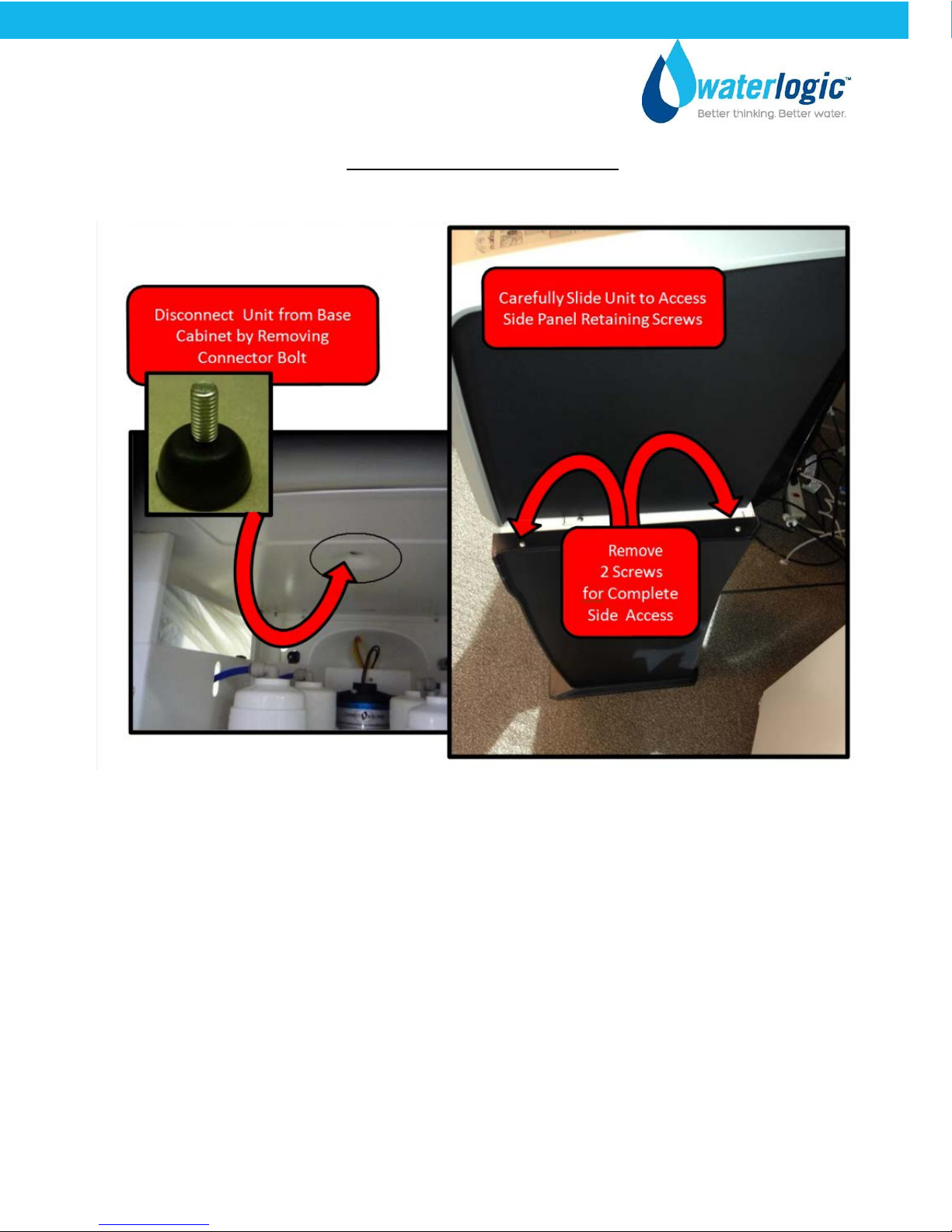

•Opening Top Cover ................................................................... 24
•Pre-Installation Procedures ...................................................... 25
•Draining Procedures.................................................................. 30
•Installation Procedures ............................................................. 32
•Service Requirements ............................................................... 35
•Replacement Components ....................................................... 36
•Hot Tank Descaling Instructions ............................................... 37
•Resetting the Overload or High Limit Safety ............................ 39
•Drawings and Parts Lists ........................................................... 40
•Electrical Diagram ..................................................................... 49
•Fault Codes and Troubleshooting............................................. 50
•Warranty .................................................................................. 73
WL400 Operating, Installation, and Service Manual Page 2 - Revision: 5-29-2015

WL400 FEATURES AND BENEFITS
Ambient, Cold, Hot, and Extra Hot Water
Pressure Fed Ambient, Cold, Hot, and Extra Hot Selections to meet a wide range of customer
demands. Cold water temperature is adjustable
High Volume Storage and Water Capacity
The WL400 has 4 liters of Cold Water Capacity and 1.2 Liters of Hot Water Capacity.
BioCote®Anti-Microbial Protection
Plastic surfaces surrounding dispensing areas and drip tray are infused with an
exclusive silver additive called BioCote®. Silver is a natural anti-microbial that
inhibits the growth of microorganisms providing additional surface protection.
Large Dispense Area with Recessed Faucet
8.5 inch dispense height with BioCote® recessed faucet to protect from cross-contamination.
Leak Detection
WL400’s are supplied with a Sensor in the Leak Tray that halts water supply to prevent overflow and
sounds alarm to reduce accident potential.
Energy Saving Sleep Mode
Energy saving Sleep Mode can be programmed to turn off heater after 3, 6 or 12 hours of inactivity
and can be shut off.
Firewall™
Firewall is proprietary technology that places the UV lamp at the point of
dispense. This point of dispense purification keeps the dispense nozzle free
from external contamination as well as purifying the water, making the
freshest water possible.
WL400 Operating, Installation, and Service Manual Page 3 - Revision: 5-29-2015

WL400 CERTIFICATIONS
Waterlogic water treatment systems have been tested, approved, and certified by the world’s top
standards bodies such as NSF and ANSI. These organizations set and regulate national standards. We
believe that performance testing and certifications validate Waterlogic as a world-leader in water
treatment systems.
WL400 Certifications Include
NSF/ANSI-55 Class A –Ultraviolet Microbiological Water Treatment Systems
Water Quality Association is an international standards organization. Firewall™
Technology contains our latest, most innovative and patented breakthrough, “The
Firewall™”, the most comprehensive UV purification system for point-of-use water
treatment systems ever developed. The Waterlogic Firewall components has been
tested and certified by the Water Quality Association (WQA) to NSF/ANSI-55 Class A
– Ultraviolet Microbiological Water Treatment Systems, and to NSF/P231 and the
USEPA Standard for Microbiological Water Purifiers.
NSF P231 –Protocol for Microbiological Purifiers
The Public Health and Safety Organization establishes minimum requirements for
health and sanitation characteristics of microbiological water purifiers. The
requirements are based on the recommendations of the U.S. Environmental
Protection Agency's Task Force Report.
UL399 – Certified Drinking Water Cooler
Intertek Labs (ETL) Certified the WL400 to ANSI/UL 399 Standard for Drinking Water
Coolers.
BPA Free - Waterlogic tests for BPA and declares that all of its products are
Bisphenol-A FREE and contain no harmful BPA plastics.
Energy Star Certified
The WL100 has been tested and certified to the Energy Star, a US Environmental
Protection Agency (EPA) program that helps our customers save money and protect
our climate through superior energy efficiency.
Waterlogic manufacturing is certified to ISO 9001 – Quality Management
Systems (certified by Moody International). ISO 9001 is the
internationally accepted standard for well managed organizations that
have adopted the key quality management principles to its operations to
bring consistent quality products and a culture of continuous improvement.
Safe Drinking Water Act
Waterlogic water treatment systems conform to the Safe Drinking Water Act (SWDA) “lead-free”
amendment effective January 4, 2014.
WL400 Operating, Installation, and Service Manual Page 4 - Revision: 5-29-2015

INTRODUCTION
Carefully read and follow all instructions to ensure proper and efficient operation of your WL400.
Contact Waterlogic or an Authorized Waterlogic Dealer if you have any questions.
Waterlogic and Authorized Waterlogic Dealers employ trained service personnel who are
experienced in the installation, function and repair of Waterlogic equipment. This publication is
written for use by these qualified individuals. Waterlogic encourages users to learn about products,
however, we believe that product knowledge and service is best obtained by consulting Waterlogic
or an Authorized Waterlogic Dealer.
Waterlogic water treatment systems should be combined with selected water treatment
components to create a system specifically tailored for each application by trained and qualified
personnel.
Products manufactured and marketed by Waterlogic and its affiliates are protected by patents
issued or pending in the United States and other countries.
Waterlogic reserves the right to change the specifications referred to in this literature at any time,
without prior notice. Changes or modifications not expressly approved by Waterlogic could void the
warranty and user’s authority to operate the equipment.
SAFETY ALERT SYMBOLS
Read and follow all safety information carefully. The signal words used in this manual are selected as
shown below and based on an assessment of the degree of potential injury or damage (severe or
minor) and the occurrence of injury (definitely occurs or has the potential to occur) when the
warning is ignored:
DANGER!
Indicates a situation which, when not avoided, results in death or severe injury.
WARNING!
Indicates a situation which, when not avoided, has the potential to result in death or severe
injury; and/or severe property damage.
CAUTION!
Indicates a situation which, when not avoided, results or has the potential to result in minor
injury; and/or minor property damage.
WL400 Operating, Installation, and Service Manual Page 5 - Revision: 5-29-2015

SAFETY PRECAUTIONS
Basic safety precautions should be followed, including the following:
DANGER!If incorrectly installed, operated or maintained, this product can cause death or
severe injury. Those who install, operate, or maintain this product should be trained in its proper use,
warned of its dangers, and should read the entire manual before attempting to install, operate, or
maintain this product.
WARNING! Unit is to be used for its intended purpose as described in this manual, and
untrained individuals who use this manual assume the risk of any resulting property damage or
personal injury.
WARNING!HOT WATER. Unit produces Hot Water up to 185oF. Water above 125oF can cause
severe burns or scalding. Keep unauthorized people and children away from the unit to avoid
accidental dispensing of hot water. Children should not use without supervision.
DANGER! ELECTRICAL SHOCK HAZARD. Always unplug from power supply prior to servicing
equipment to prevent electrical shock.
WARNING! This system to be used for water only and is not intended for use where water is
microbiologically unsafe or with water of unknown quality without adequate disinfection before or
after the system. The system is designed for the supplemental bactericidal treatment of either
treated and disinfected public drinking water, or other drinking water, which has been tested and
deemed acceptable for human consumption by the state or local health agency having jurisdiction.
The system is designed to reduce normally occurring non-pathogenic or nuisance microorganisms
only. System is not intended for treatment of contaminated water.
WARNING! Dispenser Could Tip or Fall causing serious injury. Always install unit on a firm, flat,
and level surface and secure the WL400 to the base cabinet with the screw provided to lock the
components together. Never place heavy items on top of unit and never climb, stand, or hang on unit
or storage cabinet to prevent injury and damage.
CAUTION! INDOOR USE ONLY.Do not install outdoors or where unit is in direct sunlight. Do not
install where ambient temperature goes below 50F or above 97F. Avoid high humidity and moisture.
Product life and performance will be impacted and warranty could be voided.
WL400 Operating, Installation, and Service Manual Page 6 - Revision: 5-29-2015

MODEL/PART DESIGNATIONS
BRAND NAME DESCRIPTION MODEL – PART NUMBER
WL400 Counter Top
Waterlogic WL400 Counter Top -
Ambient, Cold, Hot and Extra Hot
10-WL4FW-SB
F-4FW-M-HCA-HC2P-SB-INN
WL400 Base Cabinet Waterlogic WL400 Base Cabinet with RO 10-WL4BC
F-4FW-M-HCA-HC2P-SB-INN
SPECIFICATIONS
ITEM
Water Connection ¼” Quick Connect
Cold Water Temperature
Cold Water Temperature – Factory Set Point 41° - 5°C
(Adjustable 34° - 54° F. (1.1°- 12.2°C)
Hot Water Temperature
Hot Water Temperature – Factory Set Point 185°F (85°C)
(Adjustable from 158°F to 203°F)
Extra Water Temperature Extra Hot Water Temperature – Factory Set Point 203°F (95°C)
Hot Water Manual Reset
Overload
207°F (97°C)
Recommended Service
Pressure
40-60 psi (275-414 kPa) – Use Pressure Regulator
Maximum Service Pressure 100 psi (689 kPa) – Use Pressure Regulator
Rated Service Flow 0.42 gallons per minute (1.6 Lpm)
Environmental Temperature 35°- 100°F (2°- 37°C)
UV Lamp 13 Watts
Heater 500 W
Refrigerant Gas R134a, 75g, 2.65 ounces
R134a Pressures High (230 psi), Low (90 psi)
SHIPPING SPECIFICATIONS
ITEM WL400 Counter Top WL400 Base WL400 Tower Combined
Width/Depth/Height of Box
21” x 22” x 22” (53.5 cm x
56cm x 56cm)
21” x 22” x 22” (53.5 cm x
56cm x 89cm)
21” x 22” x 57” (53.5 cm x
56cm x 145cm)
Weight (dry) of Box 57 pounds (26 kg) 61 pounds (28 kg) 118 pounds (53.5 kg)
Ship per Pallet Up to 8 per pallet 4 per pallet in 2 boxes
*WL400 Counter Top is 17.75 in. tall and may not fit between countertops and cabinets - Check installation to ensure adequate clearance.
WL400 Operating, Installation, and Service Manual Page 7 - Revision: 5-29-2015

ELECTRICAL SPECIFICATIONS
ELECTRICAL SUPPLY 120V/60Hz 15 Amp Service
+
COMPONENT POWER (approximate) AMP DRAW (approximate)
Heater 500 4.2 Amps
Compressor 114 1 Amp
Fan 16 0.1 Amps
Controls 15 0.1 Amps
UV Lamp System 13 0.1 Amps
Pump 12 0.1 Amps
WL400 TOTAL 670 5.5 Amps
WL400 Operating, Installation, and Service Manual Page 8 - Revision: 5-29-2015

OPERATING INSTRUCTIONS
The above picture shows front dispensing panel for the Waterlogic WL400 .
Button Operational Use
Press the Cold Water selection button. There may be a 2 second delay as
FIREWALL UV lamp purifies the water and the FIREWALL Sensor ensures
your safety. Blue light will illuminate the dispense area.
Press the Room Temperature (Ambient) Water selection button. There
may be a 2 second delay as FIREWALL UV lamp purifies the water and the
FIREWALL Sensor ensures your safety. Green light will illuminate the
dispense area.
Press and hold both the Hot Water 189°F (87°C) and the Extra Hot Water
selection buttons simultaneously for 2 seconds and hot water will
dispense. This is a child safety feature. Red light will illuminate the
dispense area.
Press the Extra Hot Water Selection button to elevate the hot tank to
203°F. Allow a few minutes for the temperature to rise in the hot tank.
Press and hold both the Hot Water and the Extra Hot Water selection
buttons simultaneously for 2 seconds and hot water will dispense. This is
a child safety feature. Red light will illuminate the dispense area.
WARNING! Unit produces Very Hot Water up to 203°F. Water above
125°F can cause severe burns or scalding. Keep unauthorized people and
children away from the unit to avoid accidental dispensing of hot water.
Children should not use without supervision.
WL400 Operating, Installation, and Service Manual Page 9 - Revision: 5-29-2015

Dispensing your choice of water is very simple.
1. Place your cup centrally in the dispensing area. Always use a cup suitable for use with hot
water. Never hold cup or place hands in dispensing area while dispensing hot water. Never
try to fill more than one cup at a time.
2. Select the type of water you wish to be dispensed by press/touching the cold, ambient or hot
water select icon until it illuminates.
WARNING! Unit produces Very Hot Water up to 203°F. Water above 125°F can cause severe
burns or scalding. Keep unauthorized people and children away from the unit to avoid accidental
dispensing of hot water. Children should not use without supervision.
WL400 Operating, Installation, and Service Manual Page 10 - Revision: 5-29-2015

DISPLAY PANELS AND ICONS
UV Lamp Has Failed
See troubleshooting
section of manual
The UV Lamp is
operating
Sleep Mode -
press any
button to
bring machine
out of sleep mode
The Hot Tank is heating up
A leak has been
detected - See
troubleshooting
section of manual
Filter needs replacing
The Cold Tank is
Chilling
Extra hot water has been
selected
The Drip Tray is
Full – Please
empty the tray
WL400 Operating, Installation, and Service Manual Page 11 - Revision: 5-29-2015

HOT TANK PRINCIPLES OF OPERATION
All Waterlogic Hot Tanks have a built in Vent or
Expansion Chamber in the top of the tank except for
WL270 (GF) units.
The Vent Chamber allows for expansion of the water
when it is heated.
The chambers are separated by a welded-in tank
baffle.
Water always flows into the bottom of the tank and
out the top to the faucet.
The hot tank outlet tube has a restrictor in its base.
This ensures the reservoir is always full by allowing
more water in than out.
There is a small hole in the side of the tank outlet tube
that allows air and water to pass into the vent
chamber as it is heated.
Water in the vent chamber is suctioned back through
the outlet tube vent hole when water is dispensed.
Expansion of water as it is heated in the reservoir will
push the water out the faucet when the outlet tube
vent hole becomes plugged with debris or scale.
The small Outlet Vent Hole is susceptible to scale build
up and is a key indicator that descaling is required.
It is critical to descale the hot tank through the vent
line and outlet line on a regular basis to prevent this
problem.
Descaling through the inlet and/or outlet lines only
will not clean the vent chamber and outlet vent hole
properly.
WL400 Operating, Installation, and Service Manual Page 12 - Revision: 5-29-2015

WL400 STANDARD WATER FLOW DIAGRAM
There is a 1.6 liter per minute (0.423 gallons per minute) flow restrictor inline after the Main
Unit bulkhead inlet fitting on all WL400's.
Flow Restrictor
Part Number AK-0014-B
WL400 Operating, Installation, and Service Manual Page 13 - Revision: 5-29-2015

RO QUICK GUIDE
The WL400 contains a high capacity Reverse Osmosis Filtration System installed in the Base Cabinet.
Efficiency is improved by utilizing the on-board booster pump to optimize the osmotic pressure, and
a 4 Gallon Bladder Tank is included in the Base Cabinet.
The Filtration system has 4 Stages of Filtration with 100 Gallons per day capacity
combined with exclusive Firewall Purification.
Stage 1 – Sediment Filter; Removes unwanted particles and particulates down to 10 micron.
Stage 2 – Pre-Filter; Granular Filter removes unwanted chlorine, odor and bad taste
Stage 3 – RO Membrane; 0.001 Micron filtration to remove total dissolved solids from the water.
Stage 4 – Post Filter; Carbon “polishing filter” to improve the taste of the water.
Final Barrier – Firewall Advanced Water Purification; Acts as the Final Barrier at the Point of Use.
RO Membrane Part No. 15-3020
WL400 Operating, Installation, and Service Manual Page 14 - Revision: 5-29-2015

BASE CABINET SIDE REMOVAL
WL400 Operating, Installation, and Service Manual Page 15 - Revision: 5-29-2015

BASE CABINET CONFIGURATION
WL400 Operating, Installation, and Service Manual Page 16 - Revision: 5-29-2015

RO SETUP AND FILTER CHANGE INSTRUCTIONS
1. Remove Front Panel from Base Cabinet
2. Isolate Water Supply
3. Remove Pre-Carbon and Post-Carbon Filters and clear carbon fines by flushing 5 galls on
water through each filter individually to drain.
4. Reinstall Pre-Carbon and Post-Carbon filters.
5. Close RO bypass valve and bladder tank valve (See photo)
6. Flush RO Membrane to drain for a minimum of 4 hours or until TDS reduction is at desired
level (>90%). Water should be draining from both the water out line and drain line.
7. Open Bladder Tank Valve and turn on water supply. Ensure RO bypass valve stays in the
Closed Position.
8. Allow up to 1 hour for empty bladder tank to fill if necessary.
WL400 Operating, Installation, and Service Manual Page 17 - Revision: 5-29-2015

LEFT SIDE INSIDE CABINET
Left Side with Outside Panel Removed
WL400 Operating, Installation, and Service Manual Page 18 - Revision: 5-29-2015

RIGHT SIDE PANEL REMOVED
WL400 Operating, Installation, and Service Manual Page 19 - Revision: 5-29-2015

RO MEMBRANE INSTALLED
WL400 Operating, Installation, and Service Manual Page 20 - Revision: 5-29-2015
