Waykar PD1201B User manual

Home Dehumidifier
Please read the manual carefully
before using the unit
PD1201B
USER MANUAL

Thank you for purchasing our dehumidifier.
Waykar wishes that our products and services can bring convenience to your
work and life.We highly recommend that you keep the manual for reference if
you encounter unexpected events using the unit.
Please read the manual carefully to ensure proper use of the dehumidifier.
Our dehumidifiers are widely used in family bedrooms, bathrooms,
basements, offices and storage rooms, etc.
The dehumidifiers from provide quick and efficient operation to Waykar
reduce room's humidity and bring you a healthy and comfortable life.
If there is any problem of the product, please contact Waykar Customer
Service at with your Purchase Order ID to help you [e-mail]
address the problem more effectively.
FOR CUSTOMERS
TO ACCESS CUSTOMER SUPPORT FASTER

To prevent any internal damage, it is very important to
keep refrigeration units (like this one) upright throughout
their journey.
Please leave it standing upright and outside the box for
24 HOURS before plugging it in.
BEFORE FIRST USE:

Safety Instructions
Errors and Protection Code
Safety Note and Maintenance Methods
Cleaning and Maintenance
Warranty and Contact Us

SAFETY INSTRUCTIONS
IMPORTANT NOTICE!
For your safety, please read the manual carefully and follow all
the safety instructions below.
Important Safety Instructions
Before connecting the power supply, make sure that the power supply provides
the same voltage and frequency required by the machine.
Cautions:
The machine power wiring must be in accordance with national wiring rules, and
power line should be connected to the reliable external Earth Line.
The fixed wiring of the machine connection must be equipped with an all-pole
disconnect device (air switch) with at least 0.118-inch distance of electric shock.
Model specification of the fuse: 5A.
The distance between the machine and the surrounding objects: at least 1 meter.
Special Note: When the display screen does not light up, it does not mean the
power has been disconnected.

1. This unit may have been tilted or placed upside down during
shipping. To ensure this device work properly, please make sure it is
upright for at least 24 hours before the initial use.
Position
3. If the moisture in a certain area of the space is particularly high, you
can place the dehumidifier directly in this area at first before you
move it to the center position.
4. In order to achieve the best dehumidification effect, the external doors and
windows should be closed when the dehumidifier is in operation. Do not
place this product near or directly next to a heater or other heat source.
5. When placing the dehumidifier, be sure to place it on a level surface. And
there should be no objects obstructing the air flow in the air inlet and outlet.
6. Before moving the product, turn off the power and drain out the water.
When moving, the machine body should not be tilted more than 45
degrees.
When you want to store the dehumidifier because you don't use it for a long
time. Please pay attention to the following steps:
1. Empty the water in the water tank.
2. Roll up the power cord and tie it up.
3. Clean the filter.
4. Place the machine in a cool and dry environment.
Storing The Dehumidifier
Children should be supervised to ensure that they do not play with the
appliance.
SAFETY INSTRUCTIONS
This appliance is not intended for use by persons (including children) with
reduced physical, sensory ormental capabilities, or lack of experience
and knowledge, unless they have been given supervision orinstruction
concerning use of the appliance by a person responsible for their safety.

Parts Description
Continuous Drainage Port
Schematic Diagram
Note: This picture shows the dehumidifier Outline Drawing. Other models
may vary a little from shape and size, please prevail in kind.

Used to power on or power
off the machine.
Used to set the humidity
and timing value up
Used to set the humidity
and timing value down
Press to confirm the
parameters setting.
Used for setting the time Used to switch to high and
low wind speed
Control Panel

Humidity Setting
In power-on status, press "Up" or "Down" button to enter the humidity setting status:
The screen will display the "Setting " and " Humidity Display " icon, the unit icon " RH%"
will light up, and the large figure " " will flash to show the humidity value.
5 2
In humidity setting status, you can press the "Up" or "Down" button to set the desired
humidity within the range of 10-98RH%.
If you press the "function" button or no operation after seconds, you will exit the
humidity setting status automatically.
When the setting humidity is 10RH%, the machine will be forced to run at continuous
working mode.
Timer Setting
In power-on status, press the "Timing"button, you will enter the Timer setting mode:
The " " will point at "Setting Time" function, the time unit "h" will light up and the
small figure " " will flash to show the setting value.
77
In Timer setting status, press "Up" or "Down", you can set a time within the range of 1
to 24 hours, which can be set again if invalid.
If you press the "function" button or no operation after seconds, you will exit the
humidity setting status automatically.
If the time it's set to be " ", this is called the invalid time.0 0
Speed Setting
Two wind speed modes are available for this machine, you can press the "Speed"
button to switch to high or low wind speed.
Parameter Query
In power-on status, press the "Function" button once, you will enter the parameter
query status.
The " " will point at "Setting Temp.", the small figure will display the setting
temperature and the temperature unit " ℉ " will light up. Press the "function" button
again, you will be able to query the ambient temperature and setting time.
Status Description
When the fan is delayed, the running symbol " " will flash, and if the fan is running,
the running symbol " " will be on, otherwise it will be off.
When the compressor is delayed, the dehumidification symbol " " will flash, and if
the compressor is running, the dehumidification symbol " " will be on, otherwise it
will be off.
Operation

If the ambient humidity is lower than the setting humidity and the compressor is
stopped, the Humidity Control Symbol " " will flash, otherwise it will be off.
When the fan speed is set to high level, the symbol " " will light up; when the fan
speed is set to low level, the symbol " " will light up.
When the machine needs to be cleaned, the cleaning symbol " " will flash,
otherwise it is off.
When the machine is defrosting, the defrost symbol "" will flash, and goes out
after finishing the defrosting process.
Power off Memory Function
After the device is powered on, it will automatically resume the working status before
power off.
·If the machine's running before power outage, the machine will automatically enter
power-on status, and maintain the previous setting parameters.
·If the machine's shut down before the power outage, then the machine will still be in
power-off status.
Defrost Function
When the dehumidifier is running at a lower temperature, the system will
automatically determine whether there is a presence of frost. If any frost exists, it will
defrost automatically.
The fan will run at high wind speed and the compressor stops when defrosting, and
switch back to the previous setting wind speed after that. The compressor can be
restarted then.
Temperature Protection Function
When the ambient temperature is higher than the Default Highest Temperature
(113°F), the system will enter high temperature protection, the small figure on the
screen will indicate "HH", and the compressor will stop.
When the ambient temperature is lower than the Default Lowest Temperature (39 °F),
the system will enter the low temperature protection, the small figure on the screen
will indicate "LL", and the whole machine will stop.
Cleaning Reminder
If the accumulative running time of the fan is ≥ 30 days, the machine can continue to
run, but it will keep prompting the "Cleaning" icon and it will not be able to be
removed even re-powered.
In power-off status, long press the "Speed" button for seconds, then the display
screen will show up for once, which means the "Clean" prompt has been released,
and the fan’s previous running time has been cleared.
Special Note:
The compressor features a "3 minutes delay protection" function—While the
dehumidifier is powered, the compressor can only start again 3 minutes after its last
shutdown.

Faults & Protection Codes:
Note:
1. When E1, E2 or E4 fault occurs, the compressor and fan will not stop.
2. If the display screen reads the error code of "E5" or "E6", please turn off,
unplug the unit, and check for obstructions. Plug it in again and restart the
dehumidifier.
3. When Ec occurs, the machine will not be controlled by the control panel.
4. During the fault alarm, press any key to cancel the alarm sound. If the Error
Code is still present, please don't hesitate to contact Waykar Customer Service
email at for help. [e-mail]
ERRORS AND
PROTECTION CODE
Name of the Fault
Humidity sensor error
Defrost Temperature sensor error
Ambient temperature sensor error
System high voltage failure
System low voltage failure
Display board is abnormal
E1
E2
E4
E5
E6
Ec
1
2
4
5
6
7

The machine should be operated under the temperature range of 41-100℉, if the
room temperature exceeds this range, the product may not work properly.
Waykar reserves the right to change the product, the above parameters are subject
to change without prior notice.

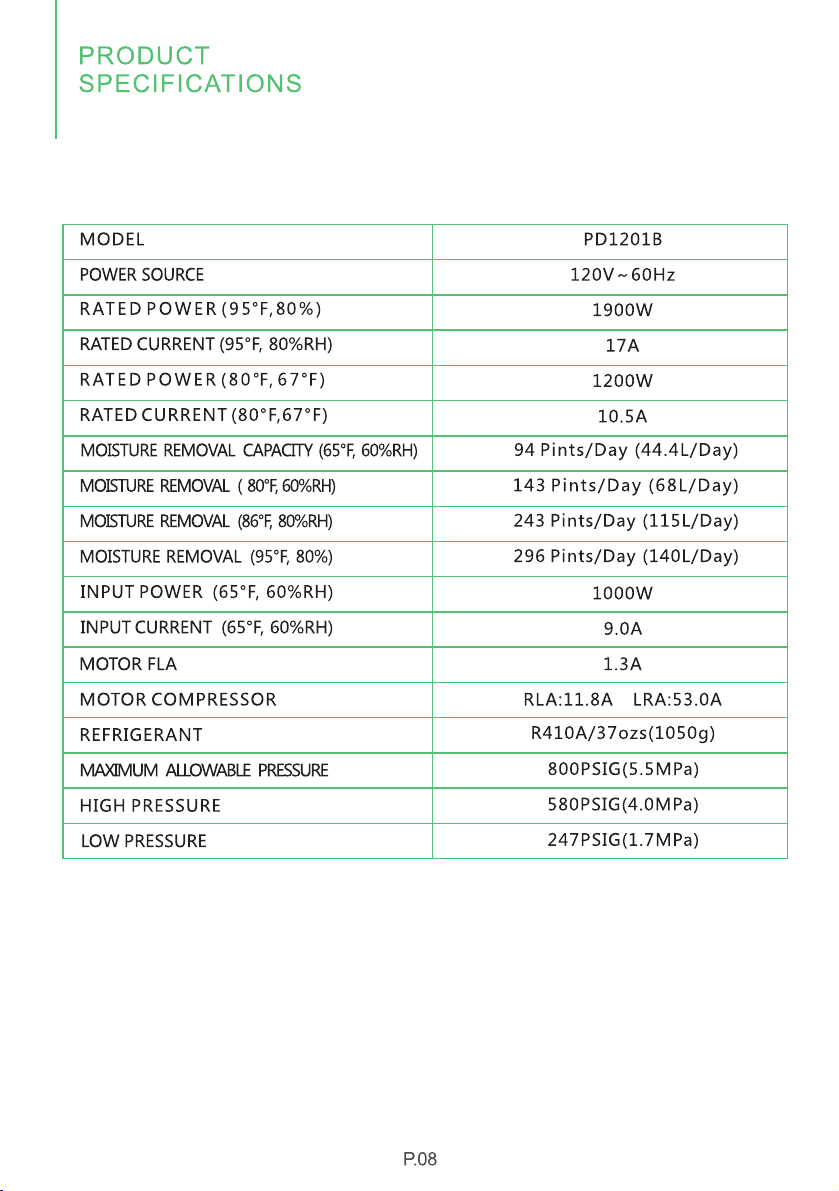

Product Specifications

Safety Note and Maintenance Methods
SAFETY NOTE AND
MAINTENANCE METHODS
Place the drainage
hose well when
drain water conti-
nuously so as to
flow the water
freely. If work in
a cold temperature
that could freeze the water, then
the continuous drainage may not
be applicable.

SAFETY NOTE AND
MAINTENANCE METHODS

-Turn off the machine and pull out the plug before maintaining and cleaning the product.
-Clean the dehumidifier body with a soft damp cloth.
-Do not use detergent, steel wool, chemically treated cloth, benzine, benzene, thinner
or other solvents to clean and wipe the machine.
Cleaning and Maintenance
-Use a vacuum cleaner to gently remove dirt from the filter.
-lf the washable filter is particularly dirty, rinse it with warm water and a mild detergent,
and air dry it thoroughly. Do not let the sun shine directly or dry the filter with other
exothermic products, this will deform the filter and its frame.
-Put the filter back into the machine.
This dehumidifier dehumidifies through continuous drainage. Please follow the below
instructions to set up the drainage method.
1. The machine is shipped with a drainage hose, please attach it to the continuous
drainage port before use.
2. Ensure that the drainage hose is not bent or knotted during use and can drain
smoothly.If the any fault occurs, please follow the "Common Troubleshooting" in the
manual before notifying the After-sales Service.
Do not repair or disassemble the dehumidifier yourself. Improper maintenance may
endanger the safety of the user.
-This dehumidifier has a washable filter that blocks most of the airborne dirt such as
dust, smoke, animal dander, mold spores and pollen.
-It is recommended to check the filter regularly and clean it at least once a month.

1.When the above faults can not be ruled out, confirmed and repair is needed,
please contact the seller at , do NOT disassemble the machine [e-mail]
for repair without permission.
2.When the dehumidifier is running or stopped, the refrigerant circulation sound will
be heard, which is normal.
3. It is normal for hot air to be discharged from the air outlet.
Common Troubleshooting
Dehumidifier does not
operate.
1. Power failure.
2. The power switch is not connected.
3. The power plug is not plugged into
the socket.
4. The fuse has blown out.
5. Machine failure prompt.
1. Restore power.
2. Turn on the switch
3. Plug in the socket.
4. Replace the fuse.
5.Check the error code, ask seller
for help.
Dehumidifier operating,
but room not dry.
1. There is too much dust in the filter.
2. The air inlet and outlet are
obstructed.
3. All doors, windows and other
openings are open.
4. Refrigerant leak.
1. Clean the filter.
2. Remove obstacles.
3. Close the door and windows.
4. Ask seller for help.
Water reservoir leaking. 1. The Machine is tilted
2. Clogging of water drainage port.
1. Adjust the machine to a
horizontal position.
2. Remove the panel to clean the
dirt inside the port.
The dehumidifier makes à
loud noise when operating.
1. The machine is tilted, instead of
upright as it should be.
2.The air filter is clogged.
1. Place the machine levelly.
2. Clean the filter.
P.12

Waykar offers a 12-month warranty to all of our products together with the original
proof of purchase when a defect occured, including those newly purchased and
unused, from Waykar or through an authorized reseller, wholly or substantially, or as
a result of faulty manufacturing parts, or workmanship during the Warranty Period.
The warranty does not apply if damage is caused by other factors, including but
without limitation of:
*Please fill out all required fields and inlcude your Order ID, Date of Purchased if
applicable.
Order Number ready
Warranty
Extend Your Warranty by 1 Year
Customer Support
There are our general terms for the warranty service, but we always encourage our
customers to contact us if any issues, regardless of warranty terms. If you are
experiencing an issue with Waykar product, you can reach out to us at
[e-mail], we will dedicate our efforts to resolve it for you.
P.13

We are expecting to see our products fulfill your life and hear your voice.
Your satisfaction means a lot to us.
Please tag us if you share a snap on your social media.
