USER’S MANUAL
QUESTIONS?
As a manufacturer, we are com-
mitted to roviding com lete
customer satisfaction. If you have
questions, or find that there are
missing or damaged arts, we
will guarantee you com lete sat-
isfaction through our Customer
Service De artment.
Please CALL:
0345-089009
Or WRITE:
ICON Fitness Lifestyle Ltd.
Greenwich House
223 North Street
Shee scar
Leeds LS7 2AA
West Yorkshire
Model No. WESY87100
Serial No.
(Write the serial number in the space
above for reference.)
Serial Number Decal
CAUTION
Read all recautions and instruc-
tions in this manual before using
this equi ment. Save this manual
for future reference.
®
Class H C
Fitness Product
Visit our website at
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!

2
TABLE OF CONTENTS
IMPORT NT PREC UTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
SSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
DJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
TROUBLE-SHOOTING ND M INTEN NCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
C BLE DI GR M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
P RT LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXPLODED DR WING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
ORDERING REPL CEMENT P RTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: a P RT IDENTIFIC TION CH RT is attached to the centre of this manual. Remove the P RT
IDENTIFIC TION CH RT before beginning assembly.

3
1. It is the res onsibility of the owner to ensure
that all users of the home gym system are
adequately informed of all recautions.
2. Read all instructions in this manual and in
the accom anying literature before using the
home gym system.
3. If you feel ain or dizziness at any time
whilst exercising, sto immediately and
begin cooling down.
4. Use the home gym system only on a level
surface. Cover the floor or car et beneath
the home gym system for rotection.
5. Ins ect and tighten all arts often. Re lace
any worn arts immediately.
6. Kee children under 12 and ets away from
the home gym system at all times.
7. Always wear athletic shoes for foot
rotection.
8. Kee hands and feet away from moving arts.
9. Always stand on a foot late when erform-
ing an exercise that could cause the home
gym system to ti .
10. Never release the ress arm, butterfly arms,
leg lever, lat bar, or nylon stra whilst
weights are raised. The weights will fall with
great force.
11. Ins ect all cables before each use. Make
sure that the cables remain on the ulleys at
all times. If the cables bind whilst you are
exercising, sto immediately and make sure
that the cables are on all of the ulleys.
Re lace all cables every two years.
12. Always disconnect the lat bar from the home
gym system when erforming an exercise
that does not use the lat bar.
13. Always attach the lock in and lock to the
weight guide when the home gym system is
not in use (see age 18).
14. The home gym system is intended for home
use only. Do not use the home gym system in
any commercial, rental, or institutional setting.
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following im ortant recautions before
using the home gym system.
WARNING: Before beginning this or any exercise rogram, consult your hysician. This is es ecially
im ortant for ersons over the age of 35 or ersons with re-existing health roblems. Read all
instructions before using. ICON assumes no res onsibility for ersonal injury or ro erty damage
sustained by or through the use of this roduct.

4
BEFORE YOU BEGIN
SSEMBLED
DIMENSIONS:
Height: 76 in.
Width: 38 in.
Length: 53 in.
Foot Plate Low Pulley Station
High Pulley Station
Lat Bar
Leg Lever
Butterfly rms
Press rm
Weight Stack
Seat
Backrest
Weight Pin
Thank you for selecting the versatile WEIDER®8510
Home Gym System. The WEIDER®8510 offers a
selection of weight stations designed to develop every
major muscle group of the body. Whether your goal is
to tone your body, build dramatic muscle size and
strength, or improve your cardiovascular system, the
WEIDER®8510 will help you to achieve the specific
results you want.
For your benefit, read this manual carefully before
using the WEIDER®8510 Home Gym System. If you
have additional questions, please call our Customer
Service Department at 0345-089009. To help us assist
you, please note the product model number and serial
number before calling. The model number is
WESY87100. The serial number can be found on a
decal attached to the WEIDER®8510 (see the front
cover of this manual).

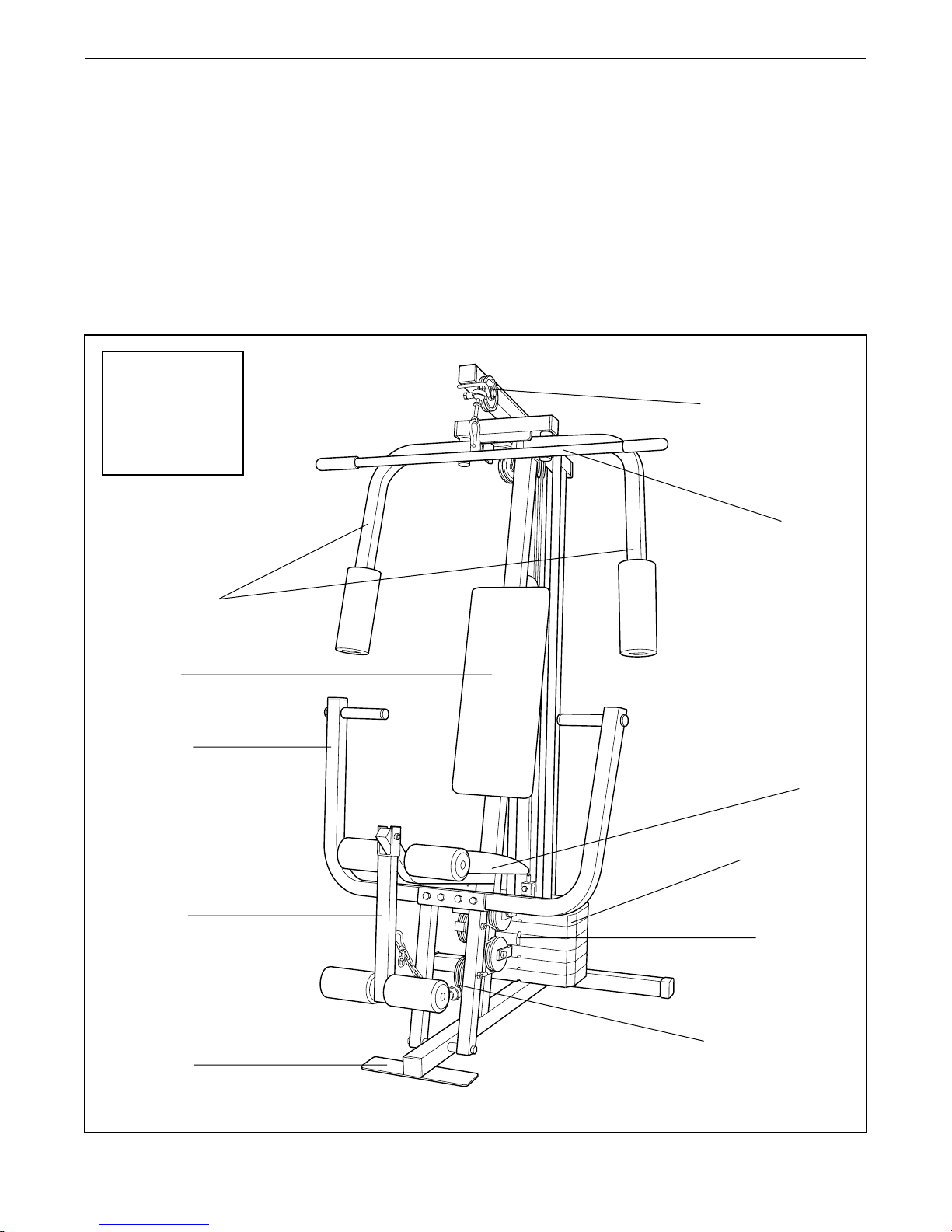

Before reading further, please review the drawing
below and familiarise yourself with the parts that are
labelled.

5
ASSEMBLY
1
56
High Side of
Bracket
3
5
51
51 14
127
4
Before beginning assembly, carefully read the
following information and instructions:
•Place all parts of the home gym system in a
cleared area and remove the packing materials;
do not dispose of the packing materials until
assembly is completed.
• The assembly is divided into four stages: 1)
frame assembly, 2) press and butterfly arm
assembly, 3) cable and pulley assembly, and 4)
seat and backrest assembly. The hardware for
each stage is packaged separately.
• Wait until you begin each assembly stage to open
that parts bag.
•For help identifying the small parts used in
assembly, use the PART IDENTIFICATION
CHART located in the centre of this manual.
Note: Some small parts may have been pre-
attached for shipping. If a part is not in the parts
bag, check to see if it has been pre-attached.
•s you assemble the home gym system, be sure
that all parts are oriented as shown in the
drawings.
•Tighten all parts as you assemble them, unless
instructed to do otherwise.
THE FOLLOWING TOOLS (NOT INCLUDED) ARE
REQUIRED FOR ASSEMBLY:
• Two (2) adjustable s anners
• One (1) standard screwdriver
• One (1) hilli s screwdriver
• One (1) rubber mallet
• Lubricant, such as grease or etroleum jelly,
and soa y water will also be needed.
ssembly will be more convenient if you have the
following tools: socket set, a set of open-end or
closed-end spanners, or a set of ratchet spanners.

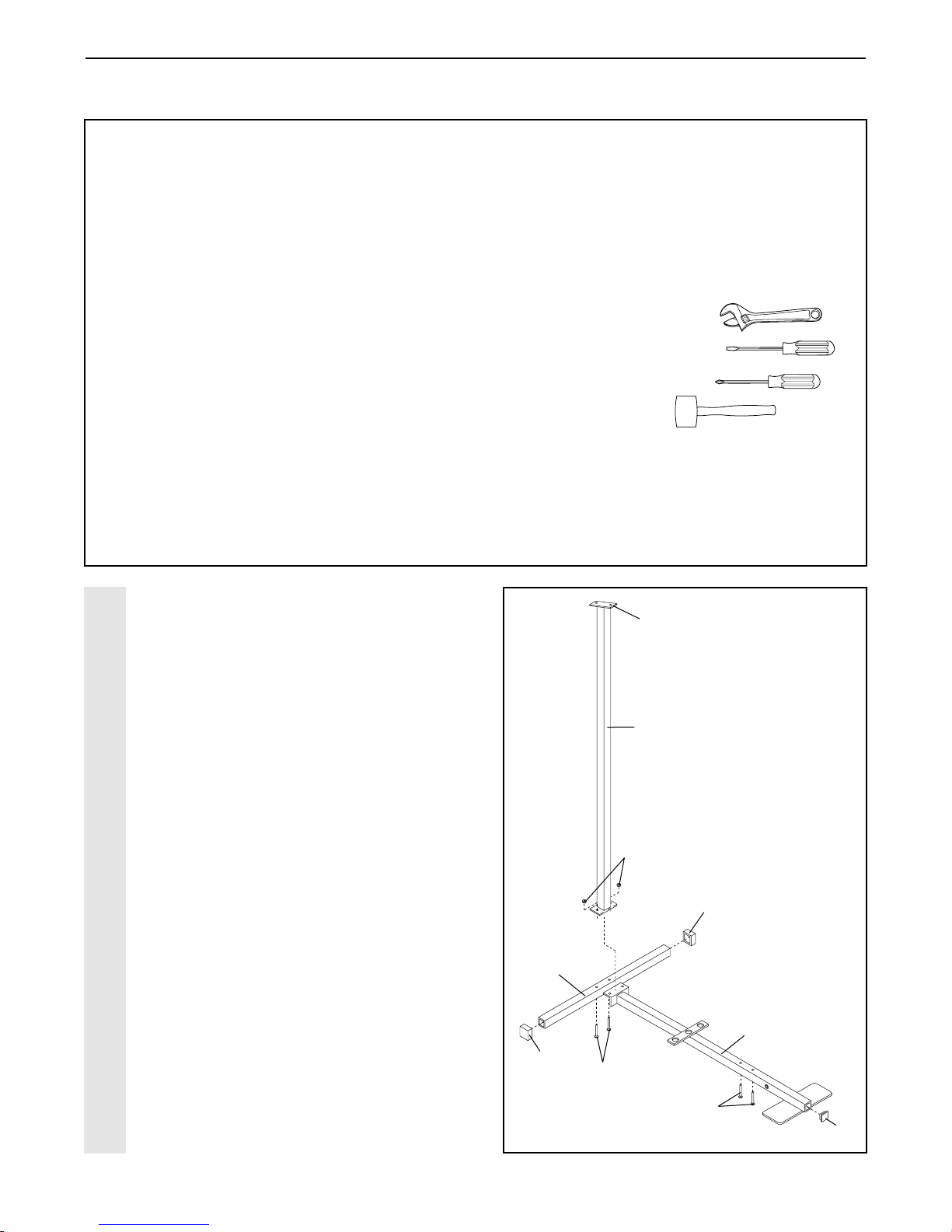

1. Before beginning assembly, be sure that
you have read and understand the infor-
mation in the box above.
Press a 2” Square Outer Cap (51) onto each
end of the Stabiliser (5). Press a 2” Square
Inner Cap (27) into the end of the Base (4).
Insert two 5/16” x 2 3/4” Carriage Bolts (14)
up through the Stabiliser (5). Insert two 5/16”
x 2 1/2” Carriage Bolts (1) up through the
Base (4).
Slide the indicated end of the Base (4) onto
the 5/16” x 2 3/4” Carriage Bolts (14) in the
Stabiliser (5). Slide the Rear Upright (56)
onto the Carriage Bolts. Hand tighten a 5/16”
Nylon Locknut (3) onto each Carriage Bolt.
The high side of the bracket on the Rear
U right must be on the side shown. Do
not tighten the Nylon Locknuts yet.
FRAME ASSEMBLY

6
FRAME ASSEMBLY
2. Slide the Front Upright (42) onto the 5/16” x
2 1/2” Carriage Bolts (1) in the Base (4).
Hand tighten a 5/16” Nylon Locknut (3) onto
each Carriage Bolt. Do not tighten the
Nylon Locknuts yet.
Press a 1” Square Inner Cap (65) into the
Front Upright (42).
3. Press a 2” Square Inner Cap (27) into each
end of the Top Frame (55). Press a 1 3/4”
Square Inner Cap (44) into each end of the
crossbar on the Top Frame. Press two 1”
Round Inner Caps (49) into the top of the
crossbar.
ttach the Top Frame (55) to the Front Upright
(42) and the Rear Upright (56) with four 5/16”
x 2 3/4” Bolts (11), four 5/16” Flat Washers
(8), and four 5/16” Nylon Locknuts (3).
Tighten all Nylon Locknuts used in ste s 1
through 3.
4. Set two Weight Bumpers (19) onto the brack-
et on the Base (4) as shown.
Stack six Weights (25) on the Weight
Bumpers (19). Be sure that all of the Weights
are turned so the pin grooves are on the
same side. Be careful not to ti the stack
of Weights.
4
2
3
42
65
3
1
4
11 11
49
8
44
44
27
27
55
56 42
3
Crossbar
25
Pin Groove
19
4—Bracket
3
8

7
FRAME ASSEMBLYARM ASSEMBLY

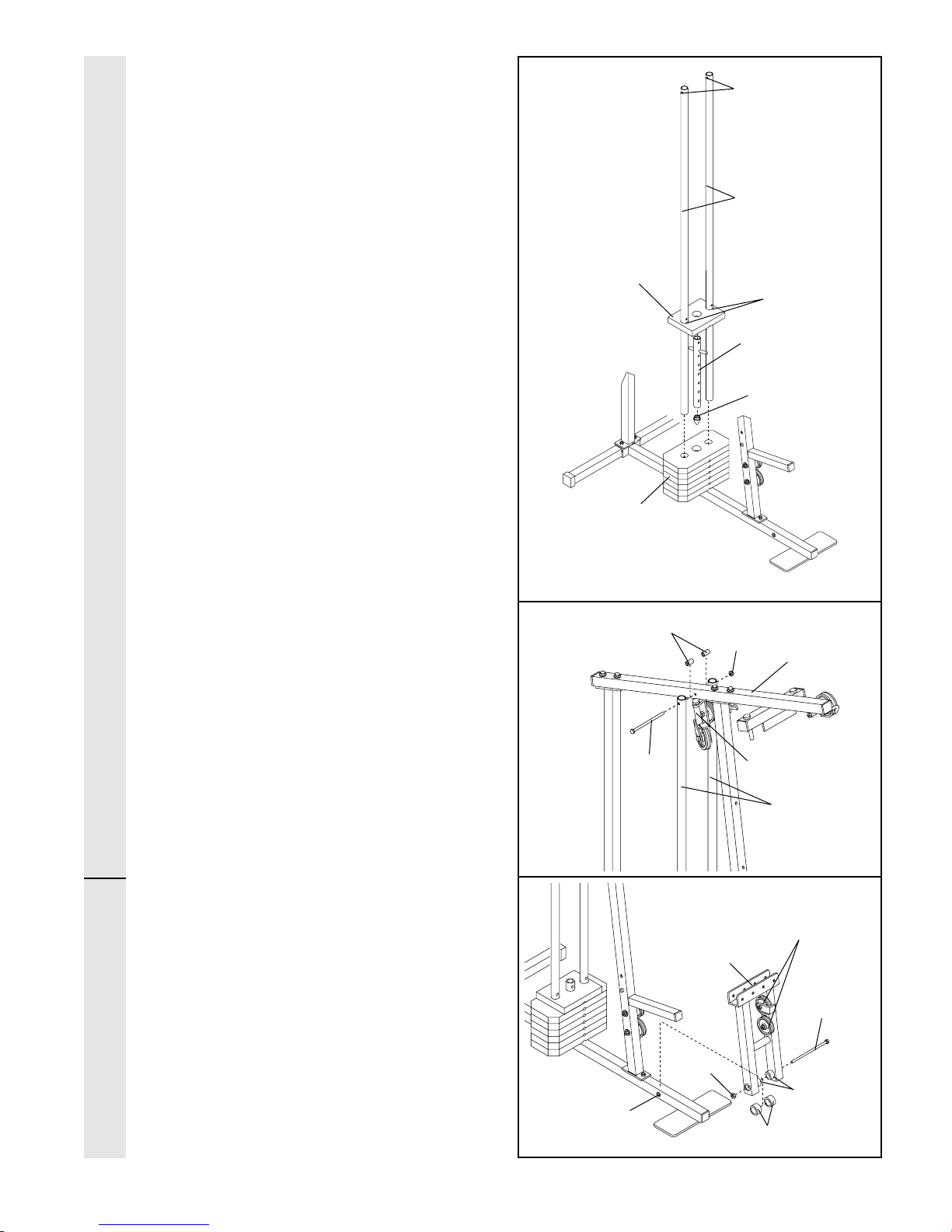

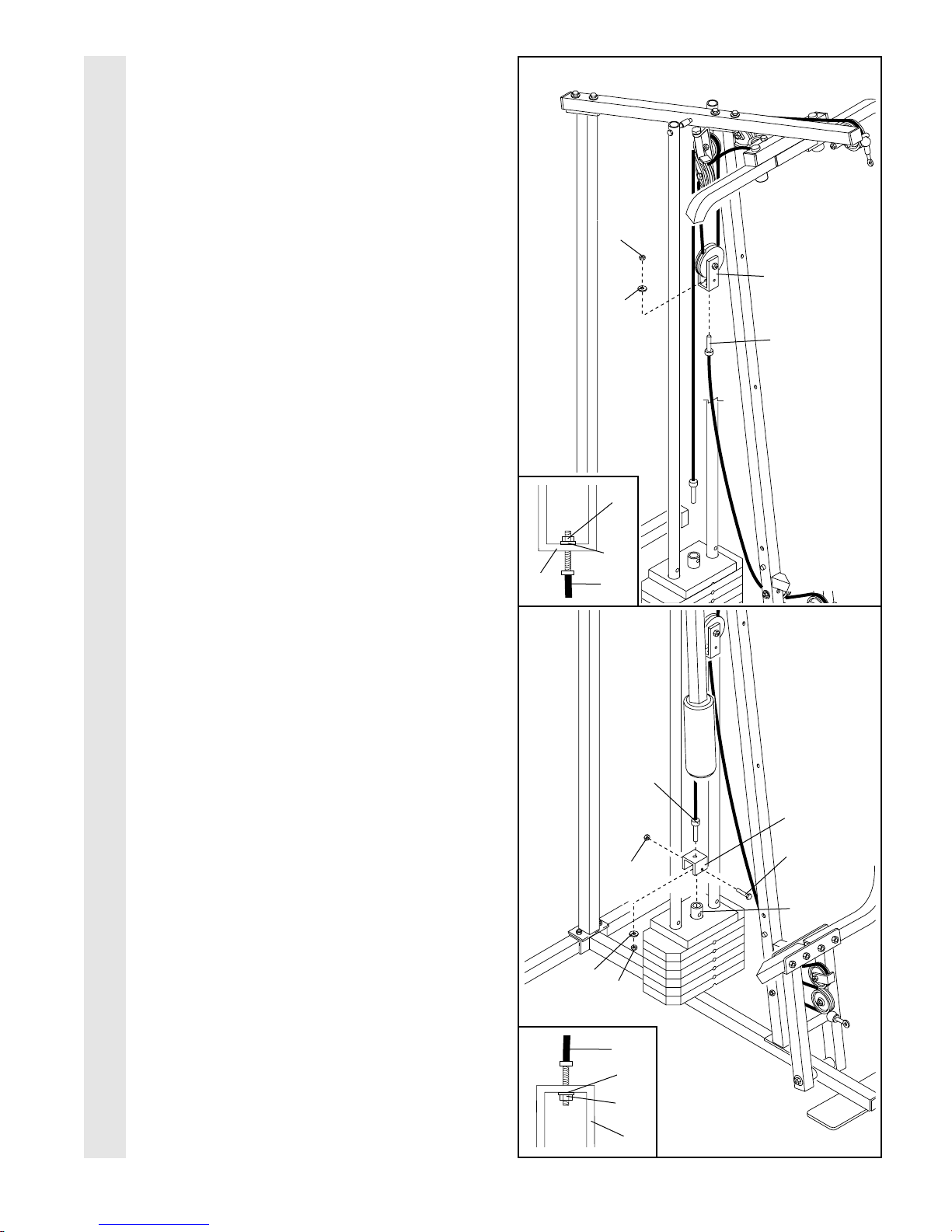

5. Press the Weight Tube Bumper (64) into the
end of the Weight Tube (63). Insert the
Weight Tube into the stack of Weights (25).
Be sure that the pins on the Weight Tube are
resting in the pin grooves in the upper
Weight.
Lubricate the insides of the holes in the Top
Weight (76). Set the Top Weight onto the
stack of Weights (25).
Insert both Weight Guides (62) into the stack
of Weights (25). Be sure that the holes in
the Weight Guides are at the to , as
shown.
6. ttach the upper ends of the Weight Guides
(62) to the Top Frame (55) with the 5/16” x 6”
Bolt (60), two 1/2” x 3/4” Spacers (61), and a
5/16” Nylon Locknut (3).
Be sure that the Pulley Bracket (20) is in
front of the right Weight Guide (62) as
shown.
7. Press a 1” x 7/8” Plastic Bushing (75) onto
each welded spacer on the Press Frame (17).
Slide the Press Frame into place on the Base
(4). Note: This will be a tight fit. The
Plastic Bushings should fit onto each end
of the indicated tube in the Base. Be sure
that the ulleys are on the indicated side.
Lubricate the 3/8” x 8” Bolt (59). ttach the
Press Frame (17) to the Base (4) with the
3/8” x 8” Bolt and a 3/8” Nylon Locknut (21).
7
5
6
55
76
63
64
25
62
Lubricate
60 20
62
3
4—Tube Welded
Spacers
17
Lubricate
59
Pulleys
21
75
61
Holes

8
ARM ASSEMBLY
8. Press a 1 3/4” Square Inner Cap (44) into the
top of a Press rm (46). Press a 1” Round
Inner Cap (49) into each end of the handle on
the Press rm. ttach the Press rm to one
side of the Press Frame (17) with two 5/16” x
2 1/2” Bolts (22) and two 5/16” Nylon
Locknuts (3).
ssemble the other Press rm (46) in the
same manner.

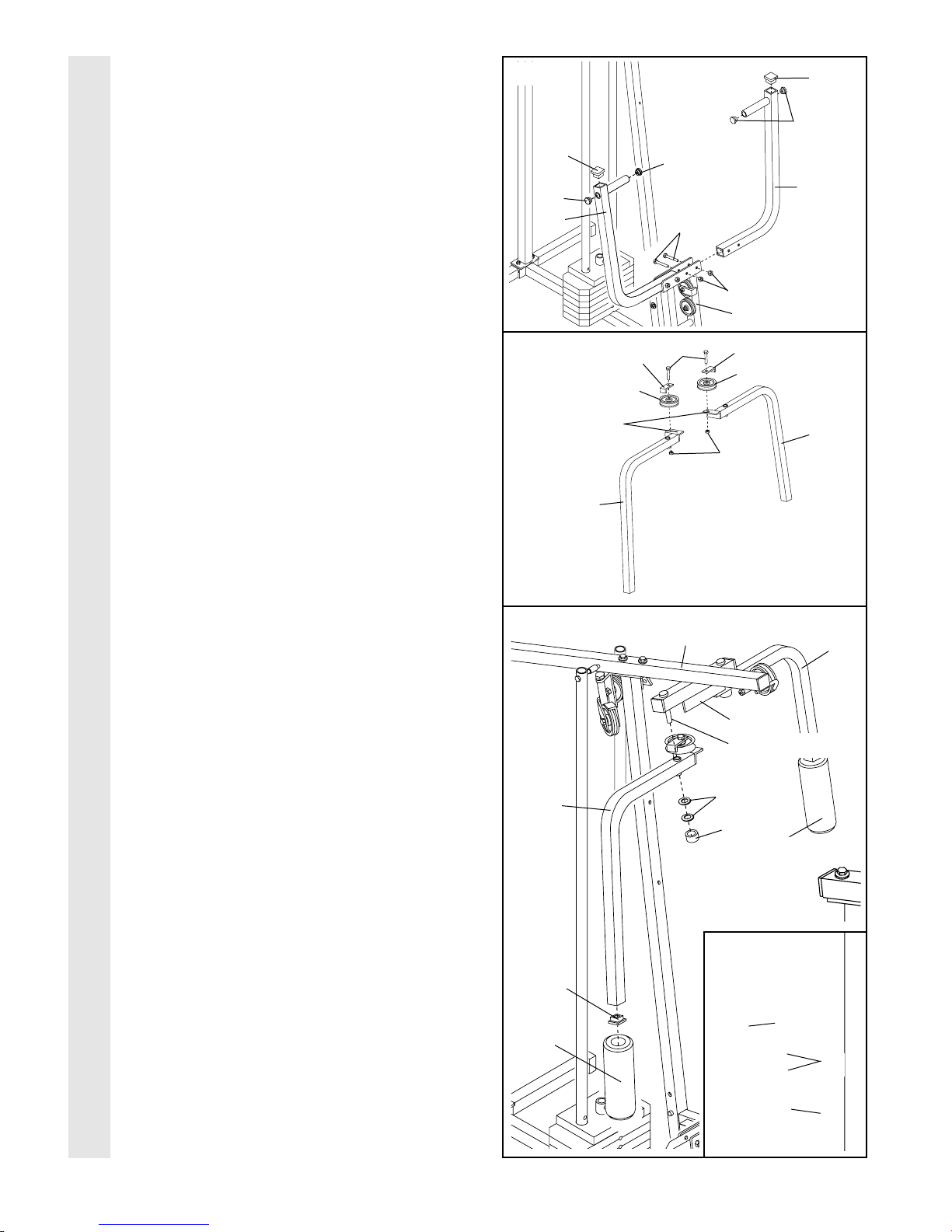

9. Identify the Right rm (48) and the Left rm
(47). Note the position of the welded bracket
on each rm. Arm identification is very
im ortant for ste 10.
Note: The “V”-Pulleys (6), Long Cable Traps
(50), 3/8” x 2 1/2” Bolts (7), and 3/8” Nylon
Locknuts (21) are pre-attached. These have
been shown disassembled for easy part iden-
tification.
10. Lubricate both axles on the Top Frame (55).
Slide the Right rm (48) onto the right axle.
Note: Be careful not to confuse the Right
Arm with the Left Arm (47); refer to ste 9
to identify the Right Arm. Be sure that the
u er end of the Right Arm is behind the
indicated bracket on the To Frame (55).
Tap two 1” Retainers (69) and a 1” Round
Cover Cap (70) onto the right axle. Be sure
that the teeth on the Retainers bend
toward the Cover Ca , as shown in the
inset drawing.
ttach the Left rm (47) in the same manner.
Press 1 3/4” Square Inner Caps (44) into the
lower ends of the Right and Left rms (47,
48). Wet the lower end of each rm with
soapy water. Slide a 10” Pad (45) onto the
lower end of each rm.
10
50
50
46
3
22
46
49
49
44
17
7
44
49
Bracket
Lubricate xle
45
47
55
48
45
44
69
70
6
6
48
47
Welded
Brackets 21
8
9
69
55
70

9
CABLE ASSEMBLY
11. During steps 11 through 25, refer to the
C BLE DI GR M on page 21 of this manual
to verify proper cable routing. Before begin-
ning this section, identify the Long Cable (23)
and the Short Cable (58) by comparing the
lengths and ends of the cables.
IMPORTANT: Whilst assembling the
cables, do not overtighten the bolts and
nuts securing the ulleys. The ulleys
must be able to turn freely.
12. Locate the Long Cable (23). Route the Long
Cable around the indicated 3 1/2” Pulley (15)
attached to the Top Frame (55). Be sure that
the end of the Cable with the ball is on the
indicated side of the Pulley and that the
Cable is between the Pulley and the hook.
Tighten the 3/8” x 3 3/4” Bolt (71) and the 3/8”
Nylon Locknut (not shown).
13. Wrap the Long Cable (23) around a “V”-Pulley
(6). ttach the “V”-Pulley and a Long Cable
Trap (50) to the indicated bracket on the
Front Upright (42) with a 3/8” x 2 1/2” Bolt (7)
and a 3/8” Nylon Locknut (21). Be sure that
the Long Cable Tra is ositioned to hold
the Cable in lace.
14. Route the Long Cable (23) around the “V”-
Pulley (6) on the Left rm (47). Be sure that
the Cable is in the groove of the Pulley
and that the Long Cable Tra (50) is osi-
tioned to hold the Cable in lace. Tighten
the 3/8” x 2 1/2” Bolt (7) and the 3/8” Nylon
Locknut (not shown).
14
11
12
13
58
23
55
71
Hook
Ball 15
50
23
7
47
23
7
21
650
23
6
42

10
15. Route the Long Cable (23) around the “V”-
Pulley (6) on the Right rm (48). Be sure
that the Cable is in the groove of the “V”-
Pulley and that the Long Cable Tra (50) is
turned to hold the Cable in lace. Tighten
the 3/8” x 2 1/2” Bolt (7) and the 3/8” Nylon
Locknut (not shown).
16. Route the Long Cable (23) around the 3 1/2”
Pulley (15) attached to the Pulley Bracket
(20). Be sure that the Cable is in the
groove of the Pulley and that the Cable
Tra (66) is turned to hold the Cable in
lace. Tighten the 3/8” x 2” Bolt (12) and the
3/8” Nylon Locknut (not shown).
Be sure that the 5/16” x 5” Bolt (68) is proper-
ly tightened and that the Pulley Bracket (20)
can move freely.
17. Refer to the inset drawing. If the 3 1/2” Pulley
(15) is pre-attached to the Long “U” Bracket
(57), remove it. Wrap the Long Cable (23)
around the 3 1/2” Pulley. ttach the Pulley
and two Pulley Covers (78) to the indicated
hole in the Long “U”-Bracket with a 3/8” x 2”
Bolt (12) and a 3/8” Nylon Locknut (21). Make
sure that the Pulley Covers are turned so
the wide tabs are on the indicated side.
Be sure that the Cable is in the groove of
the Pulley and that the Cable and Pulley
move smoothly.
18. Note: The Pulley (15) in this drawing is
re-assembled. It is shown disassembled
for easy art identification.
Route the Long Cable (23) around the 3 1/2”
Pulley (15) attached to the bracket on the Top
Frame (55). Tighten the 3/8” x 2” Bolt (12)
and the 3/8” Nylon Locknut (21). Be sure that
the Cable is in the groove of the Pulley
and that the Cable and Pulley move
smoothly.
18
15
16
17
CABLE ASSEMBLY
48
50 76
23
66
15
12
20
68
12
15
23
Bracket
55
21
23
23
21 12
78
Wide
Tabs
15 23
57

11
CABLE ASSEMBLY
19. Note: This assembly ste shows how to
com lete the assembly of several re-
attached arts.
The 5/8” x 9/16” Spacer (73) has been pre-
attached on the outside of the 3 1/2” Low
Pulley (77) for shipping purposes. Remove
the 3/8” Nylon Locknut (21), the Spacer, and
the Pulley from the 3/8” x 3 3/4” Bolt (71). Do
not remove the Bolt. The Bolt has been
shown removed for art identification.
Reattach the 3 1/2” Low Pulley (77), with the
5/8” x 9/16” Spacer (73) between the Pulley
and the Press Frame (17). Do not tighten
the 3/8” Nylon Locknut (21) yet. Be sure
that the 3/8” x 3 3/4” Bolt (71), the 3/8” Flat
Washer (9), the 5/8” x 9/16” S acer (73),
the 3 1/2” Low Pulley (77), and the 3/8”
Nylon Locknut (21) are oriented as shown.
20. Locate the Short Cable (58). Route the
Short Cable (58) under the 3 1/2” Low Pulley
(77). Be sure that the end of the Cable with
the ball is on the indicated side of the
Press Frame (17) and that the Cable is
between the Pulley and the crossbar on
the Press Frame. Tighten the 3/8” Nylon
Locknut (21) and the 3/8” x 3 3/4” Bolt (not
shown).
19
20
21
17 77
73
971
58 Crossbar
Ball
77
17
21

12

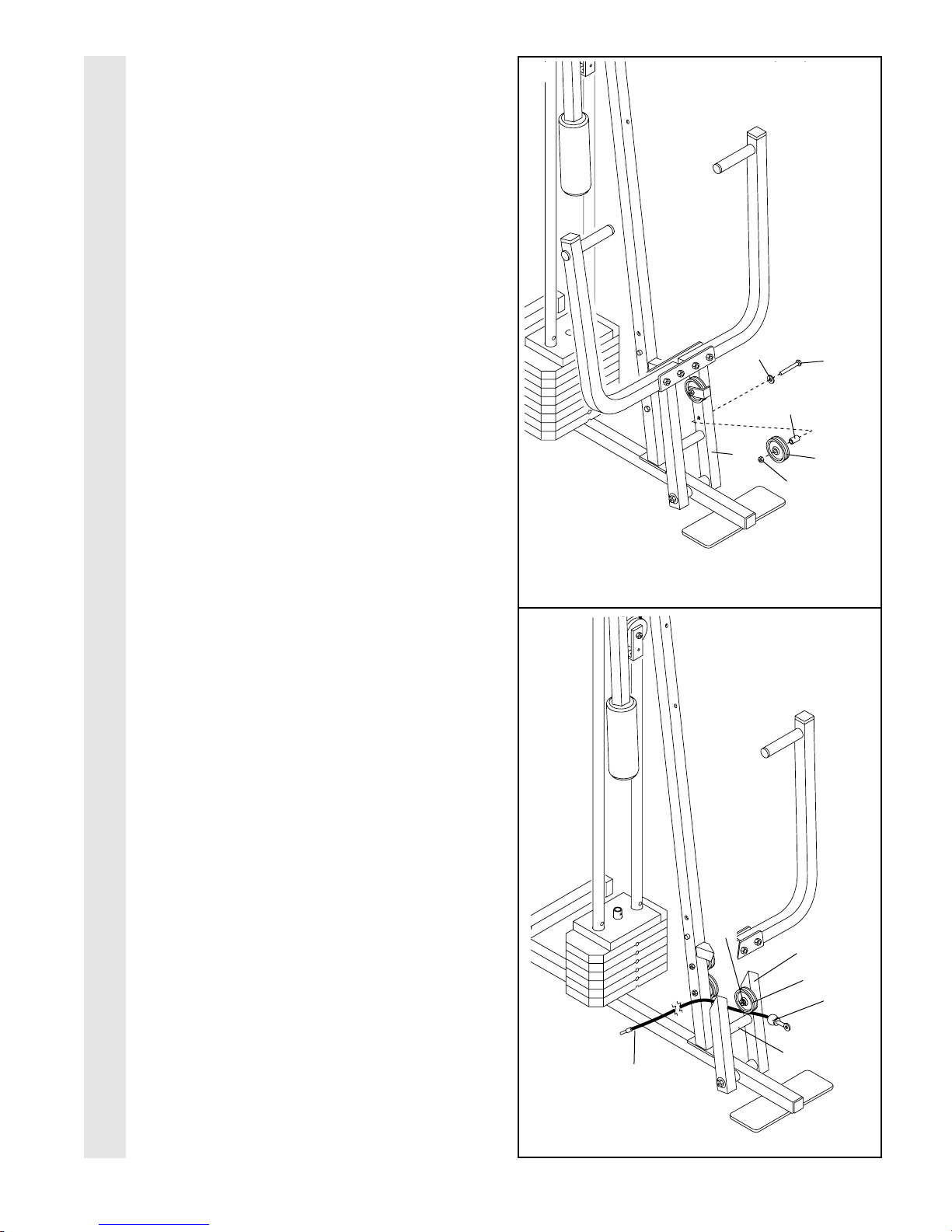

21. If the indicated 3 1/2” Pulley (15) is pre-
attached to the Front Upright (42), remove it.
Route the Short Cable (58) around the Pulley.
ttach the Pulley and two Pulley Covers (78)
to the lower hole in the Front Upright with the
3/8” Nylon Jam Nut (81), the 3/8” Flat Washer
(9) and the 3/8” x 3 3/4” Bolt (71).
22. Route the Short Cable (58) around the 3 1/2”
Pulley (15) attached to the upper hole in the
Press Frame (17). Be sure that the Cable
Tra (66) is turned to hold the Cable in
lace and that the Cable is routed around
the Pulley as shown. Tighten the 3/8” Nylon
Locknut (21) and the 3/8” x 3 1/2” Bolt (not
shown).
23. If the indicated 3 1/2” Pulley (15) is pre-
attached to the Front Upright (42), remove it.
Route the Short Cable (58) around the Pulley.
ttach the Pulley and two Pulley Covers (78)
to the upper hole in the Front Upright with the
3/8” Nylon Jam Nut (81), the 3/8” Flat Washer
(9) and the 3/8” x 3 3/4” Bolt (71).
23
21
22
CABLE ASSEMBLY
58
58
81
15 66
21
17
9
42
78
15
71
42
58
15 71
78
9
81

24. ttach the end of the Short Cable (58) to the
Long “U”-Bracket (57) with a 1/4” Nylon Lock-
nut (2) and a 1/4” Flat Washer (10). Do not
com letely tighten the Nylon Locknut. It
should be threaded onto the end of the
Cable so only a cou le of threads are
showing above the nut, as shown in the
inset drawing.
25. ttach the Long Cable (23) to the Small “U”-
Bracket (67) with a 1/4” Nylon Locknut (2)
and a 1/4” Flat Washer (10). Do not com-
letely tighten the Nylon Locknut. It
should be threaded onto the end of the
Cable only a cou le of turns, as shown in
the inset drawing.
ttach the Small “U”-Bracket (67) to the
Weight Tube (63) with the 5/16” x 1 1/2” Bolt
(72) and a 5/16” Nylon Locknut (3).
24
25
CABLE ASSEMBLY
57
2
10
58
63
72
67
3
10 2
23
13
23
67
2
10
58
57
2
10

14

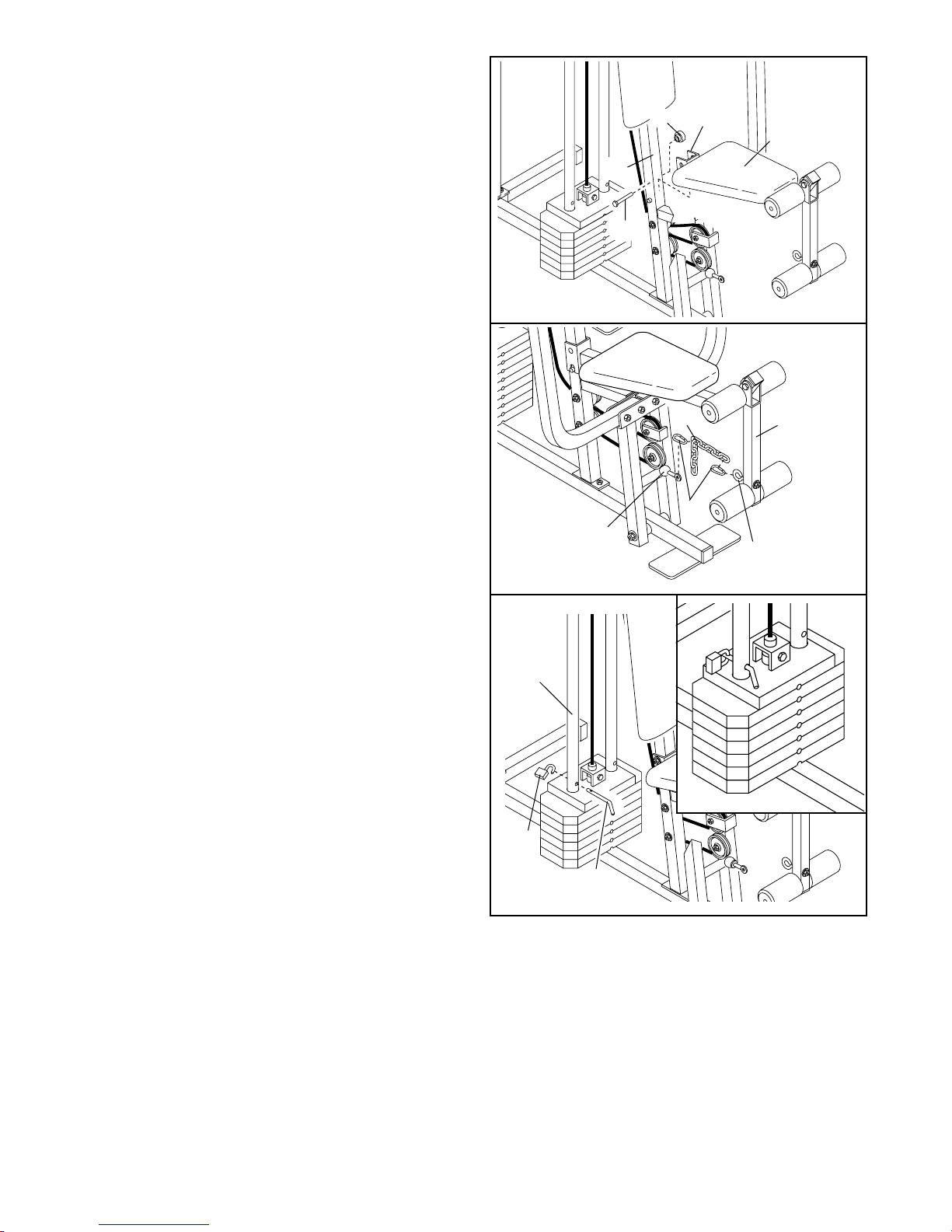

26. ttach the Backrest (41) to the Front Upright
(42) with two 1/4” x 2 1/2” Screws (43) and
two 1/4” Flat Washers (10).
27. Press a 1 1/2” Square Inner Cap (32) into the
Seat Frame (36).
Insert the 1/4” x 2” Carriage Bolt (38) into the
centre hole in the Seat Plate (37). ttach the
Seat Plate to the Seat (13) with two 1/4” x
3/4” Screws (18).
Insert the 1/4” x 2” Carriage Bolt (38) into the
indicated hole in the Seat Frame (36). Tighten
a 1/4” Nylon Locknut (2) with a 1/4” Flat
Washer (10) onto the Carriage Bolt.
ttach the other end of the Seat (13) to the
Seat Frame (36) with a 1/4” Flat Washer (10)
and the 1/4” x 2” Screw (24).
28. Press a 1 1/2” Square Inner Cap (32) into the
Leg Lever (29).
Lubricate the 5/16” x 2 1/4” Bolt (33). ttach
the Leg Lever (29) to the Seat Frame (36)
with the 5/16” x 2 1/4” Bolt and a 5/16” Nylon
Locknut (3). Do not overtighten the Nylon
Locknut. The Leg Lever must be able to
ivot freely.
Insert the 5/16” x 2” Eyebolt (35) into the Leg
Lever (29) from the direction shown. Tighten
a 5/16” Nylon Locknut (3) with a 5/16” Flat
Washer (8) onto the Eyebolt.
26
27
28
SEAT ASSEMBLY
41
42
10 2
24
36
36
3
Lubricate–33
29
83
32
35
13
38
37 32
18
10
43

15

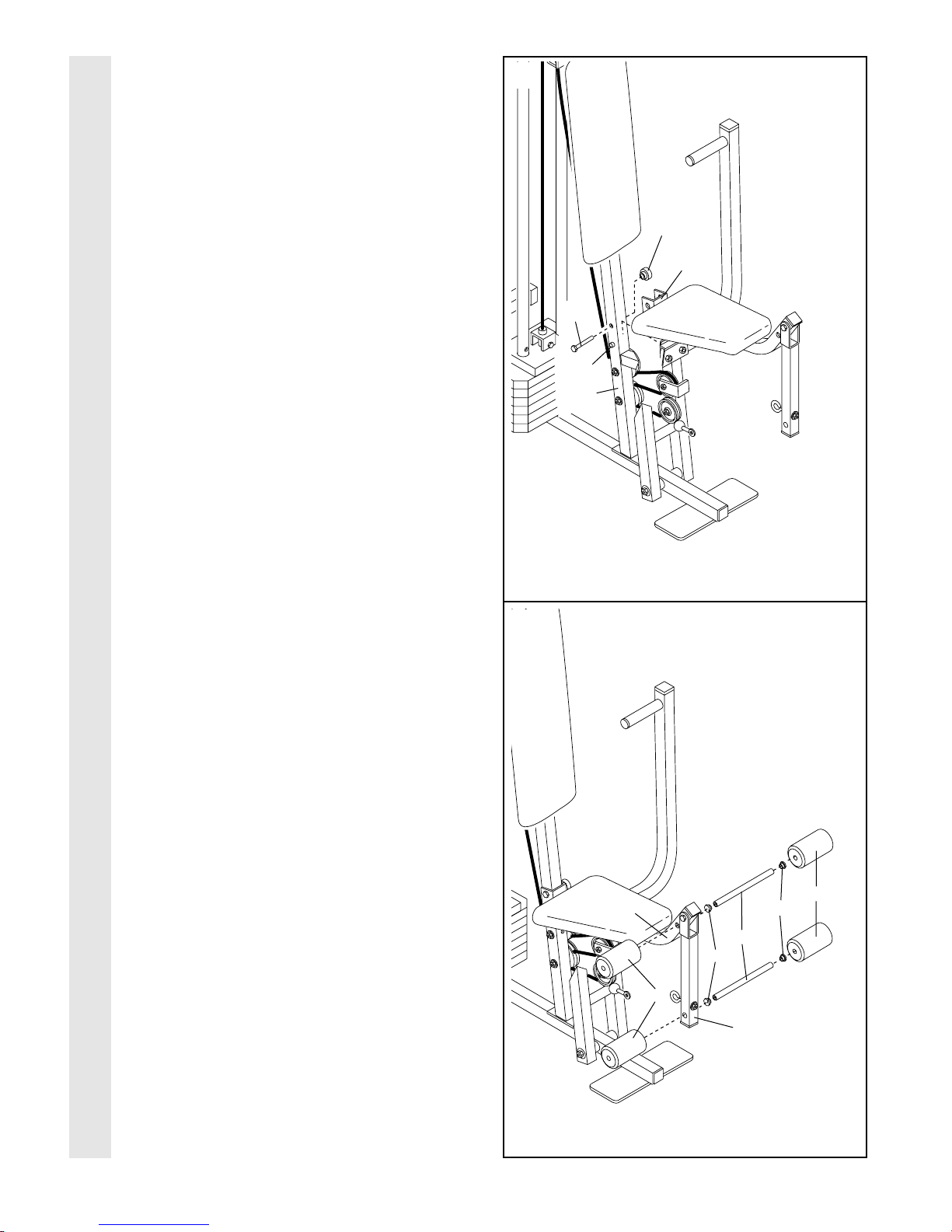

29. Rest the Seat Frame (36) on the indicated pin
in the Front Upright (42). ttach the Seat
Frame to the Front Upright with a 5/16” x
2 3/4” Carriage Bolt (14) and the Seat Knob
(40).
30. Press 3/4” Round Inner Caps (34) into the
ends of both 12 1/2” Pad Tubes (28).
Insert one 12 1/2” Pad Tube (28) into the
Seat Frame (36). Slide a 5 1/2” Pad (30) onto
each end of the Pad Tube.
Insert the other 12 1/2” Pad Tube (28) into the
Leg Lever (29). Slide a 5 1/2” Pad (30) onto
each end of the Pad Tube.
29
30
36
40
30
34
28
34
29
30
36
SEAT ASSEMBLY
Pin
42
14

16
31. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in
DJUSTMENT, beginning on page 17 of this manual.
Before using the home gym system, pull each cable a few times to be sure that the cables move smoothly
over the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPORTANT: If
the cables are not ro erly installed, they may be damaged when heavy weight is used. See the
CABLE DIAGRAM on age 21 of this manual for ro er cable routing. If there is any slack in the
cables, you will need to remove it by tightening the cables. See TROUBLE-SHOOTING AND MAINTE-
NANCE on age 20.

17
ADJUSTMENT
The instructions below describe how each part of the home gym system can be adjusted. IMPORTANT: When
attaching the lat bar or nylon stra , make sure that the attachments are in the correct starting osition
for the exercise to be erformed. If there is any slack in the cables or chain as an exercise is erformed,
the effectiveness of the exercise will be reduced.
54
53
52
23
25 26
54
58
52
53
CHANGING THE WEIGHT SETTING
To change the weight setting of the weight stack,
insert a Weight Pin (26) under the desired Weight
(25). Be sure to insert the Weight Pin until the bent
end of the Weight Pin is touching the Weights, and
turn the bent end downward. The weight setting of the
weight stack can be changed from 6,5 pounds to 81,5
pounds, in increments of 12,5 pounds. Note: Due to
the cables and ulleys, the actual amount of
resistance at each exercise station may vary from
the weight setting. Use the WEIGHT RESISTANCE
CHART on age 19 to find the actual amount of
resistance at each weight station.
Note: 1 kg = 2.2 lbs
ATTACHING THE LAT BAR OR NYLON STRAP TO
THE HIGH PULLEY STATION
ttach the Lat Bar (54) to the Long Cable (23) with a
Cable Clip (53). For some exercises, the Chain (52)
should be attached between the Lat Bar and the Long
Cable with two Cable Clips. Adjust the length of the
Chain between the Lat Bar and the Long Cable so
the Lat Bar is in the correct starting osition for
the exercise to be erformed.
The Nylon Strap (39) (not shown) can be attached in
the same manner.
ATTACHING THE LAT BAR OR NYLON STRAP TO
THE LOW PULLEY STATION
ttach the Lat Bar (54) to the Short Cable (58) with a
Cable Clip (53). For some exercises, the Chain (52)
should be attached between the Lat Bar and the
Pulley Cable with two Cable Clips. Adjust the length
of the Chain between the Lat Bar and the Short
Cable so the Lat Bar is in the correct starting
osition for the exercise to be erformed.
The Nylon Strap (39) (not shown) can be attached in
the same manner.

18
ATTACHING AND REMOVING THE SEAT
Set the bracket on the Seat Frame (36) onto the indi-
cated pins on the Front Upright (42). ttach the Seat
Frame to the Front Upright with the 5/16” x 2 3/4”
Carriage Bolt (14) and the Seat Knob (40).
For some exercises, the Seat (13) must be removed.
First, be sure that the chain is not attached to the leg
lever. Next, remove the Seat Knob (40) and the 5/16”
x 2 3/4” Carriage Bolt (14) from the Seat Frame (36).
Lift the Seat Frame off the Front Upright (42).
ATTACHING THE LEG LEVER TO THE LOW
PULLEY STATION
To use the Leg Lever (29), the seat must be attached
to the front upright (see TT CHING ND REMOV-
ING THE SE T above).
ttach one end of the Chain (52) to the Short Cable
(58) with a Cable Clip (53). ttach the other end of
the Chain to the Eyebolt (35) with a Cable Clip.
40 36
42
13
14
52
53
58
29
35
79
LOCKING THE WEIGHT STACK
When the home gym system is not in use, the Lock
Pin (79) and Lock (80) should be attached. Insert the
Lock Pin through a Weight Guide (62). ttach the
Lock to the Lock Pin.
80
62

19
WEIGHT PRESS RM BUTTERFLY RM LEG LEVER HIGH PULLEY LOW PULLEY
PL TES (lbs.) (lbs.) (lbs.) (lbs.) (lbs.)
Top 20 10 15 14 24
145 22 36 28 54
270 33 54 44 82
399 42 75 60115
4 128 48 96 72 147
5 153 60 115 90 175
6 184 69 137 103 209
WEIGHT RESISTANCE CHART
This chart shows the approximate weight resistance at each station. “Top” refers to the 6,5 lb. top weight. The
other numbers refer to the 12,5 lb. weight plates. Weight resistance shown for the butterfly arm station is for
each butterfly arm.
Note: 1 kg = 2.2 lbs
The actual resistance at each weight station may vary due to differences in individual weight lates, as
well as friction between the cables, ulleys, and weight guides.

20
TROUBLE-SHOOTING AND MAINTENANCE
Inspect and tighten all parts each time you use the home gym system. Replace any worn parts immediately. The
home gym system can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.
TIGHTENING THE CABLES
Woven cable, the type of cable used on the home
gym system, can stretch slightly when it is first used.
If there is slack in the cables before resistance is felt,
the cables should be tightened. Slack can be
removed from the cables by tightening the 1/4” Nuts
(2) at the end of the Long Cable (23) (see drawing 1)
and at the end of the Short Cable (58) (see drawing
2). To do this you may need to remove the Small “U”-
Bracket (67) from the Weight Tube (not shown) or
remove the 3 1/2” Pulley (15) from the Long “U”-
Bracket (57). Make sure that the cables are not too
tight, or the Top Weight (76) will be lifted off the
weight stack.
dditional slack can be removed by moving the 3 1/2”
Pulley (15) to the other hole in the Long “U”-Bracket
(57). Remove the 3/8” Nylon Locknut (21) and the
3/8” x 2” Bolt (12) from the Pulley, Pulley Covers (78),
and “U”-Bracket. Re-attach the Pulley and the Pulley
Covers. Be sure that the Cable and Pulley move
smoothly.
Note: Ins ect all cables before each use. If a cable tends to sli off the ulleys often, the cable may have
become twisted. Remove the cable and re-install it.
If the cables need to be replaced, see ORDERING REPL CEMENT P RTS on the back cover of this manual.
Re lace all cables every two years.
57
67
76
78
15
2
2
58
12
23
1
2
23
21
