Welch Allyn PRO ECG Recorder User manual

CardioPerfect
PRO ECG Recorder - User Manual
DIR 80012763 Ver. H Revision date: 2017-09
Regulatory Affairs Representative
Welch Allyn Limited
Navan Business Park
Dublin Road
Navan, County Meath,
Republic of Ireland
Welch Allyn, Inc.
4341 State Street Road
Skaneateles Falls, NY
13153 USA
www.welchallyn.com
901047 CARDIOPULMONARY ECG SYSTEM
901095 ECG ACQUISITION MODULE
0297

CardioPerfect
PRO ECG Recorder - User Manual
DIR 80012763 Ver. H2 / 25
Caution
US Federal law restricts this device to sale by or on the order
of a physician.
Copyright
© Copyright 2017, Welch Allyn. To support the intended use of the product described in this
publication, the purchaser of the product is permitted to copy this publication, for internal
distribution only, from the media provided by Welch Allyn. No other use, reproduction, or
distribution of this publication, or any part of it, is permitted without written permission from
Welch Allyn. Welch Allyn assumes no responsibility for any injury to anyone, or for any illegal
or improper use of the product, that may result from failure to use this product in accordance
with the instructions, cautions, warnings, or statement of intended use published in this
manual. Unauthorized copying of this publication may not only infringe copyright but also
reduce the ability of Welch Allyn to provide accurate and up-to-date information to users and
operators alike.
Welch Allyn®, CardioPerfect®Workstation and SpiroPerfect®are registered trademarks of
Welch Allyn.
Software in this product is Copyright Welch Allyn. All rights are reserved. The software is
protected by United States of America copyright laws and international treaty provisions
applicable worldwide. Under such laws, the licensee is entitled to use the copy of the
software provided on the original distribution medium. The software may not be copied,
decompiled, reverse-engineered, disassembled or otherwise reduced to human-perceivable
form. This is not a sale of the software or any copy of the software; all right, title and
ownership of the software remains with Welch Allyn.
The information contained in this manual is subject to change without notice.
All changes will be in compliance with regulations governing manufacture of medical
equipment.
User responsibility
This product is designed to perform in conformity with the description thereof contained in this
manual and accompanying labels and inserts, when assembled, operated, maintained and
repaired in accordance with the instructions provided. A defective product should not be used.
Parts that are broken, plainly worn, missing or incomplete, distorted or contaminated should
be replaced immediately. Should any repair or replacement become necessary, we
recommend that service be performed at the nearest approved service center. The user of the
product shall have the sole responsibility for any malfunction, which results from improper
use, faulty maintenance, improper repair, damage or alteration by anyone other than Welch
Allyn or their authorized service personnel.
Accessories
The Welch Allyn warranty can only be honored if you use Welch Allyn approved accessories
and replacement parts.
Caution
Use of accessories other than those recommended by Welch Allyn
may compromise product performance.

CardioPerfect
PRO ECG Recorder - User Manual
DIR 80012763 Ver. H3 / 25
Safety and Precautions
Caution
Radio Frequency (RF) interference between the PRO ECG Recorder or
cardiograph and any existing RF transmitting or receiving equipment at
the installation site, including electrosurgical equipment, in close
proximity to the cardiograph should be evaluated before the equipment is
operated as they may seriously degrade performance.
The CardioPerfect Cardiograph is susceptible to interference from RF
energy sources (lowered RF immunity) which exceed the IEC 60601-1-2
limits, such as power line bursts, other medical devices, cellular products,
information technology equipment and radio/television transmission.
To reduce EMC interference the cardiograph shall be separated from the
emitting source as much as possible. If assistance is needed, call your
local Welch Allyn service representative.
Artifact on the ECG caused by electromagnetic interference should be
evaluated by a physician or physician authorized personnel to determine
if it will negatively impact patient diagnosis or treatment.
Like all electronic devices, this cardiograph is susceptible to electrostatic
discharge (ESD). Electrostatic discharge typically occurs when
electrostatic energy is transferred to the patient, the electrodes, or the
cardiograph. ESD may result in ECG artifact that may appear as narrow
spikes on the cardiograph display or on the printed report. When ESD
occurs, the cardiograph’s ECG interpretation may be inconsistent with
the physician’s interpretation.
Welch Allyn assumes no liability for failures resulting from RF
interference between Welch Allyn medical electronics and any radio
frequency generating equipment when these levels exceed those
established by applicable standards.

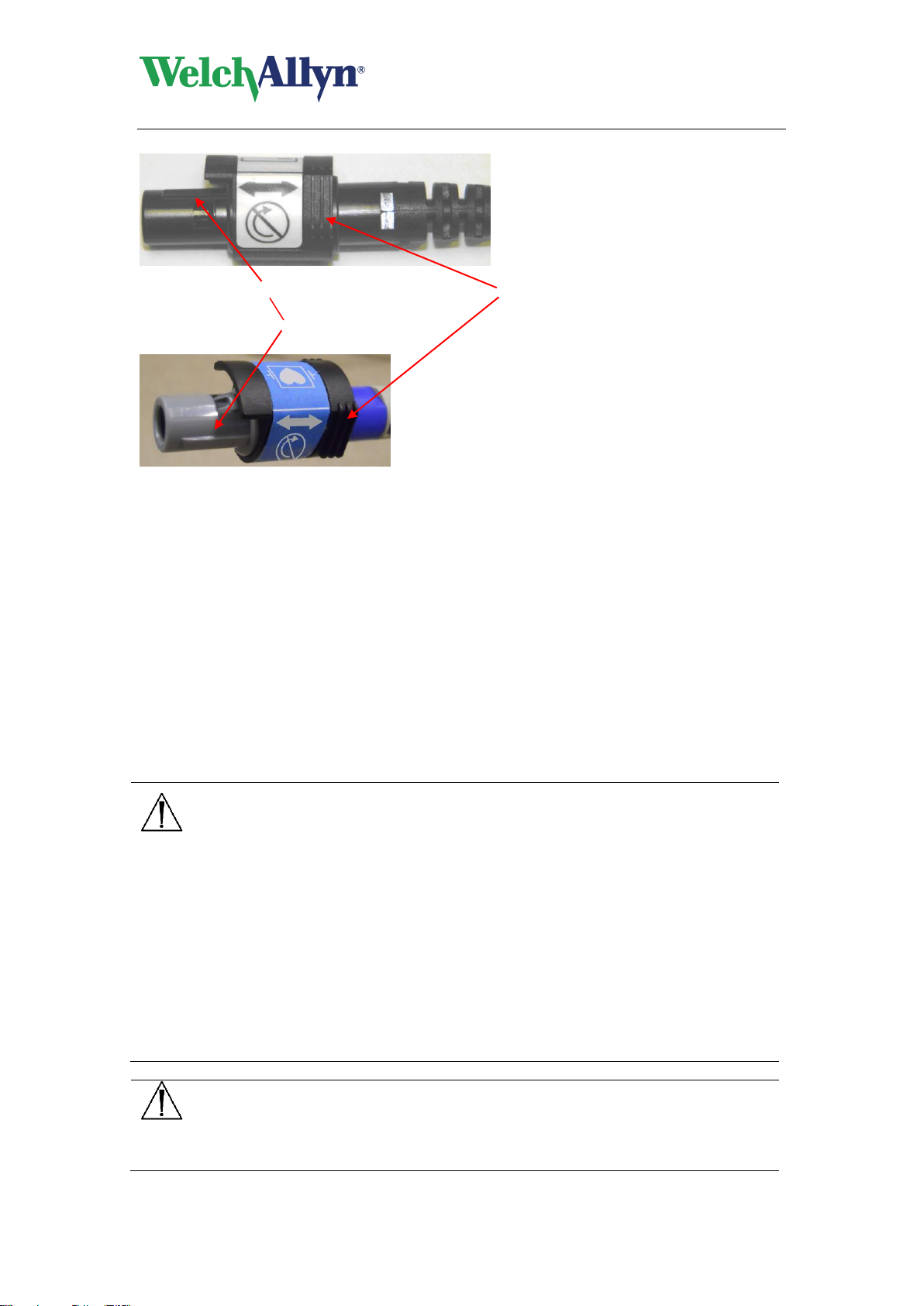

Patient cables and PC connection cables are intended to be inserted and
removed from the PRO ECG Recorder in a push / pull motion. Do not
twist the cables. Damage to the cables and the PRO ECG Recorder will
occur.

CardioPerfect
PRO ECG Recorder - User Manual
DIR 80012763 Ver. H4 / 25
Warnings
Power strips (multiple portable socket outlets) are not allowed for use
in connecting the medical electrical equipment or any accessories to
ground unless used in concert with a medical approved isolation
transformer.
During defibrillation, the ECG signals displayed may show waveform
artifacts and cannot be relied on as a true indication of the patient’s
physical condition.
Accessible metal parts, such as electrode terminations, should not
come in contact with other electrically conductive parts, including earth
ground.
Welch Allyn provides a number of high quality patient leads in varying
termination styles. Use of these approved patient leads is required for
electrical protection of the patient during cardiac defibrillation.
CardioPerfect devices are not intended for direct cardiac application.
An inoperable or damaged electrocardiograph can be identified by
abnormal signals on the ECG waveforms. Abnormal signals are
characterized by flat lines, excess noise, square waves or other non
typical anomalies that appear on the ECG waveform. The
electrocardiograph can be periodically tested by connecting the
CardioPerfect to an ECG simulator. Follow manufacturer’s
instructions.
If there is a requirement for equipment to be connected to a personal
computer or other non-medical rated equipment, it is the responsibility
of the user to ensure that the electric power circuit to which the
CardioPerfect system is connected includes an additional protective
earth ground or an isolation transformer in order to satisfy the IEC
60601-1 safety standard.
Other medical equipment—including but not limited to defibrillators,
ultrasound machines, pacemakers, and other stimulators—may be
used simultaneously with the electrocardiograph. However, such
devices may disturb the electrocardiograph signal.
The electrocardiograph has not been designed for use with high
frequency (HF) surgical equipment and does not protect against
hazards to the patient.
Fire and explosion hazard. Do not operate the electrocardiograph in
the presence of a flammable anesthetic mixture with air, oxygen, or
nitrous oxide; in oxygen-enriched environments; or in any other
potentially explosive environment.
To prevent the spread of infection, take these precautions:
•Dispose of single-use components (for example, electrodes)
after using them once.
•Regularly clean all components that come in contact with
patients.
•Consult your facility's equipment cleaning procedures when
performing ECG testing on patients with open, infectious
sores.

CardioPerfect
PRO ECG Recorder - User Manual
DIR 80012763 Ver. H5 / 25
Ensure the location of the electrode and associated cables provides
maximum separation away from all sources of high-frequency energy.
The best way to ensure patient safety is to completely remove all
electrodes and cables from the patient when exposed to high-
frequency energy.
No modification of this equipment is allowed.

CardioPerfect
PRO ECG Recorder - User Manual
DIR 80012763 Ver. H6 / 25
Patient and Operational Safety
The cardiograph isolates all connections to the patient from electrical ground and all other
conductive circuits in the cardiograph. This reduces the possibility of hazardous currents
passing from the cardiograph through the patient’s heart to ground. To ensure the patient’s
safety and your own please observe the following:
When integrating CardioPerfect devices with non-medical rated equipment, such as a
computer, the addition of an additional protective earth ground or the use of a medically
approved isolation transformer is required for compliance to the IEC 60601-1 Medical System
Safety Standard.
Any system components (e.g. treadmill, personal computer, ergo meter) that require to be
connected to an outlet socket shall use only grounded power cords (three-wire power cords
with grounded plugs). Also make sure the outlet accepts the plug and is grounded. Never
adapt a grounded plug to fit an ungrounded outlet by removing the ground prong or ground
clip.
Do not connect Multiple Portable Socket Outlets (MPSO’s) or extension cords to the system.
Do not connect items which are not part of the system. The use of multiple portable socket
outlets and other non-medical electrical equipment poses a safety hazard. Refer to the
Medical System Safety Standard IEC 60601-1 for the requirements of such attachments.
Multiple portable outlet sockets shall not be placed on the floor. Multiple portable outlet
sockets or extension cord shall not be connected to the system. Do not connect items which
are not part of the system. The use of multiple (non-) medical electrical equipment connected
to the same patient may pose a safety hazard due to the summation of leakage currents from
each instrument. Any combination of (non-) medical electrical equipment should be evaluated
by local safety personnel before put into service. Multiple portable outlet sockets use without
an isolation transformer is disapproved unless casual access for additional equipment is
impeded or prevented.
Accessories
Use of accessories other than those recommended by Welch Allyn may compromise product
performance. The Welch Allyn warranty can only be honored if you use Welch Allyn approved
accessories and replacement parts.

CardioPerfect
PRO ECG Recorder - User Manual
DIR 80012763 Ver. H7 / 25
Warranty, Service, and Spare Parts
Warranty
All repairs on products under warranty must be performed or approved by Welch Allyn.
Unauthorized repairs will void the warranty. In addition, whether or not covered under
warranty, any product repair shall exclusively be performed by Welch Allyn certified service
personnel.
Assistance and Parts
For information about any Welch Allyn product, contact Welch Allyn Technical Support: http://
www.welchallyn.com/support.
Before contacting Welch Allyn it is helpful to attempt to duplicate the problem and to check all
accessories to ensure that they are not the cause of the problem.
When calling, please be prepared to provide:
Product name and model number and complete description of the problem
The serial number of your product (if applicable)
The complete name, address and phone number of your facility
For out-of-warranty repairs or spare parts orders, a purchase order (or credit card)
number
For parts order, the required spare or replacement part number(s)
Repairs
If your product requires warranty, extended warranty, or non-warranty repair service, please
call first the nearest Welch Allyn Technical Support Center. A representative will assist you
troubleshooting the problem and will make every effort to solve it over the phone, avoiding
potential unnecessary return.
In case the return cannot be avoided, the representative will record all necessary information
and will provide a Return Material Authorization (RMA) number, as well as the appropriate
return address. A Return Material Authorization (RMA) number must be obtained prior to any
return.
Note
Welch Allyn does not accept returned products without an RMA.
Packing Instructions
If you have to return goods for service, follow these recommended packing instructions:
Remove all hoses, cables, sensors, power cords, and ancillary products (as appropriate)
before packing, unless you suspect they are associated with the problem.
Wherever possible use the original shipping carton and packing materials.
Include a packing list and the Welch Allyn Return Material Authorization (RMA) number.
It is recommended that all returned goods be insured. Claims for loss or damage to the
product must be initiated by the sender.

CardioPerfect
PRO ECG Recorder - User Manual
DIR 80012763 Ver. H8 / 25
Limited Warranty Statement
Welch Allyn, Inc. warrants that the Welch Allyn CardioPerfect Workstation computer based
product you have purchased meets the labeled specifications of the Product and will be free
from defects in materials and workmanship that occur within 1 year after the date of purchase.
Accessories used with the Product are warranted for 90 days after the date of purchase.
The date of purchase is: 1) the date specified in our records, if you purchased the Product
directly from us, 2) the date specified in the warranty registration card that we ask you to send
to us, or 3) if you don’t return the warranty registration card, 120 days after the date on which
the Product was sold to the dealer from whom you bought the Product, as documented in our
records.
This warranty does not cover damage caused by: 1) handling during shipping, 2) use or
maintenance contrary to labeled instructions, 3) alteration or repair by anyone not authorized
by Welch Allyn, and 4) accidents.
You assume all responsibility for use of the Product with any hardware or software that does
not meet the system requirements described in the Product documentation.
If a Product or accessory covered by this warranty is determined to be defective because of
defective materials, components, or workmanship, and the warranty claim is made within the
warranty period described above, Welch Allyn will, at its discretion, repair or replace the
defective Product or accessory free of charge.
You must obtain a return authorization from Welch Allyn to return your Product before you
send it to Welch Allyn’s designated service center for repair.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. WELCH ALLYN'S OBLIGATION UNDER
THIS WARRANTY IS LIMITED TO REPAIR OR REPLACEMENT OF PRODUCTS
CONTAINING A DEFECT. WELCH ALLYN IS NOT RESPONSIBLE FOR ANY INDIRECT
OR CONSEQUENTIAL DAMAGES RESULTING FROM A PRODUCT DEFECT COVERED
BY THE WARRANTY.

CardioPerfect
PRO ECG Recorder - User Manual
DIR 80012763 Ver. H9 / 25
Table of contents
Safety and Precautions ...................................................................................................... 3
Accessories........................................................................................................................ 6
Warranty, Service, and Spare Parts................................................................................... 7
Limited Warranty Statement............................................................................................... 8
1. About the CardioPerfect PRO Cardiograph....................................................................12
1.1 Accessories.............................................................................................................13
2. Installation..........................................................................................................................15
To connect the cables to the PRO ECG Recorder: ......................................................... 16
To disconnect the cables from the PRO ECG Recorder:................................................. 16

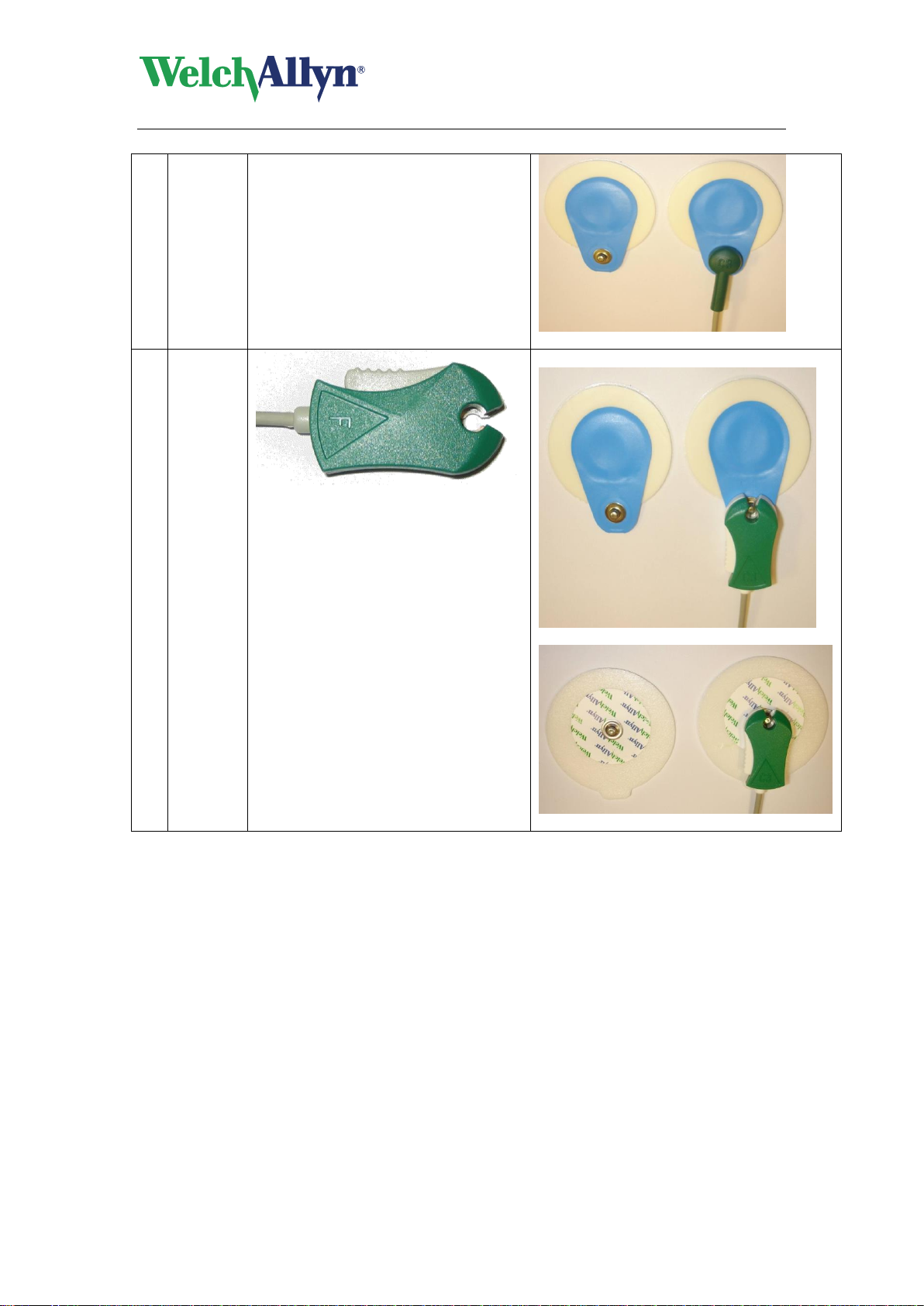

2.1 Connecting the patient cable to the electrode.........................................................17
3. Maintenance.......................................................................................................................19
Clean the equipment........................................................................................................ 19
Clean the PRO ECG Recorder......................................................................................... 19
The following agents are compatible with the PRO ECG Recorder:................................ 19
Clean the cables............................................................................................................... 20
Disinfect the cables .......................................................................................................... 20
Inspecting the equipment................................................................................................. 20
Testing the electrocardiograph......................................................................................... 20
4. Technical Specifications ..................................................................................................21
Safety, EMC, and regulatory compliance......................................................................... 21
Discarding the Equipment................................................................................................ 21
5. Guidance and Manufacturer’s Declarations...................................................................22

CardioPerfect
PRO ECG Recorder - User Manual
DIR 80012763 Ver. H10 / 25
Conventions
A safety symbol used on the device to highlight the fact that
there are specific warnings or precautions associated with
the device, which are not otherwise found on the device label.
A WARNING in this manual indicates conditions or practices
that, if not corrected immediately, could lead to illness, injury
or death.
A CAUTION in this manual indicates conditions or practices
that, if continued or not corrected immediately, could damage
the equipment.
NOTE
A NOTE in this manual contains additional information on
cardiograph usage.
Ingress Protection - Not protected against the ingress of
water
Serial Number
Product Identifier
Defibrillation-Proof Type CF applied part
Manufacture Date
YYYY-MM-DD
CE Mark for Class Is, Im, IIa, IIb & III
Temperature Range
Reorder Number

CardioPerfect
PRO ECG Recorder - User Manual
DIR 80012763 Ver. H11 / 25
Do not dispose of in trash, for devices
Consult operating instructions/directions for use (DFU). A
copy of the DFU is available on this website. A printed copy of
the DFU can be ordered from Welch Allyn for delivery within 7
calendar days.
Global Trade Item Number
Electromagnetic Compatibility
When using the CardioPerfect PRO cardiograph, electromagnetic compatibility with
surrounding devices should be considered and evaluated. The CardioPerfect PRO
cardiograph complies with IEC 60601-1-2 limits for EMC.

CardioPerfect
PRO ECG Recorder - User Manual
DIR 80012763 Ver. H12 / 25

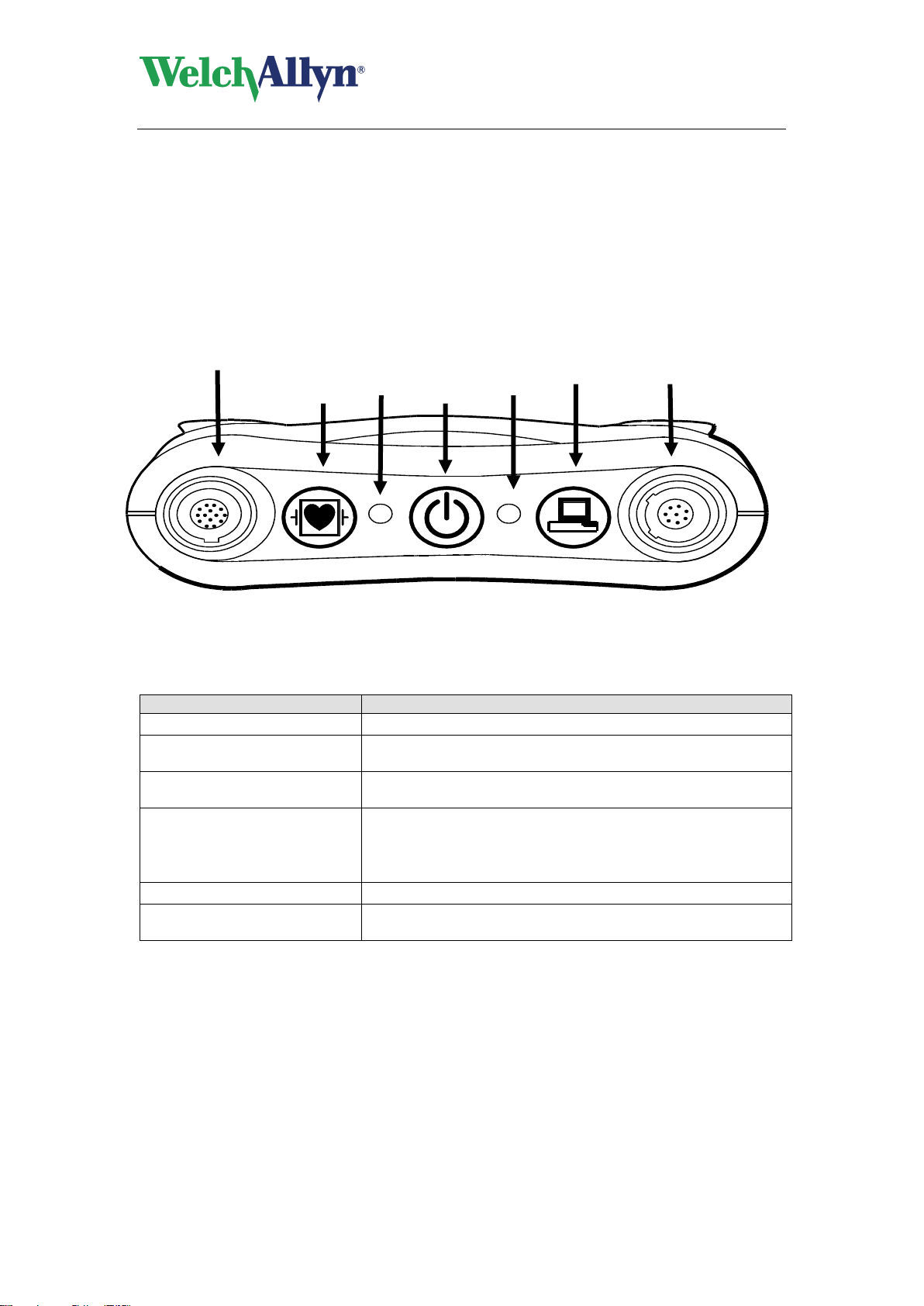

1.About the CardioPerfect PRO Cardiograph
The Welch Allyn CardioPerfect PRO Cardiograph is specifically intended for the recording of
standard 12-lead electrocardiograms of patients. The device is not suitable for direct cardiac
application.
A CardioPerfect PRO system typically comes with the following components:
CardioPerfect PRO Cardiograph (SE-PRO-600, -1200)
Patient Cable (RE-PC or SE-PC)
PC Interface Cable Prolink (PRO-60023, -24, -25)
CardioPerfect Workstation Software (CPWS-SW)
Caution
The patient cable supplied with the CardioPerfect cardiograph is an
integral part of the cardiograph’s safety features. Using any other
patient cable may compromise defibrillation protection as well as
cardiograph performance. The patient cable should be routed away
from power cords and any other electrical equipment. Failure to do
so can result in AC power line frequency interference on the ECG
trace.
Warning
Do not touch the patient, patient cable, PC interface cable (Prolink)
or cardiograph during defibrillation. Death or injury may occur from
the electrical shock delivered by the defibrillator. It is recommended
to check the patient cable and PC interface cable (Prolink) for
damage prior to the use of the system. If damage exists do not use
the cable, contact your local Welch Allyn Sales Office or your
authorized Welch Allyn dealer or distributor to have the cable
replaced.

CardioPerfect
PRO ECG Recorder - User Manual
DIR 80012763 Ver. H13 / 25
1.1 Accessories
Your CardioPerfect PRO cardiograph allows the use of a broad range of accessories; contact
your local Welch Allyn Sales Office or your authorized Welch Allyn Dealer or Distributor.
NOTE All part numbers may not be available in all countries.
REF
Component Description
Purpose
CPR-UN-UB-D
PC Based Resting ECG; non interpretive software
The Welch Allyn CardioPerfect
PRO Cardiograph is specifically
intended for the recording of
standard 12-lead electro-
cardiograms of patients. The
device is not suitable for direct
cardiac application.
CPR-UI-UB-D
PC Based Resting ECG; interpretive software
CPR-UN
PC Based Resting ECG; Excludes patient cables
CPR-UN5
PC Based Resting ECG; Excludes patient cables;
5 meter USB cable
CPR-UN-EB
PC Based Resting ECG
CPR-UN-EB-D
PC Based Resting ECG; includes patient cables
and electrode set
CPR-UI-EB-D
PC Based Resting ECG; Adult interpretive
software
RE-SW-MEANS
CPWS software disk; with interpretation
Software upgrade from normal
resting algorithm to include
indicated data analysis options.
These options allow data
analysis by different methods.
Software enables user to view
and save electro-cardiograms of
patients on a PC.
RE-SW-QT
CPWS software disk; dispersion option
RE-SW-VCG
CPWS software disk; vector option
RE-SW-RR
CPWS software disk; interval option
UPG-UN-UC-D-T
CPWS software disk; upgrade from resting to
stress
Software upgrade from originally
purchased CPWS. Software
enables user to view and save
electro-cardiograms of patients
on a PC.
CCW-UPCPWR
CPWS software disk; upgrade from DOS
Windows
UPDT-WACPW-CD
CPWS software disk, update from older CPWS
versions
UPDT-WACPW-OW
CPWS software disk; update from older versions,
out of warranty only
CPR-UPG-LTU
CPWS software disk; upgrade from resting “lite”
resting ECG to normal ECG functionality
CPR-UPG-POR-1
CPWS software disk; upgrade from POR to
normal resting functionality
CPR-UPG-MD-1
CPWS software disk and cover, upgrade from
MDR to normal resting functionality
45003-0000
Stress kit electrodes (10 pack)
Clips allow user to connect
banana jack terminated patient
leads to electrode tabs needing
alligator clip attachment.
45008-0000
Alligator clips attachment (1k box)
58549-0000
Universal snap electrodes (10 pack)
715006
Alligator clips attachment (10 pack)
PRO-60023
PROLINK USB CABLE ASSEMBLY (2M)
Cable allows connection of the
PRO Recorder to the PC USB
connector.
PRO-60024
PROLINK USB CABLE ASSEMBLY (3M)
PRO-60025
PROLINK USB CABLE ASSEMBLY (5M)
SE-PC-IEC-PUSH
SE-PC-IEC-PSHL
Patient Cables;
PUSH style connector, ½ meter
PUSH style connector,1.3 meters
Cable allows connection of the
PRO-Recorder to the electrode
leads, which adhere to the
patient for detection of cardiac

CardioPerfect
PRO ECG Recorder - User Manual
DIR 80012763 Ver. H14 / 25
REF
Component Description
Purpose
SE-PC-IEC-CLIP
SE-PC-IEC-CLPL
SE-PC-AHA-CLIP
SE-PC-AHA-CLPL
Patient Cables;
CLIP style connector, 1 meter, CLIP style
connector, 1.3 meters
CLIP style connector, 1 meter
CLIP style connector, 1.3 meters
signals.
RE-PC-IEC-BAN
RE-PC-IEC-BANL
RE-PC-AHA-BAN
Patient Cables;
Banana style connector, ½ meter
Banana style connector, 2 meters
Banana style connector, ½ meter
08265-0000
UTILITY CART
Plastic cart that the PC and
associated hardware can sit
upon.
RE-SIM
ECG SIMULATOR
Simulator of ECG signals that
allows the user to confirm
operation of the PRO Recorder
and CPWS system.
RE-ELEC
DISP ELECTRODES 50X BANANA CABLE
RE-ELEC-20
DISPOSABLE ELECTRODES FOR BANANA
CABLE
102992
ADDITIONAL PROTECTIVE EARTH
GROUNDING KIT FOR PC AND TREADMILL
Kit allows the CPWS system with
PC and Treadmill to be compliant
with IEC 60601-1- from a system
perspective.
08281-0000
LASER PRINTER, CARDIOPERFECT
Printer that is approved for use
with CPWS.
404008
CPWS FLEX ARM OPTION
Mechanical holder for the PRO
Recorder. Allows better cable
management and support of the
recorder while it is in use.

CardioPerfect
PRO ECG Recorder - User Manual
DIR 80012763 Ver. H15 / 25
2.Installation
Before using the system, the CardioPerfect PRO cardiograph needs to be connected to the
computer and the software must be properly configured.
Figure 1 Front view CardioPerfect PRO Cardiograph
Figure 1 is a front view of the CardioPerfect PRO cardiograph. A description of the items
indicated is given in table 1.
Table 1 Description of CardioPerfect PRO Cardiograph front panel.
DESCRIPTION
EXPLANATION
Patent Cable Connection
Connection for the patient cable
Type CF Symbol
Defibrillation-proof
IEC symbol, type CF equipment, defibrillation-proof
Power on/Standby button
The Power on/Standby button only applies to older devices.
Do not use this button.
LED
No LED: a disconnected device that cannot
record an ECG.
Green: a good USB connection and sufficient
power to record an ECG.
PC Symbol
Input for computer cable
PC Interface Cable
Connection
Connection for the PC interface cable (Prolink)
Before you can start recording ECG’s with the CardioPerfect PRO cardiograph, you
need to:
1. Install the applicable software (refer to the Welch Allyn CardioPerfect Workstation
Installation User Manual)
2. Install the hardware, including the required drivers. (Please refer to the Resting ECG
manual chapters 11 & 12 or Stress manual chapters 10 & 11.)
3. Configure the software (Please refer to the Resting ECG manual chapters 11 &12 or
Stress manual chapters 10 & 11.)
LED
Type CF
Defibrillation
-proof
Symbol
Power on/
Standby
button
PC Symbol
PC Interface Cable
Connection
Patient Cable
Connection
LED

CardioPerfect
PRO ECG Recorder - User Manual
DIR 80012763 Ver. H16 / 25
Figure 2 PC interface cable (Prolink)
Figure 3 Patient cable
The Prolink cable has 2 alignment keys and the Patient cable has 1 alignment key.
To connect the cables to the PRO ECG Recorder:
1. Hold the PRO ECG Recorder in one hand; hold the Cable connector with your other
hand.
2. Align the alignment keys with the notches in the corresponding PRO ECG Recorder
receptacle.
3. Push the cable gently into the PRO ECG Recorder receptacle until it latches.
To disconnect the cables from the PRO ECG Recorder:
1. Hold the PRO ECG Recorder in one hand; hold the Cable connector with your other
hand.
2. Gently pull the latch release away from the PRO ECG Recorder.
Warning
The PRO ECG Recorder including connectors and cables should be
handled with care. Improper use could result in inoperable ECG and
or compromising patient safety.
Do not drop the PRO ECG Recorder; this may result in
mechanical failure.
Make sure the connectors are properly aligned before
mating with the PRO ECG Recorder.
Do not use force to insert the cables into the PRO ECG
Recorder receptacles.
Never pull the cables, only the latch release.
Caution
Patient cables and PC connection cables are intended to be
inserted and removed from the PRO ECG Recorder in a push / pull
motion. Do not twist the cables. Damage to the cables and the
PRO ECG Recorder will occur.
Latch release
alignment key

CardioPerfect
PRO ECG Recorder - User Manual
DIR 80012763 Ver. H17 / 25
2.1 Connecting the patient cable to the electrode
Please refer to the table below for information on connecting the patient cable to the
electrodes.
Type of connection
Connection to electrode
Resting ECG
Banana
Alligator
clamp
Caution:
Make sure the metal part of the patient
cable connector makes contact with the
skin side of the electrode tab.
Exercise ECG or Resting ECG
Push

CardioPerfect
PRO ECG Recorder - User Manual
DIR 80012763 Ver. H18 / 25
Exercise ECG or Resting ECG
Clip

CardioPerfect
PRO ECG Recorder - User Manual
DIR 80012763 Ver. H19 / 25
3. Maintenance
Clean the equipment
Warning
Keep the PRO ECG Recorder, reusable electrodes, and the patient
cable clean. Patient contact with contaminated equipment can
spread infection.
The patient cables should be cleaned after each use and disinfected
as needed.
Caution
Never immerse the PRO ECG Recorder or the patient cable in
liquid. Never autoclave or steam clean the PRO ECG Recorder or
the patient cable. Never pour alcohol directly on the PRO ECG
Recorder or the patient cable, and never soak any components in
alcohol. If any liquid enters the PRO ECG Recorder, remove the
PRO ECG Recorder from service, and have it inspected by a
qualified service person before using it again.
Clean the PRO ECG Recorder
Unless the PRO ECG Recorder (the device itself rather than the cables and electrodes)
comes in direct contact with a patient, it is acceptable to clean the device on a routine basis
according to your facility's protocols and standards or local regulations. Patient contact with
the device might require immediate cleaning.
The following agents are compatible with the PRO ECG Recorder:
•70 percent isopropyl alcohol
•10 percent chlorine bleach solution
Caution
When cleaning the device, avoid using cloths or solutions that
include quaternary ammonium compounds (ammonium chlorides)
or glutaraldehyde-based disinfectants.
1. Slightly dampen a soft, clean cloth with an acceptable
cleaning solution, or use a 70 percent alcohol pad to wipe the
exterior of the PRO ECG Recorder. Dry all components with a
clean, soft cloth or paper towel.
2. Before you power on the PRO ECG Recorder again, wait at
least 10 minutes for all traces of liquid to evaporate.

CardioPerfect
PRO ECG Recorder - User Manual
DIR 80012763 Ver. H20 / 25
Clean the cables
1. Slightly dampen a soft, clean cloth with lukewarm, soapy water or a neutral cleaner
and clean the patient cable and PC USB interface cable.
2. Dry all cables with a clean, soft cloth or paper towel.
3. Wait at least 10 minutes before powering on the PRO ECG Recorder again.
Disinfect the cables
When disinfection is required, use chemical disinfectants containing ethanol (70%–80%),
propanol (70%–80%), or aldehydes (2%–4%). Disinfect according to your facility's protocols
and standards or local regulations.
Caution
Do not use these agents for routine cleaning of the cables. Alcohol
can cause the plastic to become brittle and may cause the cable to
fail prematurely.
Inspecting the equipment
Perform the following inspections daily:
•Check for cracks or breaks in the PC USB interface cable, the patient cable, the
patient electrodes, and the PRO ECG Recorder.
•Check for bent or missing pins on all cables.
•Check all cable and cord connections; reseat if any connectors are loose.
Testing the electrocardiograph
Welch Allyn recommends verifying proper operation of the electrocardiograph once a year to
ensure reliability.
Whenever the electrocardiograph is serviced or whenever problems are suspected, verify
continued electrical safety of the device using IEC 60601-1 or ANSI/AAMI ES methods and
limits.
Warning
Only qualified service personnel should perform leakage current
tests.
Test for the following:
•Patient leakage current
•Chassis leakage current
•Earth leakage current
