Whalen AVTEC48-TC User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Whalen Furniture Mfg., Inc. Page 1 Factory No. 33-10944
Audio Video Tower
Model # AVTEC48-TC
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to
the store where it was purchased. Please call our customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenfurniture.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASED: / /

Model # AVTEC48-TC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 2 Factory No. 33-10944
MANUFACTURER: Whalen Furniture Mfg., Inc.
CATALOG: Audio Video Tower (AVTEC48-TC)
DATE OF MANUFACTURE: July 2013
MADE IN CHINA
1. Please read the Assembly Instructions prior to assembling this product.
2. Remove all hardware from the box and sort by size.
3. Check to see that all hardware and parts are present BEFORE assembling.
4. Ask a friend to assist you with the assembly of this furniture.
5. To avoid damage, assemble the product on a sturdy, level and protective surface.
6. Please wait until all steps are completed before fully tightening bolts.
7. Make sure all bolts are tightly fastened before the unit is used.

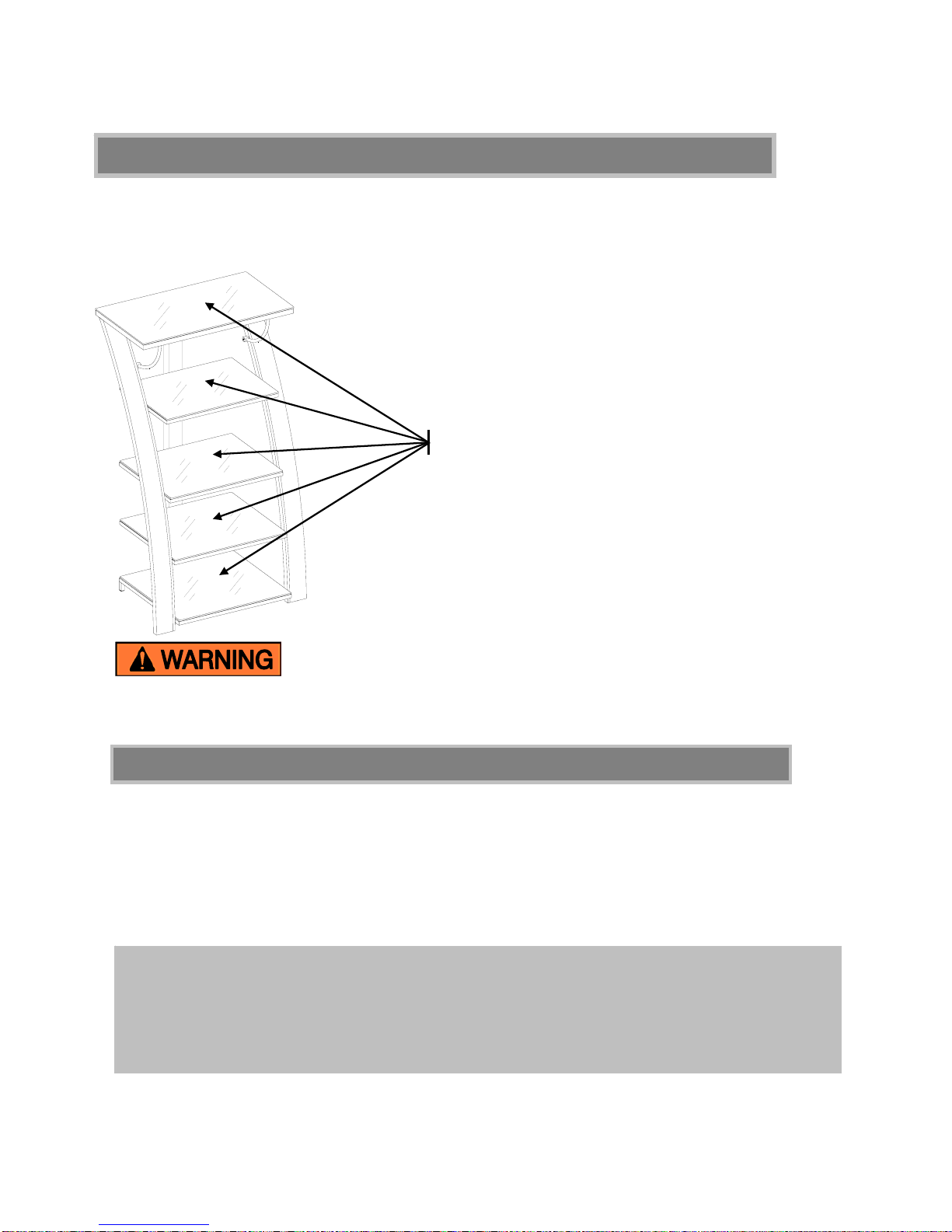

MAXIMUM RECOMMENDED WEIGHT LOADS
GENERAL INFORMATION
,
TIPS and TRICKS
This product is sold with one set of Tipping Restraint Hardware Kit. You must install the Tipping
Restraint Hardware between the wall and the unit to prevent any accidents or damages. When
properly installed, this restraint can provide protection against the unexpected tipping of the
unit due to small tremors, bumps or climbing. The restraint is only a deterrent and is not a
substitute for proper adult supervision. Use of tip-over restraints may only reduce, but not
eliminate, the risk of tip-over.
MAXIMUM LOAD 50 lb. (22.6 kg)
THIS UNIT IS INTENDED FOR USE ONLY WITH THE MAXIMUM
WEIGHTS INDICATED. USE WITH LOAD HEAVIER THAN THE MAXIMUM WEIGHTS
INDICATED MAY RESULT IN INSTABILITY
,
CAUSING POSSIBLE INJURY.

Model # AVTEC48-TC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 3 Factory No. 33-10944
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware
are present before beginning assembly.
A- Top Shelf Frame (1) B- Middle Upper Shelf Frame (1) C- Middle Shelf Frame (1)
D- Middle Lower Shelf Frame (1) E- Bottom Shelf Frame (1) F- Spine (1)
G- Left Leg (1) H- Right Leg (1) I- Top Glass (1)
J- Middle Upper Glass Shelf (1) K- Middle Glass Shelf (1) L- Middle Lower Glass Shelf (1)
M- Bottom Glass Shelf (1) N- Top Shelf Support (2) O- Cable Wheel (2)
(1) Suction Cup (20+1 extra) (2) 5/8” Bolt (6+1 extra) (3) 7/8” Bolt (4+1 extra)
(4) 1-1/4” Bolt (5) 1-1/8” Bolt (6) Lock Washer (7) Flat Washer
(10+1 extra) (4+1 extra) (4+1 extra) (4+1 extra)
(8) Shelf Pin Touch-up Pen M4 Allen Wrench Tipping Restraint Hardware Kit (1)
(4+1 extra) (1) (2) (Inside Plastic Bag)
Tools required: Allen Wrench (provided) and Phillips screwdriver (not provided).

Model # AVTEC48-TC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 4 Factory No. 33-10944
Assembly Instructions
NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled,
go back and fully tighten all bolts. This will make the assembly easier.
1. Unpack the unit and confirm that you have all the hardware and required parts.

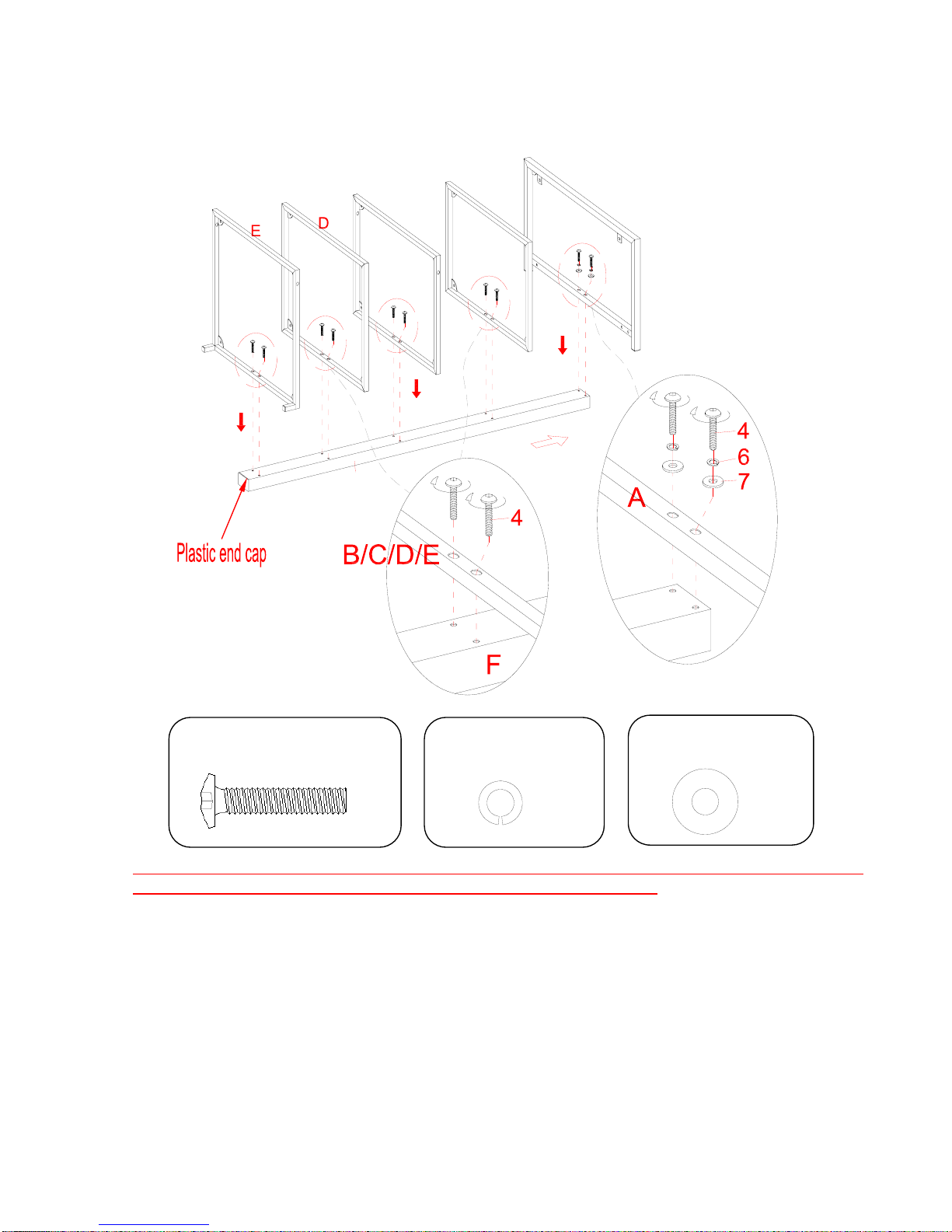

2. Locate the Spine (F) and set back face down on a scratch free surface, as shown.
3. Align and attach the Shelf Frames (A, B, C, D and E) to the Spine (F) respectively, as shown
above. Make sure that the inside corner plates on the Shelf Frames will face up when the unit
is turned upright.
A
CB
F
F
UP
1-1/4” Bolt
(10 used in this step)
④
Flat Washer
(2 used in this step)
⑦
Lock Washer
(2 used in this step)
⑥

Model # AVTEC48-TC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 5 Factory No. 33-10944
Assembly Instructions

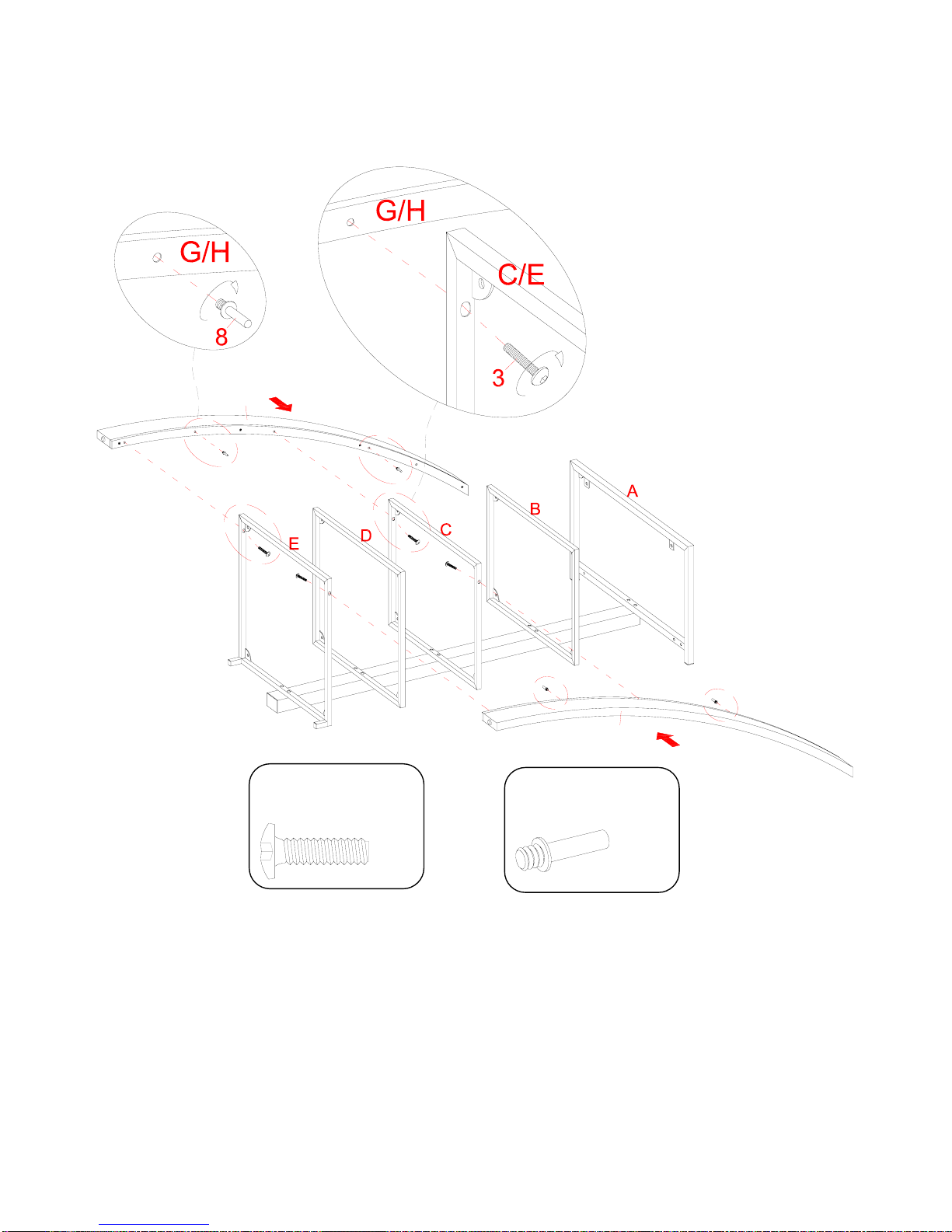

4. Screw 2 Shelf Pins (8) into the designated threaded sockets on the Left Leg (G). As shown.
5. Align and attach the Left Leg (G) to the Middle Shelf Frame (C) and Bottom Shelf Frame (E).
DO NOT tighten the bolts. Make sure that the pre-drilled hole on the back rail of the Top Shelf
Frame (A) overlaps the top threaded socket on the Left Leg (E).
6. Repeat the same procedure to attach the Right Leg (H) at the opposite end.
G
H
Shelf Pin
(4 used in this step)
⑧
7/8” Bolt
(4 used in this step)
③

Model # AVTEC48-TC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 6 Factory No. 33-10944
Assembly Instructions
7. Stand the unit upright.
8. Insert two 1-1/8” Bolts (5) through the pre-drilled holes on the back rail of the Top Shelf Frame
(A) and screw into the threaded sockets on the Legs (G and H).
A
C
B
G
H
1-1/8” Bolt
(2 used in this step)
⑤

Model # AVTEC48-TC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 7 Factory No. 33-10944
Assembly Instructions

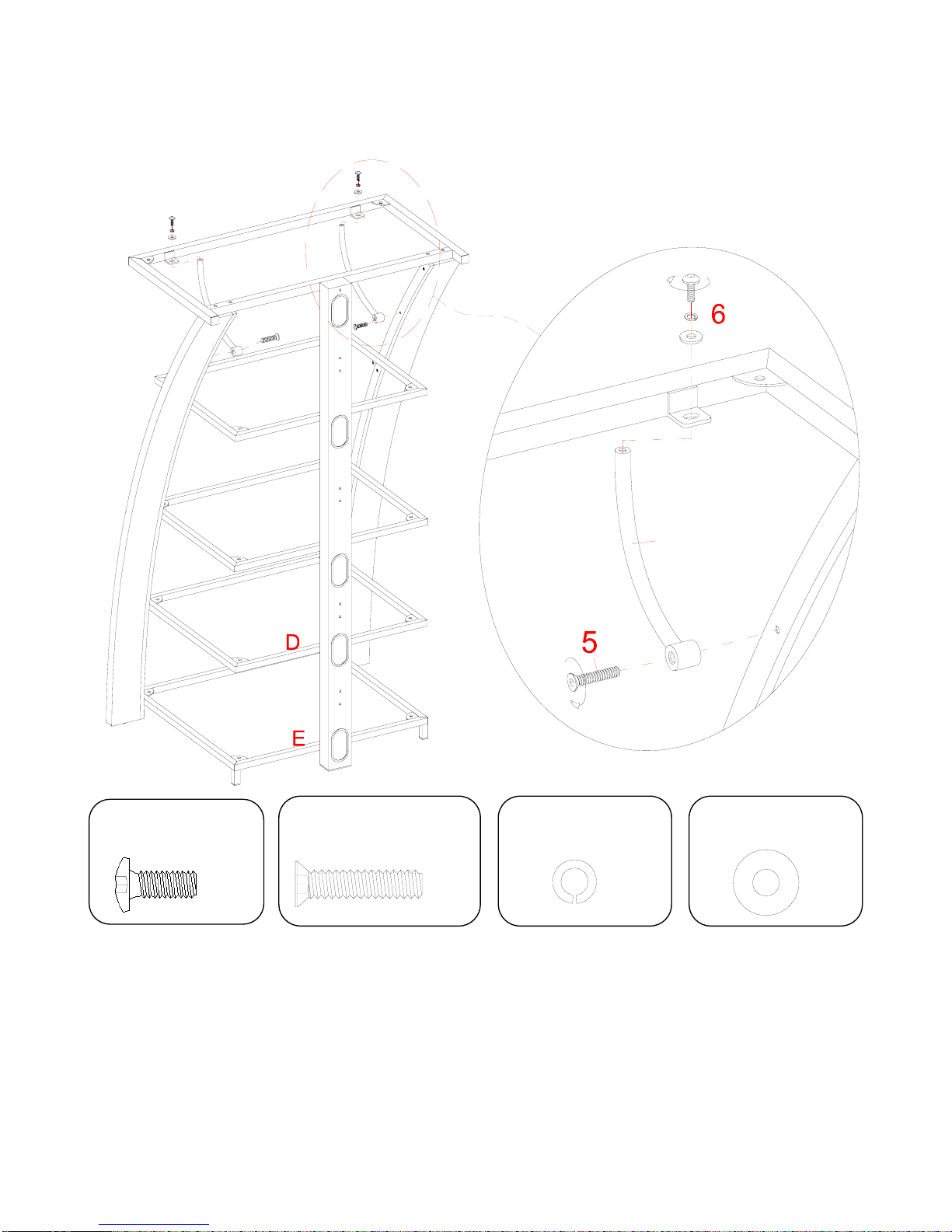

9. Align and attach one Top Shelf Support (N) to the “L” bracket of the Top Shelf Frame (A) using
one 5/8” Bolt (2) with Washers (6 and 7). Secure the Top Shelf Support (N) to the Left Leg (G)
with the 1-1/8” Bolt (5). As shown above.
10.Repeat the same procedure to attach the other Top Shelf Support (N) at the other end.
A
C
B
G
H
2
7
A
N
G/H
5/8” Bolt
(2 used in this step)
②
1-1/8” Bolt
(2 used in this step)
⑤
Flat Washer
(2 used in this step)
⑦
Lock Washer
(2 used in this step)
⑥

Model # AVTEC48-TC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 8 Factory No. 33-10944
Assembly Instructions
11.Attach 2 Cable Wheels (O) to the backside of the Spine (F) and tighten with the enclosed
Allen Wrench.
12.The Cable Wheels allow you to organize, route and separate your component cords and
cables to minimize tangling and signal interference.
13.Go back and tighten all bolts with the provided Allen Wrench.
5/8” Bolt
(4 used in this step)
②

Model # AVTEC48-TC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 9 Factory No. 33-10944
Assembly Instructions
14.Put the Suction Cups (1) firmly into the top holes and the inside corner plates on the Shelf
Frames (A, B, C, D and E).
TIP: If a suction cup resists insertion, try pressing down on the middle of the cup with the Allen
Wrench while twisting it clockwise into the hole.
15.Place the Glass Shelves (I, J, K, L and M) in place starting with the Bottom Glass Shelf (M).
Make sure that the glass shelf is properly centered and the black side of glass shelf is down.
Push each glass shelf all the way back against the Spine.
NOTE: If a glass shelf is scratched, you can minimize the damage by using a BLACK marker
and filling in scratched area from underneath.
I
J
K
L
M
Suction Cup
(20 used in this step)
①

Model # AVTEC48-TC
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg., Inc. Page 10 Factory No. 33-10944
Assembly Instructions
Tools required: Allen Wrench (provided), Phillips screwdriver, Mallet, Power Drill, and 3/8” Drill Bit.

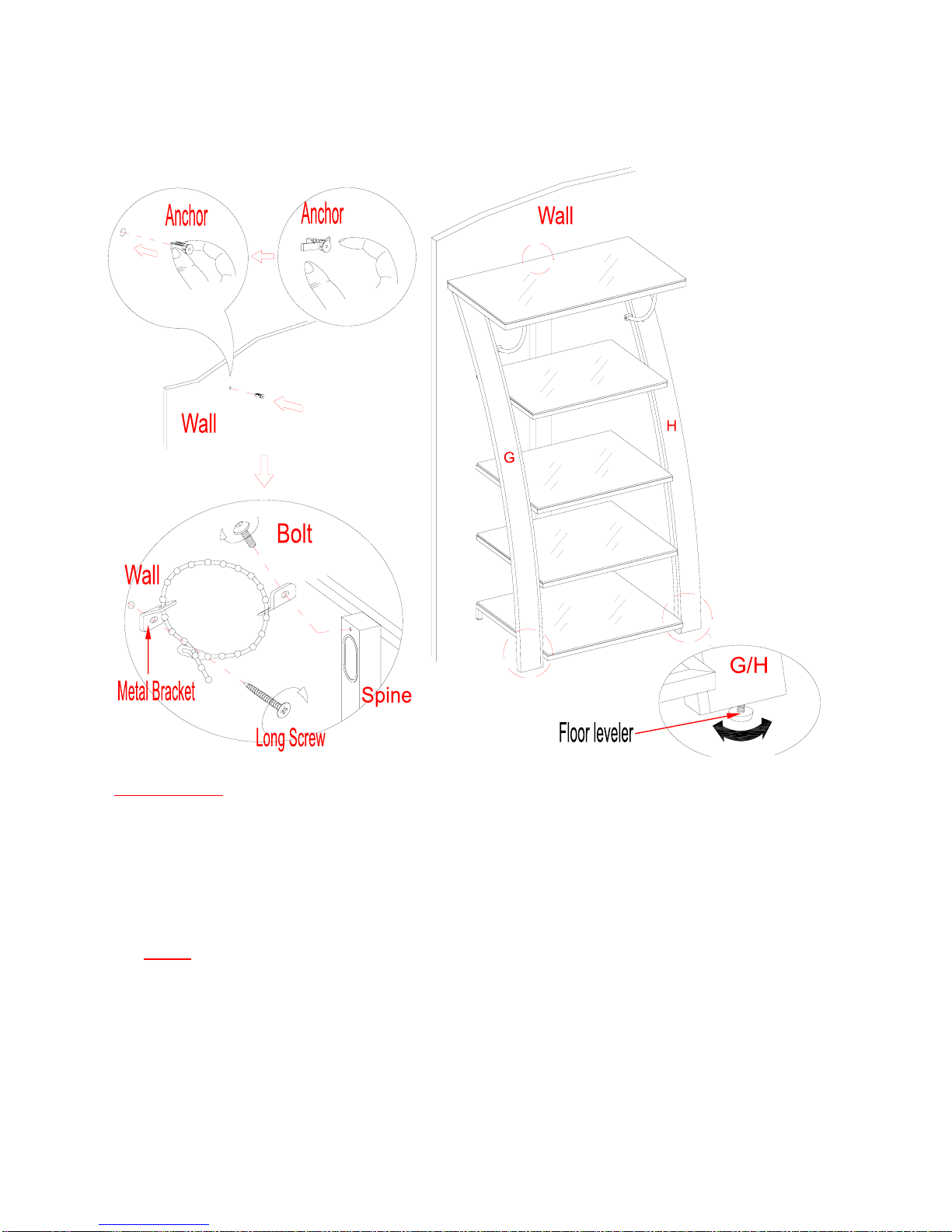

16.Position the assembled tower at the desired location against a wall. If necessary, adjust the
pre-attached Floor Levelers on the bottom of the Legs (G and H) to level the unit.
17.Now, follow the instructions printed on the plastic bag containing the Tipping Restraint
Hardware to attach the tip-over restraint to the Spine (F) and the wall.
NOTE: Young children can be seriously injured by tipping furniture. You must install the
Tipping Restraint Hardware with the unit to prevent the unit from tipping, causing any
accidents or damage. The tipping restraint is intended only as a deterrent, they are not a
substitute for proper adult supervision. The tipping restraint is not an earthquake restraint. If
you wish to add the extra security of earthquake restraints, they must be purchased and
installed separately.
