Whalen Annual Event WMFP41BT-2 User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Whalen Furniture Manufacturing Page 1 Factory No. 16086
Date 2015-07-12 Rev. 1 Factory: KONRIC
Annual Event 41" Wide Fireplace Console
Stock # WMFP41BT-2
ADULT ASSEMBLY AND SET-UP REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our customer service number and have your instructions
and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenstyle.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASED: / /

Stock # WMFP41BT-2
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 2 Factory No. 16086
QUALITY GUARANTEE
We are confident that you will be delighted with your Whalen Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal use, we will
repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is
designed to meet your highest expectations. We guarantee that you will immediately see the value of
our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary from
State to State.
Customer Service: 1-866-942-5362
8:30 a.m. - 4:30 p.m., PST, Monday to Friday
www.whalenstyle.com
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: Annual Event 41" Wide Fireplace Console (WMFP41BT-2)
DATE OF MANUFACTURE: August 2015
MADE IN CHINA
MAXIMUM RECOMMENDED WEIGHT LOADS
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH FLAT
PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND WEIGHT LIMITS.
NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL TVS OR EQUIPMENT. TO
AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTRE OF THE UNIT; THE BASE OF THE
TELEVISION MUST BE ABLE TO REST ON THE SUPPORTING SURFACE OF THE UNIT WITHOUT
OVER-HANGING THE EDGES. IMPROPERLY POSITIONED FLAT PANEL TVS, OR FLAT PANEL TVS
INCLUDING OTHER EQUIPMENT THAT EXCEED RECOMMENDED SIZE AND WEIGHT LIMITS
COULD FALL OFF OR BRE
AK THE UNIT, CAUSING POSSIBLE SERIOUS INJURY.
MAXIMUM LOAD 50 lb. (22.6 kg)
PLACE TV BEHIND THE STOPPER
FITS UP TO MOST 50” FLAT PANEL TVs
MAXIMUM LOAD 100 lb. (45.3 kg)

Stock # WMFP41BT-2
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 3 Factory No. 16086
Important
Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-
abrasive surface. You will need the parts identified on page 4 and 5 of this instruction manual.
NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH DOWELS. EXCESS GLUE CAN BE WIPED
OFF WITH DAMP CLOTH.
Insert the Dowel at least half way by tapping lightly with a rubber mallet, IF NECESSARY.
CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw the Cam Bolt into the threaded inserts on the panel. Connect both panels together; making sure Cam
Bolt goes into the pre-drilled hole on the end of panel for Cam Lock.
2. Insert the Cam Lock into the pre-drilled large hole on the panel. Make sure the arrow on the face of Cam
Lock faces out and points towards Cam Bolt.
3. Take a Phillips screwdriver and rotate the Cam Lock clockwise to lock the Cam Bolt in place.
4. Plug the Cam Lock Cover into the cross slot of the Cam Lock to conceal the Cam.
You are now ready to assemble the fireplace.
XX
FINAL
1 2 43

Stock # WMFP41BT-2
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 4 Factory No. 16086

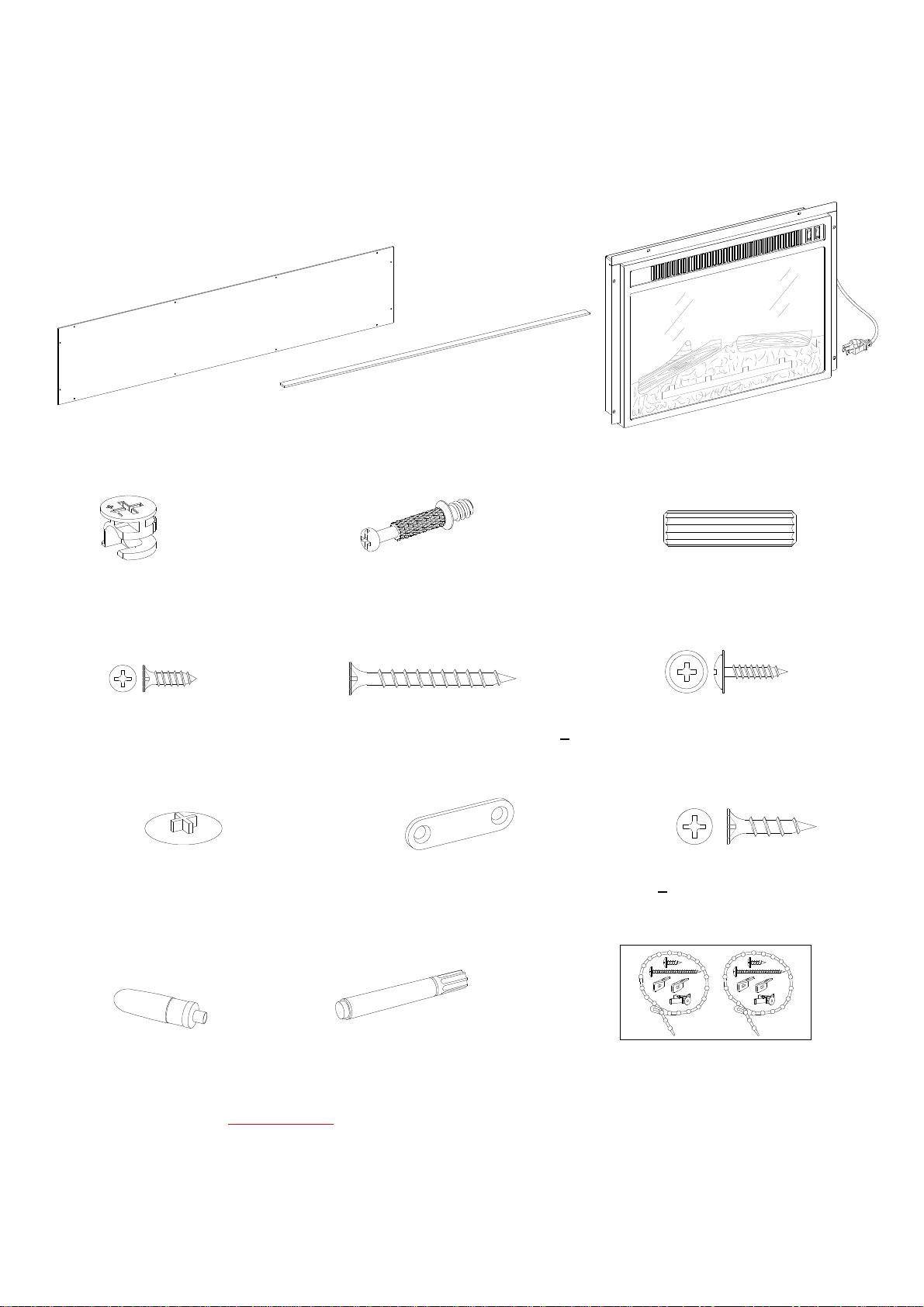

Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Top Panel (1) B- Left Upper Side Panel (1) C- Right Upper Side Panel (1)
D- Upper Front Molding (2) E- Center Shelf (1) F- Left Lower Side Panel (1)
G- Right Lower Side Panel (1) H- Left Lower Front Panel (1) I- Right Lower Front Panel (1)
J- Middle Crossbar Assembly (1) K- Bottom Panel (1) L- Base Front Stretcher (1)
M- Base Rear Stretcher (1) N- Base Left Stretcher (1) O- Base Right Stretcher (1)

Stock # WMFP41BT-2
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 5 Factory No. 16086
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
P- Back Panel (1) Q- Stop Rail (1) Fireplace Insert (1)
(1) Cam Lock (2) Cam Bolt (3) M8 x 30 mm Wood Dowel
(39+1 extra) (39+1 extra) (40+2 extra)
(4) Ø3.5 mm x 12 mm Screw (5) Ø4 mm x 38 mm Screw (6) Ø3.5 mm x 15 mm Washer Head Screw
(4+1 extra) (12+1 extra) (12+1 extra)
(7) Cam Lock Cover (8) Metal Bracket (9) Ø4 mm x 20 mm Screw
(8+1 extra) (2) (2+1 extra)
Glue (1) Touch-up Pen (1) Tipping Restraint Hardware Kit (1)
(Included in plastic bag)
Tools required: Phillips screwdriver and rubber mallet (not provided).

Stock # WMFP41BT-2
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 6 Factory No. 16086
Assembly Instructions
1. Unpack the unit and confirm that you have all the hardware and required parts. Assembly the unit on a
carpeted floor or the empty carton to avoid any scratch.
2. Locate the Top Panel (A), Upper Front Moldings (D), Base Front Stretcher (L), Base Left and Right
Stretchers (N and O) with the holes facing up. Securely screw the Cam Bolts (2) into the designated small
holes by a Phillips screwdriver, as shown in the illustration.
A/D/L/N/O
A
N
O
DD
L
Cam Bolt
(12 used in this step)
②

Stock # WMFP41BT-2
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 7 Factory No. 16086
Assembly Instructions

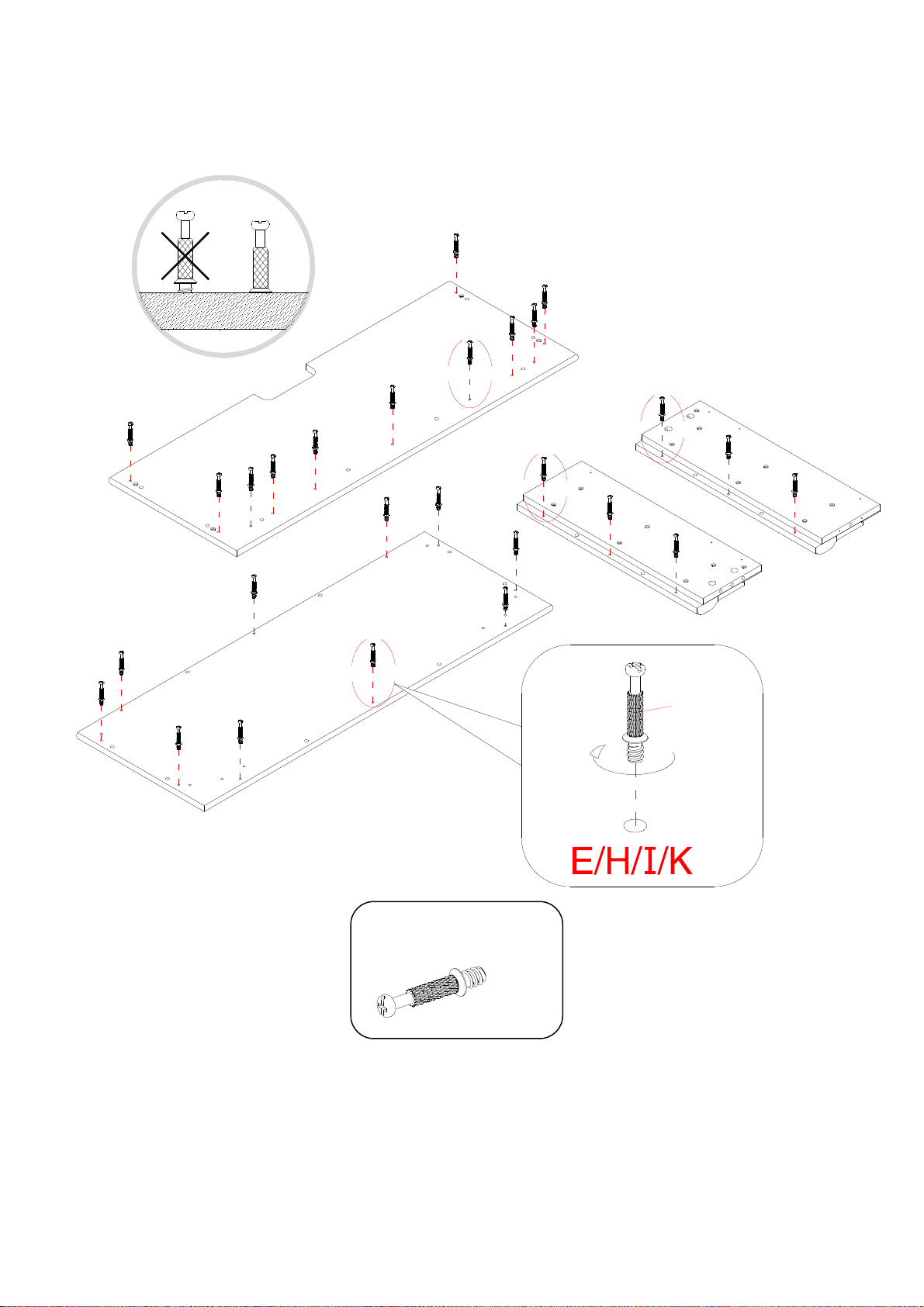

3. Securely screw the Cam Bolts (2) into the designated small holes on the Center Shelf (E), Bottom Panel (K),
Left and Right Lower Front Panels (H and I) as shown.
Cam Bolt
(27 used in this step)
②
E
K
H
I
2

Stock # WMFP41BT-2
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 8 Factory No. 16086
Assembly Instructions

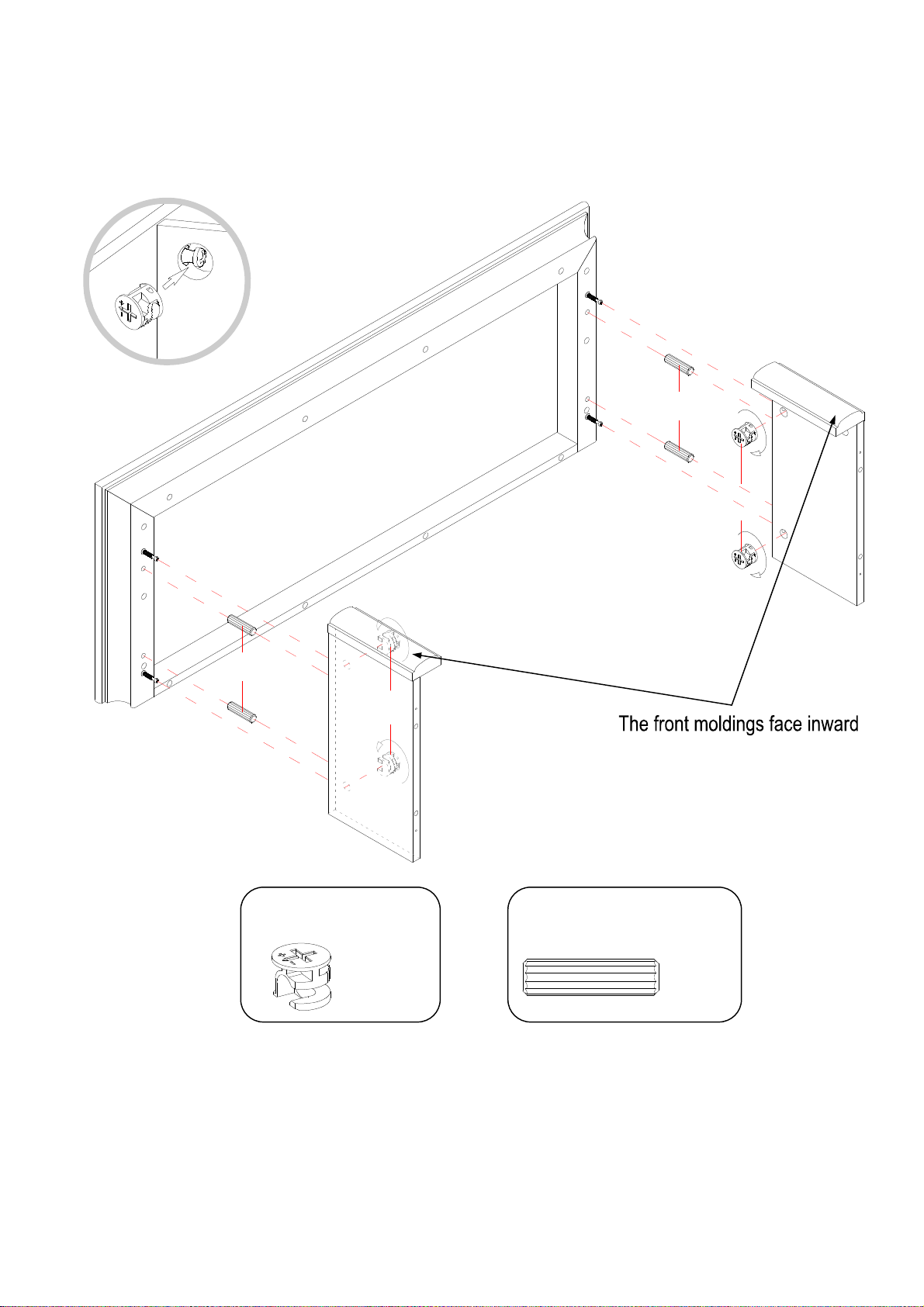

4. Insert one Wood Dowel (3) into the center end hole of Left Upper Side Panel (B). Tap it in with a rubber
mallet, if necessary. Make sure that you use a small amount of glue with both ends of all dowels.
5. Align the drilled hole on one Upper Front Molding (D) with the inserted Wood Dowel (3) on the Left
Upper Side Panel (B), and then press them together. Secure the Front Molding (D) in place by engaging
two Cam Locks (1) (Refer to page 3 on Cam Lock system operation supplement).
6. Repeat the same procedure to combine the Right Upper Side Panels (C) and the other Upper Front Molding
(D) together.
3
3
D1
1
D
B
C
M8 x 30 mm Wood Dowel
(2 used in this step)
③
Cam Lock
(4 used in this step)
①

Stock # WMFP41BT-2
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 9 Factory No. 16086
Assembly Instructions
7. Insert four Wood Dowels (3) into the drilled holes on the Upper Side Panels (B and C) and attach them to
the Top Panel (A) by engaging four Cam Locks (1).
A
B
C
3
3
1
1
Cam Lock
(4 used in this step)
①
M8 x 30 mm Wood Dowel
(4 used in this step)
③

Stock # WMFP41BT-2
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 10 Factory No. 16086
Assembly Instructions
8. Align and attach the Middle Crossbar Assembly (J) to the Center Shelf (E) by using two Wood Dowels (3)
and three Cam Locks (1). As shown.
3
3
1
1
1
J
E
M8 x 30 mm Wood Dowel
(2 used in this step)
③
Cam Lock
(3 used in this step)
①

Stock # WMFP41BT-2
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 11 Factory No. 16086
Assembly Instructions
9. Insert four Wood Dowels (3) into the inner holes at the bottom of both Upper Side Panels (B and C).
10. Properly position the Center Shelf (E) onto the inserted Wood Dowels (3). Insert four 38 mm Screws (5)
through the countersunk holes on Center Shelf (E) and screw into the Upper Side Panels (B and C).
E
J
B
C
3
3
5
5
M8 x 30 mm Wood Dowel
(4 used in this step)
③
Ø4 mm x 38 mm Screw
(4 used in this step)
⑤

Stock # WMFP41BT-2
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 12 Factory No. 16086
Assembly Instructions
11. Align and attach the Left Lower Front Panel (H) to the Left Lower Side Panel (F) by using two Wood
Dowels (3) and three Cam Locks (1). As shown.
12. Repeat the same procedure to combine the Right Lower Side Panel (I) and Right Lower Front Panel (G)
together.
H
3
3
3
3
1
1
1
1
I
F
G
M8 x 30 mm Wood Dowel
(4 used in this step)
③
Cam Lock
(6 used in this step)
①

Stock # WMFP41BT-2
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 13 Factory No. 16086
Assembly Instructions

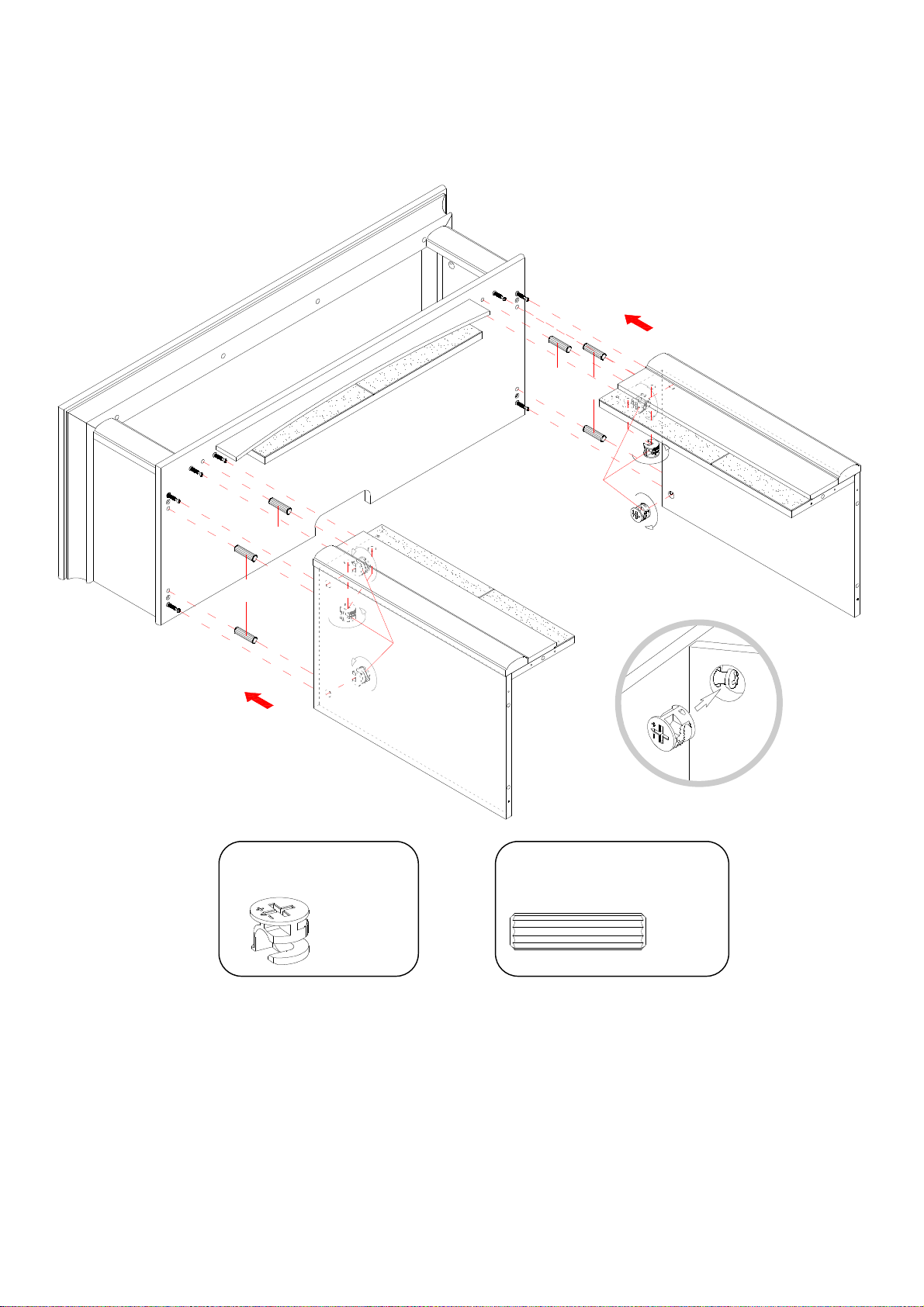

13. Insert six Wood Dowels (3) into the top inner holes of both Lower Side Panel assemblies.
14. Align the large holes on Center Shelf (E) with the inserted Wood Dowels (3) on the Lower Side Panel
assemblies and press them together. Secure the lower panel assemblies in place with eight Cam Locks (1).
J
E
F
G
H
I
3
3
3
3
1
1
M8 x 30 mm Wood Dowel
(6 used in this step)
③
Cam Lock
(8 used in this step)
①

Stock # WMFP41BT-2
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 14 Factory No. 16086
Assembly Instructions

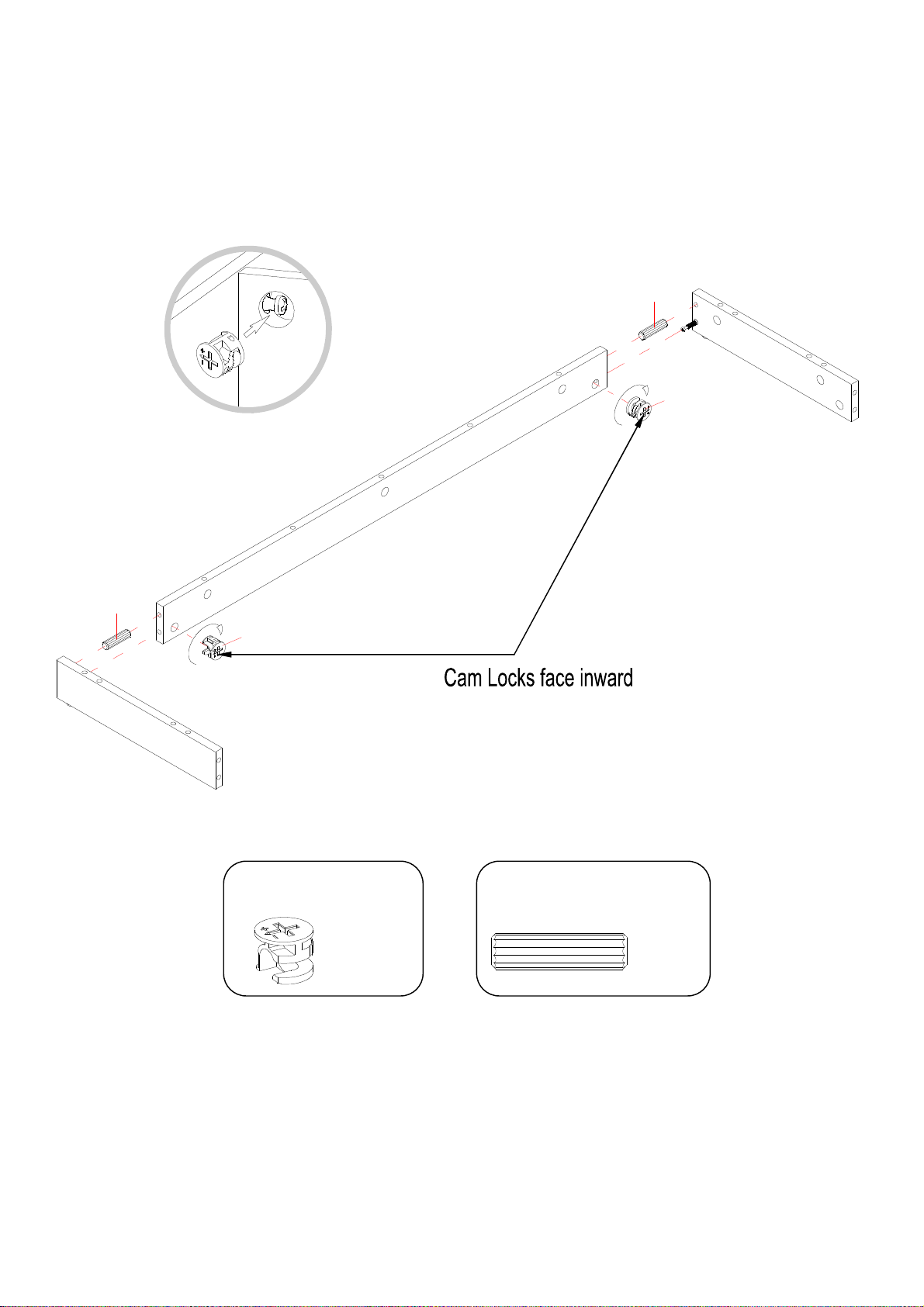

15. Align and attach the Base Rear Stretcher (M) between the Base Left and Right Stretchers (N and O) by
using two Wood Dowels (3) and two Cam Locks (1). As shown.
M8 x 30 mm Wood Dowel
(2 used in this step)
③
Cam Lock
(2 used in this step)
①
1
N
M
O
1
3
3

Stock # WMFP41BT-2
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 15 Factory No. 16086
Assembly Instructions
16. Fasten the Base Front Stretcher (L) to the Base Left and Right Stretchers (N and O) by using two Wood
Dowels (3) and two Cam Locks (1).
M8 x 30 mm Wood Dowel
(2 used in this step)
③
Cam Lock
(2 used in this step)
①
O
N
M
L
1
1
3
3

Stock # WMFP41BT-2
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 16 Factory No. 16086
Assembly Instructions
17. Align and attach the Base assembly to the Bottom Panel (K) by using eight Wood Dowels (3) and ten Cam
Locks (1).
M8 x 30 mm Wood Dowel
(8 used in this step)
③
Cam Lock
(10 used in this step)
①
3
L
M
O
N
K
1
1
1

Stock # WMFP41BT-2
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 17 Factory No. 16086
Assembly Instructions
18. Align and attach the assembled base to the Lower Side Panel assemblies with six Wood Dowels (3) and
eight 38 mm Screws (5). As shown above.
M8 x 30 mm Wood Dowel
(6 used in this step)
③
K
L
M
N
O
F
H
I
G
3
3
3
3
5
5
5
5
Ø4 mm x 40 mm Screw
(8 used in this step)
⑤

Stock # WMFP41BT-2
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 18 Factory No. 16086
Assembly Instructions
19. Stand the assembled unit upright.

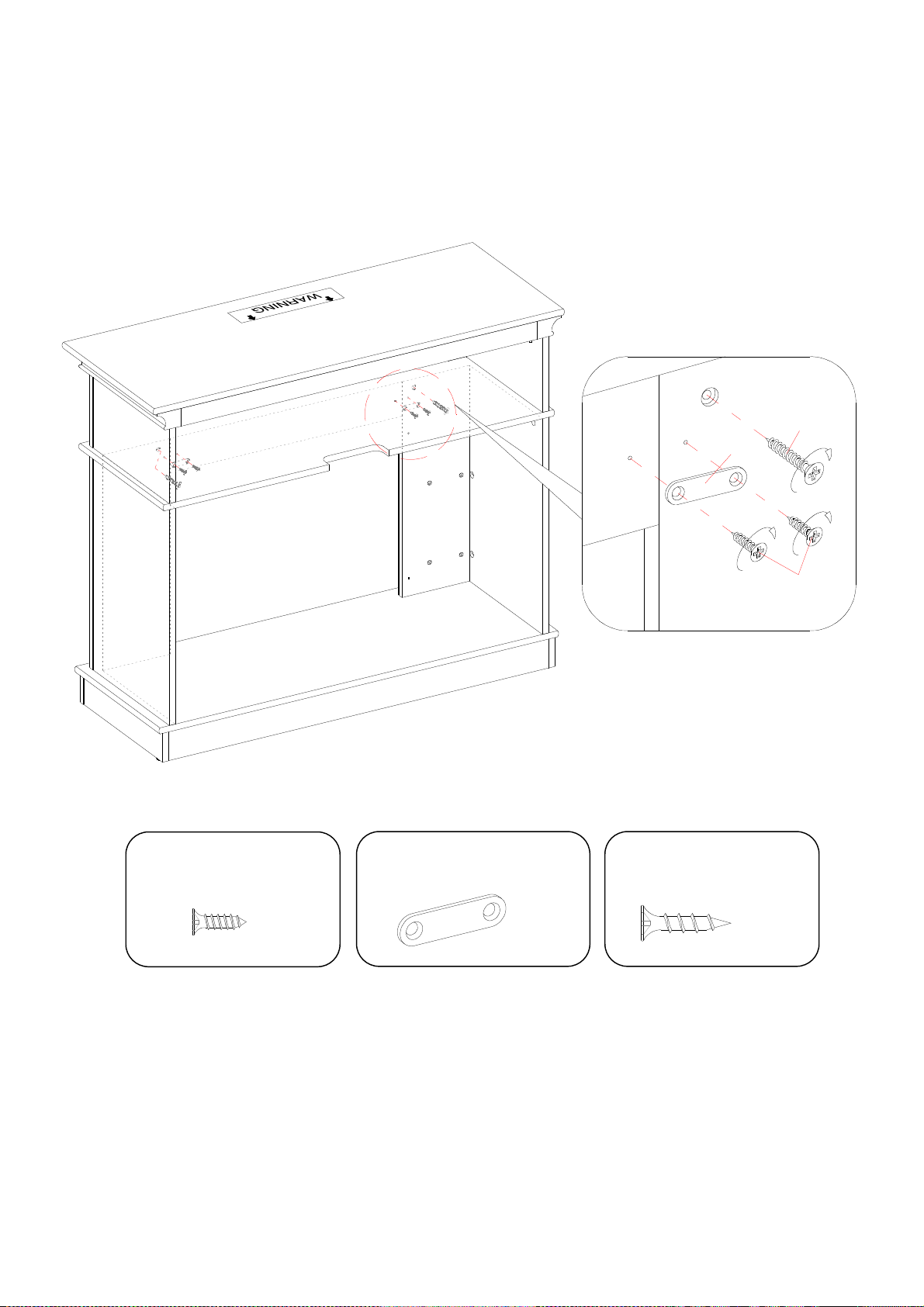

20. With the pilot holes as a guide, fasten the Middle Crossbar Assembly (J) to the Lower Front Panels (H and I)
by attaching two Metal Brackets (8) at the joints, using two 12 mm Screws (4) per bracket. As shown.
21. Insert two 20 mm Screws (9) through the countersunk holes on the Lower Front Panels (H and I) and
securely screw into the Middle Crossbar Assembly (J) as shown.
Ø3.5 mm x 12 mm Screw
(4 used in this step)
④
Metal Bracket
(2 used in this step)
⑧
H/I
J
4
8
I
H
J
9
Ø4 mm x 20 mm Screw
(2 used in this step)
⑨

Stock # WMFP41BT-2
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 19 Factory No. 16086
Assembly Instructions
22. Now, go back and securely tighten all the Cam Locks and the Screws. Make sure that all the parts are tight
and there are no gaps between the parts. This will help keep the unit square.
23. Pick up the Back Panel (P) and align the pre-drilled holes against the upper long edge with the pilot holes
on the back stretcher of Top Panel (A). Attach the Back Panel (P) in place using the provided 15 mm
Washer Head Screws (6). As shown.
A
C
G
F
B
P
6
P
A
B/C
Ø3.5 mm x 15 mm Washer Head Screw
(12 used in this step)
⑥

Stock # WMFP41BT-2
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Manufacturing Page 20 Factory No. 16086
Assembly Instructions

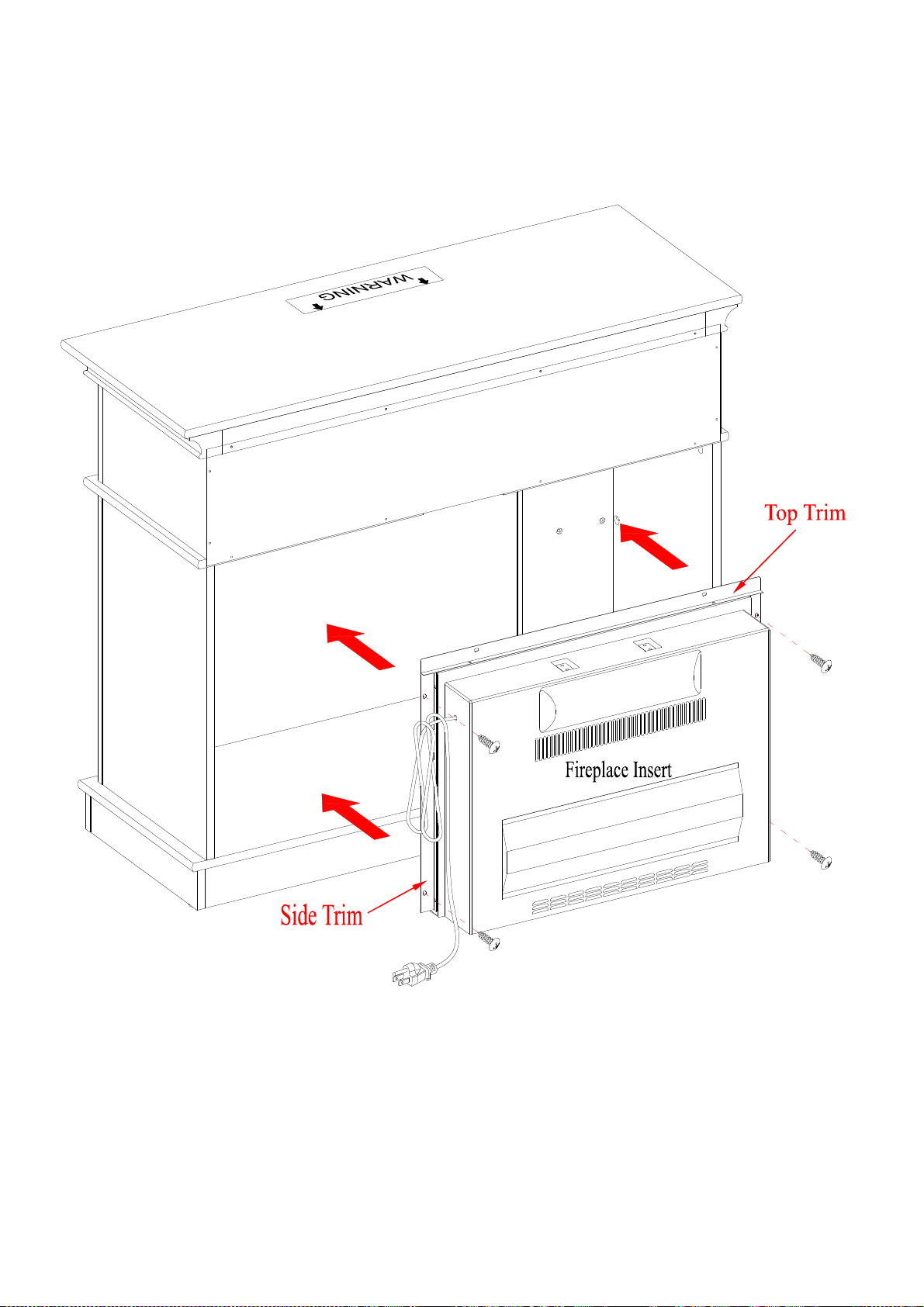

24. Unpack the fireplace insert from the inner box and follow the instructions to install the Top Trim and Side
Trims to the fireplace insert.
25. Lift the fireplace insert carefully into the back of the assembled mantel and center it in the opening. DO
NOT drag the insert across the Bottom Panel (K) as it may scratch the unit.
G
K
F
H
A
