Whalen BJXL-2 User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2021-05-06 Rev. 0001-A
3-in-1 TV Stand
Model # BJXL-2
U.S. Patent 8,561,551
This item is designed to be a 3-in-1 configuration. Please choose the option that best suits your needs. DO NOT
discard any of the hardware or parts that you will not use on your chosen option. This will allow you to use this
TV Console in different configurations at a later date, if desired.
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday to Friday
Or visit our website 24 hours a day, 7 days a week for product assistance at
www.whalenfurniture.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASE
D
:
/
/
TV

2
1. Please read the Assembly Instructions prior to assembling this product.
2. Remove all hardware from the box and sort by size.
3. Check to see that all hardware and parts are present BEFORE assembling.
4. Ask a friend to assist you with the assembly of this furniture.
5. To avoid damage, assemble the product on a sturdy, level and protective surface.
6. Please wait until all steps are completed before fully tightening bolts.
7. Make sure all bolts are tightly fastened before the unit is used.
SPECIAL NOTE
Please read the instruction sheets completely before assembly. Examine all packaging material
before discarding carton. Remove any remaining staples from the carton before discarding.
Remove all parts from carton and separate into groups as indicated on part list. Please ensure
all parts are included prior to assembly. Use of power tools to complete assembly is not
recommended.
G E N E R A L I N F O R M A T I O N , T I P S
a n
d
T R I C K S
This product is sold with one set of Tipping Restraint Hardware K
it. You must install the Tipping Restraint
Hardware between the wall and the TV console to prevent any accidents or damages
. When properly installed,
this restraint can provide protection against the unexpected tipping of the unit due to small tremors
, bumps or
climbing. The restraint is only a deterrent and is not a substitute for proper adult supervision. Use of tip-
over
restraints may only reduce, but not eliminate, the risk of tip-over.
Children have died from furniture tip-over.
To reduce the risk of furniture tip-over:
 ALWAYS install tip-over restraint provided.
 FOR use with televisions weighing 60 lbs / 27.2 kg or less. Use with heavier
televisions may result in instability causing tip-over resulting in death or
serious injury.
 NEVER allow children to stand, climb or hang on drawers, doors, or shelves.
 NEVER open more than one drawer at a time.
 Place heaviest items in the lowest drawers.
Use of tip-over restraints may only reduce, but not eliminate, the risk of
tip-over.
WARNING

3

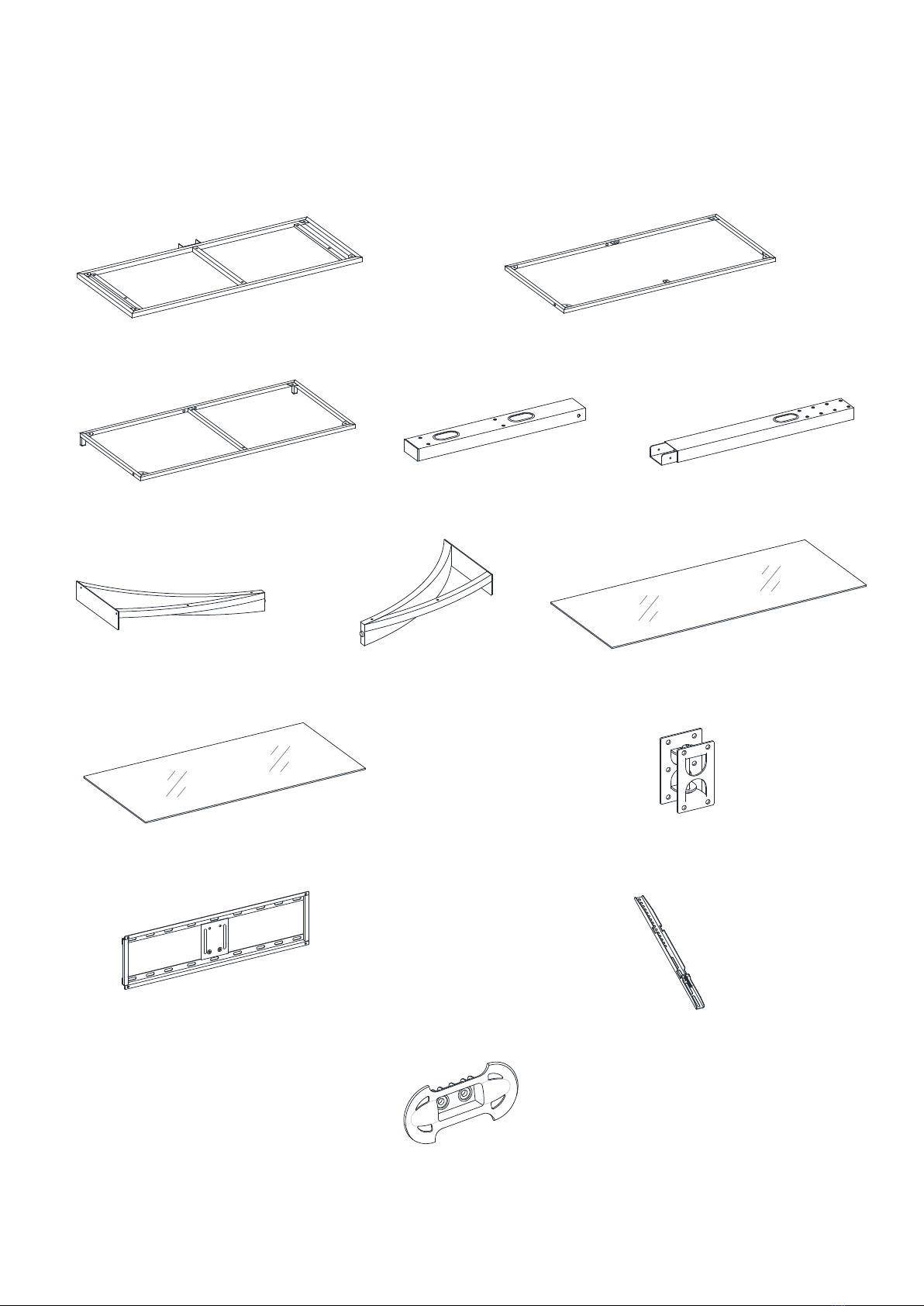

Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Top Shelf Frame (Qty. 1) B- Middle Shelf Frame (Qty. 1)
C- Bottom Shelf Frame (Qty. 1) D- Lower Spine (Qty. 1) E- Upper Spine (Qty. 1)
·
F- Left Leg (Qty. 1) G- Right Leg (Qty. 1) H- Top Glass (Qty. 1)
I- Glass Shelf (Qty. 2) J- Swiveling Bracket (Qty. 1)
K- Mounting Frame (Qty. 1) L- Monitor Bracket (Qty. 2)
M- Cable Wheel (Qty. 2)

4

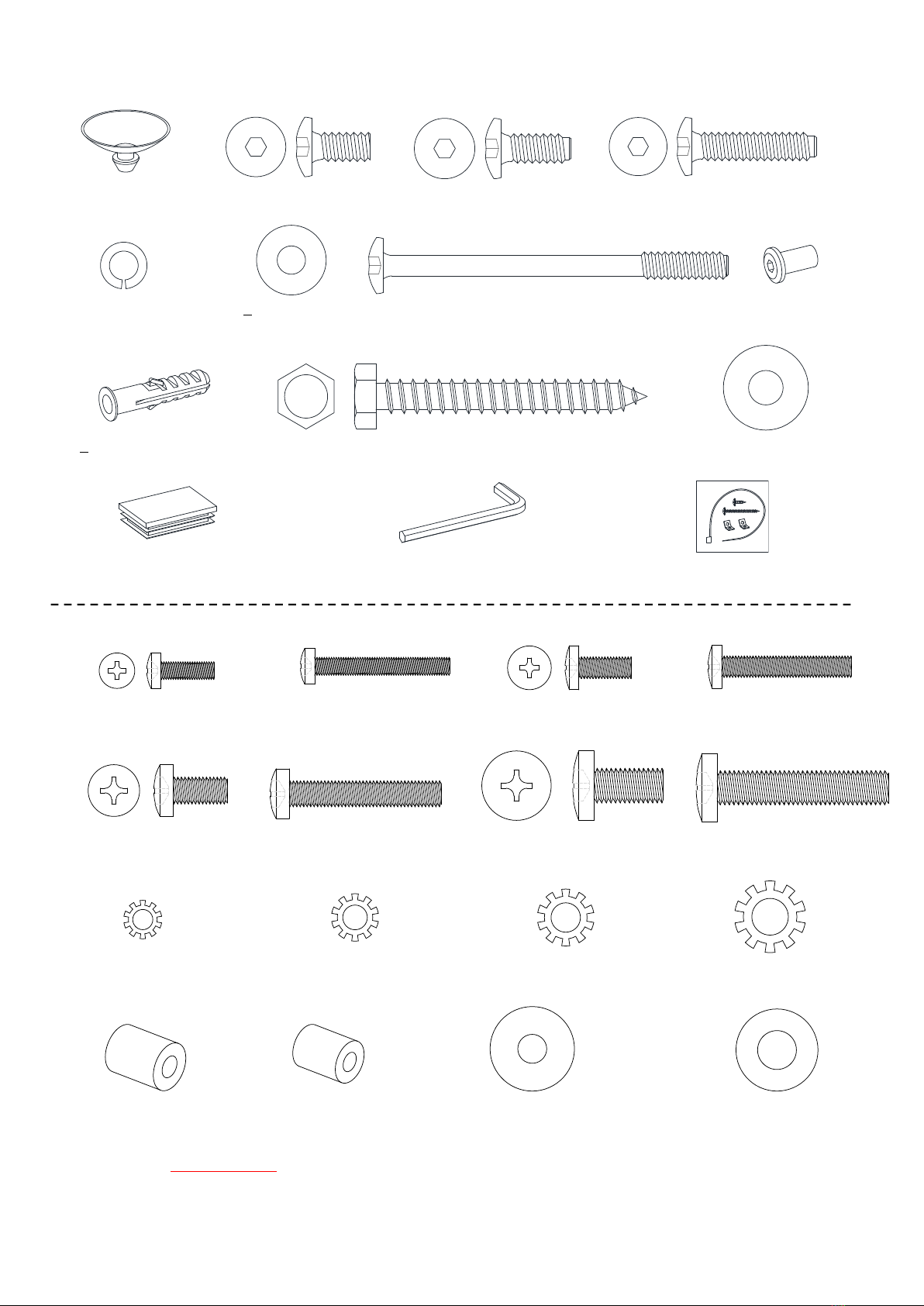

Parts and Hardware List
(1) Suction Cup (2) 1/2” Bolt (3) 5/8” Bolt (4) 1 1/8” Bolt
(Qty. 18+1 extra) (Qty. 4+1 extra) (Qty. 14+1 extra) (Qty. 12+1 extra)
(5) Lock Washer (6) Flat Washer (7) 3-1/8” Bolt (8) Blind Nut
(Qty. 19+1 extra) (Qty. 19+1 extra) (Qty.1) (Qty.1)
(9) Concrete Anchor (10) Lag Bolt (11) Lag Bolt Washer
(Qty. 4) (Qty. 4) (Qty. 4+1 extra)
(12) Spine End Cap Hex Wrench Tipping Restraint Hardware Kit (Qty. 1)
(Qty. 1) (Qty. 2) (Inside Plastic Bag)
TV Mounting Kit
AAA- M4 x 12 Bolt BBB- M4 x 30 Bolt CCC- M5 x 12 Bolt DDD- M5 x 30 Bolt
(Qty. 4) (Qty. 4) (Qty. 4) (Qty. 4)
EEE- M6 x 12 Bolt FFF- M6 x 35 Bolt GGG- M8 x 16 Bolt HHH- M8 x 40 Bolt
(Qty. 4) (Qty. 4) (Qty. 4) (Qty. 4)
III- M4 Lock Washer JJJ- M5 Lock Washer KKK- M6 Lock Washer LLL- M8 Lock Washer
(Qty. 4) (Qty. 4) (Qty. 4) (Qty. 4)
MMM- Large Spacer NNN- Small Spacer OOO- M4/M5 Flat Washer PPP- M6/M8 Flat Washer
(Qty. 4) (Qty. 4) (Qty. 8) (Qty. 4)
Tools required: Hex wrench (provided) and Phillips screwdriver (not provided).

5
Assembly Instructions
NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back
and fully tighten all bolts. This will make the assembly easier.
1. Unpack the unit and confirm that you have all the hardware and required parts.

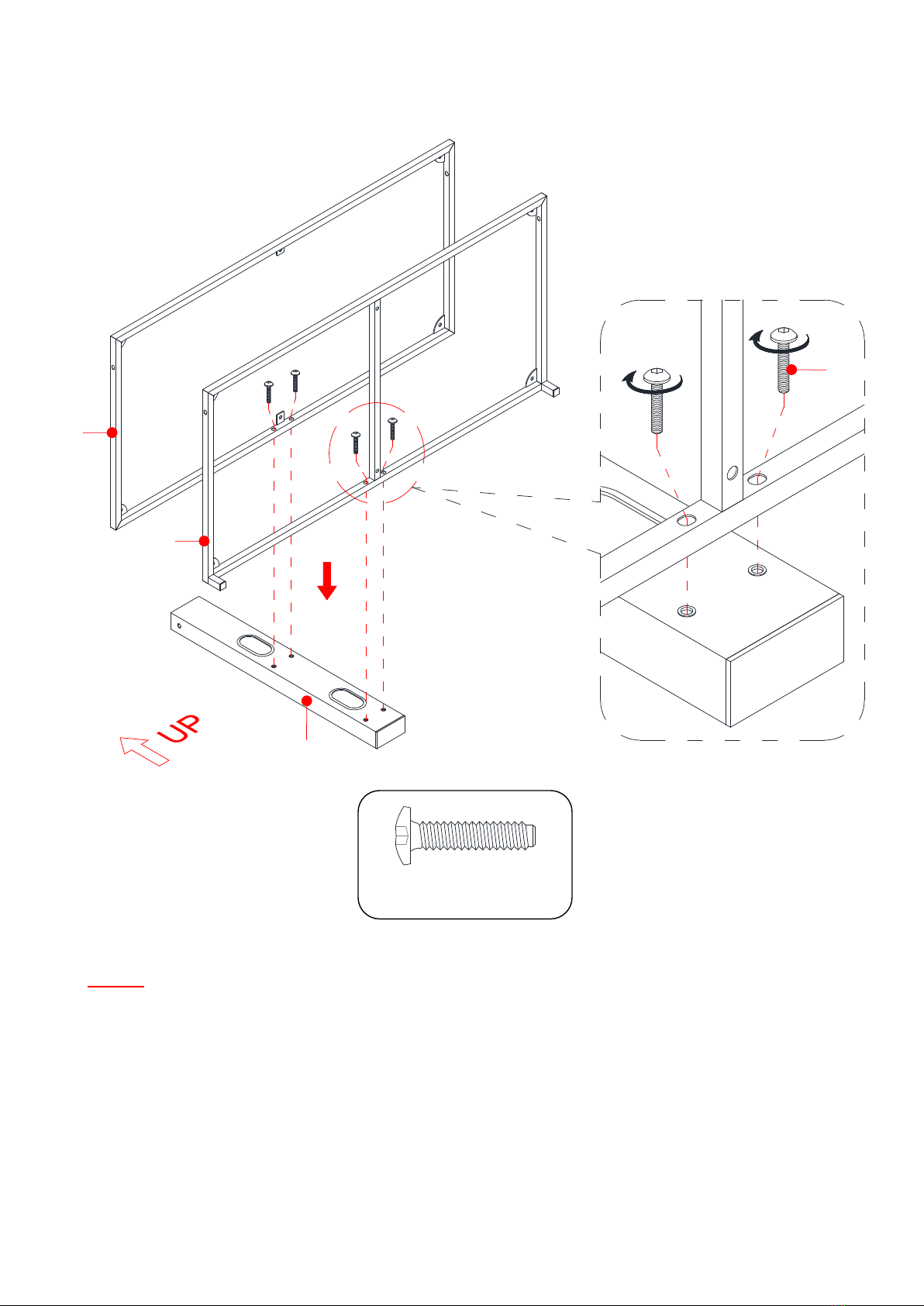

2. Locate the Lower Spine (D) and set back face down on a scratch free surface.
3. Align and attach 2 Shelf Frames (B and C) to the Lower Spine (D) with four 1 1/8” Bolts (4). Make sure
that the inside corner plates on the shelf frames will face up when the unit is turned upright.
④ x 4
D
B
C
D
B/C
4

6
Assembly Instructions

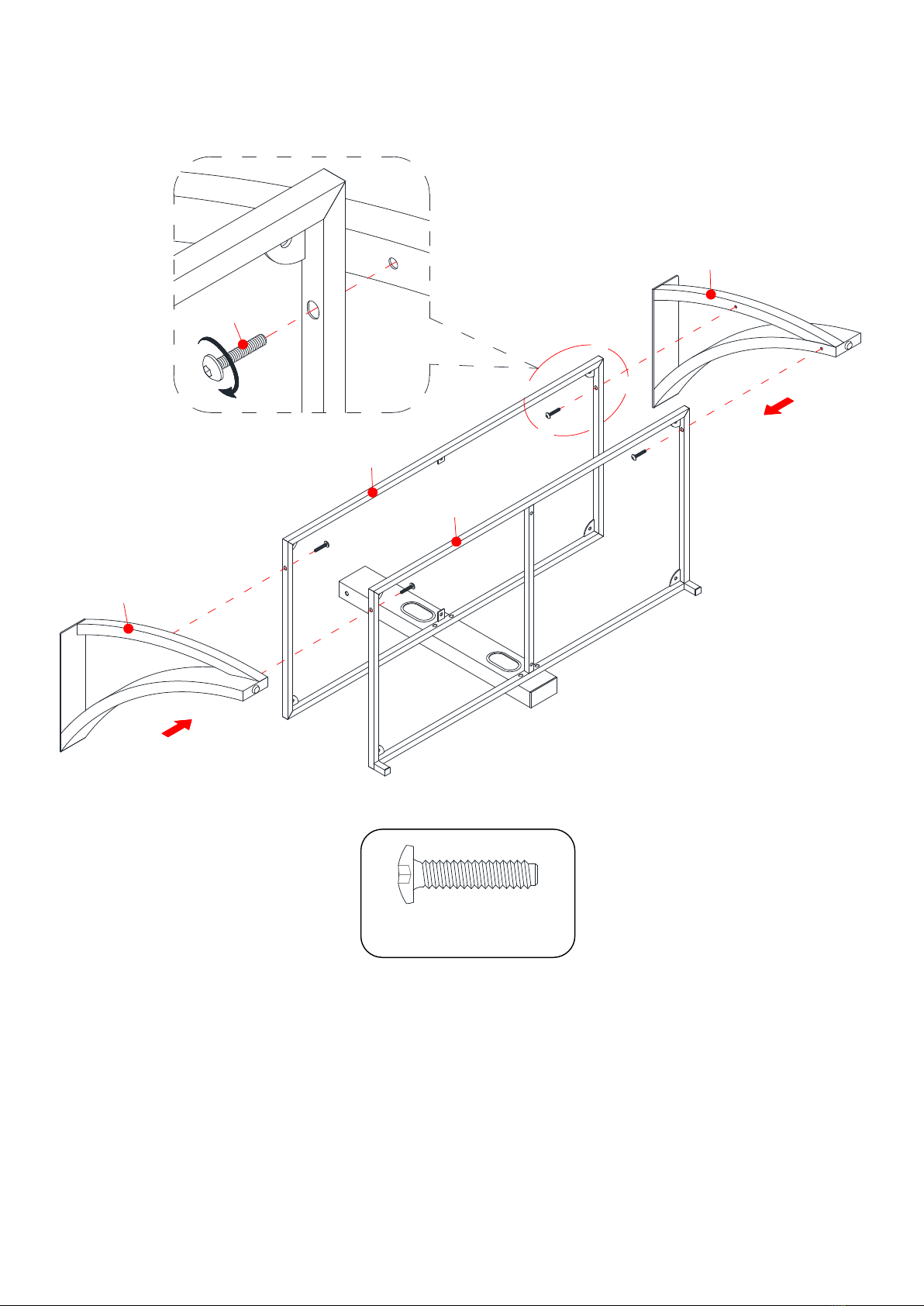

4. Align and attach the Left Leg (F) to the Lower Shelf Frames (B and C) by inserting two 1 1/8” Bolts (4)
from inside the Shelf Frames through the pre-drilled holes on side rail and screw into the threaded sockets
on the Leg. DO NOT tighten the bolts.
5. Repeat the previous step with the Right Leg (G).
B
C
F
G
4
B/C
F/G
④ x 4

7
Assembly Instructions
6. Stand the unit upright.
7. Align and attach the Top Shelf Frame (A) to the Legs (F and G) with the inside corner plates facing up,
using four 1 1/8” Bolts (4) and four Washers (5 and 6).
If you choose Table-top Console
configuration, continue to the next step.
If mounting TV with the Floating Swivel
Mount, skip ahead to PAGE 12.
④ x 4
⑤ x 4
⑥ x 4
G
F
A
F/G
4
5
6
A

8
Assembly Instructions for Table-top Console
8. Plug the Spine End Cap (12) all the way into the top of the Lower Spine (D).
9. Secure the Top Shelf Frame (A) to the Lower Spine (D) by inserting one 3-1/8” Bolt (7) with the
Washers (5 and 6) through the bracket hole and securely screw into the Blind Nut (8).
10. Go back and tighten all bolts with the provided hex wrench.
⑦
⑤ x 1
⑥ x 1
⑧
7
5
6
D
8
12
D
D

9
Assembly Instructions for Table-top Console
11. Attach 2 Cable Wheels (M) to the backside of the Lower Spine (D) with the 3/4” Bolts (3). Tighten the
bolts with the provided hex wrench.
12. The Cable Wheels (M) enable you to shorten, separate and route cables and cords. Using the Cable
Wheels, you can create a system for routing cables through channels, between components and to
power sources without tangled mess or annoying signal interference.
③ x 4
3
D
D
M
M
M

10
Assembly Instructions for Table-top Console

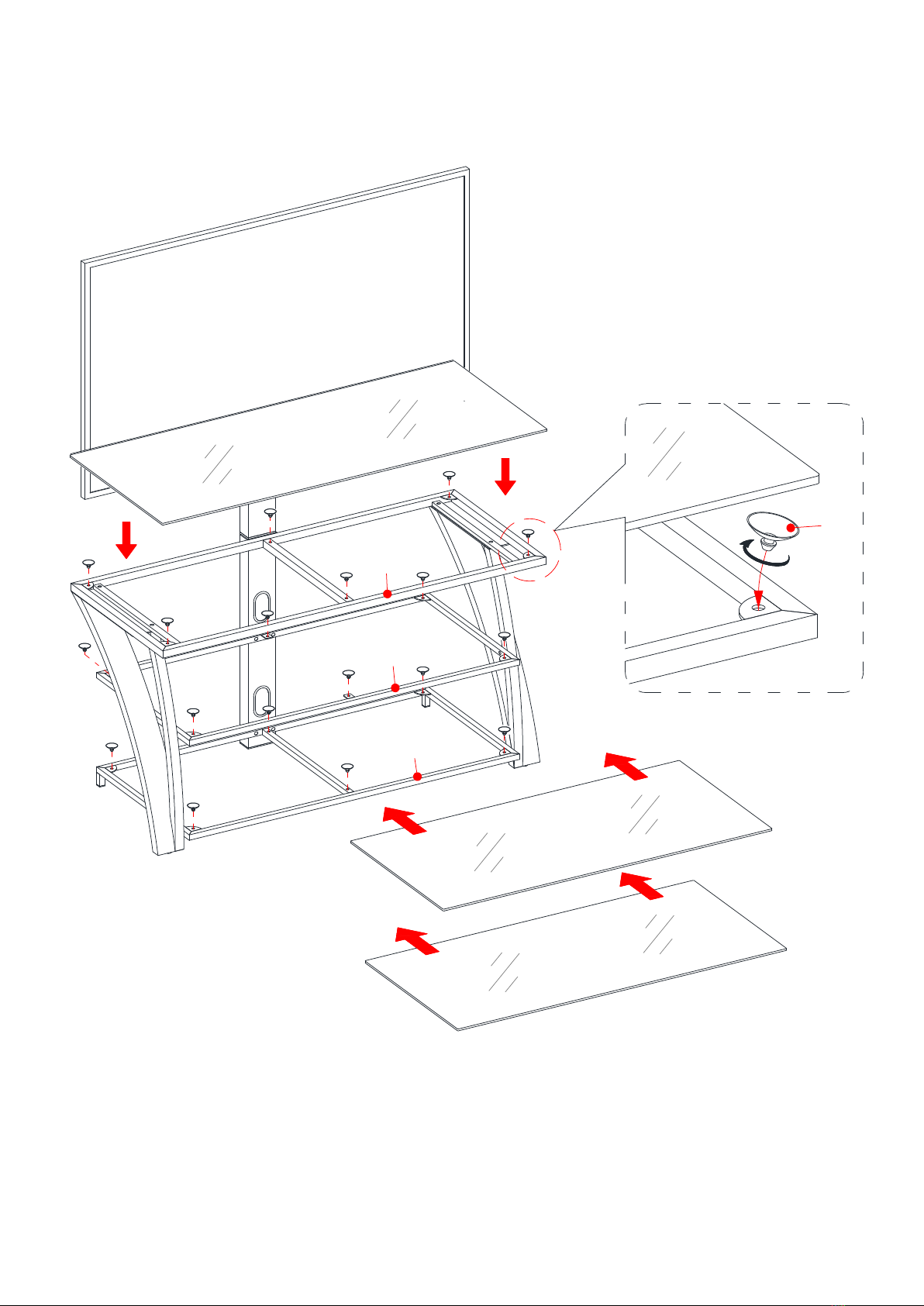

13. Put the Suction Cups (1) firmly into top holes and metal tabs on 3 Shelf Frames (A, B and C), as shown.
TIP: If a Suction Cup resists insertion, try pressing down on the middle of the cup with the hex wrench
while twisting it clockwise into the hole.
14. Place the Top Glass (H) and Glass Shelves (I) in place beginning with the Bottom Glass Shelf (I). Make
sure that the glass shelf is properly centered. Push each glass shelf all the way back against the Spine.
Also, be sure to press down evenly and firmly each glass shelf onto the Suction Cups to make sure they
securely rest onto the Suction Cups.
NOTE: If a glass shelf is scratched, you can minimize the damage by using a BLACK marker and
filling in scratched area from underneath.
① X 18
I
H
A
B
C
1
A/B/C
H/
I
I

11
F
G
F/G
TV
Assembly Instructions for Table-top Console
Tools required: Hex wrench (provided), Phillips screwdriver, stud finder, measure tape, pencil, power drill,
and 1/8” drill Bit (not provided).

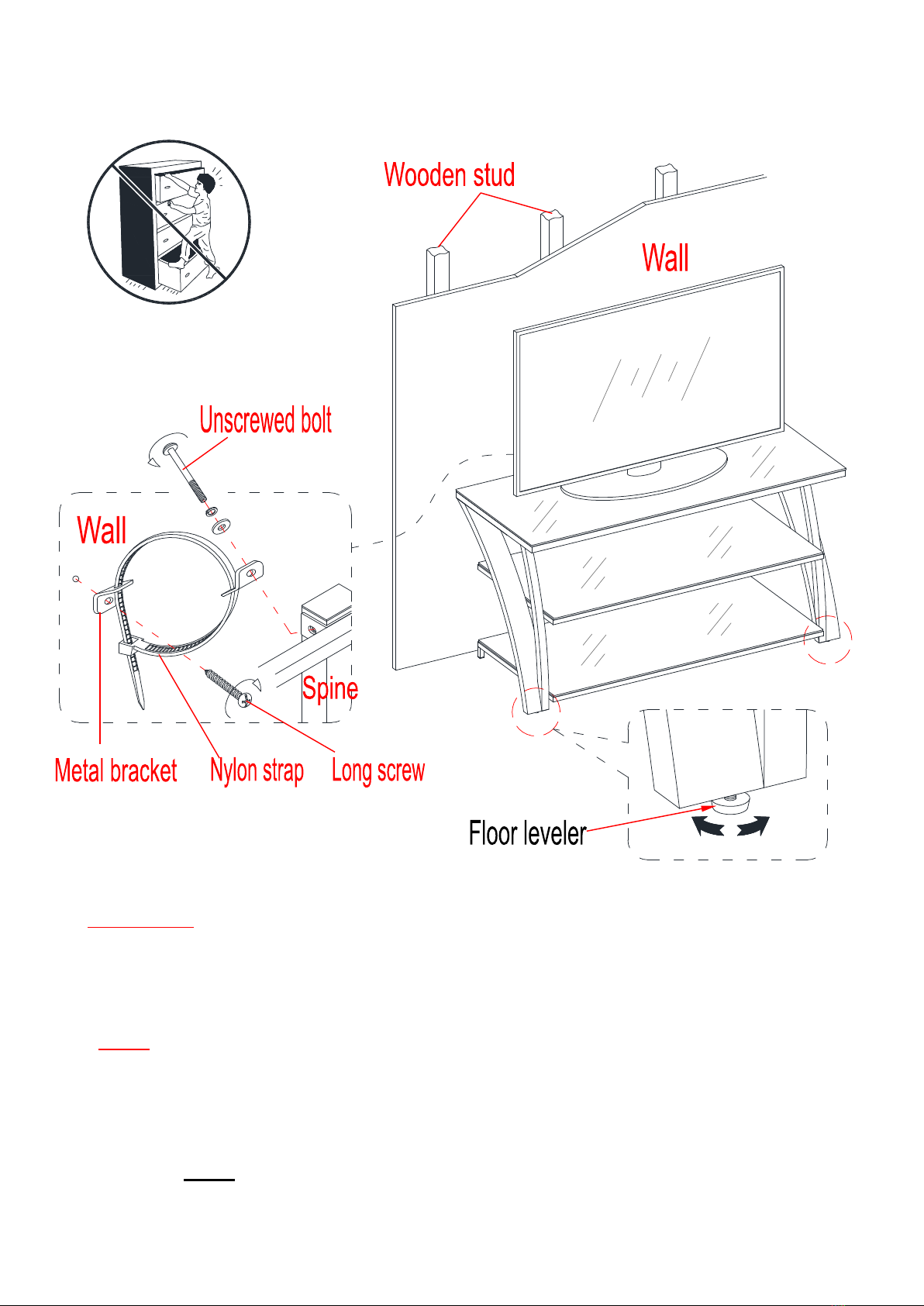

15. Position the assembled unit at the desired location against a wall. In case of uneven floor, Floor Levelers
are provided at the bottom of both Legs (F and G). Simply tilt the unit back and raise or lower Floor
Leveler by hand to correct tilting.
NOTE: YOU MUST USE THIS TIPPING RESTRAINT TO ATTACH THIS UNIT TO THE WALL,
TO PREVENT THE UNIT FROM TIPPING, CAUSING ACCIDENTS AND/OR INJURIES.
16. Now, follow the instructions printed on the plastic bag containing the Tipping Restraint Hardware to
attach the tip-over restraint to the Spine and the wall.
17. The unit is now ready for use. Be sure to position your Flat Panel TV in the center of the console.
NOTE: If you choose the Wall Mount configuration, proceed to PAGE 20.

12
D
E
A
D
E
356
3
5
6
3
5
6
D
E
A
18. Insert the Upper Spine (E) into the Lower Spine (D) and fasten it into place by using four 3/4” Bolts (3)
and four Washers (5 and 6).
A s s e m b l y I n s t ru c t i o n s fo r
Fl o a ti n g S w iv el M o u n t
⑥ X 4
⑤ X 4
③ X 4

13
Assembly Instructions for Floating Swivel Mount
19. Fasten the Swiveling Bracket (J) to the top of the Upper Spine (E) with six 3/4” Bolts (3) and six
Washers (5 and 6). Turn the Swiveling Bracket against the Upper Spine (E) when tightening the bolts
with the enclosed hex wrench. Make sure that the pivoting bolt head faces up.
NOTE: The Upper Spine can provide two height options for the TV set. Refer to your TV size and
adjust the Swiveling Bracket to the desired height for optimum viewing.
⑥ X 6
⑤ X 6
③ X 6
UP
E
J
3
65
E
J
E
J
3
6
5
UP

14
Assembly Instructions for Floating Swivel Mount
20. Hold and attach the flat side of the Mounting Frame (K) onto the Swiveling Bracket (J) using four 1/2”
Bolts (2) and four Washers (5 and 6). Make sure that the recess holes on the Mounting Frame are
located at the bottom.
21. Attach two Cable Wheels (M) to the two of four location on the backside of the spine assembly using
two 5/8” Bolts for each.
② x 4
⑤ x 4
⑥ x 4
E
N
M
3
D/E
M
D
UP
J
K
K
E
J
2
5
6
5
62
5
6
2
E
③ x 4

15

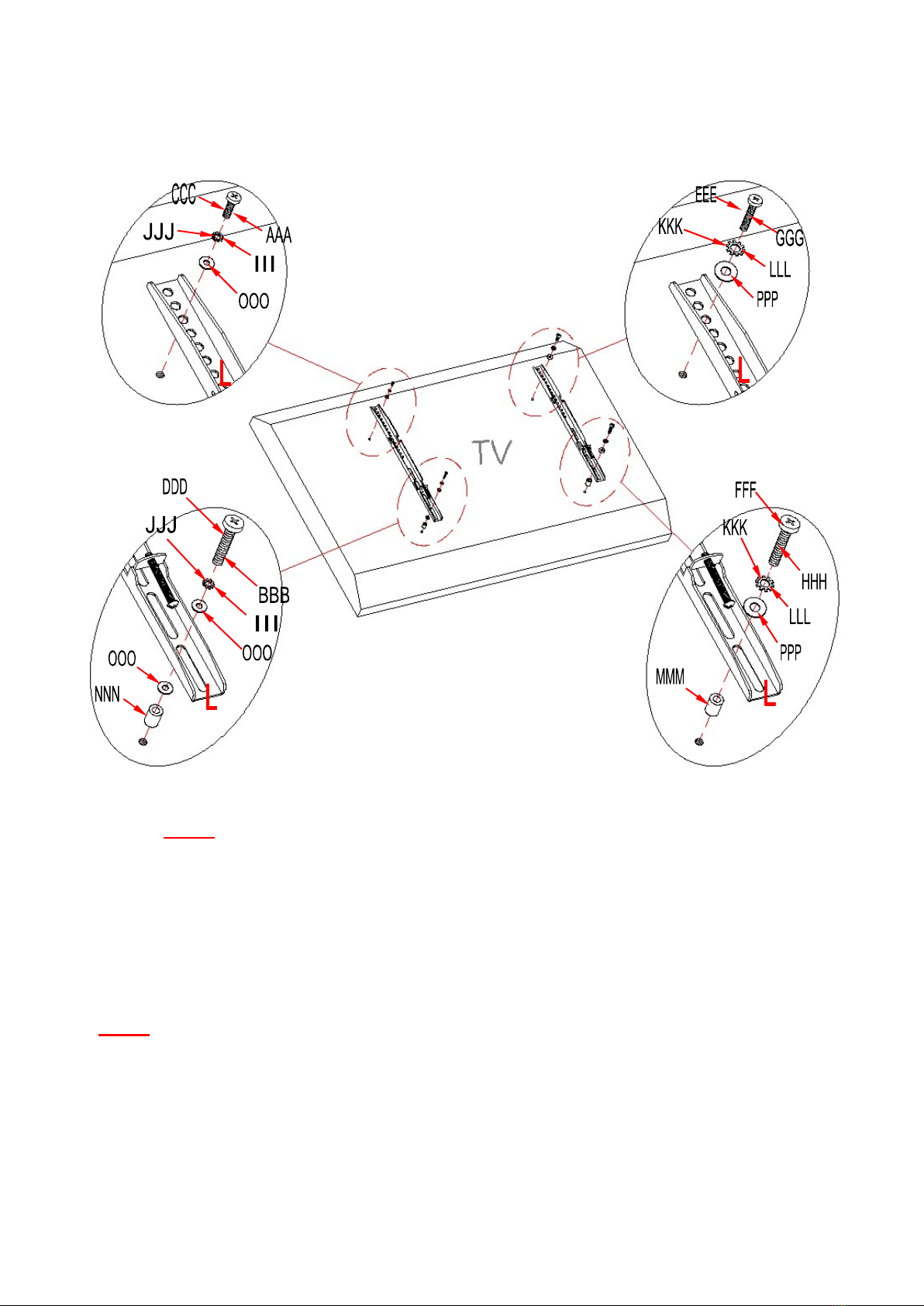

Mounting Monitor Brackets to a Television with a Flat Back
NOTE: For televisions with a curved or recessed back, proceed directly to next page.
22. Determine the correct diameter of the bolt the TV requires by hand threading them into the threaded
insert on the back of the TV. If you encounter any resistance, stop immediately. If you are unable to
find the correct bolt, consult a local hardware store.
23. Follow the appropriate diagram above to attach the Monitor Brackets (L) to the back of the TV with
selected fasteners. Make sure the Monitor Brackets are centered and level with each other. Secure the
bolts with a Phillips Screwdriver. DO NOT over tighten the bolts.
NOTE: Lean the TV up against a wall or other solid surface when attaching the Monitor Brackets. DO
NOT place the TV face down on the glass as this may cause permanent damage.
NOTE: If mounting your TV in the Wall Mount configuration, once you have completed the installation
of the monitor brackets, proceed to PAGE 20
TV

16

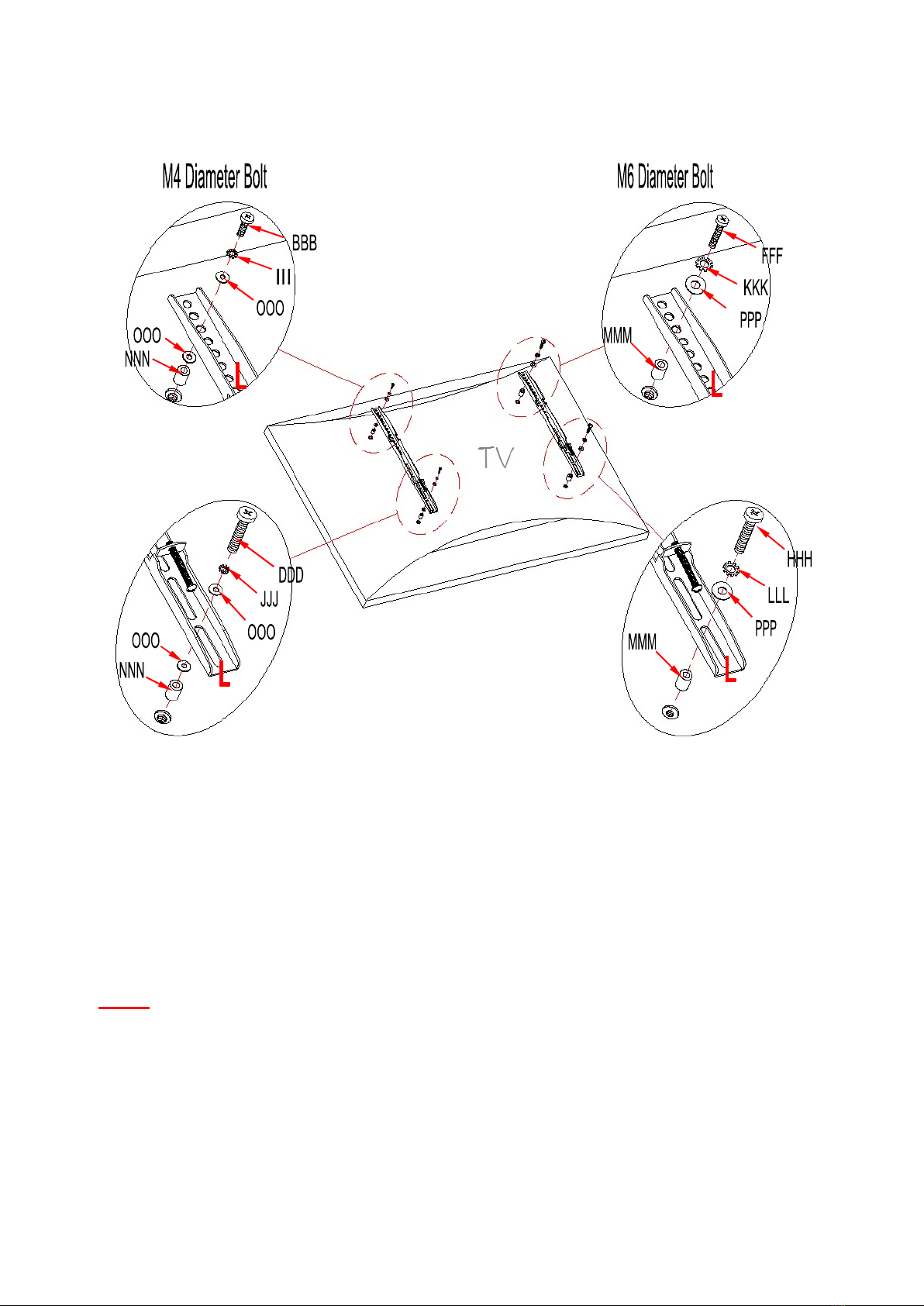

Mounting Monitor Brackets to a Television with a Curved/Recessed Back
24. Determine the correct diameter of the bolt the TV requires by hand threading them into the threaded
insert on the back of the TV. If you encounter any resistance, stop immediately. If you are unable to
find the correct bolt consult a local hardware store.
25. Follow the appropriate diagram above to attach the Monitor Brackets (L) to the back of the TV with
selected fasteners. Make sure the Monitor Brackets are vertically centered and level with each other.
Secure the bolts with a Phillips Screwdriver. DO NOT over tighten the bolts.
NOTE: Lean the TV up against a wall or other solid surface when attaching the Monitor Brackets. DO
NOT place the TV face down on the glass as this may cause permanent damage.
NOTE: If mounting your TV in the Wall Mount configuration, once you have completed the
installation of the monitor brackets, proceed to PAGE 20.
TV

17
Assembly Instructions for Floating Swivel Mount
MAKE SURE ALL BOLTS ARE TIGHT AND THE SPINE IS AT A 90 DEGREE ANGLE
AND USE A QUALITY LEVEL TO VERIFY THE MOUNTING FRAME IS LEVEL PRIOR
TO INSTALLATION OF TV.

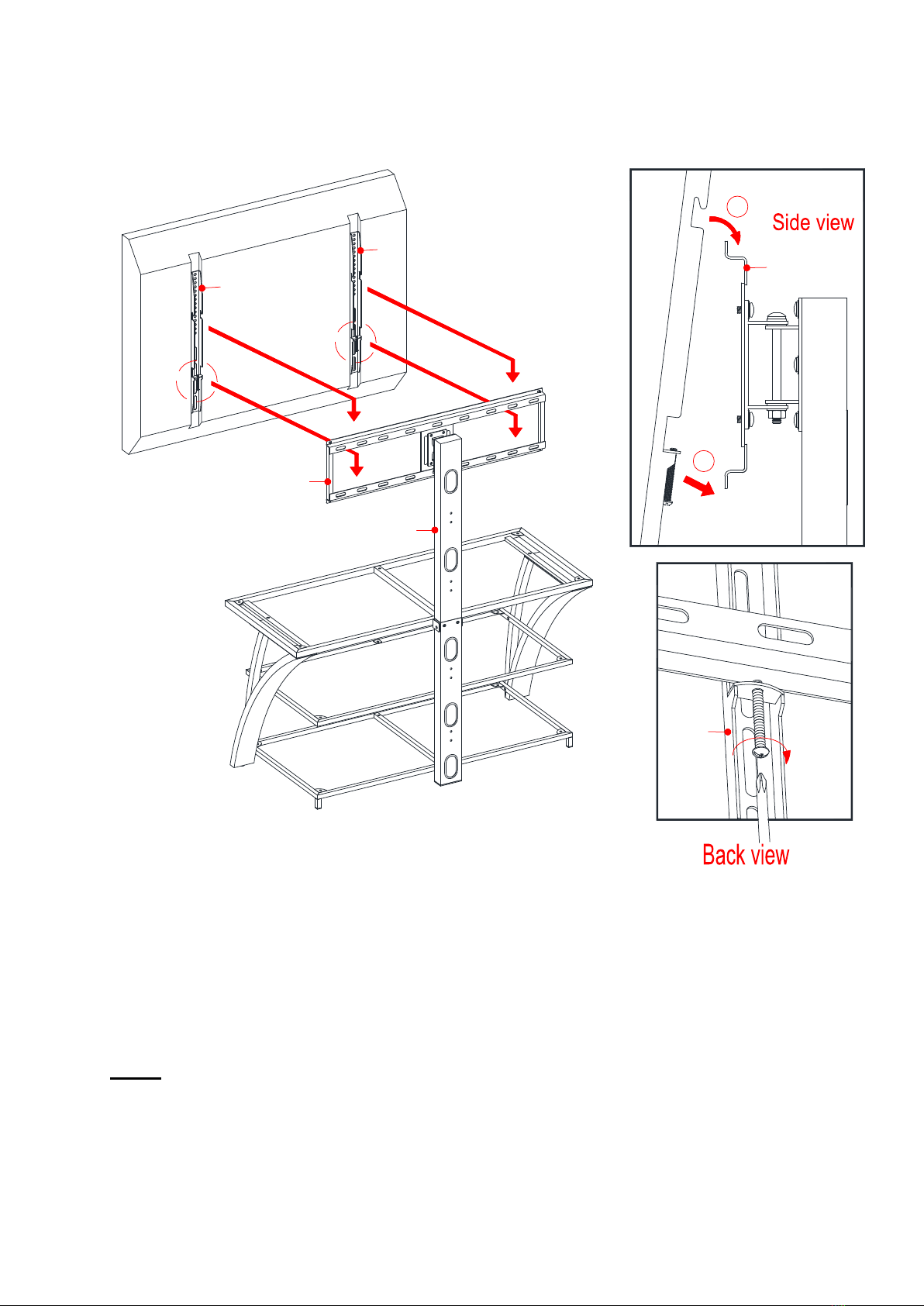

26. Once the Monitor Brackets (L) are attached onto the back of television, ask for assistance to lift the
television up to hang the Monitor Brackets (L) onto the Mounting Frame (K). Set the hooks on the
Monitor Brackets over the Mounting Frame and then lower them onto the bars of the Mounting Frame.
NOTE: Loosen the Lock Bolt that is pre-attached to the Monitor Brackets to ensure an easy fit at the
bottom hooks.
27. Center the television and tighten both Lock Bolts with a long Phillips screwdriver until they hit the
underside of the Mounting Frame (K) to ensure your TV is safe and secure.
E
L
1
2
K
L
K
K
L
L

18
Assembly Instructions for Floating Swivel Mount
28. Repeat steps 13 through 14 to install the Top Glass (H) and Glass Shelves (I) in place.
I
H
A
B
C
1
A/B/C
H/
I
I

19
TV
F
G
F/G
Assembly Instructions for Floating Swivel Mount
Tools required: Hex wrench (provided), Phillips screwdriver, stud finder, measure tape, pencil, power drill,
and 1/8” drill Bit (not provided).
29. Carefully move the unit and position in your desired location against a wall. Now follow the
instructions printed on the plastic bag containing Tipping Restraint Hardware Kit to attach the tip-over
restraint to the Upper Spine (E) and the wall.
NOTE: You must install the Tipping Restraint Hardware with the unit in use to prevent any accidents
or damage to the unit.
30. The unit is now ready for use. Swivel the TV left-or-right for optimum viewing control.

20
407 mm
16 in / po
166 mm
6.5 in / po
4.8 mm / 0.2 in / po
63.5 mm
2.5 in / po
Assembly Instructions for Universal Wall Mount
Installing the Mounting Frame onto a WOODEN STUD WALL
NOTE: If you are mounting your TV onto brick, solid concrete or concrete block, skip this section.
This assembly requires an electric drill, level and stud finder (not included).
31. Using a stud finder, locate the edges of the wood studs. Find the center line of each stud and draw a
vertical reference line on the wall over each one. Place the Mounting Frame (K) level against the wall
where you intend to mount the TV. Using the Mounting Frame (K) as a template, mark 4 drill points (2
on top, 2 on bottom) with a pencil on the vertical reference lines you just drew.
32. With an electric drill (not included) drill 3/16 inch (4.8 mm) diameter holes to at least 2½ inch (63.5
mm) deep on the four drill points. While holding the Bracket Plate in place, loosely screw in the Lag Bolts
(11).
33. Secure the Mounting Frame (K) to wall with the Lag Bolts (10) and the Washers (11) at the drill points.
Tighten the bolts firmly but be careful not to over tighten.
The following steps are only for those who wish to mount their
TV directly to the wall. If you have already mounted your TV to
the Swinging Floater or plan to display your TV on the top
surface of the stand, disregard the following steps.
Do not over tighten the Lag Bolts. Tighten Lag Bolts only until the Lag Bolt
Washer is pulled firmly against the metal plate of Mounting Frame. If there is a layer of drywall or
other material, this drywall or other material may not exceed 5/8 inch in thickness. Failure to heed
this caution may result property damage and/or personal injury.
