Whalen ODUS48CD-V User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2019-10-29 Rev. 0001-A
Cecile Desk
Model # ODUS48CD-V
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenfurniture.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASE
D
:
/
/

2
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: Cecile Desk
MODEL # ODUS48CD-V
MADE IN VIETNAM
SPECIAL NOTE
Please read the instruction sheets completely before assembly. Examine all packaging
material before discarding carton. Remove any remaining staples from the carton before
discarding. Remove all parts from carton and separate into groups as indicated on part
list. Please ensure all parts are included prior to assembly. Use of power tools to
complete assembly is not recommended.

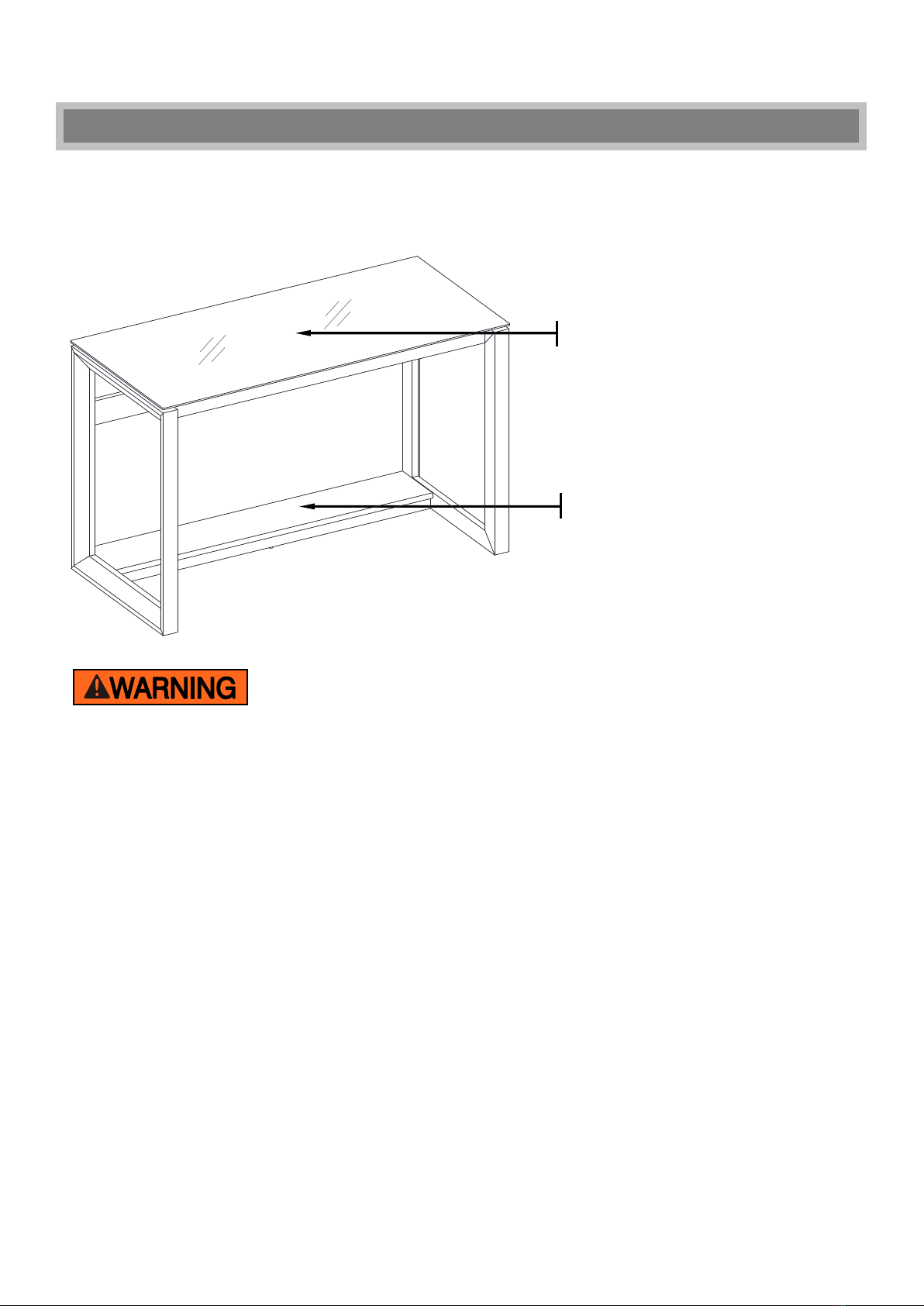

MAXIMUM LOAD 45.4 kg / 100 lb.
M A X I M U M R E C O M M E N D E D W E I G H T L O A D S
MAXIMUM LOAD 22.7 kg / 50 lb.
THIS UNIT IS INTENDED ONLY FOR USE WITHIN THE MAXIMUM
WEIGHTS INDICATED. USE WITH LOAD HEAVIER THAN THE MAXIMUM WEIGHTS
INDICATED MAY RESULT IN INSTABILITY, CAUSING POSSIBLE INJURY.

3
IMPORTANT
Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-
abrasive surface. You will need the parts identified on page 4 of this instruction manuals.
NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH DOWELS. EXCESS GLUE CAN BE WIPED
OFF WITH DAMP CLOTH.
Insert Dowel at least half way by tapping lightly with a rubber mallet, IF NECESSARY.
CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw the Cam Bolt into the threaded inserts on the panel. Connect both panels together; making sure Cam
Bolt goes into the pre-drilled hole on the end of panel for Cam Lock.
2. Insert the Cam Lock into the pre-drilled large hole on the panel. Make sure the arrow on the face of Cam
Lock faces out and points towards Cam Bolt.
3. Take a Phillips screwdriver and rotate the Cam Lock clockwise to lock the Cam Bolt in place.
4. Plug the Cam Lock Cover into the cross slot of the Cam Lock to conceal the Cam.
You are now ready to assemble the KD unit.
1234
GLUE
XX
FINAL
1 2 43

4

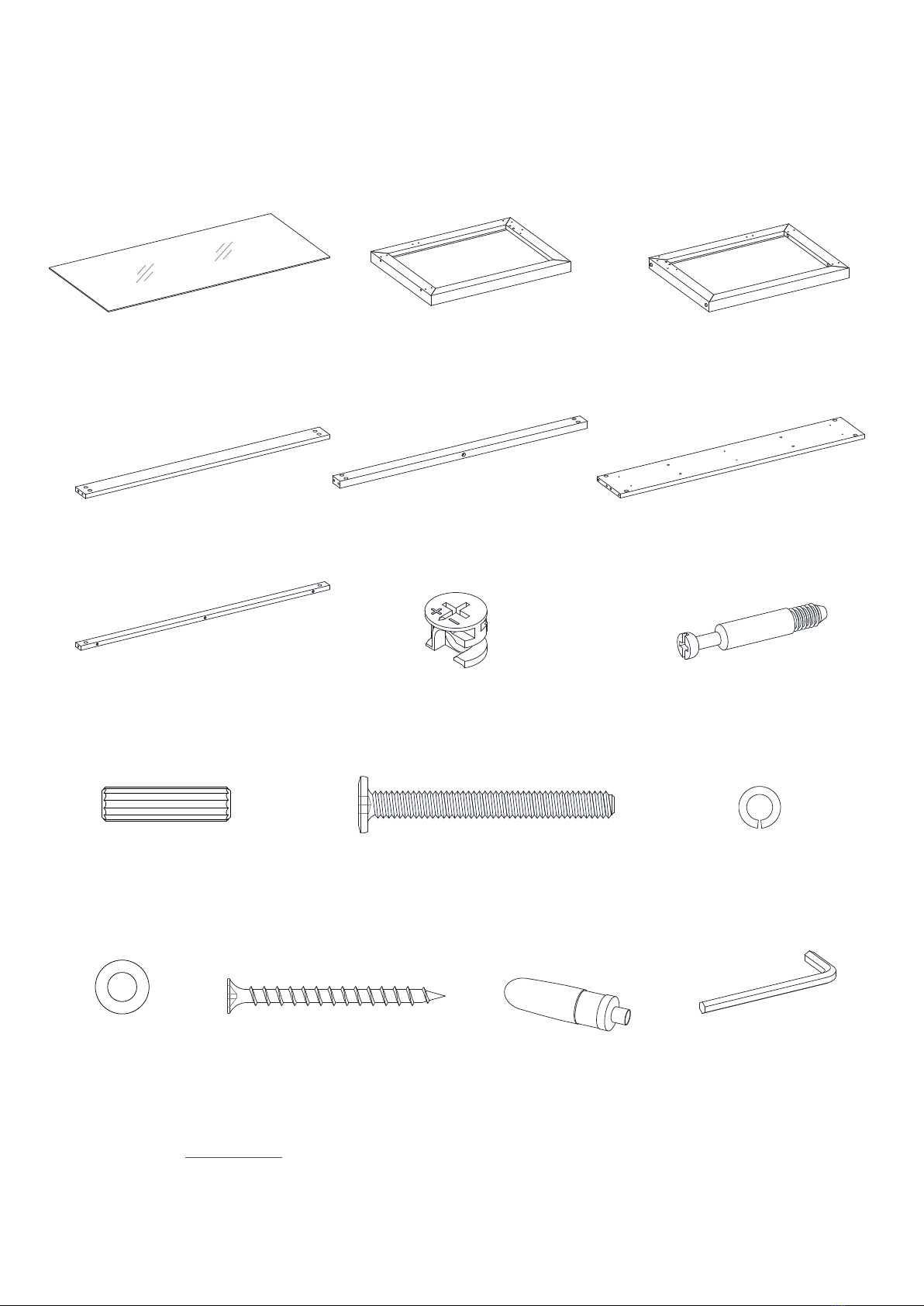

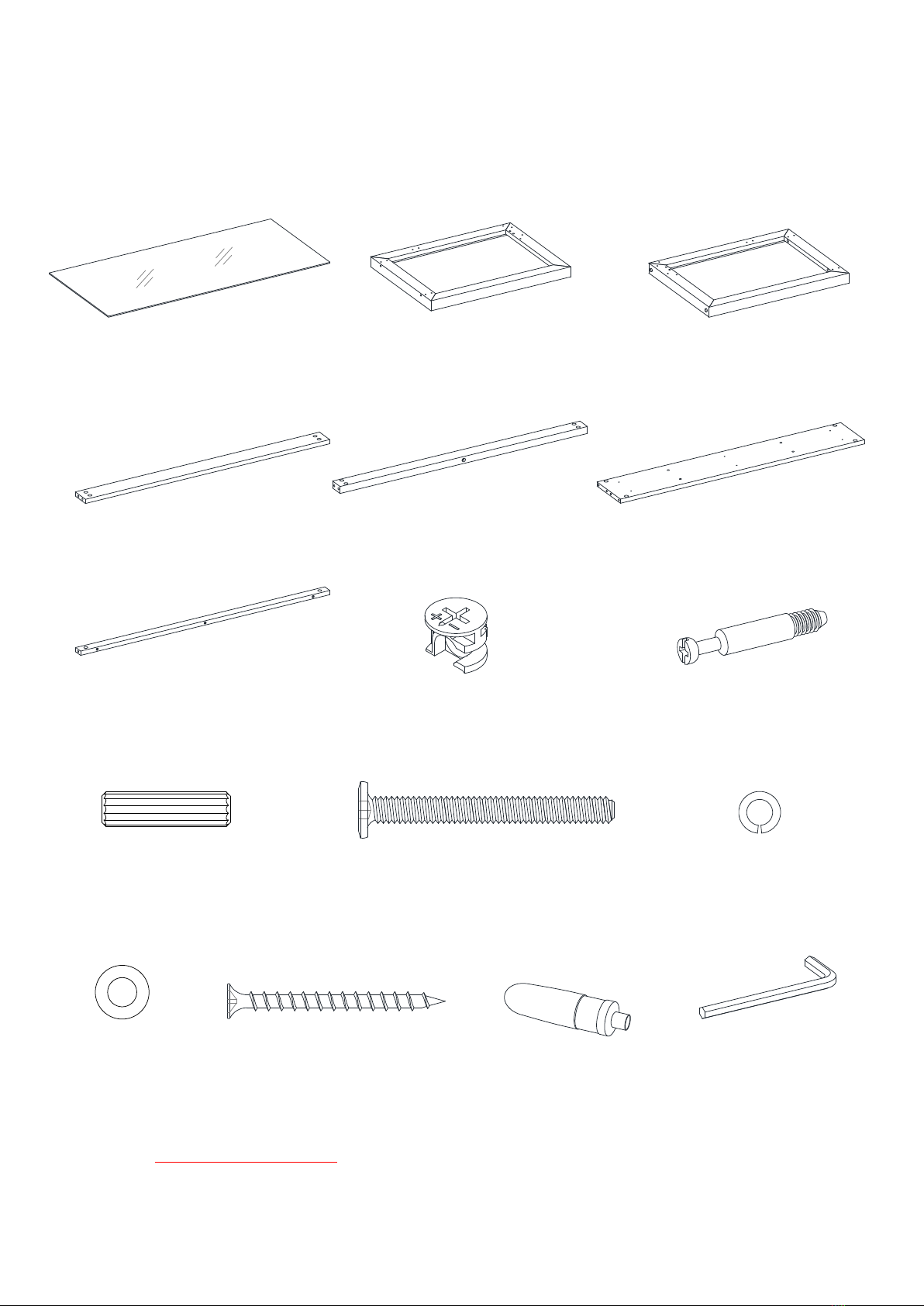

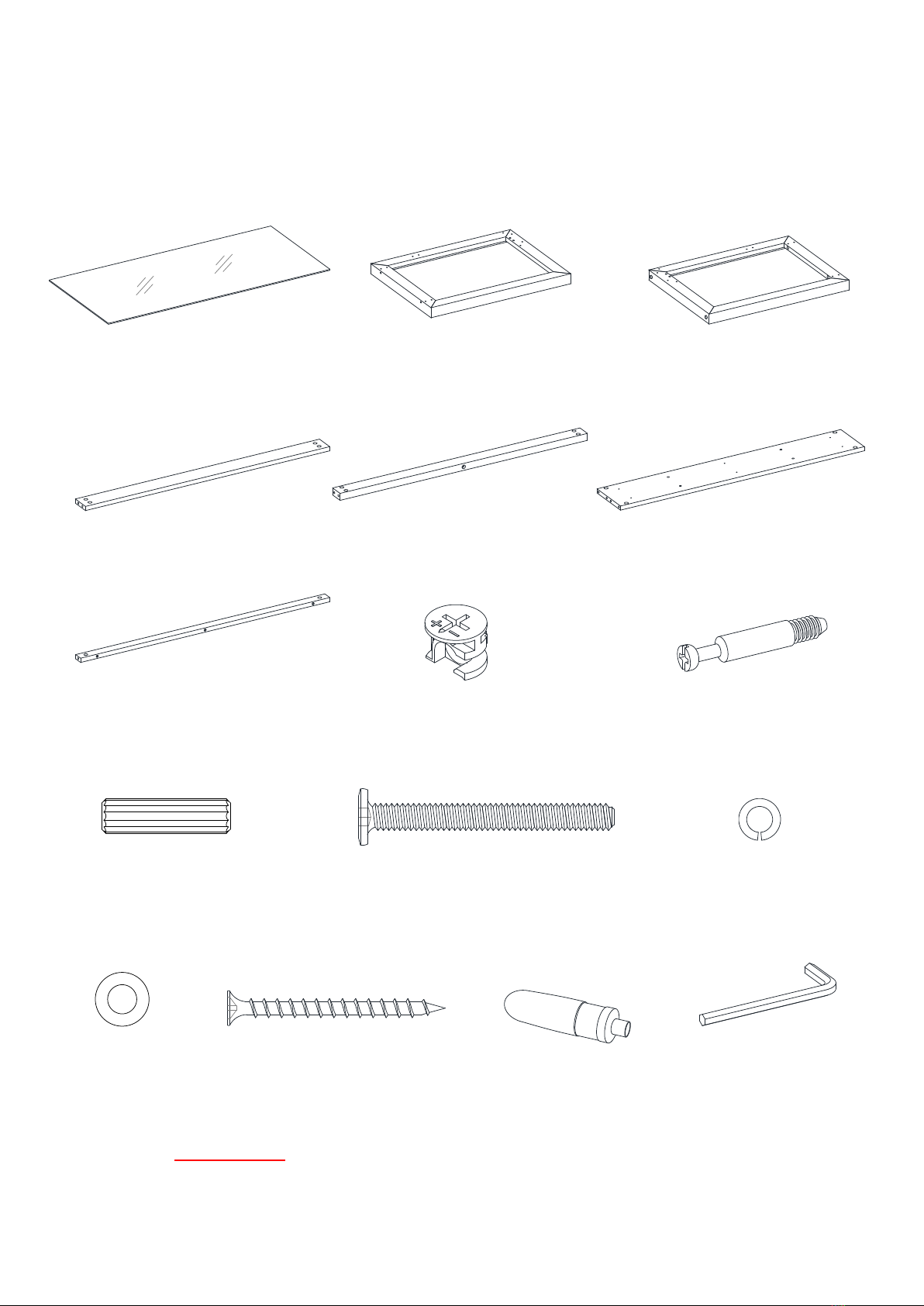

Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Glass top B- Left Side Frame C- Right Side Frame
(Qty. 1) (Qty. 1) (Qty. 1)
D- Top Stretcher E- Back Middle Stretcher F- Bottom Shelf
(Qty. 2) (Qty. 1) (Qty. 1)
G- Shelf Support (1) Cam Lock (2) Cam Bolt
(Qty. 2) (Qty. 20+1 extra) (Qty. 20+1 extra)
(3) M8 x 30 mm Wood Dowel (4) 1/4” x 57 mm Bolt (5) Lock Washer
(Qty. 8+1 extra) (Qty. 6+1 extra) (Qty. 6+1 extra)
(6) Flat Washer (7) M4 x 50 mm Screw Glue Hex Wrench
(Qty. 6+1 extra) (Qty. 6+1 extra) (Qty. 1) (Qty. 1)
Tools required: Hex wrench (included) and Phillips screwdriver (not included).

5
Assembly Instructions
1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a
carpeted floor or the empty carton to avoid any scratch.
2. Securely screw the Cam Bolts (2) into the designated small holes on the Side Frames (B and C) using a
Phillips screwdriver.
NOTE: Screw-in cam bolts must be screwed down flush.
3. Glue the Wood Dowels (3) into the inner holes of the Bottom Shelf (F) and Shelf Supports (G) as shown
NOTE: It is very important to use a small amount of glue on both ends of dowels.
3
3
3
3
3
3
F
G
X2
C
B
3

6

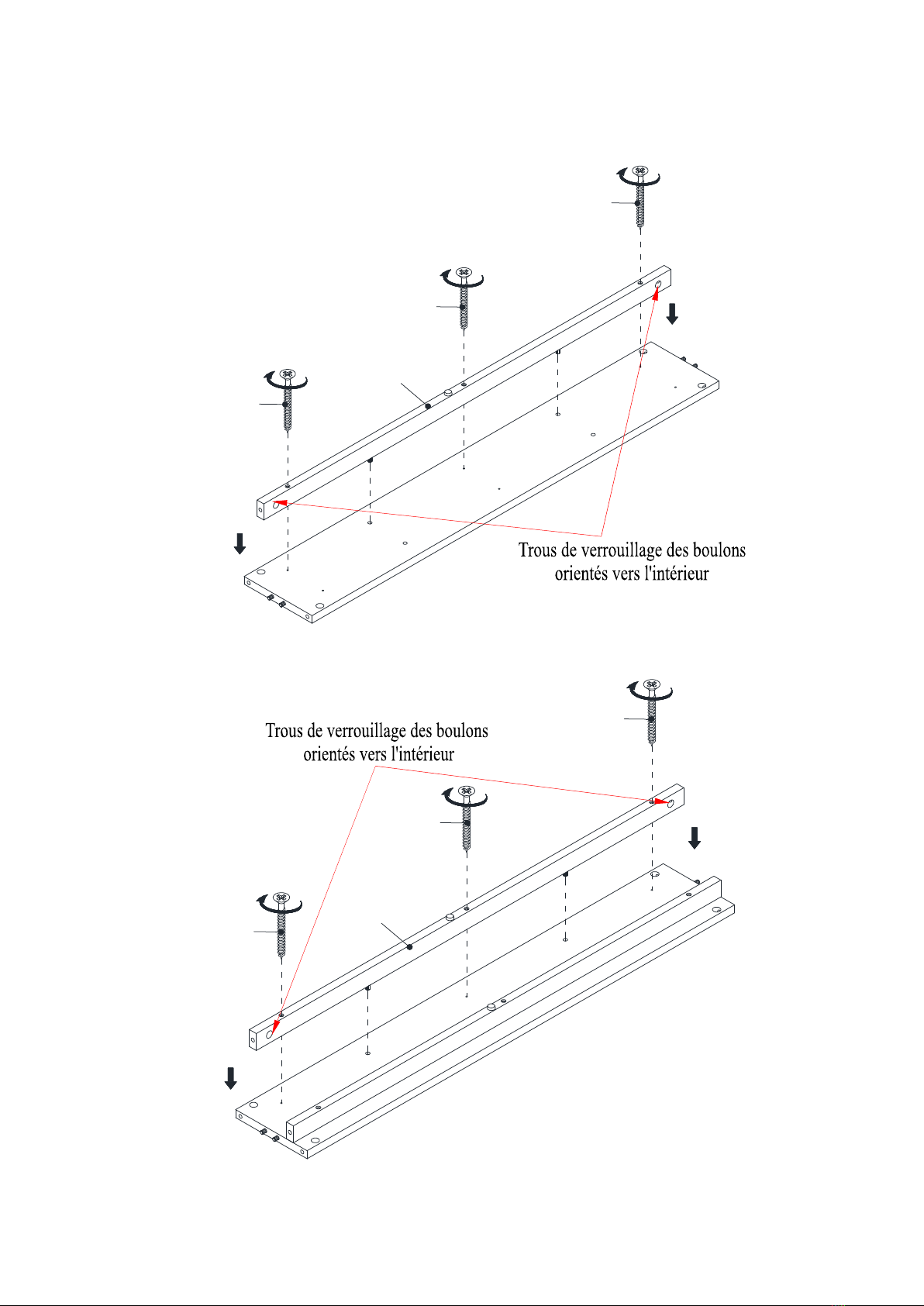

Assembly Instructions
4. Attach one Shelf Support (G) to the Bottom Shelf (F) with three 50mm Screws (6).
5. Repeat the previous step to attach the other Shelf Support (G) to the Bottom Shelf (F).
F
G
6
6
6
F
G
6
6
6

7

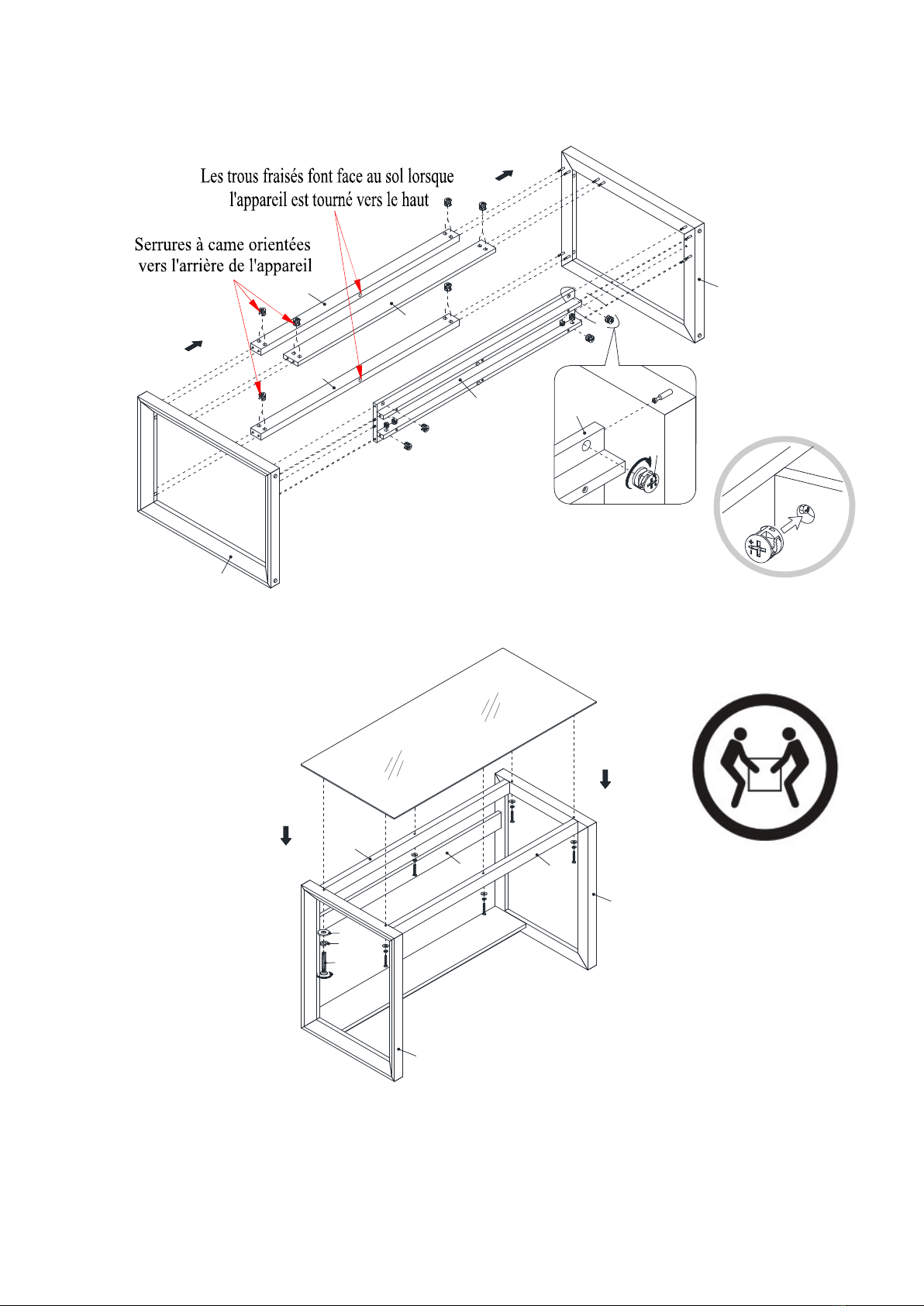

Assembly Instructions

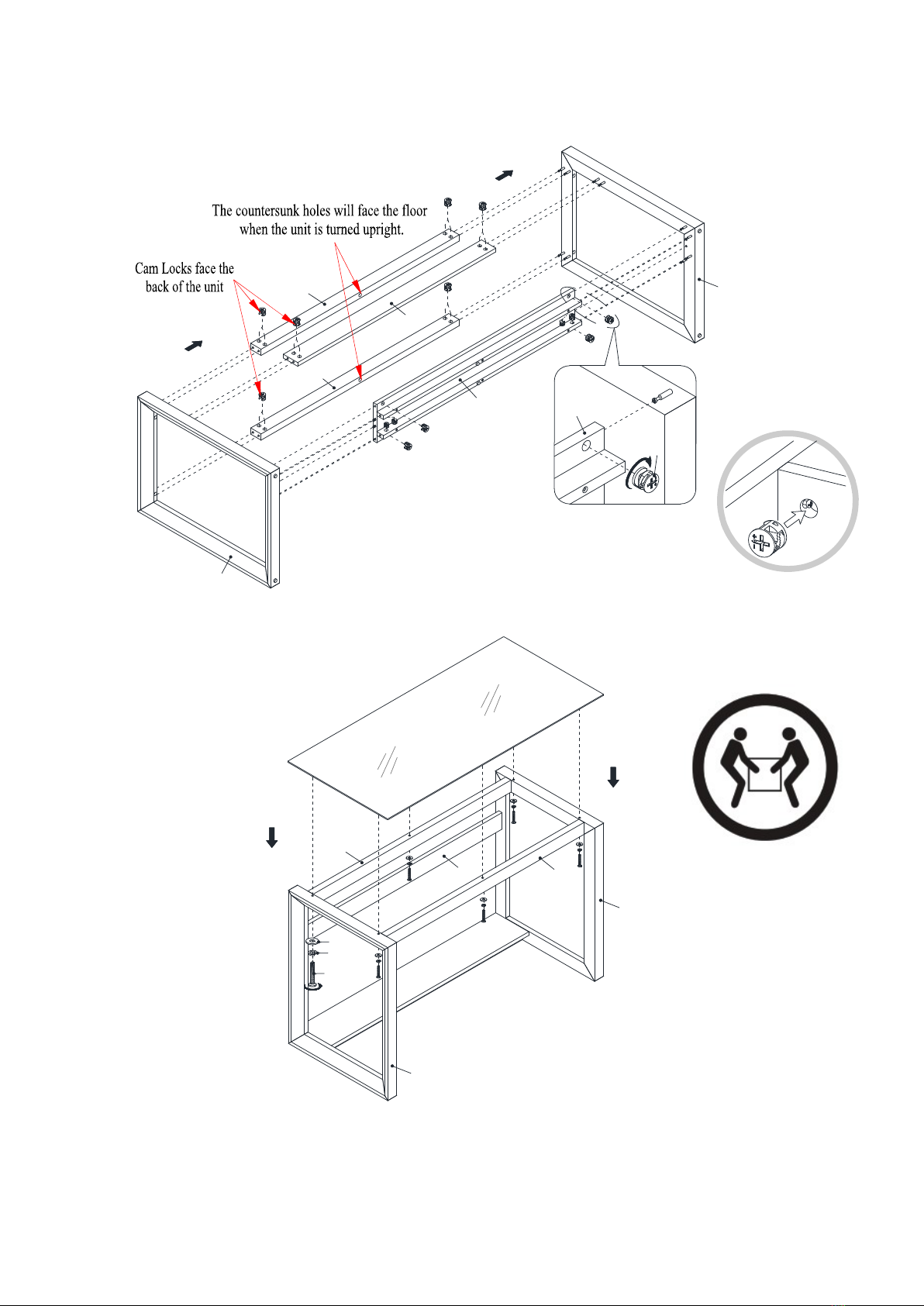

6. Align and attach the Top Stretchers (D), Back Middle Stretcher (E) and bottom shelf assembly between
the Side Frames (B and C) by engaging twenty Cam Locks (1). Make sure that the top surfaces are flush
with each other.
7. Ask for assistance to lift the assembled unit upright and position it near the final location.
8. Place the Glass Top (A) onto the Side Frames (B and C) , make sure that the metal plates underneath the
glass line up with the mounting holes properly. Fasten the Glass Top (A) in place with six 57mm Bolts
(4) and six Washers (5 and 6).
C
B
F
D
D
E
F
1B
B
C
F
D
E
D
A
6
5
4

8
Care and Maintenance
 Use a soft, clean cloth that will not scratch the surface when dusting.
 Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area.
 Using solvents of any kind on your furniture may damage your furniture’s finish.
 Never use water to clean your furniture as it may cause damage to the finish.
 Always use coasters under beverage glasses and flowerpots.
 Liquid spills should be removed immediately. Using a soft, clean cloth, blot the spill gently. Avoid rubbing.
 Always use protective pads under hot dishes and plates. Heat can cause chemical changes that may create
spotting within the furniture finish.
 In the event that your furniture is stained or otherwise damaged during use, we recommend that you call a
professional to repair your furniture.
 Check bolts/screws periodically and tighten them if necessary.
Further Advice about Wood Furniture Care
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and humidity
changes can cause fading, warping, shrinking and splitting of wood. It is advised to keep furniture away from
direct sunlight as sun may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important and helpful
tips will enhance your furniture as it ages.
We hope you enjoy your purchase for many years.
Thank you for your purchase!
QUALITY GUARANTEE
We are confident that you will be delighted with your Whalen Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal use, we will repair or
replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet
your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary from State to State
or province to province.
Whalen Furniture Manufacturing
1578 Air Wing Road, San Diego, CA 92154, USA
Customer Service: 1-866-942-5362
8:30 a.m. - 4:30 p.m., PST, Monday to Friday
www.whalenfurniture.com

CE LIVRET D’INSTRUCTIONS CONTIENT D’IMPORTANTES CONSIGNES DE SÉCURITÉ.
LIRE ET CONSERVER POUR RÉFÉRENCE FUTURE.
Date 2019-10-29 Rév. 0001-A
Bureau Cecile
Modèle no ODUS48CD-V
ASSEMBLAGE PAR UN ADULTE SEULEMENT
Pour toute question sur le montage ou en cas de pièce manquante, NE PAS retourner cet article au
point de vente. Communiquer avec notre numéro sans frais du service à la clientèle en ayant en main
les instructions et la liste de pièces pour indiquer le nom du modèle ou de la pièce ou le numéro
d’usine en composant le :
1-866-942-5362
Heure normale du Pacifique : entre 8 h 30 et 16 h 30, du lundi au vendredi
ou visiter notre site Web 24 heures par jour, 7 jours sur 7 pour obtenir de l’aide sur le produit à
www.whalenfurniture.com
ou transmettre une demande par courriel à [e-mail]
NUMÉRO DE LOT :
DATE D’ACHAT : / /

2
FABRICANT: Whalen Furniture Manufacturing
CATALOGUE: Bureau Cecile
Modèle no ODUS48CD-V
FABRIQUÉ AU VIETNAM
REMARQUE
Veuillez lire toutes les directives avant de procéder au montage. Examinez tout le
matériel d’emballage avant de jeter le carton. Retirez les agrafes de ce dernier avant de le
jeter. Enlevez toutes les pièces du carton et répartissez-les en groupes tel qu’indiqué sur
la liste des pièces. Assurez-vous que toutes les pièces ont été incluses avant de
commencer le montage. L’utilisation d’outils électriques n’est pas recommandée pour le
montage.
CHARGE MAXIMALE 45,4 kg / 100 lb.
P O I D S M A X I M A L R E C OM M A N D É
CHARGE MAXIMALE 22,7 kg / 50 lb.
CETTE UNITÉ DOIT ÊTRE UTILISÉE EN RESPECTANT LES POIDS
MAXIMAUX INDIQUÉS. L’UTILISATION DE L’UNITÉ AVEC UNE CHARGE
SUPÉRIEURE AUX POIDS MAXIMAUX INDIQUÉS PEUT CAUSER L’INSTABILITÉ,
VOIR
E
MÊME DES BLESSURES
.
