Whalen LANTOFLBB User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2017-10-10 Rev. 0001-A Factory: JIYIFO
Landon Twin over Full Loft Bunk Bed with Bookshelf
Stock # LANTOFLBB
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our customer service number and have your instructions
and parts list ready to provide the model name, part name or factory number:
866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenstyle.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASED: / /

2
ALWAYS USE GUARDRAILS ON BOTH LONG SIDES OF THE UPPER BUNK. IF
THE BUNK BED WILL BE PLACED NEXT TO THE WALL, THE GUARDRAIL
THAT RUNS THE FULL LENGTH OF THE BED SHOULD BE PLACED AGAINST
THE WALL TO PREVENT ENTRAPMENT BETWEEN THE BED AND WALL.
STRANGULATION HAZARD - Never attach or hang items to any part of the bunk bed
that are not designed for use with the bed; for example, but not limited to, hooks, belts,
and jump ropes.
Prohibit more than one person on upper bunk.
Maximum mattress thickness must not exceed 9 in. (22.86 cm). Surface of mattress must
be at least 5 in. (12.70 cm) below the upper edge of guardrails.
Use only mattress which is 74 in. (1.88 m) to 75 in. (1.90 m) long and 37 ½ in. (95.25 cm) to
38½ in. (97.79 cm) wide on upper bunk.
Use only mattress which is 74 in. (1.88 m) to 75 in. (1.90 m) long and 52 ½ in. (1.33 m) to
53 ½ in. (1.36 m) wide on lower bed.
Replacement parts, including additional guardrails, may be obtained from any our dealer.
1. Please read the Assembly Instructions prior to ASSEMBLE the unit.
2. To avoid damage, assemble the unit on a sturdy, level and non-abrasive surface.
3. Keep all hardware and parts out of the reach of children.
4. Please wait until all steps are completed before fully tightening bolts.
5. Make sure all bolts and screws are tightly fastened before the unit is used.
6. Check that all bolts and screws are tight at least every 3 months or as needed.
7. Use the long end of the hex wrench to fasten bolts loosely and quickly.
8. Use the short end of the hex wrench for final tightening.
GENERAL INFORMATION, TIPS AND TRICKS
②
①

3
TO HELP PREVENT SERIOUS OR FATAL INJURIES FROM ENTRAPMENT
OR FALLS
•Follow the information on the warnings appearing on the upper bunk end
structure and on the carton. Do not remove warning label from bed.
•Always use the recommended size mattress or mattress support, or both, to help
prevent the likelihood of entrapment or falls.
•Surface of mattress must be at least 5 in. (12.70 cm) below the upper edge of
guardrails.
•Do not allow children under 6 years of age to use the upper bunk.
•Periodically check and ensure that the guardrail, ladder and other components
are in their proper position, free from damage and that all connectors are tight.
•Do not allow horseplay on or under the bed and prohibit jumping on the bed.
•Always use the ladder for entering and leaving the upper bunk.
•Do not use substitute parts. Contact the manufacturer or dealer for replacement
parts.
•Use of a night light may provide added safety precaution for a child using the
upper bunk.
•Always use guardrails on both long sides of the upper bunk. If the bunk bed will
be placed next to the wall, the guardrail that runs the full length of the bed
should be placed against the wall to prevent entrapment between the bed and
wall.
•The use of water or sleep flotation mattress is prohibited.
•STRANGULATION HAZARD – Never attach or hang items to any part of the
bunk bed that are not designed for use with the bed; for example, but not limited
to, hooks, belts, and jump ropes.
•Prohibit more than one person on upper bunk.
•Keep these instructions for future reference.
This product was manufactured October 2017.

4
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Lower Footboard Front Post B- Lower Footboard Back Post C- Lower Headboard Front Post
(Qty. 1) (Qty. 1) (Qty. 1)
D- Lower Headboard Back Post E- Upper Footboard Front Post F- Upper Footboard Back Post
(Qty. 1) (Qty. 1) (Qty. 1)
G- Upper Headboard Front Post H- Upper Headboard Back Post I- Lower Side Rail
(Qty. 1) (Qty. 1) (Qty. 2)
J- Lower Back Rail K- Upper Cross Assembly L- Upper Cap Rail
(Qty. 2) (Qty. 2) (Qty. 2)
M- Upper Ladder Side Rail N- Upper Mattress Side Rail O- Short Guardrail
(Qty. 1) (Qty. 1) (Qty. 2)
P- Long Guardrail Q- Front Guardrail Post R- Guardrail Support
(Qty. 2) (Qty. 1) (Qty. 2)

5
Parts and Hardware List
S- Upper Mattress Support Slats T- Left Ladder Support U- Right Ladder Support
(Qty. 1) (Qty. 1) (Qty. 1)
V- Ladder Step W- Upper Bed Stretcher XA- Full Bed Headboard Right Post
(Qty. 5) (Qty. 2) (Qty. 1)
XB- Full Bed Headboard Left Post XC- Full Bed Footboard Right Post XD- Full Bed Footboard Left Post
(Qty. 1) (Qty. 1) (Qty. 1)
XE- Full Bed Cap Rail XF- Full Bed Headboard Assembly XG- Full Bed Footboard Assembly
(Qty. 2) (Qty. 1) (Qty. 1)
XH- Full Bed Mattress Side Rail XI- Full Bed Mattress Support Slats XJ- Slat Support with Leveler
(Qty. 2) (Qty. 1) (Qty. 3)
XK- Full Bed Stretcher YA- Bookshelf Left Side Panel YB- Bookshelf Right Side Panel
(Qty. 2) (Qty. 1) (Qty. 1)
YC- Bookshelf Bottom Shelf YD- Bookshelf Middle Lower Shelf YE- Bookshelf Middle Shelf
(Qty. 1) (Qty. 1) (Qty. 1)

6
Parts and Hardware List
YF- Bookshelf Middle Upper Shelf YG- Bookshelf Top Shelf YH- Bookshelf Back Panel
(Qty. 1) (Qty. 1) (Qty. 2)
(1) 1/4” x 110 mm Bolt (2) 1/4” x 45 mm Bolt
(Qty. 24+1 extra) (Qty. 8+1 extra)
(3) 1/4” x 38 mm Bolt (4) 1/4” x 32 mm Bolt
(Qty. 2+1 extra) (Qty. 23+1 extra)
(5) 6.5 mm x 100 mm Tapping Bolt (6) 6.5 mm x 48 mm Tapping Bolt
(Qty. 32+1 extra) (Qty. 32+1 extra)
(7) 10 x 50 mm Wood Dowel (8) 6 x 25 mm Wood Dowel (9) 4 mm x 30 mm Screw
(Qty. 62+2 extra) (Qty. 20+1 extra) (Qty. 8+1 extra)
(10) 4 mm x 35 mm Screw (11) Bed Connector Pin (12) Barrel Nut (13) 4 mm x 19 mm Screw
(Qty. 28+1 extra) (Qty. 4) (Qty. 24+1 extra) (Qty. 2+1 extra)
(14) Metal Bracket (15) 8 x 30 mm Wood Dowel L-shaped Hex Wrench T-Handle Hex Wrench
(Qty. 1) (Qty. 16+1 extra) (Qty. 1) (Qty. 1)
Tools required: Hex wrench (provided) and Phillips screwdriver (not provided).

7
BOOKSHELF ASSEMBLY
1. Unpack the units and confirm that you have all hardware and required parts.
2. Place the Bookshelf Right Side Panel (YB) on a level and protected surface with the threaded inserts
facing up.
3. Insert the 25 mm Wood Dowels (8) into the inner holes of the Shelves (YC, YD, YE, YF and YG) and
attach them to the Bookshelf Right Side Panel (YB) using two 32 mm Bolts (4) per shelf. Securely
tighten the bolts with the enclosed hex wrench.
YC
YD
YE YF
YG
YB
4
YB
8
1/4” x 32 mm Bolt
(10 used in this step)
④
6 x 25 mm Wood Dowel
(10 used in this step)
⑧
DO NOT fully tighten the bolts initially until all the bolts are ready to assemble.
To avoid causing damages to the thread, DO NOT over-tighten the bolts.

8
BOOKSHELF ASSEMBLY
4. Slide two Back Panels (YH) into the grooves between the lower three shelves (YC, YD and YE) until
fully inserted into the Bookshelf Right Side Panel (YB).
YC
YD
YE YF
YG
YB
YH
YH
YH
YC YD YE

9
BOOKSHELF ASSEMBLY
5. Repeat the same procedure to attach the Bookshelf Left Side Panel (YA) at the opposite end. Make sure
that the Back Panels (YH) fit securely into the groove of Side Panel (YA).
6. Ask for assistance to lift the unit upright.
1/4” x 32 mm Bolt
(10 used in this step)
④
6 x 25 mm Wood Dowel
(10 used in this step)
⑧
YC
YD
YE YF
YG
YB
YA
YA
4
8

10
UPPER BUNK ASSEMBLY
7. Align and attach one Upper Bed Stretcher (W) to one Upper Cap Rail (L) using two 50 mm Wood
Dowels (7) and three 48 mm Tapping Bolts (6). Securely tighten the bolts with the enclosed hex wrench.
8. Repeat the previous step to combine the remaining Upper Cap Rail (L) and Upper Bed Stretcher (W)
together.
10 x 50 mm Wood Dowel
(4 used in this step)
⑦
6.5 mm x 48 mm Tapping Bolt
(6 used in this step)
⑥
6
6
6
7
7
L
W
6
6
6
L
W
7
7

11
UPPER BUNK ASSEMBLY

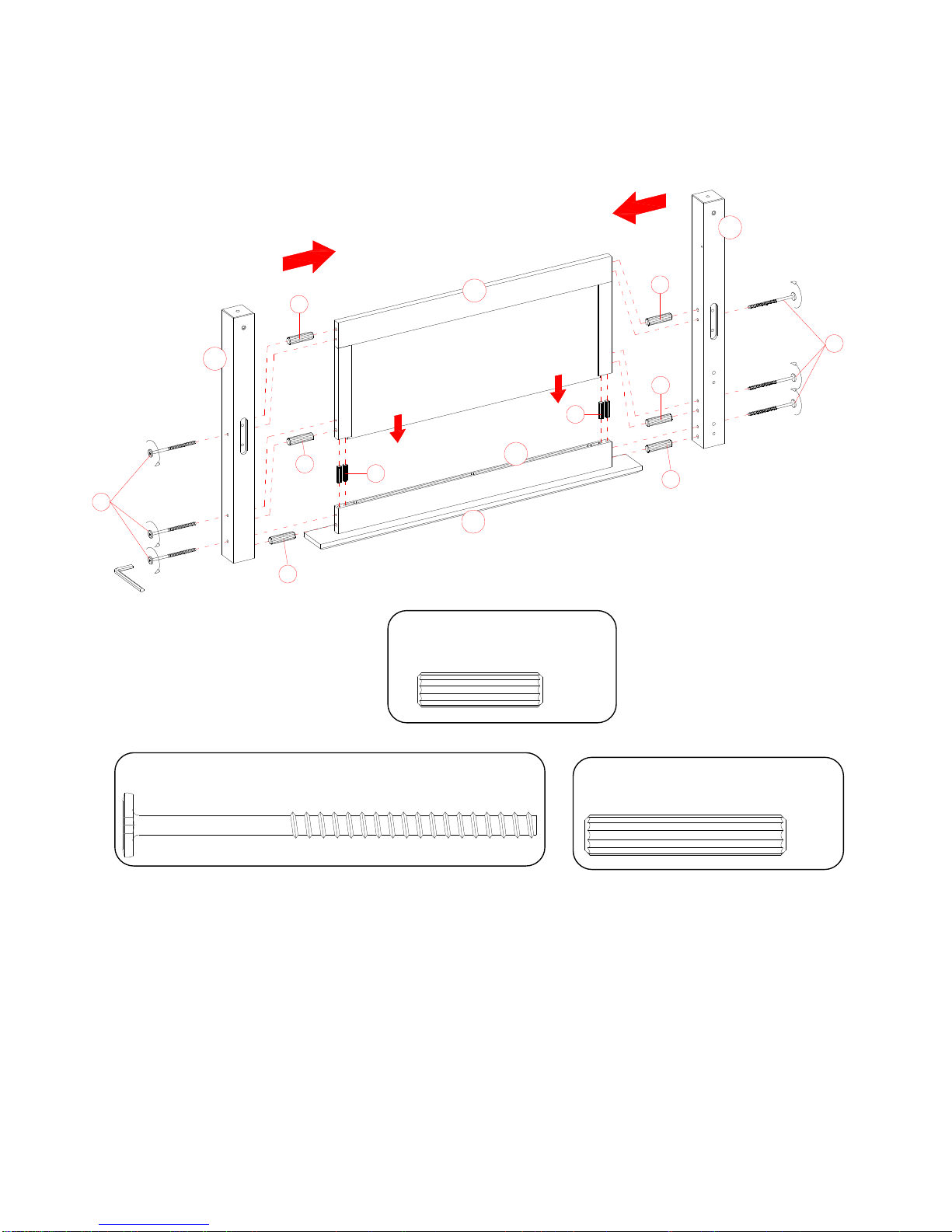

9. Attach one Upper Cross Assembly (K) to the Upper Bed Stretcher (W) with four 30 mm Wood Dowels
(15).
10. Insert six 50 mm Wood Dowels (7) into the large holes of the Upper Cross Assembly (K) and the Upper
Bed Stretcher (W) at both ends. Align and attach the Upper Headboard Posts (G and H) to the previous
assembly with six 100 mm Tapping Bolts (5). Tighten the bolts with the enclosed hex wrench.
6.5 mm x 100 mm Tapping Bolt
(6 used in this step)
⑤
10 x 50 mm Wood Dowel
(6 used in this step)
⑦
8 x 30 mm Wood Dowel
(4 used in this step)
⑮
15
15
7
7
7
77
7
5
5
L
W
K
H
G

12
UPPER BUNK ASSEMBLY
11. Repeat the same procedure to combine the remaining Upper Cross Assembly (K) and the Upper Bed
Stretcher (W) and the Upper Footboard Posts (E and F) together.
6.5 mm x 100 mm Tapping Bolt
(6 used in this step)
⑤
10 x 50 mm Wood Dowel
(6 used in this step)
⑦
8 x 30 mm Wood Dowel
(4 used in this step)
⑮
7
7
7
77
7
L
W
K
15
15
5
5
F
E

13
UPPER BUNK ASSEMBLY
12. Insert the 50 mm Wood Dowels (7) into the drilled large holes of the Long Guardrail (P) at both ends.
Attach two Long Guardrails (P) and the Upper Mattress Side Rail (N) between Upper Posts (F and H)
using eight 110 mm Bolts (1) and eight Barrel Nuts (12) as shown above. Make sure that the wood
stoppers for slat attached on the side rail are up and face inward.
13. Attach the Ladder Side Rail (M) between the Upper Posts (E and G) using four 110 mm Bolts (1) and
four Barrel Nuts (12). Make sure the wood stoppers for slat attached on side rail are up and face inward.
M
P
P
E F
G H
1
1
12
12
12
N
7
7
H
G
E
F
M
N
P
P
1/4” x 110 mm Bolt
(12 used in this step)
①
10 x 50 mm Wood Dowel
(4 used in this step)
⑦
Barrel Nut
(12 used in this step)
⑫

14
UPPER BUNK ASSEMBLY
14. Lay out the Upper Mattress Support Slats (S) between the wood stoppers on the Ladder Side Rail (M)
and the Upper Mattress Side Rail (N). Insert and screw 35 mm Screws (10) into the countersunk holes on
each slat. Tighten the screws using a Phillips screwdriver.
S
M
10
N
N
M
S
4 mm x 35 mm Screw
(14 used in this step)
⑩

15
UPPER BUNK ASSEMBLY
15. Insert the 50 mm Wood Dowels (7) into the end large holes of Short Guardrails (O) as a guide. Attach
two Short Guardrails (O) between the Upper Headboard Front Post (G) and Front Guardrail Post (Q)
using four 110 mm Bolts (1) and four Barrel Nuts (12).
16. Fasten the Front Guardrail Post (Q) to the Ladder Side Rail (M) with two 38 mm Bolts (3), using the
enclosed hex wrench.
7
12
G Q
7
12
O
O
O
O
M
G
Q
Q
M
QM
3
1
1
1/4” x 110 mm Bolt
(4 used in this step)
①
BARREL NUT
(4 used in this step)
⑫
1/4” x 38 mm Bolt
(2 used in this step)
③
10 x 50 mm Wood Dowel
(4 used in this step)
⑦

16
UPPER BUNK ASSEMBLY
17. With the pilot holes as a guide, align and attach one Guardrail Support (R) to the center of the Long
Guardrails (P) and the Upper Mattress Side Rail (N) with three 30 mm Screws (9).
18. Repeat the same procedure to attach the other Guardrail Support (R) to the Short Guardrails (O) and the
Ladder Side Rail (M).
R
9
UP
UP
R
M
O
O
N
P
P
9
4 mm x 30 mm Screw
(6 used in this step)
⑨

17
LOWER BUNK ASSEMBLY

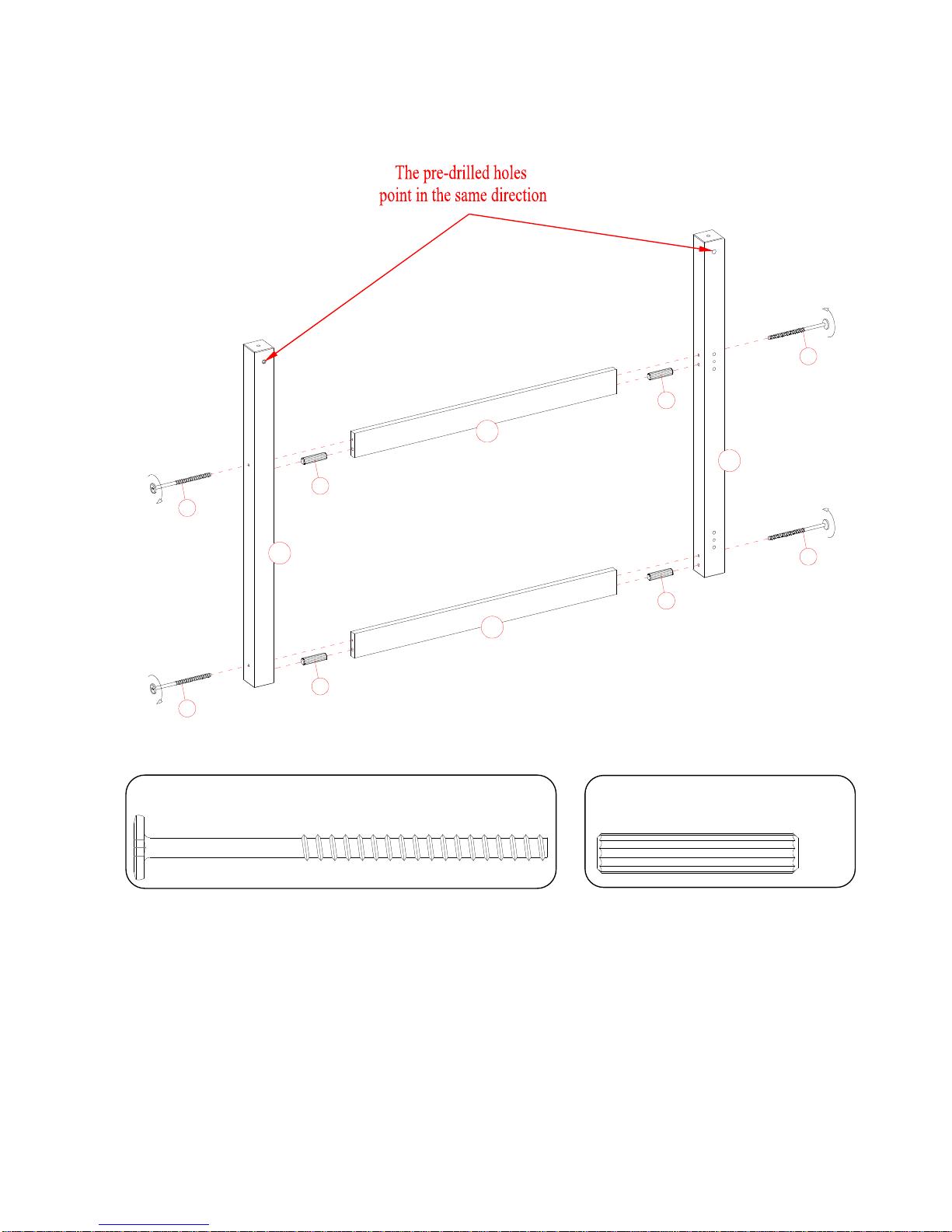

19. Insert four 50 mm Wood Dowels (7) into the end holes of two Lower Side Rails (I) and attach them
between the Lower Posts (C and D) with four 100 mm Tapping Bolts (5). Tighten the bolts with the
enclosed hex wrench.
7
5
7
5
7
5
7
5
I
I
D
C
6.5 mm x 100 mm Tapping Bolt
(4 used in this step)
⑤
10 x 50 mm Wood Dowel
(4 used in this step)
⑦

18
LOWER BUNK ASSEMBLY

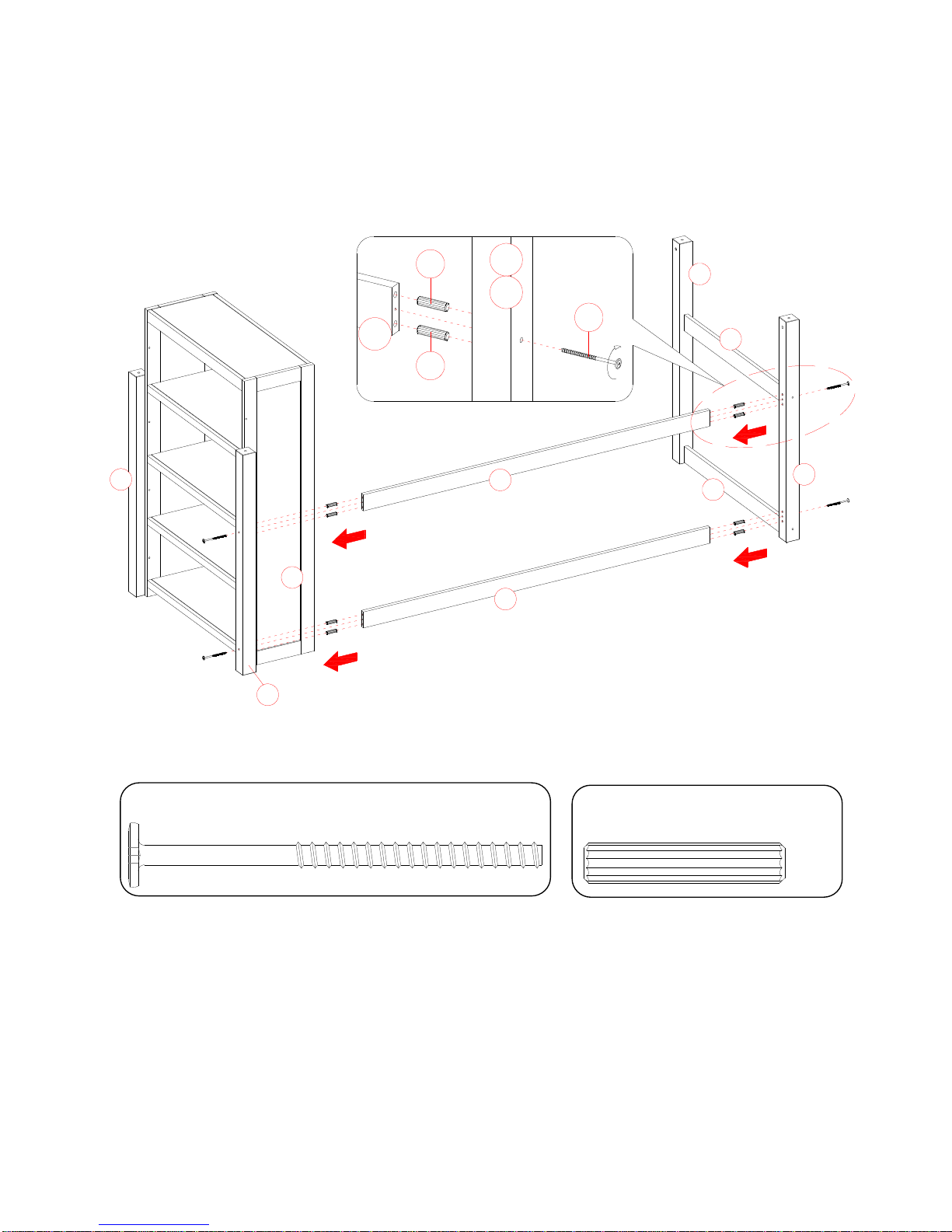

20. Align and attach the Lower Footboard Front Post (A) to the Bookshelf Left Side Panel (YA) by inserting
three 48 mm Tapping Bolts (6) through the pre-drilled holes on the Side Panel (YA) and screw into the
post.
21. Attach the Lower Footboard Back Post (B) to the Bookshelf Right Side Panel (YB) with three 48 mm
Tapping Bolts (6).
6.5 mm x 48 mm Tapping Bolt
(6 used in this step)
⑥
YA
A
B
YB
YBYA
6
A
B

19
LOWER BUNK ASSEMBLY
22. Insert eight 50 mm Wood Dowels (7) into the end large holes of two Lower Back Rails (J). Attach the
Back Rails (J) between the Lower Back Posts (B and D) by using four 100 mm Tapping Bolts (5).
Tighten the bolts with the provided hex wrench.
10 x 50 mm Wood Dowel
(8 used in this step)
⑦
6.5 mm x 100 mm Tapping Bolt
(4 used in this step)
⑤
B
A
YB
J
JD
I
C
I
B
J
7
7
5
D

20
ASSEMBLY OF THE BUNK BED
23. Now, place the two assembled bunks where you want to place your loft bed.
24. Insert four Bed Connector Pins (11) into the Lower Posts (A, B, C and D) and secure them in place with
the 45 mm Bolts (2). When attaching the Connector Pin (11) to Lower Headboard Front Post (C), you
will need to insert one 45 mm Bolt (2) through the bottom hole of Metal Bracket (14) and screw into the
threaded hole of the Connector Pin.
25. Now, ask for assistance to stack the Upper Bunk onto the Bed Connector Pins (11) on the Lower Posts
and fasten the Upper Posts (E, F, G and H) in place with four 45 mm Bolts (2). Proceed to insert two 30
mm Screws (9) through the countersunk holes of Metal Bracket (14) and securely screw into place.
NOTE: Make sure that the Upper Bunk sits completely on top of the posts and the pins go all the way,
not leaving any gaps.
C
D
A
B
E
F
G
H
A
11
2
B
D
A B
D
E F
H
2
11
C
11
2
C
G
2
11
2
C
G
14
14
14
9
1/4” x 45 mm Bolt
(8 used in this step)
②
Bed Connector Pin
(4 used in this step)
⑪
4 mm x 30 mm Screw
(2 used in this step)
⑨
Metal Bracket
(1 used in this step)
⑭
