Whalen LEVELUP SPLS-LTCGD User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Leet Corner Gaming Desk
Model # SPLS-LTCGD
ADULT ASSEMBLY REQUIRED DUE TO THE PRESENCE OF SMALL PARTS, SHARP
POINTS, SHARP EDGES AS RECEIVED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenfurniture.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASED: / /
Date 2021-03-02 Rev. 0001-A

2
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: Leet Corner Gaming Desk
MODEL # SPLS-LTCGD

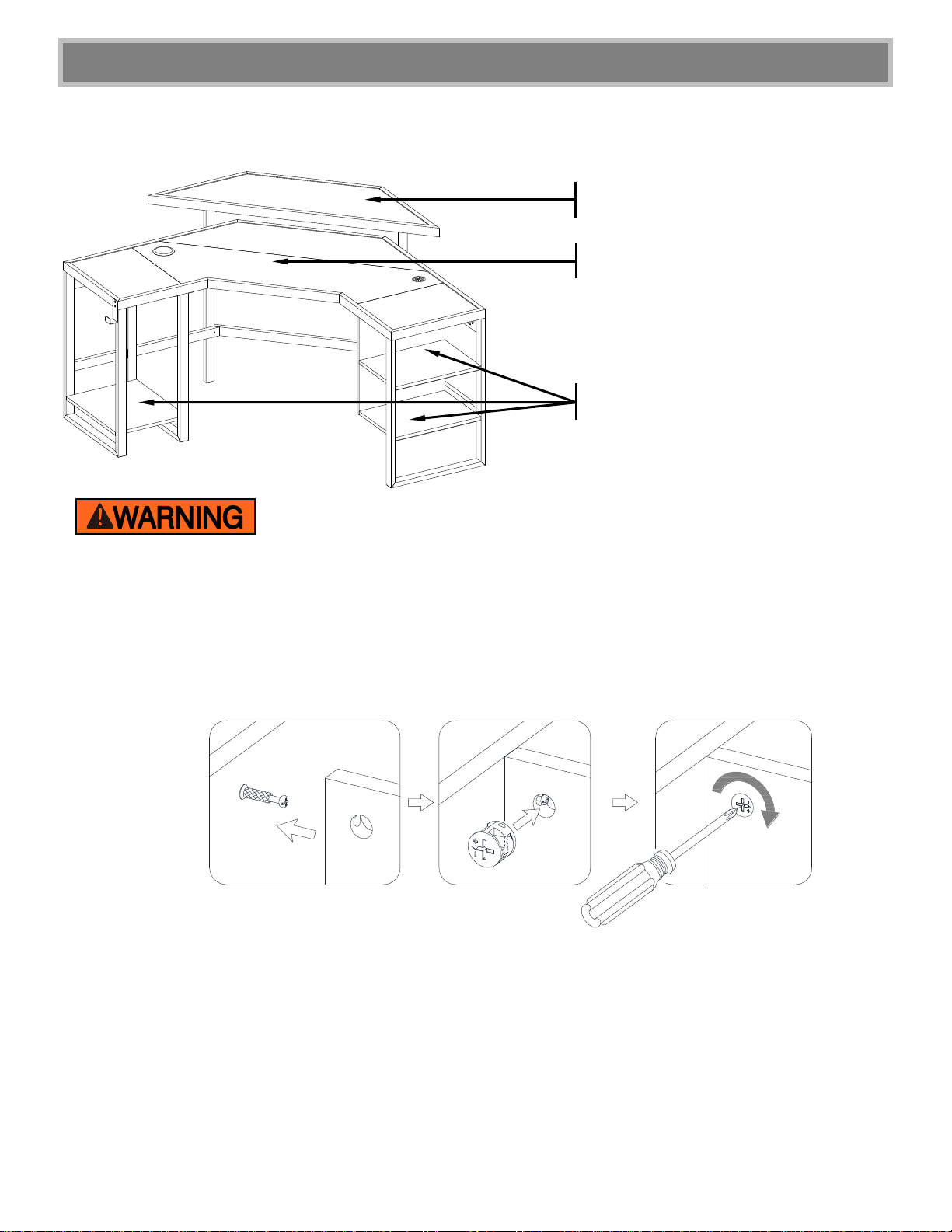

CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw the Cam Bolt into the pre-drilled small holes on the panel. Connect both panels together; making sure
the Cam Bolt goes into the pre-drilled hole at the end of the panel with the Cam Lock.
2. Insert the Cam Lock into the pre-drilled large hole in the panel. Make sure the arrow on the Cam Lock is
pointed towards the Cam Bolt.
3. Once the Cam Bolt is connected inside the Cam Lock, take a Phillips screwdriver (not included) and
tighten the Cam Lock clockwise.
You are now ready to assemble the KD unit.
MAXIMUM RECOMMENDED WEIGHT LOADS
THIS UNIT IS INTENDED ONLY FOR USE WITHIN THE MAXIMUM
WEIGHTS INDICATED. USE WITH LOAD HEAVIER THAN THE MAXIMUM WEIGHTS
INDICATED MAY RESULT IN INSTABILITY, CAUSING POSSIBLE INJURY.
1234
MAXIMUM LOAD 50 lb. (22.7 kg)
MAXIMUM LOAD 200 lb. (90.7 kg)
MAXIMUM LOAD 50 lb. (22.7 kg)

3
Low Voltage Lighting Systems User Guide
Please read this user guide before installing and using your Low Voltage Lighting Systems

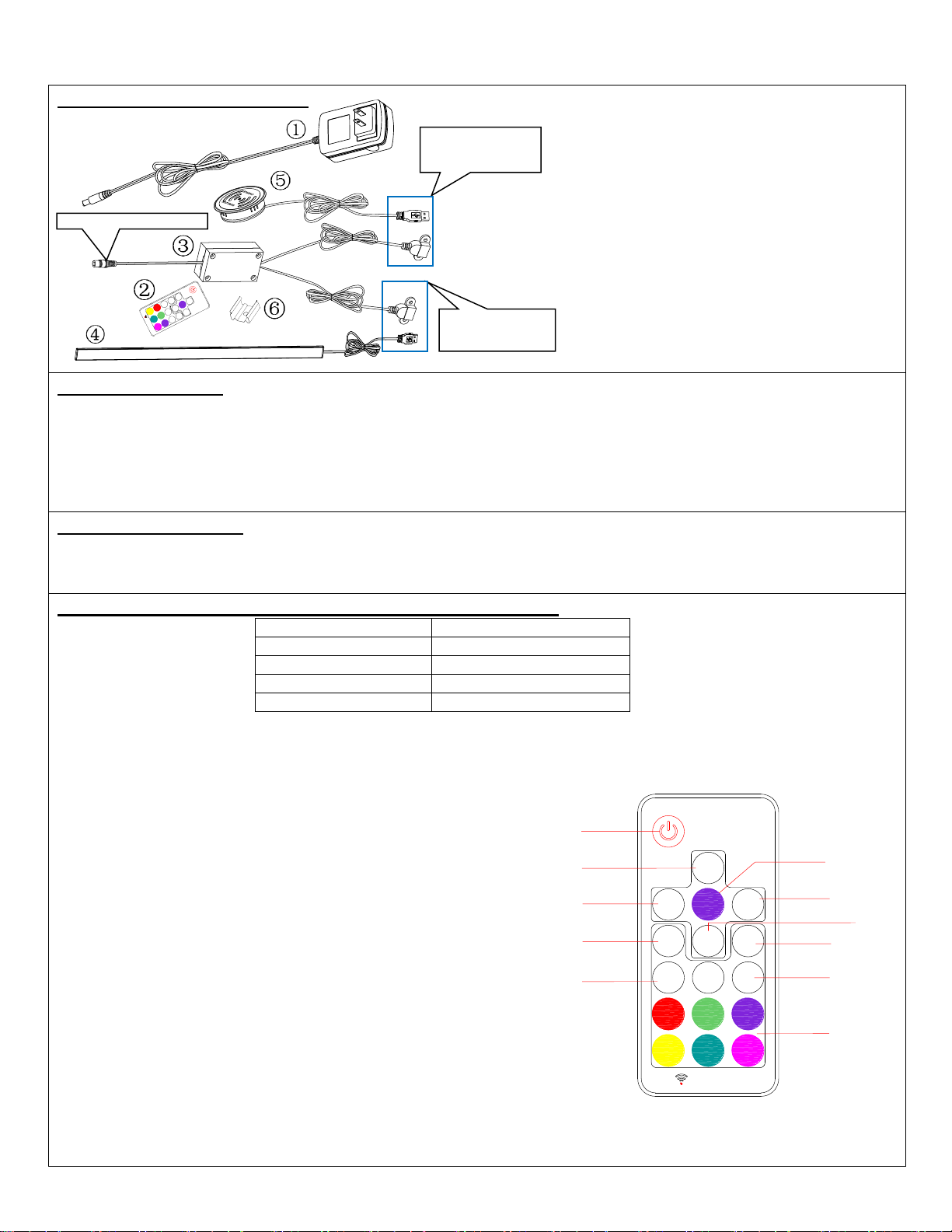

1．THE COMPONENTS LIST
1> Class 2 power supply----1pc;
2> RF control---1pc;
3> LED control box---1pc;
4> LED lighting---1pc；
5> Wireless Charger---1pc;
6> Buckle---2pcs;
2．INSTALLATION
1>Screw the buckles onto the top of furniture;
2>Clip the LED light bar into the buckles;
3>Screw the LED controller on furniture, the controller can’t be installed in closed metal parts;
4>Connect the connecting line between the parts;
5>Insert the Power supply plug to the socket;
6>Operate the Remote control to control the light bar (pull out the battery insulation before use).
3．SPECIFICATIONS
⚫Power supply: Input: 100-240VAC 50/60HZ Output:12V, 2A
⚫LED lighting: Input: DC 12V Power: Max. 8W
⚫Wireless Charger: Input:5V Power:5W
4．RF wireless Remote RGB LED Controller Instructions
22 Dynamic Modes
Card Type RF Remote
20 Static Colors
Ultra Slim Design
Very Smooth Effects
Dynamic Demo Mode
Speed Adjustable
Easy Remote Pairing
Brightness Adjustable
Direct Color Selecting
Functions
1.Turn On/Standby
Press this key to turn on unit or switch to standby mode. At power
on. Unit will automatically turn on and restore to previous status.
2/9.Dynamic Mode Adjust
Switch to dynamic mode from static color, or switch between
dynamic modes.
3/10.Dynamic Speed Adjust
Adjust dynamic playing speed. Press SPEED+ to increase speed
and press SPEED- to decrease. The unit will switch to dynamic
mode if press this key at static color mode.
4/5.Static Color Adjust
Switch to static color mode from dynamic mode, or switch
between static colors.
6.Direct Color Select
Shortcut key to static colors. When press the specific color
key, LED will play the same static color. The direct colors
are included in ‘COLOR+’and ‘COLOR-’operation.
7/8.Brightness Adjust
Adjust static color brightness, press BRIGHT+ to increase
brightness and press BRIGHT- to decrease.
11.Demo Mode
Press this key will switch to Demo mode. At demo mode, it
plays red green and blue color dynamic modes in loop.
5VDC 2.0A
Connect to wireless
charger
Connect to LED
lighting
Connect to power supply
MODE
+
SPEED
+
MODE
-
SPEED
-
BRIGHT
+
COLOR
+
-
BRIGHT
DEMO
-
COLOR
RF Wireless
1
2
3
4
56
7
89
10
11
MODE
+
SPEED
+
MODE
-
SPEED
-
BRIGHT
+
COLOR
+
-
BRIGHT
DEMO
-
COLOR
RF Wireless

4
Operation
1.Using Remote Controller
Please pull out the battery insulate tape before using. The RF
wireless remote signal can pass through barrier, so it’s not
necessary to aim at the main unit when operating.
For proper receiving remote signal, please do not install the
main unit in closed metal parts.
2.Pairing New Remote
The remote and main unit is 1 to 1 paired as default. Further
more, main unit can be paired to 3 remote controllers and
each remote controller can be paired to any main unit.
Please do the following steps to pair new remote controller:
1) Plug off the power of main unit and plug in after 5 seconds.
2) Press ‘SPEED-’and ‘SPEED+’ key together in 5 seconds
after power on.
After this operation, the main unit will recognize the new
remote controller.
Warning: This action cannot be undone!
3.Free Remote Pairing Mode
In some specific cases; the main unit may need to be paired
to any remote controllers, please do following steps for free
Remote pairing mode:
1) Plug off the power of main unit and plug in after 5 seconds.
2) Press ‘ON/OFF’ and ‘MODE+’ key together in 5 seconds
after this operation, the main unit will recognize any
remote controller, to pair the main unit back to specific
remote, please repeat the ‘Pairing New Remote’ operation.
4.Switch Output Color Sequence
The controller’s default output signal sequence is
Common-Green-Red-Blue. If the LED application is in different
cable sequence, the direct color keys will not match the LED
color. In this case, user can adjust the output signal sequence
With following steps;
1) Plug off the power of main unit and plug in after 5 seconds,
2) Press ‘RED’ and ‘BLUE’ color key together in 5 seconds after
power on.
With this operation, the output sequence will switch between
6 possible combinations, the sequence will be memorized
and it won’t change before next same operation.
Specification
Dynamic mode
22 modes
Static Color
20 colors
PWM Grade
256 levels
Brightness Grade
5 levels
Speed Grade
10 levels
Demo mode
Yes
Direct Color Switchable
Yes
Output Color Switchable
Yes,6 options
Working Voltage
DC 5-24V
Output Current
3×4A peak,3×2A constant
Remote frequency
433.92MHz
Remote distance
<=6m at open area
5. WARNINGS
1> Don’t connect to non-original power supply;
2> Please install follow installation instruction to avoid damage;
3> Indoor use only, working ambient temperature 4°C to 36°C;
4> Dry location use only;
5> Prevent children or animals from chewing or swallowing parts;
6> Return to the dealer for repair service if abnormal, instead of dismantle;
7> Do not install the LED controller in closed metal parts;
OPEN
PUSH
RELEASE
1
2
CR2025
LITHIUM BATTERY
Pull out the battery insulation

5
Wireless charger operation manual
First of all, thanks sincerely for buying this product.
For your safely, please read this manual carefully before using this product.
The first: To protect people from harm and property loss, we make a clear explanation
on what you do should obey:
A. Warning! There are concerning the possibilities of death and severe wound: People who
use heart-birth-maker should consult your doctor before you use this product; And please
leave it at a distance of 50cm from the place where you install your heart-birth-maker, the
electromagnetic wave have influence on heart- birth-maker's work.
B. Attention! It may led to heat, fire and electric shock:
1) Do not put it into water or any other liquid, Do not make it wet;
2) Do not pull the AC adapter out with wet hands, ensure the safety and integrity of
the adapter;
3) Do not let the dust or other things accumulate on the product and the AC adapter;
4) Do not use the product outside the temperature-20 ℃to 40 ℃;
5) Do not charge in places where the sunshine directly or with high temperature;
6) Do not use this product in places that are easy to fall, so as not break;
7) Do not lay the magnetic card, magnetic record media and precise machine too close
to the protect;
8) Do not decompose and remold;
9) Do not lay anything between the non-connection charging pad and the charging machine;
10) Can not bring cell phone case / shell charge;
11) Do not surpass the rated value when using the plug and other wiring layout;
12) Do not make any breakage on the AC adapter, please make sure you connect the
AC adapter fully and take the AC adapter off the plug when it's not used;
13) Do not use travel converter;
14) Please teach your children, the let them use.

6
The second: Product advantages
1) The product is of high sensitivity, intelligent recognition, put a charge;
After charging, automatically enter standby mode of the product;
2) Charge for all QI compliant product;
3) Efficiency can reach more than 70%, less heat;
4) In the process of charging can be free to pick up, answer the phone, freeing discharge or
charge;
The third wireless charger’s charging method
1) Please connect the product to the AC adapter, red light is on, enters the standby status;
2) Please lay the charge device directly on this product label indicating area (without direction),
green light is on, enters the charging status;
3) When the charging equipment complete, can be taken away; red light is on again, enters
the standby status.
The fourth: product features
1> Main functions: wireless charging transmitter;
2>Standard version: WPC-1.2.3;
3>Products applicable: all wireless charging equipment accorded with QI standard;
4>Charging type: one-on-one charge corresponding area;
5>The input voltage: DC:5V/2A;
6>Output: DC 5V 1000MA;
7>Launch distance:4 to 6 mm;
8>Conversion efficiency:≧70%;
9>Charging methods: induction model;
10>Working frequency:110-205 KHz;
11>Accessories/components name: Wireless charging pad, AC adapter.
This device complies with part 15 of the FCC rules and Industry Canada license-exempt
RSS standard(s). Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

7

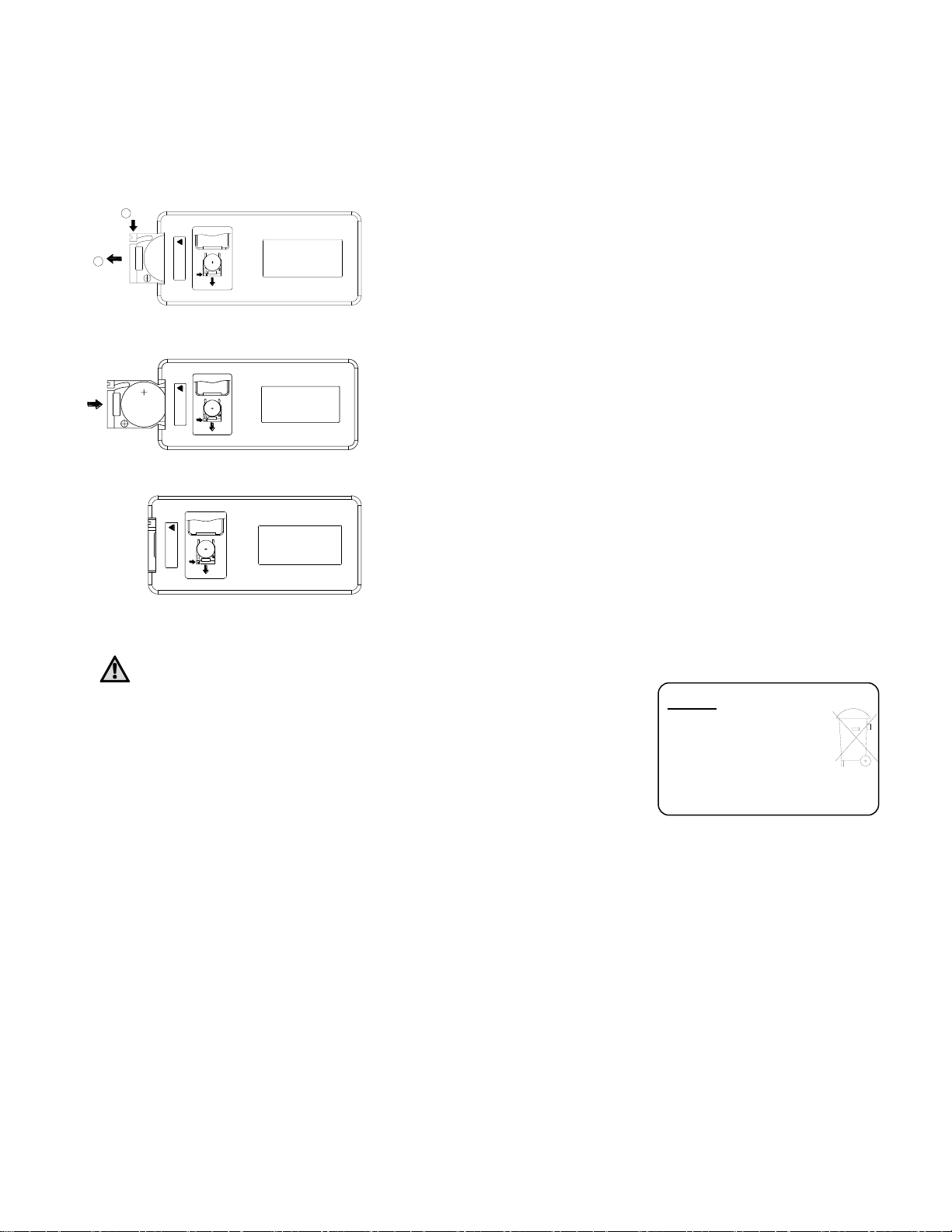

Installing the battery
The battery is supplied with the remote control. The first thing to do with the remote control is to remove the plastic
sheet insulated the battery. For replacement battery, use lithium-based CR2025 battery. Please follow the sequence
below to replace the battery.
□Take out the battery bracket.
□Insert the battery with the button side into the battery bracket, making sure the battery is firmly seated.
□Press the battery bracket into the remote control, making sure it snaps into position.
□Turn the remote over and aim it towards the lighting systems unit.
□If nothing appears to happen, check to make sure the battery is installed correctly, and try again.
WARNING:Do not ingest batteries.
1. Non-rechargeable batteries are not to be recharged.
2. Batteries are to be inserted with the correct polarity.
3. Exhausted batteries are to be removed from the product.
4. Always purchase the correct size and grade of battery most suitable for the intended use.
5. Replace all batteries of a set at the same time.
6. Clean the battery contacts and also those of the device prior to battery installation.
7. Remove batteries from equipment with is not to be used for an extended period of time.
NOTE:
Battery disposal
Please always dispose
of batteries at a
suitable recycling
point.
OPEN
PUSH
RELEASE
OPEN
PUSH
1
2
RELEASE
OPEN
PUSH
CR2025
LITHIUM BATTERY
RELEASE
OPEN
PUSH

8

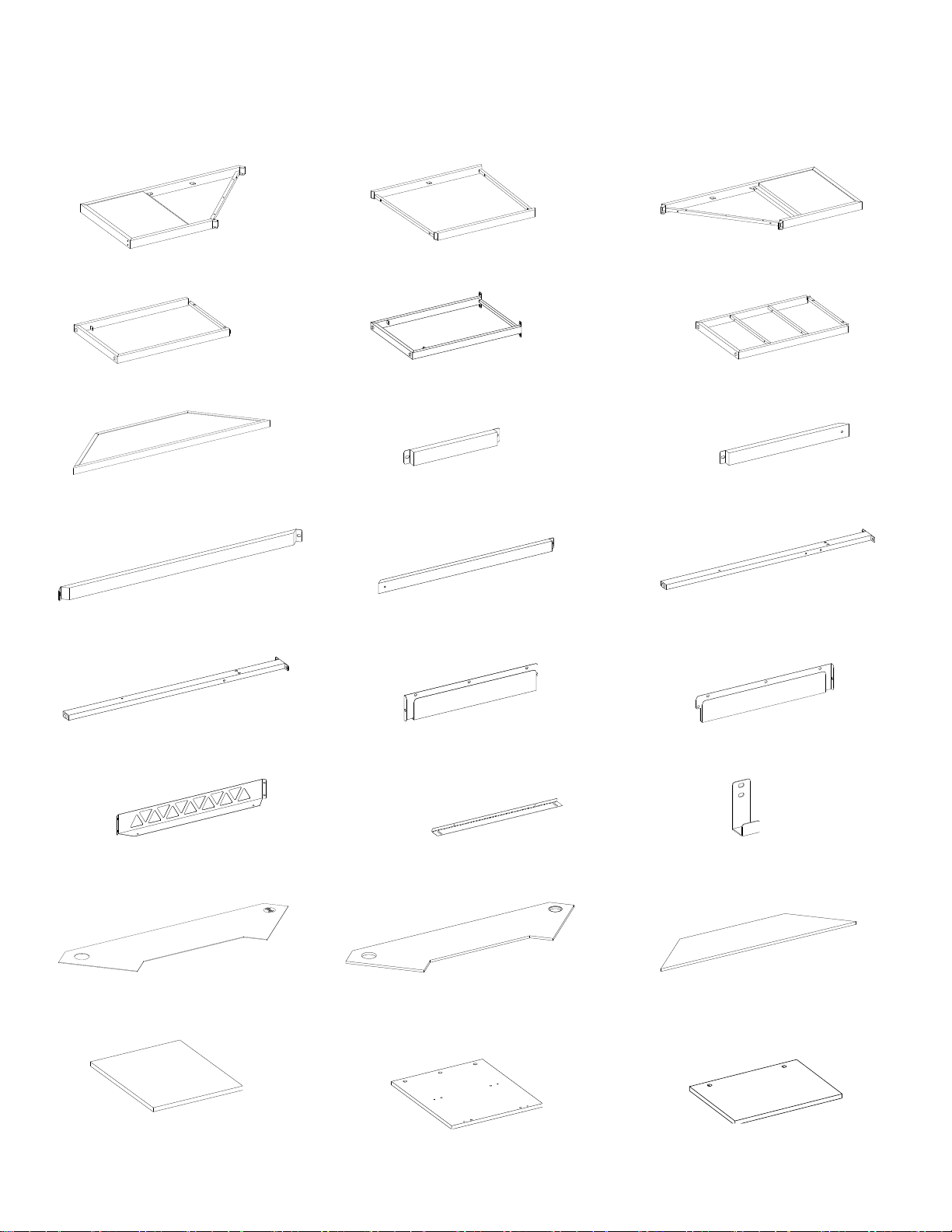

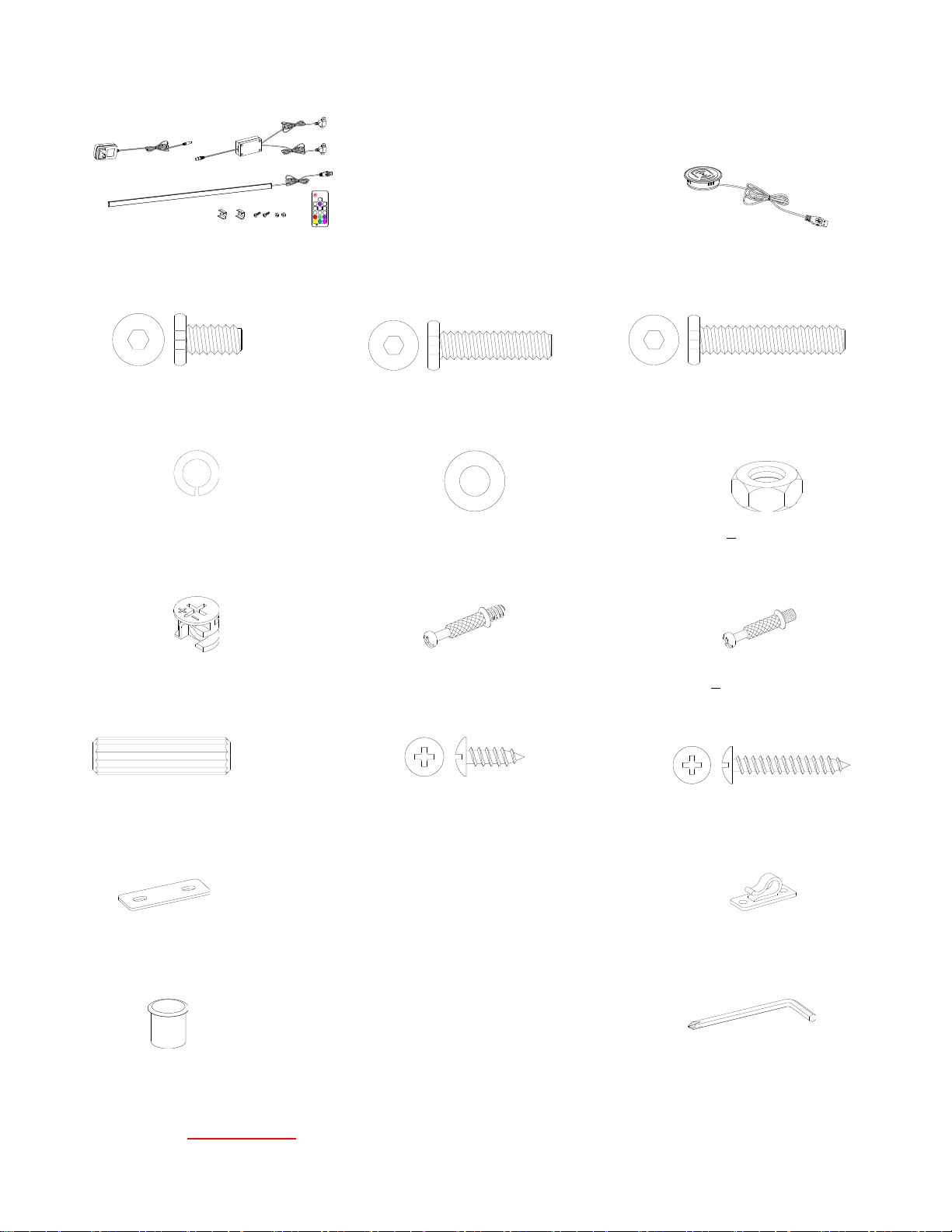

Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Left Top Frame (Qty. 1) B- Corner Top Frame (Qty. 1) C- Right Top Frame (Qty. 1)
D- Left Outer Frame (Qty. 1) E- Left Middle Frame (Qty. 1) F- Right Side Frame (Qty. 1)
G- Hutch Top (Qty. 1) H- Left Back Short Stretcher (Qty. 1) I- Left Back Long Stretcher (Qty. 1)
J- Middle Back Stretcher (Qty. 1) K- Right Back Stretcher (Qty. 1) L- Corner Left Post (Qty. 1)
M- Corner Right Post (Qty. 1) N- Left Cord Management (Qty. 1) O- Right Cord Management (Qty. 1)
P- Middle Cord Management (Qty. 1) Q- Light Support (Qty. 1) R- Accessory Hook (Qty. 1)
S- Corner Mouse Pad (Qty. 1) T- Corner Front Top Panel (Qty. 1) U- Corner Back Top Panel (Qty. 1)
V- Left Bottom Panel (Qty. 1) W- Right Inner Panel (Qty. 1) X- Right Shelf (Qty. 2)

9
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
Y- Plug of Light Fixture with
Remote Control and Battery (Qty. 1) Z- Wireless Charger (Qty. 1)
(1) 1/4”x 12 mm Bolt (2) 1/4”x 25 mm Bolt (3) 1/4”x 32 mm Bolt
(Qty. 36+1 extra) (Qty. 4+1 extra) (Qty. 10+1 extra)
(4) Lock Washer (5) Flat Washer (6) Hex Nut
(Qty. 28+1 extra) (Qty. 28+1 extra) (Qty. 2+1 extra)
(7) Cam Lock (8) Cam Tapping Bolt (9) Cam Bolt
(Qty. 7+1 extra) (Qty. 4+1 extra) (Qty. 3+1 extra)
(10) M8 x 30 mm Wood Dowel (11) M3.5 x 12 mm Screw (12) M4 x 25 mm Screw
(Qty. 4+1 extra) (Qty. 18+1 extra) (Qty. 10+1 extra)
(13) Metal Bracket (Qty. 1) (14) Cord Clip (Qty. 2)
Tools required: Allen wrench (provided) and Phillips screwdriver (not provided).
MODE
+
SPEED
+
MODE
-
SPEED
-
BRIGHT
+
COLOR
+
-
BRIGHT
DEMO
-
COLOR
RF Wireless
(15) Cup Holder (Qty. 1) Allen Wrench (Qty. 2)

10
543
D
A
A
D
Left Side Desk Assembling
NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back
and fully tighten all bolts. This will make the assembly easier.
1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a
carpeted floor or the empty carton to avoid any scratch.

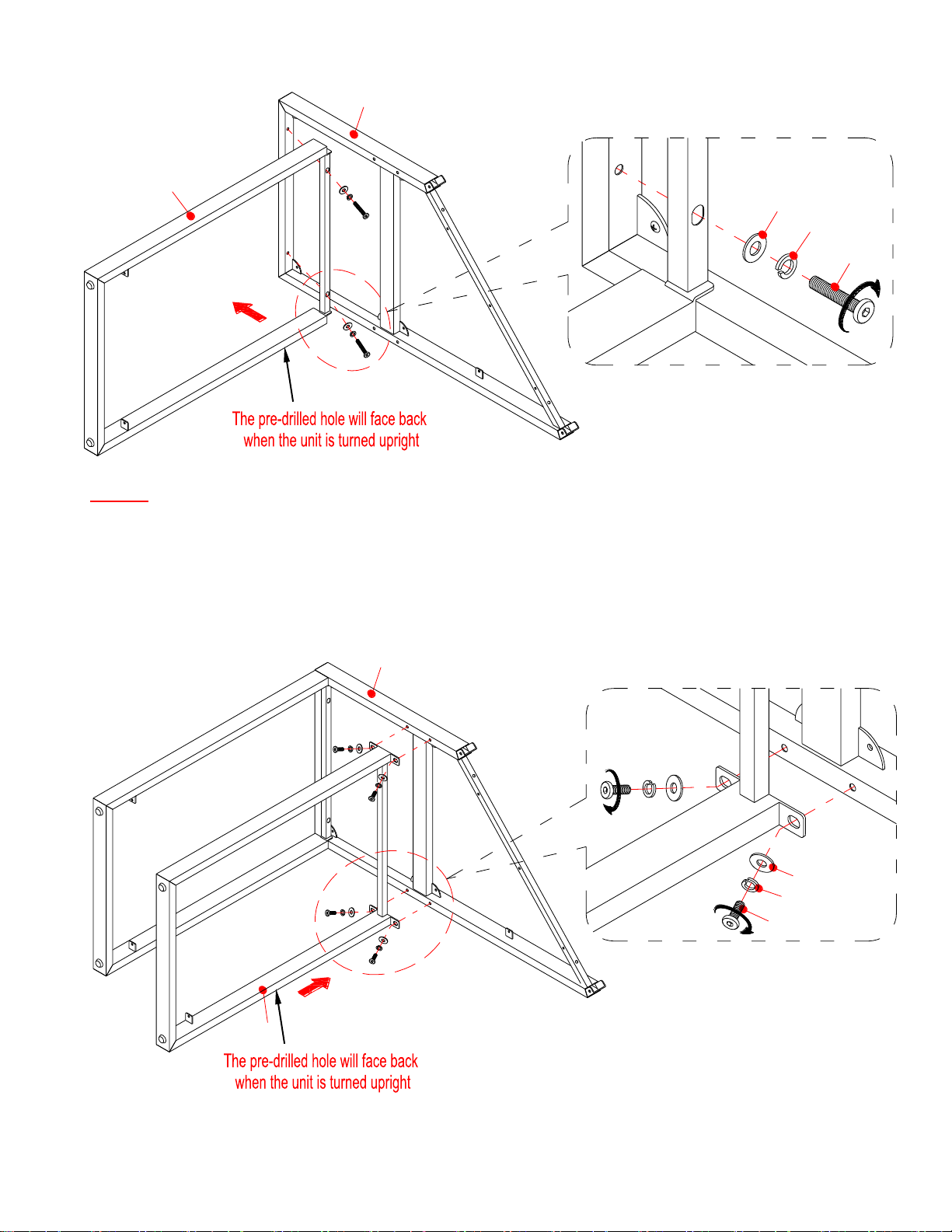

2. Attach the Left Outer Frame (D) to the Left Top Frame (A) with two 32 mm Bolts (3) and two
Washers (4 and 5).
3. Attach the Left Middle Frame (E) to the Left Top Frame (A) with four 12 mm Bolts (1) and four
Washers (4 and 5).
A
E
5
4
1
E
A

11
D
E
H
541
H
D/E
Left Side Desk Assembling

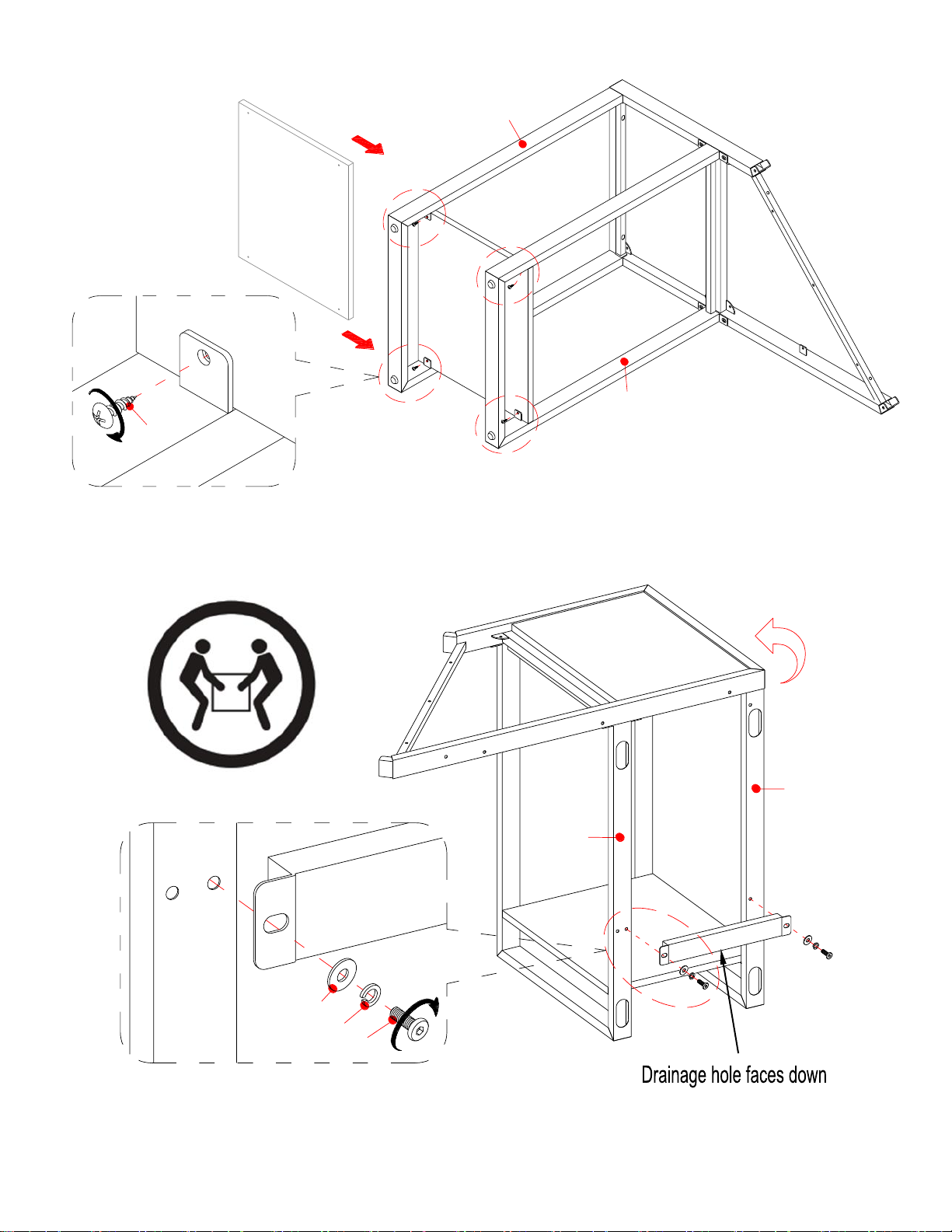

4. Using the pilot holes as a guide, fasten the Left Bottom Panel (V) to the Left Frames (D and E) with
four 12 mm Screws (11).
5. Stand the assembled unit upright.
6. Attach the Left Back Short Stretcher (H) to the Left Frames (D and E) with two 12 mm Bolts (1) and
two Washers (4 and 5).
E
D
V
V
11

12
Left Side Desk Assembling

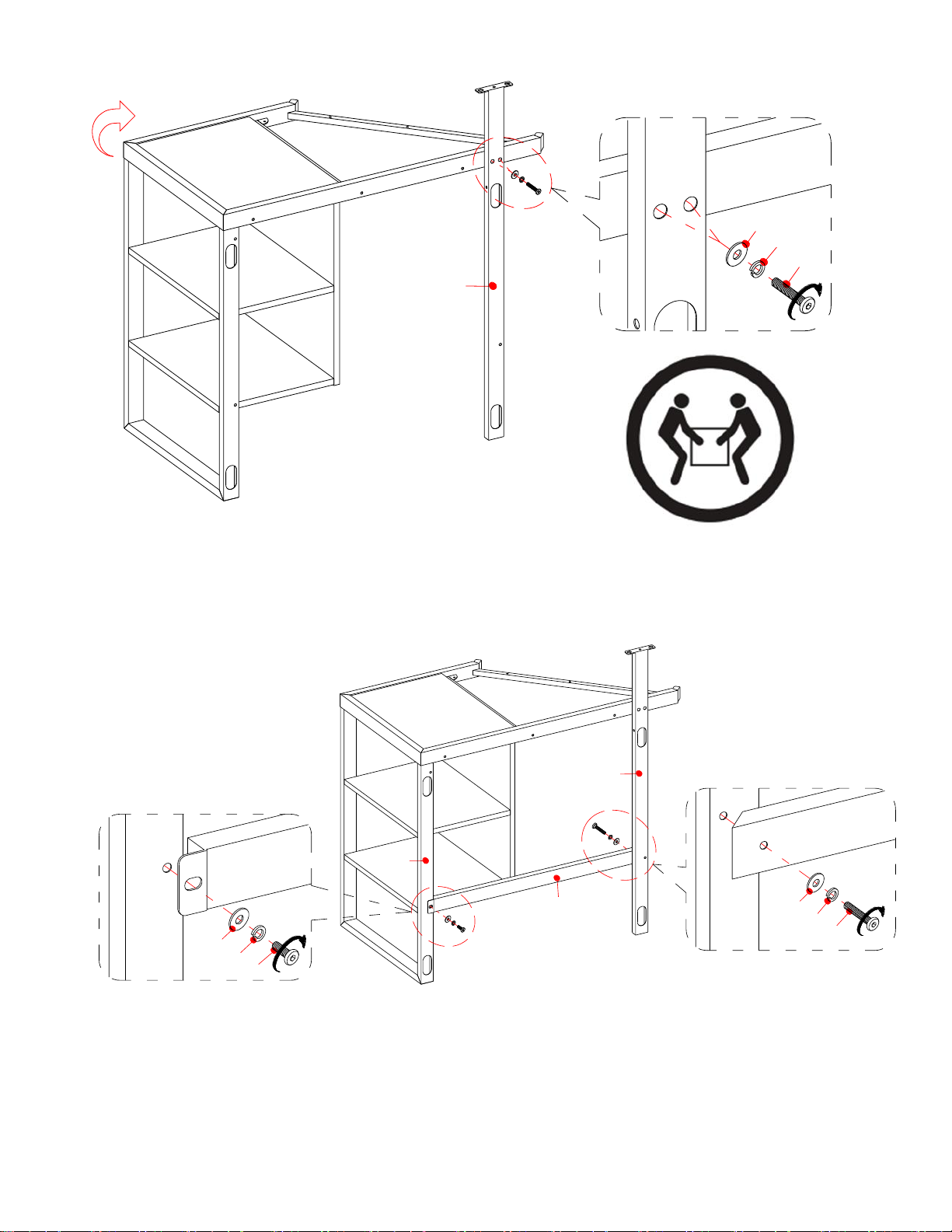

7. Attach the Left Back Long Stretcher (I) to the Left Middle Frame (E) with one 12 mm Bolt (1) and the
Washers (4 and 5).
8. Attach the Corner Left Post (L) to the Left Top Frame (A) and the Left Back Long Stretcher (I) with
three 32 mm Bolts (3) and three Washers (4 and 5).
E
I
E
I
541
L
A
LA
L543
543
I
I

13
Right Side Desk Assembling
9. Securely screw the Cam Bolts (9) into the designated small holes on the Right Top Frame (C) with a
Phillips screwdriver. DO NOT overtighten the Cam Bolts.
NOTE: Screw-in cam bolts must be screwed down flush.
10. Securely screw the Cam Tapping Bolts (8) into the designated small holes on the Right Inner Panel (W)
with a Phillips screwdriver. DO NOT overtighten the Cam Bolts.
NOTE: Screw-in cam bolts must be screwed down flush.
C
9
W8

14
C
F
F
C
5
4
3
C
W
C
7
Right Side Desk Assembling
11. Attach the Right Side Frame (F) to the Right Top Frame (C) with two 32 mm Bolts (3) and two
Washers (4 and 5).
12. Attach the Right Inner Panel (W) to the Right Top Frame (C) by engaging the Cam Locks (7). (Refer to
page 3 on Cam Lock system operation supplement).

15
Right Side Desk Assembling
13. Attach two Right Shelves (X) to the Right Inner Panel (W) by engaging four Cam Locks (7) and four 30
mm Wood Dowels (10). (Refer to page 3 on Cam Lock system operation supplement).
14. Secure the Right Shelves (X) to the rails of the Right Side Frame (F) with four 25 mm Screws (12).
CF
W
X
X
V7
10
F
X
XX
F
12

16
Right Side Desk Assembling
15. Stand the assembled unit upright.
16. Attach the Corner Right Post (M) to the Right Top Frame (C) with two 32 mm Bolts (3) and two Washers
(4 and 5).

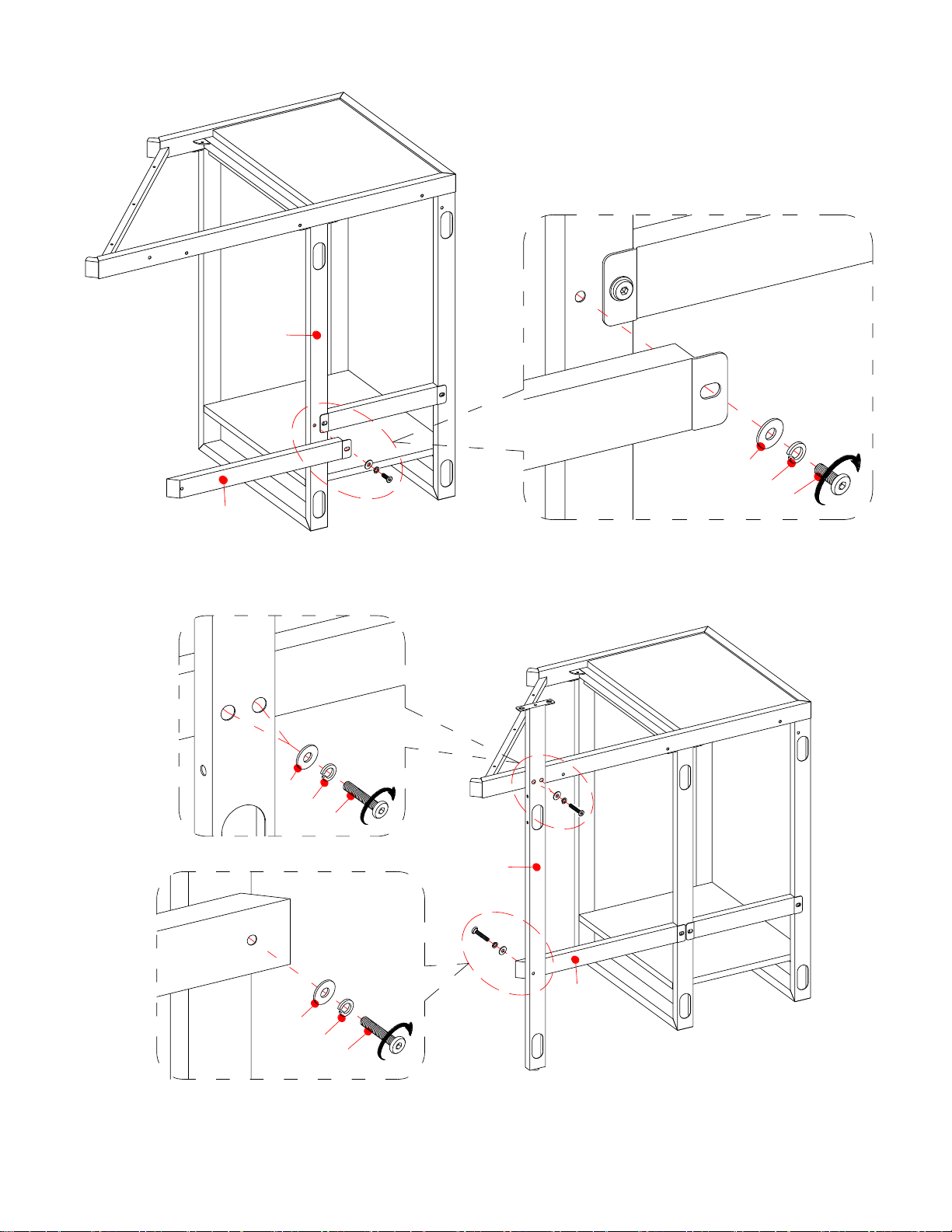

17. Fasten the Right Back Stretcher (K) to the Corner Right Post (M) with the 32 mm Bolt (3) and the
Washers (4 and 5).
18. Secure the Right Back Stretcher (K) to the Right Side Frame (F) with the 12 mm Bolt (1) and the
Washers (4 and 5).
C
MM
C
543
M
K
F
543
K
M
FK
541

17
Corner Assembling

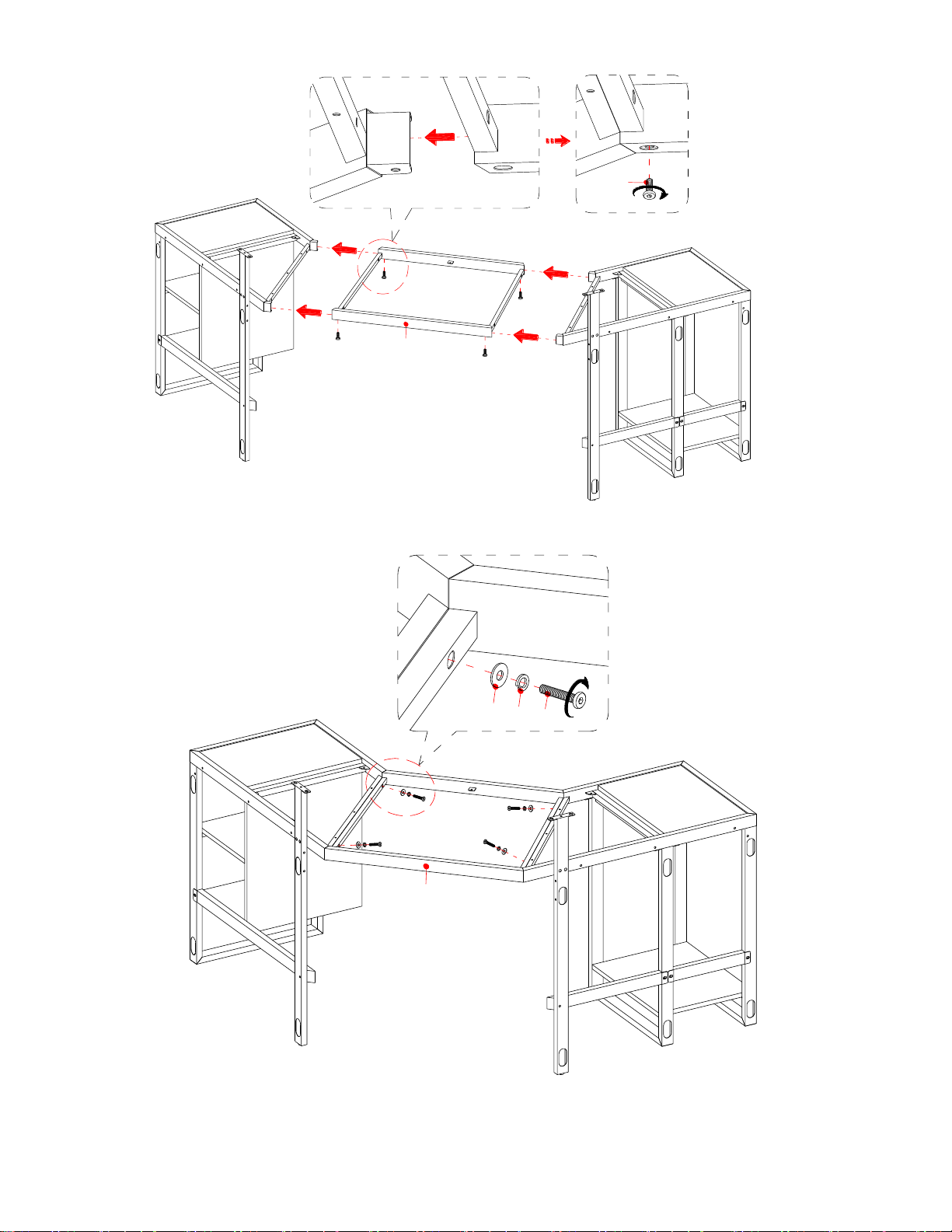

19. Fit the Corner Top Frame (B) onto the U-shaped brackets on the Top Frames (A and C) and fasten them
into place with four 12 mm Bolts (1).
20. Fasten the Corner Top Frame (B) to the Top Frames (A and C) with four 25 mm Bolts (2) and four
Washers (4 and 5).
C
A
B
A/C B
1
B
C
A
542
A/C B

18
B
A
C
T
U
Corner Assembling

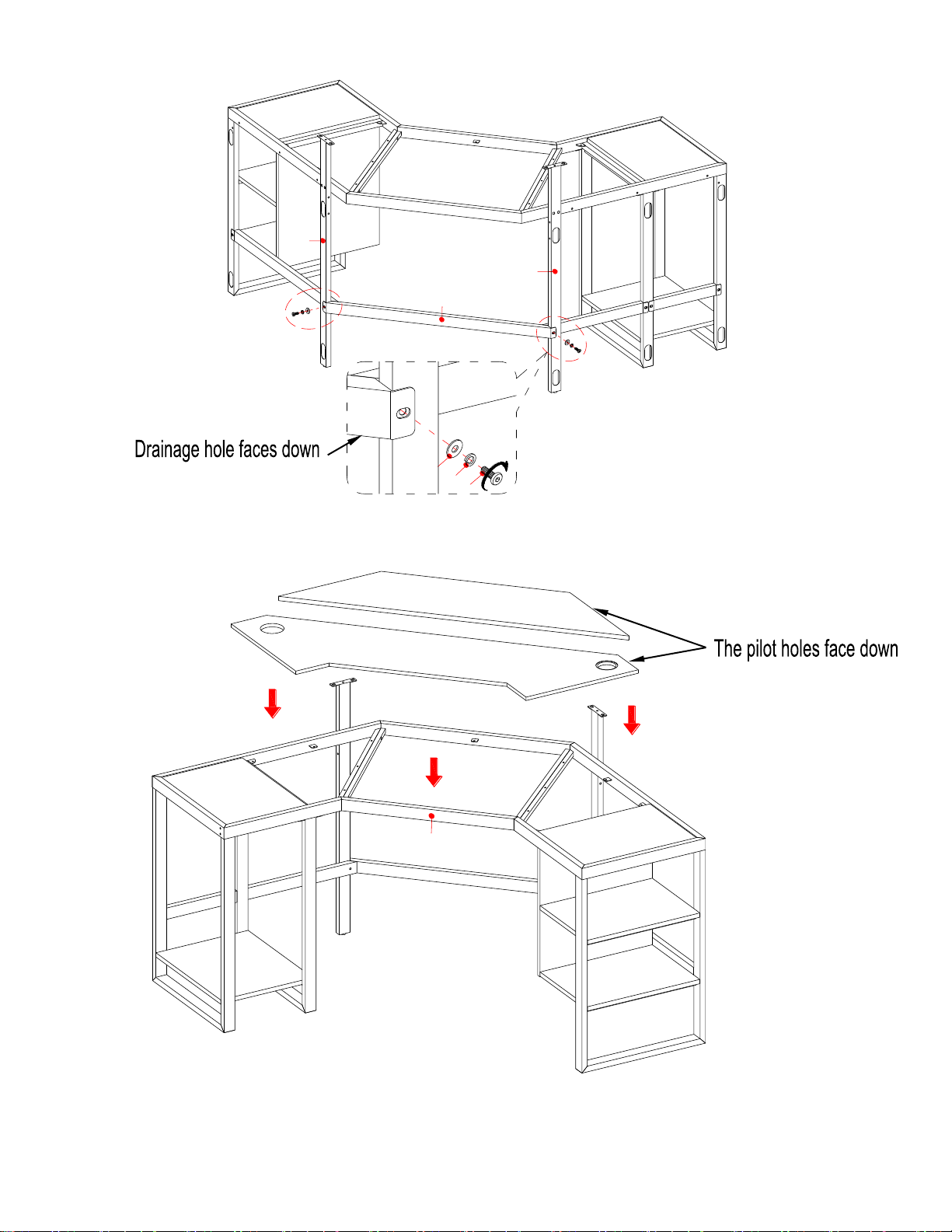

21. Attach the Middle Back Stretcher (J) to the Left and Right Posts (L and M) with two 12 mm Bolts (1) and
two Washers (4 and 5).
22. Position the Corner Top Panels (T and U) onto the top of the assembled unit.
M
L
541
L/M
J
J

19
Corner Assembling

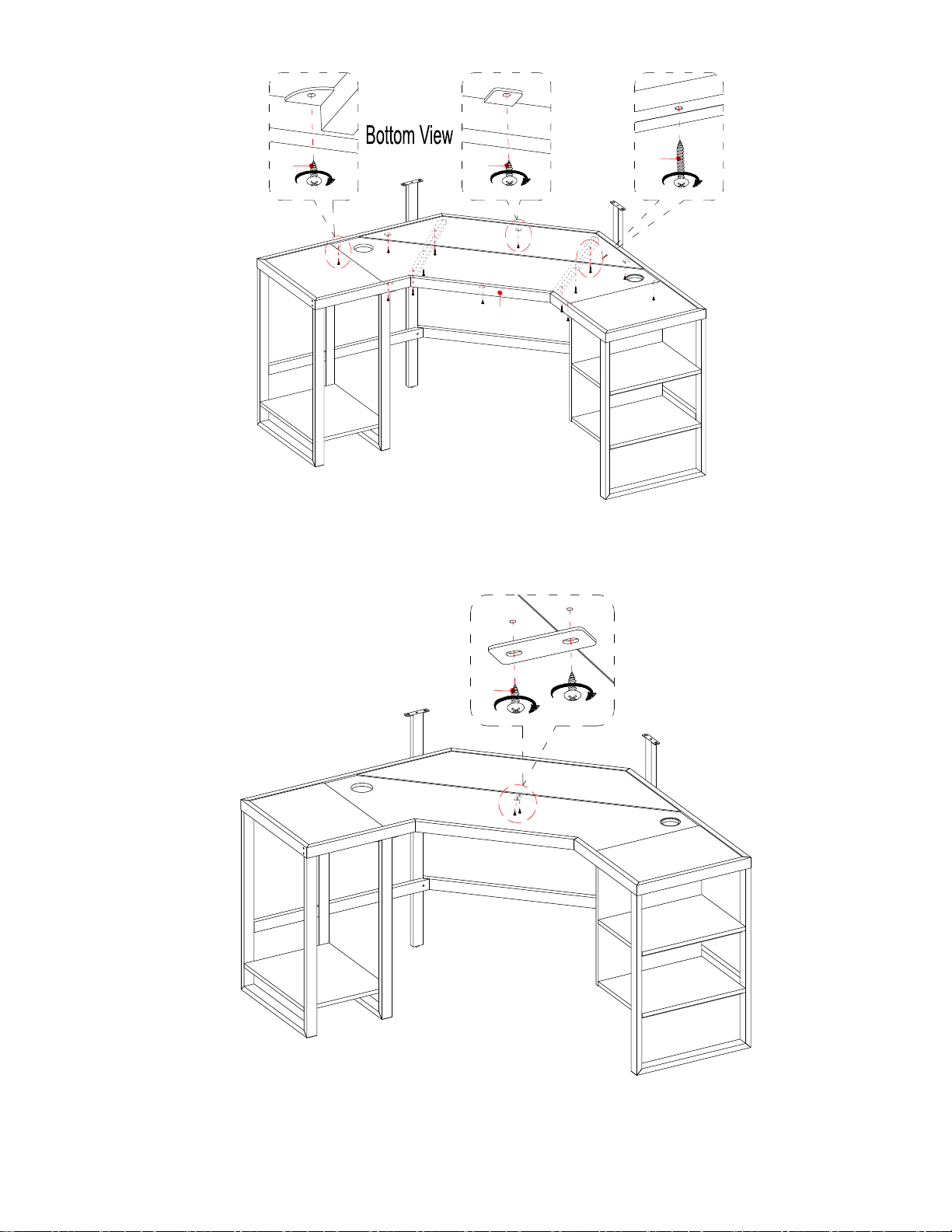

23. Fasten the Corner Top Panels (T and U) to the rails of Top Frames (A and C) with six 25 mm Screws
(12).
24. Secure the Corner Top Panels (T and U) to the metal tabs with eight 12 mm Screws (11).
25. Using the pilot holes as a guide, Attach the Metal Bracket (13) in place with two 12 mm Screws (11).
B
A
C
T
U
11 11 12
A/C
T
U
11
13
UT

20
Corner Assembling
26. Using the pilot holes as a guide, Attach two Cord Clips (14) to the Top Panels (T and U) with two 12
mm Screws (11) in each.

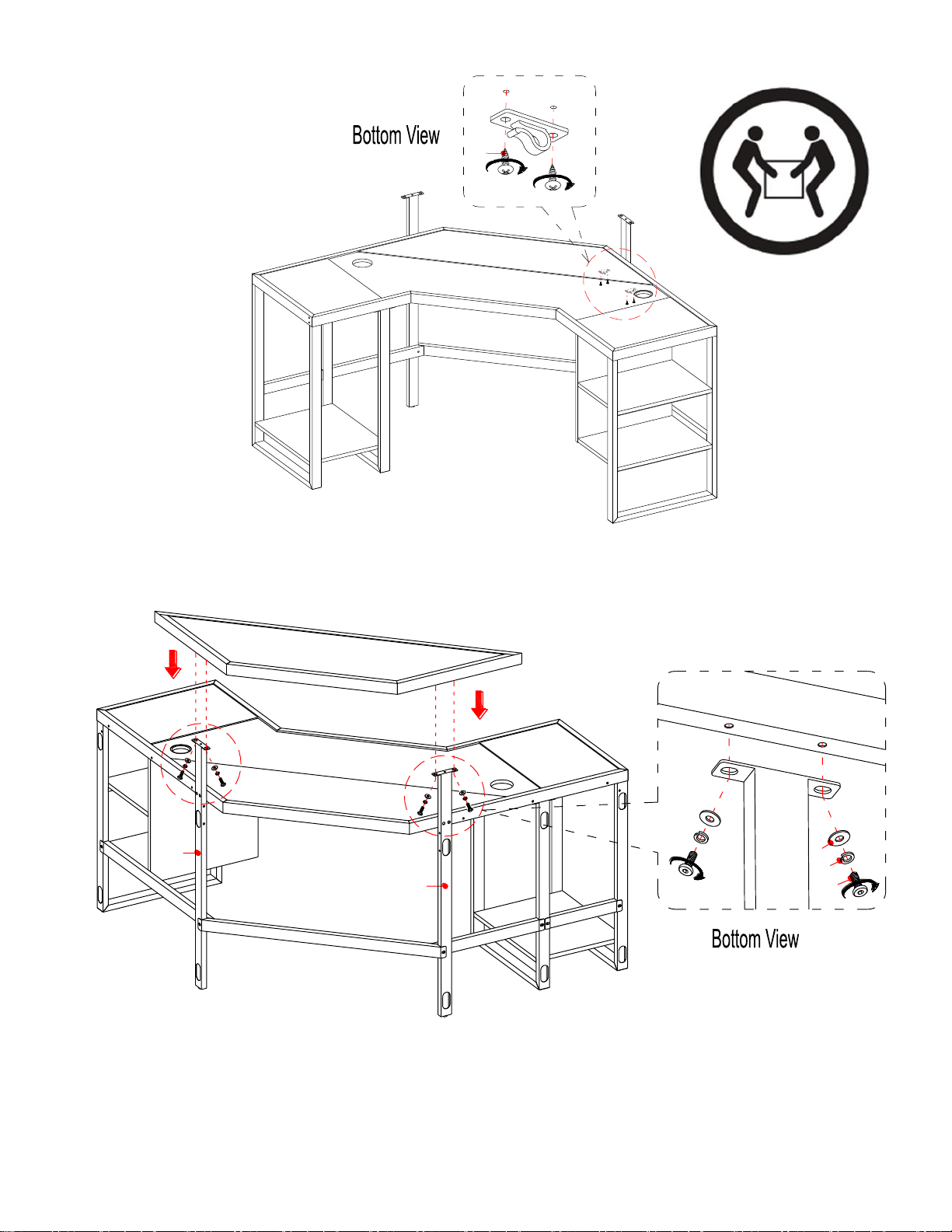

27. Attach the Hutch Top (G) to the Left and Right Posts (L and M) with four 12 mm Bolts (1) and four
Washers (4 and 5).
T
U
11
14
T/U
M
L
G
L/M
G
541
