Whalen AVCBEC60-SMB User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2016-11-02 Rev. 0001-B Factory: KONRIC
TV Console
Model # AVCBEC60-SMB
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenfurniture.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASE
D
:
/
/

2
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: TV Console (AVCBEC60-SMB)
MADE IN CHINA
How to adjust the European adjustable hinges on doors
Shipping may cause doors to go out of alignment. If you find that the doors need to be adjusted slightly,
turn the appropriate screw, as illustrated.
1. TO ADJUST DOOR FORWARD OR BACKWARD.
2. TO ADJUST DOOR TO RIGHT OR TO LEFT.
3. TO ADJUST DOOR UP OR DOWN.
MAXIMUM RECOMMENDED WEIGHT LOADS
12
3
MAXIMUM LOAD 50 lb. (22.6 kg)
FITS UP TO MOST 70” FLAT PANEL TVs
MAXIMUM LOAD 135 lb. (61.2 kg)
PLACE TV BEHIND THE STOPPER
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH
FLAT PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND
WEIGHT LIMITS. NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL
TVS OR EQUIPMENT. TO AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTER OF
THE UNIT; THE BASE OF THE TELEVISION MUST BE ABLE TO REST ON THE SUPPORTING
SURFACE OF THE UNIT WITHOUT OVER-HANGING THE EDGES. IMPROPERLY POSITIONED
FLAT PANEL TVS, OR FLAT PANEL TVS INCLUDING OTHER EQUIPMENT THAT EXCEED
RECOMMENDED SIZE AND WEIGHT LIMITS COULD FALL OFF OR BREAK THE UNIT,
CAUSING POSSIBLE SERIOUS INJURY.

3
IMPORTANT
Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-
abrasive surface. You will need the parts identified on page 4 of this instruction manual.

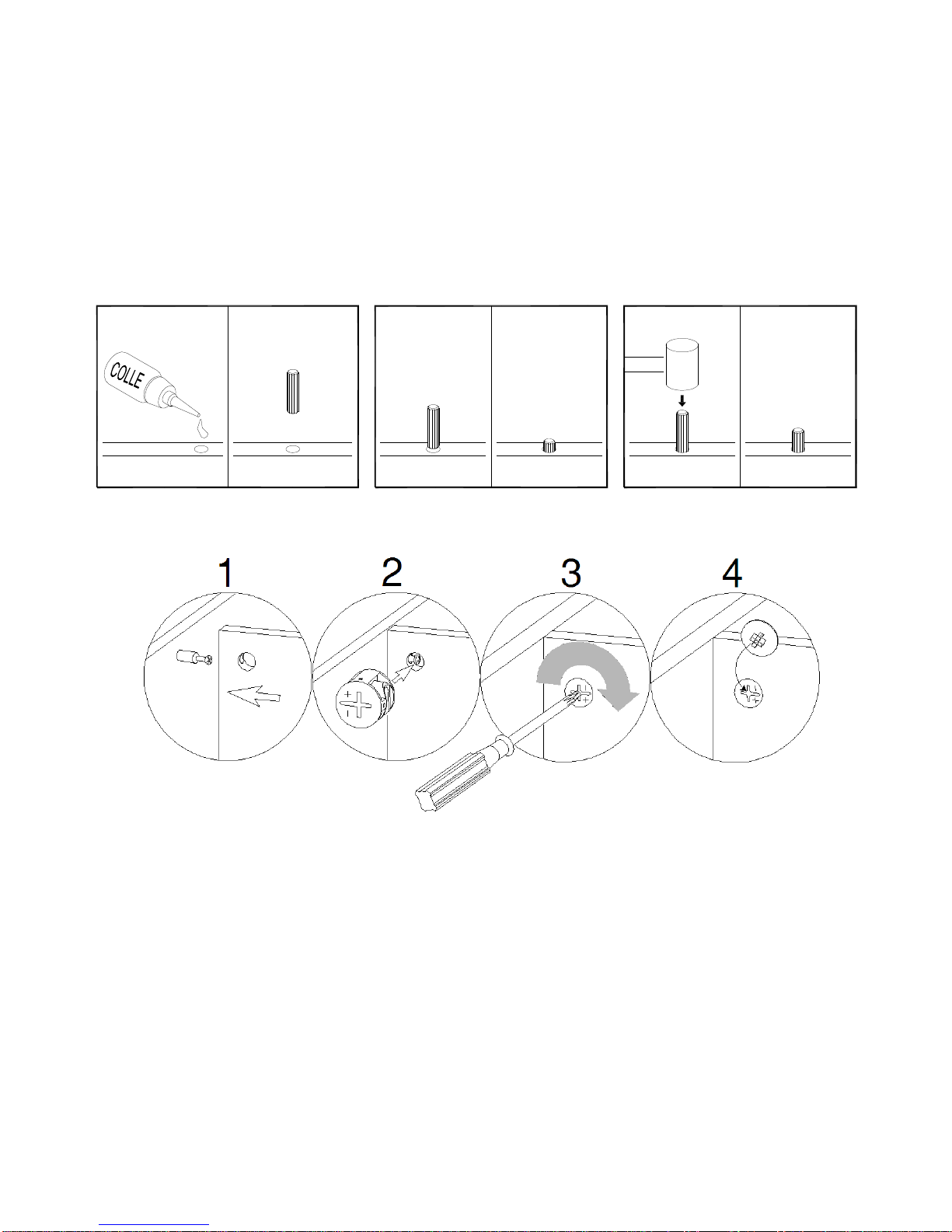

NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH DOWELS. EXCESS GLUE CAN BE WIPED OFF
WITH DAMP CLOTH.
Insert Dowel at least half way by tapping lightly with a rubber mallet, IF NECESSARY.
CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw the Cam Bolt into the threaded inserts on the panel. Connect both panels together; making sure Cam
Bolt goes into the pre-drilled hole on the end of panel for Cam Lock.
2. Insert the Cam Lock into the pre-drilled large hole on the panel. Make sure the arrow on the face of Cam
Lock faces out and points towards Cam Bolt.
3. Take a Phillips screwdriver and rotate the Cam Lock clockwise to lock the Cam Bolt in place.
4. Plug the Cam Lock Cover into the cross slot of the Cam Lock to conceal the Cam.
You are now ready to assemble the KD unit.
XX
FINAL
1 2 43

4

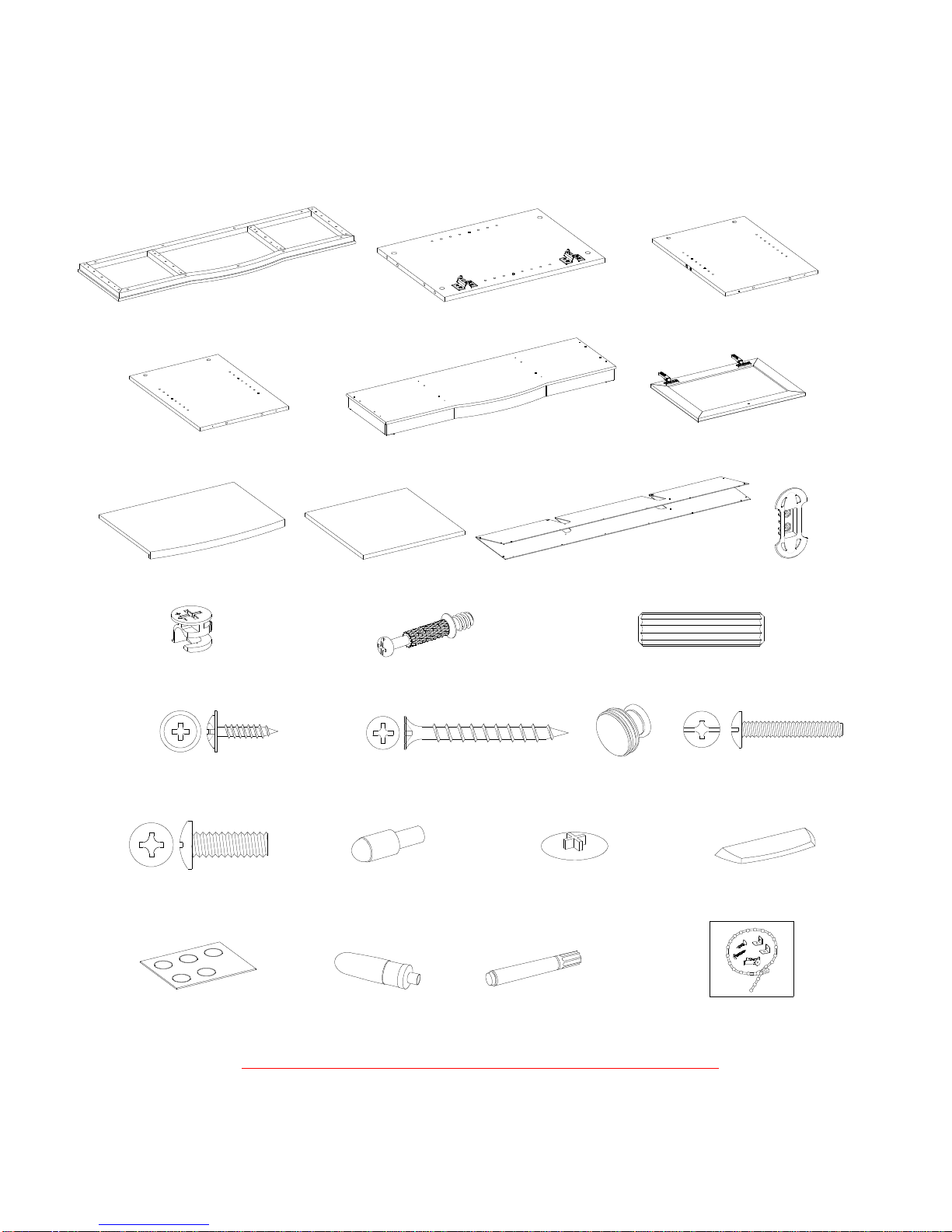

Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware are present
before beginning assembly.
A- Top Panel (1) B- Side Panel (2) C- Left Partition Panel (1)
D- Right Partition Panel (1) E- Base (1) F- Door (2)
G- Large Adjustable Shelf (2) H- Small Adjustable Shelf (4) I- Back Panel (1) J- Cable Wheel (2)
(1) Cam Lock (12+1 extra) (2) Cam Bolt (12+1 extra) (3) M8 x 30 mm Wood Dowel (16+1 extra)
(4) M3.5 x 16 mm Washer Head Screw (5) M4 x 40 mm Wood Screw (6) Knob (7) Knob Bolt
(24+1 extra) (4+1 extra) (2) (2)
(8) Ø1/4" x 3/4" Bolt (9) Shelf Pin (10) Cam Lock Cover (11) Acrylic Stopper
(4+1 extra) (24+1 extra) (12+1 extra) (1)
(12) Rubber Pad Glue Touch-up Pen Tipping Restraint Hardware Kit (2)
(4+1 extra) (1) (1) (Included in plastic bag)
Tools required: Phillips screwdriver and Hammer (not provided).

5
Assembly Instructions
1. Unpack the unit and confirm that you have all the hardware and required parts. Assembly the unit on a
carpeted floor or the empty carton to avoid any scratch.
2. Securely screw the Cam Bolts (2) into the designated small holes on the Top Panel (A) and the Base (E)
with a Phillips screwdriver, as shown in the illustration.
NOTE: Screw-in cam bolts must be screwed down flush.
Cam Bolt
(12 used in this step)
②
2
A/E
A
E

6
Assembly Instructions

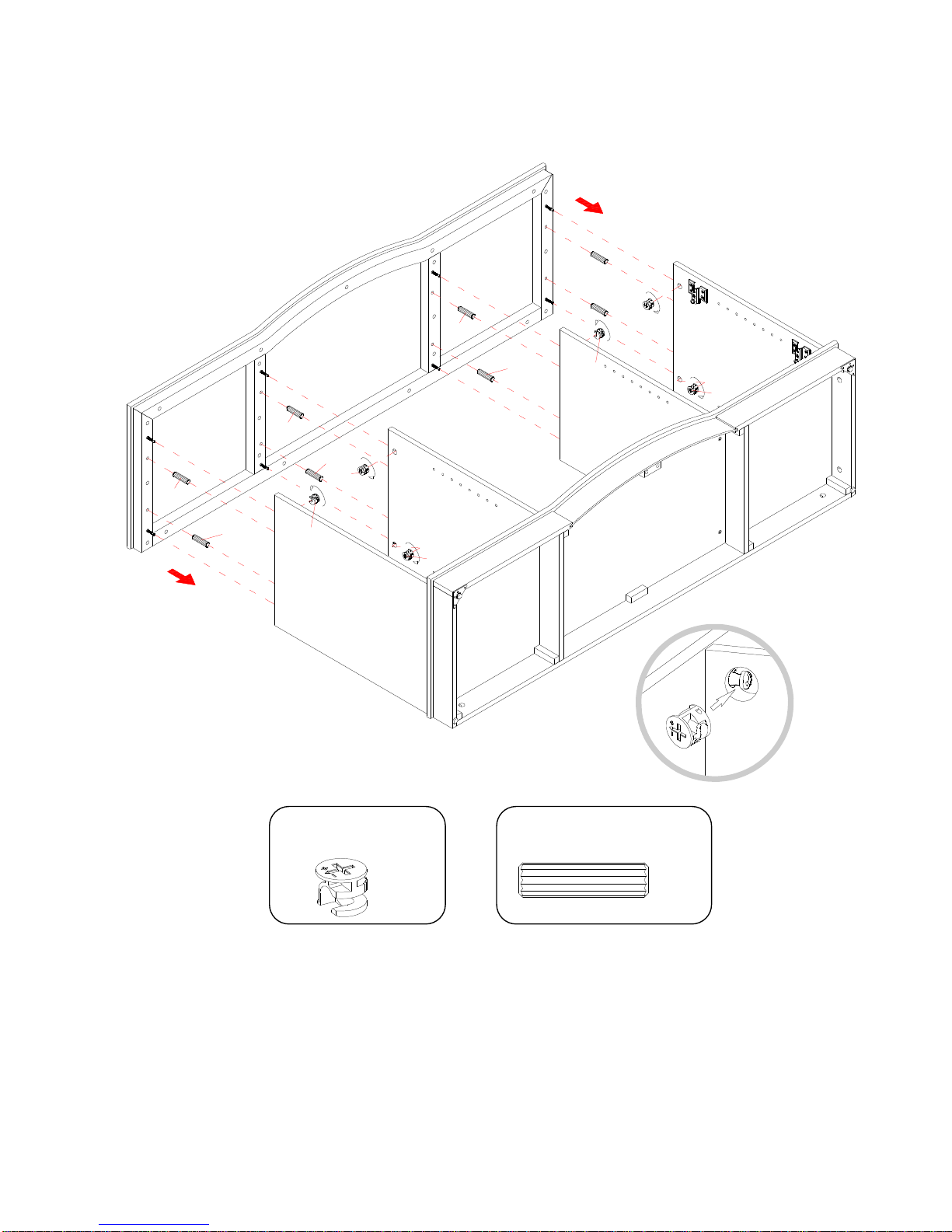

3. Insert two Wood Dowels (3) into the inner end holes of each Side Panel (B). Tap in with a rubber mallet,
if necessary. Make sure that you use a small amount of glue with both ends of all dowels.
NOTE: It is very important to use a small mount of glue on both ends of dowels.
4. Align the large holes on the Base (E) with the inserted Wood Dowels (3) on one Side Panel (B), then
press them together. Make sure that the slot on the hinge base will face toward the same direction as the
front of the Base. Secure the Side Panel (B) in place by engaging two Cam Locks (1) (Refer to page 3
on Cam Lock system operation supplement).
5. Repeat last step to combine the other Side Panel (B) and the Base (E) together.
3
3
1
1
1
E
B
B
M8 x 30 mm Wood Dowel
(4 used in this step)
③
Cam Lock
(4 used in this step)
①

7
Assembly Instructions

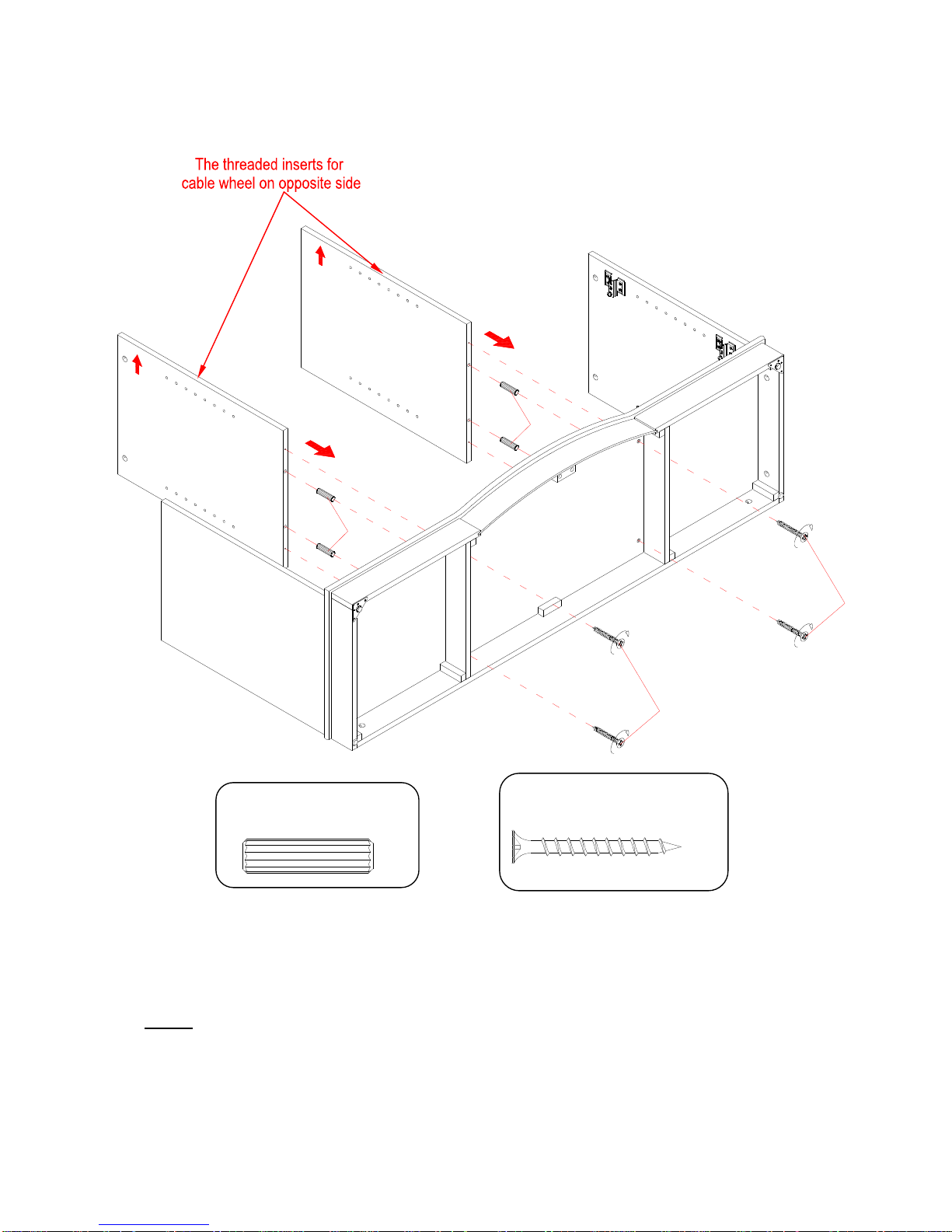

6. Insert two Wood Dowels (3) into the inner holes on the bottom edge of each Partition Panel (C and D)
and fasten them to the Base (E) with four M4 x 40 mm Wood Screws (5), as shown. Make sure the
threaded inserts for Cable Wheel on the Partition Panels (C and D) face the back of the unit.
NOTE: Press the Partition Panels (C and D) to the Base (E) while tightening the screws.
FRONT
E
B
B
C
D
5
5
3
3
FRONT
M4 x 40 mm Wood Screw
(4 used in this step)
⑤
M8 x 30 mm Wood Dowel
(4 used in this step)
③

8
Assembly Instructions
7. Insert eight Wood Dowels (3) into the inner holes on the top edge of Side Panels (B) and Partition
Panels (C and D).
8. Position the Top Panel (A) onto the inserted Wood Dowel (3) making sure the back egde are even with
each other. Attach the Top Panel (A) in place by engaging eight Cam Locks (1). As shown.
1
1
1
3
3
3
3
3
3
B
C
D
B
A
1
1
M8 x 30 mm Wood Dowel
(8 used in this step)
③
Cam Lock
(8 used in this step)
①

9
Assembly Instructions
9. Stand the assembled unit upright.
10. Now, go back and securely tighten all the Cam Locks and Wood Screws. Make sure all the parts are
tight and there are no gaps between the pieces. This will help keep the unit square.
11. Using the pilot holes as a guide, align and attach the Back Panel (I) to the assembled unit by using
twenty-four 16 mm Washer Head Screws (4) through the drilled holes on the Back Panel and screw into
place. Make sure that the overlaps on the panels are even all the way around.
NOTE: We recommend attaching back panel with the screws at the corners first.
4
UP
I
I
I
A
B
B
D
C
A
E
M3.5 x 16 mm Washer Head Screw
(24 used in this step)
④

10
Assembly Instructions

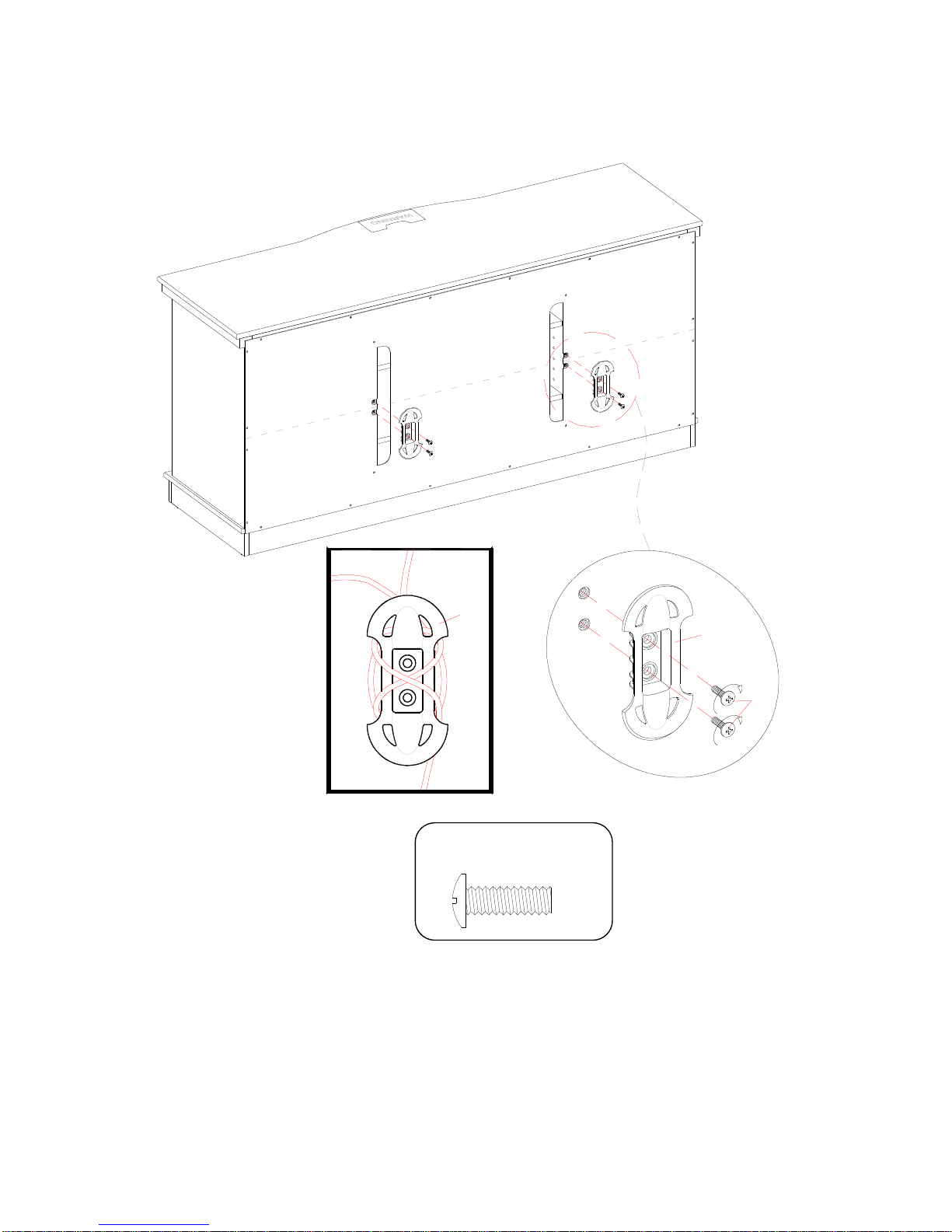

12. Attach two Cable Wheels (J) to the threaded inserts on the back side of Partition Panels (C and D) with
four 3/4” Bolts (8). You can use the Cable Wheels to organize your cables and cords.
Ø1/4" x 3/4" Bolt
(4 used in this step)
⑧
J
8
J
I

11
Assembly Instructions
13. Insert eight Shelf Pins (9) into the desired holes in the sides of each compartment. Make sure you place
the four Shelf Pins in the same level so the shelf is not tilted. Tilt and rest the Shelves (G and H) onto
the Shelf Pins (9) with the finished edge facing front of the unit.
14. Plug the Cam Lock Covers (10) onto the visible Cams Locks to conceal the Cams.
H/G
B/C/D
9
B
C
D
B
A
E
H
H
H
H
G
G
10
Shelf Pin
(24 used in this step)
⑨
Cam Lock Cover
(14 used in this step)
⑩

12
Assembly Instructions

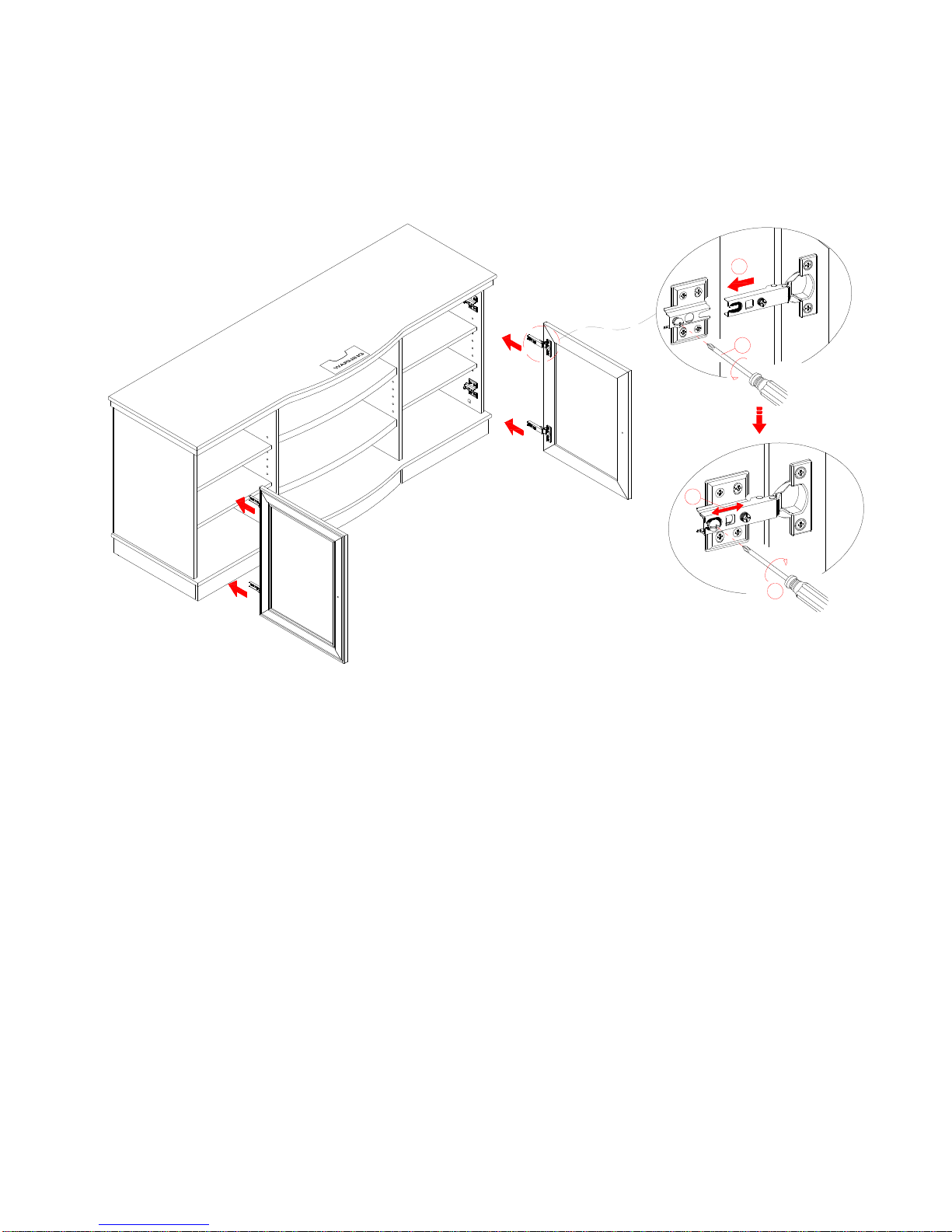

15. Extend the two Hinge Arms that are pre-attached on one Door (F) and attach them to the Hinge Bases
on one Side Panel (B). Loosen the bolt on the back of Hinge Base for an easy fit. Align and insert the
“U” slot on Hinge Arm under the bolt head on the back of Hinge Base. Make sure that both door hinges
engage and function properly. Tighten the bolt on the Hinge Base to lock the hinges in place.
16. Repeat the procedure to attach the other Door (F) to the other Side Panel (B).
17. Open and close the doors to make sure they are aligned and shut correctly. If necessary, adjust the
screws for a good fit. Refer to the hinge sticker on one door frame for adjustment.
1
2
F
B
2
1
F
B
B
B
F
F

13
Assembly Instructions

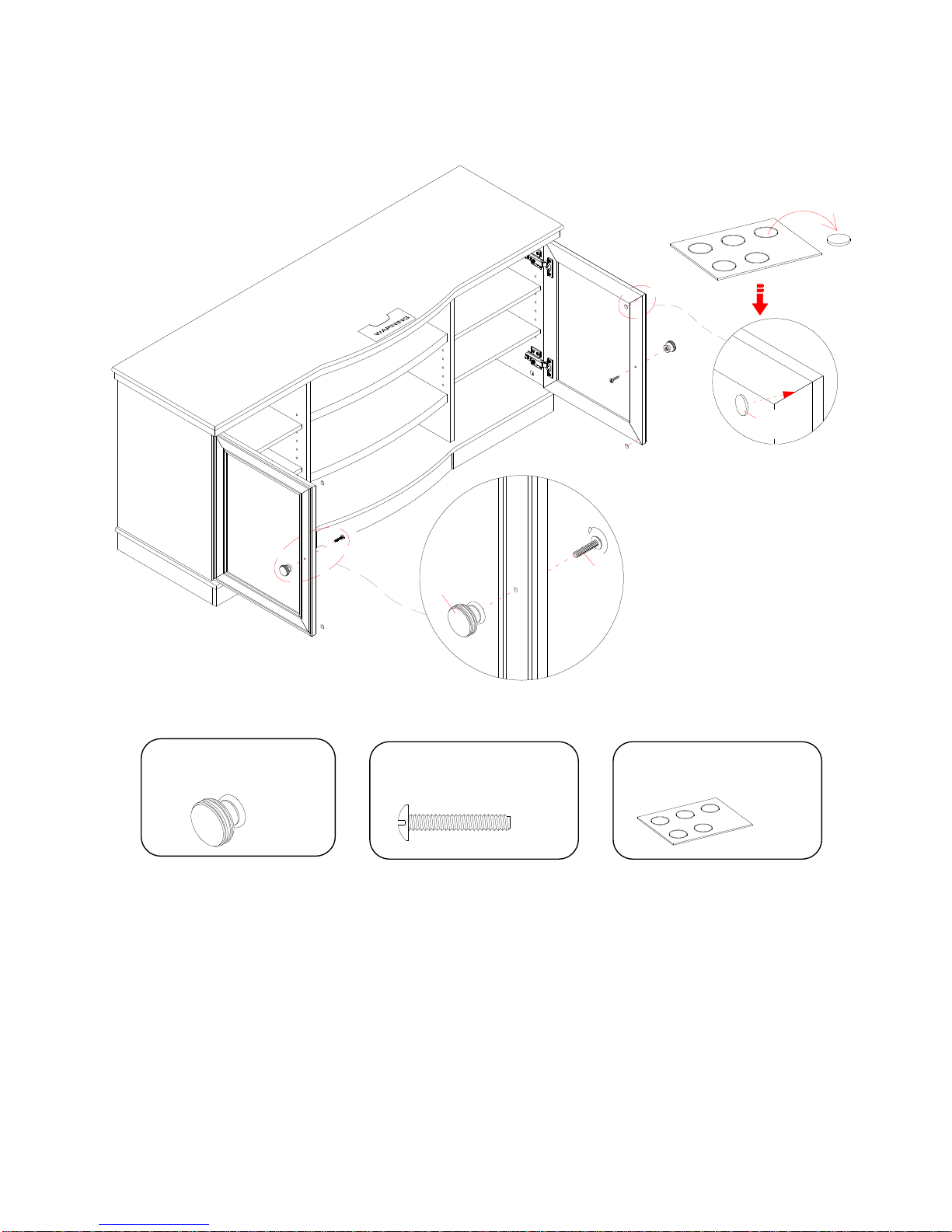

18. Open the doors and attach one Knob (6) to the front side of each door with the provided Knob Bolt (7).
19. Stick two Rubber Pad (12) on the upper and lower corners of Doors (F) as a bumper, as shown. Make
sure that the Rubber Pad (12) will properly hit the Partition Panels.
Knob Bolt
(2 used in this step)
⑦
Knob
(2 used in this step)
⑥
F
F
F7
6
12
F
12
Rubber Pad
(4 used in this step)
⑫

14
Assembly Instructions
NOTE: You must install the Acrylic TV Stopper to prevent the TV from tipping when placing your flat
panel television directly on the console.
20. Remove the paper backing of Acrylic Stopper (11), then properly align the Acrylic Stopper into the
cut-out on the acrylic stopper template on the front of the Top Panel (A). Press down on the Acrylic
Stopper to help adhesion.
21. Carefully remove the acrylic stopper template from the Top Panel (A).
NOTE: When you place the TV on the stand, make sure that the base of the TV is behind the Acrylic
Stopper (11). This will help prevent the TV from sliding off your stand if your stand is accidently
bumped or tipped.
A
A
A
Acrylic Stopper
(1 used in this step)
⑪

15
Assembly Instructions
Tools required: Phillips screwdriver, Power Drill, 3/8” Drill Bit and Rubber Mallet.
22. Position the assembled unit at the desired location against a wall. If necessary, adjust the pre-attached
Floor Levelers at the bottom of the Base (E) to level the unit. Now, follow the instructions printed on
the plastic bag containing the Tipping Restraint Hardware to attach the tip-over restraint to the Table
and the wall.
NOTE: Young children can be seriously injured by tipping furniture. You must install the Tipping
Restraint Hardware with the unit to prevent any accidents or damage to the unit. The tipping restraint is
intended only as a deterrent, they are not a substitute for proper adult supervision. The tipping restraint
is not an earthquake restraint. If you wish to add the extra security of earthquake restraints, they must be
purchased and installed separately.

16
Care and Maintenance
Use a soft, clean cloth that will not scratch the surface when dusting.
Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area.
Using solvents of any kind on your furniture may damage your furniture’s finish.
Never use water to clean your furniture as it may cause damage to the finish.
Always use coasters under beverage glasses and flowerpots.
Liquid spills should be removed immediately. Using a soft clean cloth, blot the spill gently. Avoid rubbing.
Always use protective pads under hot dishes and plates. Heat can cause chemical changes that may create
spotting within the furniture finish.
Stains or marks from crayons or ink markers will be difficult to remove.
In the event that your furniture is stained or otherwise damaged during use, we recommend that you call a
professional to repair your furniture.
Check bolts/screws periodically and tighten them if necessary.
Further Advice about Wood Furniture Care
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and humidity
changes can cause fading, warping, shrinking and splitting of wood. It is advised to keep furniture away from
direct sunlight as sun may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Following these important and helpful
tips will enhance your furniture as it ages.
A Touch-up Pen has been provided to repair any small nicks or scratches that may occur during assembly or
shipping.
We hope you enjoy your purchase for many years.
Thank you for your purchase!
QUALITY GUARANTEE
We are confident that you will be delighted with your Whalen Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal use, we will repair or
replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet
your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary from State to State
(province to province).
Customer Service: 1-866-942-5362
8:30 a.m. - 4:30 p.m. PST, Monday to Friday
www.whalenfurniture.com

CE LIVRET D’INSTRUCTIONS CONTIENT D’IMPORTANTES CONSIGNES DE SÉCURITÉ.
LIRE ET CONSERVER POUR RÉFÉRENCE FUTURE.
Date 2016-11-02 Rév. 0001-B Usine : KONRIC
Console de télévision
Modèle n
o
AVCBEC60-SMB
MONTAGE PAR UN ADULTE REQUIS
Pour toute question sur le montage ou en cas de pièce manquante, NE PAS retourner cet article au point
de vente. Communiquer avec notre service à la clientèle en ayant en main les instructions et la liste des
pièces pour indiquer le nom du modèle, le nom de la pièce ou le numéro d’usine en appelant au :
1-866-942-5362
Heure normale du Pacifique : entre 8 h 30 et 16 h 30, du lundi au vendredi
ou visiter notre site Web 24 heures par jour, 7 jours sur 7, pour obtenir de l’aide à
www.whalenfurniture.com
ou transmettre une demande par courriel à [e-mail]
NUMÉRO DE LOT :
DATE
D’ACHAT
:
/
/

2
FABRICANT : Whalen Furniture Manufacturing
CATALOGUE : Console de télévision (AVCBEC60-SMB)
FABRIQUÉ EN CHINE
Ajustement des charnières réglables sur les portes
Lors de l’expédition, les portes peuvent se décentrer. Le cas échéant, tourner la vis concernée tel
qu’illustré plus bas.
1. POUR AJUSTER LA PORTE VERS L’AVANT OU
L’ARRIÈRE.
2. POUR AJUSTER LA PORTE À DROITE OU À
GAUCHE.
3. POUR AJUSTER LA PORTE EN HAUT OU EN BAS.
CHARGE MAXIMALE RECOMMANDÉE
CHARGE MAXIMALE 22,6 KG (50 lb)
CONVIENT À LA PLUPART DES ÉCRANS
PLATS JUSQU’À 70 PO
CHARGE MAXIMALE 61,2 KG (135 lb)
PLACER L’ÉCRAN DERRIÈRE LE BUTOIR
12
3
CETTE UNITÉ N’EST PAS DESTINÉE AUX TÉLÉVISEURS CRT. UTILISER
UNIQUEMENT AVEC LES TÉLÉVISEURS À ÉCRAN PLAT ET ÉQUIPEMENTS AUDIO ET VIDÉO
RESPECTANT LES LIMITES DE FORMAT ET DE POIDS. NE JAMAIS UTILISER AVEC DES
TÉLÉVISEURS À ÉCRAN PLAT OU ÉQUIPEMENTS PLUS GRANDS OU PLUS LOURDS QUE CEUX
RECOMMANDÉS. POUR ÉVITER L’INSTABILITÉ, PLACER LE TÉLÉVISEUR À ÉCRAN PLAT AU
CENTRE DE L’UNITÉ. LA BASE DU TÉLÉVISEUR DOIT REPOSER SUR LA SURFACE DE SOUTIEN
DE L’UNITÉ SANS DÉPASSER LES BORDS. LES TÉLÉVISEURS À ÉCRAN PLAT MAL POSITIONNÉS
OU LES TÉLÉVISEURS À ÉCRAN PLAT INCLUS AUTRES ÉQUIPEMENTS EXCÉDANT LES LIMITES
DE FORMAT ET DE POIDS RECOMMANDÉES POURRAIENT TOMBER OU BRISER L’UNITÉ,
CAUSANT DES BLESSURES GRAVES.

3
IMPORTANT
Avant de débuter : déballer, identifier et compter toutes les pièces avant le montage. Étendre les pièces sur une
surface plane et non abrasive. Les pièces identifiées en page 4 de ce livret seront requises.
REMARQUE : IL EST TRÈS IMPORTANT D’UTILISER DE LA COLLE AVEC LES GOUJONS. LE
SURPLUS DE COLLE PEUT ÊTRE ESSUYÉ AVEC UN LINGE HUMIDE.
Insérer les goujons au moins à moitié en les frappant légèrement avec un maillet en caoutchouc, SI NÉCESSAIRE.
FONCTIONNEMENT DU SYSTÈME À CAME
FONCTIONNEMENT DU SYSTÈME DE BLOCAGE
1. Visser le boulon à came dans la douille taraudée du panneau. Relier les deux panneaux ensemble en
s’assurant que le boulon à came s’insère dans le trou percé à l’extrémité du panneau pour la came.
2. Insérer la came dans le grand trou percé sur le panneau. S’assurer que la flèche sur le devant de la came soit
à l’extérieur et orienté vers le boulon à came.
3. Avec un tournevis à pointe cruciforme, faire tourner la came dans le sens des aiguilles d’une montre pour
bloquer le boulon à came en place.
4. Enfoncer le capuchon à came dans le sillon en X de la came pour la dissimuler.
Il est maintenant temps d’assembler l’unité.
XX
FINAL
1 2 43
co

4
Liste des pièces et de la quincaillerie
Lire toutes les instructions et s’assurer d’avoir toutes les pièces et la quincaillerie mentionnées avant de
débuter le montage.
A- Panneau supérieur (1) B- Panneau latéral (2) C- Cloison gauche (1)
D- Cloison droite (1) E- Base (1) F- Porte (2)
G- Grande tablette réglable (2) H- Petite tablette réglable (4) I- Panneau arrière (1) J- Support de câblage (2)
(1) Came (12+1 extra) (2) Boulon à came (12+1 extra) (3) Goujon de bois M8 x 30 mm (16+1 extra)
(4) Vis rondelle M3,5 x 16 mm (5) Vis M4 x 40 mm (6) Bouton (7) Boulon de bouton
(24+1 extra) (4+1 extra) (2) (2)
(8)Boulon ؼ po x ¾ po (9) Taquet de tablette (10) Capuchon de came (11) Butoir en acrylique
(4+1 extra) (24+1 extra) (12+1 extra) (1)
(12) Coussinet de caoutchouc
Colle Crayon à retouche Trousse antibascule (2)
(4+1 extra) (1) (1) (dans un sac de plastique)
Outils requis : tournevis à pointe cruciforme et marteau (non fournis).
