Whalen XLCD-15 User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2017-03-23 Rev. 0001-B Factory: FOCIDI
3-in-1TM TV Cabinet
Model # XLCD-15
U.S. Patents 8,079,311 & 8,191,485
This item is designed to be a 3-in-1 configuration. Please choose the option that best suits your
needs. DO NOT discard any of the hardware or parts that you will not use on your chosen option.
This will allow you to use this TV Console in different configurations at a later date, if desired.
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to
the store where it was purchased. Please call our toll-free customer service number and have
your instructions and parts list ready to provide the model name, part name or factory number:
866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenstyle.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASED: / /

2
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: 3-in-1
TM
TV Cabinet (XLCD-15)
MADE IN CHINA
How to adjust the European adjustable hinges on doors
Shipping may cause doors to go out of alignment. If you find that the doors need to be
adjusted slightly, turn the appropriate screw, as illustrated.
1. TO ADJUST THE DOOR FORWARD OR
BACKWARD.
2. TO ADJUST THE DOOR TO RIGHT OR
TO LEFT.
3. TO ADJUST DOOR UP OR DOWN.
MAXIMUM RECOMMENDED WEIGHT LOADS
FITS UP TO MOST 55” FLAT PANEL TVs
MAXIMUM LOAD 135 lb. (61.2 kg)
FITS UP TO MOST 55” FLAT PANEL TVs
WITHOUT SWIVELING BRACKET
MAXIMUM LOAD 135 lb. (61.2 kg)
MAXIMUM LOAD 50 lb. (22.6 kg)
PLACE TV BEHIND THE STOPPER
THIS UNIT IS NOT INTENDED FOR USEWITH CRT TVS. USE ONLY WITH FLAT
PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND WEIGHT
LIMITS. NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL TVS OR
EQUIPMENT. TO AVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTRE OF THE UNIT; THE
BASE OF THE TELEVISION MUST BE ABLE TO REST ON THE SUPPORTING SURFACE OF
THE UNIT WITHOUT OVER-HANGING THE EDGES. IMPROPERLY POSITIONED FLAT PANEL
TVS, OR FLAT PANEL TVS INCLUDING OTHER EQUIPMENT THAT EXCEED RECOMMENDED
SIZE AND WEIGHT LIMITS COULD FALL OFF OR BREAK THE UNIT, CAUSING POSSIBLE
SERIOUS INJURY.

3

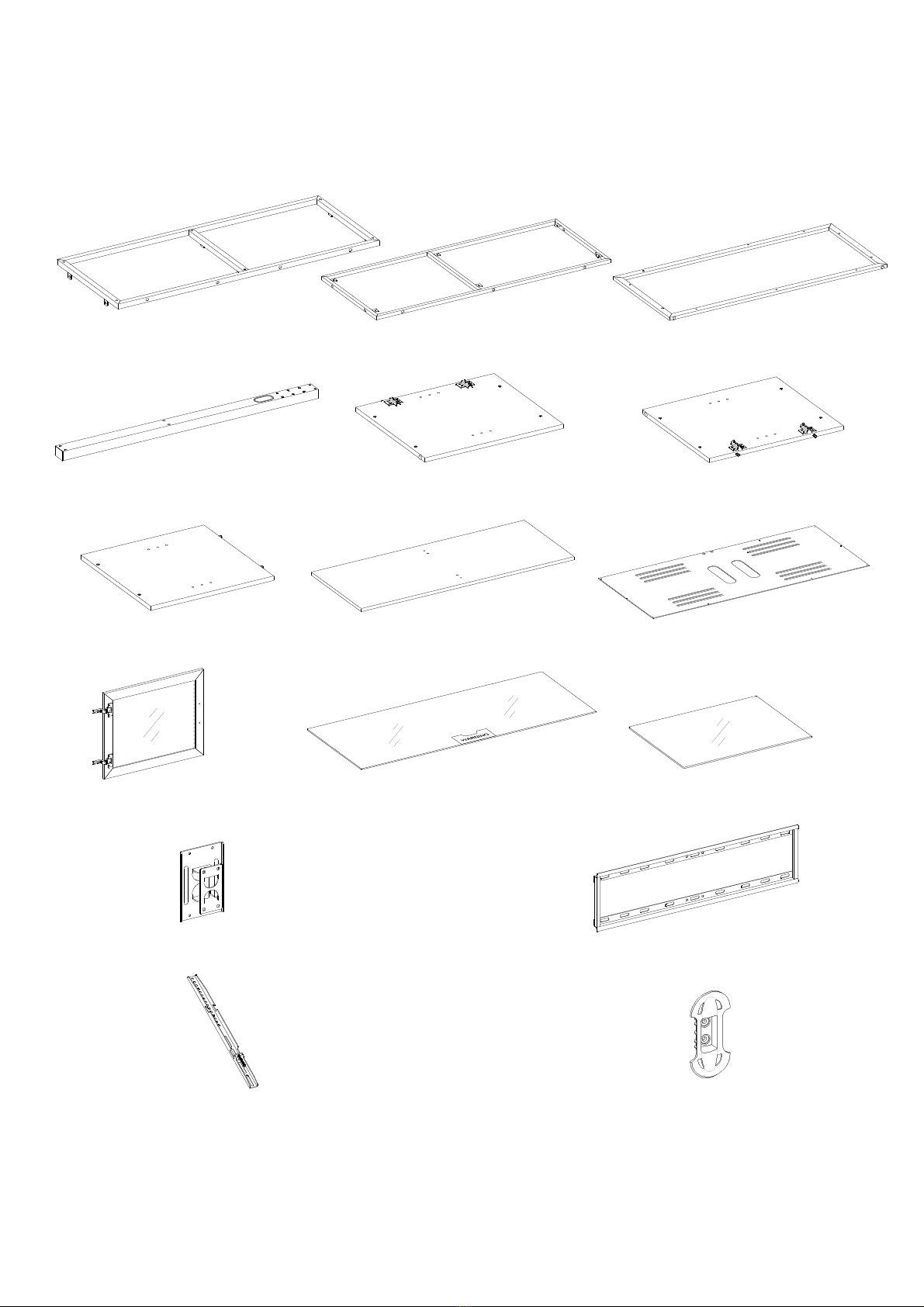

Parts and Hardware List
Please read completely through the instructions and verify that all parts listed are present
before beginning assembly.
A- TOP SHELF FRAME (1) B- BOTTOM METAL FRAME (1) C- FRONT FRAME (1)
D- SPINE (1) E- LEFT SIDE PANEL (1) F- RIGHT SIDE PANEL (1)
G- DIVIDER PANEL (1) H- BOTTOM PANEL (1) I- BACK PANEL (1)
J- DOOR PANEL (2) K- TOP GLASS (1) L- ADJUSTABLE GLASS SHELF (2)
M- SWIVELING BRACKET (1) N- MOUNTING FRAME (1)
O- MONITOR BRACKET (2) P- CABLE WHEEL (2)

4
Parts and Hardware List
Please read completely through the instructions and verify that all parts listed are present
before beginning assembly.
(1) SUCTION CUP (6+1 extra) (2) 1/2” BOLT (4+1 extra) (3) 5/8” BOLT (14+1 extra)
(4) 1” BOLT (7+1 extra) (5) 1-1/4” BOLT (4+1 extra) (6) 2-1/4” BOLT (4+1 extra)
(7) LOCK WASHER (8) FLAT WASHER (9) 2” SCREW
(22+1 extra) (22+1 extra) (2+1 extra)
(10) 1/2” SCREW (11) SHELF SUPPORT (12) CONCRETE ANCHOR
(16+1 extra) (8+1 extra) (4)
(13) 2-1/2” LAG BOLT (4) (14) LARGE FLAT WASHER (4+1 extra) (15) ACRYLIC STOPPER (1)
(16) HANDLE w/BOLTS (2) 4 mm HEX WRENCH (2)
TOUCH-UP PEN (1) TIPPING RESTRAINT HARDWARE KIT (1)
(Inside Plastic Bag)

5
TV Mounting Kit
M4 x 12 BOLT (4) M4 x 30 BOLT (4) M5 x 12 BOLT (4) M5 x 30 BOLT (4)
M6 x 12 BOLT (4) M6 x 35 BOLT (4) M8 x 16 BOLT (4) M8 x 40 BOLT (4)
M4 LOCK WASHER (4) M5 LOCK WASHER (4) M6 LOCK WASHER (4) M8 LOCK WASHER (4)
LARGE SPACER (4) SMALL SPACER (4) M4/M5 FLAT WASHER (8) M6/M8 FLAT WASHER (4)
Tools required: Hex wrench (provided) and Phillips screwdriver (not provided).

6
Assembly Instructions
NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled,
go back and fully tighten all bolts. This will make the assembly easier.
1. Locate the FRONT FRAME (C) and place it on a scratch free surface with the threaded
sockets facing up, as shown above.
2. Fasten the TOP SHELF FRAME (A) to the FRONT FRAME (C) using four 1-1/4” BOLTS (5)
with LOCK WASHERS (7) and FLAT WASHERS (8). Make sure that the metal brackets on
the TOP SHELF FRAME (A) and the Floor Levelers on the FRONT FRAME (C) point towards
the same direction.
3. Fasten the BOTTOM METAL FRAME (B) to the FRONT FRAME (C) with the metal tabs up.
Use three 1” BOLTS (4) and tighten with the provided HEX WRENCH.
A
B
C
C
UP
LOCK WASHER
(4 used in this step)
⑦
FLAT WASHER
(4 used in this step)
⑧
1” BOLT
(3 used in this step)
④
1-1/4” BOLT
(4 used in this step)
⑤

7
Assembly Instructions

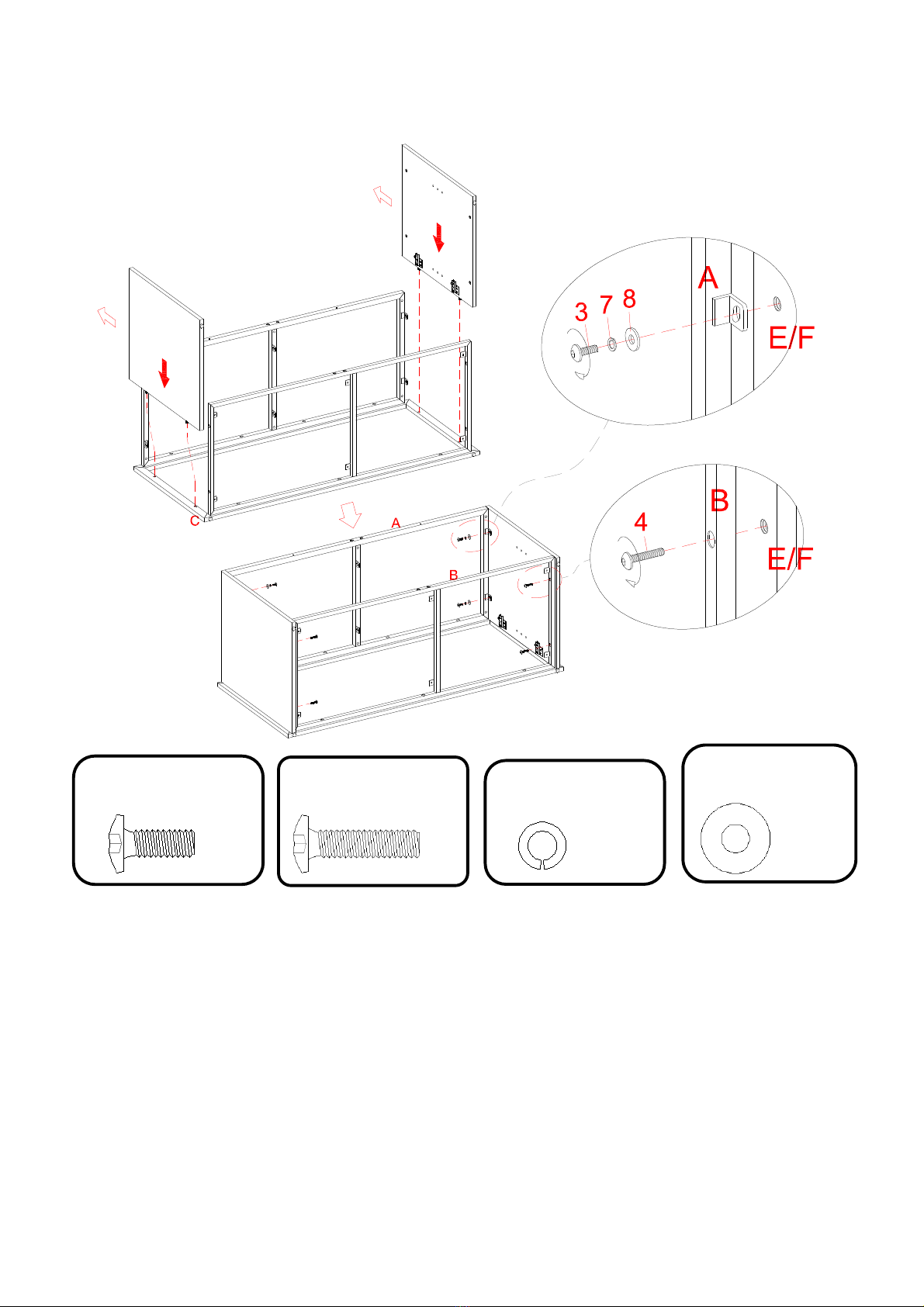

4. Align the end wood dowels on the LEFT SIDE PANEL (E) with the pre-drilled holes of the
FRONT FRAME (C) and press them together. Make sure the top edges are even with each
other and the Hinge Bases face inward. Securely screw two 5/8” BOLTS (3) with WASHERS
(7 and 8) through the metal brackets on the TOP SHELF FRAME (A) and then into the
threaded inserts on the LEFT SIDE PANEL (E).
5. Secure the LEFT SIDE PANEL (E) to the BOTTOM METAL FRAME (B) with two 1” BOLTS (4).
Tighten all the bolts with the HEX WRENCH provided making sure there are no gaps between
the Left Side Panel (E) and Front Frame (C).
6. Repeat the same procedure to attach the RIGHT SIDE PANEL (F) on the other side.
FLAT WASHER
(4 used in this step)
⑧
LOCK WASHER
(4 used in this step)
⑦
1” BOLT
(4 used in this step)
④
5/8” BOLT
(4 used in this step)
③
UP
UP F
E
F
E
B
A

8
Assembly Instructions
7. Using the end dowels as a guide, align and attach the DIVIDER PANEL (G) to the BOTTOM
PANEL (H) using two 2” SCREWS (9). Tighten the screws with a Phillips screwdriver.
9
H
G
2” SCREW
(2 used in this step)
⑨

9
Assembly Instructions
8. Align and attach the last assembly to the assembled frame. Insert and screw two 5/8” BOLTS (3)
with WASHERS (7 and 8) through the metal brackets on the middle rail of the TOP SHELF
FRAME (A) into the DIVIDER PANEL (G).
9. Fasten the BOTTOM PANEL (H) to the BOTTOM METAL FRAME (B) using six 1/2” SCREWS
(10) through the metal tabs.
FLAT WASHER
(2 used in this step)
⑧
LOCK WASHER
(2 used in this step)
⑦
1/2” SCREW
(6 used in this step)
⑩
5/8” BOLT
(2 used in this step)
③
H
G
H
G

10
H
I
10
Assembly Instructions
10.Now, go back and tighten all the BOLTS and SCREWS. Make sure all the parts are tight and
there are no gaps between the parts. This will help keep the unit square.
11.Position the BACK PANEL (I) to the back edges of the assembled frame so that the pre-drilled
holes for the SPINE (D) overlap the threaded sockets on the TOP SHELF FRAME (A). Using the
pre-drill holes on the BACK PANEL (I) as a guide when attaching with the 1/2” SCREWS (10).
NOTE: We recommend attaching the back panel with the 1/2” SCREWS at the corners first.
1/2” SCREW
(10 used in this step)
⑩

11
Assembly Instructions
12.Stand the unit upright.
13.Extend the Hinge Arms pre-attached on one DOOR PANEL (J) and attach to the Hinge Bases on
the RIGHT SIDE PANEL (F). Align and insert the “U” slot on Hinge Arm under the bolt head on
the Hinge Base. Make sure that both door hinges engage and function properly.
14.Repeat the same procedure to install the other DOOR PANEL (J) to the LEFT SIDE PANEL (E).
15.Close the doors to double check the alignment. If you find that the doors need to be adjusted
slightly, please refer to the supplement on page 2 and turn the appropriate screws for a perfectly
aligned door. Once adjusted, lock the hinges in place by tighten the bolt on Hinge Base.
16.Remove the bolts in the HANDLES (16), and then use the bolts to attach the HANDLES to the
outside of the DOOR PANELS (J).
F
E
J
J
J
E/F
If you choose
the
Table
-
top configurat
ion
,
continue to the next step.
If mounting the TV to the Floating Swivel
Mount, skip ahead to PAGE 15.
HANDLE AND BOLTS
(2 used in this step)
⑯

12
Assembly Instructions for Table-top Console
17.Put the SUCTION CUPS (1) firmly into the top holes of the TOP SHELF FRAME (A).
TIP: If a SUCTION CUP resists insertion, try pressing down on the middle of the cup with the hex
wrench while twisting it clockwise into the hole.
18.Place the TOP GLASS (K) with the black side of the glass shelf down onto the SUCTION CUPS
(1). Make sure the top glass is properly centered.
NOTE: If the top glass is scratched, you can minimize the damage by using a BLACK marker and
filling in the scratched area from underneath.
19.Insert the SHELF SUPPORTS (11) into the desired holes on the SIDE PANELS (E and F) and
DIVIDER PANEL (G). Make sure you place the four SHELF SUPPORTS at the same level so the
shelf is not tilted. Tilt and install the ADJUSTABLE GLASS SHELVES (L) onto the SHELF
SUPPORTS (11).
SUCTION CUP
(6 used in this step)
①
K
L
1
11
11
SHELF SUPPORT
(8 used in this step)
⑪

13
15
15
C
Assembly Instructions for Table-top Console
NOTE: You must install the Acrylic TV Stopper to prevent the TV from tipping when
placing your flat panel television directly on the console.
20.If necessary, adjust the pre-attached FLOOR LEVELERS at the bottom of FRONT FRAME (C) to
level the unit.
21.Remove the tape of the ACRYLIC STOPPER (15) and place it in the cut-out of the ACRYLIC
STOPPER TEMPLATE on the front of the TOP GLASS (K). Make sure it is properly aligned
before applying pressure.
22.Remove the ACRYLIC STOPPER template carefully.
ACRYLIC STOPPER
(1 used in this step)
⑮

14
Assembly Instructions for Table-top Console
Tools required: Hex wrench (provided), Phillips screwdriver, Mallet, Power Drill, and 3/8” Drill Bit.

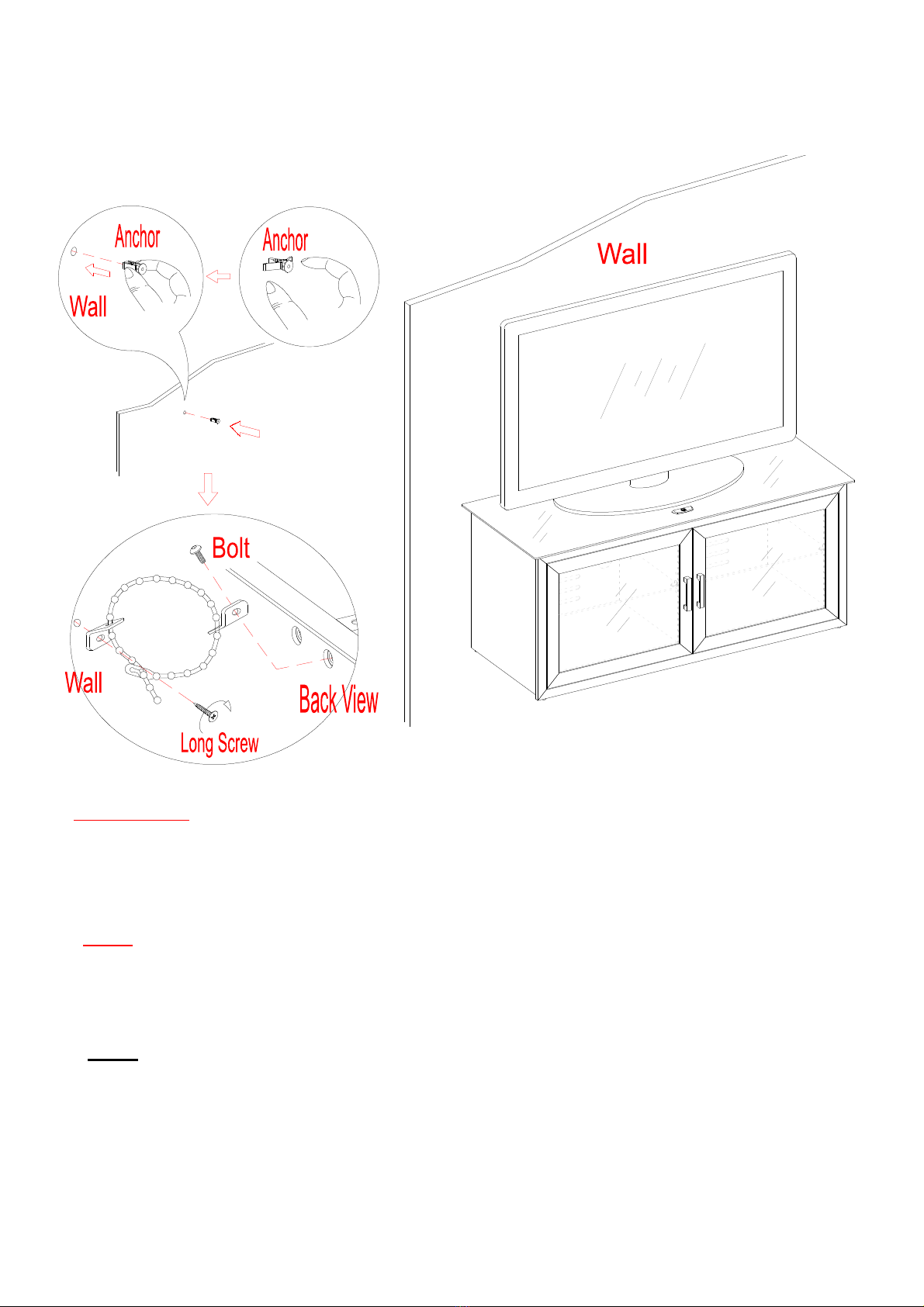

23.Position the assembled console at the desired location against a wall. Now, follow the instructions
printed on the plastic bag containing the TIPPING RESTRAINT HARDWARE to mount the tipping
restraint to the back rail and the wall.
NOTE: YOU MUST USE THIS TIPPING RESTRAINT TO ATTACH THIS UNIT TO THE WALL,
TO PREVENT TIPPING, CAUSING ACCIDENTS AND/OR INJURIES.
24.The console is now ready for use. Be sure to position your Flat Panel TV in the center of the
console, behind the ACRYLIC STOPPER.
NOTE: If you choose the Wall Mounted configuration, proceed to PAGE 23.

15

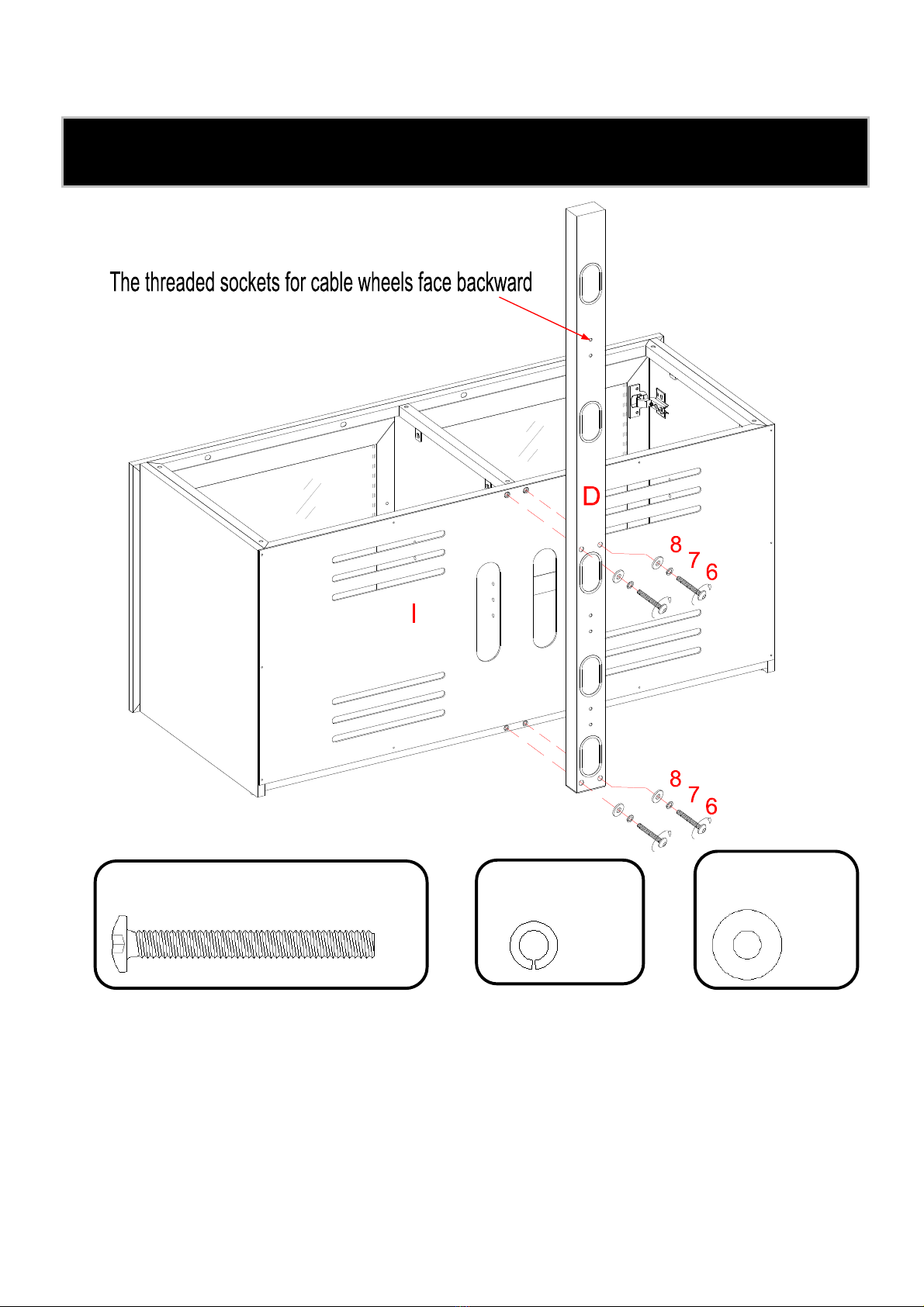

25.Align and attach the SPINE (D) to the back of the console with four 2-1/4” BOLTS (6) and four
WASHERS (7 and 8). Tighten the bolts with the enclosed hex wrench. Make sure the
threaded sockets for the CABLE WHEELS (P) face backward.
Assembly Instructions for
Floating Swivel Mount
LOCK WASHER
(4 used in this step)
⑦
FLAT WASHER
(4 used in this step)
⑧
2-1/4” BOLT
(4 used in this step)
⑥

16
Assembly Instructions for Floating Swivel Mount

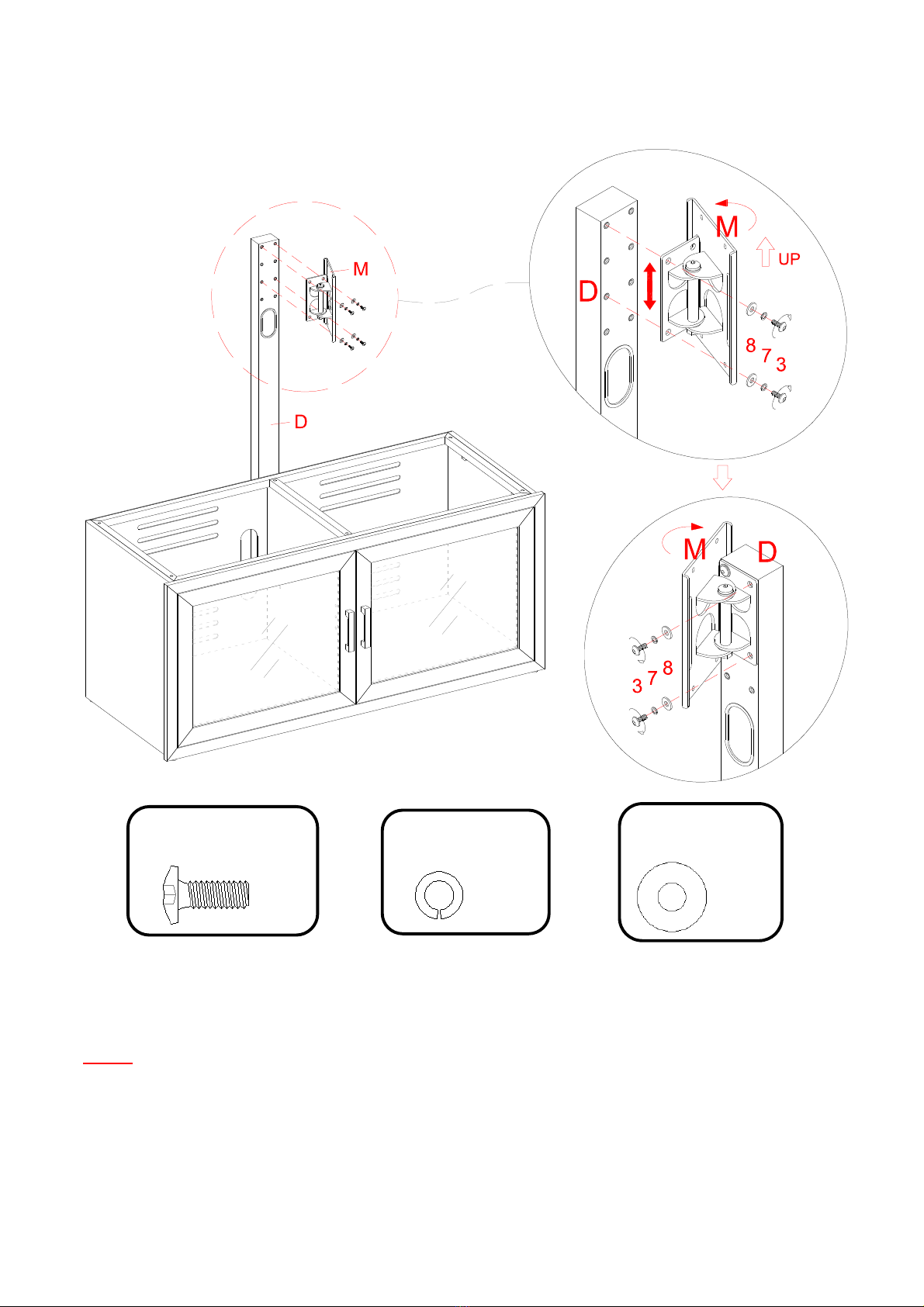

26.Fasten the SWIVELING BRACKET (M) to the top of the SPINE (D) with four 5/8” BOLTS (3) and
WASHERS (7 and 8). Turn the SWIVELING BRACKET against the SPINE (D) when tightening
the bolts with the enclosed hex wrench. Make sure the pivoting bolt head faces up.
NOTE: The Spine can provide two height options for the TV set. Refer to your TV size and adjust
the Swiveling Bracket to the desired height for optimum viewing.
LOCK WASHER
(4 used in this step)
⑦
FLAT WASHER
(4 used in this step)
⑧
5/8” BOLT
(4 used in this step)
③

17
Assembly Instructions for Floating Swivel Mount
27.Hold and attach the flat side of the MOUNTING FRAME (N) onto the SWIVELING BRACKET (M)
using four 1/2” BOLTS (2) with WASHERS (7 and 8).
1/2” BOLT
(4 used in this step)
②
LOCK WASHER
(4 used in this step)
⑦
FLAT WASHER
(4 used in this step)
⑧

18
Assembly Instructions for Floating Swivel Mount
28.Attach 2 CABLE WHEELS (P) onto the backside of the SPINE (D) with the 5/8” BOLTS (3).
NOTE: You can use the CABLE WHEELS to help keep the entertainment center’s cables and
cords organized.
5/8” BOLT
(4 used in this step)
③
P
3
D

19

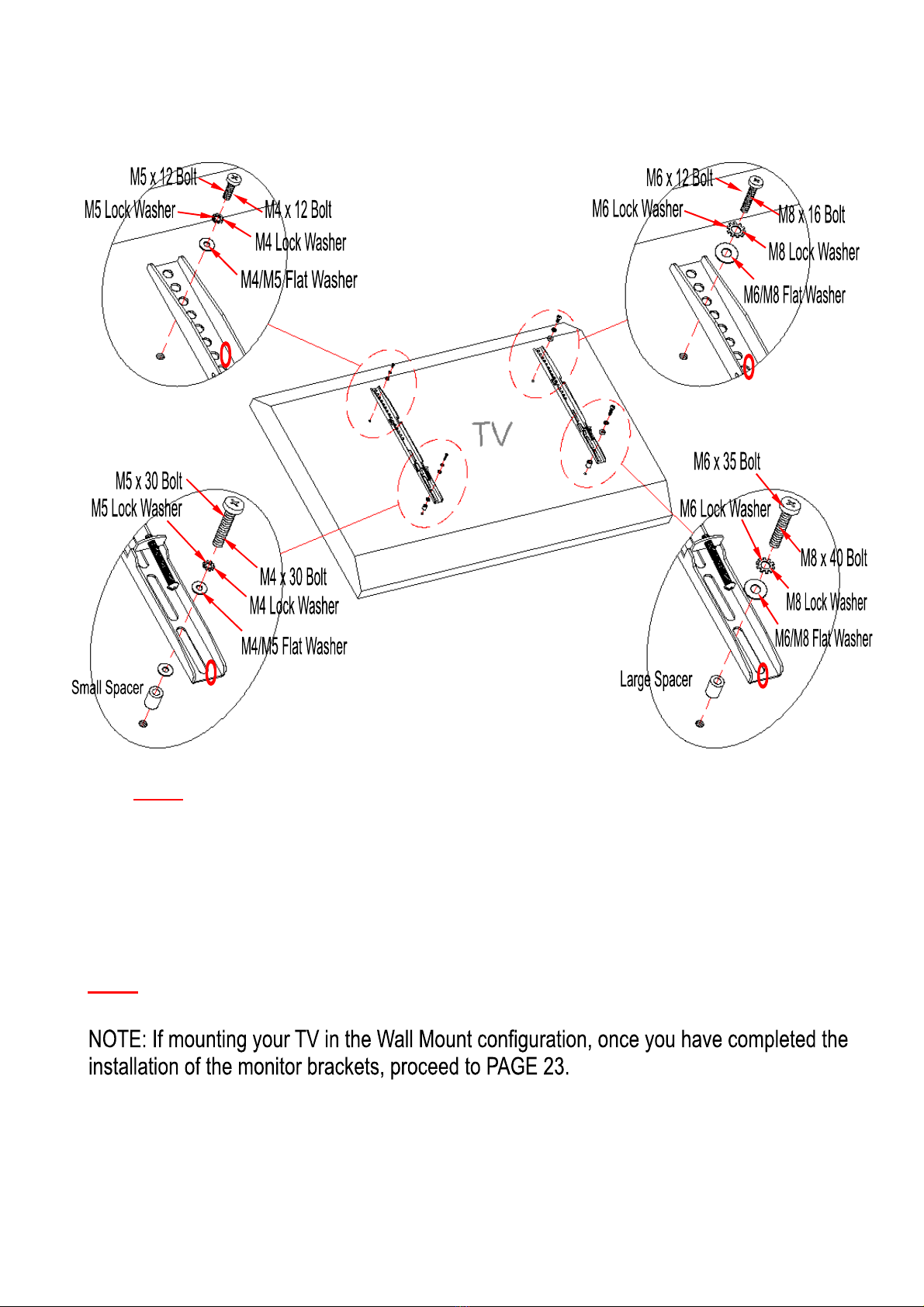

Mounting the Monitor Brackets to a Television with a Flat Back
NOTE: For televisions with a curved or recessed back, proceed directly to next page.
29.Determine the correct diameter of the bolt the TV requires by hand threading them into the
threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If you
are unable to find the correct bolt, consult a local hardware store.
30.Follow the appropriate diagram above to attach the MONITOR BRACKETS (O) to the back of the
TV with the selected fasteners. Make sure the MONITOR BRACKETS are centered and level with
each other. Secure the bolts with a PHILLIPS SCREWDRIVER. DO NOT over tighten the bolts.
NOTE: Lean the TV up against a wall or other solid surface when attaching the Monitor Brackets.
DO NOT place the TV face down on the glass as this may cause permanent damage.

20
Mounting the Monitor Brackets to a Television with a Curved/Recess Back
31.Determine the correct diameter of the bolt the TV requires by hand threading them into the
threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If you
are unable to find the correct bolt consult a local hardware store.
32.Follow the appropriate diagram above to attach the MONITOR BRACKETS (O) to the back of the
TV with the selected fasteners. Make sure the MONITOR BRACKETS are vertically centered and
level with each other. Secure the bolts with a PHILLIPS SCREWDRIVER. DO NOT over tighten
the bolts.
NOTE: Lean the TV up against a wall or other solid surface when attaching the Monitor Brackets.
DO NOT place the TV face down on the glass as this may cause permanent damage.
