Winix AZSU350-JWB User manual

User Manual
User Manual
AIR PURIFIER
• The product warranty is printed on the back of this guide.
• This product is suitable for AC 220 - 240 V only.
AZSU350-JWBModel
Use & Care
Guide

English
2
Zero S
FRONT
Air Outlet Vent
Handle
Power plug
BACK

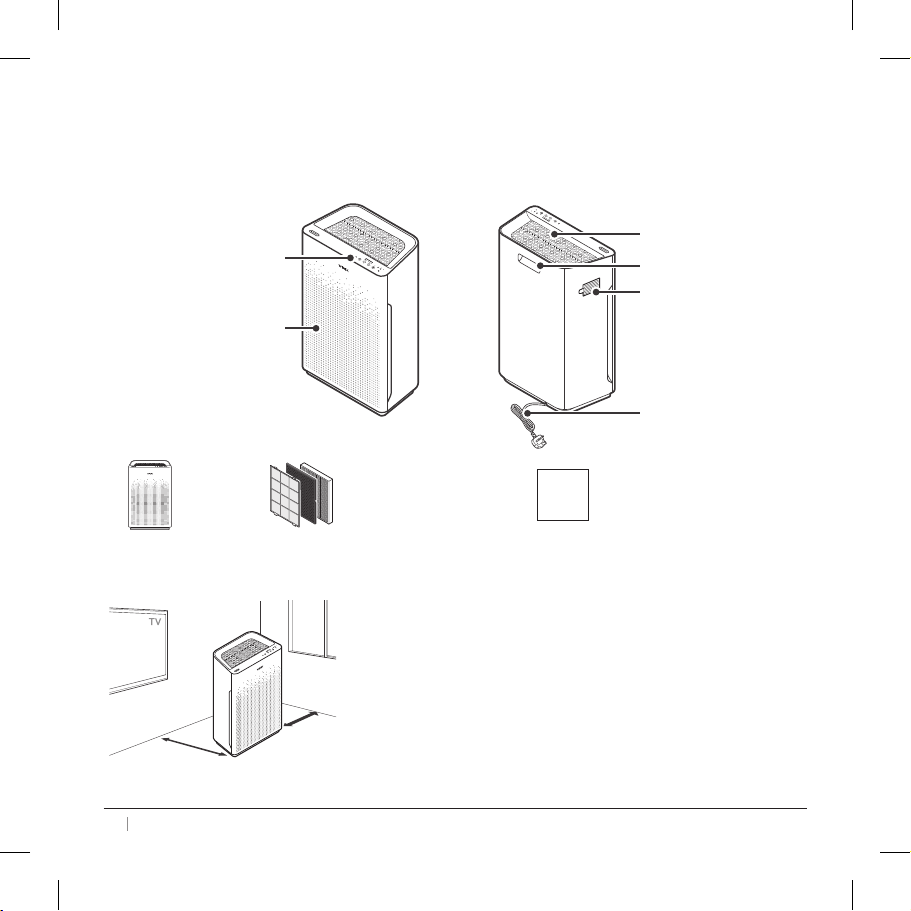

PACKAGE CONTENTS
Control Panel
Front Panel
Unit (1) In front of Pre-Filter
(1) Active Carbon Filter
(1) True HEPA Filter
User
Manual
WHERE TO USE
MODEL PART DIAGRAM
30 ~ 45 cm
30 ~ 45 cm
Allow 30 ~ 45 cm. of space between TVs, radios, and other electronics
Electromagnetic interference from certain electronics may cause
product malfunction.
Place indoors away from direct sunlight
Direct exposure may cause product malfunction or failure.
Only place on hard, flat surfaces
Flimsy or slanted surfaces may result in abnormal noise and vibrations.
Allow 30 ~ 45 cm. from walls
For maximum air flow.
English
Dust Sensor

English
3
Zero S
08 09 10 11

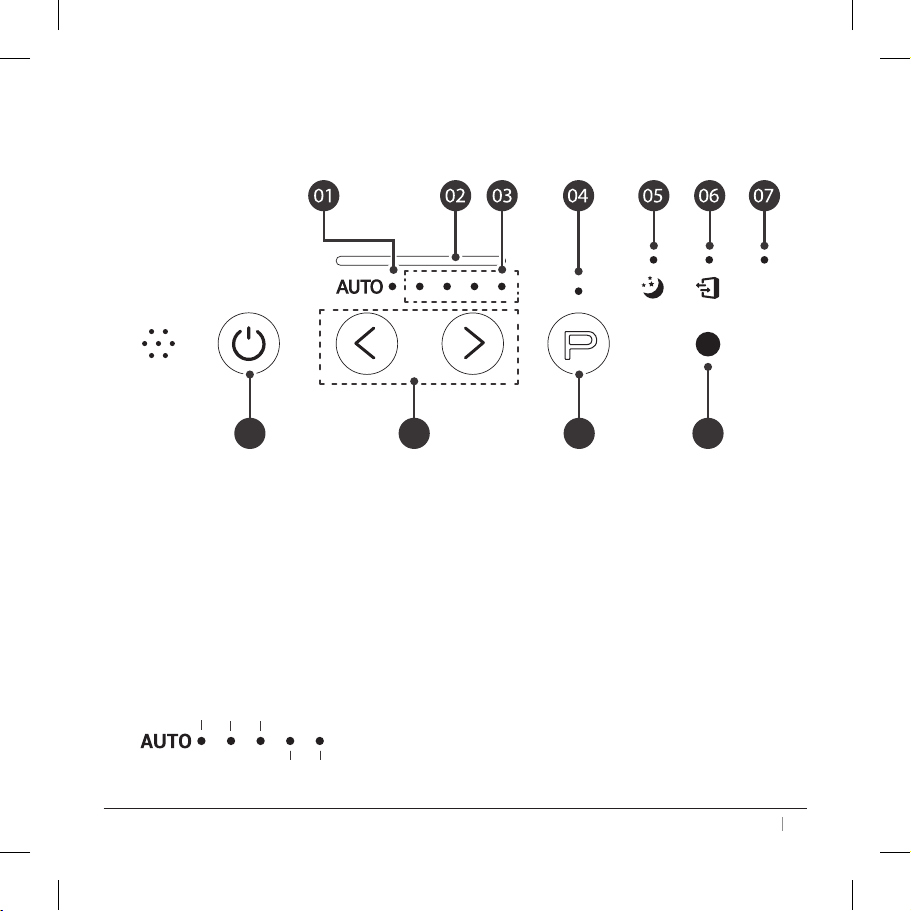

01. Auto Mode Indicator
The LED "Auto" light will indicate when Auto Mode is
activated.
02. Air Quality Indicator
Color coded LED light indicates one of three levels of
Air Quality: Red (poor), Amber (fair), and Blue (good).
03. Fan Speed Indicator
Indicates the current fan speed.
High
Auto Mode Low Medium
Turbo
04. PlasmaWave®Indicator
Indicates whether PlasmaWave
®
is enabled or
disabled.
05. Sleep Mode Indicator
When Sleep Mode is activated, the Air Quality
Indicator LED light is disabled.
•Fan speed will automatically set to minimum speed
(lower than 'Low') which will be nearly silent.
•When Sleep Mode is active, PlasmaWave
®
will be
disabled, but it can be turned back on.
06. Filter Replacement Indicator
LED light indicates when it is time to change the filter.
CONTROL PANEL

English
4
Zero S
07. Filter Reset Button
After replacing the True HEPA Filter, use a small object
such as a paper clip, to press and hold the Filter
Reset Button for at least 5 seconds until the Filter
Replacement Indicator turns off.
08. Power Button
Turns the unit on or off. During the first 30 seconds
of powering up, the Air Quality Indicator will cycle
through Blue, Amber and Red colors.
•Dust Sensor takes approximately 30 seconds to
gauge the air quality in the environment before
normal detect begins.
09. Mode Button
Press to cycle through to set the mode of operation
(Auto, Sleep). The unit will default to Auto with
PlasmaWave
®
enabled when first powered on.
Auto Mode:
•Auto Mode automatically adjusts fan speeds
according to your indoor air quality. The fan speed
will adjust to low when air quality is good, medium
when fair, and to high when poor.
Sleep Mode:
When Sleep Mode is activated, the Air Quality
Indicator LED light is disabled.
•Fan speed will automatically set to minimum speed
(lower than 'Low') which will be nearly silent.
•When Sleep Mode is active, PlasmaWave
®
will be
disabled, but it can be turned back on.
10. PlasmaWave®Button
Press the Plasmawave
®
button when the unit is
on to enable or disable this feature. By default,
PlasmaWave
®
is enabled whenever the unit is
powered on.
"When the unit is running, you may hear a chirping
or buzzing sound. The sound is from large particles
passing through PlasmaWave
®
, it is normal and does
not signify product failure."
11. Light Sensor
Detects the amount of ambient light in the
environment. When in Auto Mode, the Light Sensor
detects when to put the unit into Sleep Mode.

English
5
Zero S
When to Replace Filters
Filter Indicator Light When to service When to replace
Pre-Filter none Clean once every 14 days Permanent
Active Carbon Filter none Clean once every 3 months
Lasts Approx. 12 months
True HEPA Filter
Check Filter
Can NOT be WASHED
•When the Check Filter Indicator LED is on, it is time to replace the True HEPA Filter and Active Carbon Filter.
•Intervals between filter replacement may vary depending on environment.
MAINTENANCE
True HEPA Filter
Pre-Filter Active Carbon
Filter
PlasmaWave®
4-STAGE AIR PURIFICATION
01. Pre-Filter
Designed to catch larger airborne particles found
indoors.
03. True HEPA Filter
Captures 99.97%* of airborne allergens including;
pollen, mold spores, dust, pet dander, microbes, and
smoke (*Particles as small as 0.3 microns in size.)
02. Active Carbon Filter
Reduces VOCs and household odors from cooking,
pets, and smoke.
04. PlasmaWave®
PlamaWave
®
creates Hydroxyls which can help to
reduce the presence of airborne Bacteria, Viruses*
(*Based on independent laboratory test conducted
on Influenza A Virus H3N2, E. coli, Pseudomonas
aeruginosa, Staphylococcus aureus, Salmonella
typhimurium.)

English
6
Zero S

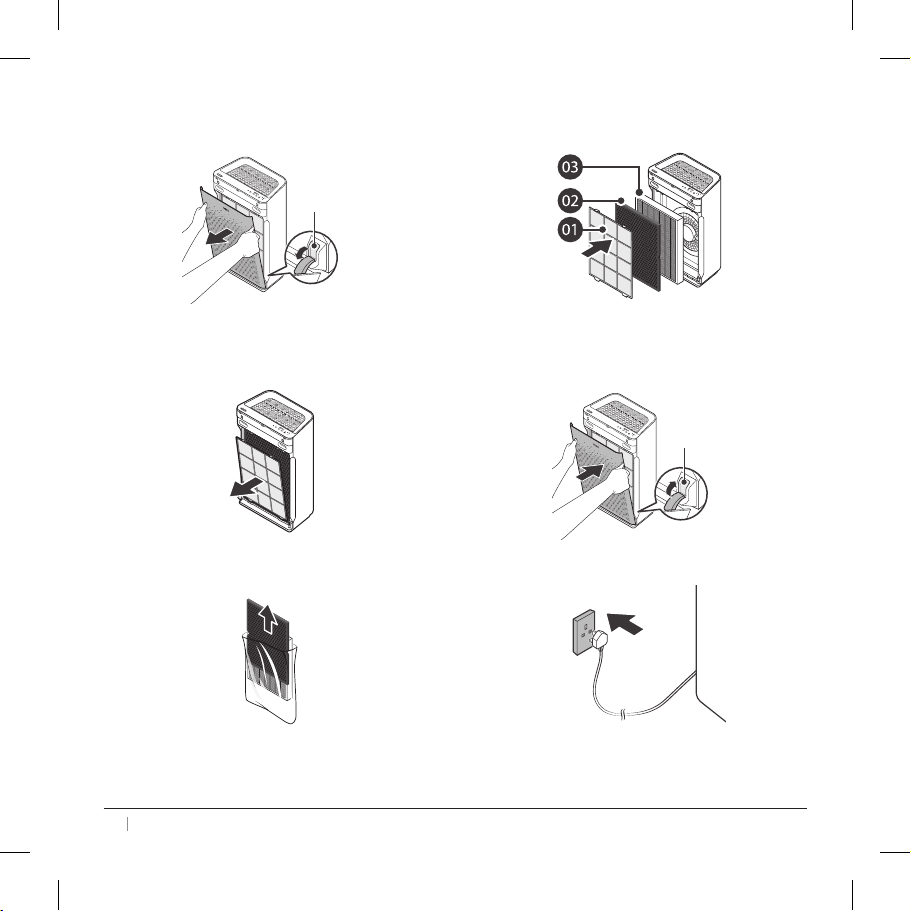

INITIAL OPERATION
Latch
1. Remove the front panel by grasping its upper
edge and gently pulling forward.
2. Remove the Pre-Filter, then the bag of filters
behind it.
3. Remove filters from protective plastic bag.
4. Install the filters until they fit securely in place.
03. True HEPA Filter (back)
02. Active Carbon Filter (middle)
01. Pre-Filter (front)
Latch
5. After filters are installed, close the front panel.
6. Insert the power cord into an electrical outlet.

English
7
Zero S
REPLACING FILTERS
CLEANING CARE

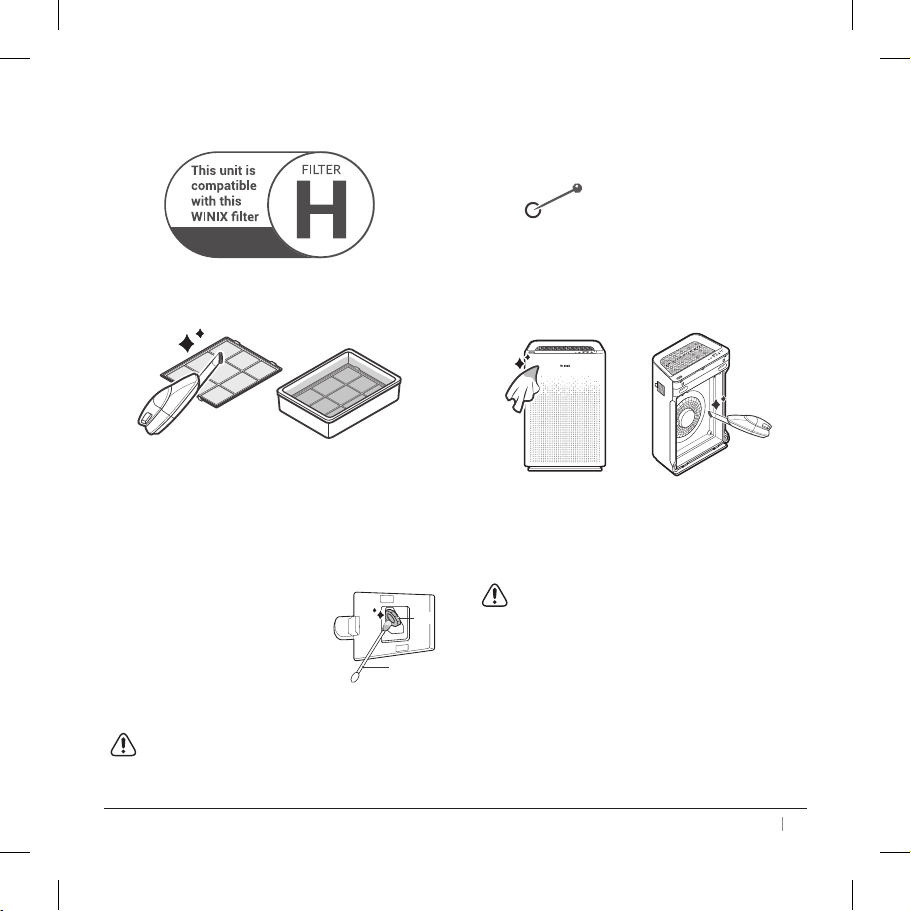

Cleaning the Filters:
Use a vacuum cleaner or soft brush to clean the Pre-Filter
•If it is excessively soiled, rinse in room temperature water.
•Do not use detergent or soap.
•Allow the filter to dry for 24 hours or more before using.
•Intervals between filter cleaning may vary depending on
the air quality in the environment.
•Do not use hot water over 40°C.
Particle Sensors Care
1. Use a damp cotton swab to wipe the
lens and intake area of the Particle
Sensor.
•To clean the sensor area, use
only water. Do not use volatile
substances such as alcohol or
acetone.
2. Wipe away any remaining moisture
with a dry cotton swab.
NOTICE
•Do not use benzene, alcohol, or other volatile fluids,
which may cause damage or discoloration.
Cleaning the Exterior & Interior:
Wipe with a soft damp cloth using room temperature water.
•Afterwards, wipe it down with a clean, dry cloth.
Open the front panel and clean the interior with a vacuum
cleaner.
•For optimal performance, clean every 1-2 months.
NOTICE
•When cleaning the unit, always unplug the power cord
first and then wait until the unit has cooled down.
•Never disassemble, repair, or modify this unit yourself.
•Do not use flammable sprays or liquid detergents.
•Do not allow children to clean or maintain the unit.
•Before cleaning or maintaining, ensure unit is unplugged.
item: 116130
After replacing a filter, press
the Filter Reset Button for at
least 5 seconds.
Lens
Cotton swab

English
8
Zero S
Before operating this equipment, carefully read and
follow these safety cautions.
Ensure filters are inserted before running unit.
Running the unit without filters can shorten the
lifespan of the unit and cause electric shock or injury.
Be sure foreign objects are NOT inserted into the
vents on the unit.
Objects can include pins, rods, and coins.
Do not touch any part of the interior of the unit with
wet hands.
The high voltage may cause electric shock.
Ensure unit intake and outlet vents do not become
blocked.
Blockage may lead to increased internal temperatures,
causing product failure and deformation.
Do not use the unit as a step stool or place heavy
objects on the unit.
Personal injury may occur or product failure and
deformation.
WARNING
Follow these instructions to reduce the risk of serious
injury or death and to reduce risk of damaging the unit.
•If the power cord is damaged, it must be replaced
by a special cord. Reassembly is available from the
manufacturer or its service agent.
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards.
•Children should be supervised to ensure that they do not
play with the appliance.
•This unit is not intended to be used to preserve
documents or art conservation.
Do not pull on the power cord when unplugging the
unit.
Do not tie or knot the power cord when unit is in
operation.
If the unit becomes submerged in water, unplug it
and contact customer service.
Do not unplug or move the unit while in operation.
Do not plug additional appliances into the same
outlet or power supply.
Do not touch the plug with wet hands.
Unplug the unit when not in operation for extended
periods of time.
Do not place around heating elements.
Do not use around mist or fumes from industrial oil
or around large quantities of metallic dust.
The cord can become damaged by forcefully
bending, pulling, twisting, bundling, pinching or
placing heavy objects on it.
Do not install in any sort of motor or transport
vehicle (trucks, boats, ships, etc.).
Do not place in an area with excessive amounts of
noxious gases.
Do not place near any flammable materials
(aerosols, fuel, gases, etc.).
Do not have the unit facing into wind or drafts.
Do not place below any electrical outlet.
Do not place in excessively humid areas where the
unit may become wet.
To reduce the risk of fire or electric shock, do not use
this fan with any solid-state speed control device.
Do not place unit closer than 30 cm from the wall
during operation. It may cause condensation on
the wall and the surrounding area.
SAFETY AND CAUTIONS

English
9
Zero S
SAFETY INSTRUCTIONS
Thank you for purchasing a Winix air purifier. This product is for household use only.
•Do not repair or modify the unit. All repairs should be
completed by a qualified technician.
•Do not use if the power cord or plug is damaged or
the connection to the wall outlet is loose.
•Use AC 220 - 240 V only.
•Do not damage, break, forcefully bend, pull, twist,
bundle, coat, pinch, or place heavy objects on the
power cord.
•Periodically remove dust from the power plug. This
will reduce the risk of shock due to humidity build up.
•Remove the power plug from the outlet before cleaning
the unit. When removing the power plug, grasp by
holding the plug itself, never hold by the cord.
•If the power plug is damaged, it must be replaced by
the manufacturer or a qualified technician.
•Remove the power plug from the outlet when not in use.
•Do not handle the power plug with wet hands.
•Do not operate the unit when using indoor smoke-
generating insecticides.
•Do not clean unit with benzene or paint thinner.
Do not spray insecticides on the unit.
•Do not use the unit where it is humid or where the
unit may become wet, such as the bathroom.
•Do not insert fingers or foreign objects into air intake
or outlet.
•Do not use the unit near flammable gases. Do not
use near cigarettes, incense, or other spark-creating
items.
•Unit will not remove carbon monoxide emitted from
heating appliances or other sources.
IMPORTANT CAUTIONS FOR USING YOUR AIR PURIFIER:
WARNING: Follow the instructions in this manual to reduce the risk of electric shock, short circuit, and/or fire.
IMPORTANT PRECAUTIONS FOR USING YOUR AIR PURIFIER:
•Do not block the intake or outlet vents.
•Do not use near hot objects, such as a stove.
•Do not use where the unit may come into contact with
steam.
•Do not use the unit on its side.
•Keep away from products that generate oily residue,
such as a deep fryer.
•Do not use detergent to clean the unit.
•Do not operate without a filter.
•Do not wash and reuse the True HEPA Filter.
•Hold the handle on the back of the unit to transport.
•Do not hold by the front panel.
•Do not stick any small objects into the air outlet vents
or fan.

English
10
Zero S
The terms of the warranty are as follows:
1. This product is manufactured under stringent
quality control and inspections.
2. The warranty will be voided if product failure is a
result of negligence or misuse by the consumer.
3. A proof of purchase must be presented upon
claiming a Product Warranty.
4. Store the proof of purchase in a safe place or
register your product on winixeurope.eu to upload
your proof of purchase.
5. This warranty is valid only in the Europe.
Product Name Air Purifier
Model Name AZSU350-JWB
Purchase Date
Warranty period Two (2) Years
Place of purchase
Place of Purchase tel.
Customer
Address
Name
Tel.
The unit does not turn on at all
•Is the plug securely attached to the outlet?
-Make sure the outlet has power going to it, and
ensure the plug is secured.
•Is there a power outage?
-Check to see if other lights and electrical
equipment are working and try again.
The unit doesn’t work in Auto Mode
•Has Auto Mode been selected?
-Press the Fan Speed button until Auto Mode is
selected.
•Is the sensor blocked or clogged?
-Clean Dust Sensor with vacuum cleaner.
It vibrates and makes a lot of noise
•Is it running on a slanted or uneven surface?
-Move the unit to a hard, flat, even area.
The power plug and outlet feel hot
•Is the plug securely plugged in?
-Make sure the plug is properly plugged into the outlet.
There is a strange smell
•Is it being used in a place with a lot of smoke, dust,
or odors?
-Clean the air intakes on either side and clean the
Pre-Filter.
-Replace the Active Carbon Filter and the True HEPA
filter.
The fan strength is weak. The unit is not purifying the air
•Is the Check Filter Indicator light on?
-Change the filters as required.
The display panel is dim
•Is the Light Sensor blocked by debris?
-When Auto Mode is on, Sleep Mode is
automatically activated when the Light Sensor
detects that the room is dark.
FREQUENTLY ASKED QUESTIONS
PRODUCT WARRANTY

English
11
Zero S
UNIT SPECIFICATIONS
Model Name AZSU350-JWB
Power Voltage AC 220 - 240 V, 50 / 60 Hz
Power Rate 65W
Verified Room Size 100 m
2
Dimensions 384 mm(W) x 220 mm(D) x 594 mm(H)
Weight 7.6 kg
Replacement Filter Filter H / SKU: 116130
The exterior, design, and product specifications may be changed without prior notice to improve product performance.
Contact Winix for product related inquiries and customer service
•Website: www.winixeurope.eu
To expedite service, please specify the model name and number, the nature of the problem, your contact
information, and your address.
CADR 410 m3 / h

•Website: www.winixeurope.eu
Contact Winix for
product related inquiries
and customer service
To expedite service, please specify the model name and number, the nature of the problem,
your contact information, and your address.
2610-0270-01 Rev.00
