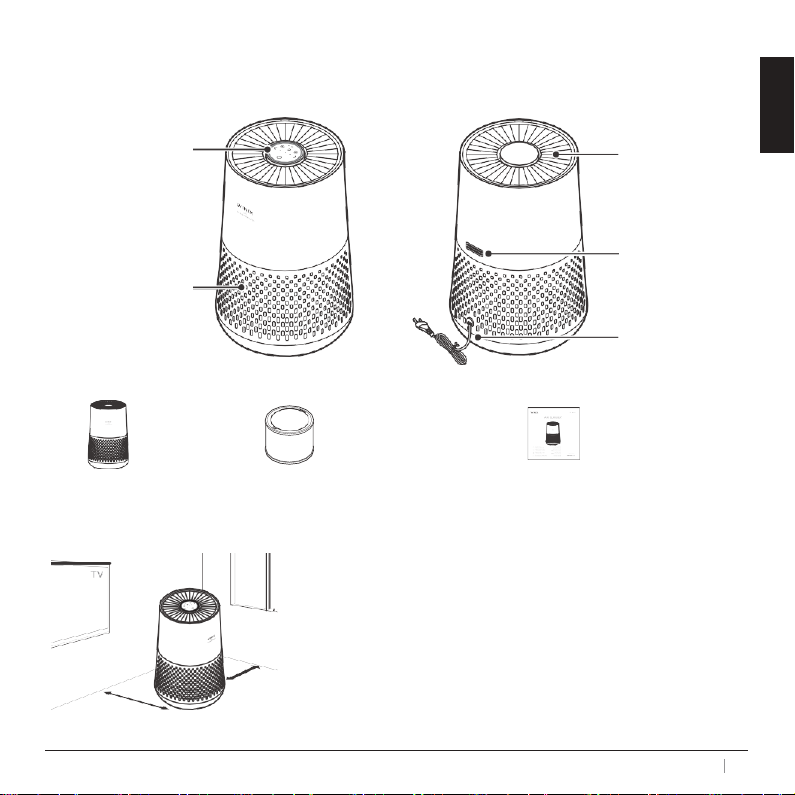

MODEL PART DIAGRAM
FRONT
Control Panel
Front Panel
BACK
Air Outlet Vent
Smart Sensor
(Dust Sensor)
Power plug
PACKAGE CONTENTS
360° All-in-One
True HEPA Filter
User
Manual
WHERE TO USE
30~ 45 cm
30 ~ 45 cm
Allow 30 ~ 45 cm of space between TVs, radios, and other
electronics
Electromagnetic interference from certain electronics may cause
product malfunction.
Place indoors away from direct sunlight
Direct exposure may cause product malfunction or failure.
Only place on hard, flat surfaces
Flimsy or slanted surfaces may result in abnormal noise and vibrations.
Allow 30 ~ 45 cm from walls
For maximum air flow.
English
Uni

4 AAPU500-JLE
English
CONTROL PANEL
01. Check Filter
LED light indicates when it is time to change the filter.
02. Filter Reset Button
After replacing the 360º All-in-One True HEPA Filter, use a small object such as a paper clip, to press and hold the
reset button for at least 5 seconds until the Check Filter light turns off.
03. Auto Mode Button
The LED “Auto” light will indicate when Auto Mode is activated.
• When in Auto Mode, the fan speed is automatically adjusted according to the indoor air quality.
As the indoor air quality improves, the fan speed will automatically decrease.
01
02
05
03
06
07
04
08
English

English
AAPU500-JLE 5
04. Air Quality Indicator
Color-coded LED indicates one of three levels of air quality.
• The three levels of air quality are: BLUE (good), AMBER (fair), RED (poor).
05. Sleep Mode Button
The LED “Sleep” light will indicate when Sleep Mode is activated.
• When Sleep Mode is activated, the Air Quality Indicator LED light is disabled.
• When Sleep Mode is activated, the fan speed is automatically set to quiet.
06. PlasmaWave
®
Technology Button
Enables or disables PlasmaWave
®
Technology.
• When the unit is running, you may hear a chirping or buzzing sound. The sound is from large particles passing
through PlasmaWave
®
Technology, it is normal and does not signify product failure.
• Press the PlasmaWave
®
Technology button, when the unit is on, to enable or disable this feature.
07. Fan Speed Indicator / Button
Indicates the current fan speed.
• Use the Fan Speed arrow buttons to set the desired fan speed. Fan speeds cycle over in this sequence: Auto,
Low, Medium, High,Auto.
Low Medium High
08. Power Button
Turns the unit on or off. During the first 30 seconds of power, the Air Quality Indicator will cycle through Blue,
Amber and Redcolors.
• Smart Sensor takes approximately 30 seconds to gauge the air quality in the environment before normal
operation begins.
English

6 AAPU500-JLE
English

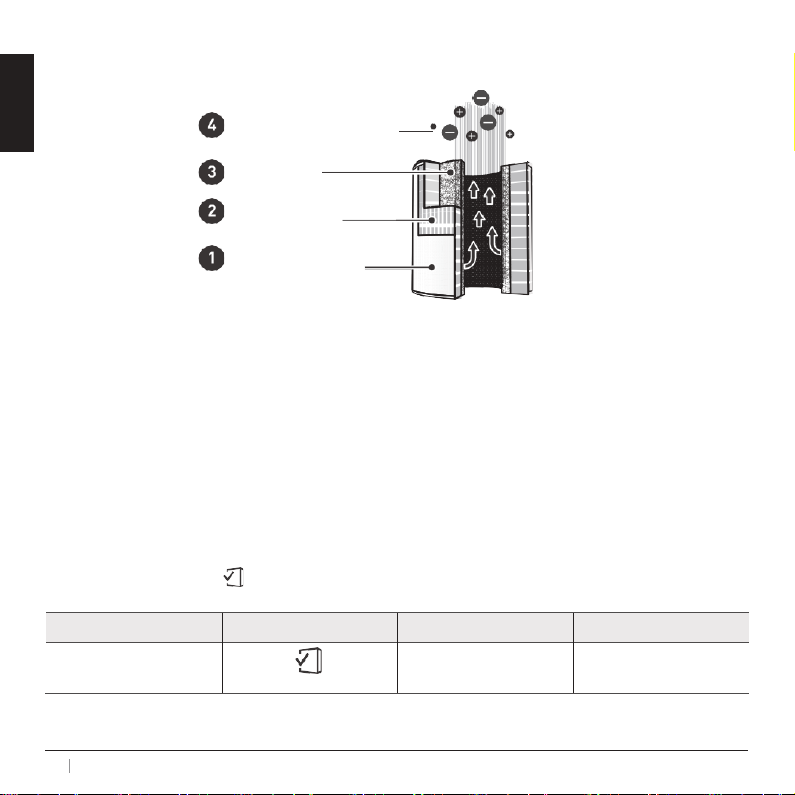

4-STAGE AIR PURIFICATION
PlasmaWave
®
Technology
Carbon Filter
True HEPA Filter
Fine Mesh Pre-Filter
01. Fine Mesh Pre-Filter
Designed to catch larger airborne particles found
indoors.
02. True HEPA Filter
Captures 99.97%* of airborne allergens including;
pollen, mold spores, dust, pet dander, microbes, and
smoke. (*particles as small as 0.3 microns in size).
MAINTENANCE
When to Replace Filters
03. Carbon Filter
Reduces VOCs and household odors from cooking,
pets, and smoke.
04. PlasmaWave
®
Technology
PlasmaWave
®
Technology creates Hydroxyls which
can help to reduce the presence of airborne Bacteria,
Viruses*. (*Based on laboratory test conducted
on Influenza A Virus H3N2, E. coli, Pseudomonas
aeruginosa, Staphylococcus aureus, Salmonella
typhimurium).
Filter Indicator Light When to service When to replace
360ºAll-in-One
TrueHEPA Filter
Check Filter
Clean once every 14 days Lasts Approx. 12 months
• When the Check Filter indicator LED is on, it is time to replace the Filter.
• Intervals between filter replacement may vary depending on environment.
English

English
AAPU500-JLE 7
INITIAL OPERATION
1. Turn the product upside down.
2. Grab the handle at the bottom of the product, turn
counter-clockwise, and pull out the filter cover.
3. Remove the protective vinyl from the filter
installed inside the product.
4. Install the filter, top side down, into the bottom of unit,
until it is fully inserted. The top of the filter shows the
opening and the bottom of the filter is solid.
5. After installing the filter, turn the handle clockwise
to close the filter cover.
6. Return the product to an upright position and
resume normal operation.
English

8 AAPU500-JLE
English
REPLACING FILTERS
CLEANING CARE

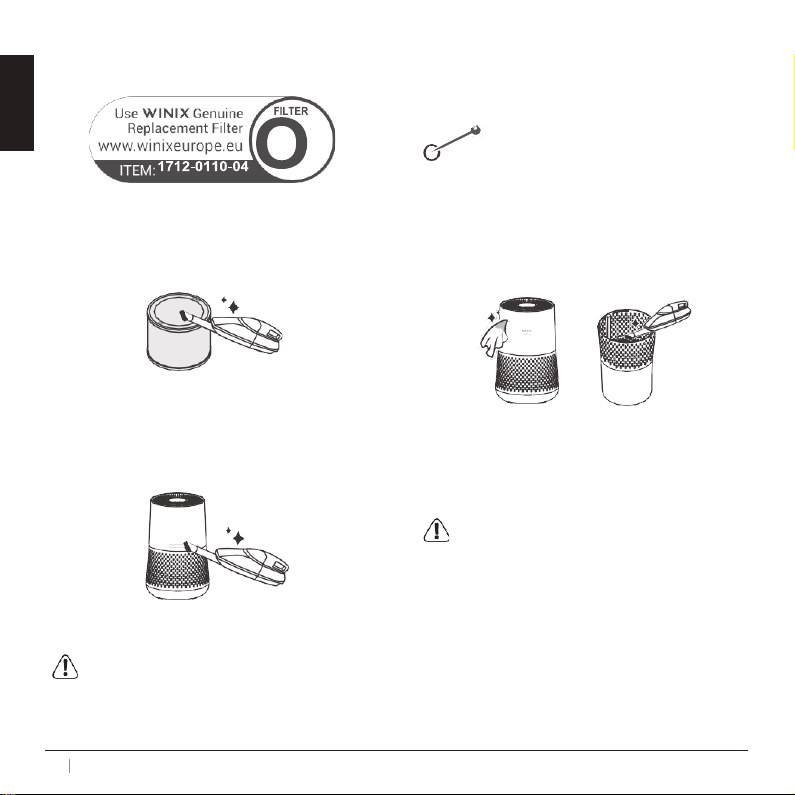

Cleaning the Filters:
Clean with a vacuum or a soft brush.
• Only clean thePre-Filter.
• This filter CAN NOT be washed.
• Intervals between filter cleaning may vary
depending on the air quality.
Cleaning the Smart Sensor (Dust Sensor):
Clean Smart Sensor (Dust Sensor) with vacuum cleaner.
• Cleaning interval : EVERY 2 MONTHS.
NO TICE
• Do not use benzene, alcohol, or other volatile fluids,
which may cause damage or discoloration.
After replacing a filter,
presstheRESETbutton
for at least 5 seconds.a
Cleaning the Exterior & Interior:
Wipe with a softdamp cloth using room temperature
water.Afterwards,wipeitdownwith a clean dry cloth.
After turning the product upside down,removethefilter
cover and clean the interior with a vacuum cleaner.
• For optimal performance, clean every 14 days.
NO TICE
• When cleaning the unit, always unplug the power cord
first and then wait until the unit has cooled down.
• Never disassemble, repair, or modify this unit yourself.
• Do not use flammable sprays or liquid detergents.
• Do not allow children to clean or maintain the unit.
• Before cleaning or maintaining, ensure unit is unplugged.
English

English
AAPU500-JLE 9
SAFETY AND CAUTIONS
Before operating this equipment, carefully read and
follow these safety cautions.
Ensure filters are inserted before running unit
Running the unit without filters may shorten the
lifespan of the unit and cause electric shock or injury.
Be sure foreign objects are NOT inserted into the
vents on the unit
Objects can include pins, rods, and coins.
Do not touch any part of the interior of the unit with
wet hands
The high voltage may cause electric shock.
Ensureunitintakeandoutletventsdonotbecomeblocked
Blockage may lead to increased internal temperatures
causing product failure and deformation.
Do not use the unit as a step stool or place heavy
objects on it
Personal injury may occur or product failure and
deformation.
When turning the product upside down, install the
filter with care in the direction so that the bottom
(blocked) side of the filter is visible from the top
If the filter direction is not installed properly, it may
cause product damage and user injury.
• If the power cord is damaged, it must be replaced
by a special cord or assembly available from the
manufacturer or its serviceagent.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards.
• Childrenshouldbesupervisedtoensurethattheydonot
play with theappliance.
• This unit is not intended to be used to preserve
documents or in art conservation.
Do not pull on the power cord when unplugging the
unit.
Do not tie or knot the power cord when unit is in
operation.
If the unit becomes submerged in water, unplug it
and contact customerservice.
Do not unplug or move the unit while in operation.
Do not plug additional appliances into the same
outlet or power supply.
Do not touch the plug with wet hands.
Unplug the unit when not in operation for extended
periods of time.
Do not place around heating elements.
Do not use around mist or fumes from industrial oil
or around large quantities of metallic dust.
The cord can become damaged by forcefully
bending, pulling, twisting, bundling, pinching or
placing heavy objects on it.
Do not install in any sort of motor or transport
vehicle. (trucks, boats, ships, etc)
Donotplace inan areawith excessiveamounts of
noxious gases.
Do not place near any flammable materials.
(aerosols, fuel, gases etc)
Do not have the unit facing into wind or drafts.
Do not place below any electrical outlet.
Do not place in excessively humid areas where the
unit may become wet.
To reduce the risk of fire or electric shock,
do not use this fan with any solid-state speed
control device.
Do not place unit closer than 30 cm from the wall
during operation. It may cause condensation to the
wall and the surrounding area.
English

10 AAPU500-JLE
English
SAFETY INSTRUCTIONS
Thank you for purchasing a Winix air purifier. This product is for household use only.
IMPORTANT CAUTIONS FOR USING YOUR AIR PURIFIER
WARNING : Follow the instructions in this manual to reduce the risk of electric shock, short circuit, and/or fire.
• Do not repair or modify the unit. All repairs should be
completed by a qualifiedtechnician.
• Do not use if the power cord or plug is damaged or
the connection to the wall outlet is loose.
• Use AC 220 - 240 V only.
• Do not damage, break, forcefully bend, pull, twist,
bundle, coat, pinch, or place heavy objects on the
power cord.
• Periodically remove dust from the power plug.
This will reduce the risk of shock due to humidity
build up.
• Remove the power plug from the outlet before
cleaning the unit. When removing the power plug,
grasp by holding the plug itself, never hold by the
cord.
• If the power plug is damaged, it must be replaced by
the manufacturer or a qualifiedtechnician.
• Remove the power plug from the outlet when not in
use.
• Do not handle the power plug with wet hands.
• Do not operate the unit when using indoor smoke-
generating insecticides.
• Do not clean unit with benzene or paint thinner.
Do not spray insecticides on the unit.
• Do not use the unit where it is humid or where the
unit may become wet, such as the bathroom.
• Do not insert fingers or foreign objects into air intake
or outlet.
• Do not use the unit near flammable gases. Do not
use near cigarettes, incense, or other spark-creating
items.
• Unit will not remove carbon monoxide emitted from
heating appliances or othersources.
IMPORTANT PRECAUTIONS FOR USING YOUR AIR PURIFIER
• Do not block the intake or outlet vents.
• Do not use near hot objects, such as a stove.
• Do not use where the unit may come into contact
with steam.
• Do not use the unit on its side.
• Keepawayfromproductsthatgenerateoilyresidue,
such as a deep fryer.
• Do not use detergent to clean the unit.
• Do not operate without a filter.
• Do not wash and reuse the True HEPA Filter.
• Hold the handle on the back of the unit to transport.
• Do not hold by the front panel.
• Do not stick any small objects in the air outlet vents or
fan.
English

English
AAPU500-JLE 11
FREQUENTLY ASKED QUESTIONS
The unit does not turn on at all
• Is the plug securely attached to the outlet?
- Make sure the outlet has power going toit,and
ensure the plug is secured.
• Is there a power outage?
- Check to see if other lights and electrical
equipment are working and tryagain.
The unit doesn’t work in Auto Mode
• Has Auto Mode been selected?
- Press the Fan Speed button until Auto Mode is
selected.
• Is the sensor blocked or clogged?
- Clean Smart Sensor (Dust Sensor) with vacuum
cleaner.
It vibrates and makes a lot of noise
• Is it running on a slanted or uneven surface?
- Move the unit to a hard, flat, even area.
PRODUCT WARRANTY
The terms of the warranty are as follows.
1. This product is manufactured under stringent
quality control and inspections.
2. Thewarranty will be voided ifproduct failure is a
resultofnegligence or misuse by the consumer,
shipping and service fees may be incurred even
during the warranty period.
3. A proof of purchase must be presented upon
claiming a ProductWarranty.
4. Store the proof of purchase in a safe place or
register your product on winixeurope.eu to upload
your proof ofpurchase.
5. This warranty is valid only in the Europe.
The power plug and outlet feel hot
• Is the plug securely plugged in?
- Make sure the plug is properly plugged into the
outlet.
There is a strange smell
• Is it being used in a place with a lot of smoke, dust,
or odors?
- Clean the air intakes on either side and clean the
Pre-Filter.
- Replace the 360º All-in-One True HEPA Filter.
The fan strength is weak. The unit is not purifying the
air
• Is the Check Filter Indicator light on?
- Changethefiltersasrequired.
Product Name Air purifier
Model Name AAPU500-JLE
Purchase Date
Warranty period Two (2) years
Place of purchase
Place of Purchase
tel.
Customer
Address
Name
Tel.
English

12 AAPU500-JLE
English
UNIT SPECIFICATIONS
Model Name AAPU500-JLE
Power Voltage AC 220 - 240 V, 50 Hz
Power Rate 55 W
Verified Room Size 50 m
2
Dimensions 24.1 cm (W) x 24.1 cm (D) x 37.1 cm (H)
Weight 3.1 kg
Replacement Filter FILTER O / SKU: 1712-0110-04
Theexterior,design,andproductspecificationsmaybechangedwithoutpriornoticetoimproveproductperformance.
Contact Winix for product related inquiries and customer service
• Website : www.winixeurope.eu
To expedite service, please specify the model name and number, the nature of the problem,
your contact information, and your address.
English

Italiano
AAPU500-JLE 53
Contact Winix for
product related inquiries
and customer service
• Website: www.winixeurope.eu
To expedite service, please specify the model name and number, the nature of the problem,
your contact information, and your address.
2610-0267-01 Rev.00
