Winix NK305 User manual

WINIX AIR CLEANE
R
NK305
User Manual
xPlease read and follow all safety rules and instructions in
this manual before operating.
xThe product warranty is printed on the back of this guide,
so please keep it in a safe place for future use.
Model
Use & Care
Guide

English
2
NK305
CONTENTS
Set Up
Where to use 5
Filter Anatomy 7
Installing the filters 8
Safety Instructions
Safety and Cautions 10
Operation
Initial Operation 11
Modes of Operation 12
Features and Settings 13
WINIX SMART (Wi-Fi) 15
Care and Maintenance
Filter Care 16
Cleaning Care 20
Troubleshooting
Frequently Asked Questions 21
Unit Specifications 23
Product Warranty 24
This product is suitable for 220-240V only.
4-Stage Air Purification 3
Controls 4
French 26
Spanish 51
German 76
Italian 101
Dutch 126

English
3
NK305
VOC Smart Sensor

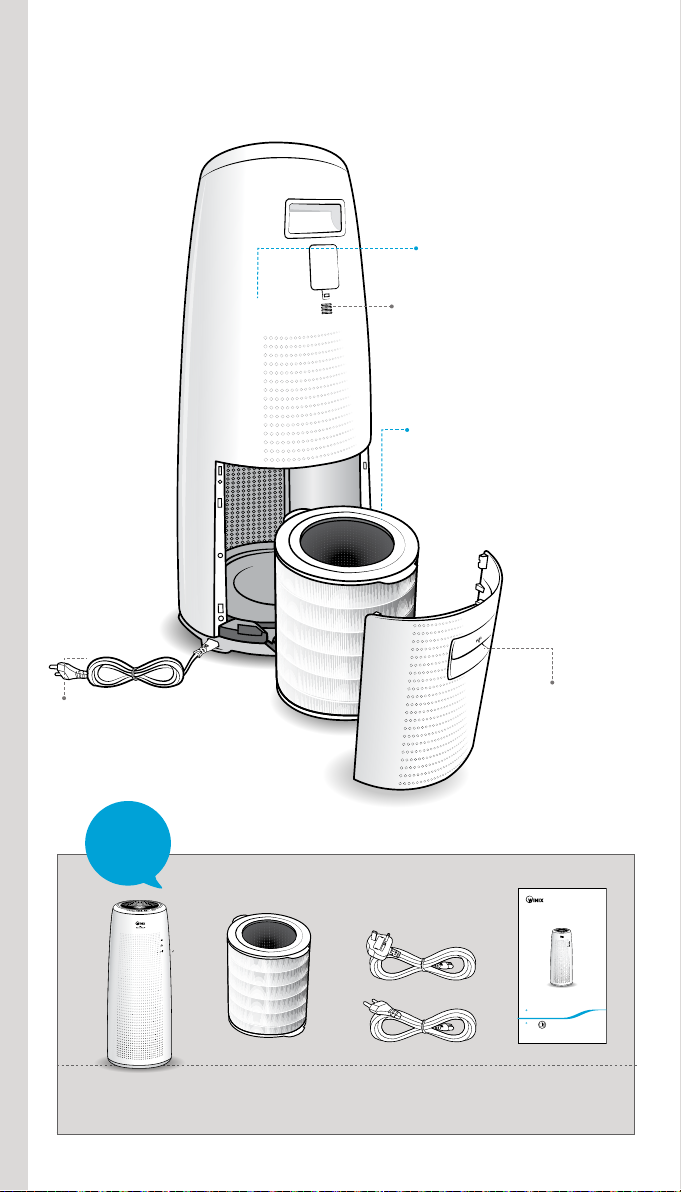

PACKAGE
CONTENTS
Back panel
Power cord with plug
(This product is suitable for
220-240V only.)
360o All-in-One True HEPA
Filter
➊ Pre-Filter
➋ True HEPA
➌ CD Carbon Filter
➍ PlasmaWave®
4-STAGE AIR PURIFICATION
Unit 360
o
All-in-One True
HEPA Filter
User Manual
NK100
User Manual
Model
・Please read and follow all safety rules and instructions in this
manual before operating.
・The product warranty is printed on the back of this guide, so
please keep it in a safe place for future use.
・This product is manufactured for use only in USA/CA
Use&
Care
Guide
WINIXAIR CLEANE
R
Power cord with plug

English
4
NK305

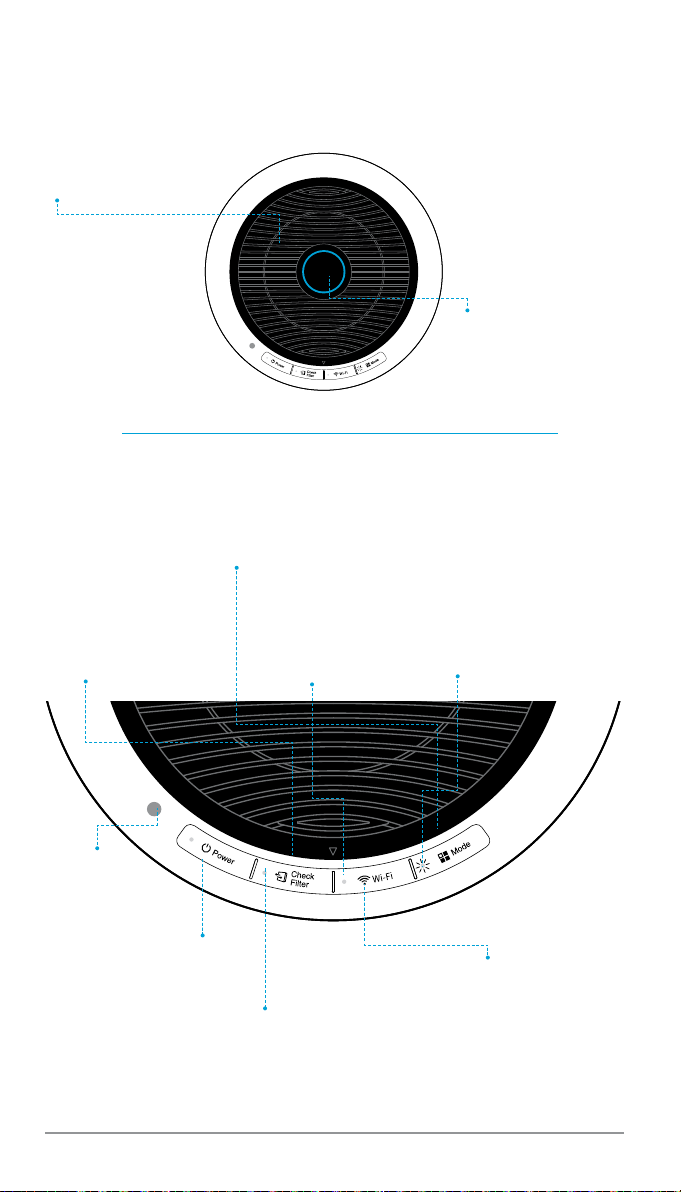

CONTROLS
Reset Button
After replacing a filter,
press the RESET button
for at least 5 seconds.
PlasmaWave® Indicator
Indicates whether
PlasmaWave® is enabled or
disabled.
Mode Button
- Press to cycle through manual fan speeds (Low, Medium, High, Turbo).
- Pressing will also cycle through Auto and Sleep Modes.
- When sleep mode is selected the Air Quality Indicator light will be turned off.
- Press and hold for at least 3 seconds to enable or disable PlasmaWave®.
Power Button
Turns the unit
on or off.
Light Sensor
Detects the
amount of
ambient light
within the
environment,
to adjust the
brightness
of the LED
indicators.
Change Filter Indicator
LED light indicates when it is time to
change the filter.
Air Quality Indicator
Color-coded LED indicates
one of three levels of air
quality.
Air Outlet Vent
Wi-Fi Button
Enables or disables
the Wi-Fi feature.
Wi-Fi Indicator
Indicates whether Winix
Smart feature is enabled or
disabled.

English
5
NK305
WARNING Follow these instructions to reduce the risk of serious
injury or death and to reduce risk of damaging the unit.
WHERE TO USE
Do not use around mist or fumes from
industrial oil or around large quantities of
metallic dust
Do not install in any sort of motor or
transport vehicle (trucks, boats, ships, etc.)
Do not place near any flammable materials
(aerosols, fuel, gases etc.)
Do not place below any electrical outlet
Do not place around heating elements
Do not place in an area with excessive
amounts of noxious gases
Do not have unit facing into wind or draft
Do not place in excessively humid areas
where unit may become wet

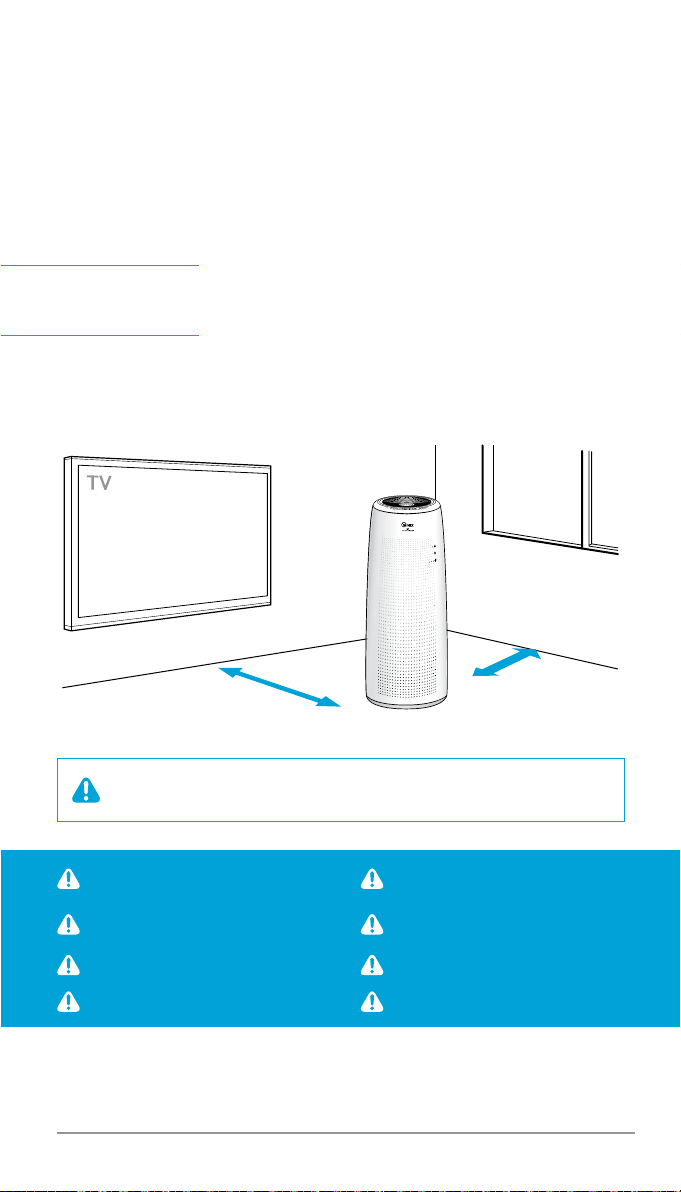

Allow 30-45 cm. of space between TVs, radios, and other electronic products
electromagnetic interference from certain electronics may cause product malfunction.
Place indoors away from direct sun light
direct exposure may cause product malfunction or failure.
Only place on hard, flat surfaces
flimsy or slanted surfaces may result in abnormal noise and vibrations.
This unit is not intended to be used to preserve documents or in art conservation.
30~45 cm
30~45 cm

English
6
NK305
360o All-in-One True HEPA Filter
➊ Pre-Filter ➋ True HEPA ➌ CD Carbon Filter

English
7
NK305

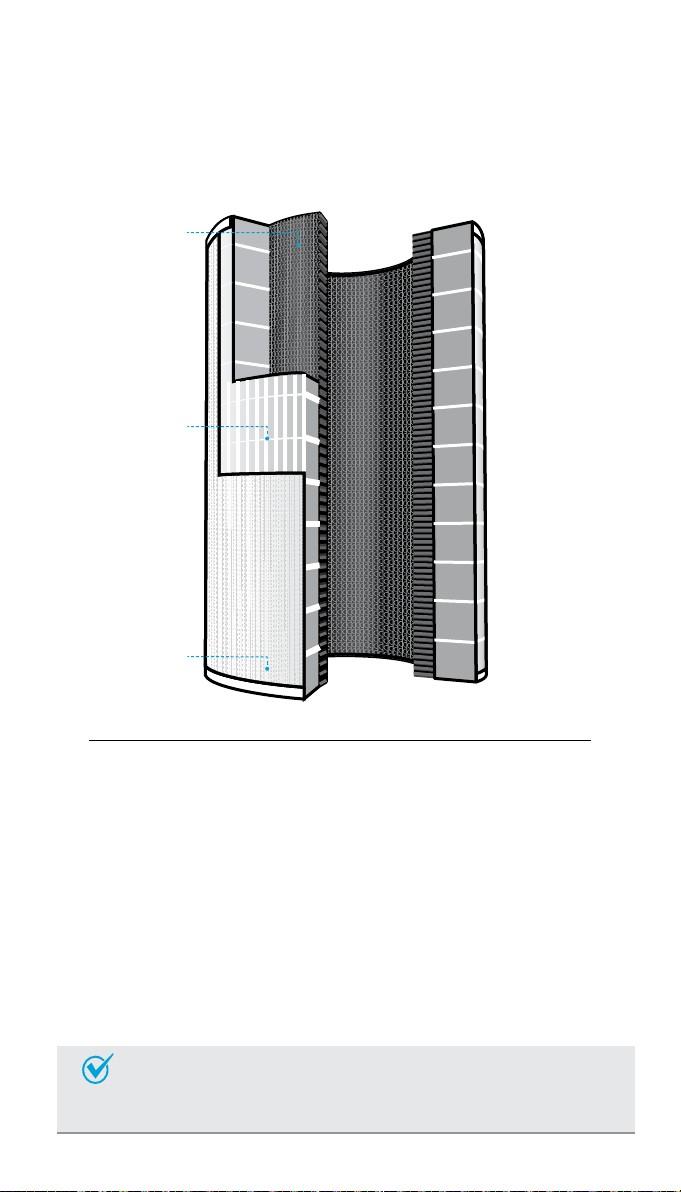

360o All-in-One True HEPA Filter ANATOMY
➊ Pre-Filter
➋ True HEPA
➌ CD Carbon Filter
➊ Pre-Filter designed to catch larger airborne particles
found indoors.
➋ True HEPA captures 99.97%* of airborne allergens
including; pollen, Mould spores, dust, pet dander,
microbes, and smoke. *particles as small as 0.3 microns in
size
➌ CD Carbon Filter reduces VOCs and household Odours
from cooking, pets, and smoke.
• The 360o All-in-One True HEPA Filter is one unit and the
individual components of the filter cannot be purchased
separately.
Note

English
8
NK305

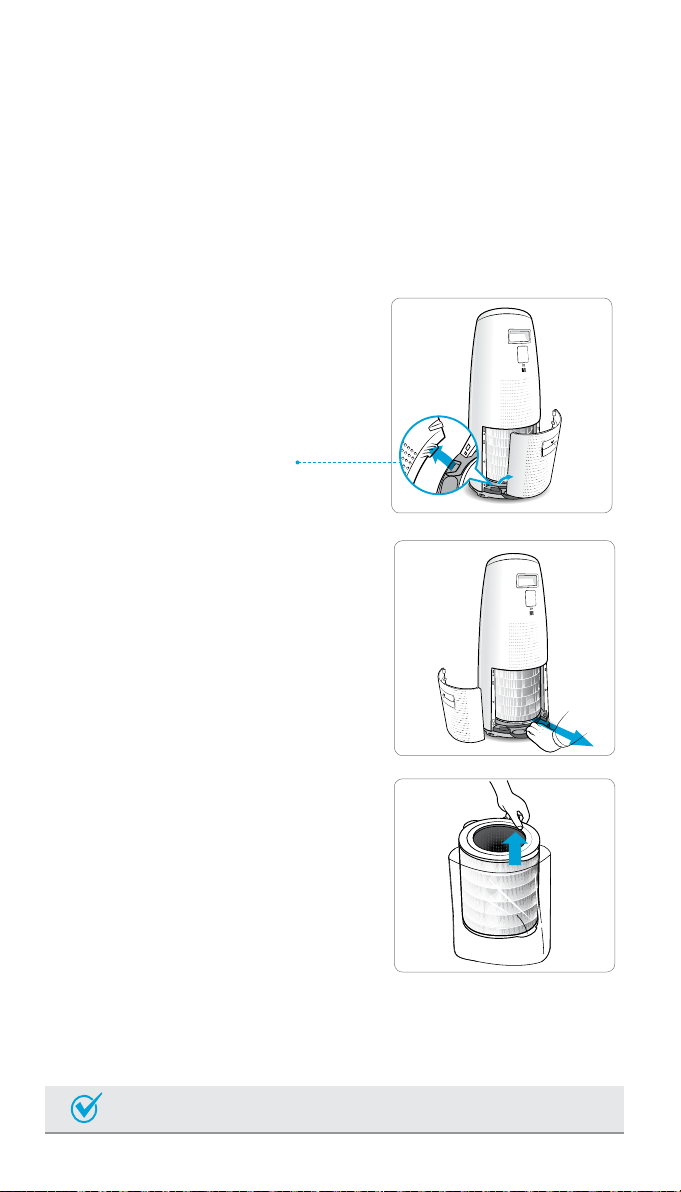

INSTALLING FILTERS
This product comes with all required filters. The protective plastic wrap
must be removed from the filter before use.
※ Operating the unit without removing the plastic wrap may result in
product failure.
※ Unplug and make sure the unit is turned off before installing filter.
③ Remove the 360
o
All-in-One True
HEPA filter from the unit. Remove the
plastic wrap from the filter.
• Operating the unit without removing
filters from plastic wrap may cause
abnormal noise, deformation, or fire as a
result of overheating.
② Once the back panel is removed, grasp
the handle near the bottom of the unit,
and pull towards yourself to lower and
release the filter.
① Remove the back panel by grasping
handle and pulling back, towards
yourself.
Latch
• Refer to pages 17 - 19 for details on how to replace filters.
Note

English
9
NK305
※ Intervals between filter replacement may vary depending on environment.
※ For optimal use, the filter can be cleaned once every 14 days.
※ To clean the filter, vacuum the outside of the filter with a soft brush.
※ THIS FILTER CANNOT BE WASHED

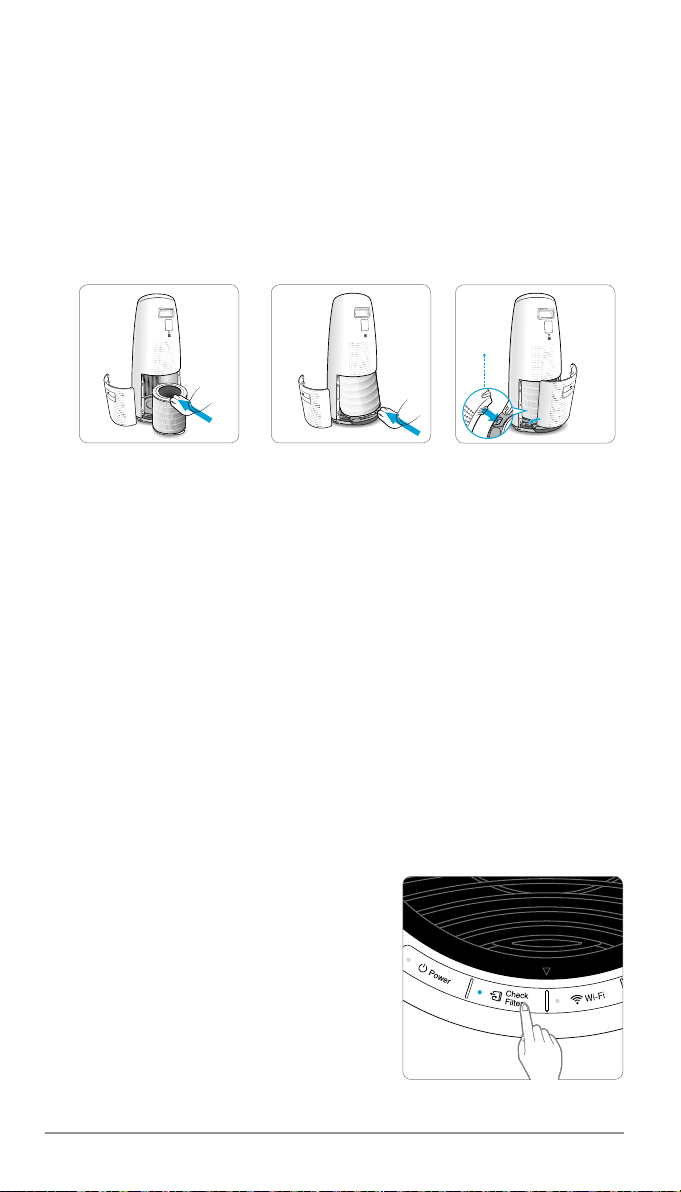

④ Install the filter, top side up, into the
unit until it is fully inserted. Grasp
lower handle near bottom of the
unit and push in until the filter locks
into place.
•
The top of the filter shows the opening
into the filter. Whereas the bottom is
solid, with no opening.
•
When installing the filter you will know
it is fully inserted because it will no
longer be able to be pushed further.
⑤ Replace the back panel by first
inserting the latch at the bottom
edge into the base of the unit, then
rotate the panel upward toward the
top of the unit until the panel snaps
into the unit.
⑥ When to service and replace filter:
Latch
Filter Indicator Light When to
service
When to replace
360o All-in-One True
HEPA Filter
Clean once
every 14 days
Lasts up to
12 months
To purchase replacement
Winix filters:
contact your local dealer
INSTALLING FILTERS
this unit
is compatible
with this
filter
FILTER
N
item: 112180

English
10
NK305
SAFETY AND CAUTIONS
Before operating this equipment, carefully read and follow these safety
cautions
WARNING Follow these instructions to reduce the risk of serious
injury or death and to reduce risk of damaging the unit.
Ensure filter is inserted before running unit
running unit without the filter can shorten the units life and cause electric shock or injury.
Be sure foreign objects are NOT inserted into the vents on the unit
objects can include pins, rods, and coins.
Do not touch any part of the interior of the unit with wet hands
the high voltage may cause electric shock.
Ensure unit intake and outlet vents do not become blocked
blockage may lead to increased internal termperatures causing product failure and derformation.
Do not use the unit as a step stool or place heavy objects on it
personal injury may occur or product failure and deformation.
Do not pull on the power cord when
unplugging the unit
Do not touch the plug with wet hands
Do not plug additional appliances into the
same outlet or power supply
Unplug unit when not in operation for
extended periods of time
Do not tie or knot power cord when unit
is in operation
Do not unplug or move the unit while in
operation
If the unit becomes submerged in water,
unplug it and contact customer service
Cord can become damaged by forcefully
bending, pulling, twisting, bundling,
pinching or placing heavy objects on it
If the supply cord is damaged, it must be replaced by a special cord or assembly
available from the manufacturer or its service agent.
This appliance is not intended for use by a person (including children) with reduced
physical sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

English
11
NK305

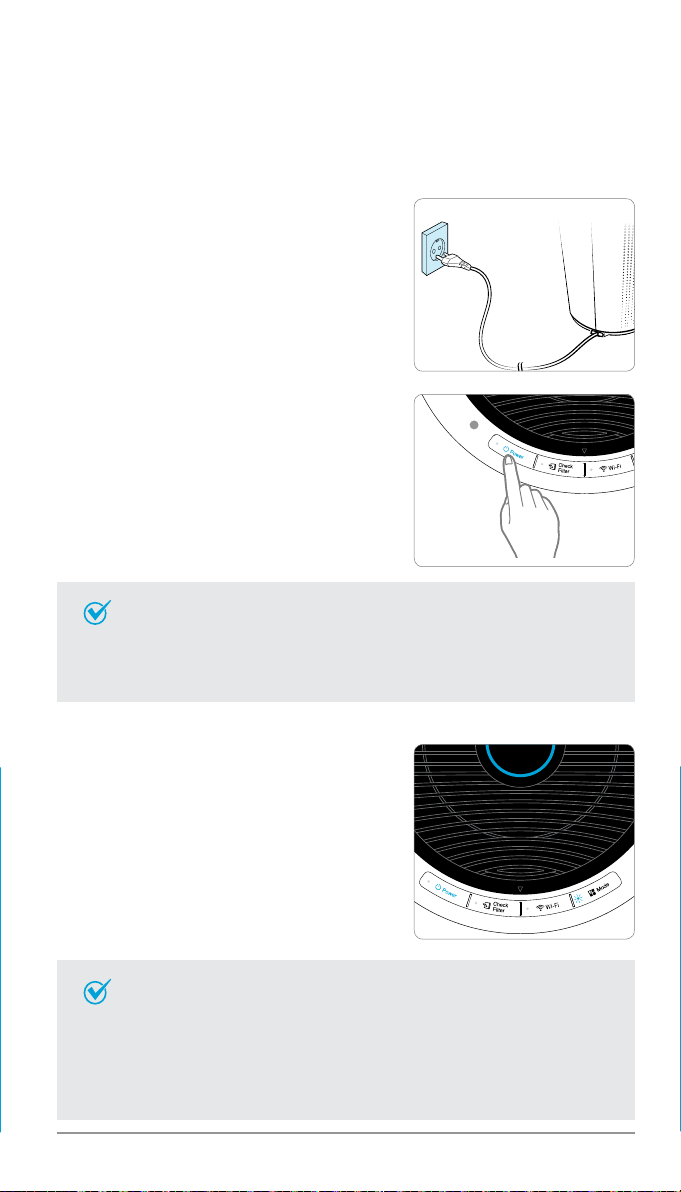

① Insert the power cord into an electrical
outlet.
③ By default, when the unit first powers
on, the mode will be set to Auto with
PlasmaWave
®
enabled.
• When in Auto mode, the fan speed will
be automatically adjusted according to
the environments air quality.
• PlasmaWave
®
works to remove harmful
airborne contaminants.
② Press the ‘Power’ button.
• During the first 4 minutes of power up, the Air Quality
Indicator will flash as the Smart Sensor measure the air quality
in the environment, after which normal operation will begin.
Note
• In Auto mode, as the indoor air quality improves, the fan
speed will automatically be reduced to Low.
• When the unit is running, you may hear a chirping or buzzing
sound. The sound is from large particles passing through
PlasmaWave®, it is normal and does not signify product
failure. To disable PlasmaWave®, see page 13.
Note
INITIAL OPERATION

English
12
NK305
1. Auto Mode
Enables auto operation based on the unit's air quality Smart Sensor.
① Press the Mode button to select
Auto mode.
•The LED ‘Auto’ light will indicate
when Auto mode is activated, and
operation will begin.
• When in Auto mode the fan speed is automatically adjusted
according to the indoor air quality. As the indoor air quality
improves, the fan speed will automatically be reduced. If the
indoor air quality decreases, the fan speed will automatically
increase.
Note

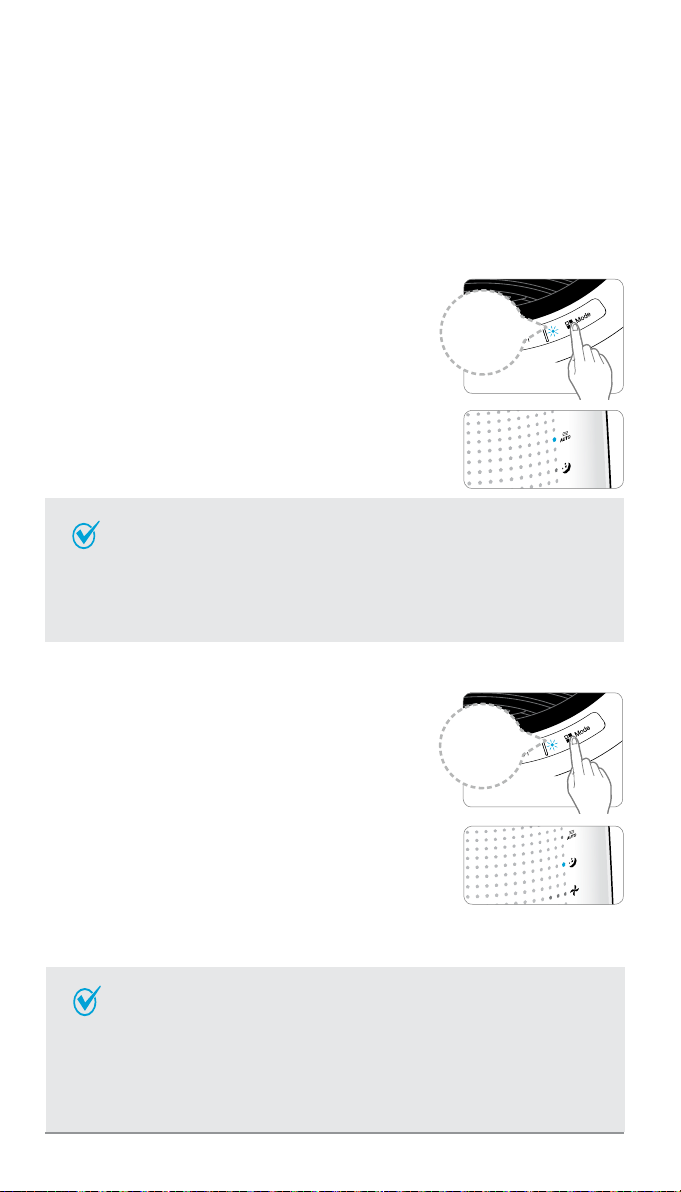

2. Sleep Mode

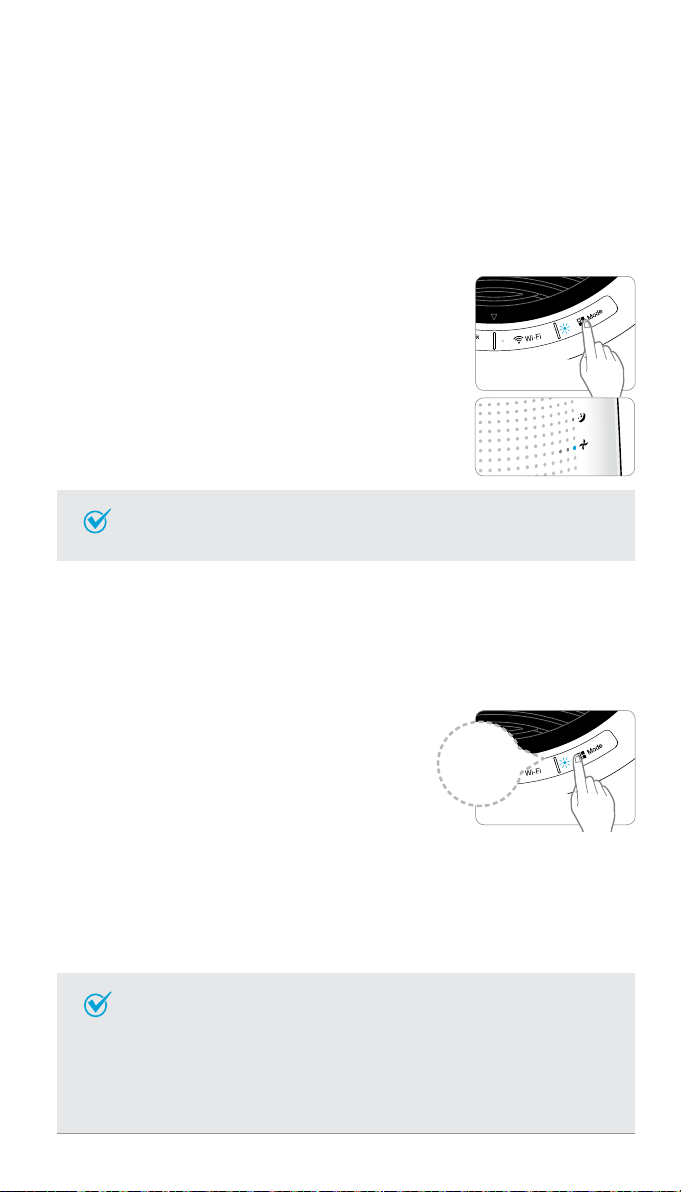

Press the Mode button to select
Sleep mode.
• The LED "Sleep" light will indicate when
Sleep mode is activated, and operation will
begin.
• When Sleep mode is selected, the fan speed is automatically
set to Low. The fan speed can be manually changed by
pressing the Fan Speed button, changing the unit into manual
mode.
• When Sleep Mode is activated, the Air Quality Indicator LED
light is disabled.
Note
AUTO & SLEEP
AUTO
SLEEP

English
13
NK305
3. Manual Mode (setting fan speed)
Users can opt to manually set the fan speed to Low, Medium, High, or
Turbo.
• When Manual Mode is selected, Auto and Sleep Modes are
automatically disabled.
Note
① Press the Mode button to set the
desired fan speed.
•When the button is pressed the unit
will cycle through Auto Mode, Sleep
Mode and fan speeds (Low, Medium,
High, Turbo).
4. PlasmaWave®
By default, PlasmaWave
®
is enabled whenever the unit is powered on.
MANUAL & PLASMAWAVE®
① When the unit is on, press and
hold the Mode button for at least
3 seconds to enable or disable this
feature.
•When PlasmaWave
®
is enabled the
indicator light will be on. When it is
disabled the light will be off.
• In Auto mode, as the indoor air quality improves, the fan
speed will automatically be reduced to Low.
• When the unit is running, you may hear a chirping or buzzing
sound. The sound is from large particles passing through
PlasmaWave®, it is normal and does not signify product
failure.
Note
3
seconds

English
14
NK305
5. Air Quality Indicator
When on, the LED light will indicate the current indoor air quality
according to three levels: BLUE (good), AMBER (fair), RED (poor).
• Air quality level is displayed on the indicator, based on the
Smart Sensor. Depending on the immediate environment,
the indicator may change frequently in color or stay the same
for lengthy periods of time.
• When the unit is in Sleep Mode the Air Quality Indicator will
be turned off to allow for ultimate night time operation.
Note
AIR QUALITY INDICATOR
Air Quality Indicator

English
15
NK305
WINIX SMART is optimized for the following specifications.
Depending on your smart phone capabilities and service parameters,
some functions may not be supported.
Before connecting to Smart Home
• A Wi-Fi wireless router must be installed within range of the air purifier to use WINIX SMART.
• Ensure Wi-Fi router matches the following specifications; 802.11b/g/n 2.4GHZ or for a dual-band
wireless router (2.4GHz/5GHz), be sure to select 2.4GHz.
• Be sure to have the Wi-Fi password handy.
• During registration, please keep the air purifier, wireless router, and smart device within a 32 ft. radius.
• Obstacles between the air purifier, wireless router, and smart device may cause weak reception.
• Before connecting, users with a "Smart Network Switch" on their device should temporarily disable it.
• Once WINIX SMART has been connected, the "Smart Network Switch" on your device can be enabled.
WINIX SMART
6. Winix Smart
WINIX SMART allows you to conveniently control your air purifier from
any location.
ANDROID
iOS
(ICS 4.12 Jellybean or later recommended)
(6.0 or later recommended - iPhone 4S or later)
Setup
① Download the WINIX SMART app on your device.
xavailable via Google Play store or iTunes App store
② Run the app and follow the setup
guide to connect your device to the unit.
xSelect "New Unit" and choose NK305
to connect to this model.
xRead the notice and select "OK".
xEnter the password to your Wi-Fi network.
xPress and hold the Wi-Fi button on the unit's control
panel until it beeps. *The Wi-Fi strength indicator will begin to blink*
xConnect to the WINIX SMART network via your device's network menu.
xSelecting "Next" will connect your unit to your device.
xDefine the unit settings (Name and Location).
xWhen set up is complete, the WINIX SMART Indicator will light up.
App S tore
Available on the
ANDROID APP ON
App S tore
Available on the
ANDROID APP ON

English
16
NK305
360o All-in-One True
HEPA Filter
Filter Indicator Light When to
service
When to replace
360o All-in-One True
HEPA Filter
Clean once
every 14 days
Lasts up to
12 months
FILTER CARE
1. Know The Filters
When the Check Filter indicator LED is on, it is time to replace the filter.
• The filters’ life varies depending on the level of pollutants in
the air. The more dust present in the environment, the more
dust accumulates in the filters, shortening the life.
• If the filter is heavily soiled or has a bad Odour, or if the fan
strength is significantly weakened, replace the filter even if the
Change Filter indicator has not yet turned on.
Note
※ Intervals between filter replacement may vary depending on environment.
※ For optimal use, the filter can be cleaned once every 14 days.
※ To clean the filter, vacuum the outside of the filter with a soft brush.
※ THIS FILTER CANNOT BE WASHED
To purchase replacement
Winix filters:
Contact your local dealer
this unit
is compatible
with this
filter
FILTER
N
item: 112180

English
17
NK305
• For optimal performance, only genuine Winix filters should
be used with this unit.
NOTICE
① Remove the back panel by grasping the handle and gently pulling
towards yourself.
② Grasp the lower handle on the unit and pull straight out, towards
yourself until the filter is released.
③ Pull out the 360o All-in-One True HEPA Filter.
▶▶
FILTER CARE
2. Removing Filters
Turn the unit power off before removing filters.
① Remove replacement filter from
protective plastic wrap.
• Operating the unit without removing
filters from plastic wrap may cause
abnormal noise, deformation, or fire as
a result of overheating.
3. Preparing New Filters
Latch

English
18
NK305
①
After replacing the filter, turn the
power back on and then press and
hold the Check Filter button for at
least 5 seconds to RESET the filter
life in your unit.
① I nstall the filter, top side up, into the unit until it is fully inserted.
Grasp lower handle near bottom of the unit and push in until the filter
locks into place.
•
The top of the filter shows the opening into the filter. Whereas the bottom is
solid, with no opening.
•
When installing the filter you will know it is fully inserted because it will no
longer be able to be pushed further.
② Replace the back panel by first inserting the latch at the bottom
edge into the base of the unit, then rotate the panel upward toward
the top of the unit until the panel snaps into the unit.
▶▶
4. Replacing Filters
5. Resetting The Unit
FILTER CARE
Latch

English
19
NK305
6. Cleaning the filter
Intervals between filter cleaning may vary depending on the air quality.
• Do not use benzene, alcohol, or other volatile fluids, which
may cause damage or discoloration.
NOTICE
FILTER CARE
① Clean with a vacuum or a soft brush
•Only clean the pre-filter.
•This filter CANNOT be washed.

English
20
NK305
2. Cleaning the Exterior & Interior
CLEANING CARE
① Wipe with a soft damp cloth using
room temperature water. Afterwards,
wipe it down with a clean dry cloth.
•To keep unit in peak condition, clean
every 1-2 months.
① In order to clean the interior, open
the back panel and remove filter,
then use vacuum cleaner to remove
excess dirt and dust.
•For optimal performance, clean every
1-2 months.
•When cleaning the unit, always unplug the power cord first
and then wait until the unit has cooled down.
• Never disassemble, repair, or modify this unit yourself.
• Do not use flammable sprays or liquid detergents.
•Do not allow children to clean or maintain the unit.
• Before cleaning or maintaining, ensure unit is unplugged.
NOTICE
