Winix ZERO+ AUS-1250AZPU User manual

User Manual
Model
Use & Care
Guide
WINIX AIR CLEANER
ZERO+ (AUS-1250AZPU)
ˍPlease read and follow all safety rules and instructions
in this manual before operating.
ˍThe product warranty is printed on the back of this
guide, so please keep it in a safe place for future use.


ZERO+ English
CONTENTS
▶This product is suitable for 220 - 240 V only.
5-STAGE AIR PURIFICATION3
CONTROLS4
WHERE TO USE5
INSTALLING THE FILTERS6
SAFETY AND CAUTIONS8
INITIAL OPERATION9
AUTO AND SLEEP10
MANUAL MODE, TIMER AND PLASMAWAVE
®
11
CHILD LOCK, AIR QUALITY LED LIGHT12
FILTER CARE13
CLEANING THE DUST SENSOR17
CLEANING CARE18
FREQUENTLY ASKED QUESTIONS19
UNIT SPECIFICATIONS21
SAFETY INSTRUCTIONS22
PRODUCT WARRANTY 23


English ZERO+
5-STAGE AIR PURIFICATION
PlasmaWave
Deodorization lter
Pre-lter
True HEPA lter
Pet lter
1
2
3
4
5
Product User ManualPre-lter/
Deodorization lter/
True HEPA lter
Pet lter


English ZERO+
CONTROLS
Air Outlet Vent
PLASMAWAVE
Light Sensor
Detects the amount
of ambient light within
the environment,
to adjust the brightness
of the LED indicators.
Mode / Fan Speed Button
Every time the Mode button
is pressed, the Mode LED light
will cycle through the settings.
(Auto, Sleep, Low, Medium,
High, Turbo)
Child Lock Button
Press and hold for 3 seconds
to enable or disable
the Child Lock mode.
Timer Indicator
If timer has been set,
the LED light Indicates
the set time of operation.
Timer / Air Quality Button
Press to cycle through and set
desired length of operation
(1hr, 4hr, 8hr, [NO TIMER]).
Smart Sensor
Automatically
detects indoor
air quality.
Reset Button
After replacing a lter,
press the RESET button
for at least 5 seconds.
Power Button
Turns the unit on
or o.
Child Lock Indicator
LED light indicates whether
Child Lock mode is
enabled or disabled.
Check Filter Indicator
LED light indicates when it is
time to change the lter.
PlasmaWave
Indicator
Indicates whether
PlasmaWave® is
enabled or disabled.
PLASMAWAVE
PlasmaWave Button
Enables or disables
PlasmaWave®.
Press and hold for 3 seconds
to enable or disable the
Air Quality light.


English ZERO+
WHERE TO USE
Allow 30 ~ 45 cm of space between TVs, radios, and other electronic products
electromagnetic interference from certain electronics may cause product malfunction.
Place indoors away from direct sun light
direct exposure may cause product malfunction or failure.
Only place on hard, flat surfaces
flimsy or slanted surfaces may result in abnormal noise and vibrations.
30~45cm 10cm
WARNING Follow these instructions to reduce the risk of serious injury
or death and to reduce risk of damaging the unit.
Do not use around mist or fumes from
industrial oil or around large quantities of
metallic dust
Do not place around heating elements
Do not install in any sort of motor or
transport vehicle (trucks, boats, ships, etc.)
Do not place in an area with excessive
amounts of noxious gases
Do not place near any flammable
materials (aerosols, fuel, gases etc.) Do not have unit facing into wind or draft
Do not place below any electrical outlet Do not place in excessively humid areas
where unit may become wet


English ZERO+
This product comes with all of the required filters. The protective plastic wrap must be
removed from the filters before use.
※Operating the unit without removing the plastic wrap may result in product failure.
※Unplug and make sure the unit is turned off before installing filters.
※The unit will automatically power off when front panel is opened.
① Remove the front panel by grasping its
upper edge and gently pulling towards
yourself.
ˍTo remove the front panel, the latch at
the lower edge of the panel must be
released from its position.
Latch
② Remove the filters from the unit, they are
protected inside a plastic wrap.
③ Remove filters from protective plastic wrap.
ˍOperating the unit without removing
filters from plastic may cause abnormal
noise, deformation, or fire as a result of
overheating.
NOTE
ˍRefer to pages 13 - 16 for detailed information on filter care
and how to replace them.
INSTALLING THE FILTERS


English ZERO+
INSTALLING THE FILTERS

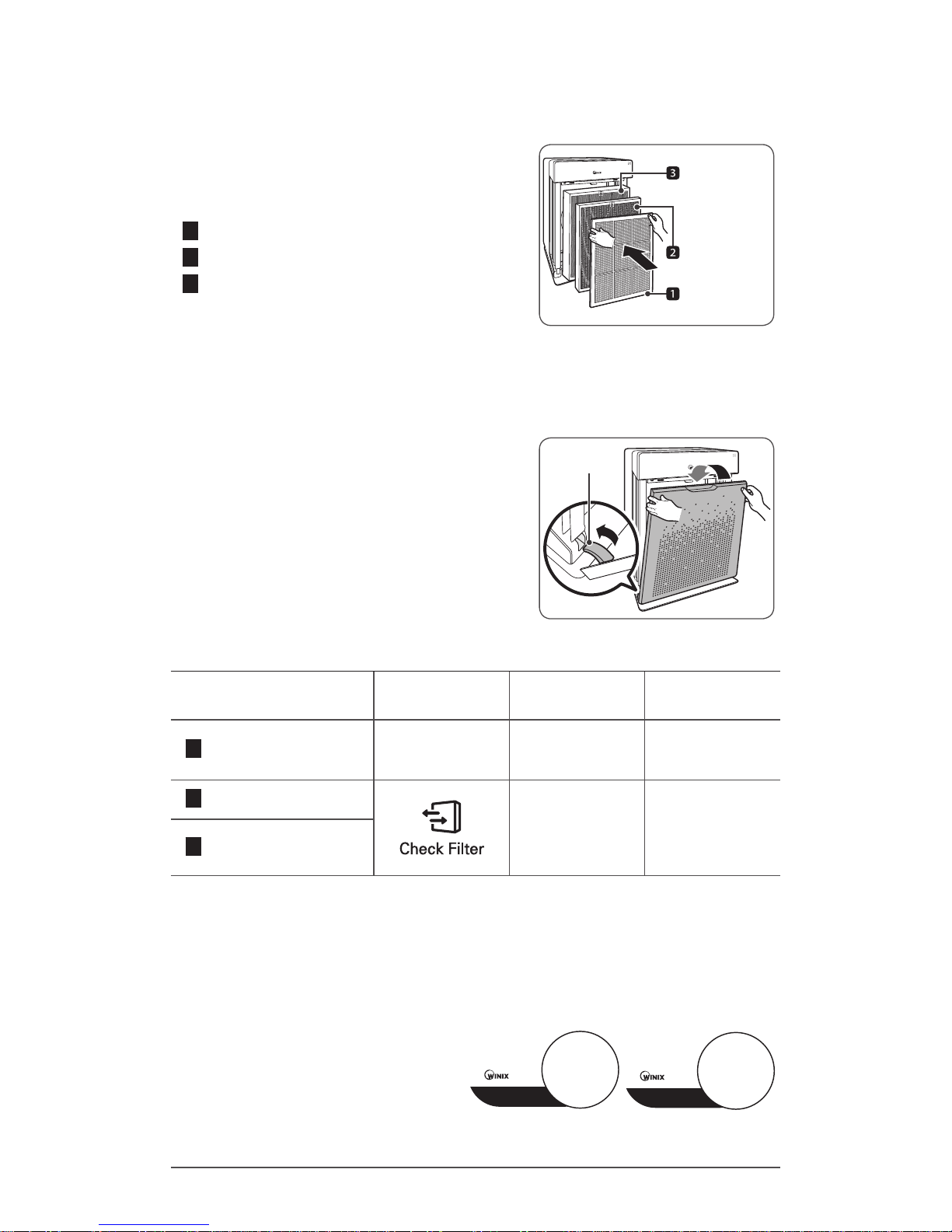

④ Install the filters until they fit securely in
place.
Filters must be installed in this order:
3 True HEPA filter (rear)
2 Deodorization filter (middle)
1 Pre-filter (front)
ˍTo install the pre-filter, insert bottom tabs
into the slots on either side of the lower part
of the unit, then rotate upward to insert the
upper tabs into the slots at the top part of
the unit until both sides audibly click into
place.
Deodorization
lter
True
HEPA lter
Pre-lter
⑤ Replace the front panel by first inserting
the latch at the bottom edge into the
base of the unit, then rotate the panel
upward toward the top of the unit until it
magnetically snaps closed.
Latch
⑥ When to service and replace filters:
Filter Indicator Light When to service When to replace
1 Pre-filter none Clean once every
14days Permanent
2 Deodorization filter
Can NOT be
WASHED
Lasts up to
12months
3 True HEPA filter
※ Intervals between filter replacement may vary depending on environment.
※For optimal use, Pre-filter can be cleaned every 14 days which can extend the life of
other filters.
※ Pet filter replacement guide separately mentioned on the Pet filter package board.
To purchase replacement Winix filters :
contact our authorized distributor
‘Ausclimate’ or visit the below web site.
ˍTEL : 1800 122 100
ˍwww.ausclimate.com.au
ˍwww.winixaustralia.com.au
this unit
is compatible
with this
filter
FILTER
item : 1712-0092-01
GJ
this unit
is compatible
with this
filter
FILTER
item : 1712-0095-01
GU


English ZERO+
SAFETY AND CAUTIONS
Before operating this equipment, carefully read and follow these safety cautions and
instructions to avoid damage and ensure safe use.
Ensure filters are inserted before running unit
running unit without filters can shorten the units life and cause electric shock or injury.
Be sure foreign objects are NOT inserted into the vents on the unit
objects can include pins, rods, and coins.
Do not touch any part of the interior of the unit with wet hands
the high voltage may cause electric shock.
Ensure unit intake and outlet vents do not become blocked
blockage may lead to increased internal temperatures causing product failure and
deformation.
Do not use the unit as a step stool or place heavy objects on it
personal injury may occur or product failure and deformation.
WARNING Follow these instructions to reduce the risk of serious
injury or death and to reduce risk of damaging the unit.
Do not pull on the power cord when
unplugging the unit
Do not tie or knot power cord when unit
is in operation
If the unit becomes submerged in water,
unplug it and contact customer service
Do not unplug or move the unit while in
operation
Do not plug additional appliances into
the same outlet or power supply Do not touch the plug with wet hands
Unplug unit when not in operation for
extended periods of time
Cord can become damaged by forcefully
bending, pulling, twisting, bundling,
pinching or placing heavy objects on it
※If the supply cord is damaged, it must be replaced by a special cord or assembly
available from the manufacturer or its service agent.
※This appliance is not intended for use by a person (including children) with reduced
physical sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
※Children should be supervised to ensure that they do not play with the appliance.


English ZERO+
INITIAL OPERATION
① Insert the unit plug into an electrical outlet.
ˍThe Control Panel lights will turn on and
off.
② Press the 'Power' button.
NOTE
ˍDuring the first 4 minutes of power up, the Air Quality light
will flash as the Smart Sensors measure the air quality in the
environment, after which normal operation will begin.
③ By default, when the unit first powers on, the
mode will be set to Auto with PlasmaWave
®
enabled.
ˍWhen in Auto Mode the fan speed will
be automatically adjusted according to
the environments air quality.
ˍPlasmaWave
®
works to remove harmful
airborne contaminants.
NOTE
ˍIn Auto mode, as the indoor air quality improves, the fan
speed will automatically be reduced to Low.
ˍWhen the unit is running, you may hear a chirping or buzzing
sound. The sound is from large particles passing through
PlasmaWave
®
, it is normal and does not signify product
failure. To disable PlasmaWave
®
, see page 11.


English ZERO+
AUTO AND SLEEP
Every time the Mode button is pressed, the Mode LED light will cycle through the
settings. (Auto, Sleep, Low, Medium, High, Turbo)

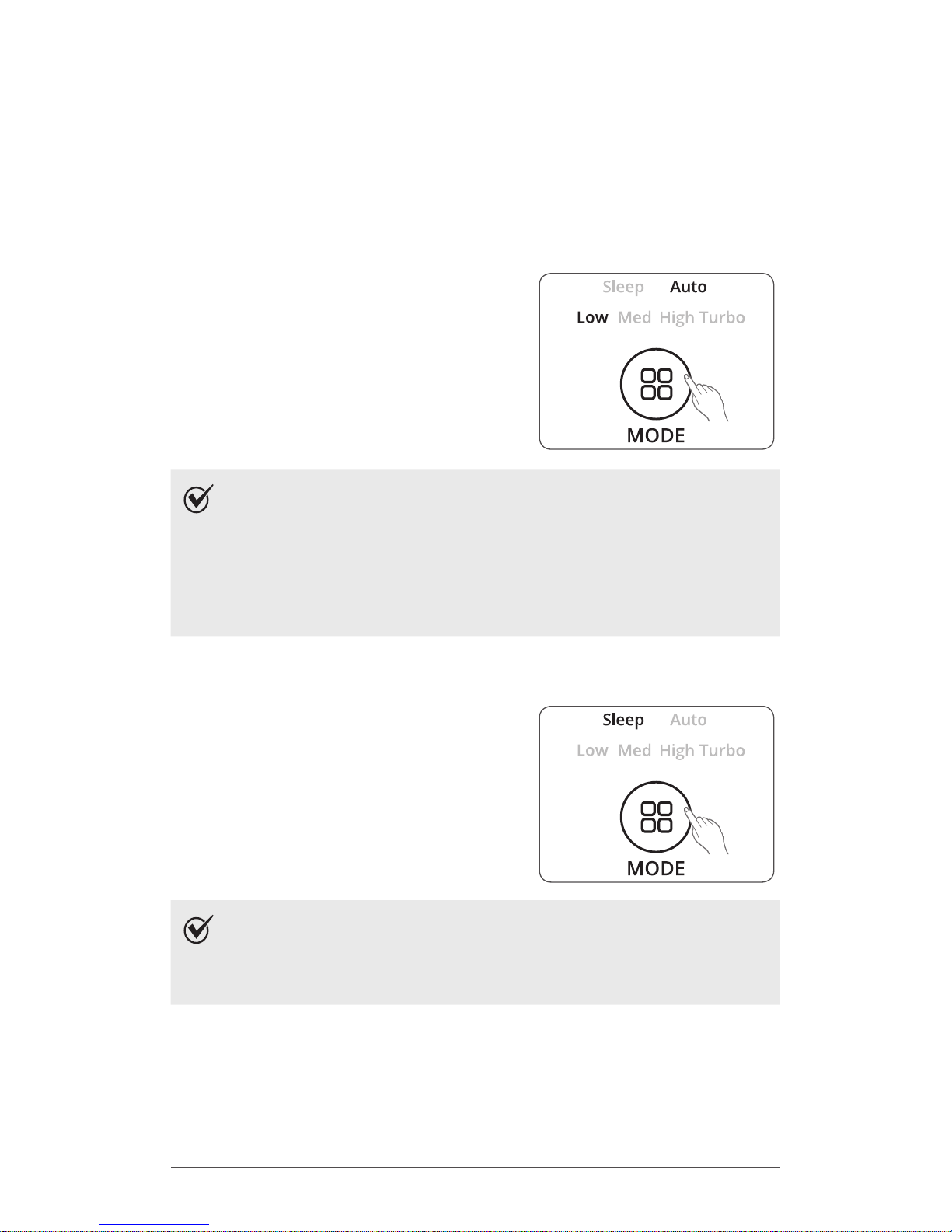

1. Auto Mode
Enables Auto operation based on the unit's air quality Smart Sensors.
① Press the Mode button to select Auto mode.
ˍThe mode LED light will indicate when
‘Auto’ mode has been selected, and
operation will begin.
ˍEach time the Mode button is pressed,
the modes will be cycled. (Auto, Sleep,
Low, Medium, High, Turbo).
NOTE
ˍWhen in Auto Mode the fan speed is automatically adjusted
according to the indoor air quality. As the indoor air quality
improves, the fan speed will automatically be reduced. If the
indoor air quality decreases the fan speed will automatically
be increased.
ˍWhen unit is first started, Auto Mode is enabled and set to
Low fan speed.
2. Sleep Mode
① Press the Mode button to select Sleep mode.
ˍThe mode LED light will indicate when
‘Sleep’ mode has been selected, and
operation in that mode will begin.
NOTE
ˍWhen Sleep mode is selected, the fan speed is automatically
set to Low. Fan speed can be changed by pressing the Fan
Speed (Mode) Button.
ˍWhen Sleep Mode is enabled, the Air Quality light is disabled.


English ZERO+
MANUAL MODE, TIMER AND PLASMAWAVE®
Every time the Mode button is pressed, the Mode LED light will cycle through the
settings. (Auto, Sleep, Low, Medium, High, Turbo)
3. Manual Mode (setting fan speed)

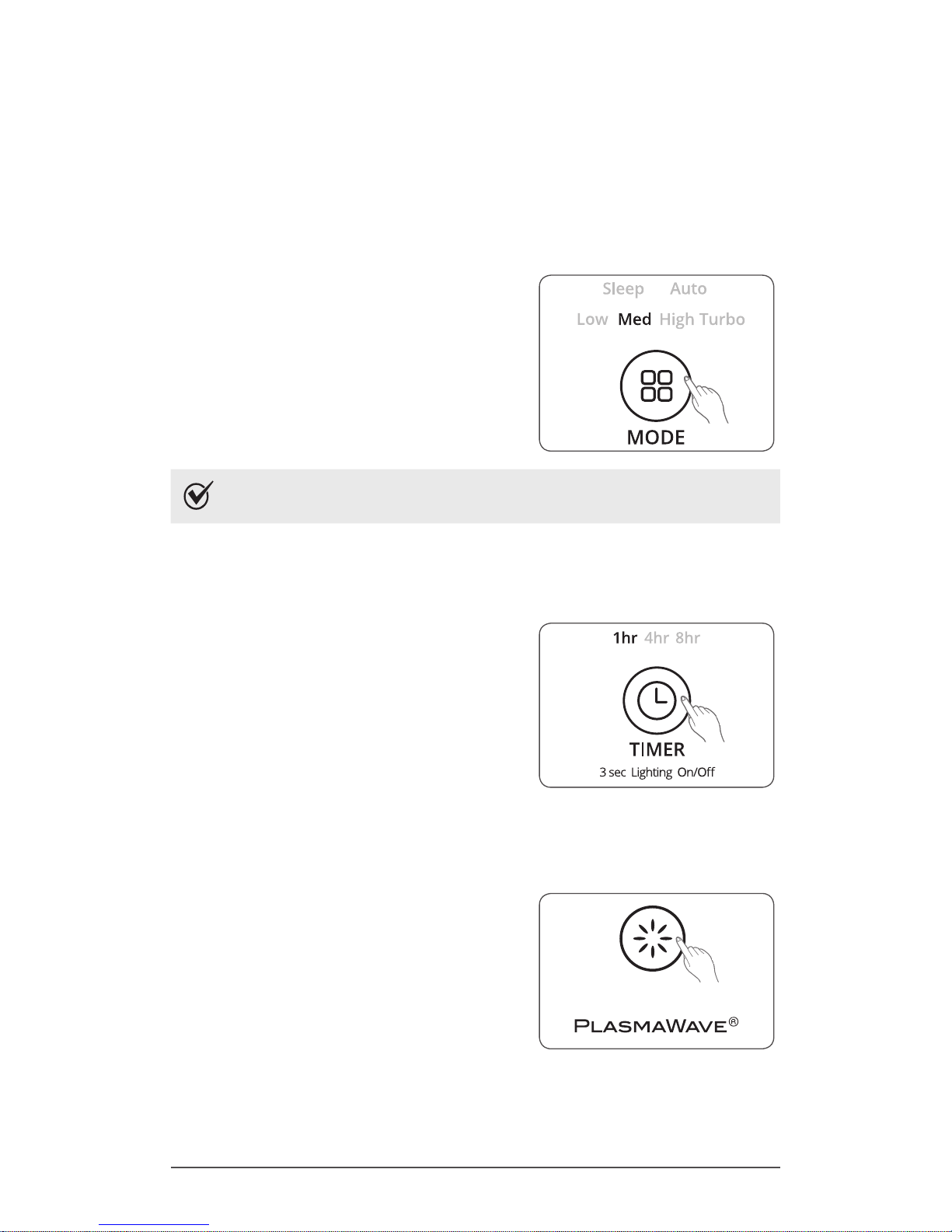

Users can opt to manually set the fan speed to Low, Medium, High, or Turbo.
① Press the Mode button to select the desired
fan speed.
ˍThe mode LED light will indicate the
selected fan speed, and operation will
begin.
NOTE
ˍWhen Manual Mode is in use, Auto and Sleep modes are
automatically disabled.
4. Timer
The timer can be set for when you want the unit to run for a specified period of time.
① Select the desired period by pressing the
Timer button.
ˍThe Timer LED light will indicate the
selected length of operation.
ˍEvery time the Timer button is pressed
the Timer LED light will cycle through
the settings. (1hr, 4hr, 8hr, [NO TIMER]).
5. PlasmaWave
®
By default, PlasmaWave
®
is enabled whenever the unit is powered on.
① Press the Plasma button when the power is
on to enable or disable this feature.
PLASMAWAVE


English ZERO+
CHILD LOCK, AIR QUALITY LED LIGHT

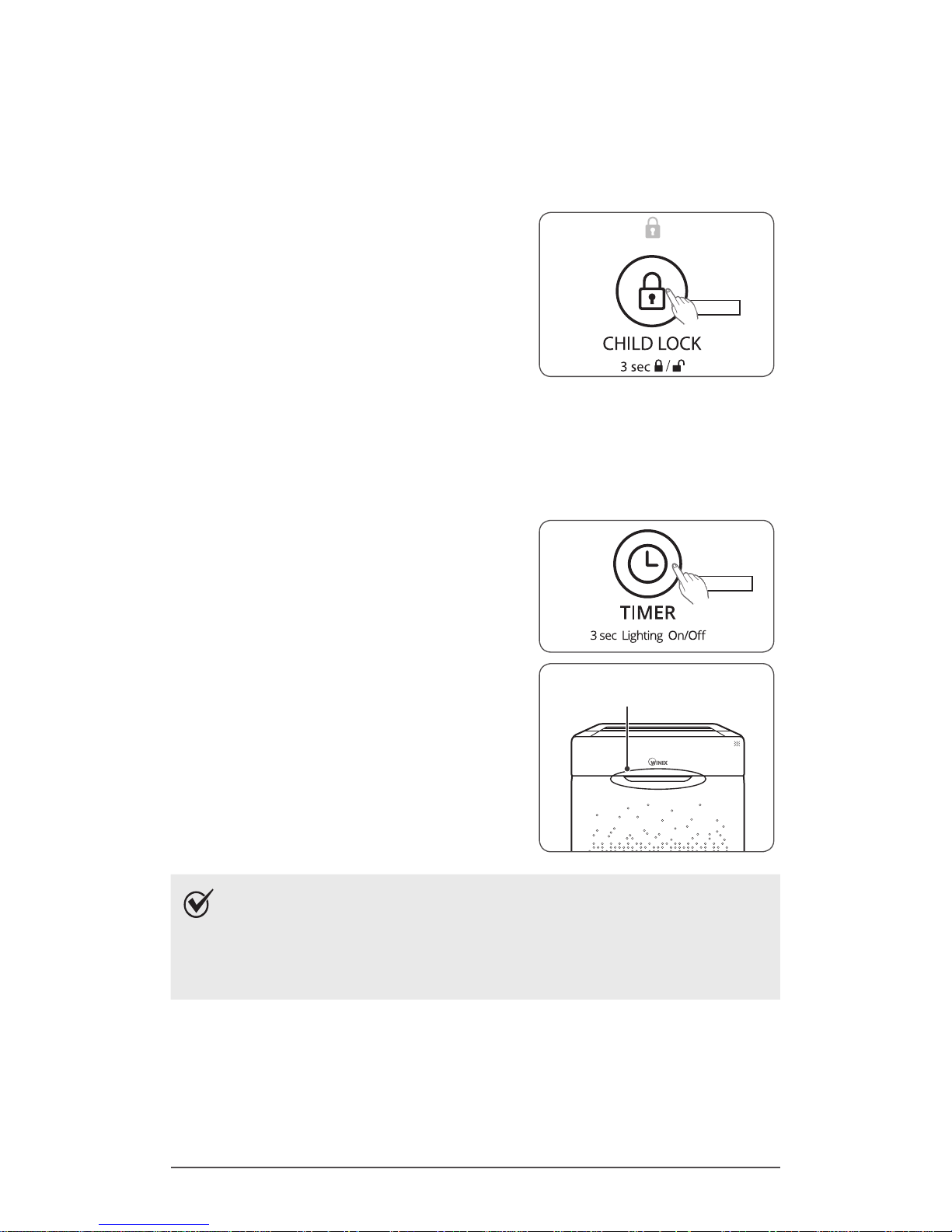

6. Child Lock
This feature prevents children from tampering with the control panel.
① Press and hold the Child Lock button for
3seconds to enable or disable the feature.
ˍWhen the Child Lock indicator is lit, the
feature is enabled.
ˍWhen Child Lock is enabled, the
control panel is locked and the settings
cannot be changed.
ˍTo disable, press and hold the Child
Lock button again for 3seconds.
3 seconds
7. Air Quality LED Light
The Air Quality LED light may be turned on or off.
① To turn the Air Quality LED light on or
off, press and hold the Timer button for
3seconds.
ˍWhen on, the LED light will indicate the
current indoor air quality according to
three levels BLUE/GREEN/AMBER/RED
3 seconds
Air Quality Indicator
NOTE
ˍWhen Auto Mode is enabled the Air Quality LED light may or
may not be on, depending on the amount of ambient light
in the room.
ˍWhen Sleep Mode is activated, the Air Quality Indicator light
is turned off.


English ZERO+
FILTER CARE
1. Changing Filters
When the Check Filter indicator LED is on, it is time to replace both the
True HEPA and Deodorization filter.
Filter Indicator Light When to service When to replace
1 Pre-filter none Clean once every
14days Permanent
2 Deodorization filter
Can NOT be
WASHED
Lasts up to
12months
3 True HEPA filter
※ Intervals between filter replacement may vary depending on environment.
※For optimal use, Pre-filter can be cleaned every 14 days which can extend the life of
other filters.
※ Pet filter replacement guide separately mentioned on the Pet filter package board.
To purchase replacement Winix filters :
contact our authorized distributor
‘Ausclimate’ or visit the below web site.
ˍTEL : 1800 122 100
ˍwww.ausclimate.com.au
ˍwww.winixaustralia.com.au
this unit
is compatible
with this
filter
FILTER
item : 1712-0092-01
GJ
this unit
is compatible
with this
filter
FILTER
item : 1712-0095-01
GU


English ZERO+
FILTER CARE

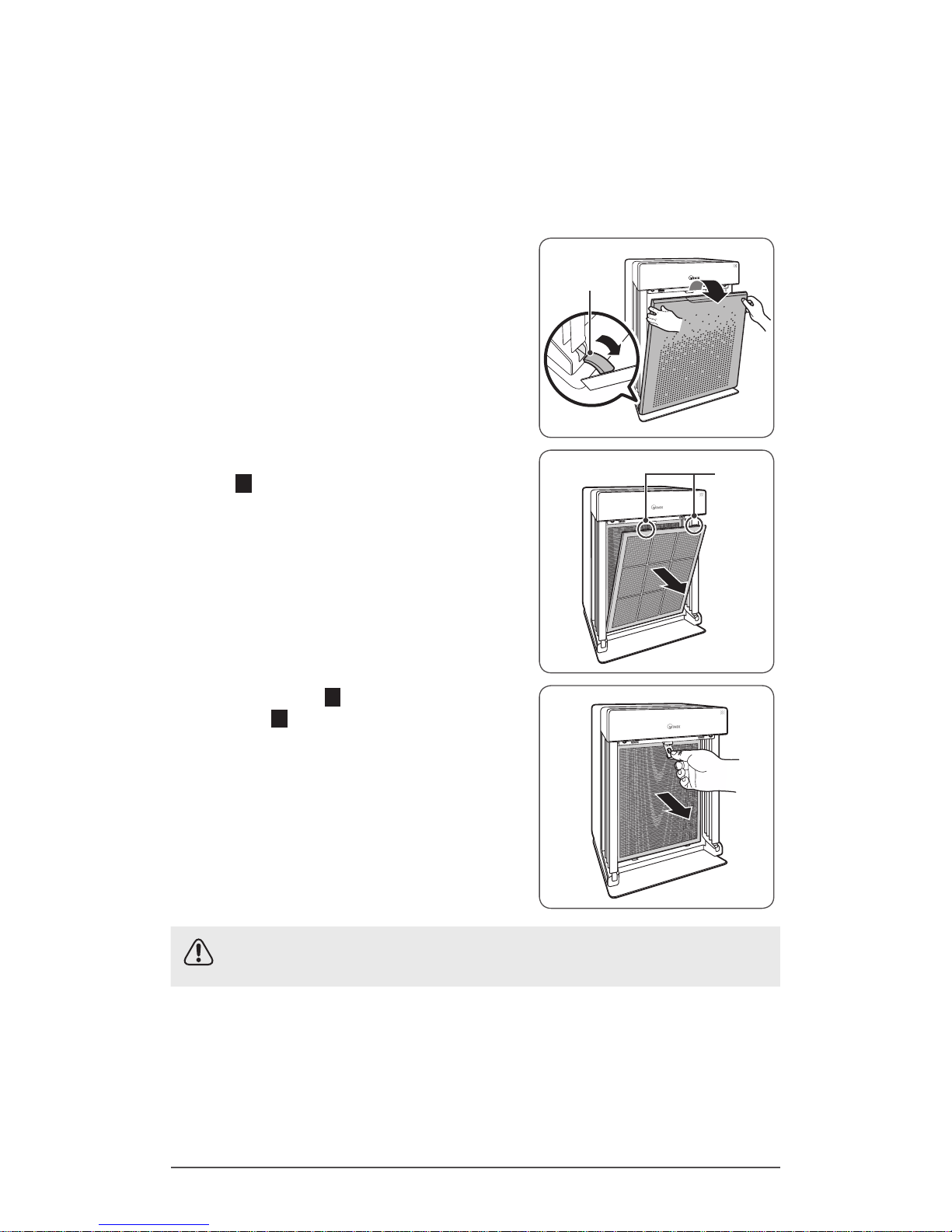

2. Removing Filters
Ensure the unit is turned off and unplugged before removing filters.
※The unit will automatically power off when front panel is opened.
① Remove the front panel by grasping its
upper edge and gently pulling towards
yourself.
ˍTo remove the front panel, the latch at
the lower edge of the panel must be
released from its position.
Latch
② Press the tabs on the top edge to remove
the 1 Pre-filter.
Tabs
③ First remove the 2 Deodorization filter and
then the 3 True HEPA filter by pulling on
the numbered tags at the top of each filter.
NOTICE
ˍFor optimal performance, only genuine Winix filters should
be used with this unit.


English ZERO+
FILTER CARE
3. Filter Assembly and Replacement
Filters should be re-installed in the reverse order of their removal.
① Insert the replacement
3 True HEPA filter (rear)
2 Deodorization filter (middle)
ˍRemove the protective plastic wrap from
new filters. Operating the unit without
removing the protective plastic wrap
may cause abnormal noise, deformation,
or fire as a result of overheating.
Deodorization
lter
True
HEPA lter
② Insert the 1 Pre-filter (front).
ˍTo install the pre-filter, insert bottom
tabs into the slots on either side of
the lower part of the unit, then rotate
upward to insert the upper tabs into
the slots at the top part of the unit until
both sides audibly click into place.
③ Replace the front panel by first inserting
the latch at the bottom edge into the
base of the unit, then rotate the panel
upward toward the top of the unit until it
magnetically snaps closed.
Latch
④ After replacing the filters, power on the unit.
Once the unit running, press and hold the
RESET button for 5seconds.


English ZERO+
FILTER CARE
4. Cleaning the Pre-filter
Intervals between filter cleanings may vary depending on the air quality.
① Use a vacuum cleaner or soft brush to clean
the Pre-filter. If it is excessively dirty, wash
with room temperature water.
ˍUse only water, do not use volatile
substances such as alcohol or acetone.
※If the pre-filter becomes damaged or in any way needs replacement:
Please contact your local dealer
NOTICE
ˍDo not use benzene, alcohol, or other volatile fluids, which
may cause damage or discoloration.
ˍThe Pre-filter is reusable after cleaning, ensuring it has
completely dried.
ˍDo not use hot water over 104°F or volatile fluids such as
paint thinner.
ˍAfter washing the pre-filter, allow it to dry completely in a
wellventilated area. Otherwise, it may develop a bad odor.


English ZERO+
CLEANING THE DUST SENSOR
Cleaning the Dust Sensor
For optimal performance of the Dust Sensor, which detects airborne dust and ultrafine
particles, clean it every two months. Clean it more frequently when the unit is running
in a place with high dust levels.
① Open the Dust Sensor cover.
② Use a damp cotton swab to wipe the lens
and intake area of the Dust Sensor.
ˍTo clean the sensor area, use only water.
Do not use volatile substances such as
alcohol or acetone.
Lens
Cotton swab
③ Wipe away any remaining moisture with a
dry cotton swab.
④ Close the Dust Sensor cover.
ˍThe Dust Sensor cover may be cleaned
using a vacuum cleaner.


English ZERO+
CLEANING CARE
Cleaning the exterior and interior
Cleaning the exterior
Wipe with a soft damp cloth using room
temperature water. Afterwards, wipe it down
with a clean dry cloth.
ˍFor optimal performance, clean the front
panel 1-2times a month.
Cleaning the interior
Open the front panel and clean the interior with
a vacuum cleaner.
ˍFor optimal performance, clean the interior
1-2times a month.
NOTICE
ˍWhen cleaning the unit, always unplug the power cord first
and then wait until the unit has cooled off.
ˍNever disassemble, repair or modify this unit yourself.
ˍDo not use flammable sprays or liquid detergents.
ˍDo not allow children to clean or maintain the unit.
ˍBefore cleaning or maintaining, ensure unit is off and
unplugged.


English ZERO+
FREQUENTLY ASKED QUESTIONS
Problem Check / Actions to take
It does not turn on
at all.
ˍIs there a power outage?
Check to see if other lights and electrical
equipment are working and try again.
It doesn’t work in
Auto mode.
ˍHas Auto mode been selected?
Press the Mode button until Auto mode is
selected.
ˍIs the sensor blocked or clogged?
Clear the sensor using a vacuum cleaner. view
page 17.
It vibrates and
makes a lot of
noise.
ˍIs it running on a slanted surface?
Move the unit to a hard, flat area of the floor.


English ZERO+
FREQUENTLY ASKED QUESTIONS
Problem Check / Actions to take
The power plug
and outlet feel
hot.
ˍIs the plug securely plugged in?
Make sure the plug is properly plugged into the
outlet.
There is a strange
smell.
ˍIs it being used in a place with a lot of smoke, dust,
or odors?
Clean the air intakes on the front sides of the
unit and clean the pre-filter.
Contact customer service to confirm the exact
cause.
Replace the Deodorization filter and True HEPA
filter.
The product is not
purifying the air
enough.
ˍIs the Check Filter indicator light on?
Replace the filters as required.
