Woodbridge B0920 User manual

MPN: B0920
INSTALLATION INSTRUCTIONS
ONE PIECE SQUARE TOILET
WoodBridge

TOOLS REQUIRED FOR INSTALLATION
TOILET COMPONENTS
1
Soft Cloth
or Blanket
Silicone Silicone/
Caulk Gun
OTHER TOOLS MAY BE REQUIRED
READ ALL INSTRUCTIONS BEFORE UNPACKING THE PRODUCT
2 PEOPLE ARE REQUIRED TO LIFT AND DURING
ENTIRE INSTALLATION OF THIS PRODUCT
INSTALLATION OF THIS PRODUCTS BY AN
INEXPERIENCED INSTALLER MAY RESULT
PERSONAL INJURY OR DEATH!
INSTRUCTIONS THAT, IF IGNORED COULD RESULT IN DEATH OR SERIOUS INJURY CAUSED BY INCORRECT HANDLING
OR INSTALLATION OF THE PRODUCT. THESE INSTRUCTIONS MUST BE OBSERVED FOR SAFE INSTALLATION.
We reserves the right to change, update, modify, alter, redesign this manual/product or its policies without prior notice!
It is your responsibility to visit website to download or contact customer service for the most updated version of the installation instructions.
We shall not be liable for any injuries or property damages in connection with this product during installation or use of this product!
Tape
Measure
Pencil/Marker Safety Glass Knife
During unpacking the product and prior to installation inspect your new product for any damages or
missing parts. Do not attempt to install or operate the product if the product is damaged.
Adjustable
Wrench
Channel
Lock Pliers
Adjustable
Socket Extension
Philips
Screwdriver Level Putty Knife
This products must be installed by a fully insured and licensed plumber only. Installation of any our product by anyone other
than fully insured and licensed plumber shall void limited warranty. We recommends that such licensed plumber have experience
in the installation of products.
Limited warranty is void on any commercial installation
We are not responsible for local code compliance for this product. Building and plumbing codes may vary from state-to-state in
accordance to your location. We are not resonsible for providing any compliance certifications.
We are not responsible to provide any type of certifications for this product
Under no circumstances we are shall not be liable for any and all incidental damages sustained in connection with this product
Neither manufacture, nor distributor, nor retailer is responsible for water damage or flood caused due to use of this product.
Under no circumstances We shall not be liable for any and all fees, cost of installation/reinstallation/removal, subsequent
damage or transportation in case of the product defect
ONE PIECE SQUARE TOILET
Bowl with lid
x 1
Toilet Seat Set
x 1
Wax Ring
x 1
Mounting T-Bolt
x 2
bolt cap decoration
x 2
Mounting Screw
x 2
T-Bolt Nuts and Washers
x 2
The plastic piece
x 2
Plastic washer
x 2

2
ONE PIECE SQUARE TOILET
DIMENSIONS/TECHNICAL DATA
TECHNICAL DATA
• Dual flush: 1/1.6 GPF
ATTENTION! Dimensions may vary by up to 3/8". It is highly recommended to pull
all dimensions of actual model for installation and measuring purposes.
755mm
[29 3/4"] 400mm
[15 3/4"]
305mm
[12"]
381mm
[15"]
685mm
[27 "]
152mm
[6"]
270mm
[10 5/8"]
153mm
[6"]
470mm
[18 1/2"]
345mm
[13 5/8"]
2 1/2"
1 5/8"
355mm
[14"]

12"
Rough-in
Standard
Wall
Floor
ONE PIECE SQUARE TOILET
WATER SUPPLY LOCATION & TECHNICAL INFORMATION
TECHNICAL DATA
• Dual flush: 1/1.6 GPF
3
ATTENTION! Dimensions may vary by up to 3/8". It is highly recommended to pull
all dimensions of actual model for installation and measuring purposes.
12"
Rough-in
Standard
Side View
Side View
Back View
Wall
Floor
Flush GPF amount is factory
set. No additional adjustment
is required.
Tank Top View (Inside)
Half
Flush
(1GPF)
Adjust the water level in the
toilet's tank if neccessary by
rotating the adjustment
screw to increase (+) or
decrease (-) a level of water
in the toilet's tank.
Full
Flush
(1.6GPF)
Half
Flush
(1GPF)
Threaded
Shunk (Water
Supply Fill Valve)

4
ONE PIECE SQUARE TOILET
INSTALLATION INSTRUCTIONS
IMPORTANT!
Shut off main water supply prior to installation!
REMOVE OLD TOILET
1. Shut off water supply line. If you do not have shut-off valve near the toilet shut off main water supply line.
2. Flush the old toilet and make sure that tank is empty.
3. Disconnect and remove water supply line connected to the toilet's tank.
4. Remove old toilet, bolts, nuts from the closet flange.
5. Clean closet flange area from old wax ring and putty sealant using putty knife from the base area.
6. Clean any remaining debris and wipe any water at the installation area
7. Temporarily plug flange on a floor with a flange plug or towel to prevent gasses from escaping

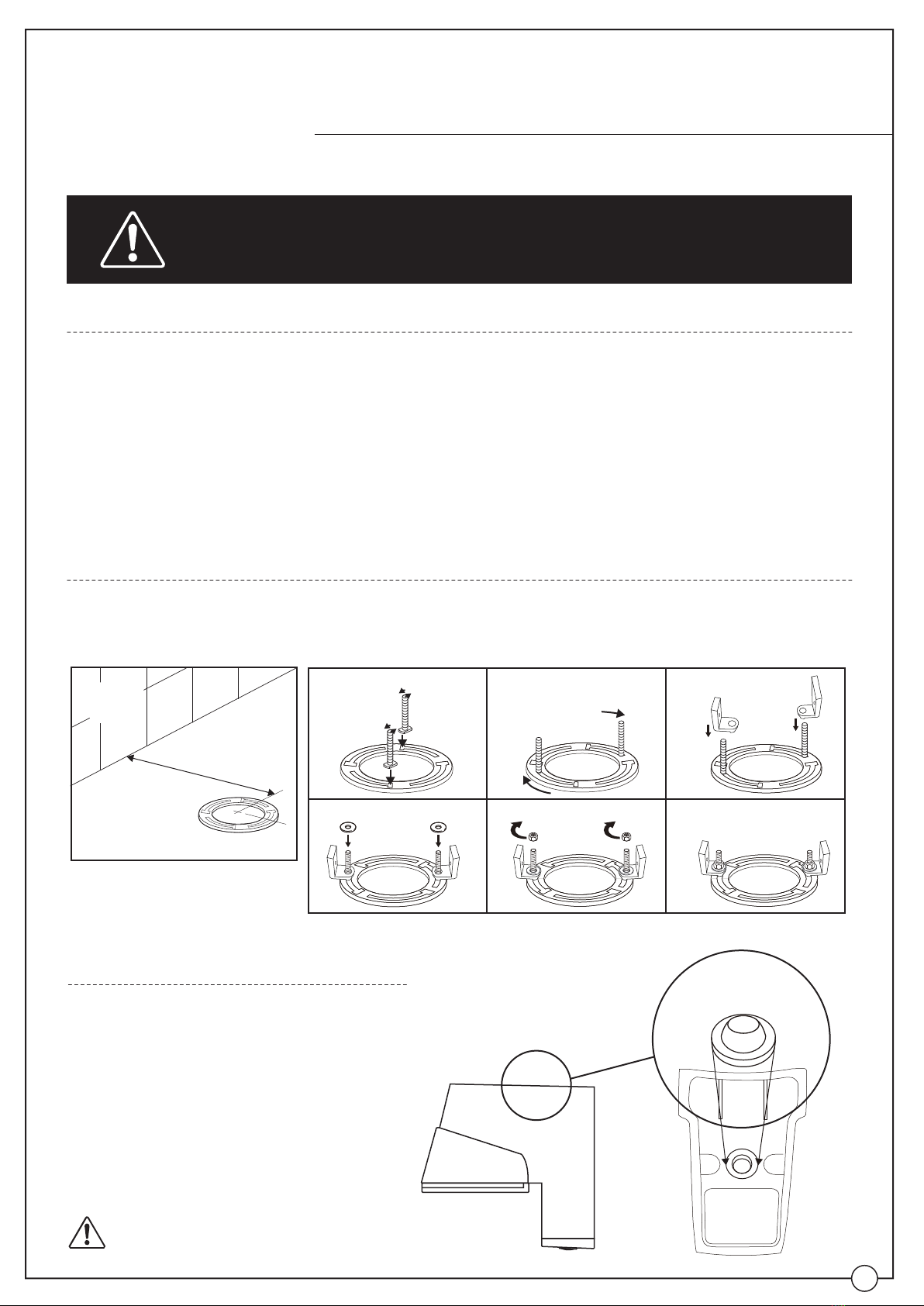

PREPARE CLOSET FLANGE
Figure 1
Figure 2
Make sure that rough-in is 12" by measuring the
distance from the wall to the center of the closet
flange.
See Figure 1
Step 1. Insert 2 floor bolts inside of the toilet flange
Step 2. Slide the closet bolts through the holes and
align bolts horizontaly.
See Figure 2
Figure 3
INSTALL WAX RING
Important: safety glasses must be worn by the installer
and all bystanders.
Cover the floor with a soft-close blanket. Carefully turn
the toilet on it's side or upside-down on the blanket with
assistance of a second person. Install wax ring over the
horn discharge located on the bottom of the toilet's bowl.
See Figure 3
Note: Ceramic is a fragile material. You must always cover
the floor with a soft-cloth blanket if you want to put the
toilet on the floor on any side other than the bottom of
the toilet. If you do not cover the floor with a soft-close
blanket contact of the toilet with the floor may and will
cause minor or moderate scratches on the toilet's surface.
Prior to installtion the
wax ring must be kept in
a room temperature
between 70-75ºF.
IMPORTANT! The mounting surface area
must be clean, dry, and leveled prior to
installation of the new toilet!
NOTE! Inspect the existing closet flange for
damages. If damaged, replace it to new flange
before proceeding to the installation
Always Use Soft-Cloth Blanket
Step 1 Step 2
Bathroom
Wall
Bathroom
Floor
Closet Flange
12"
Rough-in
90º
90º
Step 3
Step 4 Step 5 Step 6

CONNECT TOILET'S TANK
TO WATER SUPPLY LINE
Connect the water supply line between the tank and water
shut-off valve using a toilet hose (not supplied). When
connecting toilet hose tighten coupling nut to the tank by
1/4 turn beyond the hand tight.
Turn on valve on water supply line and allow tank to fill.
Check all connections for leakages and tighten as needed.
Once tank is filled with water flush it 4-5 times to perform
a test of the flushing system. At the same time check the
bottom of the toilet for leaks to make sure that the wax
ring is properly installed and sealed.
If there are no leaks you are ready finalize the installion. If
any shims are installed at the bottom of the toilet's bowl
you may trim them. Apply silicone around base of the
toilet's. Allow 24 hours for silicone to dry before start
using the toilet. See Figure 6
Important: Leaks may not occur during or right after the
installation. Make sure to check for leaks every couple
hours first day installed and and occasionally check it
everyday for the next week to ensure that toilet is properly
installed and no leaks occur. If any leaks occur immediately
shut off the water supply line valve and contact your local
plumber to fix all leaks.
Important:
Under no circumstances We shall not be liable for any and all incidental damages
sustained in connection with this product
Neither manufacture, nor distributor, nor retailer is responsible for water
damage or flood caused due to use of this product.
Under no circumstances We shall not be liable for any and all fees, cost of
installation/reinstallation/removal, subsequent damage or transportation in case
of the product defect
Figure 6
ONE PIECE SQUARE TOILET
INSTALL NEW TOILET
Step 1. Lift and carefully put the toilet over the closet
flange so the closet bolts can go through the mounting
holes in the toilet's base. Once the bowl is in the position
press the bowl down with slight twisting motion in level
position towards the floor. Apply your body weight to
evenly compress the wax ring to create watertight seal.
Make sure that the bowl is as leveled as possible to have a
nice seal tight.
Do not rock the toilet back and forth and side to side as it
may and will break a seal and you will need to replace the
wax ring again and start the installation process over.
See Figure 4
Step 2. Once the toilet is set and leveled install washers
and nuts over the closet bolts. Tighten nuts. Do not
overtighten the nuts. It may and will cause damage to the
toilet's ceramic base.
See Figure 5
5
Do not overtighten nut on the tank connection.
It may and will cause water leakage.
CAUTION! 2 PEOPLE ARE REQUIRED TO LIFT AND DURING
ENTIRE INSTALLATION OF THIS PRODUCT
Wall
Floor
Note: It may be required to use shims under
the edge of the toilet's bowl. Due to
manufacturing process of vitreous china
ceramic products, every toilet may have
slight level variations. It does not mean that
the toilet is defective. In addition your floor
might be uneven or not leveled as well.
Plastic washer
bolt cap
decoration
Figure 5
12"
Rough-in
Standard
Wall
Floor
Figure 4
2
1
3

ONE PIECE SQUARE TOILET
TOILET SEAT ADJUSTMENT
6
Tighten the screws Place covering caps on the hinges Clip on the toilet seat and cover
Clip on the toilet seat and cover Aligh the toilet seat and cover
with ceramic
Take off the toilet seat and cover
by pressing both pushbuttons
Insert the hinges into the toilet Tighten the screws of the hinges Untighten the screws a bit by turn-
ing them 90° right
Seat and cover Hinge set

ONE PIECE SQUARE TOILET
ADJUSTMENT & MAINTENANCE (DUAL FLUSH VALVE)
Gasket
Check the dual flush
valve and make sure that
it does not have any
damaged or missing
parts
Install a body of the flush
into the base and make
sure they can be totated
clockwise arbitrarily.
Install the base with the
rubber gasket in the
tank, turn the screw as
illustrated to make sure
there is no water leakage
and no looseness
Full flush and half Flush range
will decline when the button is
moved upward from the bottom
Check the completeness
of the product before
adjustment
Take out the lock nut and
insert the push button
into the tank cover
Adjust the push button
and lock the nut to make
it well-fixed in the tank
The distance between the
rod tail and valve push
button must be 1-2mm
Rotate the valve
clockwise to adjust its
position inside of the
toilet's tank
Install the sealing gasket
Put the refill tube into the
white cap hole firmly
The refill tube can't be lower
than the watersealing level
If the rod is too short, please
re-adjust it (outward
rotation).
If the rod is too long please
cut-off the extra length and
re-adjust it.
1. BASE INSTALLATION
2. FLUSH VOLUME ADJUSTMENT
3. PUSH BUTTON ADJUSTMENT
4. REFILL TUBE ASSEMBLY TROUBLESHOOTING
Full Flush Half Flush
RIGHTWRONG
Water
Level
Important Note: Flush GPF amount is factory set. No additional adjustment is required.
This page is for reference only. All adjustments are already made by manufacturer.
7

ONE PIECE SQUARE TOILET
ADJUSTMENT & MAINTENACE (FILL VALVE)
Instructions:
When valve installed, the critical level mark
on fill valve (identified by C.L. mark on
valve body) shoud be at least 1" above top
of the over flow pipe.
Required:
• Water temperature: 36-112ºF
Important:
Under no circumstances seller shall not be liable for any and
all incidental damages sustained in connection with this
product
Neither manufacture, nor distributor, nor retailer is
responsible for water damage or flood caused due to use of
this product.
Under no circumstances seller shall not be liable for any and
all fees, cost of installation/reinstallation/removal,
subsequent damage or transportation in case of the product
defect
95mm
58mm
Max 289mm, Min 189mm
(Max 344mm, Min 244 mm)
Max 230mm, Min 90mm
(Max 285mm, Min 145 mm)
Max 19.5mm - Min 8.5mm 45mm
WL
Check the fill valve and
make sure that it does
not have any damaged or
missing parts
1. Press buckle and unscrew.
2. Pull the valve upwards or press down to desired height.
3. Unscrew the valve body and fasten the buckle
Rotating screw, rise or lower the water level
to adjust water level to suitable position
(water volume will gradually increase when
the adjuster is moved upward from the
bottom.)
1. PREPARATION
2. WATER LEVEL ADJUSTMENT
Press and
unscrew
Solution 1
Pull upwards
press down to
desired height
Unscrew
clockwise
and fasten
valves
Rotate screw to adjust
desired water level
Solution 2
Install the valve into tank. Do
not use any wrench tools.
Fasten with hand only.
Connect water supply to the fill
valve. Turn on water.
Turn off water supply valve
before height adjustment of the
toilet's fill valve.
Put the refill tube into the white
cap hole firmly.
3. FILL VALVE INSTALLATION
IMPORTANT: Do not use or drop any chlorine or any other chemicals. Use of chemical products will result in damage to the fill
valve and flush valve components and may cause flood and property damage. Do not overtighten bolts/nuts as it may and will
cause damage to the toilet parts and componets.
Important Note: Flush GPF amount is factory set. No additional adjustment is required. This page is for reference only.
All adjustments are already made by manufacturer.
C.L.
8
Remove the worn-out fittings and clean your tank prior to the installation of the new ones. There might be a lot of impurities in your
tank that may cause damage to the new parts if you do not clean them out. The tank must be absolutely clean prior to installation.

ONE PIECE SQUARE TOILET
CLEANING & TROUBLESHOOTING (FILL VALVE)
Shut off water supply line
before filter cleaning.
Water level is too high or
too low
Improper water level
adjustment
Adjust the water level
Fill valve fails to shut off
or fails to fill the water
into the toilet's tank
Use soft sponges or soft-cloths to clean the surface. Always rinse thoroughly any cleaning solutions immediately after cleaning. Do
not any chemical remain on the surface for extended periods of time.
Do not pour any mounts of chlorine or any other chemicals into the tank. Use of chemical products will result in damage to the fill valve and
flush valve components and may cause flood and property damage
Note: fill and flush valves are maintenance free. No maintenance is required.
1. Inlet valve switch is
turned on.
2. Inlet valve float crashed
against ceramic wall
3. Filter screen is clogged
due to dirty water
4. Improper refill hose
installation
1. Turn on inlet valve switch
2. Adjust inlet valve position
3. Clean the filter screen
4. Install refill hose correctly (see
diagram on the right)
Carefully, take out the filter
from inlet by using pliers.
Use water to wash and clean
the filter and adapter from any
debris.
Re-install the filter and
re-connect the water supply
line.
FILL VALVE CLEANING
TROUBLESHOOTING
FILL/FLUSH VALVES MAINTENANCE & CARE
MAINTENANCE & CARE
Issue Cause Solution Solution #4
RIGHTWRONG
Water
Level
Retain these installation instructions for future reference!
Thank you for using our products!
IMPORTANT!
DO NOT USE: Abrasive cleaners such as: acid, ammonia, bleach, and simmilar solutions. Use of such solutions may cause
corrosion, finish peeling, and/or dull the surface.
DO NOT USE: Abrasive sponges or cloth. Never use steel, wool, or wired brushes that will permanently scratch the surface.
9
