INSTALLATION AND CARE GUIDE

• 2015 Uniform Plumbing Code ( UPC )

• 2018 International Plumbing Code ( IPC )

• 2018 International Residential Code ( IPC )

• CSA B45.5 / IAPMO Z124-2017- Plastic Plumbing Fixtures

®

Compliance with the following codes & standard:

PREFERED

EDUCATION

PROVIDER

LISTED

TM

ICC

SCC Accredited

CB-P/S

OCPS

Accrédité CCN

ANSI

ACCREDITED

ISO/IEC 17065

Product Certification Body

#1000

WASHLET TOILET BW5100S

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

Installation

www.woodbridgebath.com

1

R

WOODBRIDGE

Content

1

4

5

6

7

(Only apply to models with wave-to-flush function)

9

10

13

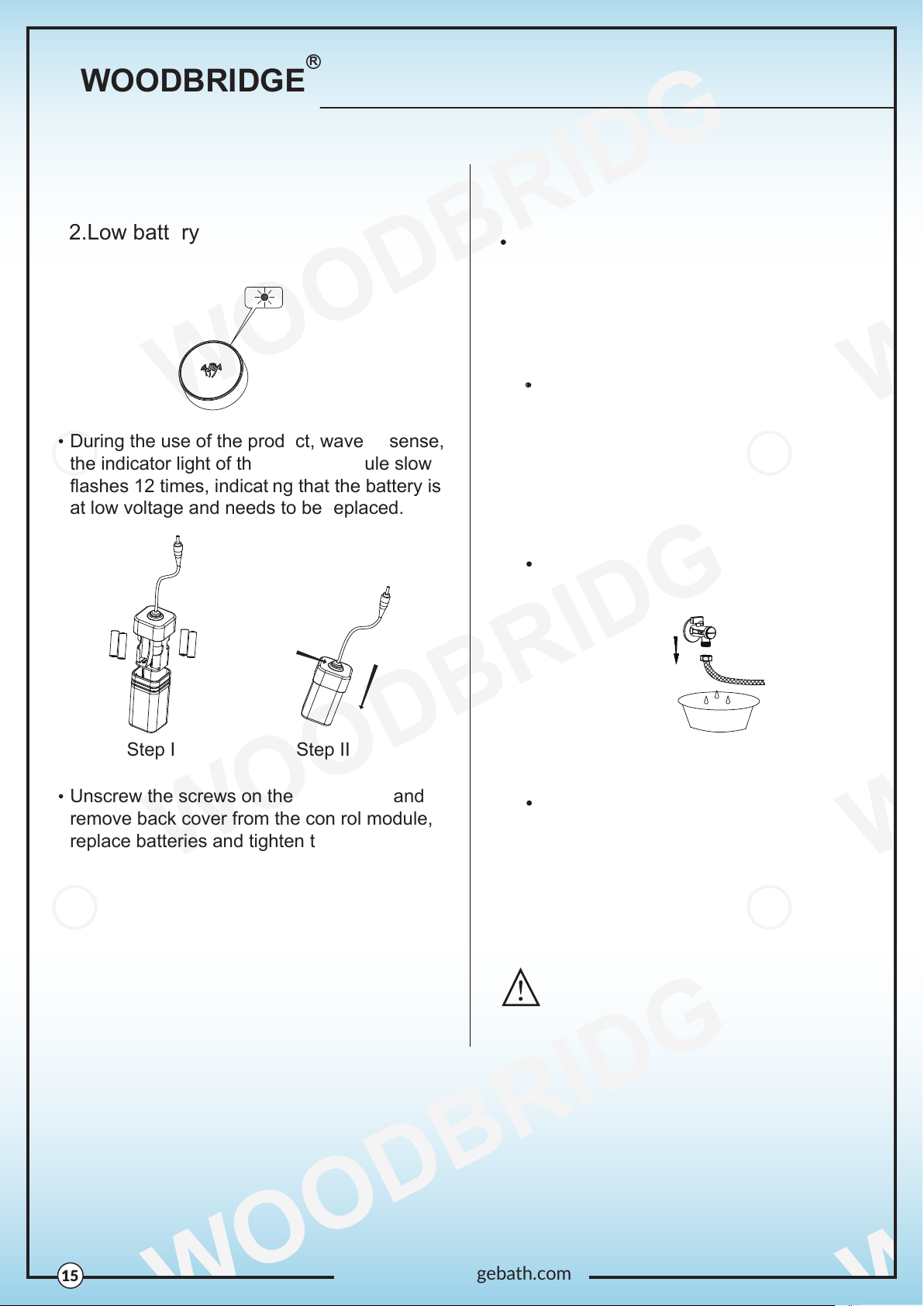

2.Replacement of battery

(Only apply to models with wave-to-flush function)

14

16

17

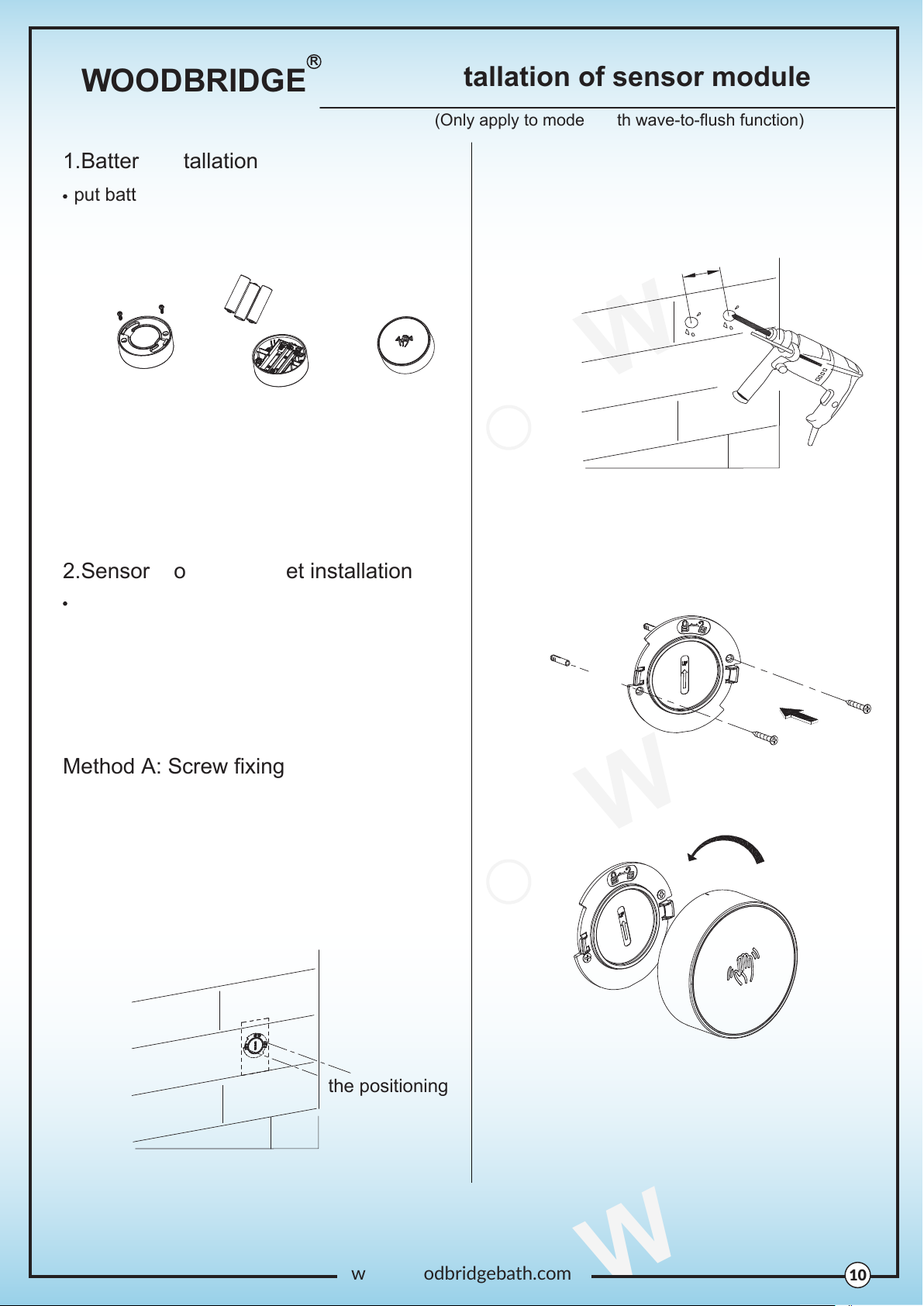

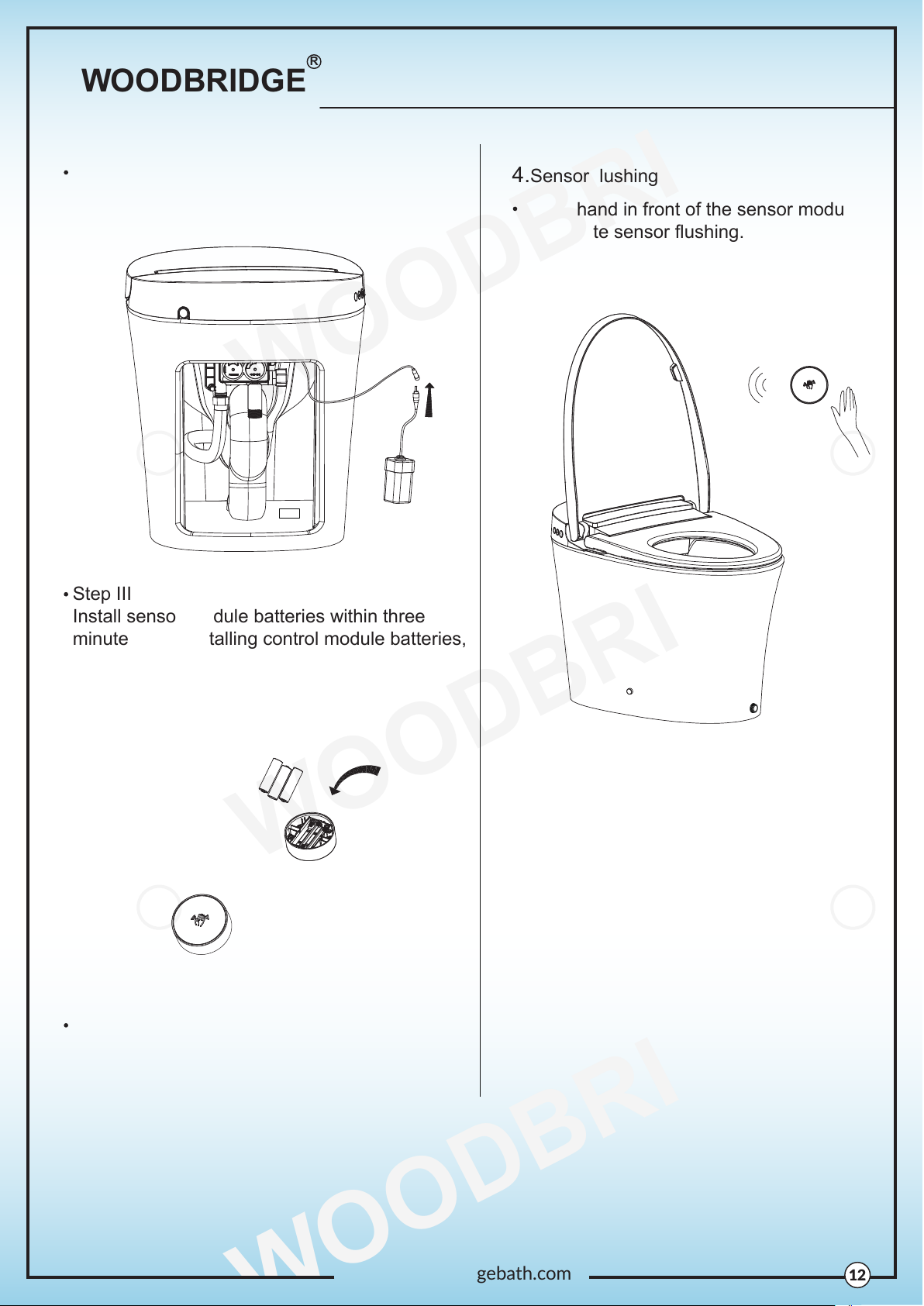

Installation of sensor module

3.Low voltage battery determination and replacement

Safety instructions

List of materials

Technical drawings

Parts identification

Installation of ceramic toilet

Previous preparation

Daily maintenance

1.Main unit care and maintenace

Emergency troubleshooting

1.Electricity and water supply cut-off

4.When the product is left unused for long time

The illustration of Main Unit Keys

Warranty Card

Maintenance Others

2.Maintenance of filter net

Technical specification

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

www.woodbridgebath.com 2

R

WOODBRIDGE Safety instructions

Symbol lllustration

Please read the instructions carefully before installation and keep it available for future

maintenance or reference.

Failure to observe this instruction can cause body injury and property damage.

Warning

Caution

Indicates that failure to follow the instruction may cause serious

injury or a fatal.

Indicates that failure to follow the instruction may cause body

injury or property damage.

Symbol lllustration

Symbol Indication

Prohibited activities

Mandatory activities

Do NOT disassemble, repair or modify this product by yourself,

otherwise it may cause fire or malfunction.

Do NOT handle the battery box plug with wet hands, otherwise it

may cause malfunction.

If the electric cord of battery box is damaged, it must be replaced by

the manufacturer, its service center or equivalent specialist to avoid

malfunction.

Do NOT pour water or detergent on the main unit or battery box plug,

otherwise it may cause fire or electric shock.

Warning

This product is factory equipped with a specific battery device.

Do NOT use any battery device other than the factory equipped

battery device, otherwise it may cause fire or malfunction.

This product is electric appliance, so it must be placed far away

from water. Please don’t drench urine and other liquid to it.

Do not position the product on its side or upside down while making

electrical connections with the battery box, otherwise it may cause

fire or burning.

Mandatory

activities

Do not install or use the product in wet places as steam room etc.

Do not throw cigarettes and other burning stuff into toilet, otherwise

it might cause malfunction.

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

www.woodbridgebath.com

3

Warning

Mandatory

activities

Caution

Do not use the product in the places close to bathtub or water tank.

Do not place the product in water or other liquids.

Do NOT reach for a product that has fallen into water. Unplug the battery

box immediately

Do not stand on the ceramic toilet. Do not hit the ceramic. A heavy impact

on ceramic leads to damage and water leakage.

Do not stand on product unit, seat and cover.

Do not use lacquer thinner, petrol, liquid medicine, detergent, insecticide,

toilet cleanser and scrubbing brush to clean the product.

Only use tap water or potable water; otherwise it may cause chafing.

Exposure to direct sunlight is prohibited.

This product is equipped with soft-closing seal cover. Heavy pressing or

pushing may damage the soft-closing damper.

Do not connect water supply to heater outlet. Make sure inlet water

temperature at 3~35℃,exceeding the specified range will result in the

built-in heating module not working.

Do not lean against the seat cover when using the product, to avoid damage.

Do not try flushing the newsprint,diapers, sanitary napkins and other items

easy to chock the toilet.

If this product is malfunctioning, stop using immediately, unplug the battery

box, turn off water supply, and contact the service provider.

Mandatory

activities

Never embed ceramic toilet base in cementitious material ( such as cement

mortar). It may lead to expansion crack.

When installing, disassembling, repairing, and maintaining the product,

you must unplug the power supply and close the water supply valve.

Do not use in an environment below 0 °C.

If this product will not be used for an extended period of time (over 3 days),

it is recommended to unplug the battery box, remove batteries, turn off

water supply, and drain any water in the product.

When used by people (including children) who lack physical, sensory,

intellectual abilities, or lack of experience and common sense,This product

needs to be used under the supervision of a person, and patients with heart

disease should use it with caution.

Do not let children play with this product.

To prevent damage caused by freezing, please implement warmth

measures to increase the temperature of the toilet.

When move the product from cold or wet environment into normal room

temperature, wait for 2 hours until the condensation water is fully volatilized.

Doing so can prevent the product from electrical short-circuit.

Only use the factory equipped battery box and 1.5V “AA” alkaline battery.

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

www.woodbridgebath.com 4

R

WOODBRIDGE

Battery box

Sensor module assembly (optional)

Main Unit Installation Cardboard

Installation Manual

Warranty Card

FlangeAngle Valve

Sealing Flange

Braided hose

List of materials

Mounting accessory kit

www.woodbridgebath.com

17

R

WOODBRIDGE Product Warranty Card

Our company

a

One(1) years

three

Date of Purchased:

Distributor Distributor Phone

CustomerService Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time)

OrEmail: [email protected]

www.woodbridgebath.com

20201108 REV.1

R

WOODBRIDGE

INSTALLATION AND CARE GUIDE

• 2015 Uniform Plumbing Code ( UPC )

• 2018 International Plumbing Code ( IPC )

• 2018 International Residential Code ( IPC )

• CSA B45.5 / IAPMO Z124-2017- Plastic Plumbing Fixtures

®

Compliancewith the following codes & standard:

PREFERED

EDUCATION

PROVIDER

LISTED

TM

ICC

SCCAccredited

CB-P/S

OCPS

AccréditéCCN

ANSI

ACCREDITED

ISO/IEC17065

ProductCertificationBody

#1000

ELECTRONIC WASHLET TOILET :BW5100S

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

www.woodbridgebath.com

5

R

WOODBRIDGE Technical drawing

The product drawing is for reference only, and we reserve the right to

modify the appearance of the product.

18 1/2"

15 3/8"

27 1/8"

16 1/8"

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

www.woodbridgebath.com 6

R

WOODBRIDGE

Foot-touch button

Decorative piece

Parts identification

Left side

Right side

Ceramic toilet

Bumper

Lid

Seat

Flush

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

www.woodbridgebath.com

7

R

WOODBRIDGE

Cardboard

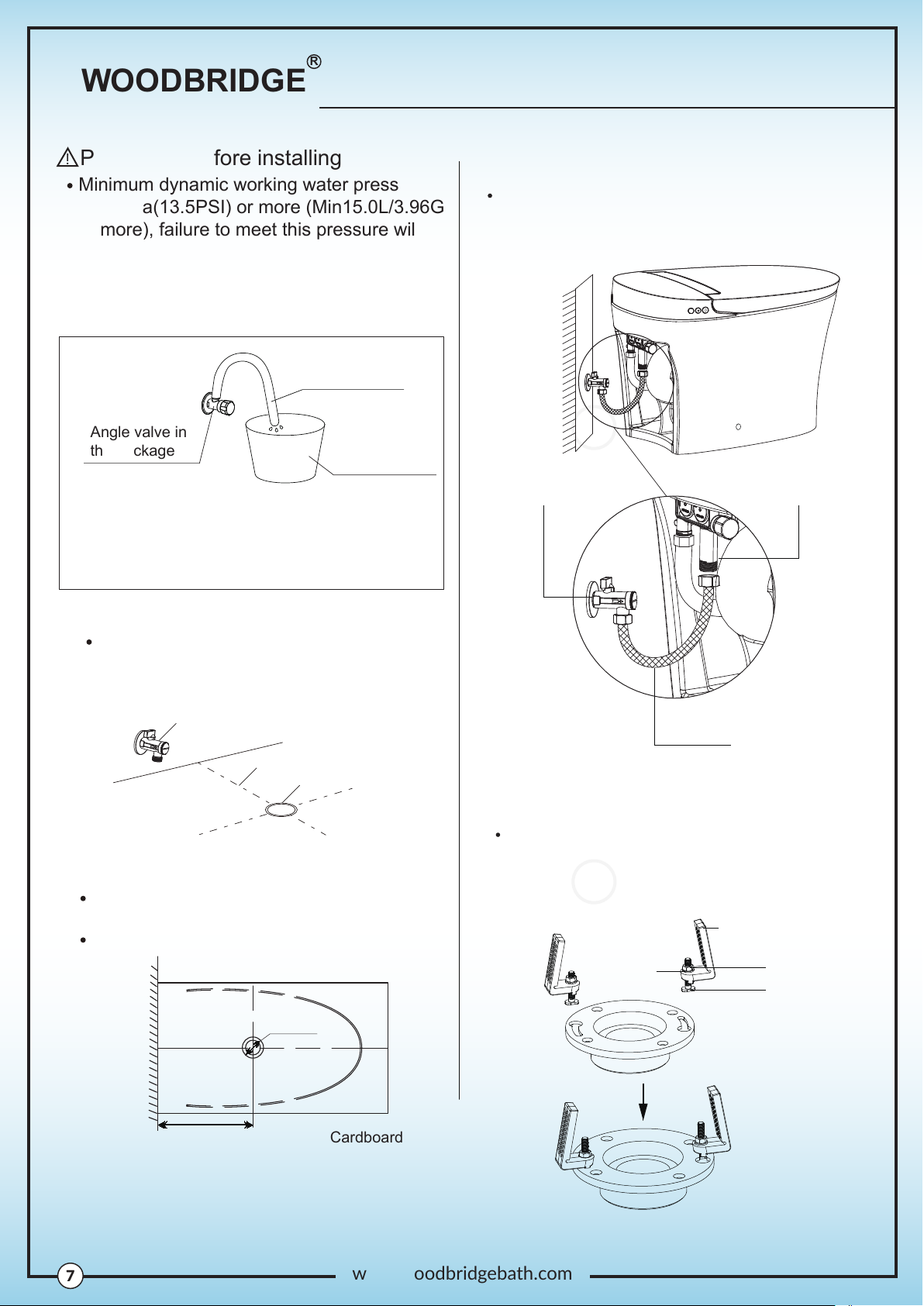

Precaution before installing

Angle valve in

the package

Minimum dynamic working water pressure:

0.09MPa(13.5PSI) or more (Min15.0L/3.96G

or more), failure to meet this pressure will

not achieve the best flushing effect.

Remark:Apply the methods below if you

don’t have water pressure testing device.

Hose in the

package

Water storage

barrel

Open the angle valve and connect water inlet

for 10s, once the water volume is above 2.5L,

the minimum water pressure of the product is

ensured.

Draw drain outlet centerline on the floor,

Install angle valve at proper position on

wall according to dimension of toilet.

1. Installation of mating angle valve

Line

Drain outlet

Mating angle valve

2. Cardboard installation

Align cardboard with the centerline of

drain outlet;

Draw contour line according to cardboard;

Angle valve connector Inlet connector

Flexible hose

3.Hose

Connect the water inlet and angle valve of the

toilet with the matching hose and tighten it

Nut

Bolt

4.Mounting bracket installation

Assemble the mounting bracket with bolts

and then install them to the pre-installed

flange plate on the ground and lock tight

with nuts.

Mounting bracket

Washer

Installation of ceramic toilet

2 3/4"

12"

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

www.woodbridgebath.com 8

R

WOODBRIDGE

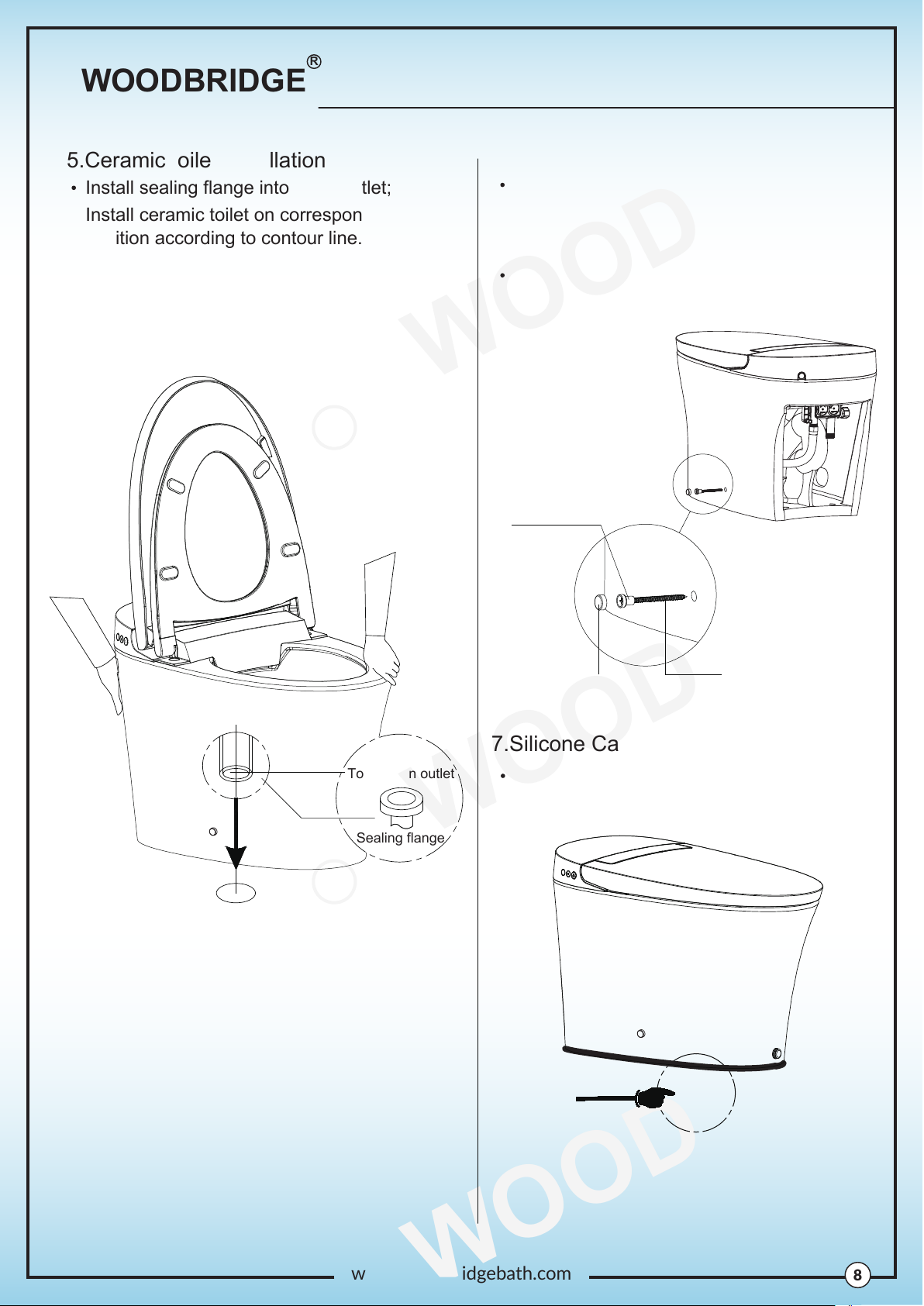

5.Ceramic toilet installation

Install sealing flange into drain outlet;

Install ceramic toilet on corresponding

position according to contour line.

Toilet drain outlet

Sealing flange

7.Silicone Caulking application

Silicone

caulking

Tips:

Please clean the drain outlet;

Please make sure ceramic toilet outlet

sits perfectly on drain outlet.

Apply high quality silicone caulking around

the lower edge of the toilet.

Fixing sleeve

Screw

Decorative cap

6.Screw installation

Put the screw through the fixing sleeve and

then install it through the holes(on both sides

of the toilet ceramic) to the mounting bracket

on the ground, and lock tight with a tool;

Put the decorative cap on the fixing sleeve.

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

www.woodbridgebath.com

R

WOODBRIDGE

9

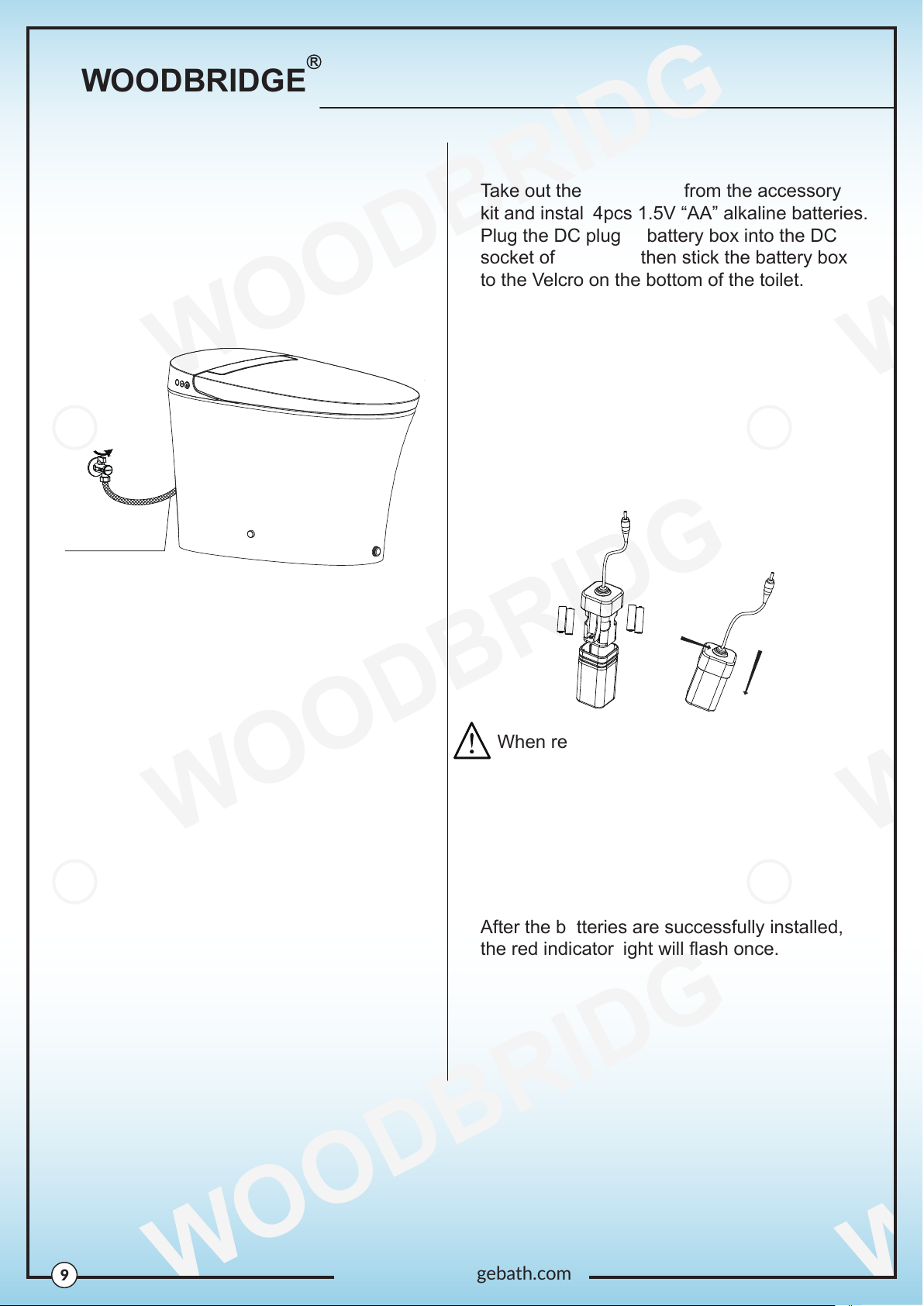

After the batteries are successfully installed,

the red indicator light will flash once.

Take out the battery box from the accessory

kit and install 4pcs 1.5V “AA” alkaline batteries.

Plug the DC plug of battery box into the DC

socket of toilet and then stick the battery box

to the Velcro on the bottom of the toilet.

When re-installing the cover of battery box,

use your fingers to squeeze the side of rubber

plug to exhaust air out of the box and ensure

sealing.

1. Turn on the angle valve

Check thread connection, make sure no

leakage is found,unscrew angle valve

counter clockwise to maximum opening.

(Tips: The angle valve handle has a larger

torgue during the first time turning)

Angle valve

2.Power Connection

3. Self-inspection

Notes:

1.Must be 1.5V “AA” alkaline battery(Battery

not included)

2.Different brands, different used and new

batteries cannot be mixed.

3.Battery life will be significantly reduced when

using non-alkaline batteries;

4.When installing the inner box components,

follow the installation direction shown in the

label.

Previous preparation

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

www.woodbridgebath.com 10

R

WOODBRIDGE

2.Sensor module bracket installation

(Only apply to models with wave-to-flush function)

the positioning

hole

2"

Installation of sensor module

1.Battery installation

Method A: Screw fixing

put batteries (3pcs 1.5V “AAA” alkaline

batteries) into the sensor module and tighten

the screws. (The product doesn't come with

batteries)

The installation method of control module

holdercan be selected according to the

installation wall.

Method A: Screw fixing - Suitable for installation

on rough gray walls and other rough walls

Method B: Adhesive fixing - Suitable for installation

on tiles and other smooth walls.

A-1: Put control module holder on the

pre-installation position and mark the

positioning hole on the wall with a pen

(when deciding the mounting location,

ensure the user hand can touch the

sensor module while sitting on the

toilet)

A-2: Drill two holes with diameter 6mm in the

vertical direction of the wall, the center

distance between the two holes is about

2", and the depth is 3/16".

A-3: Insert the expansion tubes into the holes

on the wall, place sensor module bracket

against the wall, align the holes of the

bracket with the expansion tubes and put

screw into expansion tubes to lock it.

A-4: Align sensor module slot with sensor

module bracket, and then rotate it

counterclockwise to lock it.

Note: Do not install and use the product in a

wet place such as a bathroom, and

prohibit it from being exposed to water.

※Note: The batteries should be installed to

sensor module within three minutes after

batteries are installed to control module, the

codes will be automatically matched between

the modules.

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

www.woodbridgebath.com

11

R

WOODBRIDGE

the installation

area

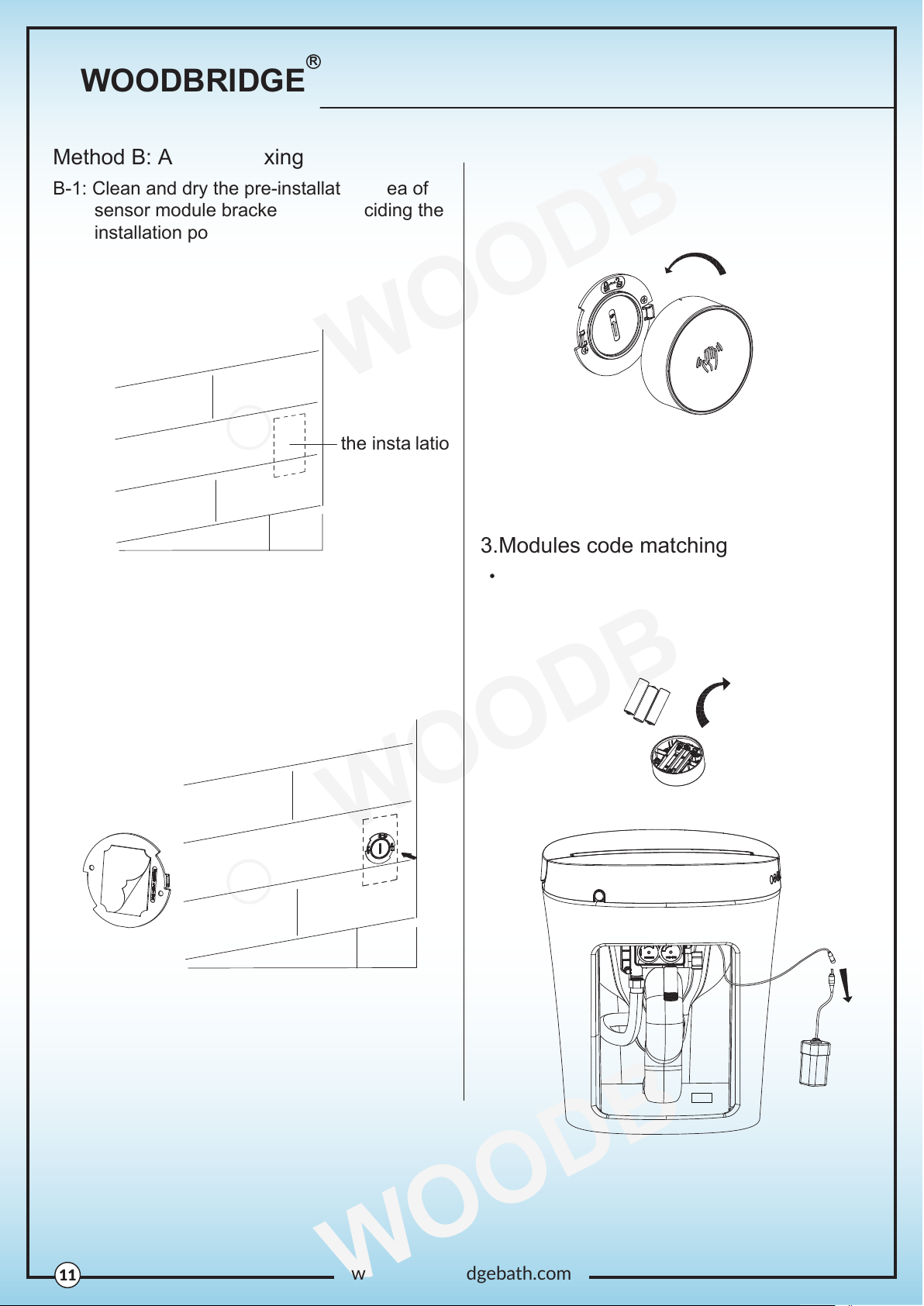

3.Modules code matching

Method B: Adhesive fixing

B-1: Clean and dry the pre-installation area of

sensor module bracket (when deciding the

installation position, it should be noted that

when a person sits on the seat, ensure that

the hand can touch the sensor module).

B-3: Align sensor module slot with mounting

bracket, and then rotate it counterclockwise

to lock it.

Note: Do not install and use the product in a wet

place such as a bathroom, and prohibit it

from being exposed to water.

Step I

Remove batteries from both control module

and sensor module, Wait for 1 minute.

B-2: Tear off the double-sided adhesive sticker

on the back of the sensor module bracket

and paste it vertically on the wall.

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

www.woodbridgebath.com 12

R

WOODBRIDGE

4.Sensor flushing

Wave hand in front of the sensor module

to activate sensor flushing.

Step III

Install sensor module batteries within three

minutes after installing control module batteries,

After installation, perform sensing once and

finish the code matching.

Step II

First connect the battery box(with batteries

installed) to the main unit.

If the sensor module lights up after installation,

but the product cannot be sensed to flush,

please reset batteries and match codes.

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

www.woodbridgebath.com

13

R

WOODBRIDGE Daily maintenance

Use only a soft, damp cloth to clean.

Avoid using harsh chemicals.

Note: If the toilet is with off-seat auto flushing

function, it may activate auto flushing

during the cleaning.

Main unit care and maintenace Maintenance of filter net

Time for maintenance: It is under

normal water pressure but poor

flush performance occurs.

2. Unscrew angle valve nut

1.Turn off power and the angle valve

3. Remove filter net

4. Use the brush to clean filter net

5.Reinstall filter and angle valve nut,

turn on the angle valve and connect

power,then it can work normally

after self inspection.

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

www.woodbridgebath.com 14

R

WOODBRIDGE Emergency troubleshooting

Replacement of battery

Unplug the DC plug on of the battery box

and remove the battery box from the bottom

of the toilet.

Remove the battery box cover and

replace old batteries with new batteries,

re-install the cover.

Insert the battery box's DC plug into the

DC socket of toilet and stick the battery box

to the Velcro on the bottom of the toilet.

(Only apply to models with wave-to-flush function)

1.Sensor module is low voltage

Step IIIStep IIStep I

No water supply Low voltage battery determination

and replacement

Put around 8L water into a barrel and

During the use of the product, wave to sense,

the indicator light of the sensor module quick

flashes 5 times, indicating that the battery is

low voltage and needs to be replaced.

Unsrew the screws on the back cover and

remove back cover from the sensor module,

replace batteries and tighten the screws

again.

Note:

1. Battery must be 1.5 V "AAA" size alkaline

battery.

2. Different brands, different used and new

batteries can not be mixed.

3. Battery life will be significantly reduced

when using non-alkaline batteries.

flush the bowl of ceramic.

Note: Avoid water spilling from bowl.

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

www.woodbridgebath.com

15

R

WOODBRIDGE

2.Low battery

Step IIStep I

During the use of the product, wave to sense,

the indicator light of the sensor module slow

flashes 12 times, indicating that the battery is

at low voltage and needs to be replaced.

Unscrew the screws on the back cover and

remove back cover from the control module,

replace batteries and tighten the screws again.

Pay attention to inner box direction when

installing.

Notes:

1.Must be 1.5V “AA” alkaline battery;

2.Different brands, different used and new

batteries cannot be mixed.

3.Battery life will be significantly reduced when

using non-alkaline batteries;

4.When installing the inner box components,

follow the installation direction shown in the

label.

2.Unplug and remove the battery box and

then remove all batteries.

Tips: When using the toilet again, re-connect

the water supply and re-install the

battery box.

When the product is left unused

for long time

Especially in winter when no one at home

for a long time, please drain out the water

inside tank and pipe to prevent freezing.

To discharge water

1. Drain out the water inside tank

Activate flushing, and then turn off angle

valve to prevent water inlet.

3. Drain out the water inside pipe

Unscrew the hose connector off angle

valve, drain the water in the pipe and

reinstall.

4. Handle the remaining water in bowl

It is suggested to put some

antifreeze into water inside

the bowl.

Note：Before water discharging,

the power must be cut off!

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

www.woodbridgebath.com 16

R

WOODBRIDGE

short press the “flushing” button on the main unit

to turn on the flush function.（FULL FLUSH）

Flush

Notes:

1. Button light: If the battery is low, when pressing the flush button, the red light will flash.

2. Off-seat auto flushing: In the off-seat auto flushing mode, if a user is seated for ≥6s

and ≤1 min, and leaves the seat for ＞3s, the toilet will activate a half flush. If a user

is seated for ＞1 min, and leaves the seat for ＞3s, the toilet will activate a full flush.

IPX4

Full flush 6.0L/Half flush 4.2L

3 1/2"

12"

Model

Main Unit

Toilet

seat

Caring device

Overall unit Waterproof

Flush volume

Flushing mode Siphonic jet

Rough-in distance

Outlet outside diameter

Drainage method Down-drain

Water pressure range

Installation method

0.09MPa (dynamic water pressure, flow rate 15.0

L/min or more)--0.8MPa (static water pressure)

Open and close device Quiet soft-closing device

Kick the foot-touch button to flush (optional)

Wave in front of sensor module to flush (optional)

Silicone sealant/foundation bolts

Automatic flushing

Low battery indication

Foot-touch flushing

function

Wave-to-flush function

Toilet will automatically flush as user walks away

If the battery is low, when pressing the flush button,

the indicator light will flash, indicating batteries need

to be replaced.

from bowl

SeatAntibacterial position

The illustration of Main Unit Keys

The illustration of main unit buttons

Technical Specification

BW5100S

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

www.woodbridgebath.com

17

R

WOODBRIDGE Product Warranty Card

Our company

a

One(1) years

three

Date of Purchased:

Distributor Distributor Phone

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

www.woodbridgebath.com 18

www.woodbridgebath.com

Thank you for using WoodBridge products!

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

R

WOODBRIDGE

Customer Service Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time)

Or Email: [email protected]

ASVFAF0321011A-1.0

Woodbridge BW5100S Assembly instructions

Popular Toilet manuals by other brands
