Woosim Systems WSP-DT380 User manual

http://www.woosim.com
MODEL WSP-DT380
WOOSIM SYSTEMS Inc.
#501, Daerung Technotown 3th,
448, Gasan-Dong, GeumChun-Ku,
Seoul, Korea
Tel : [phone]
Fax : [phone]
URL: http://www.woosim.com
(3inch Desk Top Printer)
Rev. 3.0
All specifications are subjected to change without notice.
All manuals and user guides at all-guides.com
all-guides.com

WSP-DT380 Rev. 3.0
http://www.woosim.com
2

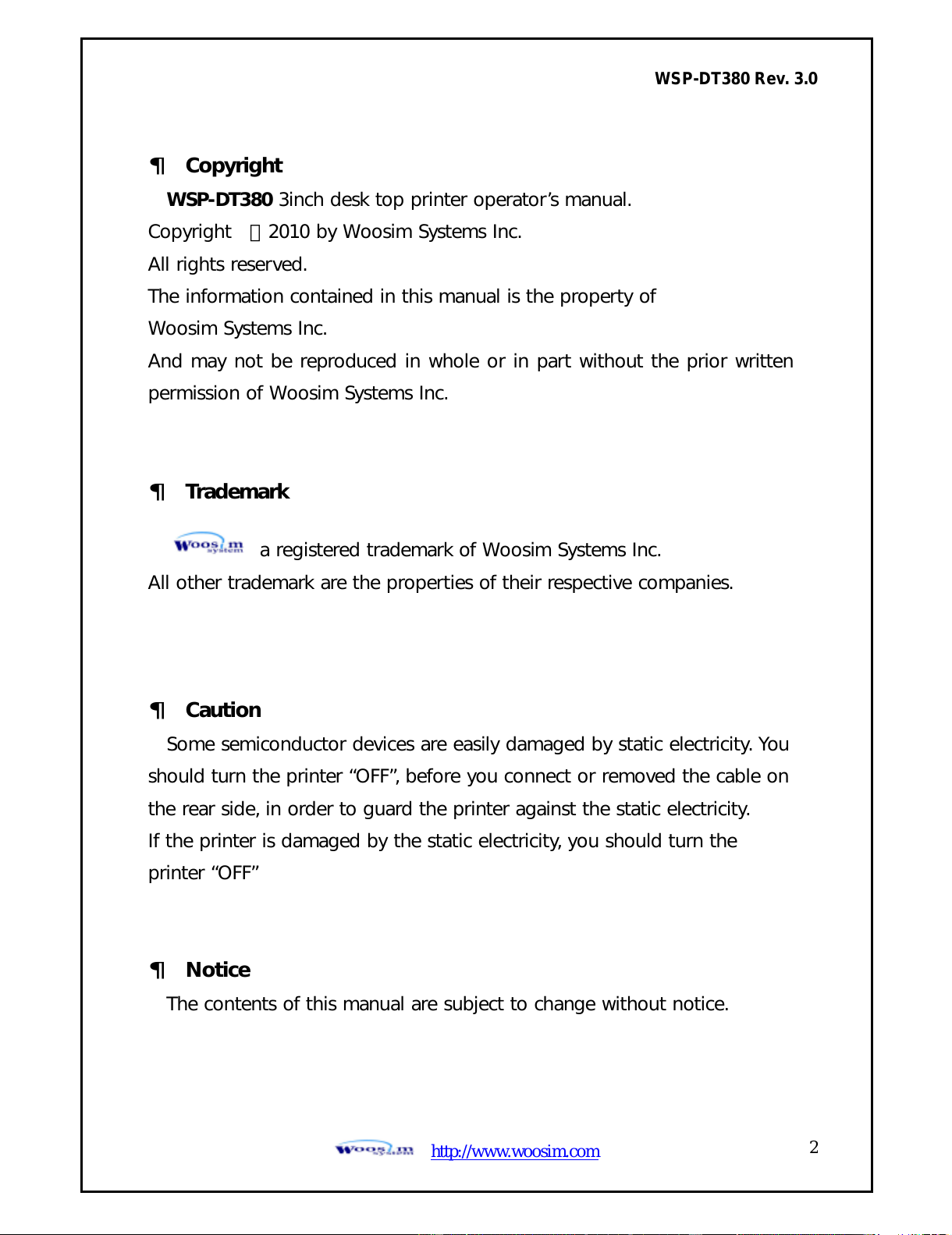

¦ Copyright
WSP-DT380 3inch desk top printer operator’s manual.
Copyright ⓒ2010 by Woosim Systems Inc.
All rights reserved.
The information contained in this manual is the property of
Woosim Systems Inc.
And may not be reproduced in whole or in part without the prior written
permission of Woosim Systems Inc.
¦ Trademark
a registered trademark of Woosim Systems Inc.
All other trademark are the properties of their respective companies.
¦ Caution
Some semiconductor devices are easily damaged by static electricity. You
should turn the printer “OFF”, before you connect or removed the cable on
the rear side, in order to guard the printer against the static electricity.
If the printer is damaged by the static electricity, you should turn the
printer “OFF”
¦ Notice
The contents of this manual are subject to change without notice.
All manuals and user guides at all-guides.com

WSP-DT380 Rev. 3.0
http://www.woosim.com
3
¦ Introduction
The WSP-DT380 is the ideal solution for POS system, kitchen printer,
Electronic scale, Measuring equipment, Lottery etc.
The general features of WSP-DT380 printer are as follows:
uVery silent printing thru direct thermal printing method
uHigh speed(170mm/sec, MAX)
uUART(RS-232C), USB, Parallel interface
uAuto cutting
uSupport text and graphic printing
uIntutive LED’s indicate Power(on/off), Error
uEasier maintenance with self-diagnostics
uEasier paper loading by CLAMSHELL design.
uOne touch paper cover
uIn field programming – Update Firmware, Download Fonts and Logos
uMicrosoft Windows XP / VISTA / 7 / CE / Linux / Android compatible.
uFlow control : Software (XON/XOFF)
※ Hardware flow control not supported in printer
All manuals and user guides at all-guides.com

WSP-DT380 Rev. 3.0
http://www.woosim.com
4
u
Using the Printer
● Be careful not to drop or bump the printer on a hard surface.
● Do not install the printer in direct sunlight or such areas.
Suitable environment for the use of the printer is as follows:
◆ Operating temperature :-10°C to 50°C
◆ Relative humidity : 30% to 85%
● Do not install the printer near devices that generate strong
electromagnetic fields such as a copy machine.
● Do not open the platen cover during printing .
● Do not remove or reinstall the communication cable during printing
or transmission.
● Do not touch the connectors of the communication during printing.
● Switch the POWER OFF when not in use.
● Do not use alcohol or other solvent.
● When the battery pack is used at low temperature, the length of time
the printer can be used may be shortened.
uThermal Paper Handling
● Store the thermal paper in a cool, dry and dark place.
● Do not rub the paper with hard object.
● Do not leave the paper with hard object.
● Do not allow plastic film, erasers, or adhesive tape to touch the paper
for long periods.
● Do not stack the thermal paper with diazo copies immediately
after copying or wet-type copies.
● Do not use chemical glue.
●Always use the clean thermal paper.
All manuals and user guides at all-guides.com

WSP-DT380 Rev. 3.0
http://www.woosim.com
5
CONTENTS
1. Outline. .........................................................................................................................................6
1.1. Model classifications.............................................................................................................6
1.2. Product Part Number System.............................................................................................6
1.3. Specifications. ........................................................................................................................7
2. Setting up the printer...............................................................................................................9
2.1. Printer & Accessories ...........................................................................................................9
2.2. Printer Features ...................................................................................................................10
2.3. Replacing paper roll............................................................................................................13
2.4. Power supply........................................................................................................................14
2.4.1. Specified power supply...............................................................................................14
2.5. Setting the DIP switches....................................................................................................14
3. Connection.................................................................................................................................16
4. Using the printer......................................................................................................................19
4.1. Control panel.......................................................................................................................19
4.2. The self test..........................................................................................................................20
5. Consumable Parts....................................................................................................................21
5.1. Recommended paper.........................................................................................................21
5.2. Printing position..................................................................................................................21
All manuals and user guides at all-guides.com

WSP-DT380 Rev. 3.0
http://www.woosim.com
6
1
1. . O Ou ut tl li in ne e. .
1
1. .1 1. . M Mo od de el l c cl la as ss si if fi ic ca at ti io on ns s. .
1
1. .2 2. . P Pr ro od du uc ct t P Pa ar rt t N Nu um mb be er r S Sy ys st te em m
WSP–DT380 ( ) ( )
Model
Interface
A0 : UART
Power
None : DC 24V/2.7A
Model name / Interface Spec.
Example) 1. Porti-S40 Serial/Bluetooth Part No. ⇒ S40/A1
2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1
S40
SC30
W25
.
.
.
Wired Wireless
A RS-232C 1 Bluetooth
B TTL 2 IrDA
C USB 0 None
D RS-485
E Parallel
Z None
All manuals and user guides at all-guides.com
all-guides.com

WSP-DT380 Rev. 3.0
http://www.woosim.com
7
1
1. .3 3. . S Sp pe ec ci if fi ic ca at ti io on ns s. .
Item Specifications
Printing method Thermal dot line printing
Characters per line 64cpl (MAX)
Character size Eng. : 9*24dots, 12*24dots Kor. : 16*24dots, [24*24dots]
Optional Characters
Simplified/Traditional Chinese, Arabic, Cyrillic, Russian,
Tukish, Greek, Japanese, Persian, Latin9 and
Others upon request.
Resolution W 8dots/mm X H 8 dots/mm
Paper feed pitch 0.0625mm
Print width 3-inch (72mm, 576dots)
Printing speed 170mm / sec (MAX)

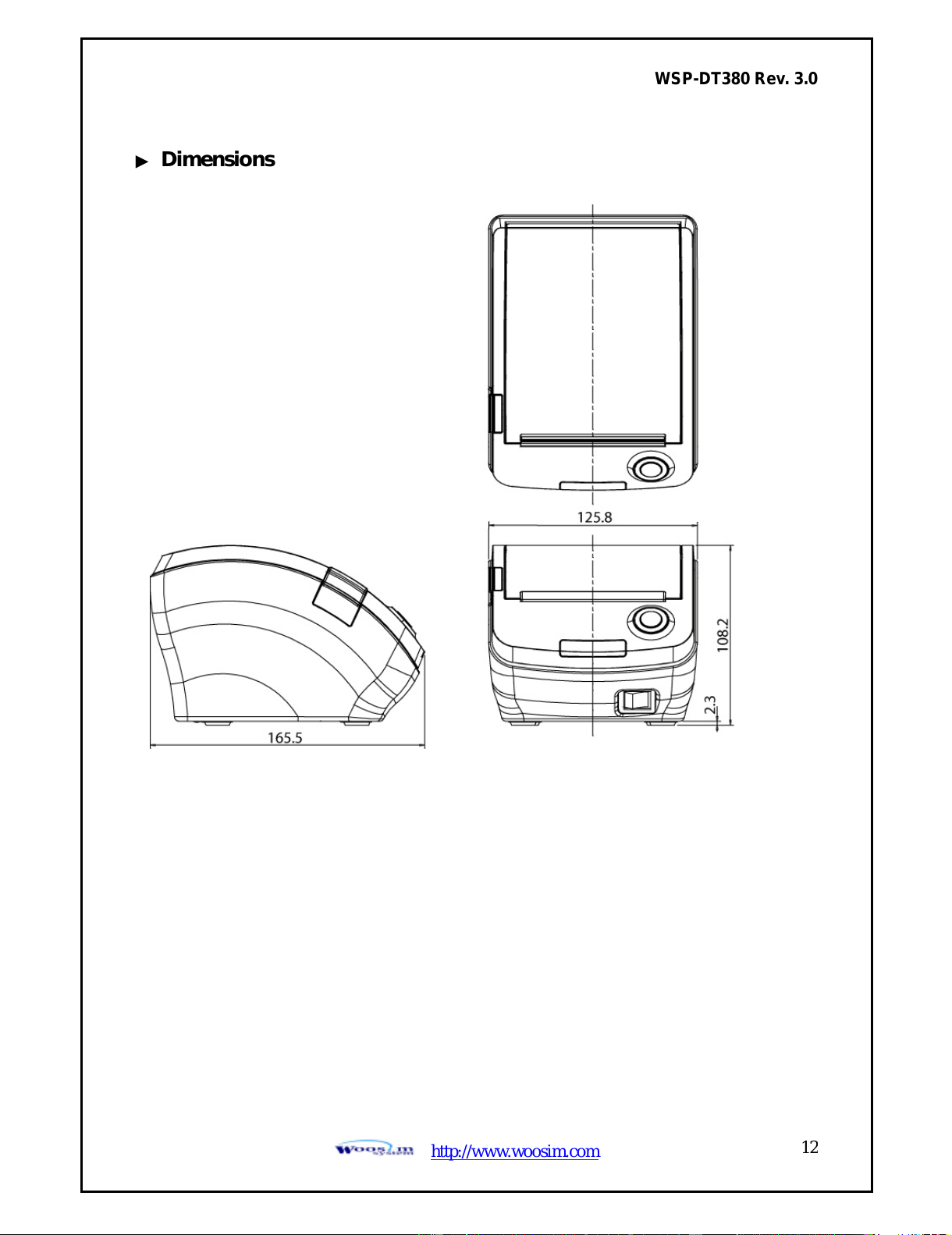

Dimensions 126 * 165.5 * 108.2 mm
Weight 819g
Interface UART(RS-232C), USB, Parallel
Paper supplied Thermal roll paper (80mm wide, 80ø)
Barcode supplied
1-dimension : Code128, EAN 128, Code39, I2/5, Code93
UPC, EAN, KAN,JAN, CODABAR
2-dimension : PDF417, QR Code, DATA Matrix
Driver Microsoft Widows XP / VISTA / 7
Windows CE, Linux, Android OS driver compatible
H/W Spec. MCU : 32bit RISC, FLASH : 4 Mbytes, RAM : 8 Mbytes
Receive buffer size 1M bytes
Paper cutting method Slide cutting
Type of paper cutting Full cut and Partial cut(1.5±0.5mm tab left at the center)
AC adapter Rated Voltage : AC 100-240V, 50-60Hz
Capable of Supplying : +24VDC at 2.7A
All manuals and user guides at all-guides.com

WSP-DT380 Rev. 3.0
http://www.woosim.com
8
Item Specifications
Environment
conditions
Temperature -10°C ~ 50°C (operating)
-20°C ~ 60°C (storage)
Humidity 30% - 85% (operating)
Life span
(at 25℃ and rated
energy)
Activation pulse
resistance 100 million pulses or more
Abrasion resistance
100km or more (excluding damage
caused by dust and foreign materials)
Paper cutting
resistance
700,000 cuts or more
All manuals and user guides at all-guides.com

WSP-DT380 Rev. 3.0
http://www.woosim.com
9
2
2. . S Se et tt ti in ng g u up p t th he e p pr ri in nt te er r. .
2
2. .1 1. . P Pr ri in nt te er r & & A Ac cc ce es ss so or ri ie es s
Your printer box should include these items. If any items are damaged or
missing, please contact your dealer for assistance.
WSP-DT380
Thermal roll paper
AC Adapter
All manuals and user guides at all-guides.com

WSP-DT380 Rev. 3.0
http://www.woosim.com
10
2

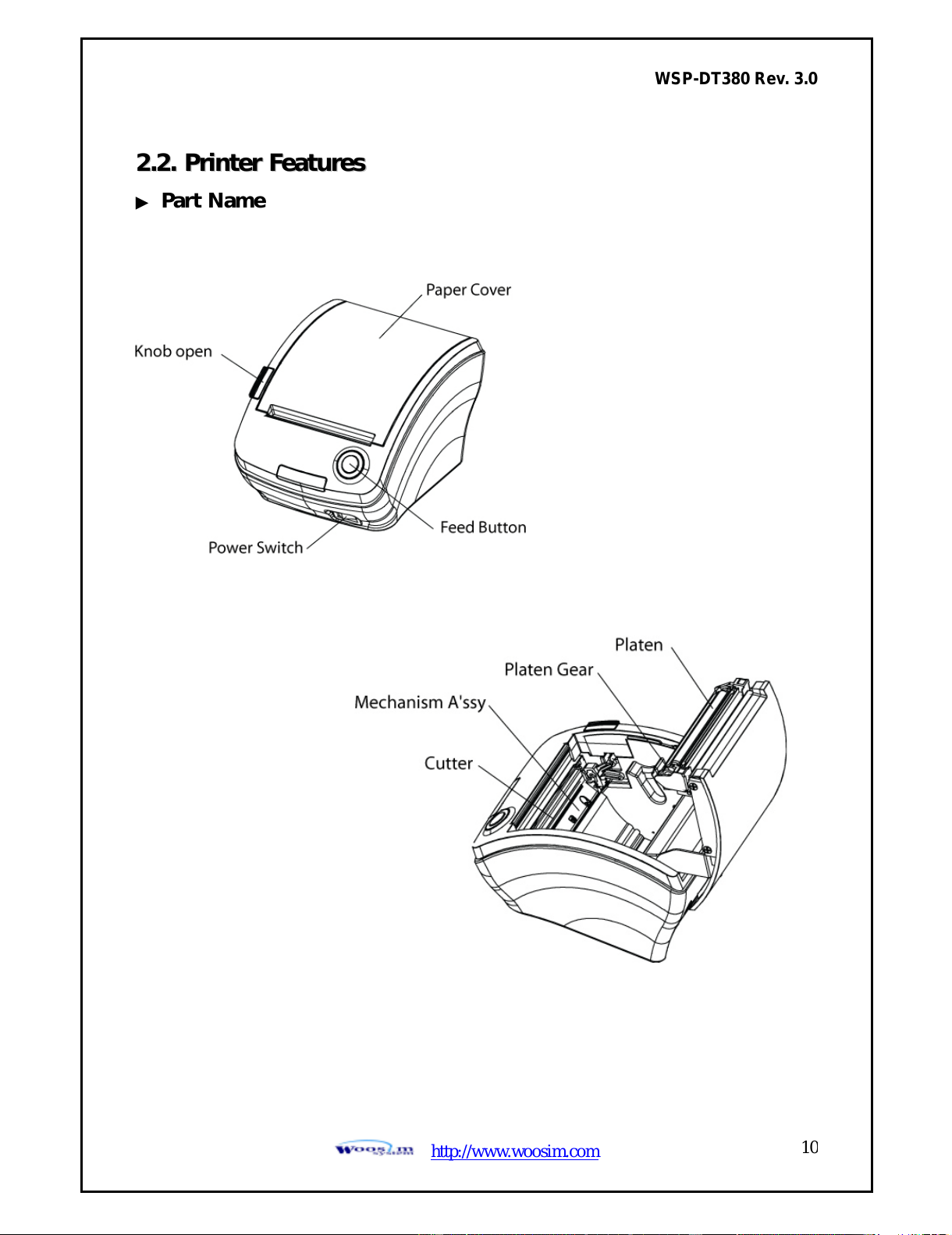

2. .2 2. . P Pr ri in nt te er r F Fe ea at tu ur re es s
▶ Part Name
