WOOSIM WSP-DT380 User manual

http://www.woosim.com
MODEL WSP-DT380
WOOSIM SYSTEMS Inc.
#501, Daerung Technotown 3th,
448, Gasan-Dong, GeumChun-Ku,
Seoul, Korea
Tel : [phone]
Fax : [phone]
URL: http://www.woosim.com
(3inch Desk Top Printer)
Rev. 3.0
All specifications are subjected to change without notice.

WSP-DT380 Rev. 3.0
http://www.woosim.com
2
¦ Copyright
WSP-DT380 3inch desk top printer operator’s manual.
Copyright ⓒ2010 by Woosim Systems Inc.
All rights reserved.
The information contained in this manual is the property of
Woosim Systems Inc.
And may not be reproduced in whole or in part without the prior written
permission of Woosim Systems Inc.
¦ Trademark
a registered trademark of Woosim Systems Inc.
All other trademark are the properties of their respective companies.
¦ Caution
Some semiconductor devices are easily damaged by static electricity. You
should turn the printer “OFF”, before you connect or removed the cable on
the rear side, in order to guard the printer against the static electricity.
If the printer is damaged by the static electricity, you should turn the
printer “OFF”
¦ Notice
The contents of this manual are subject to change without notice.

WSP-DT380 Rev. 3.0
http://www.woosim.com
3
¦ Introduction
The WSP-DT380 is the ideal solution for POS system, kitchen printer,
Electronic scale, Measuring equipment, Lottery etc.
The general features of WSP-DT380 printer are as follows:
uVery silent printing thru direct thermal printing method
uHigh speed(170mm/sec, MAX)
uUART(RS-232C), USB, Parallel interface
uAuto cutting
uSupport text and graphic printing
uIntutive LED’s indicate Power(on/off), Error
uEasier maintenance with self-diagnostics
uEasier paper loading by CLAMSHELL design.
uOne touch paper cover
uIn field programming – Update Firmware, Download Fonts and Logos
uMicrosoft Windows XP / VISTA / 7 / CE / Linux / Android compatible.
uFlow control : Software (XON/XOFF)
※ Hardware flow control not supported in printer

WSP-DT380 Rev. 3.0
http://www.woosim.com
4
u
Using the Printer
● Be careful not to drop or bump the printer on a hard surface.
● Do not install the printer in direct sunlight or such areas.
Suitable environment for the use of the printer is as follows:
◆ Operating temperature :-10°C to 50°C
◆ Relative humidity : 30% to 85%
● Do not install the printer near devices that generate strong
electromagnetic fields such as a copy machine.
● Do not open the platen cover during printing .
● Do not remove or reinstall the communication cable during printing
or transmission.
● Do not touch the connectors of the communication during printing.
● Switch the POWER OFF when not in use.
● Do not use alcohol or other solvent.
● When the battery pack is used at low temperature, the length of time
the printer can be used may be shortened.
uThermal Paper Handling
● Store the thermal paper in a cool, dry and dark place.
● Do not rub the paper with hard object.
● Do not leave the paper with hard object.
● Do not allow plastic film, erasers, or adhesive tape to touch the paper
for long periods.
● Do not stack the thermal paper with diazo copies immediately
after copying or wet-type copies.
● Do not use chemical glue.
●Always use the clean thermal paper.

WSP-DT380 Rev. 3.0
http://www.woosim.com
5
CONTENTS
1. Outline. .........................................................................................................................................6
1.1. Model classifications.............................................................................................................6
1.2. Product Part Number System.............................................................................................6
1.3. Specifications. ........................................................................................................................7
2. Setting up the printer...............................................................................................................9
2.1. Printer & Accessories ...........................................................................................................9
2.2. Printer Features ...................................................................................................................10
2.3. Replacing paper roll............................................................................................................13
2.4. Power supply........................................................................................................................14
2.4.1. Specified power supply...............................................................................................14
2.5. Setting the DIP switches....................................................................................................14
3. Connection.................................................................................................................................16
4. Using the printer......................................................................................................................19
4.1. Control panel.......................................................................................................................19
4.2. The self test..........................................................................................................................20
5. Consumable Parts....................................................................................................................21
5.1. Recommended paper.........................................................................................................21
5.2. Printing position..................................................................................................................21

WSP-DT380 Rev. 3.0
http://www.woosim.com
6
1
1. . O Ou ut tl li in ne e. .
1
1. .1 1. . M Mo od de el l c cl la as ss si if fi ic ca at ti io on ns s. .
1
1. .2 2. . P Pr ro od du uc ct t P Pa ar rt t N Nu um mb be er r S Sy ys st te em m
WSP–DT380 ( ) ( )
Model
Interface
A0 : UART
Power
None : DC 24V/2.7A
Model name / Interface Spec.
Example) 1. Porti-S40 Serial/Bluetooth Part No. ⇒ S40/A1
2. Porti-SC30 Bluetooth Only Part No. ⇒ SC30/Z1
S40
SC30
W25
.
.
.
Wired Wireless
A RS-232C 1 Bluetooth
B TTL 2 IrDA
C USB 0 None
D RS-485
E Parallel
Z None

WSP-DT380 Rev. 3.0
http://www.woosim.com
7
1
1. .3 3. . S Sp pe ec ci if fi ic ca at ti io on ns s. .
Item Specifications
Printing method Thermal dot line printing
Characters per line 64cpl (MAX)
Character size Eng. : 9*24dots, 12*24dots Kor. : 16*24dots, [24*24dots]
Optional Characters
Simplified/Traditional Chinese, Arabic, Cyrillic, Russian,
Tukish, Greek, Japanese, Persian, Latin9 and
Others upon request.
Resolution W 8dots/mm X H 8 dots/mm
Paper feed pitch 0.0625mm
Print width 3-inch (72mm, 576dots)
Printing speed 170mm / sec (MAX)
Dimensions 126 * 165.5 * 108.2 mm
Weight 819g
Interface UART(RS-232C), USB, Parallel
Paper supplied Thermal roll paper (80mm wide, 80ø)
Barcode supplied
1-dimension : Code128, EAN 128, Code39, I2/5, Code93
UPC, EAN, KAN,JAN, CODABAR
2-dimension : PDF417, QR Code, DATA Matrix
Driver Microsoft Widows XP / VISTA / 7
Windows CE, Linux, Android OS driver compatible
H/W Spec. MCU : 32bit RISC, FLASH : 4 Mbytes, RAM : 8 Mbytes
Receive buffer size 1M bytes
Paper cutting method Slide cutting
Type of paper cutting Full cut and Partial cut(1.5±0.5mm tab left at the center)
AC adapter Rated Voltage : AC 100-240V, 50-60Hz
Capable of Supplying : +24VDC at 2.7A

WSP-DT380 Rev. 3.0
http://www.woosim.com
8
Item Specifications
Environment
conditions
Temperature -10°C ~ 50°C (operating)
-20°C ~ 60°C (storage)
Humidity 30% - 85% (operating)
Life span
(at 25℃ and rated
energy)
Activation pulse
resistance 100 million pulses or more
Abrasion resistance
100km or more (excluding damage
caused by dust and foreign materials)
Paper cutting
resistance
700,000 cuts or more

WSP-DT380 Rev. 3.0
http://www.woosim.com
9
2
2. . S Se et tt ti in ng g u up p t th he e p pr ri in nt te er r. .
2
2. .1 1. . P Pr ri in nt te er r & & A Ac cc ce es ss so or ri ie es s
Your printer box should include these items. If any items are damaged or
missing, please contact your dealer for assistance.
WSP-DT380
Thermal roll paper
AC Adapter

WSP-DT380 Rev. 3.0
http://www.woosim.com
10
2
2. .2 2. . P Pr ri in nt te er r F Fe ea at tu ur re es s

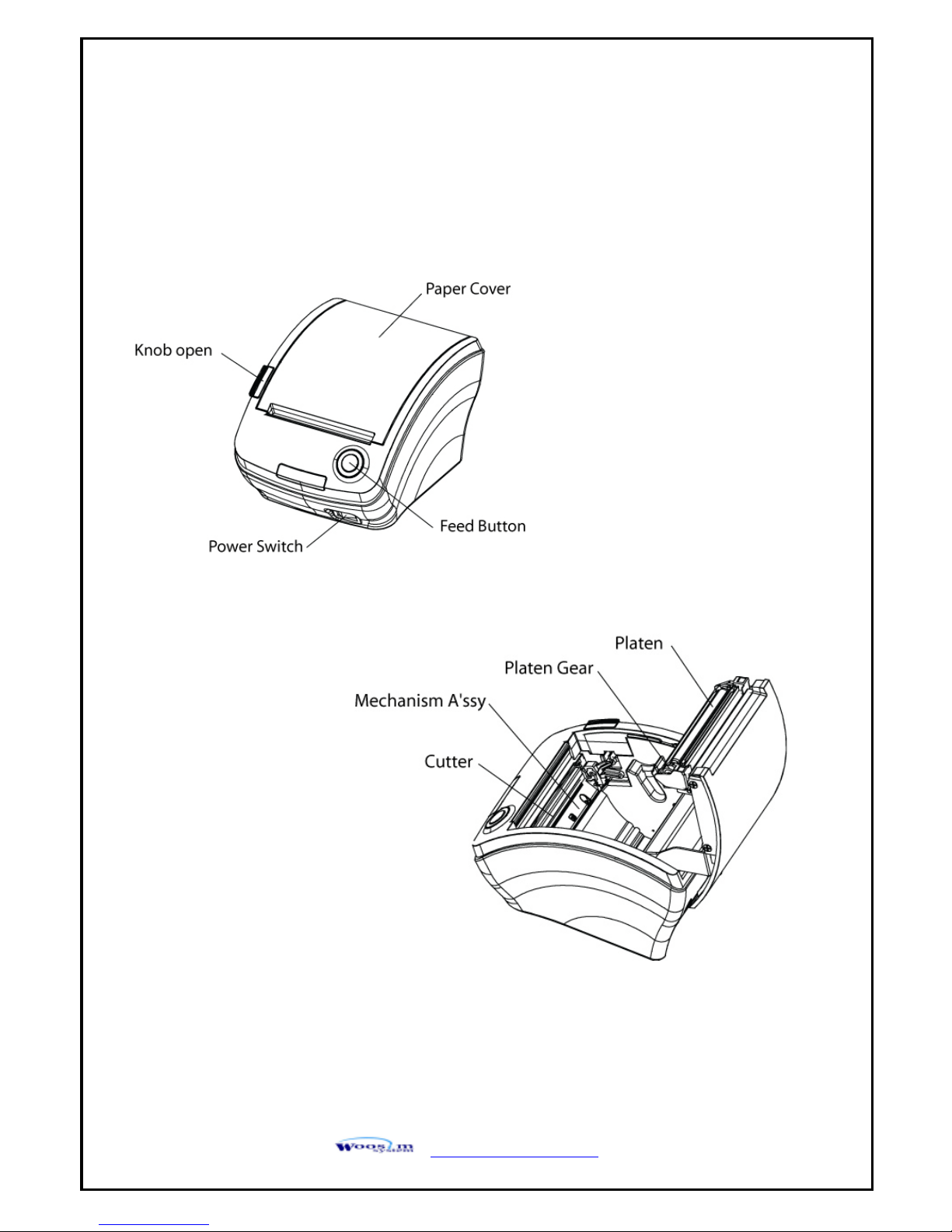

▶ Part Name

WSP-DT380 Rev. 3.0
http://www.woosim.com
11

WSP-DT380 Rev. 3.0
http://www.woosim.com
12

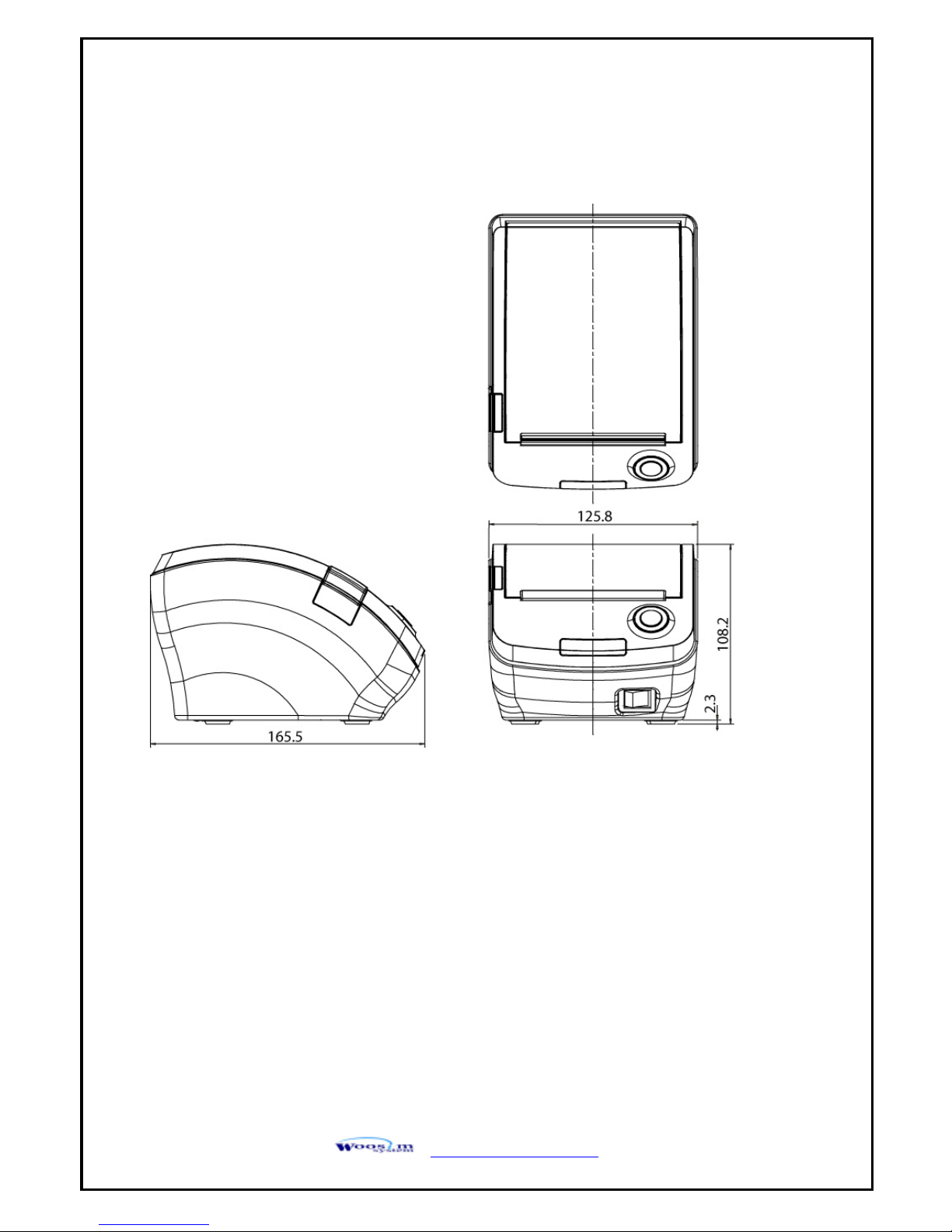

▶ Dimensions

WSP-DT380 Rev. 3.0
http://www.woosim.com
13
2
2. .3 3. . R Re ep pl la ac ci in ng g p pa ap pe er r r ro ol ll l. .
1. Make sure that the printer is not receiving data; otherwise, data may be lost.
2. Open the paper cover as the “One-Touch” way by pressing the button in the arrow
direction like the picture.
3. Insert a new paper roll as shown.
4. Tear the excess paper off using the edge of paper door as a tear bar.
Note : Be sure to use paper rolls that meet the specifications.
Do not use paper rolls that have the paper glued to the core because the
printer can not detect the paper end correctly.

WSP-DT380 Rev. 3.0
http://www.woosim.com
14
2
2. .4 4. . P Po ow we er r s su up pp pl ly y
2
2. .4 4. .1 1. . S Sp pe ec ci if fi ie ed d p po ow we er r s su up pp pl ly y. .
2
2. .5 5. . S Se et tt ti in ng g t th he e D DI IP P s sw wi it tc ch he es s
The following specification is requested for Power supply.
Input : Rated Voltage : AC 100-240V, 50-60Hz
Capable of Supplying : +24VDC at 2.7A
Avoid using power supply which its power capacity of power current is extremely high.
The DIP switches are located on the bottom of the printer. The DIP switches
are used to set the printer to perform various functions. Follow these steps
when changing DIP switches setting :
1. Turn the printer power switch off.
2. Turn the printer over and remove the DIP switch cover.
3. Move the DIP switches using tweezers or another narrow-ended tool.
4. The new setting takes effect when you turn on the printer.

WSP-DT380 Rev. 3.0
http://www.woosim.com
15
No
DIP SWITCH No.
1
1
2
Off
Off
Density High
Off On Density Medium
On Off Density High
On On Density Low
2
3
4
5
Off
Off
Off
1000000 Baud Rate
On Off Off 500000 Baud Rate
Off On Off 230400 Baud Rate
On On Off 115200 Baud Rate
Off Off On 57600 Baud Rate
On Off On 38400 Baud Rate
Off On On 19200 Baud Rate
On On On 9600 Baud Rate
3
6
Off 8 Data Bit
On 7 Data Bit
4
7
8
Off Off Odd Parity, 1 Stop Bit
Off
On
Even Parity, 1Stop Bit
On Off Odd Parity, 1 Stop Bit
On
On
No Parity, 1 Stop Bit
<DIP SWITCH Specification>
NOTE : Always change DIP switch settings when the printer is turned off.
Changes made with the power on have no effect until you turn the printer
off and then on again.
※Caution : 9P Serial Maximum 115200Baud Rate
25P Serial Maximum 115200 Baud Rate
USB Maximum 1000000 Baud Rate

WSP-DT380 Rev. 3.0
http://www.woosim.com
16
3

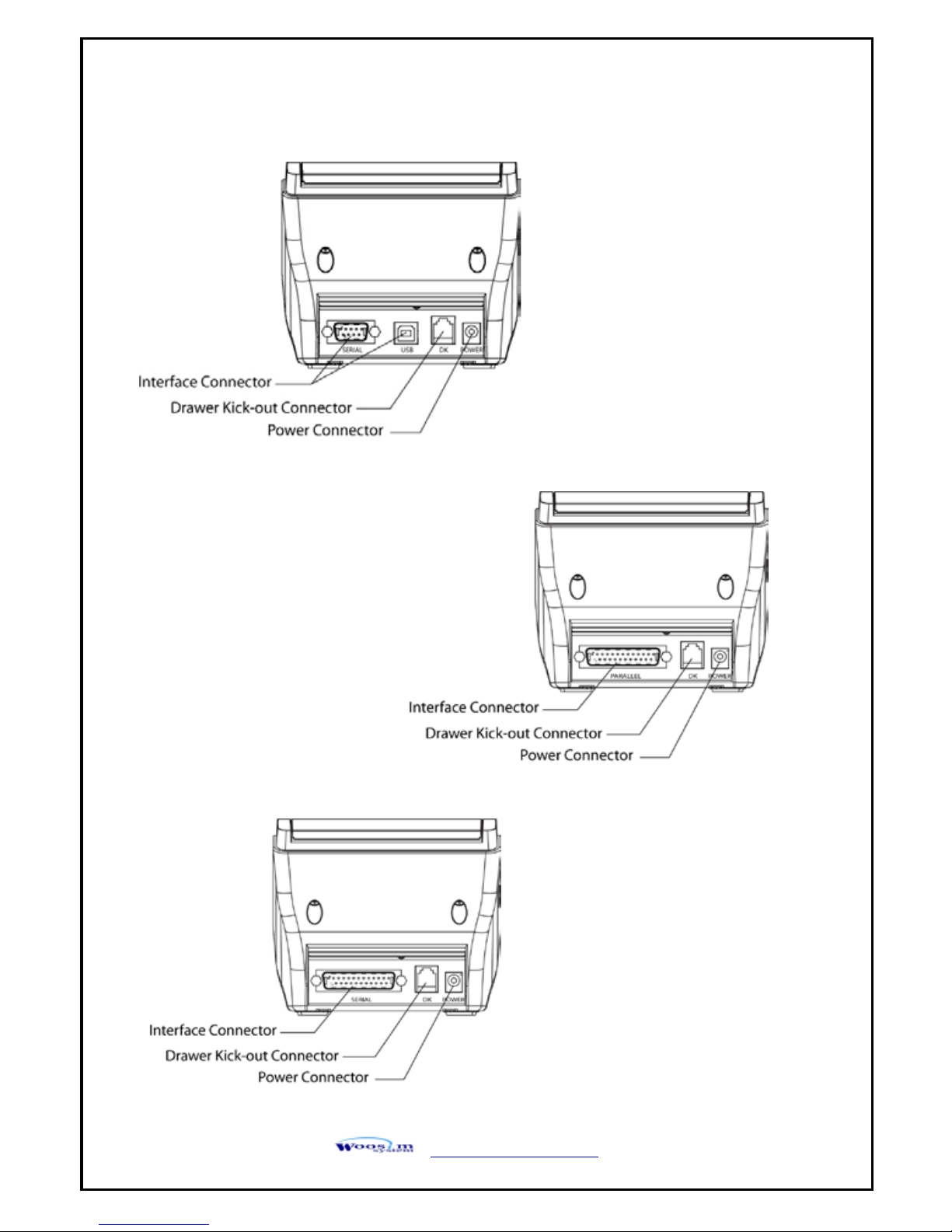

3. . C Co on nn ne ec ct ti io on n. .

WSP-DT380 Rev. 3.0
http://www.woosim.com
17
USB
Pin No. Signal Name Function
1 USB_VCC 5V
2 DM DATA ‘-’
3 DP DATA ‘+’
4 GND Ground
< USB (B TYPE)>
SERIAL_DSUB9P
Pin No. Signal Name Direction Function
2 TxD Output Transmit Data
3 RxD Input Receive Data
5 GND - Ground
< D-SUB 9P-Right Angle(Female TYPE)>
SERIAL-DSUB25P
Pin No. Signal Name Direction Function
1 GND -Chassis Ground
2 TxD Output Transmit Data
3 RxD Input Receive Data
7 GND - Signal Ground
< D-SUB 25P-Right Angle(Female TYPE)>

WSP-DT380 Rev. 3.0
http://www.woosim.com
18
PARALLEL
Pin No. Signal Name Direction Function
1 STB Output Strobe
2 D0 Output Data bit 0
3 D1 Output Data bit 1
4 D2 Output Data bit 2
5 D3 Output Data bit 3
6 D4 Output Data bit 4
7 D5 Output Data bit 5
8 D6 Output Data bit 6
9 D7 Output Data bit 7
10 ACK Input Acknowledge
11 BUSY Input Busy
12 P/E Input Out-of-paper
15 ERR Input ERROR
16 INITIAL Output Initialize printer
18,19,20,21,
22,23,24,25 GND Ground
< D-SUB 25P-Right Angle(Female TYPE)>
Drawer Kick-out
Pin No. Signal Name Direction
1 Frame GND -
2 Drawer Kick-out driver signal 1 Output
3 Drawer open/close signal Input
4 +12V -
5 Drawer kick-out drive signal 2 Output
6 Signal GND
< MODULAR JACK - DK623PCB6P>
WARNING
A wrong connection of power supply connector could be damage the printer.
In the printer power off state Please connect the power supply

WSP-DT380 Rev. 3.0
http://www.woosim.com
19
4
4. . U Us si in ng g t th he e p pr ri in nt te er r. .
4
4. .1 1. . C Co on nt tr ro ol l p pa an ne el l. .
uBUTTON
-FEED : When the printer is on, paper can be feed manually by pressing
and holding the FEED button for more than one second.
uPANEL LAMP
-POWER (Green) : Printer is ON and ready to receive data.
-ERROR (Red) : Indicates a fault condition or a printer error.
(i.e : no paper, paper cover opened. etc.)
-PAPER (Red) : Indicates the shift time of the paper.

WSP-DT380 Rev. 3.0
http://www.woosim.com
20
4
4. .2 2. . T Th he e s se el lf f t te es st t. .
The self test procedure will check most of the printer functions. For self test,
turn on the power while holding down the FEED Button. The Self-Test
checks the following :
1) Make sure paper roll has been installed properly.
2) The Self-Test prints the current printer status, which provides the
control ROM version and the communication method setting.
3) After printing the current printer status, Self-Test will print a pattern
using the built-in character set.
4) The Self-Test automatically ends.
The printer is ready to receive data as soon as it completed the self test.
