WOOSIM PORTI-SC30 User manual

http://www.woosim.com
MODEL
PORTI-SC30
WOOSIM SYSTEMS Inc.
#501, Daerung Technotown 3th,
448, Gasan-Dong, GeumChun-Ku,
Seoul, Korea
Tel : [phone]
Fax : [phone]
URL: http://www.woosim.com
(Mobile Printer)
Rev. 2.0
All specifications are subjected to change without notice.

Porti-SC30 Rev. 2.0
http://www.woosim.com
2
¦
Copyright
Porti-SC30 Mobile printer operator’s manual.
Copyright ⓒ2007 by Woosim Systems Inc.
All rights reserved.
The information contained in this manual is the property of Woosim Systems Inc.
and may not be reproduced in whole or in part without the prior written permission of
Woosim Systems Inc.
¦
Trademark
a registered trademark of Woosim Systems Inc.
All other trademark are the properties of their respective companies.
¦
Caution
Some semiconductor devices are easily damaged by static electricity. You should
turn the printer “OFF”, before you connect or removed the cable on the rear side, in
order to guard the printer against the static electricity.
If the printer is damaged by the static electricity, you should turn the printer “OFF”
¦
Notice
The contents of this manual are subject to change without notice.

Porti-SC30 Rev. 2.0
http://www.woosim.com
3
¦
Introduction
The Porti-SC30 is the ideal solution for Mobile banking system , Retail,
point of sales, Credit card Transaction, other traveling and mobile computing etc.
The general features of Porti-SC30 printer are as follows:
uPocket size(75.5 * 112 * 34mm)
uLight weight(225g) for true mobility.
uVery silent printing thru direct thermal printing method.
uHigh speed(80mm/sec, MAX)
uHigh resolution(203dpi : 8dots/mm).
uUART(RS-232C or TTL), Bluetooth Ver2.1 + EDR Interface.
uIrDAVer1.0(SIR) [option], USB [option] Interface.
uIntuitive LED’s indicate Power(on/off),Error and Battery status
uSupport Magnetic Stripe Reader.
uSupport text and graphic printing.
uEasier paper roll loading by CLAMSHELL design.
uEasier maintenance with self-diagnostics.
uIn field programming – Update Firmware, Download Fonts and Logos
uMicrosoft Windows 98 / ME / 2000 / XP / VISTA / 7 compatible.
uFree fall: 1 meter onto concrete (option 1.5 meter)
uFlow control : Software (XON/XOFF)
※Hardware flow control not supported in printer.
uAgency Approvals

Porti-SC30 Rev. 2.0
http://www.woosim.com
4
¦
Operating Precautions
Please follow the precautions below to enjoy and maintain the full performance of
the printer.
u
Using the Printer
● Be careful not to drop or bump the printer on a hard surface.
● Do not install the printer in direct sunlight or such areas.
Suitable environment for the use of the printer is as follows:
◆Operating temperature :-10°C to 50°C
◆Relative humidity : 10% to 90% (No condensation)
● Do not install the printer near devices that generate strong
electromagnetic fields such as a copy machine.
● Do not open the platen cover during printing .
● Do not remove or reinstall the communication cable during printing
or transmission.
● Do not touch the connectors of the communication during printing.
● Switch the POWER OFF when not in use.
● Do not use alcohol or other solvent.
●The AC adapter, the battery charger and the battery pack may
become warm when in use. This is normal and is not a malfunction.
● When the battery pack is used at low temperature, the length of time
the printer can be used may be shortened.
uThermal Paper Handling
● Store the thermal paper in a cool, dry and dark place.
● Do not rub the paper with hard object.
● Do not leave the paper with hard object.
● Do not allow plastic film, erasers, or adhesive tape to touch the paper
for long periods.
● Do not stack the thermal paper with diazo copies immediately
after copying or wet-type copies.
● Do not use chemical glue.
●Always use the clean thermal paper.

Porti-SC30 Rev. 2.0
http://www.woosim.com
5
¦
Note
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
These equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception ,
which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.

Porti-SC30 Rev. 2.0
http://www.woosim.com
6
CONTENTS
1. Outline. ...........................................................................................................................................7
1.1. Model classifications. ...............................................................................................................7
1.2. Product Part Number System....................................................................................................7
1.3. Specifications............................................................................................................................8
2. Setting up the printer...................................................................................................................10
2.1. Printer & Accessories..............................................................................................................10
2.2. Printer Features.......................................................................................................................11
2.3. Installing or replacing the paper roll.......................................................................................12
2.4. Power supply ..........................................................................................................................13
2.4.1. Internal power supply ......................................................................................................13
2.4.2. Installing the Battery........................................................................................................13
2.4.3. Recharging the battery.....................................................................................................14
2.5. Set operation mode .................................................................................................................15
3. Interface........................................................................................................................................25
3.1. UART(RS-232C or TTL) or USB...........................................................................................25
3.2. Infrared data communication..................................................................................................26
3.3. Bluetooth ................................................................................................................................27
4. Using the printer. .........................................................................................................................28
4.1. Control panel. .........................................................................................................................28
4.2. The self test.............................................................................................................................29
5. Consumable Parts........................................................................................................................30
5.1. Recommended paper...............................................................................................................30
5.2. Printing position......................................................................................................................30

Porti-SC30 Rev. 2.0
http://www.woosim.com
7
1
1. . O Ou ut tl li in ne e. .
1
1. .1 1. . M Mo od de el l c cl la as ss si if fi ic ca at ti io on ns s. .
1
1. .2 2. . P Pr ro od du uc ct t P Pa ar rt t N Nu um mb be er r S Sy ys st te em m
PORTI–SC30 ( ) ( )
Model
Interface
None: UART/IrDA
U : USB/IrDA
BT : Bluetooth/UART
Power
None : DC 8.4V
Model name / Interface Spec.
Example) 1. Porti-S40 Serial/Bluetooth Part No. ⇒S40/A1
2. Porti-SC30 Bluetooth Only Part No. ⇒SC30/Z1
S40
SC30
W25
.
.
.
Wired Wireless
A RS-232C 1 Bluetooth
B TTL 2 IrDA
C USB 0 None
D RS-485
E Parallel
Z None

Porti-SC30 Rev. 2.0
http://www.woosim.com
8
1
1. .3 3. . S Sp pe ec ci if fi ic ca at ti io on ns s. .
Item Specification
Printing method Direct thermal line printing
Characters per line 42cpl (MAX)
Character size Eng. : 9*24dots, 12*24dots Kor. : 16*24dots, [24*24dots]
Optional Characters
Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Tukish,
Greek, Japanese, Persian, Latin9 and Others upon request.
Resolution 203dpi, 8dots/mm
Print width 2-inch (48mm, 384dots)
Printing speed 80mm / sec (MAX)
Dimensions 75.5 * 112 * 34 mm
Weight 225g (Including battery & roll paper)
Interface UART(RS-232C or TTL), Bluetooth Ver 2.1 + EDR,
USB [option], IrDA Ver1.0 (SIR) [option]
Paper supplied Thermal roll paper (57mm wide, 30ø)
Black mark Support black mark detection
Barcode supplied
1-dimension : Code128, Code39, I2/5, Code93 UPC, EAN, KAN,
JAN, CODABAR
2-dimension : PDF417, QR Code, DATA Matrix
H/W spec. MCU : 32bits RISC, FLASH : 4M bytes, RAM : 8M bytes
Receive buffer size 1M bytes
Battery Rechargeable 7.4V DC, 1200mAh (Li-ion)
Battery duration 1 hour continuous printing
Battery charger Input (100~250V AC, 50~60Hz)
Output(8.4VDC/0.8A), 4hours full charge time
MSR ISO 7810 / 7811 / 7812 1&2 or 2&3 Track Reading
(Continue…)

Porti-SC30 Rev. 2.0
http://www.woosim.com
9
Item Specifications
Environment
conditions
Temperature -10°C ~ 50°C (operating)
-10°C ~ 70°C (storage)
Humidity 30% - 80% (operating)
10% - 90% (storage)
MCBF(Mean Cycle
Between Failure)
Mechanical 37,000,000 lines
Head Approximately 50 Km
< Table 1 >

Porti-SC30 Rev. 2.0
http://www.woosim.com
10
2
2. . S Se et tt ti in ng g u up p t th he e p pr ri in nt te er r. .
2
2. .1 1. . P Pr ri in nt te er r & & A Ac cc ce es ss so or ri ie es s
Your printer box should include these items. If any items are damaged or missing,
please contact your dealer for assistance.
PORTI-SC30
Thermal Roll Paper

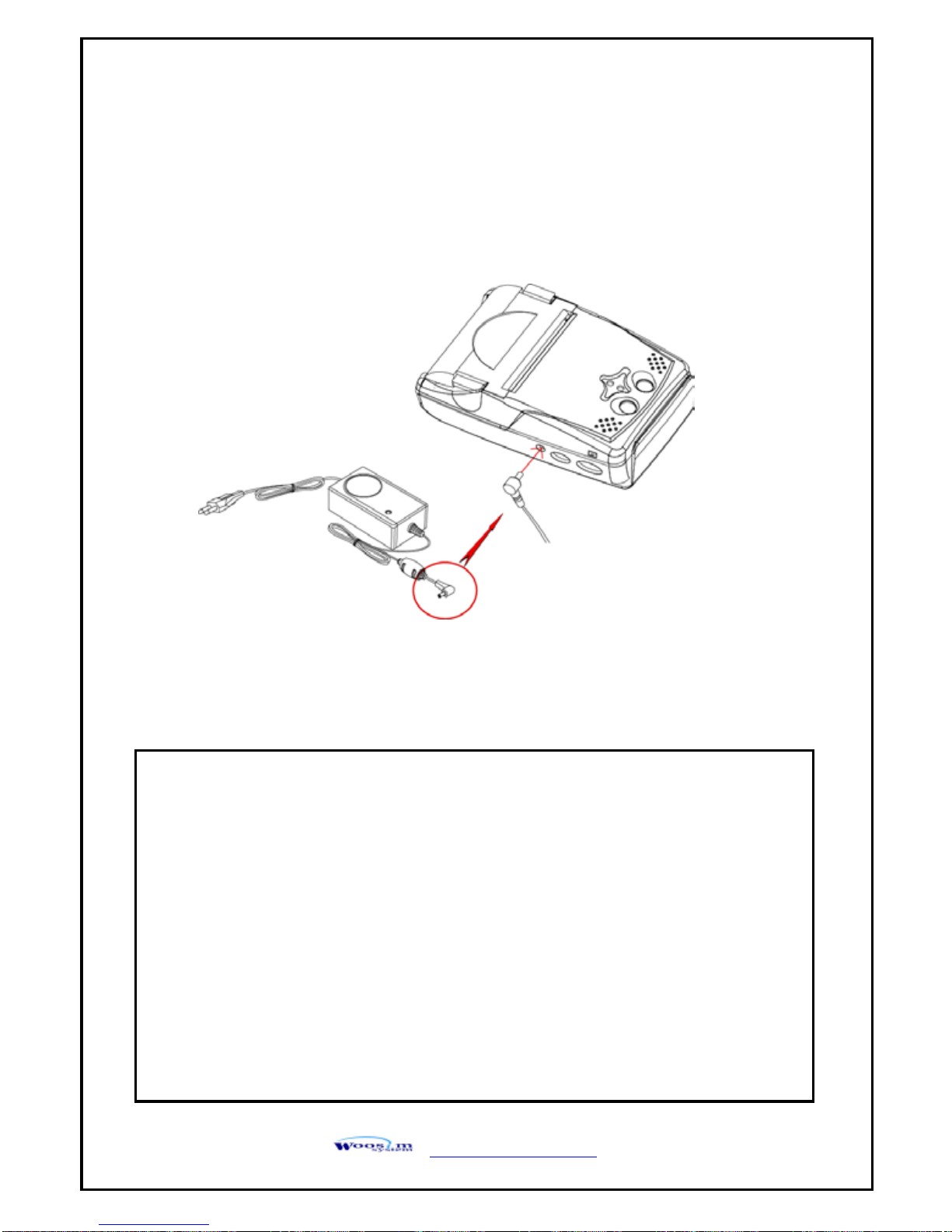

Battery charger adaptor
▼
OPTIONAL
Communication cable
Car charger
