Worlde KSA SERIES User manual

1

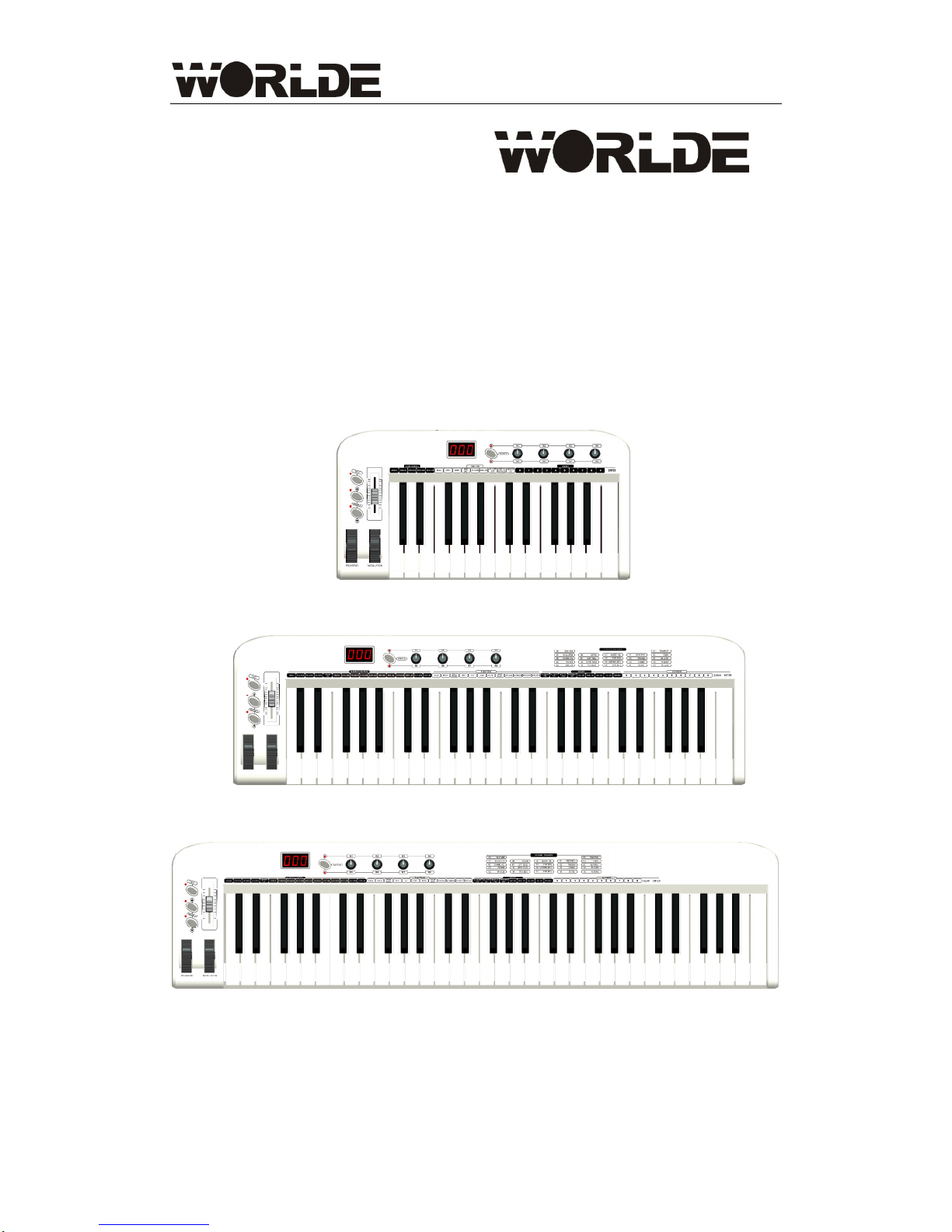

KSA Series
MIDI Controller
User’s Manual
—————————————————
Model：KS25A/49A/61A

2
Product List
Please check all the items in your KS25A/49A/61Apackage:
lThe KS25A/49A/61A product 1 pcs
lUSB cable 1 pcs
lUser’s manual CD 1 pc

3
NOTICE
Always follow the basic precautions listed below to avoid the possibility of serious injury or
even death from electrical shock, damage, fire or other hazards. These precautions
include, but are not limited to, the followings:
1. Read and understand all the instructions.
2. Always follow the instructions on the instrument.
3. Before cleaning the instrument, always remove the electric plug from the outlet as well
as the USB cable. When cleaning, use a soft and dry cloth. Do not use gasoline,
alcohol, acetone, turpentine or any other organic solutions; do not use liquid cleaner,
spray cleaner or too wet cloth.
4. Do not use the instrument near water or moisture, such as bathtub, washbasin,
washing sink in the kitchen or similar places.
5. Do not place the instrument on an unstable place where it might accidentally fall over.
6. Do not jam sinks- or holes of the instrument; those sinks- or holes are used for air
circulation to prevent the instrument from overheating. Do not place the instrument
near heat sink or any places with poor air circulation.
7. Do not place anything on the power cord. Make sure the power cord is set on a safe
place, so nobody will step on it and no body will trip over it.
8. Do not insert anything in the instrument, which may cause fire or electrical shock. Do
not splash any kind of liquid to the instrument.
9. Do not disassemble the instrument in case of accidental electrical shock.
10. Always take the instrument to a qualified service center in need of repair. You will
endanger yourself if you open or remove the cover, and improper assembly may
cause electrical shock in future use.
11. Unplug all the connectors and take the instrument to a qualified service center if
anything in the below listed happens:
(1) The power cord or connector gets damaged or worn out.
(2) Any liquid gets into the instrument.
(3) The instrument gets rain or water splash.
(4) The instrument does not work properly after following all the instructions.
(5) The instrument falls down or gets broken.
(6) The instrument functions poorly.
12. Do not use the instrument in thunder; otherwise the thunder may cause long-distance
electrical shock.
13. When the power cord is connected to the AC outlet, do not touch the naked part of the
cord or the connector.
14. Keep the instrument away from dust, heat and vibration.
15. WORLDE is not responsible for any damage or data loss caused by improper
operation to the instrument.
16. All the pictures and the LED displays in the manual are used for demonstration; they
may be different from the real instrument.

4
CONTENTS
1. INTRODUCTION .............................................................................................................5
2. FEATURES......................................................................................................................5
3. OPERATION....................................................................................................................6
3.1. PARTS ILLUSTRATION........................................................................................6
3.1.1. FRONT PANEL............................................................................................6
3.1.2. REAR PANEL..............................................................................................7
3.2. CONNECTION/POWER/CONTROL.....................................................................8
3.3. ASSIGN CONTROLLERS.....................................................................................8
3.4. PEDAL RESISTANCE CURVE.............................................................................8
3.5. TEMPO..................................................................................................................9
3.6. PROGRAM............................................................................................................9
3.7. MIDI CHANNEL.....................................................................................................9
3.8. TRANSPOSE.......................................................................................................10
3.9. OCTAVE..............................................................................................................10
3.10. DUAL.................................................................................................................10
3.11. KEYBOARD SPLIT............................................................................................10
3.12. SPLIT POINT.....................................................................................................10
3.13. MTC...................................................................................................................11
3.14. ACTIVE SENSING ............................................................................................11
3.15. LOCK.................................................................................................................11
3.16. MUTE.................................................................................................................11
3.17. SNAP SHOT......................................................................................................11
3.18. UPLOAD/DOWNLOAD......................................................................................11
3.19. PEDAL POLARITY............................................................................................13
3.20. SWITCH DIAL FUNCTION GROUPS...............................................................13
3.21. ALL NOTE OFF.................................................................................................13
3.22. ALL SOUND OFF..............................................................................................13
3.23. RESET ALL CONTROLLERS...........................................................................14
3.24. GM/GS/XG ON..................................................................................................14
3.25. GM ON...............................................................................................................14
3.26. GM2 ON.............................................................................................................14
3.27. GS ON...............................................................................................................14
3.28. XG ON...............................................................................................................14
3.29. PRESET ............................................................................................................14
3.30. CLEAN...............................................................................................................15
3.31. RESET...............................................................................................................15
4.APPENDIX.....................................................................................................................16
4.1. APPENDIX 1 ASSIGNABLE CONTROLLER LIST.............................................16
4.2.APPENDIX 2ASSIGNABLE CONTROLLER PARAMETER LIST......................16
4.3.APPENDIX 3 LED STATUS LIST........................................................................19

5
4.4.APPENDIX 4 TECHNICAL SPECIFICATIONS...................................................20
1. INTRODUCTION
KS25A/49A/61A is 25/49/61-key USB-MIDI Controller, which supplies with
professional keyboard of initial touch and profuse assignable controllers. It satisfies the
needs of portability, play, control and etc.
2. FEATURES
l25/49/61 keys with initial touch.
l1xAssignable pedal interface (Pedal B), compatible with switch pedal and
continuous pedal. It can be assigned as 152 controllers. (KS25A).
l2xAssignable pedal interfaces (Pedal A，Pedal B), compatible with switch pedal
and continuous pedal. It can be assigned as 152 controllers. (KS49A/61A)
l1xAssignable slider (Slider), which can be assigned as 148 controllers.
lPitch Bend Wheel and Modulation Wheel (Wheel P and Wheel M), which can be
assigned as 148 controllers.
l2xAssignable data buttons (Data +/-), which can be assigned as 160 controllers.
l1xEdit button (Edit), switch play and edit status.
l1xDial function group switching button (Switch).
l4xAssignable dials, which can accomplish two groups of functions (R1~R4 and
R5~R8) with each dial distributed to an independent channel. These dials can be
assigned as 160 controllers.
l5xKeyboard velocity curve
lPC upload and download, useful for user setting save and transfer.
lMulti-functional keyboard, which can provide functions such as voice adjustment,
dual, touch sensitivity adjustment, split, tempo, mute, snap shot, etc.
l1xMIDI OUT.
lUSB interface, adaptable to USB 1.1. Power supply by USB and DC 9V.
lCompatible with Win XP/Vista and Mac OSX, drive free and hot plug supporting.
lCompatible with major audio and sequencer software, such as Cubase and
Cakewalk.

6
3. OPERATION
3.1. PARTS ILLUSTRATION
3.1.1. FRONT PANEL
(1) EDIT Button
It is to open/close keyboard multi-function.
(2) DATA +/- Buttons
They are assignable buttons, which could be assigned as 160 controllers. The initial
setting is 154th controller: octave adjustment.
(3) SWITCH Button
It is to switch function groups of dials R1~R4 and R5~R8.
(4) SLIDER
It is an assignable fader that can be assigned as 148 controllers. The initial setting is
147th controller: master volume.
(5) PITCH BEND Wheel
It is an assignable wheel that can be assigned as 148 controllers. The initial setting is
146th controller: pitch bend wheel.
(6) MODULATION Wheel
It is an assignable wheel that can be assigned as 148 controllers. The initial setting is
1st controller: modulation wheel.
(7) R1~R8 Dials
These are assignable dials with an independent channel distributed to each dial, and
each dial can be assigned as 160 controllers. The initial channel of R1~R4 is 0, initial
controller numbers are 152, 153, 156, 157, which controls program, channel, tempo and
keyboard velocity curve respectively. The initial channels of R5~R8 are 0~3, initial
controller number is 7, which controls the volume of channels 0~3 respectively. The

7
function group of R1~R4 and R5~R8 is switched by SWITCH button.
(8) Multi-functional Keyboard
This function is turned on/off by EDIT button. When it is on, the keyboard provides
functions shown printed above the keyboard, including program adjustment, dual, touch
sensitivity adjustment, numeric pads, and etc.
(9) Constant Controller Parameter
(10) EDIT Indicator
When EDIT indicator is on, keyboard multi-function is on, vice versa.
(11) OCTAVE/TRANSPOSE Indicator
When the indicator is on, it indicates that there’s upper/lower octave adjustment;
when the indicator flickers slowly, it indicates that there’s upper/lower transpose
adjustment; when the indicator flickers quickly, it indicates that there’s upper/lower octave
and transpose adjustment at the same time; when the indicator is off, it indicates that
there’s no upper/lower octave nor transpose adjustment.
(12) Dial Function Group Indicator
When the corresponding indicator of R1~R4 is on, the current dial function group is
R1~R4; if the indicator of R5~R8 is on, the current dial function group is R5~R8.
(13) LED
It is to display the current number/status information.
3.1.2. REAR PANEL
(1) MIDI OUT
MIDI output interface.
(2) PEDALA
Pedal A input interface, which can connect to pedals of both switching type and
continuous type. It can be assigned as 152 controllers; the initial setting is soft pedal.
(3) PEDAL B
Pedal B input interface, which can connect to pedals of both switching type and
continuous type. It can be assigned as 152 controllers; the initial setting is sustain pedal.
(4) USB
USB interface
(5) DC9V
9V power input interface.
(6) OFF/ON
Power Off/On
（
6
）
（
5
）
（
4
）
（
3
）
（
2
）
（
1
）

8
3.2. CONNECTION/POWER/CONTROL
üKS25A/49A/61A gets connected to PC via the USB cable. This connection powers
the keyboard and is used to transfer the MIDI data to PC. In addition, you can
connect to other devices such as a sound module to send out MIDI data via MIDI
output port.
üKS25A can also be used when connected to an optional 9V DC power supply. In this
case the MIDI data will only be sent out via the MIDI output port.
3.3. ASSIGN CONTROLLERS
üPress EDIT button to enter keyboard multi-function mode, the indicator of EDIT is on.
Press ASSIGN button to enter controller assignment mode, LED shows CHO,
reminding the user to choose the controller that needs to be assigned. Operate the
very controller to select it (For example, if you want to assign SLIDER, slide the Slider
to select), the LED shows the controller number of the selected controller, input the
desired assignable parameter value with numeric pad, and press ENTER to confirm
(for example, if Slider is selected, input 147 and the Slider is assigned as Master
Volume Controller).
üAssignable controllers reference: Appendix 1- Assignable controller List
üAssignable controller parameters reference: Appendix 2-Assignable Controller
Parameter List.
3.4. PEDAL RESISTANCE CURVE
üYou can adjust the pedal resistance curve to better work with pedals of different
specifications and resistance values.
üEstimate resistance curve value: Value of PA Curve or PB Curve= (128*pedal
resistance value) / (10K+pedal resistance value). For instance, if the pedal resistance
value is 10K, the value of PA Curve or PB Curve is: 128*10K/ (10K+10K) =64.
üFor pedal resistance value, please refer to the technical specifications provided by
pedal manufacturer.
üThe resistance curve estimation does not need to be very accurate, or you could
simply adjust it without calculation, as long as the travel and succession of the pedal
satisfy your needs.
üThe initial value of resistance curve is 64, adaptable to most pedals in the market.
üWhen you use switching type pedal, the recommended resistance curve value is 64.
üWhen DATA +/- is assigned as PA CURVE or PB CURVE, DATA +/- can be used to
adjust resistance curve values. Press two buttons of DATA +/- at the same time to set

9
the resistance curve value to initial 64.
üWhen the dials （R1~R4 or R5~R8）are assigned as PACURVE or PB CURVE, they
can be used to adjust pedal resistance value.
üPress EDIT button to enter keyboard multi-function mode, press PA CURVE or PB
CURVE multi-functional keys to enter pedal resistance curve adjustment mode, input
the pedal resistance value with numeric pad, then press ENTER to confirm.
(KS49A/61A)
3.5. TEMPO
üWhen DATA +/- is assigned as TEMPO, it can be used to adjust tempo. Press DATA
+/- at the same time to set the tempo to initial 100.
üWhen the dials (R1~R4 or R5~R8) are assigned as TEMPO, they (R1~R4 or R5~R8)
can be used to adjust tempo.
üPress EDIT button to enter keyboard multi-function mode, press TEMPO to enter
tempo adjustment mode, then input the tempo value with numeric pad, and press
ENTER to confirm. (KS49A/61A)
3.6. PROGRAM
üWhen DATA +/- is assigned as PROGRAM, DATA +/- can be used to adjust program.
Press DATA +/- at the same time to set the program number to initial 0.
üWhen the dials（R1~R4 or R5~R8）are assigned as PROGRAM, they（R1~R4 or
R5~R8）can be used to adjust program.
üPress EDIT button to enter keyboard multi-function mode, press PROGRAM button to
enter program adjustment mode, then input the program number with numeric pad
and press ENTER to confirm.
3.7. MIDI CHANNEL
üWhen DATA +/- is assigned as CHANNEL, use DATA +/- to adjust general MIDI
channel. Press DATA +/- buttons at the same time to set general MIDI channel to
initial 0.
üWhen dial R1~R4 or R5~R8 are assigned as CHANNEL, use dial R1~R4 or R5~R8
to adjust general MIDI channel.
üPress EDIT button to enter keyboard multi-function mode, and then press CHANNEL
to enter channel adjustment mode, and then use numeric pad to enter general MIDI
channel number and press ENTER to confirm.
üPress EDIT button to enter keyboard multi-function mode, and then press CHANNEL
to enter channel adjustment mode. Operate the desired dial from R1~R4 or R5~R8 to
select that dial, and then use numeric pad to enter the channel number of that dial in
current group, and press ENTER to confirm.

10
3.8. TRANSPOSE
üWhen DATA +/- is assigned as TRANSPOSE, use DATA +/- to adjust transpose.
Adjustment range is +/- 12 semitones. Press DATA +/- buttons at the same time to
set transpose to initial 0.
üHold EDIT and use DATA +/- to adjust transpose. Adjustment range is +/- 12
semitones. Hold EDIT and DATA +/- at the same time to set transpose to initial 0.
üWhen dial R1~R4 or R5~R8 are assigned as TRANSPOSE, use dial R1~R4 or
R5~R8 to adjust transpose. Adjustment range is +/- 12 semitones.
3.9. OCTAVE
üWhen DATA +/- is assigned as OCTAVE, use DATA +/- to adjust octave. Adjustment
range is +/- 3 octaves. Press DATA +/- buttons at the same time to set octave to initial
0.
üWhen dial R1~R4 or R5~R8 are assigned as OCTAVE, use dial R1~R4 or R5~R8 to
adjust octave. Adjustment range is +/- 3 octaves.
3.10. DUAL
üPress EDIT button to enter keyboard multi-function mode, and then press DUAL to
open/close dual function.
üDual and keyboard split functions cannot be used simultaneously. Open dual will turn
off keyboard split function.
3.11. KEYBOARD SPLIT
üPress EDIT button to enter keyboard multi-function mode, and then press SPLIT to
open /close keyboard split function.
üDual and keyboard split functions cannot be used simultaneously. Open keyboard
split will turn off dual function. (KS49A/61A)
3.12. SPLIT POINT
üPress EDIT button to enter keyboard multi-function mode, and then press SPLIT
POINT to select split point. LED displays CHO to remind users to select the split point,
and then press the desired split point note and then that note will be the new split
point. (KS49A/61A)
