2-in-1 cordless Li-ion grass trimmer/edger
EN
1. REAR HANDLE
2. AUXILIARY HANDLE
3. TELESCOPIC SHAFT
4. LOCKING KNOB
5. AUXILIARY HANDLE LOCKING LEVER
6. SAFETY GUARD
7. SPACER GUARD
8. EDGER WHEEL
9. LINE CUTTER
10. BATTERY PACK
11. CUTTING HEAD COVER (SEE FIG M2)
12. CAP RELEASE LATCH (SEE FIG M2)
13. SPOOL (SEE FIG M2)
14. CUTTING HEAD (SEE FIG M2)
15. EYELET (SEE FIG M2)
16. LINE FEED BUTTON (SEE FIG M1)
17. CHARGER (SEE FIG C)
18. CHARGED INDICATOR LIGHT (GREEN) (SEE FIG D)
19. CHARGING INDICATOR LIGHT (RED) (SEE FIG D)
* Not all the accessories illustrated or described are included in standard delivery.

98
2-in-1 cordless Li-ion grass trimmer/edger
EN
98
NOISE INFORMATION
A weighted sound pressure 77dB(A)
A weighted sound power 94dB(A)
KpA & KwA 3.0dB(A)
Wear ear protection when sound pressure is over 80dB(A)
Typical weighted vibration 4.5m/s²
Uncertainty K 1.5m/s²
TECHNICAL DATA
Voltage 18V
No load speed 8500/min
Cutting diameter 250mm
Line diameter 1.65mm
Charging time 3-5hr approx.
Battery pack 1.3Ah li-on
Machine weight 2.4kg
WARNING! The vibration emission value during actual use of the power tool can differ
from the declared value depending on the ways in which the tool is used dependant on the
following examples and other variations on how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained
The use the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately
managed.
WARNING! To be accurate, an estimation of exposure level in the actual conditions of use
should also take account of all parts of the operating cycle such as the times when the tool
is switched off and when it is running idle but not actually doing the job.This may significantly
reduce the exposure level over the total working period.
Helping to minimize your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades.
Maintain this tool in accordance with these instructions and keep well lubricated (where

98
98
2-in-1 cordless Li-ion grass trimmer/edger
EN
ACCESSORIES
Safety guard 1
Charger 1
Battery pack 1
Auxiliary handle 1
Edger wheel 1
We recommend that you purchase your accessories from the same store that sold you the
tool. Use good quality accessories marked with a well-known brand name. Choose the type
according to the work you intend to undertake. Refer to the accessory packaging for further
details. Store personnel can assist you and offer advice.
appropriate).
If the tool is to be used regularly then invest in anti vibration accessories.
Avoid using tools in temperatures of 10ºC or less.
Plan your work schedule to spread any high vibration tool use across a number of days.

1110
2-in-1 cordless Li-ion grass trimmer/edger
EN
1110
SAFETY INSTRUCTIONS
WARNING: Read all safety warnings
and all instructions. Failure to follow
the warnings and instructions may result in
electric shock, fire and/or serious injury.
WARNING: Read all safety warnings
designated by the symbol and all
instructions.
Save all warnings and instructions for
future reference.
The term “power tool” in the warnings refers
to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
GENERAL POWER TOOL SAFETY
WARNINGS - WORK AREA SAFETY
1) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
2) Do not operate power tools in
explosive atmospheres, such as in the
presence of flammable liquids, gases
or dust. Power tools create sparks which
may ignite the dust or fumes.
3) Keep children and bystanders
away while operating a power tool.
Distractions can cause you to lose control.
GENERAL POWER TOOL SAFETY
WARNINGS - ELECTRICAL SAFETY
1) Power tool plugs must match the
outlet. Never modify the plug in any
way. Do not use any adapter plugs
with earthed (grounded) power tools.
Unmodified plugs and matching outlets
will reduce risk of electric shock.
2) Avoid body contact with earthed or
grounded surfaces, such as pipes,
radiators, ranges and refrigerators.
There is an increased risk of electric shock
if your body is earthed or grounded.
3) Do not expose power tools to rain or
wet conditions. Water entering a power
tool will increase the risk of electric shock.
4) Do not abuse the cord. Never use
the cord for carrying, pulling or
unplugging the power tool. Keep cord
away from heat, oil, sharp edges or
moving parts.
Damaged or entangled cords increase the
risk of electric shock.
5) When operating a power tool
outdoors, use an extension cord
suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of
electric shock.
6) If operating a power tool in a damp
location is unavoidable, use a residual
current device (RCD) protected
supply. Use of an RCD reduces the risk of
electric shock.
NOTE: The term “residual current device
(RCD)” may be replaced by the term “ground
fault circuit interrupter (GFCI)” or “earth
leakage circuit breaker (ELCB)”.
GENERAL POWER TOOL SAFETY
WARNINGS - PERSONAL SAFETY
1) Stay alert, watch what you are
doing and use common sense when
operating a power tool. Do not use
a power tool while you are tired or
under the influence of drugs, alcohol
or medication. A moment of inattention
while operating power tools may result in
serious personal injury.
2) Use personal protective equipment.
Always wear eye protection. Protective
equipment such as dust mask, non-
skid safety shoes, hard hat, or hearing
protection used for appropriate conditions
will reduce personal injuries.
3) Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or
battery pack, picking up or carrying
the tool.
Carrying power tools with your finger on
the switch or energising power tools that
have the switch on invites accidents.
4) Remove any adjusting key or wrench
before turning the power tool on. A
wrench or a key left attached to a rotating
part of the power tool may result in
personal injury.
5) Do not overreach. Keep proper
footing and balance at all times.This
enables better control of the power tool in
unexpected situations.
6) Dress properly. Do not wear loose
clothing or jewellery. Keep your hair

1110
1110
2-in-1 cordless Li-ion grass trimmer/edger
EN
and clothing away from moving parts.
Loose clothes, jewellery or long hair can be
caught in moving parts.
7) If devices are provided for the
connection of dust extraction and
collection facilities, ensure these are
connected and properly used. Use of
dust collection can reduce dust-related
hazards.
GENERAL POWER TOOL SAFETY
WARNINGS - POWER TOOL USE
AND CARE
1) Do not force the power tool. Use
the correct power tool for your
application. The correct power tool will
do the job better and safer at the rate for
which it was designed.
2) Do not use the power tool if the
switch does not turn it on and off.
Any power tool that cannot be controlled
with the switch is dangerous and must be
repaired.
3) Disconnect the plug from the power
source and/or the battery pack from
the power tool before making any
adjustments, changing accessories,
or storing power tools. Such preventive
safety measures reduce the risk of starting
the power tool accidentally.
4) Store idle power tools out of the
reach of children and do not allow
persons unfamiliar with the power
tool or these instructions to operate
the power tool.
Power tools are dangerous in the hands of
untrained users.
5) Maintain power tools. Check for
misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the power
tool’s operation. If damaged, have the
power tool repaired before use. Many
accidents are caused by poorly maintained
power tools.
6) Keep cutting tools sharp and clean.
Properly maintained cutting tools with
sharp cutting edges are less likely to bind
and are easier to control.
7) Use the power tool, accessories and
tool bits etc. in accordance with these
instructions, taking into account the
working conditions and the work to
be performed. Use of the power tool for
operations different from those intended
could result in a hazardous situation.
8) Keep handles dry, clean and free from
oil and grease. Slippery handles do not
allow for safe handling and control of the
tool in unexpected situations.
GENERAL POWER TOOL SAFETY
WARNINGS - BATTERY TOOL USE
AND CARE
1) Recharge only with the charger
specified by the manufacturer. A
charger that is suitable for one type of
battery pack may create a risk of fire when
used with another battery pack.
2) Use power tools only with specifically
designated battery packs. Use of any
other battery packs may create a risk of
injury and fire.
3) When battery pack is not in use, keep
it away from other metal objects, like
paper clips, coins, keys, nails, screws
or other small metal objects, that can
make a connection from one terminal
to another. Shorting the battery terminals
together may cause burns or a fire.
4) Under abusive conditions, liquid
may be ejected from the battery;
avoid contact. If contact accidentally
occurs, flush with water. If liquid
contacts eyes, additionally seek
medical help. Liquid ejected from the
battery may cause irritation or burns.
GENERAL POWER TOOL SAFETY
WARNINGS - SERVICE
1) Have your power tool serviced by
a qualified repair person using only
identical replacement parts.This will
ensure that the safety of the power tool is
maintained.

1312
2-in-1 cordless Li-ion grass trimmer/edger
EN
1312
SAVE THESE
INSTRUCTIONS
This grass trimmer is designed for cutting
grass and similar soft vegetation and for
trimming grass edges in private and hobby
garden areas which are not accessible with a
lawnmower.
The device is not allowed to be used in public
gardens, parks, sports centres or at roadsides
as well as in agriculture and forestry.
This lawn trimmer is not allowed to be used
for cutting or chopping:
- Hedges, shrubs and bushes,
- Flowers,
- In terms of composting.
Otherwise, there is a risk of injury.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that
they do not play with the appliance.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order to
avoid a hazard.
1) Wear protective glasses or goggles;
2) Never allow children or people unfamiliar
with the instructions to use the machine;
3) Stop using the machine while people,
especially children, or pets are nearby;
4) Only use the machine in daylight or good
artificial light;
5) Before using the machine and after any
impact, check for signs of wear or damage
and repair as necessary;
6) Never operate the machine with damaged
guards or without the guards in place;
7) Keep hands and feet away from the cutting
means at all times and especially;
8) Take care against injury from any device
fitted for trimming the filament line length.
After extending new cutter line always
return the machine to its normal operating
position before switching on;
9) Never fit metal cutting elements;
10)Never use replacement parts or accessories
not provided or recommended by the
manufacturer;
11)Always ensure that ventilation openings
are kept clear of debris;
l2) Under abusive conditions, liquid may be
ejected from the battery; avoid contact.
If contact accidentally occurs, flush with
water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from the
battery may cause irritation or burns.
MAINTENANCE
1) When not in use store the machine out of
the reach of children;
2) Have your power tool serviced by a
qualified repair person using only identical
replacement parts.This will ensure that the
safety of the power tool is maintained;
- Read the instructions carefully,
- Be familiar with the controls and proper
use of the equipment;

1312
1312
2-in-1 cordless Li-ion grass trimmer/edger
EN
SYMBOLS ASSEMBLY
1. ASSEMBLY OF THE SAFETY GUARD
(See Fig A)
Fix the safety guard to the trimmer head
making sure the sides are located into the
grooves on the trimmer head.
Secure the safety guard onto the trimmer
head with the screw (a) provided.
2. ASSEMBLE OF THE EDGER WHEEL
(See Fig B)
Insert the edger wheel onto grooves of cutting
head. Make sure the groove of the wheel is
locked in the metal plate.
Press the release button (b) on the wheel and
pull out to take off the wheel.
OPERATION INSTRUCTIONS
WARNING! The charger and battery
pack are specially designed to work
together so do not attempt to use any other
devices. Never insert or allow metallic objects
into your charger or battery pack connections
because of an electrical failure and hazard will
occur.
INTENDED USE
The machine is intended for the cutting
of grass and weeds under bushes, as
well as on slopes and edges that can not
be reached with the lawn mower.
1. BEFORE USING YOUR CORDLESS
GRASS TRIMMER
Your battery pack is UNCHARGED and you
must charge once before use
The battery charger supplied is matched to the
Li-ion battery installed in the machine. Do not
use another battery charger.
2. CHARGING YOUR BATTERY PACK
The Li-ion battery is protected against deep
discharging. When the battery is empty,
the machine is switched off by means of a
protective circuit:The trimmer head no longer
rotates.
In a warm environment or after heavy use, the
Warning
To reduce the risk of injury, user
must read instruction manual
Do not expose to rain or water
Do not burn
Always charge the battery pack
between temperatures 0oC to 30oC
Waste electrical products should
not be disposed of with household
waste. Please recycle where
facilities exist. Check with your
Local Authority or retailer for
recycling advice.
Wear eye protection
Wear ear protection
Wear dust mask
To avoid possibility of electric
shock, do not use in damp or wet
conditions
Keep all other people, including
children, pets and bystanders
outside the 15 meters hazard zone,
stop the trimmer immediately if
you are approached.
Edging
Trimming

1514
2-in-1 cordless Li-ion grass trimmer/edger
EN
1514
battery pack may become too hot to permit
charging. Allow time for the battery to cool
down before recharging.
3. HOW TO CHARGE YOUR BATTERY (See
Fig C&D)
Connect the battery charger to the power
supply and the green light (18) will illuminate.
Slide the battery pack into the charger to make
the connections.The green light (18) will be
off and the red light (19) will illuminate to
show charging has started. When charging is
completed the green light (18) will illuminate
while the red light (19) is off.
NOTE: This charger is designed to detect
some problems that can arise with battery
pack. (see table below)

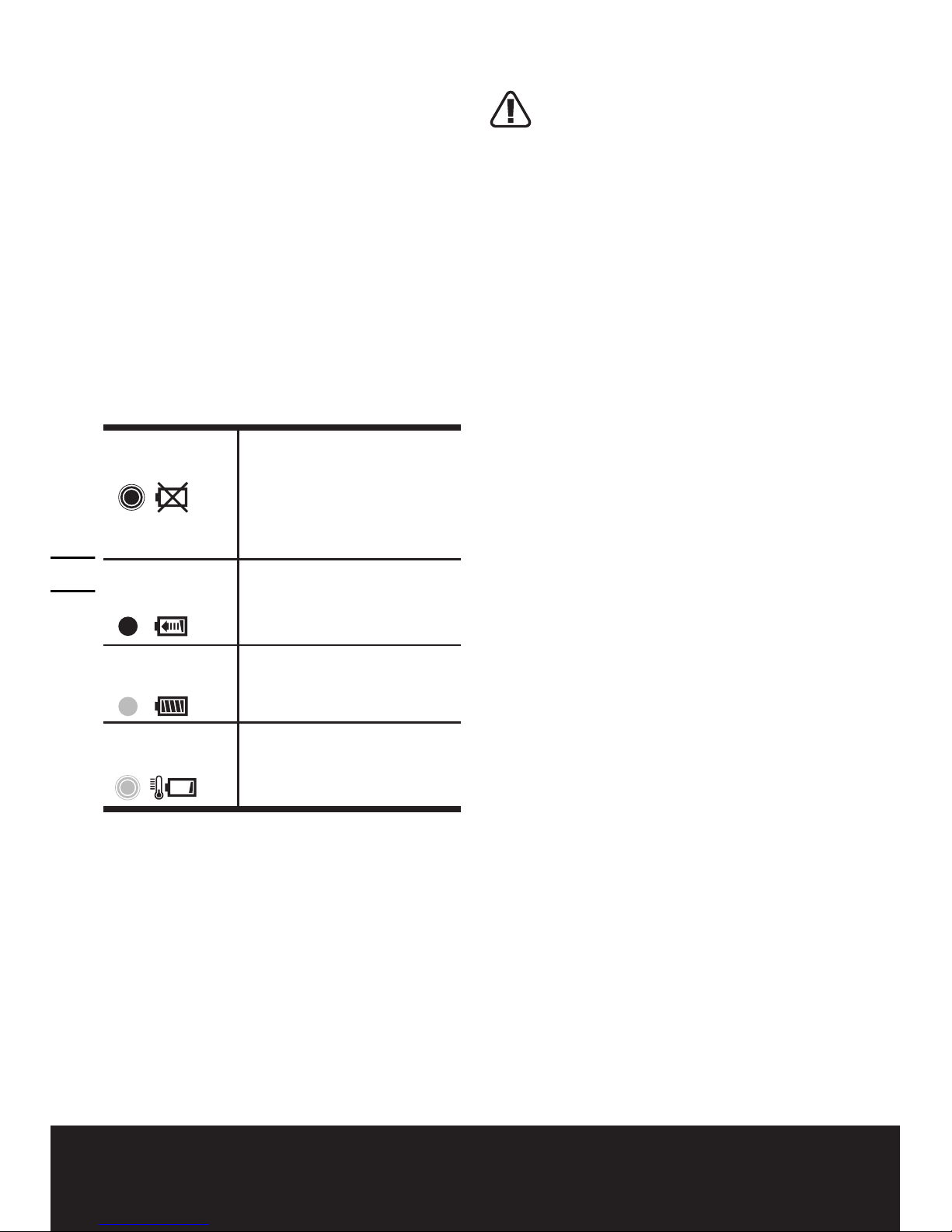

Red flashing
Green Off
Defective battery, after
pre-charge 30 minutes
with trickle current, the
total battery voltage is
still less than 10.0V (When
charging 18V battery pack).
Red ON
Green Off Charging
Green ON
Red Off Power On and Fully
Charged
Green flashing
Red Off The temperature of
battery pack is less than
0OC or more than 45OC
4. TO REMOVE OR INSTALL BATTERY
PACK (See Fig E)
Depress the battery release button to
release battery pack from your trimmer.
After recharging, insert the battery pack into
trimmer’s battery port. A simple push and
slight pressure will be sufficient.
5. SAFETY ON/OFF SWITCH (See Fig F)
Your switch is locked off to prevent accidental
starting. Depress lock off button (c) then on/off
switch (d) and release lock off button (c).Your
switch is now on.To switch off, just release the
on/off switch.
WARNING! The cutting head
continues to rotate after the
trimmer has been switched off; wait until
it has completely stopped then lay down
the tool.
6. ADJUSTMENT OF THE TELESCOPIC
SHAFT (See Fig G)
Unscrew the lower locking knob (4) in the
direction indicated to unlock.
Adjust the length of the telescopic shaft to the
most comfortable length.
Tighten the lower locking knob.
7. MAIN HANDLE ROTATION (See Fig
H1, H2)
Holding the lower housing then pull upward
the shaft, then rotate 90 degree clockwise (See
Fig H1), then release, the shaft will be locked
in position automatically. (See Fig H2)
8. ADJUSTMENT OF AUXILIARY HANDLE
Pull up the auxiliary handle locking lever (5).
Hold the lever and rotate the auxiliary handle
to the most comfortable and balanced position
(See Fig I).
Release the lever, your auxiliary handle has
been locked.
9. ADJUSTMENT OF THE TRIMMER
HEAD ANGLE TO THE SHAFT
Adjust the trimmer head angle downwards,
Put your one foot on the motor house, then
grip the main handle, apply adequate force to
adjust, as shown in Fig J1.
Adjust the trimmer head angle upwards, Put
your one foot on the safety guard, then grip
the main handle, apply adequate force to
adjust, as shown in Fig. J2.
10. SPACER GUARD
Push the spacer guard in and out into place
before trimming, as shown in Figure K. Make
sure the spacer guard is locked firmly.

1514
1514
2-in-1 cordless Li-ion grass trimmer/edger
EN
OPERATION
WARNING! Always wear the eye
protection. Never lean over the
trimmer head. Rocks or debris can ricochet
or be thrown into eyes and face and cause
blindness or other serious injury. When
operating unit, check for the following:
Wear eye protection and heavy clothing. Hold
front handle with one hand and auxiliary
handle with the other hand. Keep unit below
waist level. Work only from your right to your
left to ensure debris is thrown away from you.
Without bending over, keep line near and
parallel to the ground (perpendicular when
edging) and not crowded into material being
cut.
WARNING! Make sure that line is
fed out before operation. Make
sure motor is up to full speed before
trimming.
WARNING! Use only 1.65mm cutting
line, diameter line. Other sizes of
line will not feed properly and will result in
improper cutting head function or can cause
serious injury. Do not use other material
such as wire, string, rope, etc. Wire can break
off during cutting and become a dangerous
missile that can cause serious injury.
TRIMMING
Hold the bottom of the trimmer head about 8
cm above the ground and at an angle. Allow
only the tip of line to make contact. Do not
force trimmer line into work area.
EDGING (See Fig L)
Holding the lower housing then pull upwards
the shaft, then rotate 90 degree clockwise. (Fig
H1)
Adjust trimmer head angle to be the lowest
horizontal setting.Then position the wheel on
the ground for edge mode.The guard has two
white line guides to indicate the cutting line
position. Align these marks with the edge of
your lawn.
While edging, allow the tip of the line to make
contact. Do not force the line.The rotation
wheel helps protect the unit and keeps the
unit from contacting the ground.Take extra
caution while edging as objects can be thrown
from the trimmer line.
AUTOMATIC LINE FEED SYSTEM
When initially switching on the trimmer, a
small length of line is fed out.
A ‘clattering’ noise will be heard when the
lines hit the line cutter. DO NOT BE ALARMED
this is quit normal. After about 5 seconds the
line will be cut to the correct length and the
noise will reduce as the motor receives full
speed.
If the noise of the line being cut can’t be
heard, more line will be fed out.
To feed more line, it is first necessary to allow
the trimmer to stop completely, then restart,
allowing the motor to reach full speed.
Repeat above until you hear the lines hitting
against the line cutter. (Do not repeat this
procedure more than 6 times)
TO MANUALLY FEED THE LINE (See Fig
M1)
If required, line can be feed out manually
To operate, press and release manual line feed
button (16), while gently pulling out the line
until the lines reach the line cutter.
If the line extends past the line cutter, too
much line has been fed out.
If too much line is fed out, remove the spool
cap and turn spool counter-clockwise until the
line is at the desired length.
TO REMOVE THE CAP (See Fig M2)
Press and hold in the two latches (12).
Pull cap away from the spool holder
When refitting the spool cap.
Keep all areas of the cap and spool holder
clean.
Replace the cap, pressing firmly down
towards the spool holder to ensure cap is fully
located.
Check that the cap is correctly fitted by trying
to remove it without depressing the two
latches.
TO REPLACE CUT LINE.
For your convenience it is recommended you
buy spool and line complete.
To fit spool and line complete:
Remove old spool.
Place new spool into cap with cut out areas
of the spool in line with eyelet.

1716
2-in-1 cordless Li-ion grass trimmer/edger
EN
1716
Release line from cleat and feed line through
eyelet.
Refit the cap.
TO FIT NYLON LINE ONLY:
WARNING! Take approximately 10ft
(3 m) of line. Insert 2/5” (10mm ) of
line into the spool holes and wind line in the
direction of the arrows on the top of the spool.
YourTrimmer is designed to use only line with
amaximum diameter of 1.65mm”
IMPORTANT: Leave approximately 4”
(100mm) of line unwound and place into cleat.
Care should be taken to ensure that the line
is neatly coiled on the spool. Failure to do so
will impair the efficiency of the automatic line
feed.
Then fit spool as described in “To fit spool
and line complete”.
MAINTENANCE
After use, disconnect the battery from
the mains and check for damage.
Your power tool requires no additional
lubrication or maintenance.There are no user
serviceable parts in your power tool. Never
use water or chemical cleaners to clean your
power tool. Wipe clean with a dry cloth.
Always store your power tool in a dry place.
Keep the motor ventilation slots clean. Keep
all working controls free of dust.
ENVIRONMENTAL
PROTECTION
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your Local Authority or retailer for
recycling advice.
PLUG REPLACEMENT
If you need to replace the fitted plug then
follow the instructions below.
IMPORTANT
The wires in the mains lead are colored in
accordance with the following code:
Blue = Neutral
Brown = Live
As the colors of the wires in the electrical cord
of this appliance may not correspond with the
colored markings identifying the terminals
in your plug, proceed as follows.The wire
which is colored blue must be connected to
the terminal which is marked with N.The wire
which is colored brown must be connected to
the terminal which is marked with L.
WARNING! Never connect live or
neutral wires to the earth terminal of the
plug. Only fit an approved 13Amp BS1363/A
plug and the correct rated fuse.
NOTE: If a moulded plug is fitted and has to
be removed take great care in disposing of the
plug and severed cable, it must be destroyed
to prevent engaging into a socket.
13

1716
1716
2-in-1 cordless Li-ion grass trimmer/edger
EN
EC DECLARATION OF
CONFORMITY
We,
POSITEC Germany GmbH
Neuer Höltigbaum 6
22143 Hamburg
Declare that the product,
Description
WORX 2-in-1 cordless Li-ion grass
trimmer/edger
Type WG151E
Complies with the following Directives,
EC Machinery Directive
98/37/EC (valid till Dec.28, 2009)
2006/42/EC (valid since Dec.29, 2009)
EC Electromagnetic Compatibility Directive
2004/108/EC
Noise Emission in the Environment by
Equipment for Use Outdoors Directive
2000/14/EC amended by 2005/88/EC.
- Conformity Assessment Procedure as per
Annex VI
- Measured Sound Power Level 90.6dB
- Declared Guaranteed Sound Power Level
94dB
-The notified body involved
Name: Intertek Testing & Certification Ltd
Address: Davy Avenue, Knowlhill, Milton
Keynes, MK5 8NL
Standards conform to,
EN 60745-1 EN 55014-1
EN 55014-2 EN 786
EN 61000-3-2 EN 61000-3-3
ISO 11094 EN ISO 3744
The person authorized to compile the
technical file,
Name: Russell Nicholson
Address: Positec Powertools(Europe)
LTD
Pinewood, Chineham Bussiness Park,
Basingstoke, Hampshire, RG24 8AL,
United Kingdom
2009/02/23
Jacky Zhou
POSITEC Quality Manager

1918
Schnurloser Rasentrimmer/Rasenkantentrimmer
D
1918
1. HANDGRIFF HINTEN
2. ZUSATZHANDGRIFF
3. TELESKOPSCHAFT
4. VERRIEGELUNGSKNOPF
5. FESTSTELLHEBEL ZUSATZHANDGRIFF
6. SICHERHEITSSCHUTZ
7. ABSTANDSSCHUTZ
8. KANTENRAD
9. SCHNEIDFADEN
10. AKKU
11. SCHNEIDKOPFABDECKUNG (SIEHE ABB M2)
12. KAPPENENTRIEGELUNG (SIEHE ABB M2)
13. SPULE (SIEHE ABB M2)
14. SCHNEIDKOPF (SIEHE ABB M2)
15. ÖSE (SIEHE ABB M2)
16. FADENZUFUHRKNOPF (SIEHE ABB M1)
17. LADEGERÄT (SIEHE ABB C)
18. LADEANZEIGE (GRÜN)(SIEHE ABB D)
19. LADEANZEIGE (ROT)(SIEHE ABB D)
* Abgebildetes oder beschriebenes Zubehör gehört teilweise nicht zum
Lieferumfang

1918
1918
Schnurloser Rasentrimmer/Rasenkantentrimmer
D
TECHNISCHE DATEN
Nennspannung 18V
Leerlaufnenndrehzahl 8500/min
Fadenlänge 250mm
Fadenstärke 1.65mm
Ladezeit Ca. 3-5 Stunde
Akku 1.3Ah li-on
Gewicht 2.4kg
LÄRMPEGEL UND VIBRATIONEN
Gewichteter Schalldruck 77dB(A)
Gewichtete Schallleistung 94dB(A)
KpA & KwA 3.0dB(A)
Tragen Sie bei einem Schalldruck über 80dB (A) einen Gehörschutz.
Typischer gewichteter Vibrationswert 4.5m/s²
Unsicherheit K 1.5m/s²
WARNUNG: DerVibrationsemissionswert während des tatsächlichen Gebrauchs des
Elektrowerkzeugs kann vom angegebenen Wert abweichen, je nachdem, wie dasWerkzeug
gemäß folgender Beispiele und anderweitiger Verwendungsmöglichkeiten eingesetzt wird:
DasWerkzeug ist in gutem Zustand und gut gepflegt
Verwendung des richtigen Zubehörs für das Werkzeug und Gewährleistung seiner Schärfe und
seines guten Zustands.
Die Festigkeit der Handgriffe und ob Antivibrationszubehör verwendet wird.
Und ob das verwendete Werkzeug dem Design und diesen Anweisungen entsprechend
verwendet wird.
Wird dieses Werkzeug nicht anemessen gehandhabt, kann es ein Hand-Arm-
Vibrationssyndrom erzeugen
WARNUNG: Um genau zu sein, sollte ein Abschätzung des Belastungsgrades aller
Arbeitsabschnitte während tatsächlicher Verwendung berücksichtigt werden, z.B. die Zeiten,
wenn das Werkzeug ausgeschaltet ist, und wenn es sich im Leerlauf befindet und eigentlich nicht
eingesetzt wird. Auf diese Weise kann der Belastungsgrad während der gesamten Arbeitszeit
wesentlich gemindert werden.

2120
Schnurloser Rasentrimmer/Rasenkantentrimmer
D
2120
ZUBEHÖRTEILE
Sicherheitsschutz 1
Ladegerät 1
Akku 1
Zusatzhandgriff 1
Kantenrad 1
Wir empfehlen Ihnen, sämtliche Zubehörteile beim selben Fachhändler zu beziehen, bei dem
Sie auch Ihr Elektrowerkzeug gekauft haben. Verwenden Sie nur hochwertige Zubehörteile von
namhaften Herstellern. Die Güteklasse muss entsprechend der Anwendung gewählt werden.
Weitere Informationen finden Sie auf der Verpackung der Zubehörteile. Auch Ihr Fachhändler
berät Sie gerne.
Minimieren Sie Ihr Risiko, dem Sie bei Vibrationen ausgesetzt sind.
Pflegen Sie dieses Werkzeug diesen Anweisungen entsprechend und achten Sie auf eine gute
Einfettung (wo erforderlich).
Bei regelmäßiger Verwendung dieses Werkzeugs sollten Sie in Antivibrationszubehör investieren.
Vermeiden Sie den Einsatz von Werkzeugen beiTemperaturen von 10ºC oder darunter.
Machen Sie einen Arbeitsplan, um die Verwendung von hochvibrierenden Werkzeugen auf
mehrereTage zu verteilen.
