WPG MRT4 Series User manual

Rev 3.1/9-22 #35202AFT1
INSTRUCTIONS
MANUAL 908 W. Main • P.O. Box 368
Laurel, MT USA 59044
800-548-7341 (phone)
406-628-8231 (phone)
406-628-8354 (fax)
www.WPG.com
KEEP FOR FUTURE REFERENCE
INTENDED FOR USE BY SKILLED
TECHNICAL PROFESSIONALS • READ AND
UNDERSTAND BEFORE INSTALLING AND USING
Stock number: 95723
MRT4 ADAPTABLE-LENGTH LIFT BAR

#35202AFT Rev 3.1/9-222

Rev 3.1/9-22 #35202AFT1
SPECIFICATIONS .....................................................................................2
INSTALLATION ........................................................................................3
TOINSTALL THE ADAPTABLE-LENGTH LIFT BAR ..................................................3
ASSEMBLY..............................................................................................4
TOSELECT THE APPROPRIATE CONFIGURATION ..................................................4
TOSET UPTHE SHORT CONFIGURATION...........................................................5
TOSET UPTHE STANDARD CONFIGURATION .....................................................6
REPLACEMENT PARTS.............................................................................7
LIMITED WARRANTY ..............................................................................8
TOOBTAIN REPAIRS OR WARRANTY SERVICE.....................................................8
TABLE OF CONTENTS

Product
Description
This lift bar is designed for applications requiring minimal clearance between the lifter and the hoisting
equipment, such as installations under eaves, gables or overhangs.
Stock Number 95723
Maximum
Load Capacity 700 lbs [320 kg]
Weight
Increase
10 lbs [5 kg]
Note: Make sure to add the weight of all options to the Lifter Weight when you are selecting appropriate
hoisting equipment (see ASSEMBLY in lifter's OPERATING INSTRUCTIONS).
Overhead Clearance
Reduction 10½" [25 cm] with short configuration*
#35202AFT Rev 3.1/9-222
* To view lift-bar configurations, see illustrations below and “TOSELECT THE APPROPRIATE CONFIGURATION”.
SPECIFICATIONS

Rev 3.1/9-22 #35202AFT3
INSTALLATION
TOINSTALL THE ADAPTABLE-LENGTH LIFT BAR

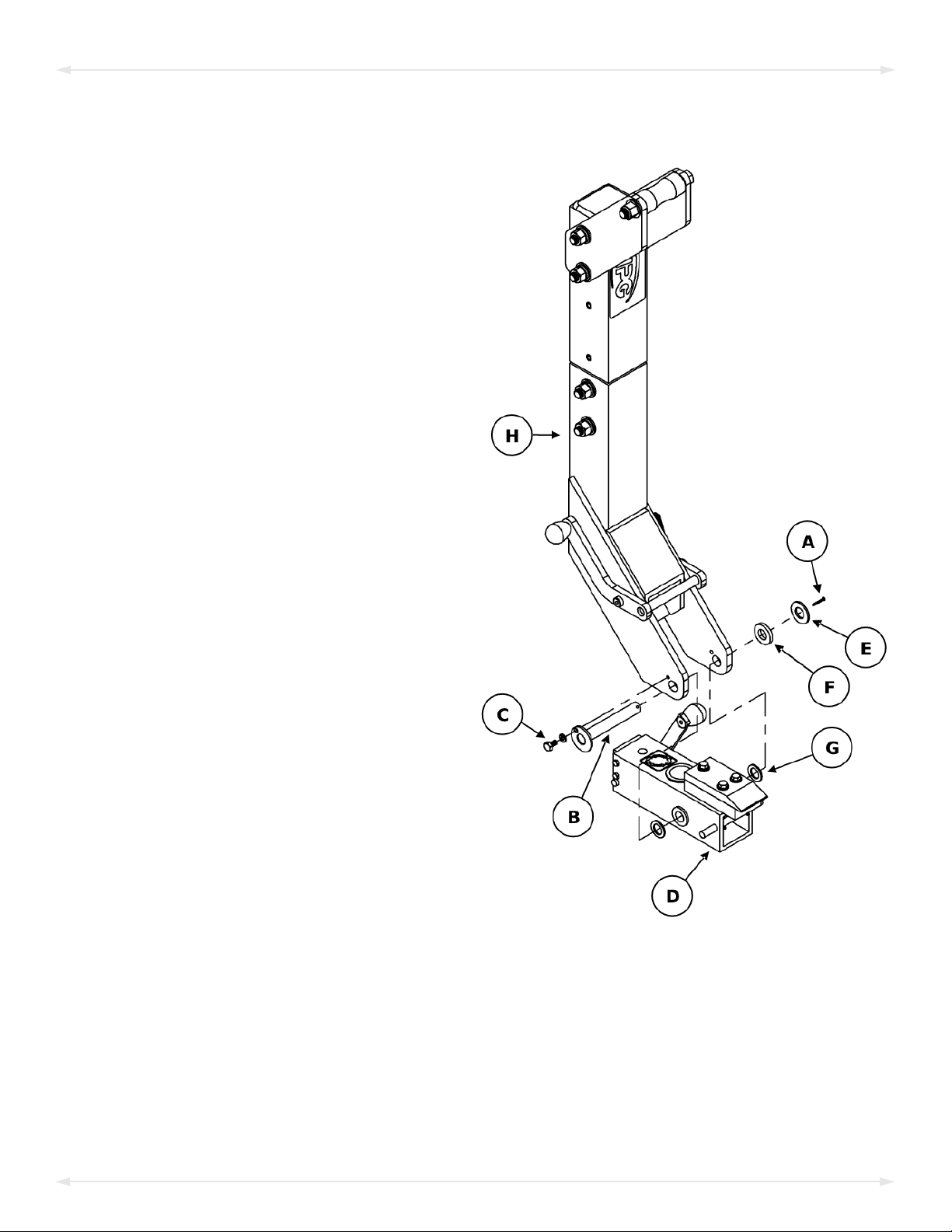

1) Remove the original lift bar from the
vacuum lifter:
1.1) Remove the cotter pin (A) from the
end of the tilt pin (B).
1.2) Remove the hex head bolt (C) and
its washer from the opposite end.
This will enable you to slide the tilt
pin out from the center section (D).
1.3) Remove the tilt pin and the original
lift bar. Make sure to lay out the
outer flat washer (E), the foam
washer (F) and the machine
bushings (G) in the appropriate
order for installing the new lift bar.
2) Install the Adaptable-Length Lift Bar (H):
2.1) Slide the new lift bar into position
as shown in the illustration.
2.2) Install the tilt pin (B) and its
associated hardware in the same
order as originally installed. In
particular, the machine bushings
(G) must go inside of the plates of
the Adaptable-Length Lift Bar.
Make sure that the hex head bolt
(C)and a new cotter pin hold the
tilt pin (B) securely in place.
Note: Whenever necessary,clean the hardware and replace the foam washer (#54214).
Additionally, replace the cotter pin (#13200) whenever it is removed, as it is only intended
for one-time use (see “REPLACEMENT PARTS”).

#35202AFT Rev 3.1/9-224
ASSEMBLY
TOSELECT THE APPROPRIATE CONFIGURATION
Before suspending the vacuum lifter from hoisting equipment as directed in the “ASSEMBLY”
section of the lifter’s OPERATING INSTRUCTIONS, assemble the Adaptable-Length Lift Bar in the
appropriate configuration for the intended use:
•
1A
1B
For normal
applications
(see
“OPERATION:
BEFORE USING THE
LIFTER” in lifter’s
OPERATING
INSTRUCTIONS),
use the
standard
configuration
(fig. 1A).
• For applications
involving
minimal
overhead
clearance, use
the short
configuration
(fig. 1B).
Note: Either shortening or lengthening the Adaptable-Length Lift Bar affects the hang angle of
the lifter and the load. The operator should anticipate and compensate for this change.

Rev 3.1/9-22 #35202AFT5
TOSET UPTHE SHORT CONFIGURATION
1)
1A
Disconnect the lift point assembly from the upper lift
bar segment:
1.1) Remove the 4¾" hex head bolts and associated
hardware (items A in fig. 1A) that secure the
assembly on the segment.
1.2) Remove the assembly from the segment.
2) Remove the 4" hex head bolts and associated
hardware (items B in fig. 1A) that secure the 2 lift bar
segments. Then disconnect the segments.
Note: Store the upper lift bar segment, 4" hex head
bolts and associated hardware for later use.
3)
3A
Connect the assembly to the lower lift bar segment:
3.1) Align the holes of the assembly with the
corresponding holes at the top of the segment.
Make sure the assembly is oriented as shown in
fig. 3A.
Do not reverse orientation of lift point
assembly when reconfiguring lift bar.
3.2) Use the removed 4¾" hex head bolts and
associated hardware to tightly secure the
assembly on the segment.
ASSEMBLY

#35202AFT Rev 3.1/9-226
TOSET UPTHE STANDARD CONFIGURATION
1) Disconnect the lift point assembly from the lower lift bar segment:
1.1) Remove the 4¾" hex head bolts and associated hardware that secure the assembly
to the segment.
1.2) Remove the assembly from the segment.
2) Connect the upper and lower lift bar segments. Use the 4" hex head bolts and associated
hardware to tightly secure the segments.
3)
3A
Connect the assembly to the upper lift bar segment:
3.1) Align the holes of the assembly with the
corresponding holes at the top of the segment.
Make sure the assembly is oriented as shown in
fig. 3A.
Do not reverse orientation of lift point
assembly when reconfiguring lift bar.
3.2) Use the removed 4¾" hex head bolts and
associated hardware to tightly secure the
assembly on the segment.
ASSEMBLY

Stock No. Description Qty.
54214 Foam Washer 1
49180 End Plug 1
13200 Cotter Pin – 3/32" x 1" 1
12826 1/2" SAE Flat Washer 10
12760 1/2" Split Lock Washer 4
11124 1/2-13 Hex Nut 4
10859 1/2-13 x 4-3/4" Hex Head Bolt 3
10854 1/2-13 x 4" Hex Head Bolt 2
Rev 3.1/9-22 #35202AFT7
SERVICE ONLY WITH IDENTICAL REPLACEMENT PARTS,
AVAILABLE AT WPG.COM OR THROUGH AN AUTHORIZED WPG DEALER
REPLACEMENT PARTS

#35202AFT Rev 3.1/9-228
LIMITED WARRANTY
Wood's Powr-Grip®(WPG) products are carefully constructed, thoroughly inspected at various
stages of production, and individually tested. They are warranted to be free from defects in
workmanship and materials for a period of one year from the date of purchase.
If a problem develops during the warranty period, follow the instructions below to obtain
warranty service. If inspection shows that the problem is due to defective workmanship or
materials, WPG will repair the product without charge.
Warranty does not apply when ...
• modifications have been made to the product after leaving the factory
• rubber portions have been cut or scratched during use;
• repairs are required due to abnormal wear and tear, and/or;
• the product has been damaged, misused or neglected.
If a problem is not covered under warranty, WPG will notify the customer of costs prior to
repair. If the customer agrees to pay all repair costs and to receive the repaired product on a
C.O.D. basis, then WPG will proceed with repairs.
TOOBTAIN REPAIRS OR WARRANTY SERVICE
For purchases in North America:
Contact the WPG Technical Service Department. When factory service is required, ship the
complete product – prepaid – along with your name, address and phone number to the street
address listed at the bottom of this page. WPG may be reached by phone or fax numbers listed
below.
For purchases in all other localities:
Contact your dealer or the WPG Technical Service Department for assistance. WPG may be
reached by phone or fax numbers listed below.
