x-sense XS03 User manual

F.1.05.XS0305
Photoelectric Somke Alarm
User Manual
Model: XS03
X-Sense Innovations Co., Ltd.
Email: [email protected]

01
This user manual contains important information regarding the operation of your
X-Sense smoke alarm. Ensure you read this user manual fully before installing and
operating the alarm. If you are installing this smoke alarm for use by others, you
must leave this manual (or a copy of it) with the end user.
Introduction
Thank you for purchasing our smoke alarm. This smoke alarm conforms with the
UL 217 standard and is designed to detect smoke. Our products are constantly
being improved and expanded.
Visual and Audible Alerts
During an emergency, the unit will alarm at 85 dB within a distance of 3 meters,
and a red LED indicator will flash in sync with the alarm tone.
Battery Operated
A long-life lithium battery sealed inside the alarm ensures a 10-year lifetime in
standby condition.
Silence Mode
Silence your smoke alarm by momentarily pressing the test/silence button when
non-emergency smoke (e.g. steam) causes nuisance alarms. The red indicator
flashes every 5 seconds to remind you that the smoke alarm has been silenced.
Press the test/silence button to exit the silence mode or wait 9 minutes for the
alarm to automatically exit the silence mode.

02 03

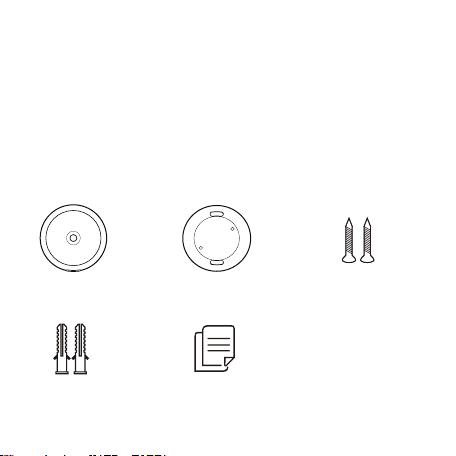

1 × Alarm Unit 1 × Mounting Bracket 2 × Screws
2 × Anchor Plugs 1 × User Manual
Safety Information
IMPORTANT
1. DANGERS, WARNINGS, AND CAUTIONS ALERT YOU TO IMPORTANT
OPERATING INSTRUCTIONS OR TO POTENTIALLY HAZARDOUS SITUATIONS.
PAY SPECIAL ATTENTION TO THESE SITUATIONS.
2. THIS ALARM IS NOT INTENDED TO ALERT HEARING IMPAIRED INDIVIDUALS.
THE USE OF ALCOHOL OR DRUGS MAY ALSO IMPAIR ONE’S ABILITY TO HEAR
THE SMOKE ALARM.
3. FIRES IN CHIMNEYS, WALLS, ROOFS, DIFFERENT LEVELS OR BEHIND
CLOSED DOORS MIGHT NOT BE DETECTED.
4. THIS DEVICE DOES NOT DETECT FLAMES, HEAT, CARBON MONOXIDE OR
OTHER HAZARDOUS GASES.
WARNING
1. NEVER IGNORE ANY ALARM. FAILURE TO RESPOND CAN RESULT IN SERIOUS
INJURY OR DEATH.
2. THE SILENCE FEATURE IS ONLY FOR YOUR CONVENIENCE AND WILL NOT
CORRECT A PROBLEM. ALWAYS CHECK YOUR HOME FOR A POTENTIAL
PROBLEM AFTER ANY ALARM. FAILURE TO DO SO CAN RESULT IN INJURY
OR DEATH.
3. TEST THIS SMOKE ALARM ONCE A WEEK. IF THE ALARM EVER FAILS TO TEST
CORRECTLY, REPLACE IT IMMEDIATELY! IF THE ALARM CANNOT WORK PROPERLY,
IT WILL NOT ALERT YOU TO A PROBLEM.
Low Battery & Malfunction Warning
This alarm provides a full audible-visual warning when the battery is low or if there
is any malfunction.
The alarm beeps once and the red LED indicator flashes every 60 seconds when
the battery is low.
The alarm beeps twice and the red LED indicator flashes every 40 seconds when
the alarm is in malfunction.
Package Contents

02 03
1 × Alarm Unit 1 × Mounting Bracket 2 × Screws
2 × Anchor Plugs 1 × User Manual
Safety Information
IMPORTANT
1. DANGERS, WARNINGS, AND CAUTIONS ALERT YOU TO IMPORTANT
OPERATING INSTRUCTIONS OR TO POTENTIALLY HAZARDOUS SITUATIONS.
PAY SPECIAL ATTENTION TO THESE SITUATIONS.
2. THIS ALARM IS NOT INTENDED TO ALERT HEARING IMPAIRED INDIVIDUALS.
THE USE OF ALCOHOL OR DRUGS MAY ALSO IMPAIR ONE’S ABILITY TO HEAR
THE SMOKE ALARM.
3. FIRES IN CHIMNEYS, WALLS, ROOFS, DIFFERENT LEVELS OR BEHIND
CLOSED DOORS MIGHT NOT BE DETECTED.
4. THIS DEVICE DOES NOT DETECT FLAMES, HEAT, CARBON MONOXIDE OR
OTHER HAZARDOUS GASES.
WARNING
1. NEVER IGNORE ANY ALARM. FAILURE TO RESPOND CAN RESULT IN SERIOUS
INJURY OR DEATH.
2. THE SILENCE FEATURE IS ONLY FOR YOUR CONVENIENCE AND WILL NOT
CORRECT A PROBLEM. ALWAYS CHECK YOUR HOME FOR A POTENTIAL
PROBLEM AFTER ANY ALARM. FAILURE TO DO SO CAN RESULT IN INJURY
OR DEATH.
3. TEST THIS SMOKE ALARM ONCE A WEEK. IF THE ALARM EVER FAILS TO TEST
CORRECTLY, REPLACE IT IMMEDIATELY! IF THE ALARM CANNOT WORK PROPERLY,
IT WILL NOT ALERT YOU TO A PROBLEM.
Low Battery & Malfunction Warning
This alarm provides a full audible-visual warning when the battery is low or if there
is any malfunction.
The alarm beeps once and the red LED indicator flashes every 60 seconds when
the battery is low.
The alarm beeps twice and the red LED indicator flashes every 40 seconds when
the alarm is in malfunction.
Package Contents

04 05

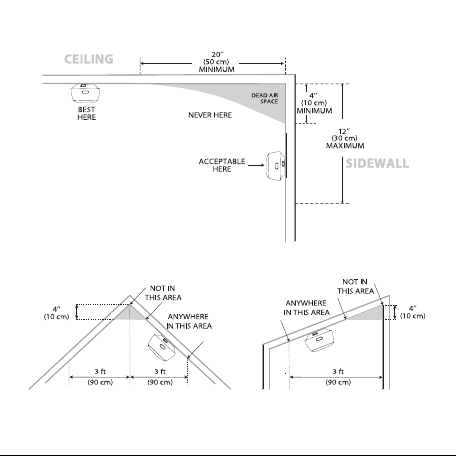

Installation Positioning NOTE: If a smoke alarm is installed in a kitchen, ensure it has an accessible silence button,
and install it as far away from the stove and sink as possible to avoid false alarms.

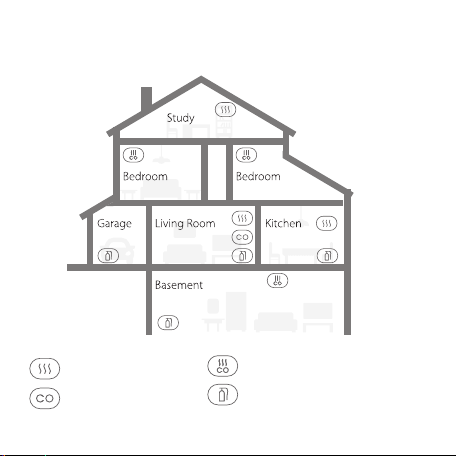

1. Prioritize the installation of a smoke alarm in the bedroom and walkways, and
make sure you can hear the alarm from all sleeping areas. In a home with several
bedrooms, install an alarm in every bedroom. If you install only one smoke alarm
in your home, install the alarm near to all bedrooms where possible, and not in a
basement or furnace room.
2. Install an alarm above the stairway and on every floor of the house.
3. Smoke, heat and anything burning will spread horizontally after rising to
the ceiling, so install the alarm in the middle of the ceiling where possible.
Ensure that the alarm is installed at the minimum distance away from corner.
4. If an alarm cannot be installed in the middle of a ceiling, install it at a distance of
20 inches (50 cm) away from the corners of the room.
5. If an alarm is installed onto a wall, a distance of 4-12 inches (10-30 cm) should be
kept below the ceiling.
6. If the length of a room or hall is beyond 30 feet (900 cm), several alarms should
be installed in the same room.
7. When the wall or ceiling is angled, the alarm needs to be installed within 3 feet
(90 cm) of the highest wall or ceiling point (measured horizontally) in the room.
Smoke Alarms
Carbon Monoxide Alarms
Smoke & Carbon Monoxide Alarms
Fire Extinguishers

04 05
Installation Positioning NOTE: If a smoke alarm is installed in a kitchen, ensure it has an accessible silence button,
and install it as far away from the stove and sink as possible to avoid false alarms.
1. Prioritize the installation of a smoke alarm in the bedroom and walkways, and
make sure you can hear the alarm from all sleeping areas. In a home with several
bedrooms, install an alarm in every bedroom. If you install only one smoke alarm
in your home, install the alarm near to all bedrooms where possible, and not in a
basement or furnace room.
2. Install an alarm above the stairway and on every floor of the house.
3. Smoke, heat and anything burning will spread horizontally after rising to
the ceiling, so install the alarm in the middle of the ceiling where possible.
Ensure that the alarm is installed at the minimum distance away from corner.
4. If an alarm cannot be installed in the middle of a ceiling, install it at a distance of
20 inches (50 cm) away from the corners of the room.
5. If an alarm is installed onto a wall, a distance of 4-12 inches (10-30 cm) should be
kept below the ceiling.
6. If the length of a room or hall is beyond 30 feet (900 cm), several alarms should
be installed in the same room.
7. When the wall or ceiling is angled, the alarm needs to be installed within 3 feet
(90 cm) of the highest wall or ceiling point (measured horizontally) in the room.
Smoke Alarms
Carbon Monoxide Alarms
Smoke & Carbon Monoxide Alarms
Fire Extinguishers

06 07
WARNING
1. THIS ALARM SHOULD BE INSTALLED BY A COMPETENT PERSON.
2. ALARMS SHOULD NOT BE USED AS A SUBSTITUTE FOR PROPER INSTALLATION,
USE AND MAINTENANCE OF FUEL BURNING APPLIANCES INCLUDING
APPROPRIATE VENTILATION AND EXHAUST SYSTEMS.
3. TO PREVENT INJURY, THIS DEVICE SHOULD BE SECURELY ATTACHED TO THE
CEILING OR WALL IN ACCORDANCE WITH THE INSTALLATION INSTRUCTIONS.
4. BATTERIES SHOULD NOT BE EXPOSED TO EXCESSIVE HEAT SUCH AS DIRECT
SUNLIGHT, FIRE, ETC.

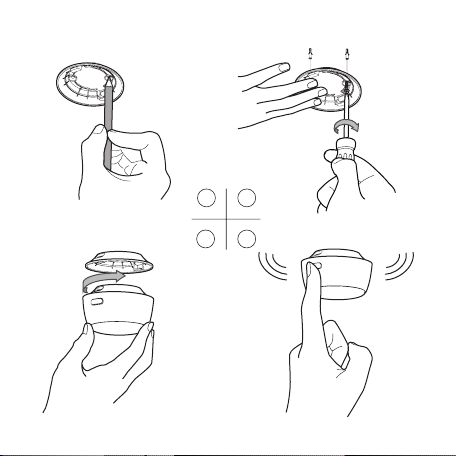

Installation Method
1. Use the mounting bracket to mark the screw holes on the ceiling or the wall.
2. Drill holes at the 2 marks using an appropriately-sized drill bit. Insert the anchor
plugs and screw the mounting bracket using the screws provided.
3. Attach the alarm to the mounting bracket and turn clockwise to lock the alarm.
4. Test the smoke alarm according to the steps in the section below.

06 07
WARNING
1. THIS ALARM SHOULD BE INSTALLED BY A COMPETENT PERSON.
2. ALARMS SHOULD NOT BE USED AS A SUBSTITUTE FOR PROPER INSTALLATION,
USE AND MAINTENANCE OF FUEL BURNING APPLIANCES INCLUDING
APPROPRIATE VENTILATION AND EXHAUST SYSTEMS.
3. TO PREVENT INJURY, THIS DEVICE SHOULD BE SECURELY ATTACHED TO THE
CEILING OR WALL IN ACCORDANCE WITH THE INSTALLATION INSTRUCTIONS.
4. BATTERIES SHOULD NOT BE EXPOSED TO EXCESSIVE HEAT SUCH AS DIRECT
SUNLIGHT, FIRE, ETC.
Installation Method
1. Use the mounting bracket to mark the screw holes on the ceiling or the wall.
2. Drill holes at the 2 marks using an appropriately-sized drill bit. Insert the anchor
plugs and screw the mounting bracket using the screws provided.
3. Attach the alarm to the mounting bracket and turn clockwise to lock the alarm.
4. Test the smoke alarm according to the steps in the section below.

08 09
Alarm Test
The alarm must be properly attached to the mounting bracket before it can be
tested.
1. Press the test button.
2. The unit beeps 3 times.
3. The red LED will flash once every second during the audible signal.
4. After testing, the alarm will automatically enter standby mode.
NOTE: The test function accurately tests the alarm’s smoke sensing circuit without the
need to test with smoke. If your smoke alarm fails to emit an audible test signal, refer to the
troubleshooting guide at the end of this manual immediately. Never use an open flame to
test this device.
LED Indicator and Audible Alarm
Status LED indicator Audible alarm
Standby Mode Red LED flashes
once every 60 seconds. None
Test Mode Red LED flashes
once every second. 3 short quick beeps
Alarm Mode Red LED flashes
once every second. Short quick beeps
Silence Mode Red LED flashes
once every 5 seconds. None
Low Battery Red LED flashes once
every 60 seconds. 1 beep every 60 seconds
01 02
03 04

08 09
Alarm Test
The alarm must be properly attached to the mounting bracket before it can be
tested.
1. Press the test button.
2. The unit beeps 3 times.
3. The red LED will flash once every second during the audible signal.
4. After testing, the alarm will automatically enter standby mode.
NOTE: The test function accurately tests the alarm’s smoke sensing circuit without the
need to test with smoke. If your smoke alarm fails to emit an audible test signal, refer to the
troubleshooting guide at the end of this manual immediately. Never use an open flame to
test this device.
LED Indicator and Audible Alarm
Status LED indicator Audible alarm
Standby Mode Red LED flashes
once every 60 seconds. None
Test Mode Red LED flashes
once every second. 3 short quick beeps
Alarm Mode Red LED flashes
once every second. Short quick beeps
Silence Mode Red LED flashes
once every 5 seconds. None
Low Battery Red LED flashes once
every 60 seconds. 1 beep every 60 seconds
01 02
03 04

10 11
Malfunction Red LED flashes twice
every 40 seconds.
2 beeps every 40 seconds
Technical Specications
Power Supply 10-year sealed lithium battery (non-replaceable)
Sensor Type Photoelectric
Safety Standard UL 217
Coverage Area 215–430 sq. ft (20–40 m²)
Operating Temperature 40–100°F (4.4–37.8°C)
Operating Relative Humidity ≤ 85% (non-condensing)
Alarm Loudness ≥ 85 dB at 10 ft (3 m) @ 3.2 ± 0.3 kHz pulsing
alarm
Silence Duration About 9 minutes
NOTES
1. Battery life is calculated on the current ratings in the standby mode with weekly
testings. If its operation mode changes to an alarming condition, the battery life will be
decreased accordingly.
2. The smoke alarm functions between 40 and 100°F (4.4 and 37.8°C). Prolonged exposure
to temperatures outside of this range can reduce battery life and affect accuracy. We do
not recommend operating the device outside of this range.
Maintenance
To keep your smoke alarm in good working order, follow these simple steps:
1. Verify the unit’s alarm sound and indicator are working properly by testing the
unit once a week.
2. As a minimum your smoke alarm should be cleaned once every 3 months:
Remove the unit from the ceiling and clean the alarm cover and vents with your
vacuum cleaner fitted with the soft brush attachment to remove dust and dirt.
3. Never use detergents or other solvents to clean the unit.
4. Avoid spraying air fresheners, hair spray or other aerosols near the alarm.
5. Do not paint the unit. Paint will seal the vents and interfere with the sensor’s
ability to detect fire.
6. Never attempt to disassemble the unit or clean inside. Doing so will void your
warranty.
7. When removed, place the smoke alarm back in its proper location as soon as
possible, to assure continuous protection from fire.
8. When household cleaning supplies or similar contaminants are used, the area
should be ventilated.
Troubleshooting
PROBLEM SOLUTION
Your smoke alarm does not sound
during testing.
• Please check whether the alarm is properly
attached to the mounting bracket.
• Make sure you push the test button firmly.

10 11
Malfunction Red LED flashes twice
every 40 seconds.
2 beeps every 40 seconds
Technical Specications
Power Supply 10-year sealed lithium battery (non-replaceable)
Sensor Type Photoelectric
Safety Standard UL 217
Coverage Area 215–430 sq. ft (20–40 m²)
Operating Temperature 40–100°F (4.4–37.8°C)
Operating Relative Humidity ≤ 85% (non-condensing)
Alarm Loudness ≥ 85 dB at 10 ft (3 m) @ 3.2 ± 0.3 kHz pulsing
alarm
Silence Duration About 9 minutes
NOTES
1. Battery life is calculated on the current ratings in the standby mode with weekly
testings. If its operation mode changes to an alarming condition, the battery life will be
decreased accordingly.
2. The smoke alarm functions between 40 and 100°F (4.4 and 37.8°C). Prolonged exposure
to temperatures outside of this range can reduce battery life and affect accuracy. We do
not recommend operating the device outside of this range.
Maintenance
To keep your smoke alarm in good working order, follow these simple steps:
1. Verify the unit’s alarm sound and indicator are working properly by testing the
unit once a week.
2. As a minimum your smoke alarm should be cleaned once every 3 months:
Remove the unit from the ceiling and clean the alarm cover and vents with your
vacuum cleaner fitted with the soft brush attachment to remove dust and dirt.
3. Never use detergents or other solvents to clean the unit.
4. Avoid spraying air fresheners, hair spray or other aerosols near the alarm.
5. Do not paint the unit. Paint will seal the vents and interfere with the sensor’s
ability to detect fire.
6. Never attempt to disassemble the unit or clean inside. Doing so will void your
warranty.
7. When removed, place the smoke alarm back in its proper location as soon as
possible, to assure continuous protection from fire.
8. When household cleaning supplies or similar contaminants are used, the area
should be ventilated.
Troubleshooting
PROBLEM SOLUTION
Your smoke alarm does not sound
during testing.
• Please check whether the alarm is properly
attached to the mounting bracket.
• Make sure you push the test button firmly.

12
False alarms triggered
intermittently or when residents
are cooking, taking showers, etc.
• Check the location of your smoke alarm
(see“Installation Positioning”).
• Clean the smoke alarm (see “Maintenance”).
Red LED flashes and the alarm
sounds 1 beep every 60 seconds.
The battery is low. Replace the device
immediately, as the battery is sealed inside
the device and can’t be replaced.
Red LED flashes and the alarm
sounds 2 beeps every 40 seconds.
The alarm is malfunctioning. Please clean your
smoke alarm and see if it is working normally.
If not, replace the device immediately.
Environmental Protection
Waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with Local
Authority or retailer for recycling advice.
Manufacturer and Service Information
X-Sense Innovations Co., Ltd.
Address: B4-503, Kexing Science Park, 15 Keyuan Road, Shenzhen, 518057, CHINA
Email: [email protected]
